Whitehall WH2142-W-3 Instruction manual

1
Drawing # 6900-233-001 05/01/2023
Important: Some options may slightly alter installation. To ensure proper installation review the manual
thoroughly and verify rough-ins before beginning any work. File this manual with the owner or maintenance
personnel upon completion of installation.
MGI Engineered Plumbing Products are designed in accord with applicable National Codes and Standards,
which may include UPC, ANSI, and ASSE. Installers should use industry standard practice for details not
covered within Manual. Prior to installation, supply lines must be flushed of all foreign material such as pipe
dope, chips, or solder. Debris or foreign material in water supply may damage valve. An appropriate thread
sealant is recommended on all threaded waste and supply connections to reduce the possibility of leaks.
Toilet requires a minimum of 25 PSI flow pressure and uses a minimum water consuption of 1.28 GPF.
WH2142 Toilet fixtures are supported on-floor and are not intended for use with In-Wall Support Carriers.
Depending on wall construction, rear wall may require backing for mounting fixture to wall. Installer provided
wall anchors and wall anchoring hardware must be appropriate for wall construction.
ANSI, UFAS or ADA compliance is subject to the interpretation and requirements of the local code authority
and is the responsibility of the installer for verification.
TOILET WASTE CONNECTIONS
Units with Wall Waste Outlets are provided using a 5-1/2” Diameter Recessed Gasket Flange and Floor
Waste units will receive a 7-1/2” Diameter Recessed Gasket Flange. The Stainless Steel Gasket Flange is
welded in place to the Toilet P-trap, and is fabricated to be flush with the back of the unit (wall outlet) or flush
with the bottom of the fixture (floor outlet). The depth of the Recessed Gasket Flange is 1/2” deep.
The Recessed Gasket Flange is intended for installation and assembly with a common 3” or 4” Toilet Closet
Flange Fitting, Yoke Adapter or similar. The Recessed Gasket Flange provided includes (2) 5/16” UNC
Threaded Captive Nuts, which are on 6” centers. These tapings allow for assembly of Closet Bolts and may
assist to provide for the Squeeze of the Gasket to seal the waste connection. Certain installation conditions
may not require using the tapings. Choice of the Gasket material is up to the installer however, it is common
for Neoprene or Felt Gaskets to be used with Wall Waste Toilet units.
INSTALLATION, OPERATIONS & MAINTENANCE MANUAL
TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER:
1.800.591.9360
Technical Assistance E-mail: [email protected]
Please refer to the Link or QR code provided.
For Cleaning & Care Guide:
https://www.whitehallmfg.com/uploads/fileLibrary/9900-008-W01.pdf
®
Best-Care Toilet
WH2142-T-EGE10 (SHOWN)
WH2142-W-EGE10 (SHOWN)
WH2142-W-3 / WH2142ADA-W-3
Wall Supply, Floor Waste Toilet
WH2142-T-3 / WH2142ADA-T-3
Top Supply, Floor Waste Toilet
®
WHITEHALL MANUFACTURING • P.O. BOX 3527 • City of Industry, CA 91744-0527 U.S.A.
Phone [phone] • [phone] • Fax [phone] • Web: www.whitehallmfg.com

2
Drawing # 6900-233-001 05/01/2023
®
WHITEHALL MANUFACTURING • P.O. BOX 3527 • City of Industry, CA 91744-0527 U.S.A.
Phone [phone] • [phone] • Fax [phone] • Web: www.whitehallmfg.com
INSTALLATION, OPERATIONS & MAINTENANCE MANUAL
WH2142-W-3
TECHNICAL DIMENSIONS
WH2142ADA-W-3 WH2142ADA-T-3
[743]
NOTE: All dimensions are in Inches (mm)
1
2
4
7
2
7
4
1
3
7
1
3
7
WALL SUPPLY TOP SUPPLY
WH2142-T-3
Top View Top View
Side View
Side View
Side View
Side View
1
[1] Toilet
[2] 1-1/2” NPT Female Wall Supply Flush Inlet Connection
[3] 1-1/2” NPT Male Top Supply Flush Inlet Connection
[4] Ligature Resistant Toilet Seat Cover
[5] Access Panel with Vandal Resistant Fasteners
[6] Wall Anchors: Provided by others to suit wall
construction
[7] Flush Valve Shown for reference only and is not
included. Refer to optional Flush Valve Access Panel
and Cover for additional details
5
5
6
6
153
8"
[391]
[467]
183
8"
23
4"
[70]
291
4"
[743]
143
4"
[373]
6
6
143
4"
[373]
291
4"
5
5
153
8"
[391]
[467]
183
8"
23
4"
[70]

3
Drawing # 6900-233-001 05/01/2023
®
WHITEHALL MANUFACTURING • P.O. BOX 3527 • City of Industry, CA 91744-0527 U.S.A.
Phone [phone] • [phone] • Fax [phone] • Web: www.whitehallmfg.com
WH2142-W-3
ROUGH-IN DIMENSIONS
WALL SUPPLY
Front View
2
WH2142ADA-W-3
2
11
3
Ligature Resistant Toilets require specific Flush Valve model to suit application for Supply Type (Concealed / Exposed), Flow Rate and
®
ADA Accessibility (when applicable). Refer to the following WhiteHall Accessories:
- Concealed Flush Valve Access Panel: Model WH2898 and WHD2898 for ADA
- Exposed Flush Valve Cover: WH2802-SLPT and WH2802-SLPT -ADA
3
6"
[152]
103
4"
[273]
13"
[330]
3"
[76]
6"
[152]
103
4"
[273]
16"
6"
[406]
[152]
[1] 7-1/2” Recessed Gasket Flange (Flush with bottom of fixture for connection to Closet Flange)
[2] 1” NPT Female Flush Valve Supply Inlet
[3] 5/8” Dia. Openings provided for Mounting to required Wall Anchors and/or Wall Backing.
Side View
1
Dimension A-
Refer to Specified Floor Waste Model:
Standard and ADA models are offered
either 10” [254], or 12” [305]
dimensions from Finished Wall.
INSTALLATION, OPERATIONS & MAINTENANCE MANUAL
Finished Wall
A

4
Drawing # 6900-233-001 05/01/2023
®
WHITEHALL MANUFACTURING • P.O. BOX 3527 • City of Industry, CA 91744-0527 U.S.A.
Phone [phone] • [phone] • Fax [phone] • Web: www.whitehallmfg.com
ROUGH-IN DIMENSIONS
WH2142ADA-T-3
TOP SUPPLY
Front View
[1] 7-1/2” Recessed Gasket Flange (Flush with bottom of fixture for connection to Closet Flange)
[2] 1” NPT Female Flush Valve Supply Inlet
[3] 5/8” Dia. Openings provided for Mounting to required Wall Anchors and/or Wall Backing.
WH2142-T-3
Ligature Resistant Toilets require specific Flush Valve model to suit application for Supply Type (Concealed / Exposed), Flow Rate and
®
ADA Accessibility (when applicable). Refer to the following WhiteHall Accessories:
- Concealed Flush Valve Access Panel: Model WH2898 and WHD2898 for ADA
- Exposed Flush Valve Cover: WH2802-SLPT and WH2802-SLPT -ADA
Side View
*Flush Valve Supply Inlet dimensions provided are for
reference only. Dimensions shown will coordinate with
Whitehall Manufacturing optional models WH802-SLPT and
WH2802-SLPT-ADA Top Supply Flush Valve covers.
A
Dimension A-
Refer to Specified Floor Waste Model:
Standard and ADA models are offered
either 10” [254], or 12” [305]
dimensions from Finished Wall.
Finished Wall
INSTALLATION, OPERATIONS & MAINTENANCE MANUAL
6"
[152]
103
4"
[273]
3"
[76]
261
2"
[673]
43
4"
[120]
6"
[152]
103
4"
[273]
263
4"
[679]
43
4"
[120]
6"
[152]
2
3
11
2
3
**
1

5
Drawing # 6900-233-001 05/01/2023
®
WHITEHALL MANUFACTURING • P.O. BOX 3527 • City of Industry, CA 91744-0527 U.S.A.
Phone [phone] • [phone] • Fax [phone] • Web: www.whitehallmfg.com

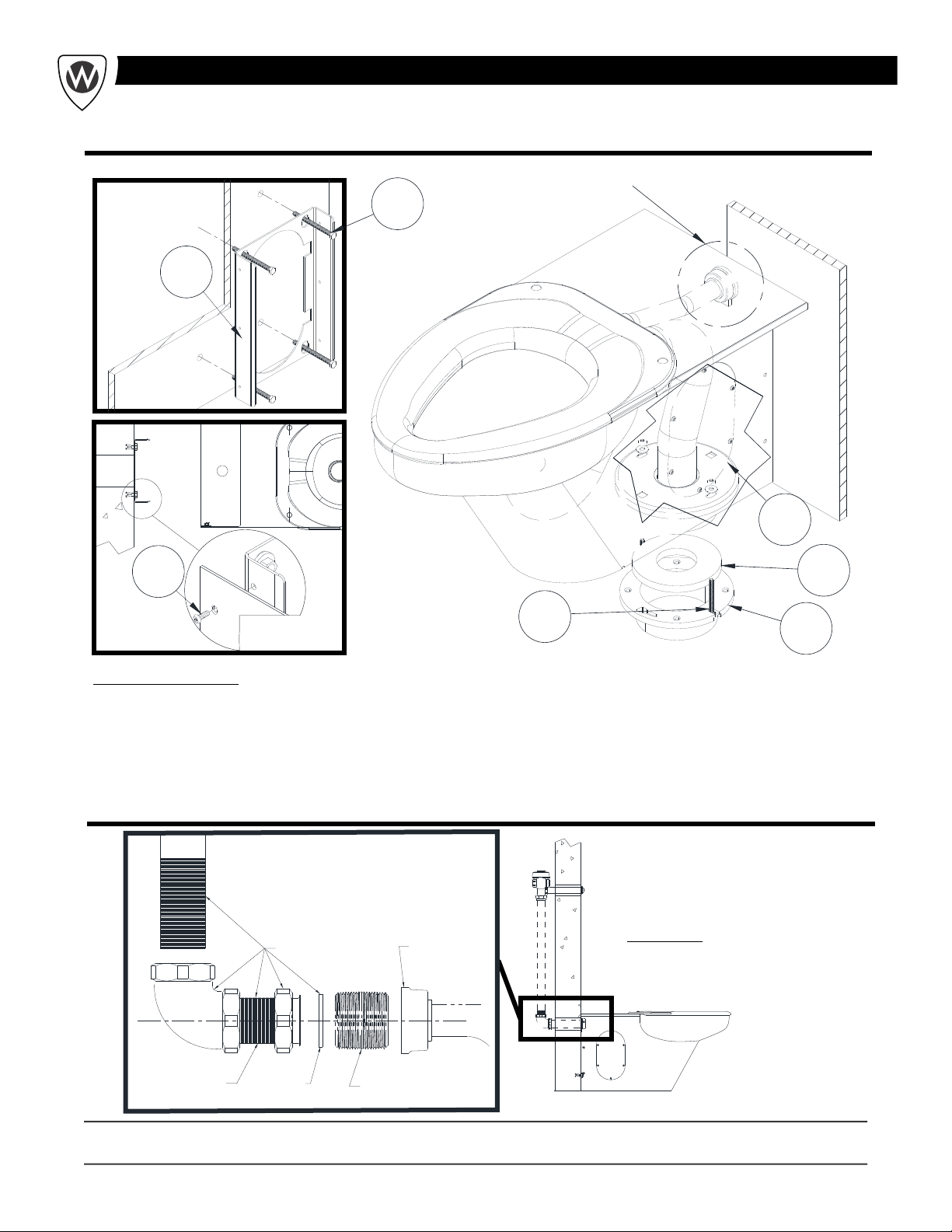

A.
INSTALLATION
A. Position Mounting Channel [1] onto fixture side of Reinforced Wall locating as
indicated. Wall Anchors and Fasteners [2] are by others. See Detail A.
B. Place Toilet up against wall. Attach toilet housing to Mounting Channel [1]
using 1/4-20 Screws [3]. Detail B.
C. Remove Access Panel and Fasteners [4] make up toilet waste connection.
D. Install Flush Valve to fixture as required per manufacture’s recommendations.
[1] Mounting Channel (Provided)
[2] Wall Mounting Hardware (By Others)
[3] 1/4-20 Screws
[4] Access Panel and 1/4”-20 Fasteners
[5] Appropriate Toilet Gasket (By Others)
[6] Closet Flange Connection to Waste
(By Others)
[7] Closet Flange Hardware (By Others)
B.
Detail C
Applies to -W In-Wall
Concealed Flush Valve
models only.
C.
INSTALLATION DETAILS
Top View
1-1\2” NPT
Female
Fixture Inlet
Connection
Provided By Flush
Valve Manufacturer
Scored Tube
(Length May Vary
Cut to Fit)
Gasket Installer Provided
1-1/2” NPT Nipple
(Lengths May Vary)
See Detail C
2
4
5
6
7
1
3
INSTALLATION, OPERATIONS & MAINTENANCE MANUAL

6
Drawing # 6900-233-001 05/01/2023
®
WHITEHALL MANUFACTURING • P.O. BOX 3527 • City of Industry, CA 91744-0527 U.S.A.
Phone [phone] • [phone] • Fax [phone] • Web: www.whitehallmfg.com
INSTALLATION INSTRUCTIONS:
Prior to installing, Verify if the following is Included:
Carriage Bolts [1], Tapered Nuts [2], Front Set Screw [3], and Toilet Seat [4].
A. Partially install Front Set Screw [3] into the Mounting Tab [5] located at the front of the Toilet Seat [4]. Set Screw [3]
should not pass beyond Mounting Tab [5].
B. Position the Toilet Seat [4] onto Toilet, and press down firmly.
C. Fasten the Toilet Seat [4] to the Toilet by using the Carriage Bolts [1] on top of the Toilet Seat [4] and tighten by
installing the Tapered Nuts [2] from the underside of the Toilet rim.
D. With Toilet Seat [4] Fastened, pressed downward on Toilet Seat [4] and tighten the Front Set Screw [3] until it firmly
engages under the Flushing Rim [6].
NOTE: If Toilet Seat has Hole Plugs, remove them prior to installing Toilet.
1/4” -20 UNC
Carriage Bolt
SLOPING FLOORS:
When required for sloping floors, refer to detail to create a level pad
for on-floor Toilet Housing.
IMPORTANT:
Sloping floor detail is provided for reference only and should not be
considered as a recommendation by the fixture manufacturer. Installer
assumes all responsibility to alterations of site conditions and affected
fixture dimensions.
PLASTIC SEAT INSTALLATION
INSTALLATION, OPERATIONS & MAINTENANCE MANUAL
81
8"
[206]
R4"
18"
[457]
1
2
3
4
See Step B.
4
3
5
6
3/32" HEX HEAD
SET SCREW
