Smartech 051210 User manual

ITEM NO .: 051210
Instruction Manual
WWW.SMARTECHRACING.COMWWW.SMARTECHRACING.COM
FEATURES
23CC GASOLINE ENGINE
EQUIPPED WITH ALUMINUM EXHAUST PIPE
HIGH EFFICIENCY SHAFT DRIVE STYLE 2WD SYSTEM
AND INDEPENDENT SUSPENSION
STEEL DIFFERENTIAL BEVEL GEAR
FULL BALL BEARING SYSTEM
SENSITIVE DISK BRAKE SYSTEM
REALISTIC LIGHT SYSTEM (HEAD.TAIL.TURNING.
BRAKE LIGHT INCLUDED)
TECHNICAL DATA
Length
Width
Height
Wheelbase
Tread(Front)
Tread(Rear)
Wheel Diameter
Gear Rate
Weight
Engine
920mm
390mm
200mm
530mm
390mm
395mm
125*65mm
5:1
9Kg
23CC
1/5 SCALE 2WD GAS-POWERED
ON-ROAD CAR
Our company have the right to change
or modify this manual without notice.

Welcome to purchase your SMARTECH RC engine powered model car. Please
read this instruction carefully before you starting any work.
Super glue
Driving a radio controlled car is a fascinating hobby which has to be practiced
with the necessary caution and respect. A radio controlled model car which
has a considerable weight and can reach a very high speed can cause damage
and injuries in cause of uncontrolled driving conditions and the user is liable
for this.
Only faultless assembled model will operate and react in the expected
manner. Never improvise with any not suitable aids but use only the original
spare parts if necessary. Even with a prefabricated model you have to control
all connections and check whether they are screwed tightly.
The servo must be set at the center position before installation.To set at a
neutral position, turn on the transmitter and receiver. Set the trim levers in
the center position and turn off the receiver, and then the transmitter.The
servo will be proper neutral position for installation.
Never start driving before you have made sure the followings:
Batteries for transmitter and receiver have a good potential and not weak.
All operable parts are in good condition and you have tested their
operation.
You have made sure that all screws are tightened.
There is no other RC or similar transmitter nearby which could cause
interference.
The terrain where you want to drive isn’t used for common traffic and is
not claimed by any persons or animals.
You transmitter and receiver is switched on and you have checked all
control operations which can be performed.
In case of any porblems concerning your car please contact your local
hobby shop!
We wish you good luck and a lot of fun driving with your SMARTECH
model car.
After each drive all important parts and connectors should be tested.One
simply loosened screw can be sufficient to be lead you model into a
dangerous situation! Attend to your car in regular periods and exchange
defective or worn parts with original spare parts.
Precaution about your engine RC car Tools needed for assembly
2-channel transmitter system (FM is recommend)
Make sure that you have sufficient insurance coverage in
practicing your hobby.
Battery for
receiver
Engine throttle
servo
Receiver
Receiver
antenna
Switch
Steering
servo
Screwdriver
(big)
Hexagon
wrench
Snips
Needlenose
pliers
Screwdriver
(small)
Hobby knife
Wrech for
wheel nuts
Wrench
Please read the instructions provided with your radio system before using it.
01
Transmitter
Type:301333
Stop
Half forward
Full forward
Battery
cover
Speed control trigger
"AA" battery
or Ni-cd(*8)
Power
switch
Antenna
Steering trimmer
Throttle trimmer
Steering trigger(R)
Steering trigger(L)
Throttle trigger(F)
Throttle trigger(B)
LED of power
Steering control
wheel REV/TH
REV/ST
Left Right
ON
OFF

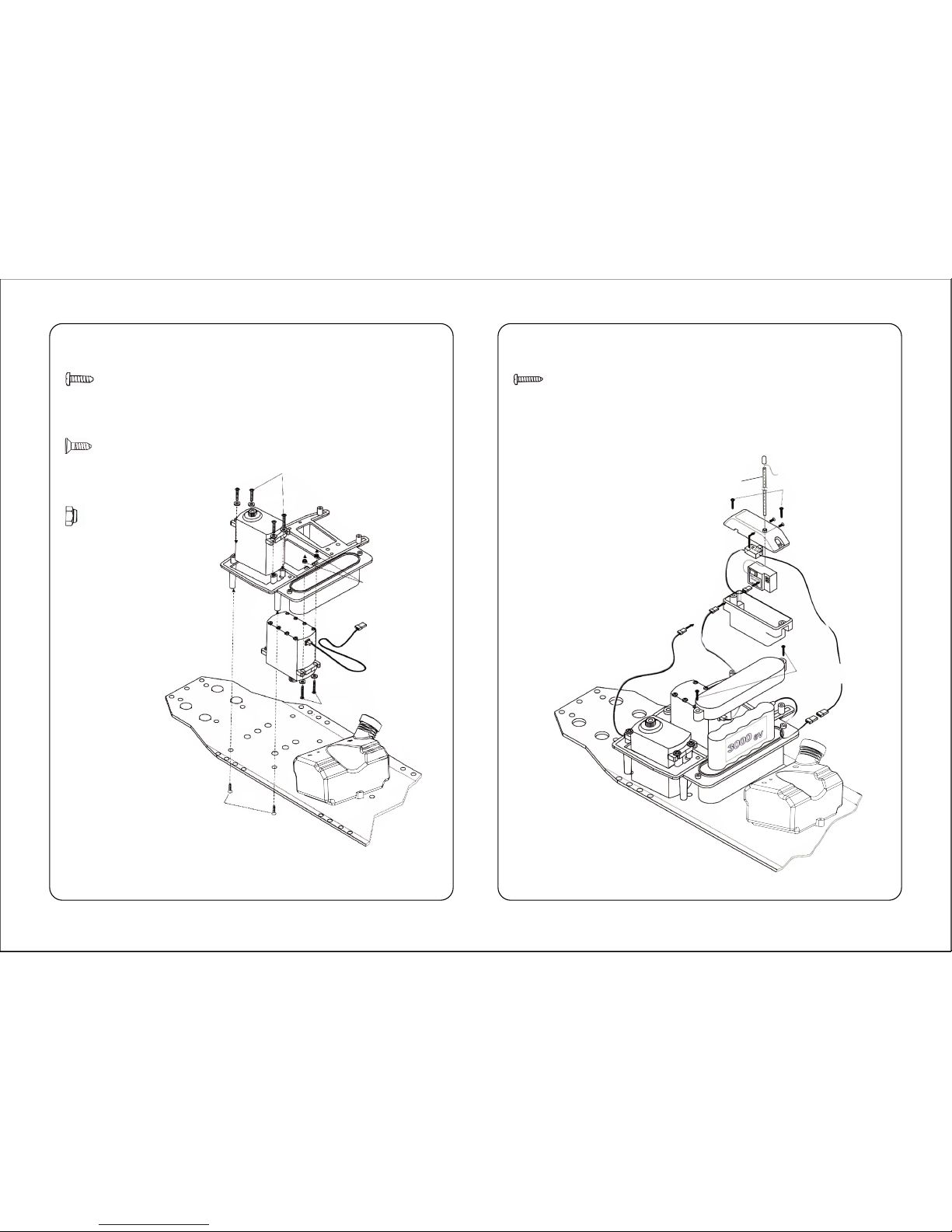

Installing servo for steering and throttle Installing or receiver and battery
050400
Screw M3*15
051068
051083
Self-tap screw
3*12mm x4
Grub self-tap screw
4.2*16mm x4
M3 nylon lock
nut x4
051083
051068
050400
Self-tap screw
3*12mm x4
051083
02
051083
051083
113100
113110

051083 050320 051052 051051 051055
Self-tap screw
M3*12mm x3
Grub screw
M4*16 x1
Inner hexagon
screw M4*20 x4
Inner hexagon
screw M4*25 x1
Screw M3*16 x2
050450 051068 051067 050550 051380
Ball end 6 x4 M3 nylon lock
nut x2
M4 nylon lock
nut x4
Ball end A10 x4 E-ring 5 x1
051051
05017
051052
051052
050550
051068
Throttle lever
Rear wheel brake
051083
050770
051035
051035
051034
Rod
driving rod
050770
050770
051067
051068
051380
051083 051083
050450
050320
Installing the steering Linkage of throttle and brake
03
051068
M3 nylon lock nut x2
050770
Set collar 6*2*5 x5
052083
Self-tap screw
3*12mm x1
051083
Rod driving rod x2
051055

050770
051034
051000 051019 051020
051380
050690
05107
050700
050670
051035
051053
Thread lock
051053
051046
Conical head cap
screw M3*8
Conical head cap
screw M3*8
051054
051015
051041
051077
051070
051036
051040
051029
051039
051013
051014
Thread lock
Motor throttle operation and rear wheel brake Construction of the front wheel brake
04
050770 051045 050690
Set collar 6*2*5 x3 Silicone pipe 4*10 x1 Socket head cap
screw M3*10 x1
051053 051380
Socket head cap
screw M3*20 x2 E-ring 5 x2 051053
Round Head Screw
M3*3 x1
051054
Round Head Screw
M3*20 x2
051064
Flat Head Screw
M3*10 x3
051046
Set Screw
M3*3 x1

051063
051062
051380
051400
050440
050970
050470
050280
050360
050350
050440
051039
050420
050780
051380
050420
050400
051082
051082
Hexagonal tube
screw M4*14 x2
Hexagonal nut M4 x2
Locking socket 5 x3
Inner hexagonal grub
screw M3*3 x3
051046
051062
051063
051063
051016
051017
051046
Attaching the bowden wires Front axle
05
050420 050360 050400 051082 050350
Grub screw
M5*10 x8
Grub screw
M5*5 x4
Grub self-up screw
4.2*16mm x4
Inner hex.p.h.screw
M5*27 x4
Damper shaft x2
051380 051400 050440 050470 051039
E-ring 5 x8 E-ring 7 x1 Ball end B10 x4 Washer 12*8.1*1 x2 Locking ring 18

051059
05076
Round head self-tap
screw 4.2*23mm x6
Set collar 4*8*5 x4
051065 05103 051057 051022 051059
050300 051058 050990 051060 050360
051066 051067 05044 050350 051380
Inner hex.p.h.screw
M5*35mm
Inner hex.p.h.screw
M5*30mm
Inner hex.p.h.screw
M4*25mm x2
Self-tap screw
3*19mm x2
Self-tap screw
4.2*23mm x2
Plain head screw
M4*8mm x4
Self-tap screw
4.2*10mm x2
Self-tap screw
4.2*16mm x5
Grub screw
M5*30mm x2
Grub screw
M5*4mm x4
M5 nylon lock
nut x4
M4 nylon lock
nut x2
Ball end x6 Damper shaft x2 E-ring 5 x8
051059
051022
051058
Washer
12*6*1.5
051065
050350
051380
050360
050280
050560
050570
051380
Grub screw
M5*30mm
051060
050990
Upper damper and body mount Rear axle
06
051330
051320
050490
050300
050270
050990
051016
050240
050760
051059

Attaching the wheel Muffler and fuel tubes
Rear body support
M3 nylon lock
nut x4
Self-tap screw
4.2*23mm x4
Inner hexagonal
screw M3*20 x4
07
051059 051068051053
Grub screw
M5*5 x2
Plain head screw
M4*8 x1
0503005036
050300
051045
051044
051075
M6 nylon lock nut
Washer
12*6.2*1.5
051001
M6 nylon lock
nut x4
Washer
12*6.2*1.5 x4
05106
052003
Self-tap screw
4.2*23mm
051005
051006
051007
Inner hexagonal
screw M3*20mm
M3 nylon
lock nut
050360

Rear body mount
Grub self-tap screw
4.2*13mm x8
051056
The model is delivered with a standard air filter including foam insert.
As a precaution we recommend to change or clean the foam inserts
more often. Before use the foam insert should be impregnated with
air filter oil spray.
08
Attaching bumper and optional part Motor

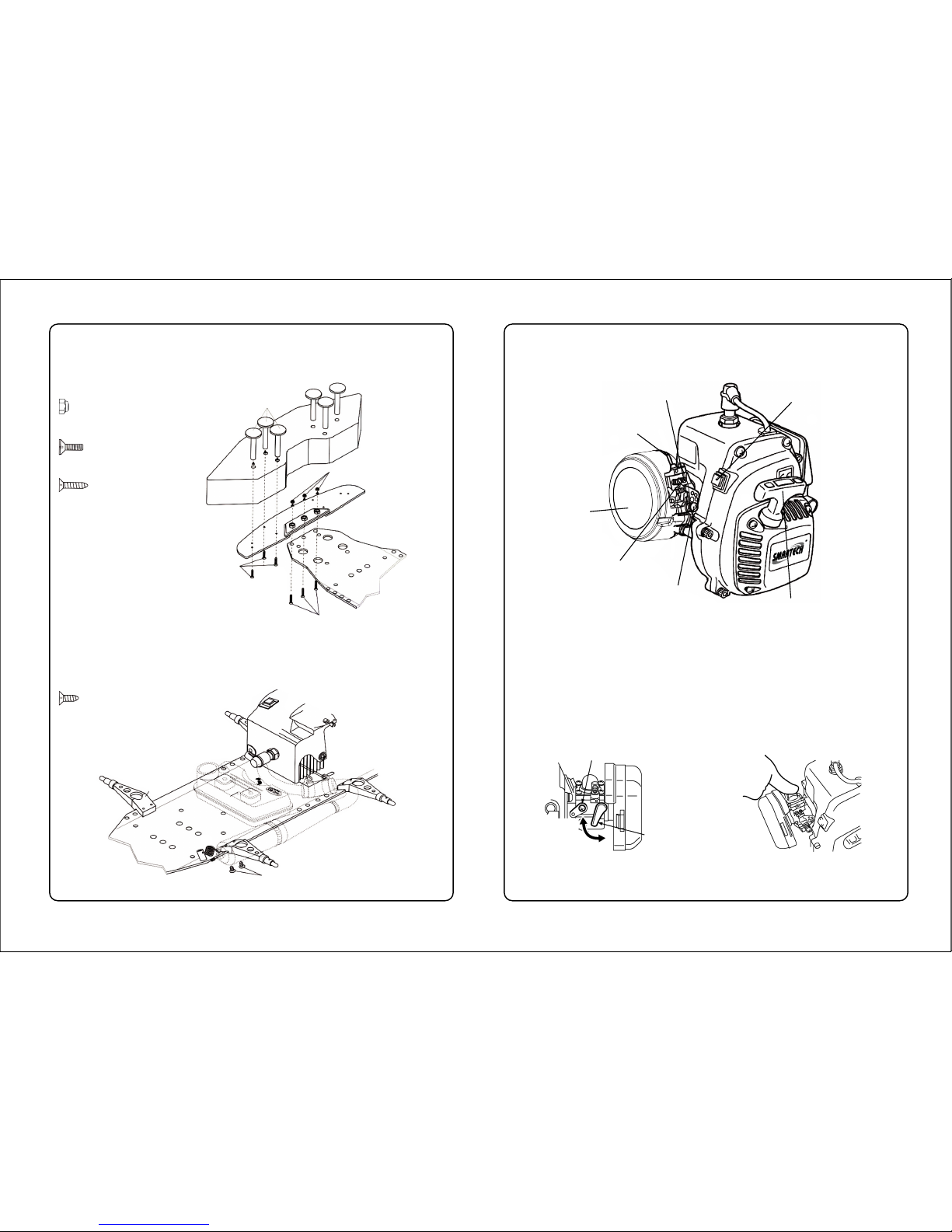

Parts used
Screw for mixture
ar idling
Plug
Fuel pump
Air filter
Screw for mixture
at full throttle
Idling setup
screw Cable pull starter
Ignition switch
Running the engine
Throttle lever Position of the levers
Open
Opening the pump
Closed
Choke lever
M4 nylon lock
nut x3
Flat head screw
M4*16 x3
Grub self-tap screw
4.2*16mm x6
050320
050400
051067
050400
050320
051067
051027
051056
051002

1. Initial operation of the engine
2. Starting the cold engine
Close the carburetor throttle valve or set it to the idling position. Now shut
the choke flap at the carburetor. Press the primer pump at the carburetor
until it is filled with fuel. Slowly pull out the rope starter until you feel a first
resistance,then pull strongly until the engine ignites audible.Normally the
engine will stop again after this first ignition. Now open the choke flap and
pull the rope starter once again until the engine runs.To turn the engine
off, press the ignition switch until the engine stops.(See picture 1)
Always check if the air filter is mounted correctly and firmly before starting
the engine.The basic adijustment of the engine is set by the factory.The
mixture of petrol and lubricating oil should be 1:25 which means a share
of 4% 2-stroke lubricant (5L petrol/200ml lubricant). Suitable is super or
super plus petrol.
4. Carburetor adjustment
5. Basic adjustment of the carburetor
The adjustment of the carburetor is pre-set by the factory to the local
conditions. Depending on air filter, exhaust silencer and operating
conditions a correction may be necessary.
Drive the car at medium rpm until the motor has reached his operating
temperature. If the engine decelerates a little during acceleration the it
runs to lean. In this case open the idling adjusting screw L anticlockwise.
if the engine revs up only slowly stammering and with clouds of smoke
coming out of the echaust the engine probably runs with a too rich
mixture.
In that case you should close the idling adjusting screw 1
clockwise.In order to adjust maximum rpm litt the rear wheels and set
the throttle of the warm engine to the wide open position for a short
time. Now you can turn the full throttle adjusting screw. If the mixture
seems too rich turn to the left, if it seems too lean turn to the right.
The specified values serve as reference. In some cases the carburetor has
to be readjusted. If you get the feeling that no-load adjustment screw 1 or
the Full-road adjustment screw 2 is completely misadjusted then close
both screws 1+2 carefully. Afterwards open the adjusting screw clockwise
corresponding to the values below.
1 No-load mixture adjusting screw 1,25 turns.
2 Full-load mixture adjusting screw 1,5 turns.
During the first two tank fillings you should avoid maximum speed under
no-load condition as well as longer full speed drives on flat areas. First of
all we recommend to check the range of your radio control system while
the engine is running.
Never operate the engine in closed-up rooms without sufficient
ventilation. Further safely instruction are enclosed with the engine.
09
Lsave the choke flap open, prees the primer pump and activate the rope
starter.To turn theengine off, press the ignition switch until the engine
stops. (See picture 2)
Running the engine
Opening the
rope starter Screw for
mixture at
full throttle
Screw for
mixture
at idling
Picture 1 Picture 2
3. Starting the warm engine

10
3. Primary wiring earthed
2. Gas leakage from cylinder and gasket
3. Clogged fuel filter
1. Air penetration from fuel pipe etc.
Others Reduce load
Engine does not start
Problem Cause Reparation
No spark in the spark plug
Spark plug
Magneto
Switch
1.Wet spark plug eletrodes
2. Carbon deposited on the electrodes
3. Insulation failure by insulater damage
4. Improper spark gap
5. Burn out of electrodes
1. Ignition coil inside failure
2. Damaged cable sheath or disconnected
1. Switch is OFF
2. Switch failure
Spark in the spark plug
Compression
and fueling is
normal
1. Over sucking of fuel
2.Too rich fuel
3. Overflow
4. Clogging of air cleaner
5. Faulty fuel
Make them dry
Cleaning
Exchange
Adjust to 0.6-0.7
Exchange spark plug
Exchange
Exchange or repail
Set the switch to ON
Exchange
Repair
Drain excess fuel
Adjust carburetor
Adjust or exchange carburetor
Wash with mixed gasoline
Change with proper fuel
Exchange
Apply liquid gasket and reassemble
Cleaning
Cleaning
Exchange fuel filter
Fueling normal
but poor
1.Worn out cylinder, piston or piston ring
No fuel supply
1. Choked breather air hole
2. Clogged carburetor
2. Over loading
1. Dirty air cleaner
5. Spark plug electrode red hot
4. Carbon deposit in combustion chamber
3. Inferior fuel
2. Clogging of cylinder fin with dust
1. Fuel too lean
5. Muffler choked with carbon
4. Piston starts to seize
3.Water in fuel
2. Air penntration from intake tube joint
or carburetor joint.
Lack of power or unstable running
Problem Cause Reparation
Compression
is normal and
no misfire
Overheating
Secure connection
Change gasket or tighten screws
Change with proper fuel
Replace piston (and cylinder)
Cleaning
Adjust carburetor
Cleaning
Change with proper fuel
Cleaning
Clean, adjust spark gap (0.6-0.7mm)
Wash with mixed gasoline
WARNING:
Fuel must never be poured into the waste water or anywhere else.This
would be punishable facts of the case. In the sewer there is an extreme risk
of explosion by spontaneous ignition even at low temperature with
damage which cannot be foreseen.

Spare parts of 051210 (SMT) 1
050040 - Front upper suspension
arm left 1P
050050 - Front lower suspension
arm left 1P
050060 - Rear lower suspension
arm left 1P
050070 - Rear upper suspension
arm left 1P
050080 - Rear gear mount left 1p
- Rear gear mount right p
050140 - Rear shock tower 1p050130 - Front lower brace 1p050110 - Ball end A 4p
- Tie rod 2p
050090 - Rear wheel shaft sleeve
(left) 1P
- Rear wheel shaft sleeve
(right) 1P
050150 - Rear lower brace 1P 051000 - Gear mount 1P 051017 - Lower steering mount 1P 051018 - Steering Arm (left) 1P
- Steering Arm (right) 1P
051019 - Differential gear box 1P
051005 - Bracket for rear body
(left) 1P
- Bracket for rear body
(right) 1P
051004 - Front bumper 1P051003 - Chassis 1P051002 - Plastic body side
mount 4P
051001 - Wheel sleeve 4P
050100 - Ball end B 8P
11

Spare parts of 051210 (SMT) 2
051006 - Rear body mount 2 2P
051011 - Servo tray 1P
051016 - Brake mount 2P 051017 - Clamping for brake
wire 1P
051018 - Brake wire mount 2P 051019 - Pinion gear 24T 1P 051020 - Spur gear 40T 1P
051025 - Front bumper foam 1P051024 - Engine mount (right) 1P051023 - Engine mount (left) 1P051022 - Anti-roll bar mount 2P
- Screw TPB 3*19 2P
051021 - Gear bumper 1P
- Bumper sleeve 4P
051012 - Differential mount 1P 051013 - Brake disc 2P 051014 - Brake mount (left) 1P
- Brake mount (right) 1P
051015 - Brake mount 2P
051007 - Rear body mount 3 2P 051008 - Wheel rim 2P 051009 - Tire 2P
- Tire foam 2P
051010 - Tire Unit 2P
12

Spare parts of 051210 (SMT) 3
051026 - Body mount 2P 051027 - Sponge mount 6P 051028 - Shock absorber unit 2P 051029 - Connecting hub for wheel
(long) 2P
051030 - Connecting hub for
wheel (short) 2P
051031 - Front wheel axles 2P 050240 - Front hinge pins 2P 050250 - Rear hinge pins 2P 050260 - Ball bearing
Φ 10* Φ 19*7 5P
050280 - Ball bearing
Φ 8* Φ 22*7 5P
050290 - Ball bearing
Φ 12* Φ 28*8 5P
050470 - Washer Φ 12* Φ 8.1*1T
5P
050270 - Ball bearing
Φ 10* Φ 22*6 5P
050440 - Ball end B 4P
050450 - Ball end C 4P 050510 - Flywheel 1P050500 - Differential pinion gear
16T 1P
050490 - Differential ring gear
48T 1P
050430 - Differential box cover 1P
- Plate head tapping screw
TT3*6 1P
050350 - Shock absorber fixing
shaft 4P
13

Spare parts of 051210 (SMT) 4
050520 - Diff.bevel gear 2P
- Differential shaft 1P
050530 - Differential bevel gear
(main) 2P
050540 - Spacer sleeve1 1P
- Spacer sleeve2 2P
050550 - Ball end A 5P 050560 - Rear axle outdrive 2P
050640 - Front upper mounting
plate 1P
050630 - Rear axle dog bones 2P050610 - Swing arm turn
knuckles 2P
051032 - Rear upper mounting
plate 1P
050570 - Rear differential
outdrive 2P
050660 - Rear upper swing arm
turn knuckles 2P
050670 - Fixed hub for brake 1P 051033 - Stabilizer bar 1P 051034 - Throttle rod unit 1P 051035 - Brake rod unit 1P
05072 - Engine screw spacers 4P052000 - Fuel pipe linker B 1P
- Fuel pipe A 1P
- Fuel pipe B 1P
- Fuel pipe D 1P
050700 - Brake disc 3P050690 - Brake lever 1P
- Brake rod 1P
- inner hex. round head
screw ISO 3*10 1P
051036 - Brake level for front axle 2P
- Front brake shaft (left) 1P
- Front brake shaft (right) 2P
14

Spare parts of 051210 (SMT) 5
050730 - Rear gear shaft 1P 050740 - Slice A 1P
- Slice B 1P
050750 -Upper steering mount 1P 050760 - Set collar A 4P 050770 - Set collar B 5P
050930 - Front shock tower 1P052001 - Fuel tank unit (Fuel tank
cover SMT) 1P
050910 - Replacement spring 1P050890 - Battery cover (SMT) 1P
- Screw TPB 3*8 2P
050780 - Sleeve 8P
050940 - Fuel tank cover 1P
- Fuel tank baffle 1P
050950 - Upper cove of receiver
(SMT) 1P
- Lower cover of receiver 1P
051100 - Gear fixing sleeve 1P 052003 - Washer
Φ 12* Φ 6.2*
1.5T 10P
05114 - Front upper swing arm
(ringt) 10P
051150 - Front lower swing arm
(ringt) 10P
050960 - Ball end C 1P
- Steering rod 1P
050970 - Front hinge pin (upper
& rear) 4P
050980 - Rear upper hinge pins 2P 05107 - Brake disc 2P
15

Spare parts of 051210 (SMT) 6
051160 - Rear lower swing arm
(right) 1P
051170 - Rear upper swing arm
(right) 1P
051180 - Upper shock absorber 4P 051190 - lower shock absorber 4P 051200 - Shock spring mount 4P
051260 - Upper cove of shock
absorber 4P
051250 - Shock absorber adjusting
ring 4P
051240 - Shock absorber shaft 4P051230 - Shock absorber spring 4P051220 - Shock absorber piston
4P
051270 - Shock cap 4P 051280 - Front shock absorber
cylinder 2P
05130 - Shock Absorber Fittings 051310 - Steering post 1P 051320 - Hexagon nut M4 5P
051370 - Washer Φ 5.1* Φ 16*0.1 2P
- Washer Φ 8.1* Φ 20*0.1 2P
051360 - Differential gear cover
set 1P
051350 - Washer Φ 19.6* Φ 8.5*
1.2T 4P
051340 - Steering washer 4P051330 - Plain head screw
TPF 4*25 5P
16

Spare parts of 051210 (SMT) 7
051081 - Gear cover (SMT) 1P
- Gear washer 3P
051039 - Locking ring 2P 051040 - Front brake disk slice 4P
- Front brake friction pads 4P
051041 - Brake cable 2P 051042 - Bent header unit 1P
050300 - Plain head mechanical
cross screw TPF 4*8 5P
051062 - Brake locking socket
Φ 5*7 3P
051045 - Exhaust connector 1P051044 - Muffle clamp 2P051043 - Exhaust tune pipe 1P
050320 - Plain head mechanical
cross screw TPF 4*16 5P
050330 - Plain head mechanical
cross screw TPF 4.2*18
4P
051046 - Inner hexagon grub
screw M3*3 8P
051047 - Inner hexagon grub
screw M4*4 8P
051050 - Inner hexagon screw
M5*25 5P
051049 - Inner hexagon screw
M5*35 5P
050370 - Inner hexagon screw
M6*41 5P
050360 - Inner hexagon grub
screw M5*5 5P
051048 - Inner hexagon grub
screw M4*8 4P
05101 - Outer hexagon screw
M6*16 5P
17

Spare parts of 051210 (SMT) 8
051051 - Inner hexagon screw
M4*25 5P
051052 - Inner hexagon screw
M4*20 8P
05039 - Inner hexagon screw
M3*23 5P
05039 - Inner hexagon screw
M3*20 4P
05039 - Inner hexagon column
screw M3*14 4P
0501058 - Round head self-tap
screw PA 4.2*10 5P
0501057 - Plain head self-tap
screw 4.2*25 5P
050040 - Plain head self-tap screw
4.2*16 5P
051056 - Plain head self-tap screw
4.2*13 10P
051055 - Round head mechanical
cross screw ISO 3*16 5P
051059 - Round head self-tap
screw PA 4.2*23 8P
05042 - Inner hexagon grub screw
M5*10 5P
051060 - Inner hexagon grub
screw M5*30 4P
051061 - Round head self-tap
screw PA 4.2*20 6P
051099 - Round head self-tap
screw PA 4.2*16 10P
051082 - Grub inner hexagon
screw M5*27 5P
05104 - Grub inner hexagon
screw M5*10 5P
05103 - Grub inner hexagon
screw M5*30 5P
051065 - Grub inner hexagon
screw M5*35 4P
051064 - Grub inner hexagon
screw M3*10 6P
18

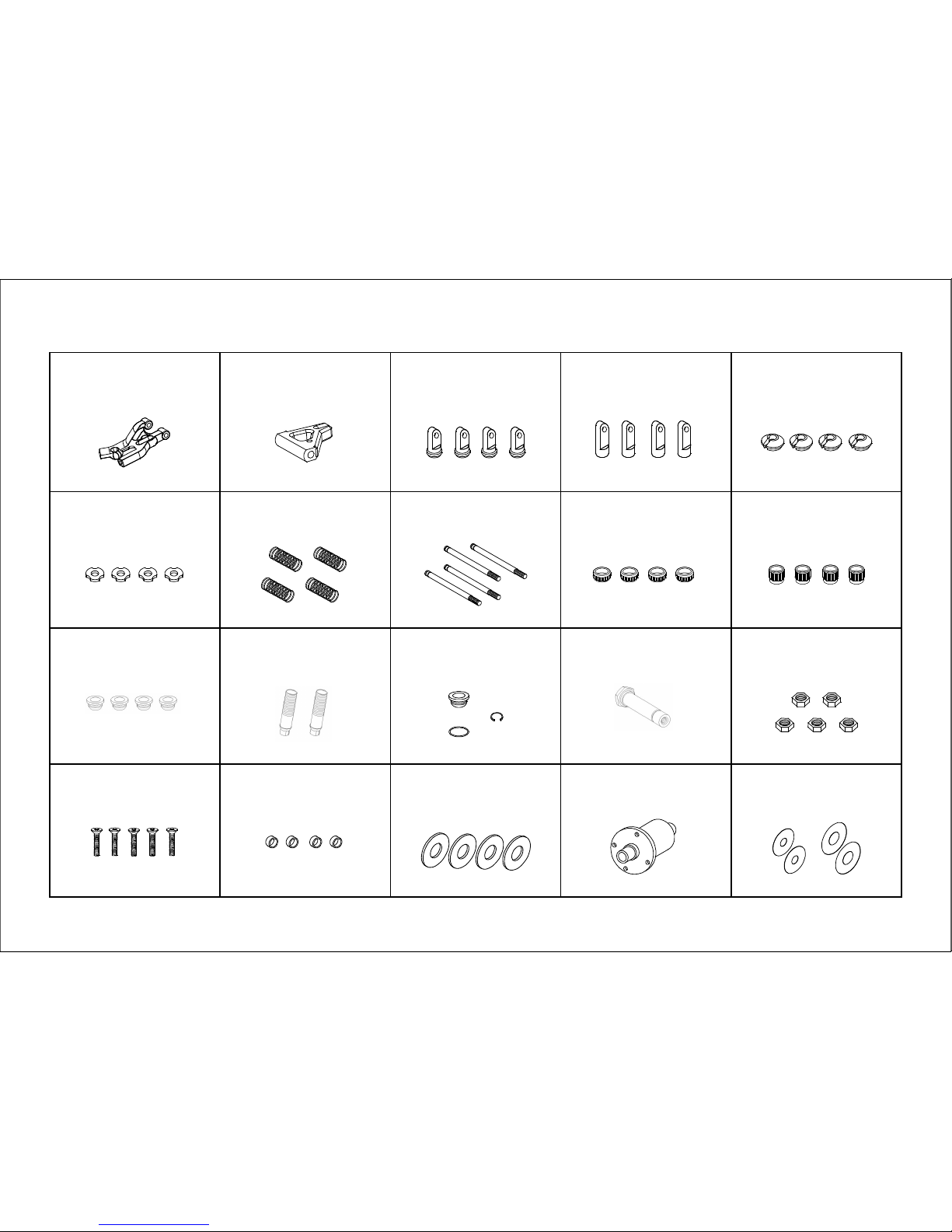

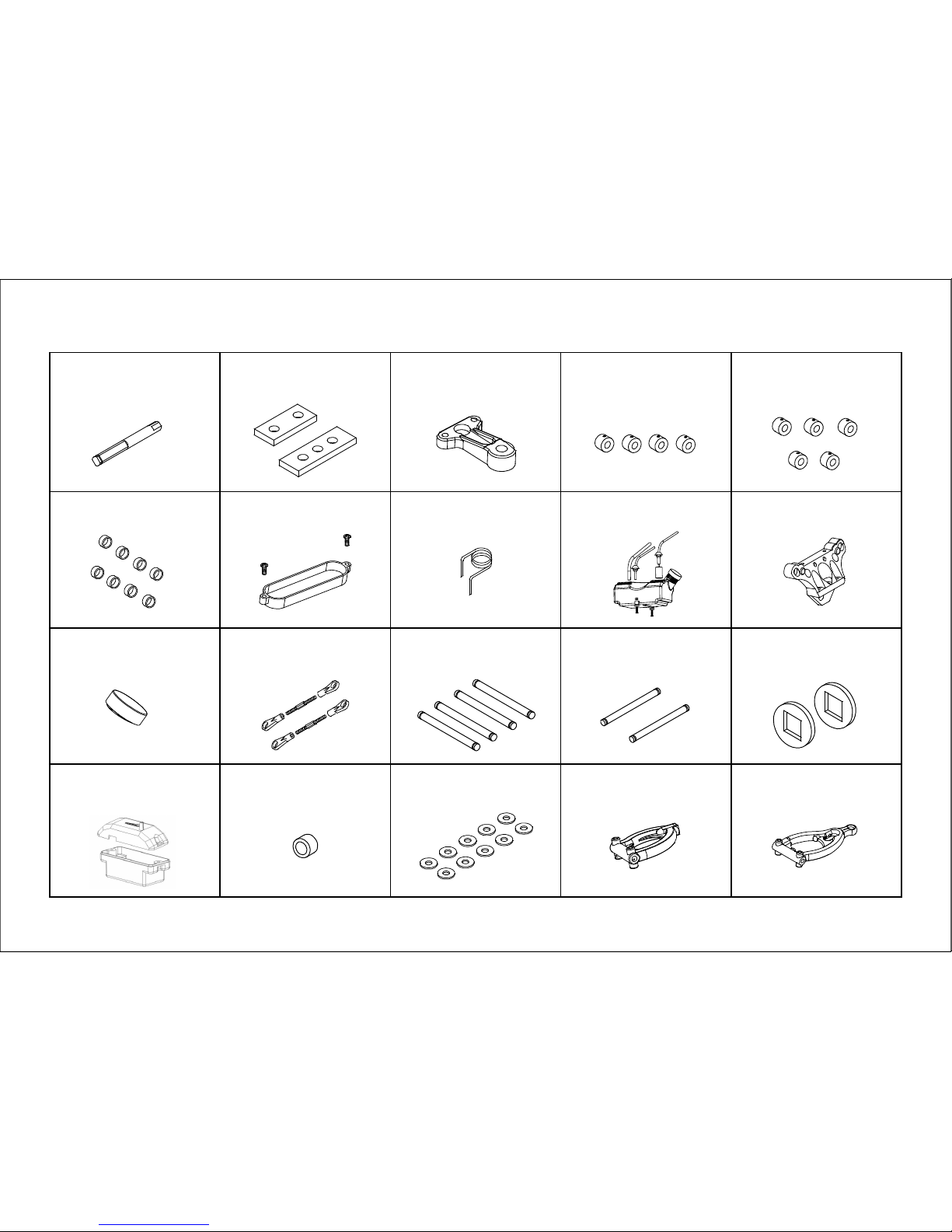

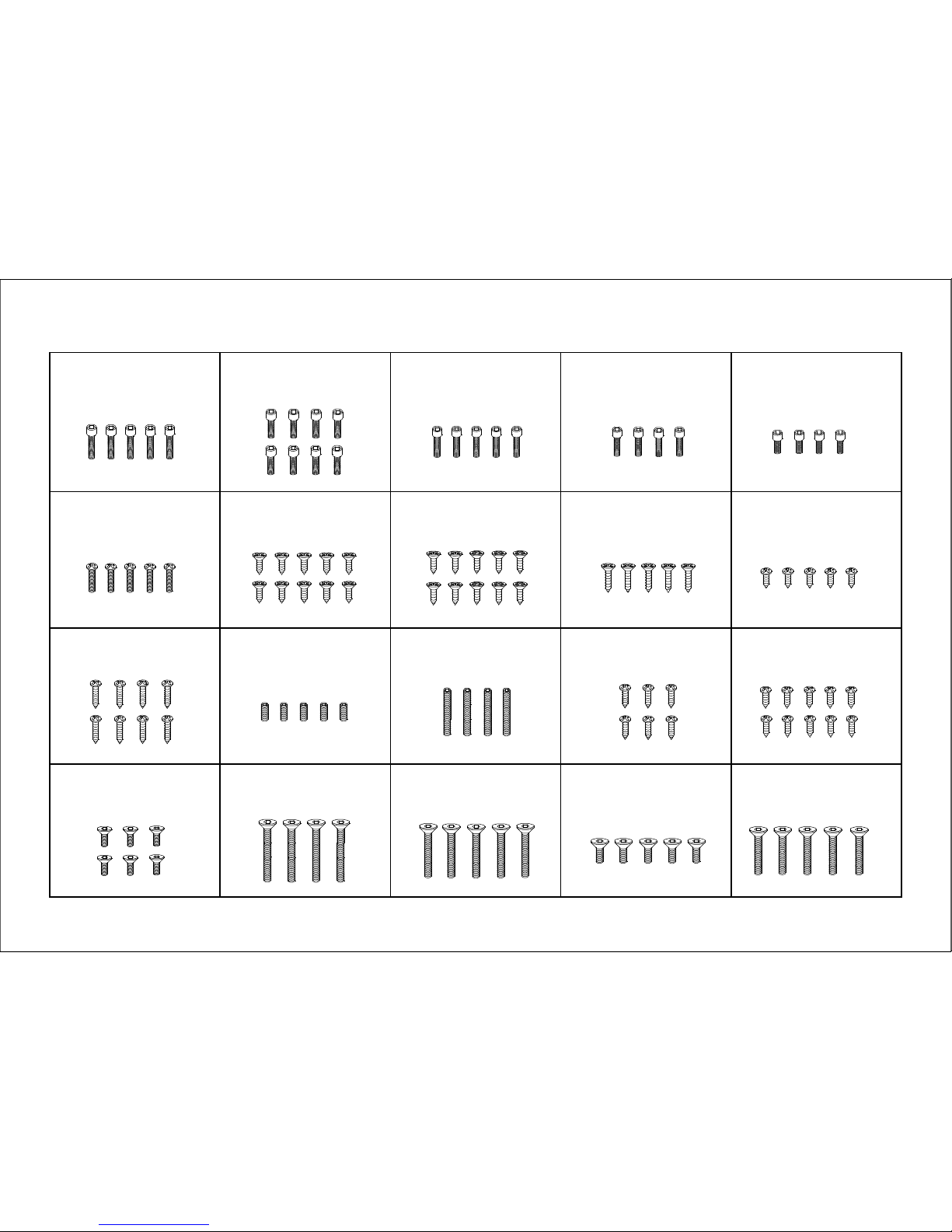

19
Spare parts of 051210 (SMT) 9
051066 - Nylon unt M5 5P 051067 - Nylon lock unt M4 14P 05106 - Nylon unt M6 5P 051068 - Nylon lock unt M3 4P 05139 - E-ring
Φ 6 4P
051063 - Front brake screw 2P
- Outer hex. nut M4 2P
051070 - Bushing 2P051069 - Spring washer
Φ 8.5* Φ 5.1*1.0T 5P
05138 - E-ring Φ 5 10P05140 - E-ring Φ 7 10P
051072 - Servo saver A 2P 05143 - Damper sleeve 4P 051075 - Muffler spring set 1P 051077 - Front brake spring 2P
- Washer
Φ 5.0* Φ 2.1*0.5T 2P
11310 - Antenna pipe 5P051080 - English manual 1P051079 - Car boby 1P051078 - Decals 1P05144 - Fuel tank wrench 1P
051076 - Fuel pipe 1P
- Nylon lock nut M4 1P
- Inner hex. Column screw
ISO M4*17 1P
