Smartech 103411 User manual

WWW.SMARTECHRACING.COM
Length
Width
Height
Wheelbase
Tread(F/R)
Wheel Diameter
Gear Rate
Weight
Engine
420mm
245mm
180mm
268mm
240/245mm
108*53mm
88*41mm
8.4:1
1900g
15CXP
TECHNICAL DATA
Instruction Manual
Our company reserves the right to change or modify this manual without notice.
FEATURES:
DISC BRAKE SYSTEM
15CXP ENGINE WITH PULL STARTER
EQUIPPED WITH EXHAUST PIPE AND AIR
FILTER
TRANSMISSION AND 4WD SYSTEM
OIL FILLED SHOCK ABSORBER
FRONT/REAR DIFF. BEVEL GEAR
80CC FUEL TANK WITH PRIMER BUTTON
ITEM NO.:103411
1:10 SCALE 4WD RACING CAR

Transmitter
Item No.:301332
Power Switch
Antenna
Steering Trigger
Throttle Trigger
Steering Trimmer
Throttle Trimmer
Steering Reverse
Throttle Reverse
Steering Wheel
Steering Trigger
Battery Case
LCD Light
15%-30% fuel
Receiver
Receiver switch
Servo-2
Servo-1
Receiver crystal
Antenna

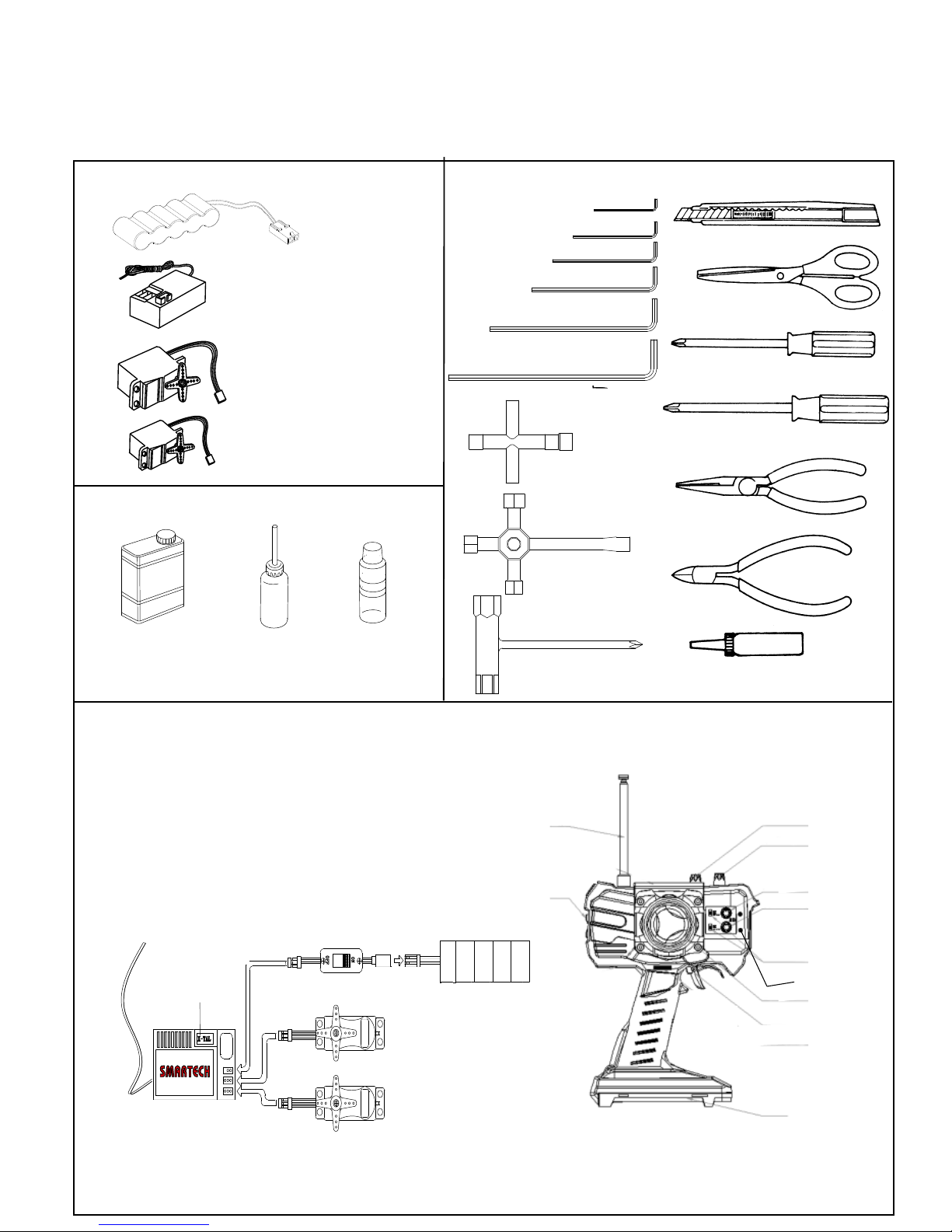

The following items are needed for assembly. You must buy them from the local hobby shops apart from the kits
we provided.
please read this instruction manual carefully before operation.
NOTICE
Additional tools needed to buy
Tool needed for assembly
6v Battery case
Receiver
18kg Servo (L)
7.2kg Servo (S)
1.5 mm
2 mm
2.5 mm
3 mm
4 mm
5 mm
Hobby knife
Scissor
Hexagonal wrenches
Cross wrench （S）
Cross wrench （L）
Philips screw driver(small)
Philips screw driver (large)
Needle nose pilers
Side cutter
Instant adhesive
2-Channel Transmitter system
Please read the transmitter system instructions carefully
before use. The servo must be set at the center position
before installation. To set the servo to neutral position,
turn on the transmitter and receiver . Set the servo rod at
the center position, if stop; please turn off the receiver
and the transmitter in succession. The servo will be at the
proper position.
Battery case
Sleeve for plug starter
Additional items needed for starting engine.
Fuel pump Air filter oil
01

TROUBLE SHOOTING
Problems Reasons Solutions
Engine does
not start
Engine
flameout just
after starting
Bad reaction
and response
from engine
Car is hard
to contorl
1. No fuel in tank or in carburetor.
2. The spark plug is damaged, or the port fire
has not been charged.
3. The fuel pipe, air filter or muffler is choked.
4. Too much fuel.
5. The carburetor has not been adjusted properly.
6. The servo link has not been adjusted properly.
1. No fuel in the fuel tank.
2. The fuel pipe, air filter or muffler is choked.
3. The carburetor has not adjusted properly.
4. The engine is overheated.
1. The carburetor has not been adjusted properly.
2. Little oil pressure in muffler.
1. The batteries of the transmitter or receiver
are weak or exhausted.
2. Poor effective of the antenna.
3. The servo link has not been adjusted properly.
1. Fill the tank with fuel and press prime button.
2. replace a new spark plug or charge the portfire.
3. Clean the clogged parts or change with new one.
4. Remove the spark plug and dispose the fuel.
replace a new one if need.
5. Set the idle, main and slow needle to standard
starting position.
6. Set the servo to neutral position and readjust it.
1. Fill the tank with fuel.
2. Clean or change the clogged parts.
3. Readjust the idle, main and slow needle, set
them to starting position.
4. Cool down the engine. Unscrew the main
needle adjusting screw, turn left for 30 degree.
1. Readjust the idle, main and slow needle.
2. Assemble the pipe between the muffler and fuel
tank properly.
1. Charge the battery or replace it.
2. Extend the antenna of the transmitter and receiver.
3. Set the servo to the neutral position and readjust it.
SAFETY PRECAUTIONS OPERATION PRECAUTION
Operate the car after completely assembled.
Avoid changing the running direction frequently
or abruptly.
Don’t run your car at following places:
-Overgrown with grass.
-Muddy, sandy or rocky.
Checks all screws and screw caps are tighten.
WARNING: To avoid accidents and personal injuries,
please observe the following items:
Handle with fuel safety:
- Only use the fuel outdoors!
- The mixture of petrol and lubricating oil should be
25:1. Suitable is super or super plus petrol.
- Never use fuel indoors, nearby fire brand or heat
producer.
- Never swallow fuel or been splashed into eyes
- Store fuel where is cool, dry and shadow, also out
of children’s reach! Tighten the cap!
- Never throw empty fuel cans into fire! Otherwise,
it may cause explosion.
Never put fingers into rotating moving parts!
Never touch engine and muffler after use, be
careful of burn yourself!
WARNING: Never use the vehicle in following situation!
-On roads or railways.
-The place where children or people gather.
-In residential, parks.
-Indoors or in incapable places.
Operating in disorder may cause personal injury and
improperly losing.
Keep alert that if someone is operating a car nearby.
Never use the same frequency with others simultane-
ously. Otherwise, the signals will be disturbed, then
the car out of control which may cause accidents.
Make sure the batteries of transmitter and receiver is
fully charge. lf not, the transmitter and receiver won’t
work efficiency, in that case, it may cause the car out
of control, even cause serious accident.
Stop the car at once if there is any abnormal with your
car. check it. Solved all problems before operating the
cars. Otherwise, further troubles may cause accidents.
02

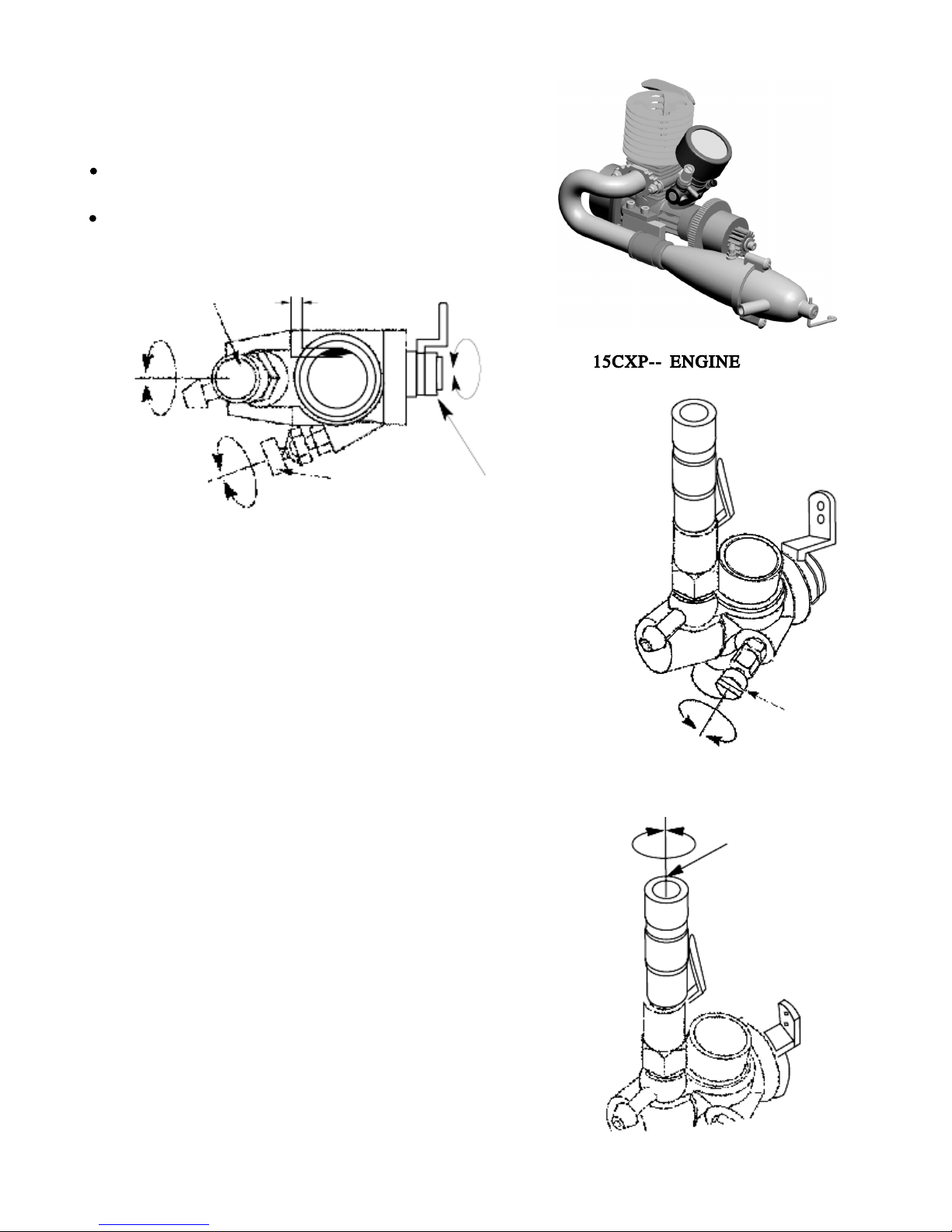

1. Adjust carburetor
Please read the instructions carefully before staring engine.
Before staring
Carburetor is already prepared in standard
and not required to adsjust
Readjust according to user’s requirement
Main needle calibrating screw 1-1.5mm
Opening (rich)
Opening (rich)
Closing (lean)
Closing (lean)
Decreasing RPM
unscrewing
Increasing RPM
screwing
Idling adjusting screw Micro adjusting screw
2. Adjusting idling
Adjusting idling
- 1-1.5mm is set to standard at factory, and is made
to a little bit increased RPM for easy starting.
- Adjust to fuel and piston. For high neutral, turn
left/unscrew calibrating neutral screw. For slow
neutral, turn right/screw-in the screw.
Decreasing RPM
unscrewing
Increasing RPM
screwing
Calibrating neutral screw
Closing (lean) Opening (rich)
Main needle Calibrating screw
- Maximum RPM is adjusted with main needle
- At the first drive, run as set. Turning clockwise will
be increasing RPM and turning counter-clockwise
will decreasing RPM. Turning clockwise extremely
will over-heat finally to breakage of inside of engine.
3. Main needle
Adjust the main adjusting screw
03

Low/middle RPM is adjusted with trimming needle.
For the first drive, try to run as set. Stop driving, and the neutral
tends to stop… finally to stoppage, adjust trimming needle to
continue. Pay attention to balancing for adjusting both main and
trimming needles
Note: When needles are changed, be sure to remember the
original positions, and turn needles by 30 degrees each time.
4. Adjust micro adjusting screw
1. The process of run-in before driving
When you get a new engine, we might remind you that,
no matter what kind of engine, it is important to clean
inside of the engine. They will damage the engine if
the dust and scruff get into it.
Secondly, for the run-in process, we adopt traditional
methods. In other words, we carry out the cool run-in
process under the condition of rich gas. However, the
adjustment situation of the needle valve accords with
the situation of leaving factory. Turn down the needle
value until the carburetor is in full speed without stop,
and go on with 5 tanks oil during those process, you
should let the engine stop for a while before carry on
following process.
When going load milling, the curtate range of the needle
valve should not be adjusted excessively, approximately
1/4 round is best under preview work or reaching the
properly middle/low speed. However, the main needle
only need be curtailed a little. We suggest that the
temperature is no more than 90 centidegree .
STARTING ENGINE
2. Switch on transmitter and receiver
Extend out the antennas of transmitter and receiver.
Then, switch on transmitter and receiver.
Be sure to confirm carburetor on neural position
when receiver is put on.
15-30% Fuel Fuel pump Air filter oil
Glow plug starter
Adjust micro adjusting screw
Closing (lean)
Opening (rich)
Micro adjusting screw
Transmitter
Model No.:301132
Left
Right
04

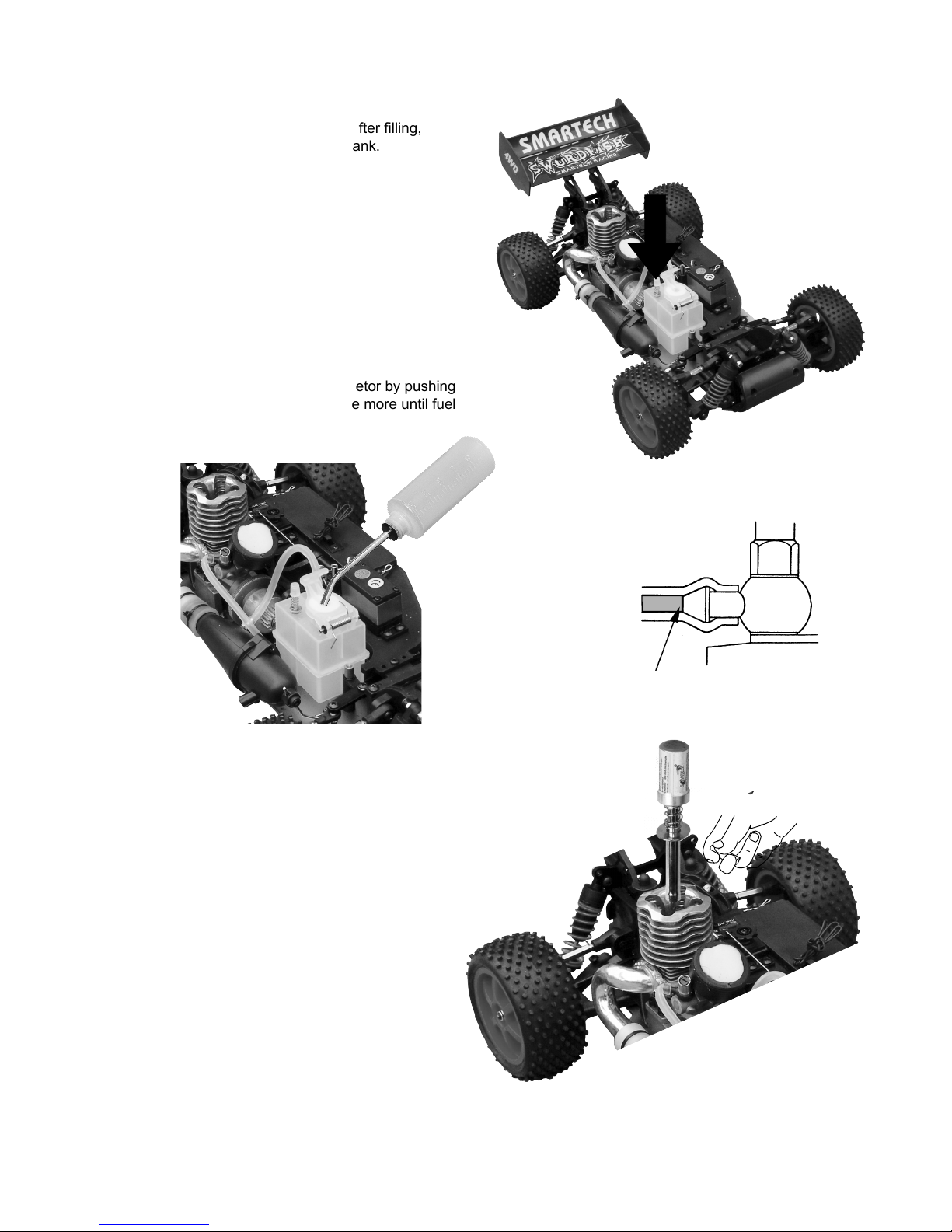

3. Adding fuel
Use the special fuel for the model. After filling,
please fasten the cover of the fuel tank.
4. Chock button
Send the fuel into the inlet of carburetor by pushing
chock button. Push the button twice more until fuel
reaches the gate.
The inlet of the carburetor
5. Starting engine
Heat up the glow plug by the starter, and then pull
the recoil starter handle to starter the engine.
Adjust the throttle trim 2 or 3 degree for easy start.
Increasing RPM until idling stabilize after starting,
then, return to normal.
NOTE: Put the car on the ground and allowed all
wheel ratate freely, and never adjust the accelero-
grap to the maxim position.
05

6. Over choked
Engine cylinder is flooded with fuel, plug is wet and recoil
starter is heavy, remove plug/pull recoil starter for 20-30
times to discharge the fuel.
7. Stopping engine
Placing neutral position, remove air cleaner and turn off
air intake opening . or block exhaust opening.
NOTE: use gloves to protect hands, as exhaust pipe is
very hot.
8. Maintenance
Keeping the engine clean.
06

Bearing φ10*φ5*4
E-clip φ2.5
Philips head screw
TPF3*30
×4
×2
×2
103080
103082
103080
(E2.5)
Grease
103080
103080
103079
103104
(TT3*15)
103105
(TT3*15)
103105
103104
103104
(TPF3*30)
103104
(TPF3*30)
103081
103083
103083
103083
(M4*3)
103083
(M4*3)
103081
103041
103041
103041
103041
103081
103100
(TPF2*8)
103079
103042
103080
103042
103100
Bearingφ15*φ10*4
Washers
φ16*φ10*0.5
Diff. gear axle
Philips head screw
TT3*15
Inner hex headless
screw ISOH4*3
E-clipφ2.5
Philips head
screw TPF2*8
Diff. bevel gear
axle
×2
×3
×1 ×4
×2
×1
①③
②
④
Tighten the Diff. screw as shown.
(Builds two differentials for front and rear)
Fill the Diff. case to approx 80% with
the Diff. oil.
Front Gear Case
×2
×2
Front and Rear Diff.
Front and Rear Gear Case
Rear Gear Case
103081
(E2.5)
07
1
2

Rear Gear Case
Centre Decrease Mount
Centre Decrease Mount Assembly
②
08
103083(M4*3)
103083
103024（60MM）
103025（68MM）
103101
103087
103087
(TM3*16)
103084
103084（M4*4）
103123（TPF3*32）
103123
103077
103077
103031
103036
103077(M3*3)
103117
103118
103104
103101（TPF3*10）
103104
103118
(T=0.2mm)
103118
(E4.0)
TPF3*10
103104(TPF3*10)
103105(TPF3*10)
TPF3*10
ISOH4*3
ISOH4*4
Washer Φ0.2*Φ5.08*9
TPF3*32
TM3*16(1/2)
Pin Φ2*9.6
ISOH4*3 ×1
×1
×1
E-clip φ4 ×2
×6
×3
×2
×2
×4
×1
4
3
5

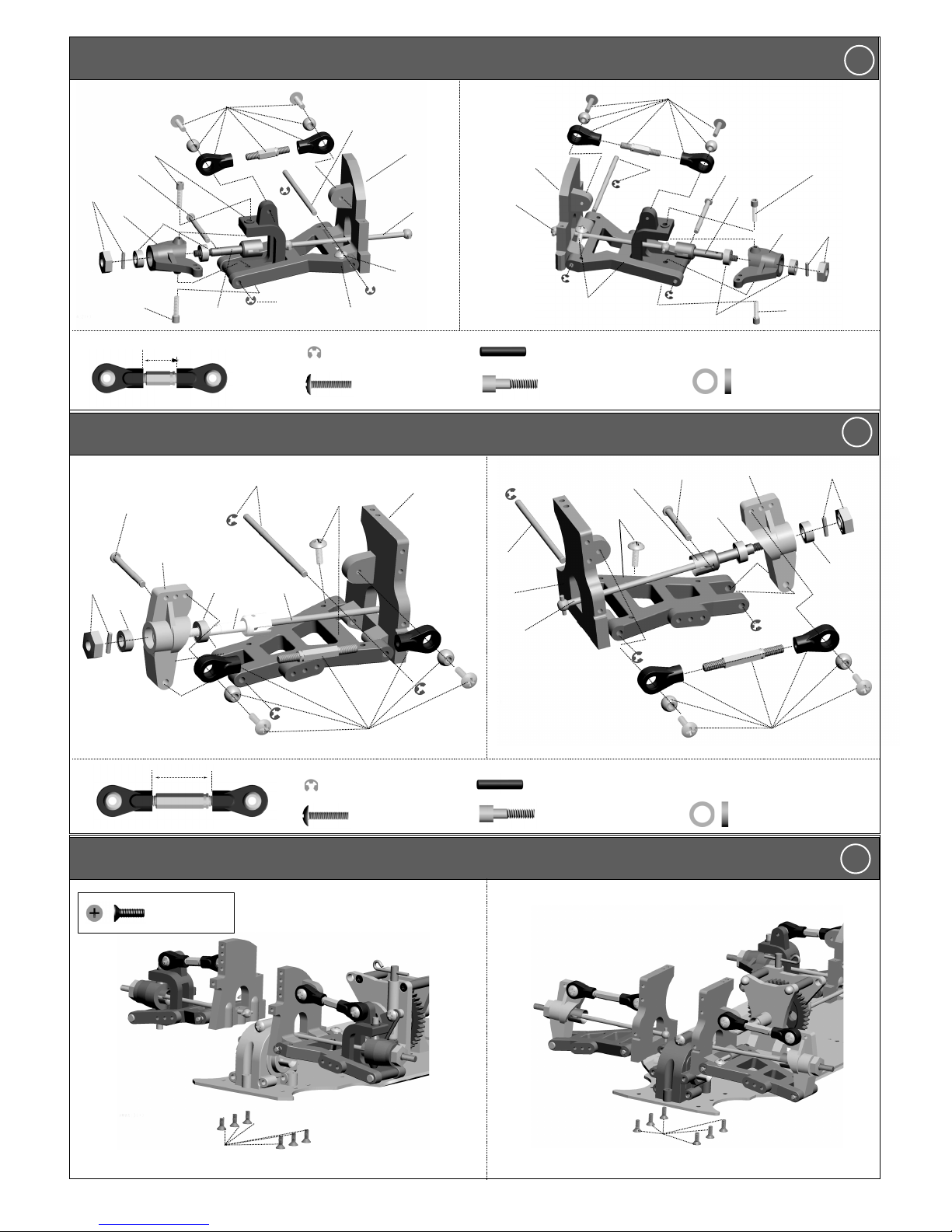

Front Susp. Arm Mount (L&R)
Rear Susp. Arm Mount (L&R)
Front&Rear Susp. Arm Mount (L&R)
6
7
8
09
103028 103028
M3*12
103068
(M3*12)
14MM
103068
(M3*12)
103068
(M3*12)
103037
103037
103037
103037
103011
103011
103010
103010
103070
103070（TPF3*10）103010（TPF3*10）
103070
103069 103069
103069
(TT3*12)
103023(71.3mm)
103023
(71.3mm)
103023
(71.3mm)
103023(71.3mm)
103068
240076
240076
240076
240076
103041
103041
103029 103029
103035
103035
103071
103071
103039
103039
103039
103041
103041
103041
103041
103067
103067
103038 103038
103039
103038
(E2.5)
E-clip φ2.5 Pin Φ2*9 ×2
×6
TT3*12 ISOO3*12
×6 ×4 ×4
Bearing φ10*φ5*4
E-clip φ2.5
24MM
Pin Φ2*9 ×2
×6
TT3*12 ISOO3*12
×4 ×4 ×4
Bearing φ10*φ5*4
TPF3*10 ×12

F&R Shock Absorber Unit
Front Shock Absorber Assembly
Rear Shock Absorber Assembly
9
10
11
②
10
Rear Shock Absorber 2PCSFront Shock Absorber 2PCS
0-1MM
Bubble
18MM
To remove
air bubbles,
move the
positon
upper and
down slowly.
E-clip φ2.5
O RingP3
Ball End Head
5.8
×8
×8
×4
103033
103033
（E2.5）103034
（E2.5）
103033
103033（P3）103034
（P3）
103033
103021（M3）103021（TM3*18）
103021
103122
103122
103122
103122
103124
103124
103104
103104
103015
（ISO3*16）
103020 103015
103015
103013
103109
（TT3*10）
103109
103033
103034 103034
103034
103034
103034
103034
103034
103033
TT3*10 X1
TT3*10 X4
TM3*18 X2
TM3*18 X2
TM3*15 X2
TT3*10 X2
ISO3*16 X4
TM3*48 X2
M3 X2
M3 X6
M3 X2
M3 X2
TT3*15 X2

Front Steering Bumper Mount
Fuel Tank Assembly
12
13
②
11
103030
103072
103072
(TM3*10)
103089
103089
103106
103106
103106
103106
80CC
103106
103106
(TPF3*10)
103106
(TT3*6)
103106
(P4)
103106
（P3）
103030
103022
103022（TM3*16）
103022
（TM3*16）
103022（M3）
103022（M3）
103030
103030
(E5.0)
103030(ISO3*12)
103089(TM3*12)
103030
TM3*16(1/2)
E-clip φ5 ×1
×2 ×2
×2
M3 X2
TT3*10 X1 TT3*10 X1
TPF3*10
TPF3*10
O Ring P3 X1
X1
X1
ORing P4
TT3*6
10MM

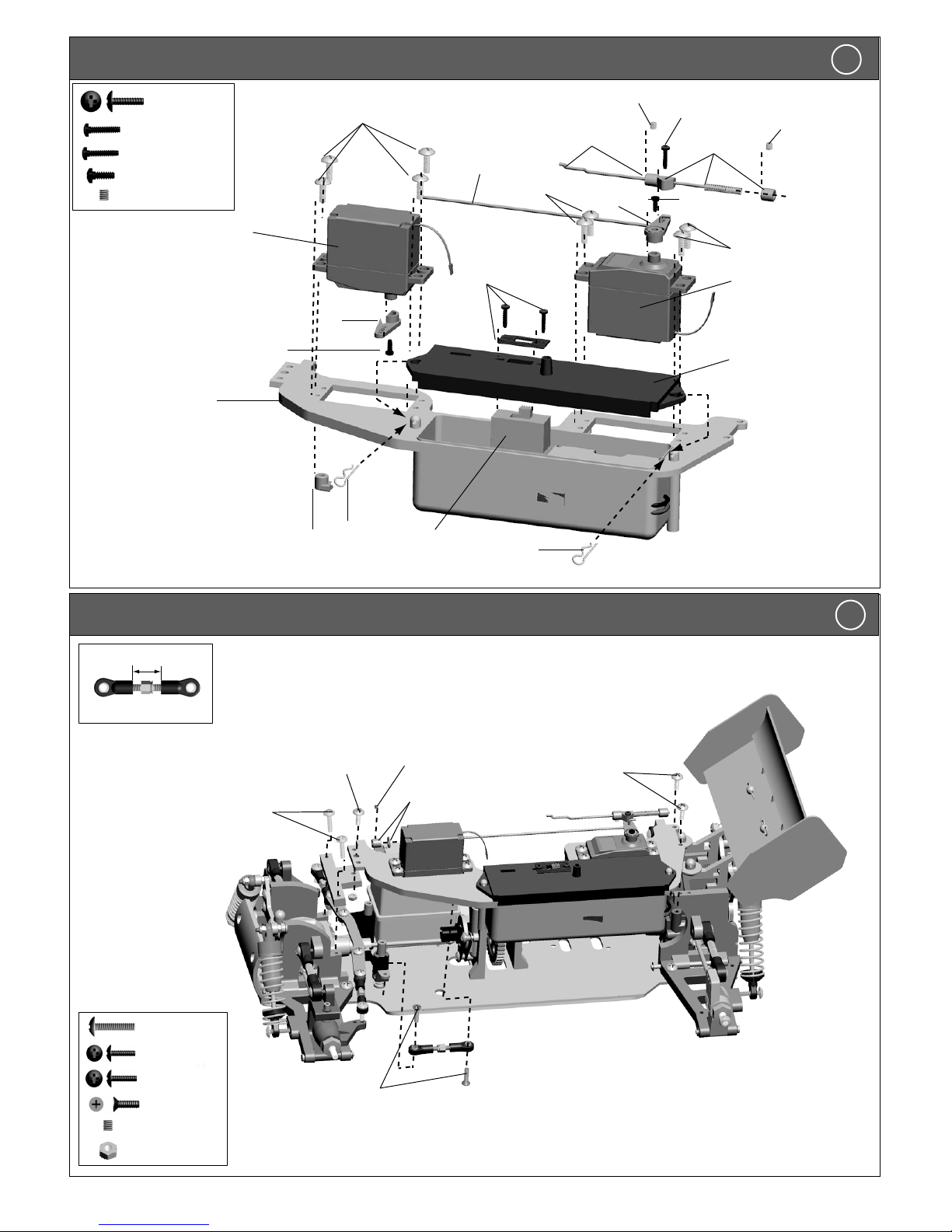

Upper Floor
Upper Floor Assembly
12
13
12
①
①
②
②
103110（TT3*10）
103110（TT3*10）
10310（TT3*10）
103115
（3KG）
104024
104024
104024
103110
103125（TT3*15）
10MM
103125
（TM3*10）
103090（ISO3*12）
103043（M3*3）
103043
104024
（TT3*10）
104024
103043
103043（PB2*10）
103043（M3*3）
103043（M3*3）
103044
103043
301030
301030
103115
103115
103115
（PB2.6*6）
103115
（TPB2.6*6）
103115（3KG）
×2
×1
×2
TT3*10 X8
ISO2*10
PB2*10
PB2.6*6
TT3*10 X2
TM3*10 X1
ISOH3*3 ×2
×2
TPF3*12
ISOH3*3 ×1
M3 X2
TT3*15 X2

Engine Part
Engine Assembly
14
15
②
13
103064
103064
103065
103062（ISO3*8）
103062（M3）
103062
103063
103066
103051
103119
103045
103046
103049
103046
103047
ISOO3*30 X2 X1
X2
X1
X1
X6
Spring Washer
M3 NYLON NUT x2
M3 NYLON NUT x5
ISOO3*8
Clip φ3.2*φ8*0.5
Clip φ5.1*φ10*1.0 ISOH4*4 ×1
TT3*15 X2
TM3*10 X4
ISO3*8 X4
ISO3*10 X1
E-clip φ7
103062（ISO3*8）103107 103063
（ISO3*10）
103063
（M3）
103107
103047
（TM3*10）

Car Body Assembly
16
14
103057（M4）
103057
103056
103056（M4）
M4 NYLON NUT x4
Front and Rear Tires Assembly
①
②
②
③③
④
⑤
⑤
⑥
⑥
⑦⑧
17

103411 PART LIST (1)
103011-Rear Constuction Wall 103013-Front Bumper
103015-Rear Brace Mount
(L&R)
103122-Wing Mount
103124-Wing Mount Fixed Bar 103018-Chassis 103019-Upper Floor 103020-Rear Shock Tower
103021-Front Shock Tower 103022-Steering Plate 103023-Dogbone 71.3MM
103024-Dogbone 61MM
103026-Battery Case Cover 103027-Battery Case x1 pcs 103028-Front Tie Rod
103029-Rear Tie Rod 103031-Brake Disc
103010-Rear Lower Susp. Arm
103014-Choke Plate Mount
（L&R）
103025- Dogbone 68MM
103030-Steering Bellcrank
x2
x4
x4 x2
x2
x2
x2
x2
x2
x2
x2
x1 x3 x4
TT3*12
Car Body Pin
TPF3*6
TT3*10
TM3*18
Nut
Nut Lock Nut
TPF3*10
TPF3*10 TPF3*10
ISO3*12
TT3*12
M3 NUT
TPF3*10
ISO3*16
TT3*12
x6 x2
x2
TM3*16
x4 x4
TT3*12
x2
x2
x2
x2
x2
TT3*10
TM3*18
Nut Lock Nut
Lock Nut
TM3*48 X2
103111-Front Gear Box Unit
103112-Rear Gear Box Unit
103115-3KG Servo
15

103411 PART LIST (2)
103033-Front Shock Absorber 103034-Rear Shock Absorber 103035-Susp. Arm Axle
103037-Lower Susp. Shaft
(L&R)
103038-Axes Of Front Linker 103039-Wheel Shaft
103043-Throttle Pulling Rod 103044-Brake Pulling Rod
103036-Brake lever
103041-Bearing 103042-Bearing
103049-Clutch Shoe
103051-Engine Flywheel x1 set
103047-Engine Mount
x4
103045-Filter Foam 103046-Engine Gear Shaft
103125-Front Joint Plate
113810-Car Body
TT3*15
TM3*10
E-Clip φ2.5
X2
X1
TT3*15
Bumper Tube
X2
X2 X2
TT3*15 X2 X2
E-Clipφ2.5 E-Clipφ2.5
E-Clipφ7.0
ISOH3*3
ISOO3*8
Washer of Springφ3.2*φ8*0.5
Washerφ3.2*φ8*0.5
Washerφ5.1*φ10*1.0
PB2*10
X4 X2
X2 ISOH3*3
Washer
X1
X2
X1
X1
X1
X1
x1
Nut
X3
103116-Diff. Gear Shaft 103119-Clutch gear / Bearing 103117-Diff. Speed Gear
(Single)
103118-Centre Diff.Mout 103121-Adjustor 104024-Upper Floor
x2
Car Body Pin
x2
TT3*10
Bumper Tube
16

103411 PART LIST (3)
103055-Anttena x4 pcs 103056-Rear Wheel Unit 103057-Front Wheel Unit
ISO3*8 x4
ISO3*10 x1
TPF3*10 x6
Washer X2
ISOO3*30 x1
ST2.9*12 x4 TT3*12 X2
M3 NYLON NUT x4
M3 NYLON NUT x2
M4 NYLON NUT x2
TT3*10 X1 M4 NYLON NUT x2
M3 NYLON NUT x1
103058-Front Rim
103059-Rear Rim 103060-Rear Tire 103061-Front Tire 103062-Engine Holder
103063-Iron Brace 103065- Silicon Connecting Pipe 103066-Exhaust Pipe
103067-Front Steering Arm 103068-Front Linker (L&R) 103069-Front Lower Susp. Arm
1103070-Front Constuction Wall
(L&R)
103071-Rear Bearing Mount 103072-Tube
103078-Diff. Gear Box Unit
103064-Exhaust Pipe Connector
x2
TM3*10
103077-Brake Cam Set
ISOH3*3 X1
103110-Servo Mount
TT3*10 X8
x4
TPF3*10
103109-Front Brace
TT3*10 X1
240076-Wheel Hub 083071-Anttena
17

103411 PART LIST (4)
103079-Steering Gear (Female) 103080-Diff.Gear (L) 103081-Driving Gear(Accessory) 103082-Diff. Gear (S)
103083-Universal Outdrive B 103084-Universal Outdrive C
103087-Brake Caliper 103123-玻纤Cross Bar 103089-Tie Rod 103090-Tie Rod
103100-Diff. Gear Box 103101-Center Diff. Mount
(F/R)
103104-Rear Gear Box (F&R)
103105-Front Gear Box (F&R)
103106-Fuel Tank Unit 103107-Silicon Oil Pipe
TPF3*32
TPF3*30
TM3*12
TT3*15
ISO3*12
X2
X2
X1
X1
X2
TPF3*30
TT3*15 X1
X1
x2
TPF3*10
x3
TPF3*10
x3
TPF3*10
x4
TPF3*10
18

Explosive Diagram
103122
103016
103014
103015
103020
103016
103014
103017
103034
103020
103029
103035
103035
103037
103041
103071
103108
103056
103108
103041
103039
103023
103010
103037
103011
103029
103023
103037
103010
103035
103035
103010
103037
103020
103039
103041
103108
103071
103056
083071
103055
103026
103109
103109
103115
103043
103110
103115
103110
103115 103040
103090
103024
103032
103027
103044
103022
103072
103030
103032
103063
103032
103018
103062
103107
103025
103011
103108
103041
103067
103039
103068
103023
103028
103089
103022
103037
103028
103069
103021
103033
103033 103013
103037
103021
103037
103069
103038
103028
103023
103038
103069
103070
103037
103089
103068
103056
103108
103041
103039
103041
103067
103032
103109
