Smartek SK-1500 User manual

MODEL # SK-1500
INSTRUCTIONS MANUAL
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT
PLEASE SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

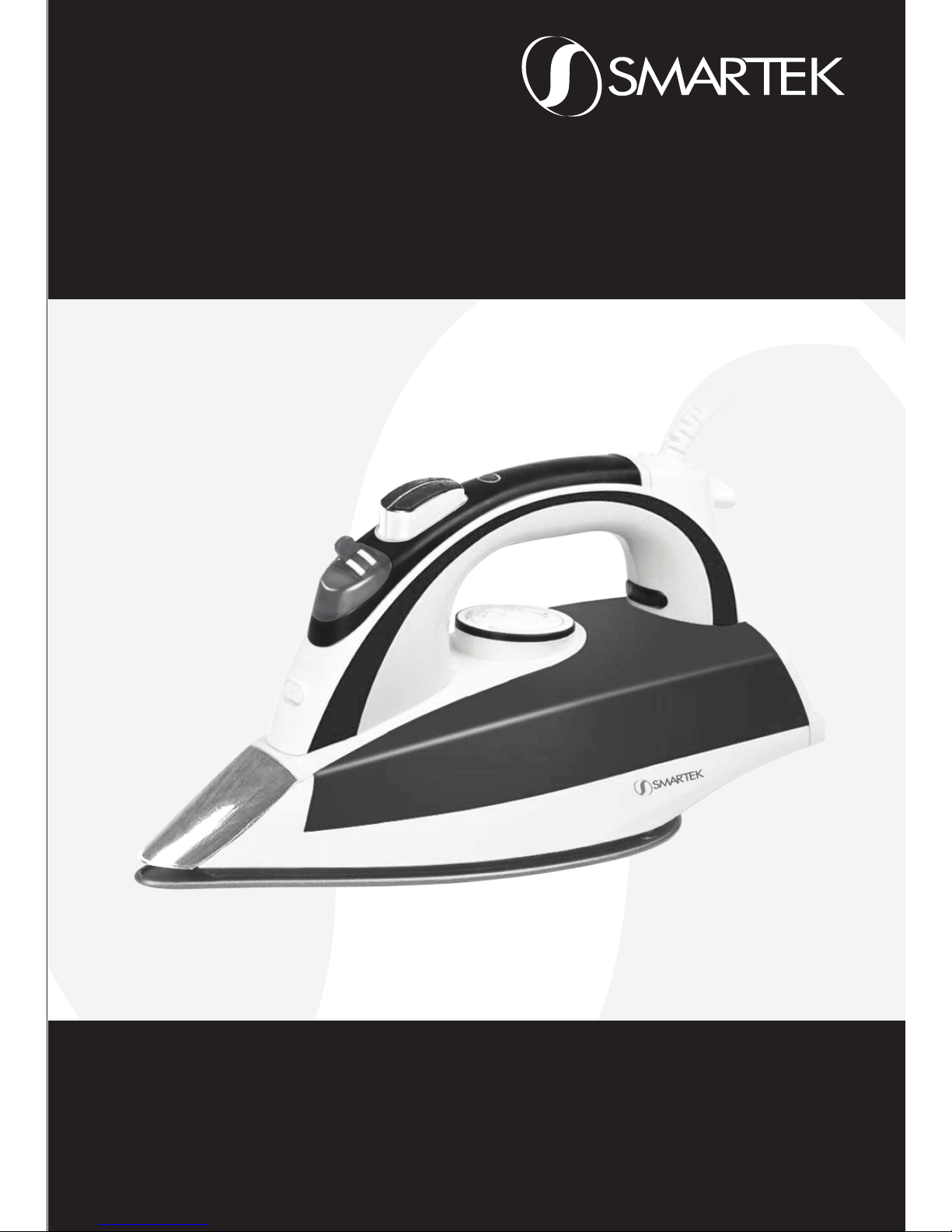

HEAVY-DUTY STEAM IRON

The product has many functions such as Auto Shut-off Function, temperature
regulating, spraying, dry Ironing, steam, strong steam, self cleaning function,
etc. and is with caracteristics: luxury shape, high heat efficiency, easy using,
good ironing result, work saving and time saving, and so on.
Rated voltage
Rated
frequency
Rated power
Water capacity
Temperature adjusting
range
Outside measure
Soleplate measure
Steam capacity
120V
60Hz
1500W
350g
150 ~ 220ºC
30.1x12.3x15cm
250.92cm2
10 ~ 25g/min
SPECIFICATIONS
MAIN FEATURES:

High precision temperature adjuster: high precision temperature adjuster was
used; it is called thermostat. We fixed the temperature range according to the
kind of materials.
Thermal Fuse protecting: when the working temperature pass its normal one.
The fuse will melt automatically, and cut off the power supply. When the failure
happens, it must be sent to its service agent in order to avoid a hazard.
Auto-Shut Off Function: An electronic device will automatically switch off the
iron if it is has not been moved for a while, it is usually 30 seconds in level state;
8 minutes in vertical state. To indicate that the iron has been switched off, the
blue auto-off pilot will start blinking.
To heat up the iron again:
-Pick up the iron or move it slightly.
-The blue auto-shut off pilot light will go out. The blue temperature pilot light
will come on.
-When the temperature pilot light had gone out and comes on again, the irons is
ready for use.
MAIN PARTS
A: Steam regulating Knob
B: Strong steam button
C: Spraying button
D: Indicator bulb
E: Movable wire
F: Temperature adjusting knob
G: Water tank
H:Non-Stick Soleplate
I: Spraying mouth
J: Metal Skirt
K: Cover of water filling mouth
L: Auto-Shut Off Light
M: Self-Cleanning

USAGE
1. Before ironing, please make sure the material can be iron.
2. Pull up the cap of water filling mouth, fill water into water tank, until it reaches the “max”
position. Water capacity is 350g.
3. Push the cap back to its original position.
4. Turn the temperature regulating knob to the “0” position, ensure the iron is on the smooth
and stable place vertically. Then put the plug into the socket.
5. After about 1.5 to 3 minutes, the indicator will turn off, when the indicator turn on again, your
can start ironing with steam.
6. Press the steam button, the steam will spurt continuously (you can use it in vertical or flat
position ) .If you want to stop, just turn off the steam button
7. You also could press strong steam button, and the burst steam will come out from soleplate
(it could use in vertical or flat position).
8.You can use vertical ironing as well. Vertical steam ironing: convenience to iron clothes which
was hung on.
9. During ironing clothes, if you need some water on the clothes for easy iron, you could press
Spray button, and some water will come out from spraying mouth
10. If no steam goes out, it means no water in the water tank now. At this moment, you must
turn off the steam button. If you want it to work on, pull out the plug first, then fill in water. Put
the plug into the socket. Then you can continue to use it.
11. After ironing is complete, turn the temperature regulating knob to “0” position, pull the plug
out of the socket. Then pour the water out and turn the temperature regulating knob to the
“MAX” position. Put the plug into the socket again and press the steam button again and again,
till no water inside. This method is used to prevent remained water into boiloff box, and damage
the steam function.
STEAM IRONING:

FUNCTION
Strong and High-pressure steam helps to smooth the firm gauffer
Dry cleaning function:
Strong and powerful steam will give you a wonderful effect no less then dry cleaning shop.
Sterilization function:
100ºhigh temperature steam, more than once spurt, all kinds of germs will be killed. It can be
used in your kitchen, toy, mattress, sofa and so on
Take off bad smell.
Convenience:
Very easy to use without stokehold hanging
Overspeed steam spurting
Powerful steam jet
Easier heat up, you can iron clothes in minute.
POWERFUL STEAM SPURTING:
ACCIDENT AVOIDANCE:
Inspection Part Water tank Temperature
adjusting knob
Steam bore Power supply Heating body
power
FAILURE
No steam
Little Steam
Can not heat up
Cloth burn and shrink
Water drop from
the steam bore
Water tank
without water
Temperature adjusting
knob in the correct
position or not, choose
a right temperature
Clear scale away Check the indicate
light can work or
not, power supply
correctly fixed
Check if the indicate
light is on

Heat sensitive clothes ironing, please cover a piece of cloth on the clothes
first, then iron, or the clothes will be burnt.
Cotto n material ironing, please adjust the temperature according to the heat resistant of the
material.
CORRECT FIBRE IRONING:
CAUTION
Cloth
Material
Temperature
Setting
Marks in
clothes
Preferable ironing method
Dry ironing the back of the clothes
Dry ironing the back of the clothes
Ironing the back of clothes without any
water or cover a piece of clothes on
the goods you want to iron
According to the thickness and gauffer
to iron with steam. For some fuscous
clothes, we’d better adopt to back ironing.
Man-made
cotton
synthetic
fibre
silk
wool
cotton
Linen

Electric iron is a common home appliance, to be used very frequent. Before use, please read the
items as follow:
1. Fill in clean water.
2. According to different material- adjust proper temperature. If you are not familiar with the
material of the cloth, you may choose a piece
3. When the soleplate reaches its adjusted temperature, then you can start ironing. Or the water
will leak from the soleplate.
4. Using steam spurt to recover the elasticity of the fiber. Rub and press the polished cloth, then
it will come back. If spurt steam, at the same time brush the cloth to its opposite side. The
effect will be better.
5. Do not put the ironed clothes into warderobe immediately. Hanging the clothes to clothes
rack till it is cold.
6. When water tank calcified, you can use Self-cleaning function to clean soleplate. Ensure the
water tank with water.
7. After ironing, pour out the rest water. If some water left in the water tank, put the plug into the
socket, make sure no water in it, you can pull the plug out. Keep the iron upright. And the life of
the iron can be longer.
CORRECT IRONING WITH STEAM:

RECOMMENDATIONS
1. Please read the user’s manual before using the product.
2. Before use, please check the voltage of the product if it is the same with the one in your
home.
3. When using steam ironing, you are recommended to use distilled water.
4. When filling water or pouring out remaining water. Please pull out the plug first from the
mains.
5. After using, turn the steam knob to non steam place, turn the temperature regulating knob
to “0”, pull out the plug, put the iron on the smooth and stable place vertically.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
7. The iron is not to be used if it has been dropped, if there are visible signs of damage or if it
is leaking.
8. The iron must be used and rested on a stable surface.
9. When placing the iron on its stand, ensure that the surface on which the stand is placed is
stable.
11. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety
12. Children should be supervised to ensure that they do not play with the appliance.
ATTENTION

TO CLAIM
Smartek warrants this product for up to 6 months from provable date of purchase,
against defects in material and workmanship. During this period such defects will be
repaired, or the product will be replaced without charge.
This warranty does not cover damage caused by misuse, negligence or improper
installation. Warranty is also invalid in any case that the product is taken apart or
serviced by unauthorized service station.
Purchaser must receive a Return Authorization Number by calling our service
center at 1-888-380-2111.
Once your return has been authorized, please send your package, postage prepaid,
with a copy of your proof of purchase. You will also need to enclose a letter
explaining the nature of your difficulty in detail. Please allow 2-4 weeks for return
shipping.
Smartek USA Inc.
49 Bartlett Street Brooklyn, NY 11206
1-888-380-2111
Distributed By
Smartek USA Inc.,
Brooklyn, NY 11206
www.smartekusa.com
6 MONTHS LIMITED WARRANTY
