Smartpond AGNB User manual

PLEASE CALL 1-888-755-4497 BEFORE RETURNING TO THE STORE.
WWW.SMART-POND.COM
Small Bamboo Aquatic Garden
MODEL #AGNB

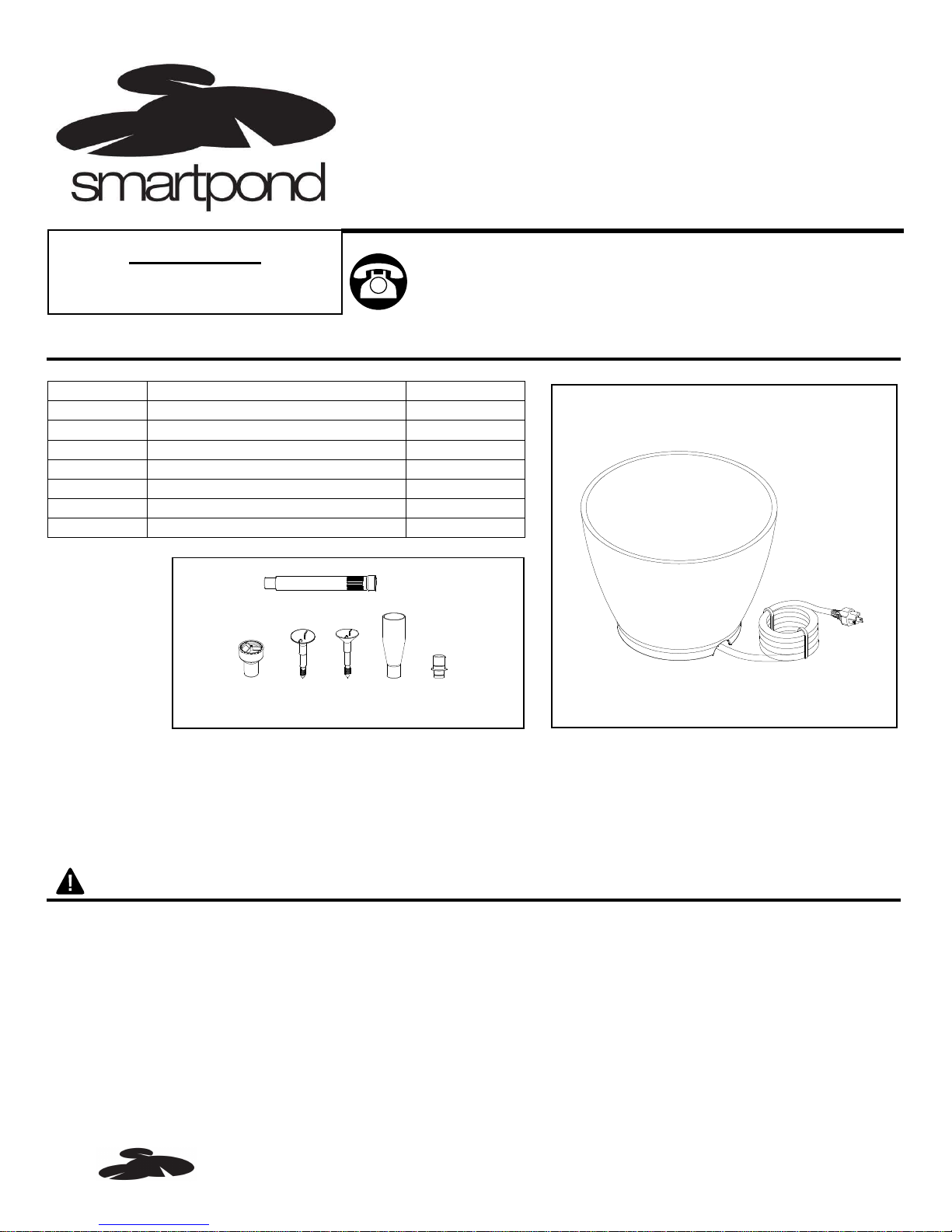

PACKAGE CONTENTS
WARNINGS AND CAUTIONS - PUMP
WARNING
•Risk of electrical shock. This pump is supplied with a grounding conductor and grounding–type
attachment plug. To reduce the risk of electric shock, be certain that it is connected only to a properly
grounded, grounding-type receptacle.
•Do not exceed the voltage shown on the pump.
•Always disconnect pump from the power source before beginning any maintenance or work on the
pump.
•Inspect cord for damage before installation and/or maintenance. Replace the entire pump assembly if
damage is found.
•Do not remove the grounding pin from the power cord plug.
•Risk of electrical shock – This pump has not been investigated for use in swimming pools or marine
areas.
Part Description Quantity
A Container (with pump) 1
B Extension tubes 1
C Waterspray nozzle 1
D Waterbell nozzle insert 1
E Trumpet nozzle insert 1
F Lower fountain head nozzle 1
G Adapter (with o-ring) 1
Questions, problems, missing parts?
Before returning
to your retailer, call our customer service department at
1-888-755-4497, 8 a.m.-6 p.m., EST, Monday-Friday, or
email us at [e-mail].
REMINDER
CALL 1-888-755-4497
BEFORE RETURNING TO STORE.
®
C
D
E
F
G
A
B

PLEASE CALL 1-888-755-4497 BEFORE RETURNING TO THE STORE.
WWW.SMART-POND.COM
CAUTION
•This pump has been evaluated for use with water only.
•Use a proper power source as indicated on the pump label.
•Keep the cord away from high temperatures or other heat sources.
•Do not pump heated liquids.
•Do not let the pump run dry. Pump must be completely submerged for proper operation and cooling.
•Operate in freshwater only. Avoid heavily chlorinated water and water with high pH levels.
•Do not lift the pump by its power cord.
PREPARATION
Before beginning assembly or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram above. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
•Estimated Assembly Time: 10 minutes
•Tools required for assembly: No tools required.
OPERATION
INSTRUCTIONS

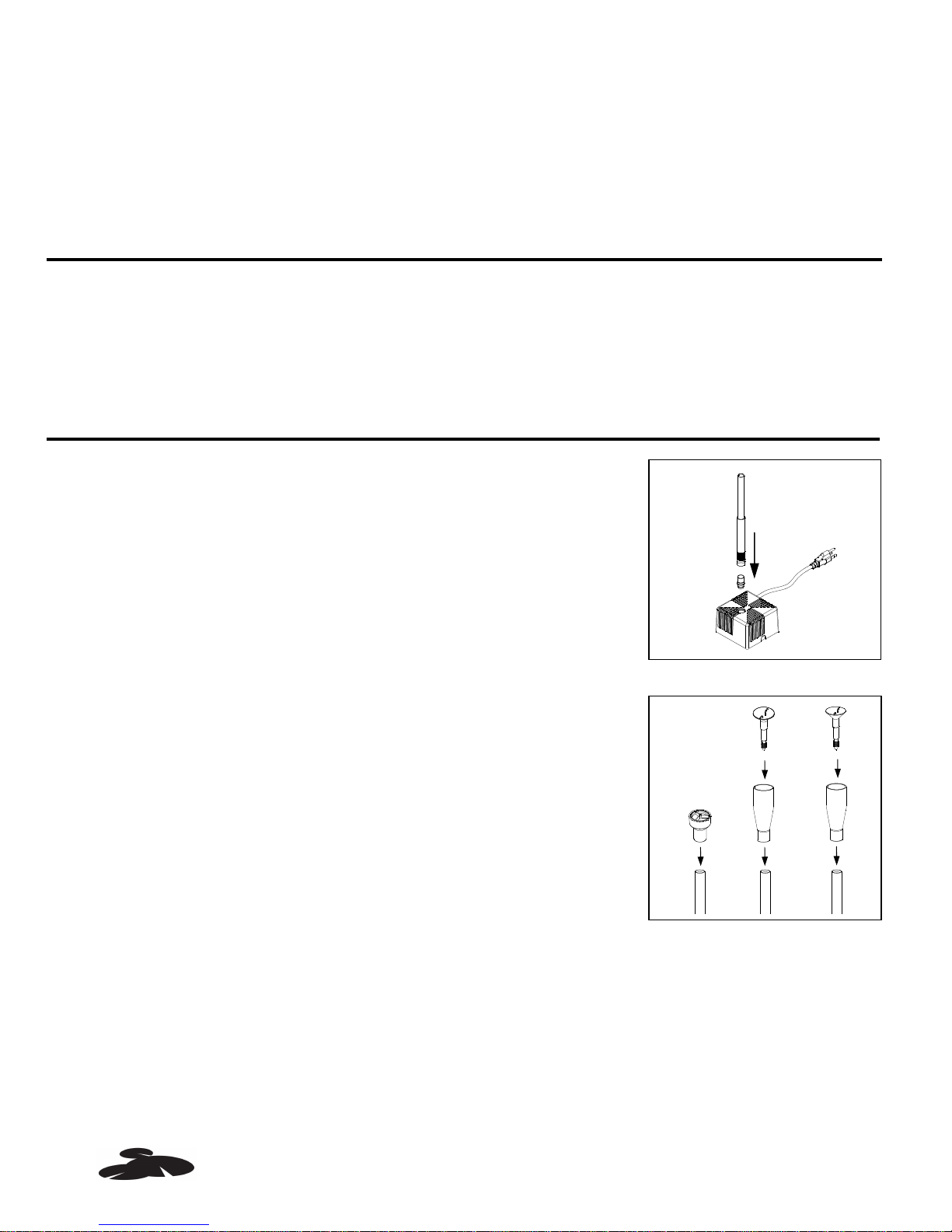

1. Connect extension tubes to the pump using the supplied adapter.
Fig. 1
Fig. 1
2. Choose a fountain head for the desired water effect, and assemble
your choice as shown in Fig. 2.
Fig. 2
Extension tube
C
B
B
B
F
E
F
D
Adapter

PLEASE CALL 1-888-755-4497 BEFORE RETURNING TO THE STORE.
WWW.SMART-POND.COM
3. Add water to the container. Fill the container to approximately half
way to three quarters capacity. Fig. 3
Fig. 3

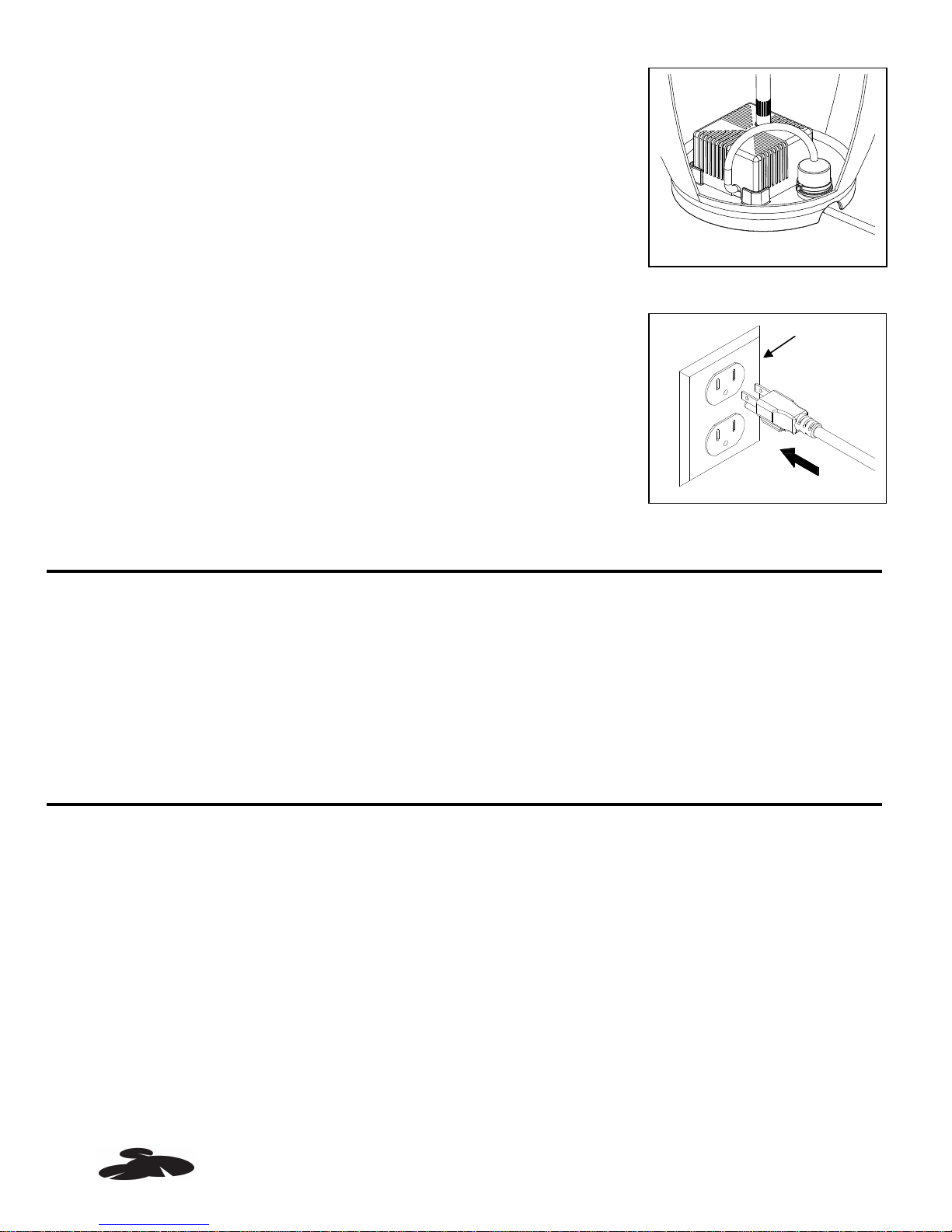

4. Connect the pump to a proper power source. Fig. 4
Fig. 4
5. Adjust the fountain head so that water does not go outside the
container. Fig. 5
Fig. 5
GFCI

PLEASE CALL 1-888-755-4497 BEFORE RETURNING TO THE STORE.
WWW.SMART-POND.COM
REPLACING PUMP
INSTRUCTIONS
1. Disconnect the pump from the outlet. Drain the water from the
container. Fig. 6
Fig. 6
2. Carefully cut the cable tie. Be sure not to damage the rubber boot.
Fig. 7
Fig. 7
3. Pull the powercord through the hole in the container. Fig. 8
Fig. 8
Cut cable tie

PLEASE CALL 1-888-755-4497 BEFORE RETURNING TO THE STORE.
WWW.SMART-POND.COM
4. Install the new pump. Then push the rubber boot downward until it
bottoms out. Wrap the cable tie around the boot and tighten. Fig. 9
Fig. 9
5. Connect the pump to a proper power source. Fig. 10
Fig. 10
CARE AND MAINTENANCE
•Regular cleaning of the pump and container may be necessary depending upon the environment in
which it is operated. Clean the pump and container when it is visibly soiled or when a drop in
performance is detected.
•Before cleaning, always disconnect the pump from the power source.
•Remove all parts from the pump and clean in warm, soapy water.
•Disassemble the front cover and remove the impeller cover to expose the impeller assembly. Use
a soft cloth or brush to clean the impeller assembly and the inside of the impeller housing. Refer to
the diagram in the replacement parts list.
TROUBLESHOOTING
If the pump fails to operate:
•Check to make sure the power cord is plugged in and the pump is getting power.
•Check the pump outlet and any tubing, fountains, spitters etc. for kinks or obstructions.
•Remove the inlet screen and/or front cover, and impeller cover to expose the impeller. Turn the
impeller to ensure that it is not broken or jammed.
If the performance of the pump is not satisfactory or the pump does not flow evenly:
•Check to make sure the pump is completely submerged in water.
•Check to make sure the impeller and the impeller housing are clean.
•Adjust flow control.
GFCI

PLEASE CALL 1-888-755-4497 BEFORE RETURNING TO THE STORE.
WWW.SMART-POND.COM

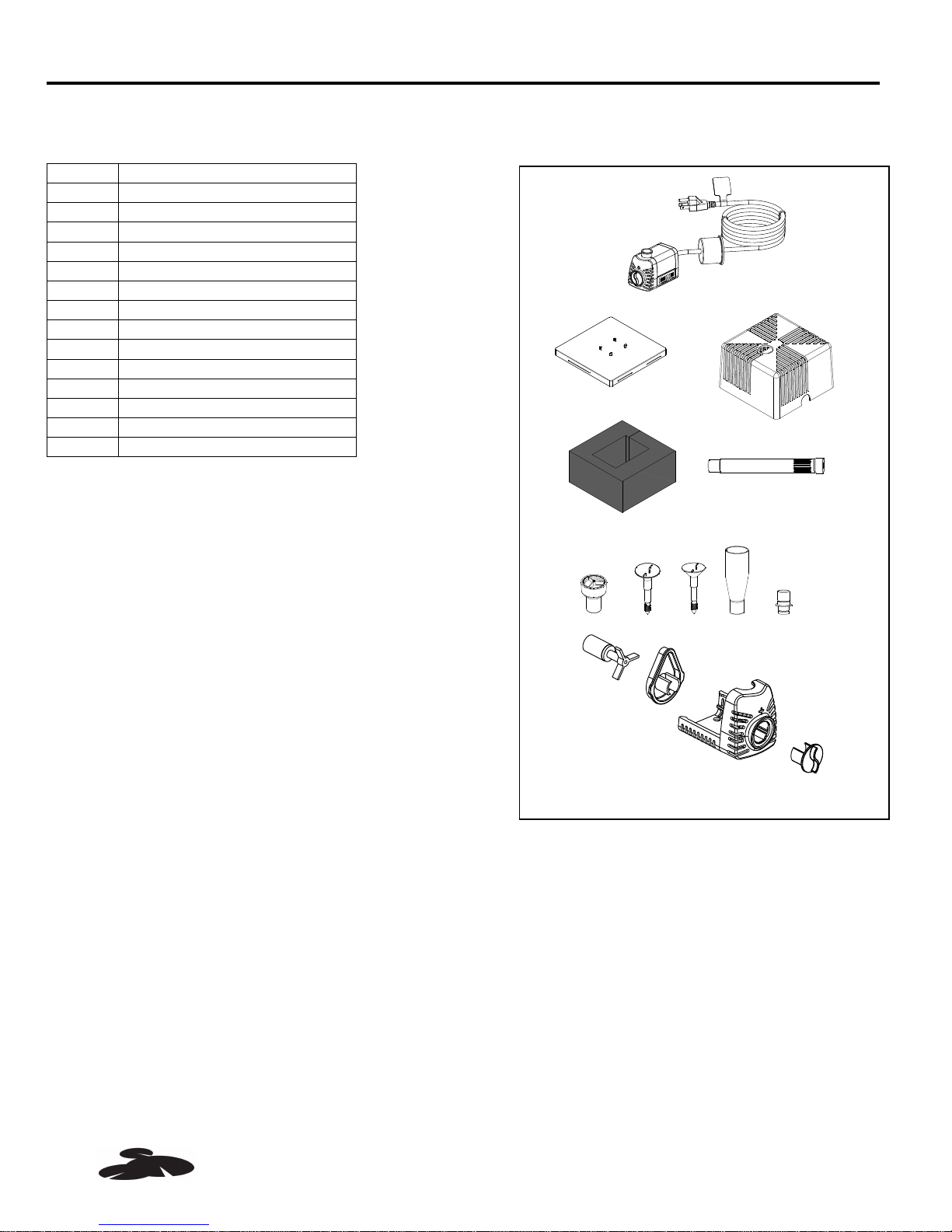

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-888-755-4497, 8 a.m.-6 p.m., EST,
Monday-Friday.
Printed in China
Part Description
B Extension tubes
C Waterspray nozzle
D Waterbell nozzle insert
E Trumpet nozzle insert
F lower fountain head nozzle
G Adapter (with o-ring)
H Pump
I Base plate
J Filter block
K Filter cover
L Flow control knob
M Front cover
N Impeller cover
O Impeller assembly
I
J
K
B
C
D
E
F
G
H
M
N
O
L

PLEASE CALL 1-888-755-4497 BEFORE RETURNING TO THE STORE.
WWW.SMART-POND.COM
LIMITED WARRANTY
All pumps and electrical products are warranted to the user against defective material and workmanship, under
normal working conditions. This warranty period begins on the date of purchase by the original purchaser.
Unless otherwise specified all smartpond® electrical products are warranted to the user against defective
material and workmanship, under normal working conditions for 1 year from the date of purchase.
•All smartpond® Pond Skins® EPDM liners are warranted to the user against defective workmanship,
under normal working conditions for 20 years from the date of purchase.
•All smartpond® Pond Skins® PVC liners are warranted to the user against defective workmanship,
under normal working conditions for life.
•All other smartpond® products are warranted to the user against defective material and workmanship,
under normal working conditions for 90 days.
Application
Warranty covers only properly installed and maintained units. Any damage to the cord or modification to the unit
will invalidate the warranty. Pump warranty is limited to applications pumping fresh water in a pond or fountain
only. Other liquid applications or extreme temperature uses must be approved in writing by the manufacturer.
Receipt and product date code are required for warranty claims.
Warranty Claim
Warranty claims must be made by calling customer service (at 1-888-755-4497). If the item is determined
to be defective, you will be given authorization to return the defective part(s), freight pre-paid, along with proof of
purchase.
Disposition
The manufacturer will make a good faith effort for prompt disposition regarding all warranty claims. Returned product will be
inspected to determine cause of failure before warranty is applied. Warranty does not cover any costs associated with the
shipping, handling, installation or removal of products or parts subject to this warranty. For products damaged in transit, a
claim should be filed with the carrier.
Disclaimer
Any oral statements made about the product by the seller, the manufacturer, the representatives, or any other parties do not
constitute warranties, should not be relied upon by the user, and are not part of the contract for sale. The seller’s and
manufacturer’s only obligation, and buyer’s only remedy shall be for the manufacturer to either replace and/or repair at the
manufacturer’s sole discretion, the product as described above. Neither seller nor the manufacturer shall be liable for injury,
loss or damages for lost profits, lost sales, injury to person or property, or any other incidental or consequential loss arising
from any cause whatsoever, no matter whether based upon warranty, contract, negligence or other misuse, and the buyer
and user agree that no other remedy shall be available to them. Before using, the buyer and user shall determine the
suitability of the product for the intended use, and assume all risk and liability whatsoever in connection therewith. The
warranty and remedy described in this limited warranty is an exclusive warranty and remedy in lieu of any other warranty or
remedy expressed or implied. All other warranties and remedies are hereby expressly excluded, including but not limited to
any implied warranty of merchantability of fitness for any particular purpose. This warranty gives the buyer and user specific
legal rights, and buyer and user may also have other rights which vary from state to state. Some states do not allow
exclusions or limitations of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
REMINDER
CALL 1-888-755-4497
BEFORE RETURNING TO STORE.
