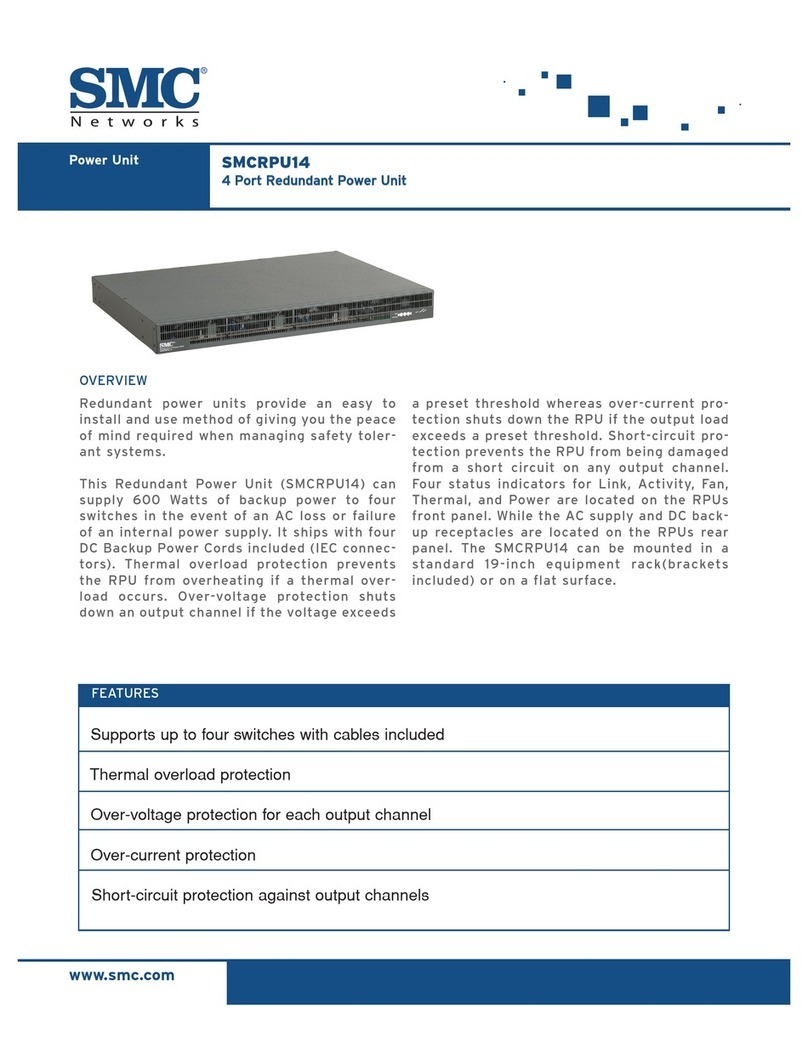

SMC Networks SMCRPU14 User manual

OVERVIEW
Redundant power units provide an easy to install and use method of giving you the peace of mind required
when managing safety tolerant systems.
This Redundant Power Unit (SMCRPU14) can supply 600 Watts of backup power to four switches in the event
of an AC loss or failure of an internal power supply. It ships with four DC Backup Power Cords included (IEC
connectors). Thermal overload protection prevents the RPU from overheating if a thermal overload occurs.
Over-voltage protection shuts down an output channel if the voltage exceeds a preset threshold whereas
over-current protection shuts down the RPU if the output load exceeds a preset threshold. Short-circuit
protection prevents the RPU from being damaged from a short circuit on any output channel. Four status in-
dicators for Link, Activity, Fan, Thermal, and Power are located on the RPUs front panel. While the AC supply
and DC backup receptacles are located on the RPUs rear panel. The SMCRPU14 can be mounted in a standard
19-inch equipment rack(brackets included) or on a fl at surface.
www.smc.com
SMCRPU14
4 Port Redundant Power Unit


  


APPLICATION DIAGRAM
POWER TO CONNECT
KEY FEATURES
Supports up to four switches with cables included Over-current protection
Over-voltage protection for each output channel Short-circuit protection against output channels
Thermal overload protection
SWITCHES VDSL WIRELESS VOIP STORAGE BROADBAND ADAPTERS

PORTS
• 4 RPU DC power outlets (IEC socket 216C743-07)
LEDs
• Port: Link, Activity
• System: Power, Fan, Thermal
WEIGHT
• 5.5 kg
• 12.1 lbs
DIMENSIONS
• 44.0 x 32.3 x 4.3 cm
• 17.34 x 12.6 x 1.69 in.
TEMPERATURE
• Operating: 0 to 45 °C (32 to 110°F)
• Storage: -40 to 70 °C (-40 to 158 °F)
HUMIDITY
• Operating: 20% to 90%
• AC Input
• 100 to 240 V, 50 to 60 Hz
EIA RATINGS
• 10 A @ 125 VAC
• 10 A @ 250 VAC
• DC Power Cable Connector
• 14-pin P-Type connector
POWER SUPPLY
• Internal, auto-ranging transformer:
• 100 to 240 VAC, 50 to 60 Hz
• Output 11.5 VDC
POWER CONSUMPTION
• 644 W (Maximum)
• 161 W (Maximum per port)
MAXIMUM CURRENT
• 7.8 A @ 110 VAC
• 3.5 A @ 240 VAC
OVERLOAD PROTECTION
• Ports are shutdown when output exceeds 150 W
POWER SUPPLY
• +12 VDC
• Initial accuracy: +/- 1%
• Current: 2 A (minimum), 10 A (maximum)
• Line regulation: +/- 1%
• Load regulation: +/- 10%
• Overshoot and undershoot: 5%
COMPLIANCES
• CE Mark
• Emissions
• FCC Class B
• Industry Canada Class B
• CISPR Class B
• VCCI Class B
• AS/NZS 3548 (1995) Class B
IMMUNITY
• EN 55024
• Safety
• CSA/ C US (CSA 60950-00 & UL60950)
• CB: IEC 60950
• EN 60950 (TÜV/GS)
WARRANTY
• Please check www.smc.com for the warranty
terms in your country/region
CONTACT
North America
20 Mason
Irvine, CA 92618
1-800-SMC-4YOU
24/7 Technical Support
Europe/Africa
Fructuos Gelabert 6-8
08970 Sant Joan Despí
Barcelona, Spain
Check www.smc.com for your local country
contact information
© 2009 SMC Networks. SMC and the SMC logo are registered trademarks
of SMC Networks in the United States or other countries. Other trademarks
or registered trademarks are the property of their respective owners. Infor-
mation is subject to change without notice. All rights reserved.
7/2009
