TECH SPECS
STACKING CABLES DISTANCE CABLE TYPE CONNECTOR APPLICATION
SMC8700S-30 30cm Copper Proprietary Switch to switch in same rack
SMC8700S-130 130cm Copper Proprietary Loop back from top to bottom in same rack
SMC8700S-300 300cm Copper Proprietary Switch to switch between racks
10G TRANSCEIVERS DISTANCE CABLE TYPE CONNECTOR APPLICATION
SMC10GXFP-SR 300m Multimode fiber LC
10G Fiber uplinks based on distance required
SMC10GXFP-LR 10km Singlemode fiber LC
SMC10GXFP-CX4 15m Copper CX4 10G high performance short distance uplink
1G TRANSCEIVERS DISTANCE CABLE TYPE CONNECTOR APPLICATION
SMC1GSFP-SX 550m Multimode fiber LC
1G Fiber uplinks based on distance
requirements
SMC1GSFP-LX 10km Singlemode fiber LC
SMC1GSFP-ZX 70km Singlemode fiber LC
MODULES CONNECTOR APPLICATION
SMCXFPMOD 1 XFP slot Flexible uplinks based on standard compliant XFP transceivers
SMC10BTMOD 1 RJ-45 10G BASE-T connections to switches or servers

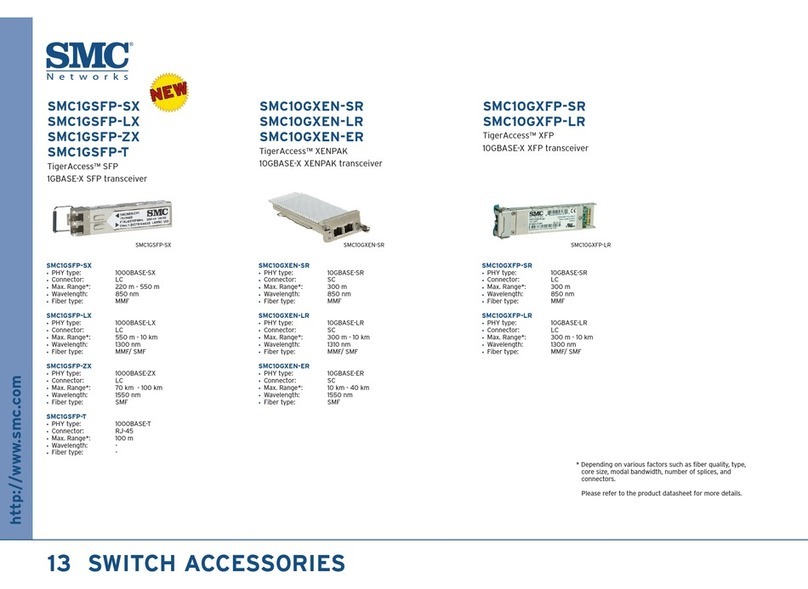

TRANSCEIVERS
OVERVIEW
Network ecosystems contain multiple types of technologies designed to accomplish various objectives. Network accessories are the glue that holds
everything together, allowing these technologies to connect or to enable long distance networking, stacking, or increasing bandwidth. At SMC\Edgecore
we provide a wide range of accessories including transceivers, modules, and stacking cables designed to enable user flexibility and performance with
every network connection.
As a provider of advanced technology, SMC\Edgecore provides state-of-the-art accessories designed to optimize network performance. Modules for
switches can be used across various switch lines, while our IEEE 802.3an (10G Base-T) is the latest in a line of technologies that allow users to expand
bandwidth without changing copper cabling infrastructure. Accessories are designed to enable users to effectively connect networks while improving
cost of ownership. At SMC\Edgecore we improved customer experience by creating interchangeable accessory parts that enhance and simplify the
network ecosystem connection points.
Switch Accessories
SMC1GSFP-SX, SMC1GSFP-LX, SMC1GSFP-ZX, SMC10GXFP-SR, SMC10GXFP-LR, SMC8700S-30,
SMC8700S-130, SMC8700S-300, SMCXFPMOD, SMC10BTMOD

SMC Networks Europe
Fructuós Gelabert 6-8, 2-2
Sant Joan Despí - Barcelona
Spain
For more information visit www.smc.com
© 2010 Edgecore® Networks. Edgecore® and the Edgecore® logo are registered trademarks of Edgecore® Networks in the United States or other countries. Other
trademarks or registered trademarks are the property of their respective owners. Information is subject to change without notice. All rights reserved.
TRANS/012010
CONTACT
COPYRIGHT
KEY FEATURES
STACKING CABLES
Special stacking connections for reducing oversubscription and enabling performance enhancements
Dedicated bandwidth for non-blocking stacking
Extended cable lengths for top and bottom of rack stacking or stacking between racks
TRANSCEIVERS
Designed to meet the highest industry standards and quality
Support for a variety of distances and speeds
Support for both Multimode or Single Mode fiber cables
Support for various connector types SFP for 1 gigabit, XFP and CX4 for 10Gigabit connections
10 GIGABIT UPLINK
MODULES
Flexible 10G support for XFP, CX4, and 10G Base-T (100m over Cat 6A)
Modules can be used with multiple switch lines
MATRIX
TIGER
SWITCHES
SFP’S XFP’s KITS/CABLES MODULES
SMC1GSFP-SX
SMC1GSFP-LX
SMC1GSFP-ZX
SMC10GXFP-SR
SMC10GXFP-LR
SMC10GXFP-CX4
SMC8700S-30
SMC8700S-130
SMC8700S-300
SMCXFPMOD SMC10BTMOD
MANAGED 10/100
SMC6110L2 X X X
SMC6128L2 X X X
SMC6152L2 X X X
SMC6128PL2 X X X
SMC6152PL2 X X X
MANAGED 1000
SMC8124PL2 X X X
SMC8126PL2-F X X X
SMC8126L2 X X X
SMC8150L2 X X X
SMC8612XL3 X X X
SMC8824M X X X X X X X X X X
SMC8848M X X X X X X X X X X
SMC8926EM X X X X X X X X X X X
SMC8950EM X X X X X X X X X X X
MANAGED 10G
SMC8708L2 X X X
