Smeg PL673WH User manual

INSTRUCTION MANUAL
DISHWASHER

Contents
3
1. Safety and operating instructions ____________________________ 4
2. Installation and hook-up ___________________________________ 6
2.1 Water supply connection ______________________________________________________ 6
2.2 Electrical connection _________________________________________________________ 7
3. Description of the controls__________________________________ 8
3.1 Front panel _________________________________________________________________ 8
3.2 Washing programs __________________________________________________________ 10
4. Operating instructions ____________________________________ 12
4.1 Using the rinse aid and detergent dispensers _____________________________________ 12
4.2 General warnings and recommendations ________________________________________ 14
4.3 Using the baskets___________________________________________________________ 15
5. Cleaning and maintenance ________________________________ 17
5.1 General warnings and recommendations ________________________________________ 17
Thank you for choosing this product.
We advise you to carefully read all the instructions contained in this manual, in order to understand
how to operate your dishwasher safely and correctly.
The manual is divided into paragraphs, which provide a step by step description of the dishwasher
functions, with clear instructions accompanied by detailed illustrations.
Recommendations are given for the correct use of the baskets, spray arms, containers, filters,
washing programs, and for operating the controls.
Follow the recommended cleaning procedures to ensure that your dishwasher always remains in
perfect working order.
This manual provides a quick and easy reference for answering all your questions concerning the
use of your new dishwasher.
INSTALLATION INSTRUCTIONS: these are intended for the qualified technician who must carry
out the installation, hook-up and testing of the appliance.
USER INSTRUCTIONS: these consist of recommendations for using the appliance, a description of
its controls and of the correct cleaning and maintenance procedures.

Safety instructions
4
1. Safety and operating instructions
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST ALWAYS BE KEPT INTACT TOGETHER
WITH THE DISHWASHER. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS
CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN
COMPLIANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC USE, AND
COMPLIES WITH THE EEC DIRECTIVES 72/23, 897336 (INCLUDING 92/31) CURRENTLY IN FORCE, INCLUDING THE
PREVENTION AND ELIMINATION OF RADIO FREQUENCY INTERFERENCE. THE APPLIANCE IS DESIGNED FOR
THE FOLLOWING PURPOSE: WASHING AND DRYING OF DISHES; ANY OTHER USE SHALL BE CONSIDERED
IMPROPER. THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR USES OTHER THAN THOSE
DESCRIBED ABOVE.
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER AND MARKINGS IS VISIBLY POSITIONED
ON THE INNER EDGE OF THE DOOR. THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST NEVER BE
REMOVED.
DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED WITHIN THE HOME. SEPARATE THE
VARIOUS MATERIALS WHICH MAKE UP THE PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE
COLLECTION CENTRE.
THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN ACCORDANCE WITH THE ELECTRICAL
SAFETY REGULATIONS IN FORCE.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO PERSONS OR PROPERTY RESULTING
FROM THE FAILURE TO EARTH THE APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.
IF THE APPLIANCE IS NOT CONNECTED TO THE ELECTRICAL POWER SUPPLY BY MEANS OF A PLUG, IT IS
NECESSARY TO INSTALL AN ISOLATION SWITCH WITH A CONTACT OPENING GAP OF AT LEAST 3 MM.
THE PLUG ON THE POWER CORD AND THE CORRESPONDING SOCKET OUTLET MUST BE OF THE SAME TYPE,
AND MUST CONFORM TO THE REGULATIONS IN FORCE. CHECK THAT THE VOLTAGE AND FREQUENCY OF THE
ELECTRICAL POWER SUPPLY MATCH THE RATINGS ON THE NAME PLATE. AVOID USING ADAPTORS OR SHUNT
CONNECTIONS.
NEVER UNPLUG THE APPLIANCE BY PULLING THE POWER CORD.
•AFTER INSTALLATION, THE PLUG MUST REMAIN ACCESSIBLE.
•IN THE EVENT OF DAMAGE TO THE POWER CORD, HAVE IT REPLACED BY A QUALIFIED TECHNICIAN.
IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR, ENSURE THAT THE OPENINGS ON ITS
UNDERSIDE ARE NOT OBSTRUCTED.
ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID WASTING ELECTRICITY.
OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE MAINS POWER CORD AFTER
UNPLUGGING IT FROM THE WALL OUTLET, AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS
FOR CHILDREN (LOCKS, DOORS, ETC.). THE APPLIANCE MUST THEN BE TAKEN TO A SORTED WASTE
COLLECTION CENTRE.
IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE ELECTRICAL POWER SUPPLY AND
SHUT OFF THE WATER TAP. THEN CALL IN A QUALIFIED TECHNICIAN.

Safety instructions
5
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING TRANSIT! IF IN DOUBT, CONSULT YOUR
DEALER.
THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE WITH THE INSTRUCTIONS PROVIDED
BY THE MANUFACTURER OR BY A QUALIFIED TECHNICIAN.
THE APPLIANCE IS INTENDED FOR USE BY ADULTS. DO NOT ALLOW CHILDREN TO COME NEAR OR PLAY WITH
THE DISHWASHER. KEEP CHILDREN AWAY FROM DETERGENTS AND FROM THE OPEN DISHWASHER DOOR.
THE PACKAGING MATERIALS (PLASTIC BAGS, POLYSTYRENE, METAL BARS, ETC.) MUST NOT BE LEFT WITHIN
THE REACH OF CHILDREN.
KEEP CHILDREN AWAY FROM THE OPEN DISHWASHER. THE APPLIANCE MAY CONTAIN RESIDUES OF
DETERGENT WHICH CAN CAUSE IRREVERSIBLE DAMAGE TO THE EYES, MOUTH, AND THROAT, AS WELL AS
POSSIBLE DEATH BY SUFFOCATION.
DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE WHICH MAY CAUSE AN EXPLOSION.
DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINTS.
LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY CAUSE THE APPLIANCE TO OVERTURN,
PUTING PEOPLE AT RISK.
DO NOT UNDER ANY CIRCUMSTANCES TOUCH THE HEATING ELEMENT IMMEDIATELY AFTER THE END OF A
WASHING PROGRAM.
OVER TIME, THE DISHWASHER HEATING ELEMENTS MAY CHANGE COLOUR, IN PART OR OVERALL. THIS IS
PERFECTLY NORMAL AND DOES NOT IN ANY WAY AFFECT THE OPERATION OF THE APPLIANCE.
DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE
END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE.
AQUASTOP MODELS
THE AQUASTOP DEVICE PREVENTS FLOODING IN THE EVENT OF A WATER LEAK. WHEN THE AQUASTOP
DEVICE IS TRIPPED, CALL IN A QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT.
IN MODELS EQUIPPED WITH THE AQUSTOP DEVICE, THERE IS A SOLENOID VALVE INSIDE THE WATER INTAKE
HOSE. DO NOT CUT THE HOSE AND DO NOT ALLOW THE SOLENOID VALVE TO DROP INTO WATER. IN THE
EVENT OF DAMAGE TO THE WATER INTAKE HOSE, DISCONNECT THE APPLIANCE FROM THE ELECTRICAL
POWER SUPPLY AND FROM THE WATER SUPPLY.
IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK TEST OF THE APPLIANCE FOLLOWING
THE INSTRUCTIONS BELOW. IF THE DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT FROM THE
ELECTRICAL POWER SUPPLY AND CALL THE NEAREST TECHNICAL SERVICE CENTRE.
DO NOT ATTEMPT TO REPAIR THE APPLIANCE.
THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE REGULATIONS IN FORCE CONCERNING
SAFETY AND ELECTRICAL EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUCTED EXCLUSIVELY BY A
TRAINED AND AUTHORISED TECHNICIAN: REPAIRS CARRIED OUT BY UNAUTHORISED PERSONS WILL
INVALIDATE THE WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.
The manufacturer declines all responsibility for damage to persons or property resulting from failure to
observe the above precautions, from tampering with even a single component of the appliance, or from the use
of non original spare parts.

Installation instructions
6
2. Installation and hook-up
Remove the polystyrene basket retainers.
Position the appliance in the desired place of installation. The back or sides of the dishwasher may
be placed up against walls or other furniture units.
If the dishwasher is installed near a heat source, fit the special insulating panel to prevent
overheating and malfunction of the appliance.
To ensure stability, install integrated or built-under dishwashers only under continuous worktops,
and screw them to the adjacent units.
To facilitate the installation procedure, the intake and drain hoses can be positioned in any
direction; make sure that the hoses are not kinked, crushed or pulled too tightly.
Level the appliance on the floor using its adjustable feet. This operation is essential for ensuring
correct operation of the dishwasher.
Some models are equipped with only one adjustable foot at the rear, which can be adjusted by
turning the screw on the lower front part of the appliance.
2.1 Water supply connection
Preventing the risk of clogging or damage: if the water pipe is new or has not been used for a
long time, before connecting to the water supply check that the water is clear and free of impurities,
to prevent damage to the appliance.
The dishwasher must always be connected to the water system with new hoses; old or used hoses
must never be reused.
CONNECTING TO THE WATER SUPPLY
Connect the intake hose to a cold water supply with 3/4” gas thread, inserting the filter Asupplied
with the dishwasher.
Take care to screw the hose firmly into place with your hands and then complete by
tightening about 1/4 of a turn with pliers. In dishwashers equipped with the ACQUASTOP
device, the filters is already fitted inside the threaded ring.
The dishwasher can also be connected to a hot water supply not exceeding 60°C. Supplying the
appliance with hot water cuts down the washing time by approximately 20 minutes, but slightly
reduces its effectiveness. Make the connection to the domestic hot water supply using the same
procedure described for connecting to the cold water supply.

Installation instructions
7

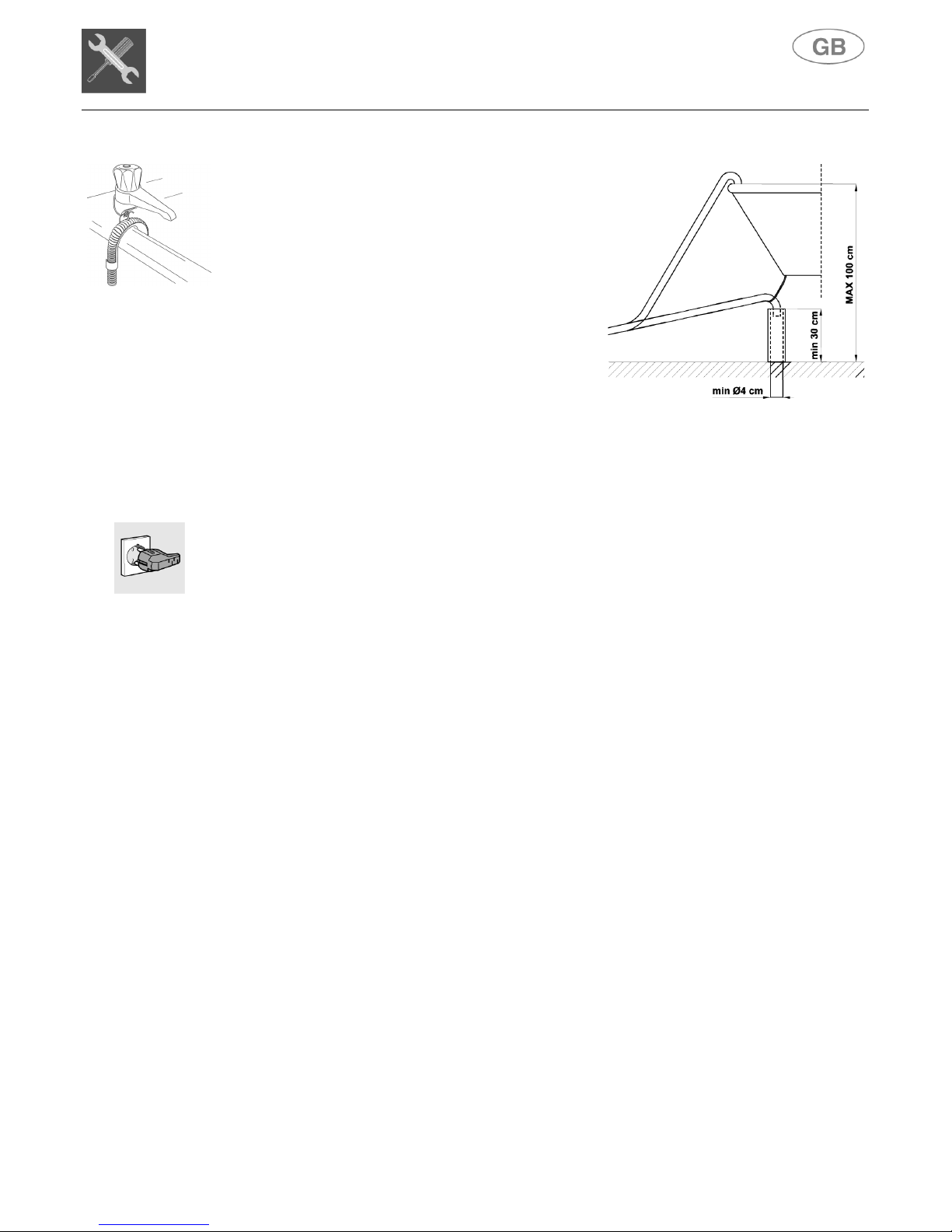

DRAIN CONNECTION
Insert the dishwasher’s drain hose into a drain pipe
having a diameter of at least 4 cm, or alternatively,
place it inside the kitchen sink using the plastic support
provided, taking care not to crush or excessively bend
the hose. It is important to prevent the hose from
coming loose and falling. For this purpose, the plastic
support is equipped with a hole for tying it to the wall or
water tap.
The free end should be positioned at a height of
between 30 and 100 cm,and should never be
submerged in water.
If a horizontal drain extension hose is used (for a
maximum of 3 m) the drain hose can be placed at a
maximum height of 85 cm from the ground.
2.2 Electrical connection
Plug the power cord into a suitable electrical outlet, according to the instructions given in chapter
"1. Safety and operating instructions".

User instructions
8
3. Description of the controls
3.1 Front panel
All the dishwasher controls are grouped on the front panel, which is of different shape depending
on the model.
CONTROL LEGEND (for models with RAPID PROGRAM button)
1WASHING PROGRAM SELECTOR
2ON/OFF BUTTON
3½ LOAD WASH BUTTON
4ECO (55°C) PROGRAM BUTTON
5SUPER PROGRAM BUTTON
6RAPID PROGRAM BUTTON
7POWER ON LIGHT
8HEATING INDICATOR LIGHT
9RINSE AID WARNING LIGHT
10 RECESSED DOOR HANDLE
CONTROL LEGEND (for models with DELAYED START indicator switch)
1WASHING PROGRAM SELECTOR
2ON/OFF BUTTON
3½ LOAD WASH BUTTON
4ECO (55°C) PROGRAM BUTTON
5SUPER PROGRAM BUTTON
6SELECTOR SWITCH FOR DELAYED START FROM 1 TO 12 HOURS
7POWER ON LIGHT
8HEATING INDICATOR LIGHT
9RINSE AID WARNING LIGHT
10 RECESSED DOOR HANDLE
SETTING THE WASHING PROGRAM
To select the most suitable washing program, refer to the table below which indicates the
recommended washing according to dish type and the degree of soiling.
After using the table to identify the most appropriate washing program, turn the PROGRAM
SELECTION knob (1) to set the program of choice by aligning the pointer with the program
number. If necessary, depending on the program chosen, press one of the keys (3,4,5 or 6)
allowing selection of the ½ LOAD or 55°C wash or the SUPER or RAPID programs.
Now simply pressing the ON/OFF key (2) will start the program. The PILOT LIGHT (7) lights up.

User instructions
9
TABLE OF PROGRAMS (without RAPID PROGRAM button)
AMOUNT OF
DETERGENT PROGRAM SEQUENCE DURATION CONSUMPTION
CYCLE SWITCH BUTTON TYPE AND DEGREE
OF DIRT ON DISHES GRAMS PREWASH WASH COLD
RINSE
HOT
RINSE
DRYING MINUTES
(2)
WATER
LITRES (1)
POWER
KWh (2)
SOAK 1_PANS AND DISHES WHILE WAITING
FOR LOAD TO BE COMPLETED _COLD _ _ _ _ 6' 4_
SUPER 2SUPER
(65°C)
(1/2)
HEAVILY SOILED PANS AND
DISHES, INCLUDING DRIED-ON
RESIDUE
10 + 25 45°C 65°C 265°C YES 110' 22 1,65
BIO 55°C
(*) 2ECO 55°C
(1/2)
NORMALLY SOILED PANS AND
DISHES, INCLUDING DRIED-ON
RESIDUE
30 COLD 55°C 165°C YES 96' 18 1,28
NORMAL
65°C 2(1/2) NORMALLY SOILED PANS AND DISHES 30 COLD 65°C 165°C YES 100' 18 1,45
ECO 55°C
(**) EN 50242 3ECO 55°C
(1/2)
SLIGHTLY SOILED PANS AND
DISHES, INCLUDING DRIED-ON
RESIDUE
30 _55°C 165°C YES 90' 16 1,24
DAILY
65°C
3(1/2) NORMALLY SOILED PANS AND
DISHES 30 _65°C 165°C YES 92' 16 1,40
DELICATE
45°C
4(1/2) SLIGHTLY SOILED DISHES 25 _45°C 165°C YES 62' 13 1,10
TABLE OF PROGRAMS (with RAPID PROGRAM button)
AMOUNT OF
DETERGENT PROGRAM SEQUENCE DURATION CONSUMPTION
CYCLE SWITCH BUTTON TYPE AND DEGREE
OF DIRT ON DISHES GRAMS PREWASH WASH COLD
RINSE
HOT
RINSE
DRYING MINUTES
(2)
WATER
LITRES (1)
POWER
KWh (2)
SOAK 1_PANS AND DISHES WHILE WAITING
FOR LOAD TO BE COMPLETED _COLD _ _ _ _ 6' 4_
SUPER 2SUPER
(65°C)
(1/2)
HEAVILY SOILED PANS AND
DISHES, INCLUDING DRIED-ON
RESIDUE
10 + 25 45°C 70°C 270°C YES 117' 22 1,85
BIO 55°C
(*) 2ECO 55°C
(1/2)
NORMALLY SOILED PANS AND
DISHES, INCLUDING DRIED-ON
RESIDUE
30 COLD 55°C 170°C YES 100' 18 1,40
NORMAL
65°C 2(1/2) NORMALLY SOILED PANS AND DISHES 30 COLD 70°C 170°C YES 107' 18 1,65
ECO 55°C
(**) EN 50242 3ECO 55°C
(1/2)
SLIGHTLY SOILED PANS AND
DISHES, INCLUDING DRIED-ON
RESIDUE
30 _55°C 170°C YES 94' 16 1,35
DAILY
65°C
3(1/2) NORMALLY SOILED PANS AND
DISHES 30 _70°C 170°C YES 100' 16 1,60
DELICATE
45°C
4(1/2) SLIGHTLY SOILED DISHES 25 _45°C 170°C YES 70' 13 1,22
RAPID
45°C
4RAPID
(1/2)
DISHES WITH LITTLE DIRT AND
DELICATE ITEMS 25 _45°C 2_ _ 30' 13 0,50
Only run the soak program with half loads.
The HALF LOAD option (3) is available for all programs except the soak program.
(*) Program recommended when using “new generation” detergents containing enzymes.
(**) Reference program as per EN 50242 standard.
(–) Not present.
(1) Average power consumption with the softener set on level 2.
(2) The cycle duration and power consumption may vary according to the water and room temperatures, and the type
and amount of dishes.

User instructions
10
The washing cycle will not take place if the dishwasher door is left open or not properly closed.

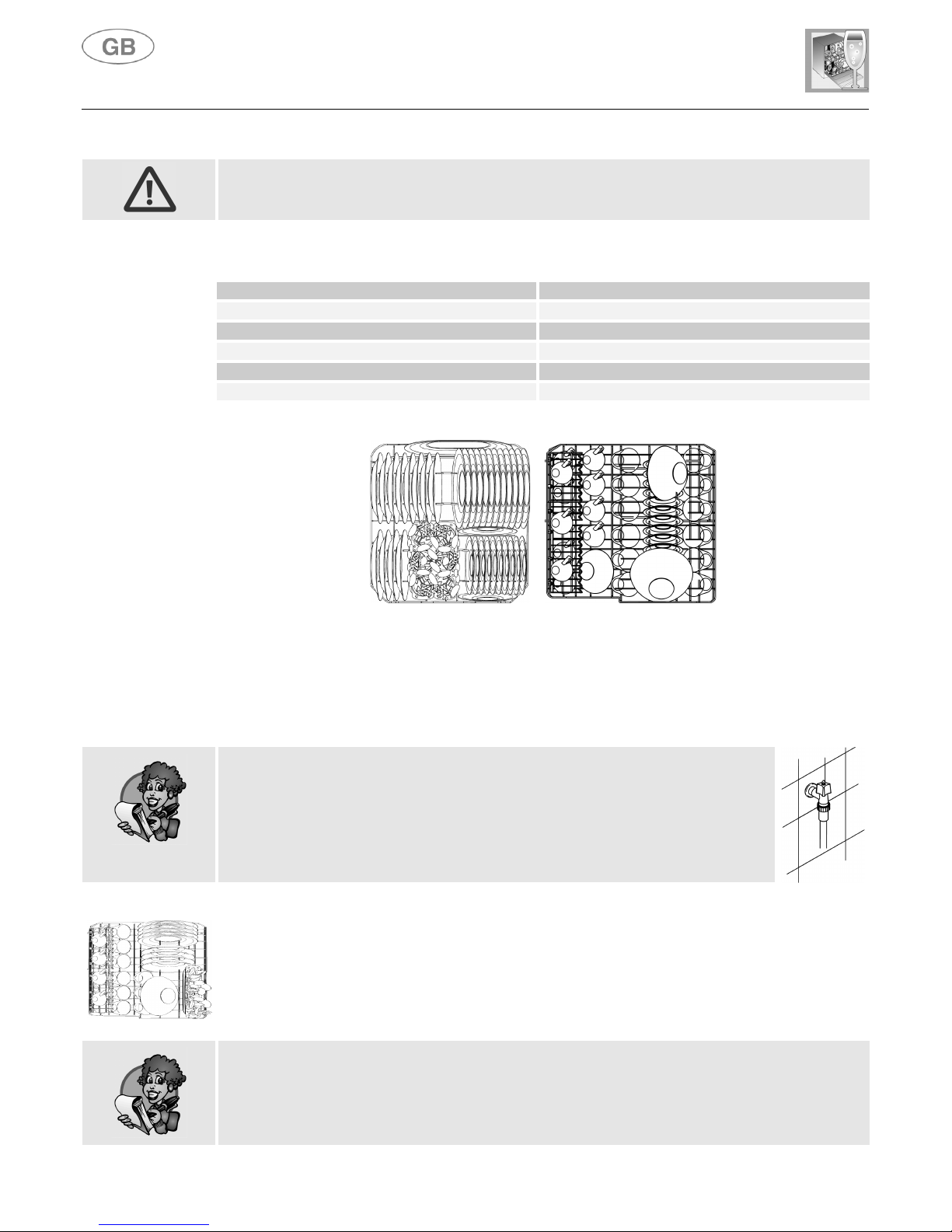

TABLE FOR CERTIFICATION BODIES
Reference standard EN 50242
Reference program Selector on 3+ ECO 55°C button
Load 12 place-settings
Type of detergent B
Amount of detergent 30 g
Rinse aid setting Depending on the model 3/4 or 4/6
EN 50242
3.2 Washing programs
Before starting a washing program make sure that:
•The water supply tap is open.
•The correct amount of detergent has been added to the dispenser.
•The baskets have been correctly loaded.
•The spray arms are able to rotate freely and without obstruction.
•The dishwasher door is securely closed.
HALF LOAD WASH SETTING
This function is especially suitable for loads up to 6 place settings and allows saving of water and
electricity. It is controlled by the HALF LOAD button (3) (see section "3. Description of the
controls") and allows washing in the upper basket only.
IMPORTANT: at the end of the program remember to deactivate the function to ensure the next
wash is not also carried out in half load mode by mistake.
A cutlery basket can be placed in the upper basket, while the lower basket must be left empty.
CAUTION: there is no point in loading dishes and cutlery in the lower basket, since the jet of
water will only reach the upper basket.

User instructions
11
CANCELLING THE CURRENT PROGRAM
To cancel the program in progress the dishwasher must be switched off by pressing the ON/OFF
key (2) (see section "3. Description of the controls").
Turn the program selector to SOAK and wait for the dishwasher to start. On completion of the
program, switch off the dishwasher by pressing the ON/OFF key (2).
CHANGING THE PROGRAM
To change the program in progress the dishwasher must be switched off by pressing the ON/OFF
key (2) (see section "3. Description of the controls").
Turn the program selector to the program required and then switch the dishwasher on again by
pressing ON/OFF key (2). The dishwasher will carry out the new program automatically.
PROGRAM DELAY
The start of the washing program can be delayed by from 1 to 12 hours, depending on model.
This allows you to operate the dishwasher at the time of day most convenient to you.
Using the DELAYED START switch (6) (see section "3. Description of the controls") set the “delay”
required by setting the pointer against the number indicating the hours. Then carry out the usual
program setting procedures.
CAUTION: always turn the switch clockwise.
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
•Always try to run the dishwasher fully loaded.
•Do not wash the dishes in running water.
•Use the washing program that is most appropriate for each type of load.
•Do not carry out any preliminary rinsing.
•If available, connect the dishwasher to a hot water supply up to 60°C.
•When possible, disable the drying cycle and leave the door open at the end of the washing
cycle: the residual air and heat will dry the dishes perfectly.
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the environment. To avoid
using excessive amounts of detergent and to save on electricity, observe the following:
•separate the more delicate items from dishes that are more resistant to aggressive detergents
and high temperatures;
•do not pour the detergent directly on the dishes.
If it is necessary to open dishwasher door during the washing cycle, there will be a 1-minute delay
before the program can be resumed. After correctly closing the door, the washing program will start
again from where it was interrupted.
This operation may negatively affective the progress of the washing cycle.
END OF CYCLE
At the end of the washing program the selector will be on one of the STOP markers, depending on
the program carried out. Switch off the dishwasher by pressing the ON/OFF key (2) (see section
"3. Description of the controls").
REMOVING THE DISHES
At the end of the washing program, wait at least 20 minutes before removing the dishes, to allow
them to cool down. To prevent any water droplets on the upper basket from falling on the dishes in
the lower basket, it is advisable to unload the lower basket first, and then the upper basket.
