1. Description of the controls
1.1 Upper panel

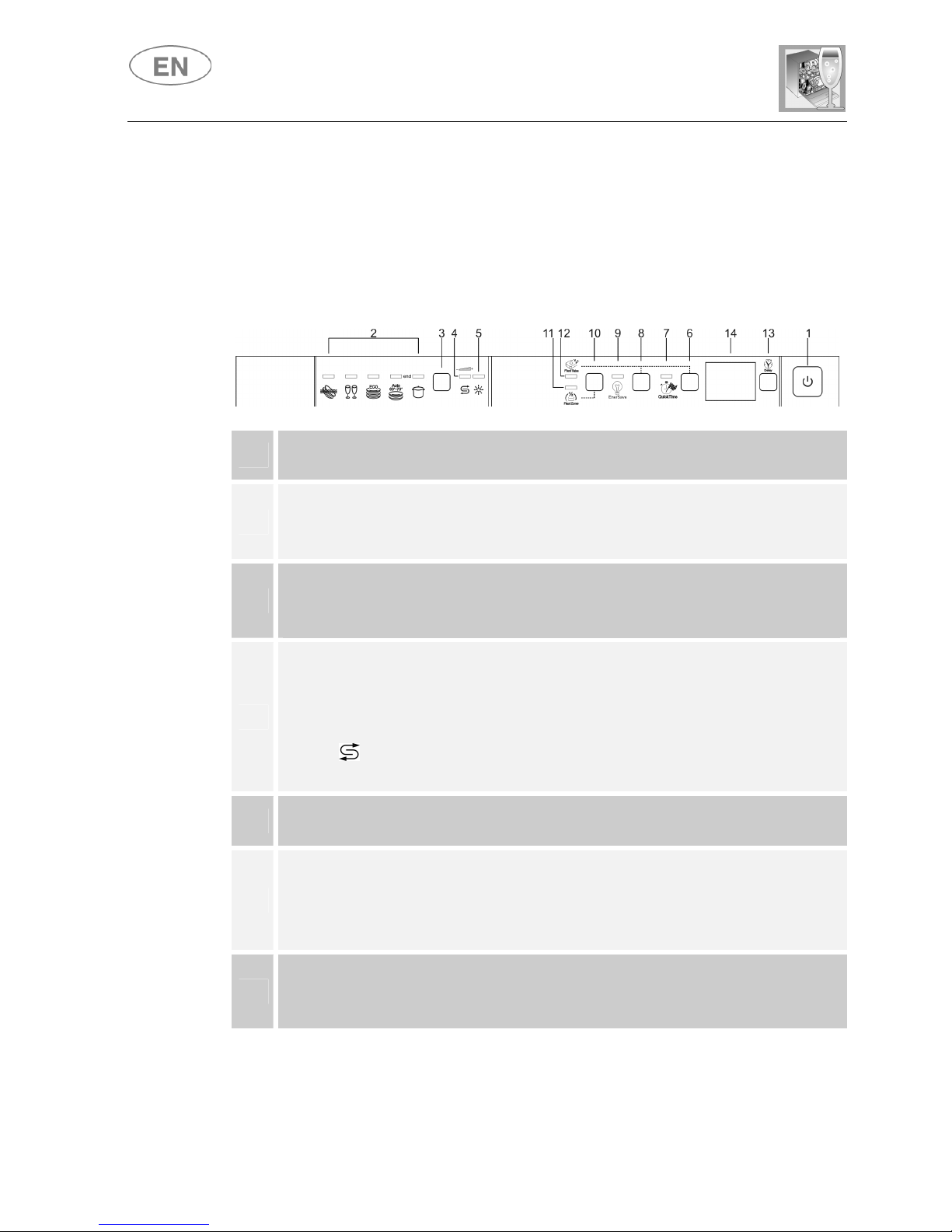

All the dishwasher controls are grouped on the upper panel. Switch-on,
programming, switch-off etc. procedures are only possible when the
door is open.
1 ON/OFF BUTTON
Pressing this button energises the appliance.
2 SELECTED PROGRAM INDICATOR LIGHTS Illumination of this light denotes the program selected and the
occurrence of a fault (troubleshooting).
3 PROGRAM SELECTION BUTTON By pressing this button in sequence it is possible to select the
desired program.
4
WATER HARDNESS ADJUSTMENT ON INDICATOR LIGHT
The light flashes to indicate that the appliance is in “water hardness
adjustment” mode.
SALT WARNIN LIGHT (on some models only)
If the symbol is present, illumination of this light denotes a
regenerating salt warning level.
5 RINSE AID WARNING LIGHT (on some models only)
Illumination of this light signals that rinse aid dispenser is empty.
6
QUICK TIME + EXTRA OPTION BUTTON
(see “EXTRA OPTIONS” section)
The button controls selection of the quick time programs.
(see table).
7 QUICK TIME PROGRAM LIGHT Illuminates to indicate that one of the extra programs (see table) is
going to be executed.

User instructions
3
8 ENERSAVE OPTION + EXTRA OPTION BUTTON (see “EXTRA OPTIONS” section)
Press the button to enable/disable the option.
9 ENERSAVE OPTION LIGHT
Illuminates to indicate that the function is activated.
10
HALF LOAD BUTTON
Press this button to activate the half load wash option.
11
HALF LOAD LIGHT
Illuminates to indicate that the function is activated.
12
"3/1" OPTION (EXTRA OPTION) LIGHT
Illuminates to indicate that the function is activated.
13
PROGRAM DELAY BUTTON
Press this button to delay the start of the program.
14
INFORMATION DISPLAY (1 or 3 digits depending on model)
N.B.: symbols and styling are guideline and may vary depending on
the model or version of the dishwasher purchased.
Information displayed
Scheduled program duration yes
Remaining program time yes
Delayed start 1 - 24 hours
Error message
Err

User instructions
4
PROGRAMS TABLE
The manual contains the programs table for several models. To find the
table for your dishwasher, compare the program symbols at the top of the
table with those on your control panel.

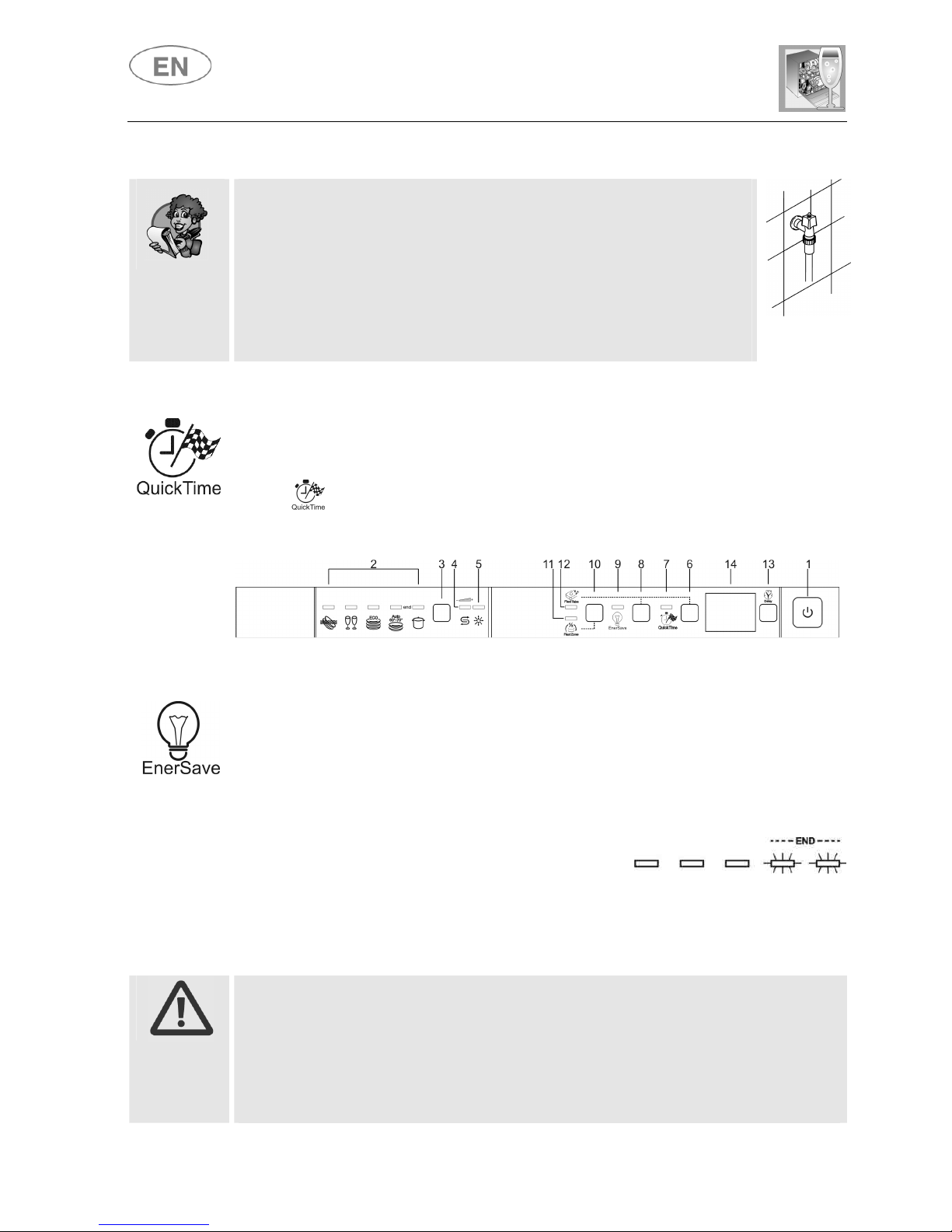

SETTING THE WASHING PROGRAM AND SWITCHING
ON
After identifying the most suitable program with the aid of the programs
table:
•Press the ON/OFF button (1) and wait for the PROGRAM
INDICATOR LIGHT (2) to illuminate;
•Keep pressing the PROGRAM SELECTION button (3) until the
indicator light corresponding to the desired program illuminates;
•select the option required (if any and if the model provides options);
•close the door; after about 2" the program will start LIGHT will
flashing (indicating that the program is being executed).

User instructions
5

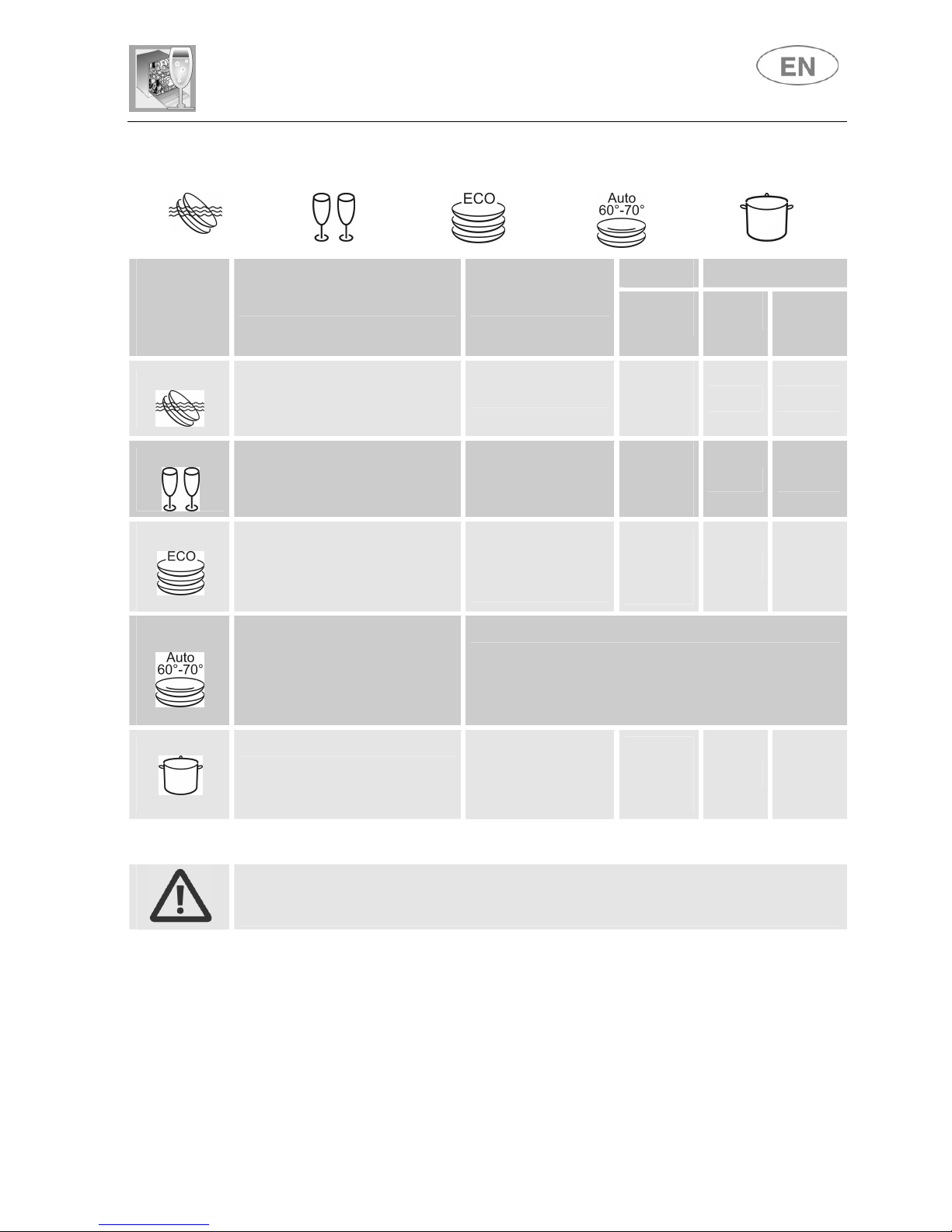

PROGRAMS TABLE
PROGRAMM
E,
NUMBER &
SYMBOL
LOAD CROCKERY AND
CUTLERY
PROGRAM
PROGRESS
DURATION
CONSUMPTION
MINUTES
(1)
WATER
LITRES
POWER
KWh (1)
1 SOAK
Pans and dishes awaiting
completion of the load. Cold prewash
15
3,5 0,02
2 LIGHT
Delicate dishes with normal dirt.
Wash at 45°C
Cold rinse
Rinse at 70°C
Dry
65
9,5 1,10
3 ECO (*)
EN 50242
Dishes with normal dirt, even
with dried-on residues.
Wash at 45°C
Cold rinse
Rinse at 50°C
Dry
**
** **
4 AUTO
60-70
IEC/DIN***
Pans and dishes with normal
dirt, even with dried-on residues.
When the " AUTO " program is selected, the dishwasher
recognises the type of dirt and automatically adjusts the
washing parameters as appropriate.
5 SUPER
****
Very dirty pans and dishes,
even with dried-on residues.
Hot prewash
Wash at 70°C
Cold rinse (2)
Rinse at 70°C
Dry
155
15,5 1,60
IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.
The washing cycle will not take place if the dishwasher door is left open
or not properly closed.

User instructions
6
QUICK TIME PROGRAMS
(see relevant section for explanation of functioning modes)
PROGRAMME
NUMBER E
SYMBOL
LOAD CROCKERY AND
CUTLERY
PROGRAM
PROGRESS
DURATION
CONSUMPTION
MINUTI
(1)
WATER
LITRES
POWER
KWh (1)
6 RAPID 27’
+
Dishes with light dirt,
washed immediately after
use
Wash at 38°C
Rinse at 50°C
27
6,5 0,70
7 ECO
QUICK
+
Dishes with normal dirt,
washed immediately after
use.
Cold prewash
Wash at 60°C
Cold rinse
Rinse at 70°C
80
12,5 1,25
8 NORMAL
QUICK
+
Dishes with normal dirt,
washed immediately after
use.
Cold prewash
Wash at 70°C
Cold rinse
Rinse at 70°C
95
11 1,25
9 STRONG and
FAST
+
Mixed dishes with normal dirt
without dried-on residues.
Wash at 65°C
Cold rinse
Rinse at 70°C
55 9,5 1,35
IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.
The washing cycle will not take place if the dishwasher door is left open
or not properly closed.

User instructions
7
PROGRAMS
TABLE
PROGRAMME
NUMBER
& SYMBOL
LOAD CROCKERY AND
CUTLERY
PROGRAM
PROGRESS
DURATION
CONSUMPTION
MINUTES
(1)
WATER
LITRES
POWER
KWh (1)
1 SOAK
Pans and dishes awaiting
completion of the load Cold prewash
15 3,5 0,02
2 GLASS
Glass, china and mixed
dishes with light dirt.
Wash at 45°C
Cold rinse
Rinse at 70°C
Dry
65
9,5 1,10
3
ECO (*)
EN 50242
Dishes with normal dirt,
even with dried-on
residues
Wash at 45°C
Cold rinse
Rinse at 50°C
Dry
**
** **
4 NORMAL
IEC/DIN***
Dishes with normal dirt,
even with dried-on
residues
Cold prewash
Wash at 65°C
Cold rinse
Rinse at 70°C
Dry
105
13,5 1,35
5
ULTRA
CLEAN
****
Very dirty pans and
dishes, even with dried-on
residues.
Hot prewash
Wash at 70°C
Cold rinse (2)
Rinse at 70°C
Dry
160
15,5 1,70
IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.
The ULTRA CLEAN program terminate with an extra anti-bacteria rinse that ensures a
further reduction in the bacteria level. If the temperature falls during this stage of the
program (e.g. because the door is opened or due to a power blackout), the program
lights flash to warn that the anti-bacteria effect is not guaranteed.
If the dishwasher door is open or not properly closed, the washing cycle
will not start.

User instructions
8
QUICK TIME PROGRAMS
(see relevant section for explanation of functioning modes)
PROGRAMME
NUMBER E
SYMBOL
LOAD CROCKERY AND
CUTLERY
PROGRAM
PROGRESS
DURATION
CONSUMPTION
MINUTI
(1)
WATER
LITRES
POWER
KWh (1)
6 RAPID 27’
+
Dishes with light dirt,
washed immediately after
use
Wash at 38°C
Rinse at 50°C
27
6,5 0,70
7 ECO
QUICK
+
Dishes with normal dirt,
washed immediately after
use.
Cold prewash
Wash at 60°C
Cold rinse
Rinse at 70°C
80
12,5 1,25
8 NORMAL
QUICK
+
Dishes with normal dirt,
washed immediately after
use.
Cold prewash
Wash at 70°C
Cold rinse
Rinse at 70°C
95
11 1,25
9 STRONG
and FAST
+
Mixed dishes with normal
dirt without dried-on
residues.
Wash at 65°C
Cold rinse
Rinse at 70°C
55
9,5 1,35
If the dishwasher door is open or not properly closed, the washing cycle
will not start.
