Smeg FC66B User manual

33
Contents
INSTRUCTIONS FOR THE USER: these specify usage recommendations,
and describe the commands and the correct procedures for cleaning and
maintenance of the appliance
INSTRUCTIONS FOR THE INSTALLER: these are intended for the
qualified technician who will carry out the installation, operation and
testing of the appliance
1. INSTRUCTIONS FOR USE .................................................................. 34
2. INSTRUCTIONS FOR DISPOSAL –
OUR ENVIRONMENTAL CARE ........................................................... 35
3. SAFETY INSTRUCTIONS .................................................................... 36
4. GET TO KNOW YOUR OVEN .............................................................. 37
5. BEFORE INSTALLATION..................................................................... 37
6. DESCRIPTION OF THE CONTROLS ON THE FRONT PANEL.......... 38
7. USE OF THE OVEN ............................................................................. 40
8. USE OF THE PIZZA FUNCTION (ON SOME MODELS ONLY) .......... 47
9. AVAILABLE ACCESSORIES................................................................ 48
10. TABLE OF RECOMMENDED COOKING SETTINGS.......................... 49
11. CLEANING AND MAINTENANCE ........................................................ 52
12. EXTRAORDINARY MAINTENANCE .................................................... 56
13. INSTALLING THE APPLIANCE............................................................ 60

34
Instructions for use
1. INSTRUCTIONS FOR USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE. IT MUST BE KEPT
IN ITS ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE
WORKING LIFE OF THE OVEN.
WE ADVISE CAREFUL READING OF THIS MANUAL AND ALL THE
INSTRUCTIONS THEREIN BEFORE USING THE APPLIANCE. INSTALLATION
MUST BE CARRIED OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH
THE REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR
HOUSEHOLD USE AND COMPLIES WITH THE EEC DIRECTIVES CURRENTLY
IN FORCE. THE APPLIANCE HAS BEEN BUILT TO CARRY OUT THE
FOLLOWING FUNCTIONS: COOKING AND HEATING FOODS; ALL OTHER
USES ARE TO BE CONSIDERED IMPROPER.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER
USE.
DO NOT USE THIS APPLIANCE FOR HEATING ROOMS.
DO NOT DISCARD PACKING IN THE HOME ENVIRONMENT. SEPARATE THE
VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST SPECIAL
GARBAGE COLLECTION CENTRE.
THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE
2002/96/CE ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT –
(WEEE).
THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF
RETURN AND RECYCLING ON WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT.
DO NOT OBSTRUCT VENTILATION OPENINGS AND HEAT DISPERSAL SLITS.
THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND
BRAND NAME IS POSITIONED VISIBLY ON THE OVEN DOOR FRAME.
THE PLATE MUST NOT BE REMOVED.
DO NOT USE METALLIC SPONGES OR SHARP SCRAPERS: THEY
WILL DAMAGE THE SURFACE.
USE ORDINARY NON-ABRASIVE PRODUCTS WITH THE AID OF
WOODEN OR PLASTIC UTENSILS IF NECESSARY. RINSE
THOROUGHLY AND DRY WITH A SOFT CLOTH OR CHAMOIS
LEATHER.
DO NOT ALLOW RESIDUES OF SUGARY FOODS (SUCH AS JAM) TO
SET INSIDE THE OVEN. IF LEFT TO SET FOR TOO LONG, THEY
MIGHT DAMAGE THE ENAMEL LINING OF THE OVEN.

35
Instructions for disposal
2. INSTRUCTIONS FOR DISPOSAL –
OUR ENVIRONMENTAL CARE
Our product's packing is made of non-polluting materials, therefore
compatible with the environment and recycable. Please help by disposing
of the packing correctly. Find the addresses of collection, recycling and
disposal centres from your retailer or from the competent local
organisations.
Do not throw the packing or any part of it away. They can constitute a
suffocation hazard for children, especially the plastic bags.
Your old appliance also needs to be disposed of correctly.
Important: hand over your appliance to the local agency authorised for
the collection of electrical appliances no longer in use. Correct disposal
means intelligent recycling of valuable materials.
Before disposing of your old appliance remove the door and leave the
racks in their normal working positions so that children cannot get stuck in
the oven compartment whilst playing. It is also necessary to cut the
electric power cord and remove it along with the plug.

36
Safety instructions
3. SAFETY INSTRUCTIONS
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE SAFETY
REGULATIONS FOR ELECTRIC OR GAS APPLIANCES AND VENTILATION
FUNCTIONS.
IN YOUR INTERESTS AND FOR YOUR SAFETY IT HAS BEEN ESTABLISHED
BY LAW THAT THE INSTALLATION AND SERVICING OF ALL ELECTRICAL
APPLIANCES IS TO BE CARRIED OUT BY QUALIFIED PERSONNEL IN
ACCORDANCE WITH THE REGULATIONS IN FORCE.
OUR REGULAR INSTALLERS GUARANTEE A SATISFACTORY JOB.
GAS OR ELECTRIC APPLIANCES MUST ALWAYS BE DISCONNECTED BY
SUITABLY SKILLED PEOPLE.
THE PLUG TO BE CONNECTED TO THE POWER CORD AND ITS SOCKET
MUST BE OF THE SAME TYPE AND CONFORM TO THE REGULATIONS IN
FORCE.
THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE IS BUILT IN.
NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY
LEAD.
IT IS OBLIGATORY FOR ALL ELECTRICAL SYSTEMS TO BE GROUNDED
ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.
IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION TEST,
FOLLOWING THE INSTRUCTIONS BELOW. SHOULD THE APPLIANCE NOT
FUNCTION, DISCONNECT IT FROM THE SUPPLY AND CALL THE NEAREST
TECHNICAL ASSISTANCE CENTRE.
NEVER ATTEMPT TO REPAIR THE APPLIANCE.
NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: THEY COULD BE
ACCIDENTALLY LIGHTED AND CAUSE FIRES.
DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO
TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.
THE USE OF THIS APPLIANCE IS NOT PERMITTED TO PEOPLE (INCLUDING
CHILDREN) OF REDUCED PHYSICAL AND MENTAL ABILITY, OR LACKING IN
EXPERIENCE IN THE USE OF ELECTRICAL APPLIANCES, UNLESS THEY ARE
SUPERVISED OR INSTRUCTED BY ADULTS OR PEOPLE RESPONSIBLE FOR
THEIR SAFETY.
ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE 0 (OFF) POSITION
WHEN YOU FINISH USING THE OVEN.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE PROTECTIVE
FILMS APPLIED ON THE OUTSIDE MUST BE REMOVED.
The manufacturer declines all responsibility for damage to persons or things caused
by non-observance of the above prescriptions or by interference with any part of the
appliance or by the use of non-original spares.

37
Instructions for the user
4. GET TO KNOW YOUR OVEN
5. BEFORE INSTALLATION

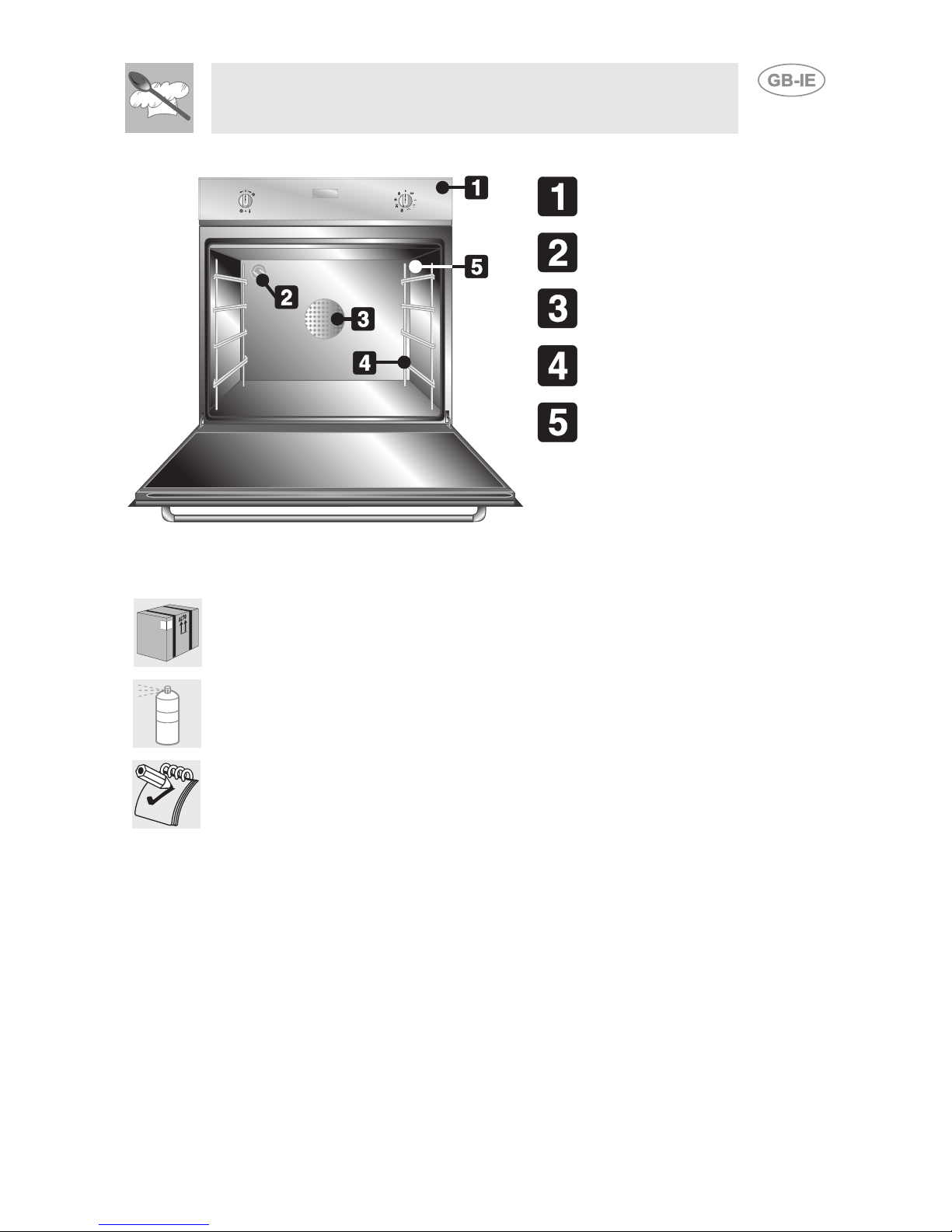

CONTROL PANEL
OVEN LIGHT
OVEN FAN
SHELF AND TRAY RUNNERS
TEMPERATURE PROBE
Do not discard packing in the home environment. Separate the various
waste materials and take them to the nearest special garbage collection
centre.
In order to remove all manufacturing residues, it is recommended to clean
the inside of the appliance. For further information on cleaning see point
"11. CLEANING AND MAINTENANCE".
Before using the oven for the first time, pre-heat it to maximum
temperature long enough to burn any manufacturing oily residues which
could give the food a bad taste. After an interruption in the electricity
supply, the programmer display flashes at regular intervals. For setting
instructions, see point "7.3 First use".

38
Instructions for the user
6. DESCRIPTION OF THE CONTROLS ON THE
FRONT PANEL
All the appliance's control and monitoring devices are placed together on
the front panel. The symbols used are described in the table below.

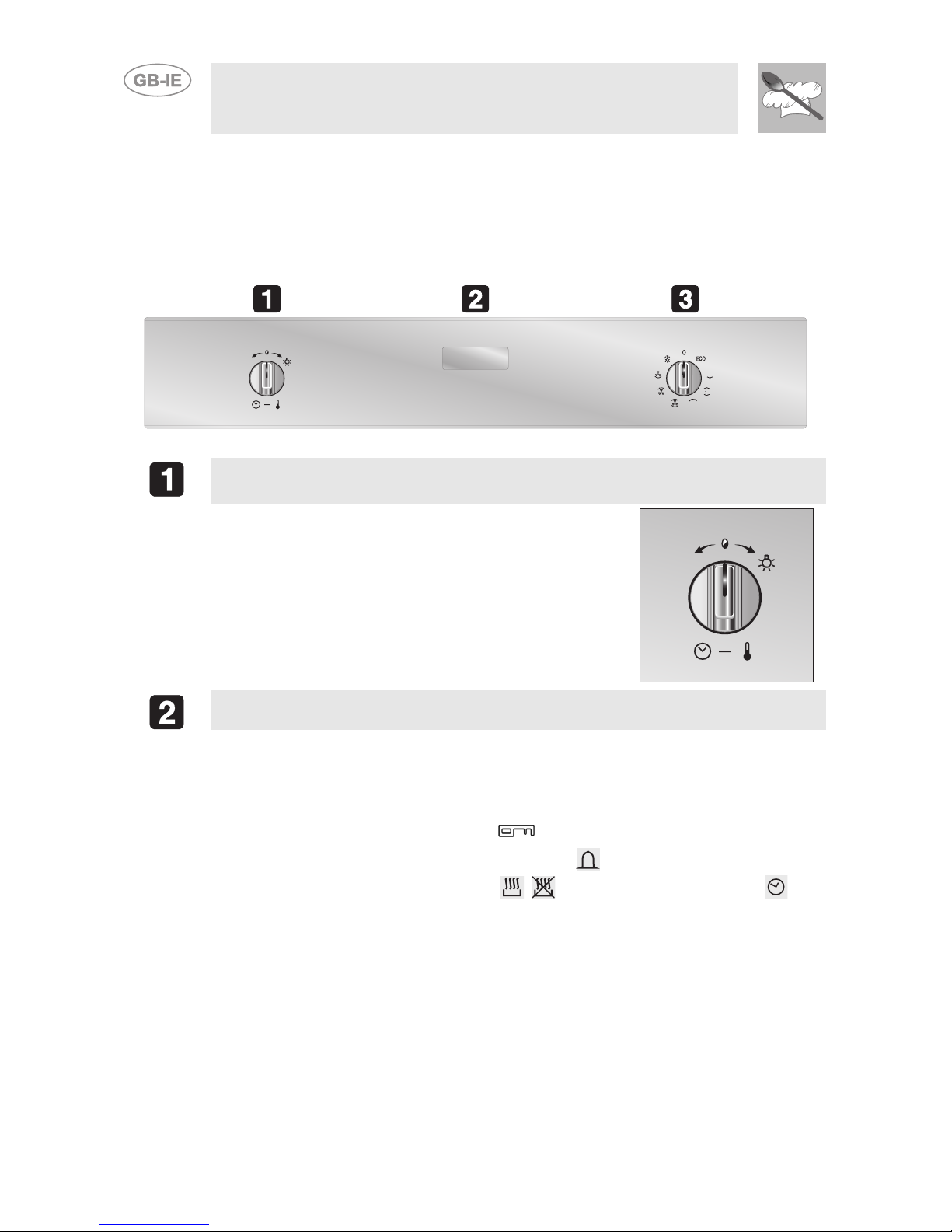

THERMOSTAT-TIMER KNOB
PT1 This knob allows you to set the time, to select the
cooking temperature and duration and to program
the cooking start and end times. For
convenience, it will be referred to from this
point onwards as PT1.
For its correct operation, refer to points “7.3 First
use” and “7.5 Programmed cooking procedures”.
DISPLAY
DSP1 With the oven off, the 4-digit LED display shows the current time; when the
oven is working, the selected cooking temperature and duration are
displayed.
The function locking indicator light (see point “7.6 Secondary menu”),
the minute minder active indicator light , the symbols relating to
programmed cooking procedures and to setting the time are
also illustrated.
For convenience, it will be referred to from this point onwards as
DSP1.

39
Instructions for the user
ON/OFF-FUNCTION KNOB

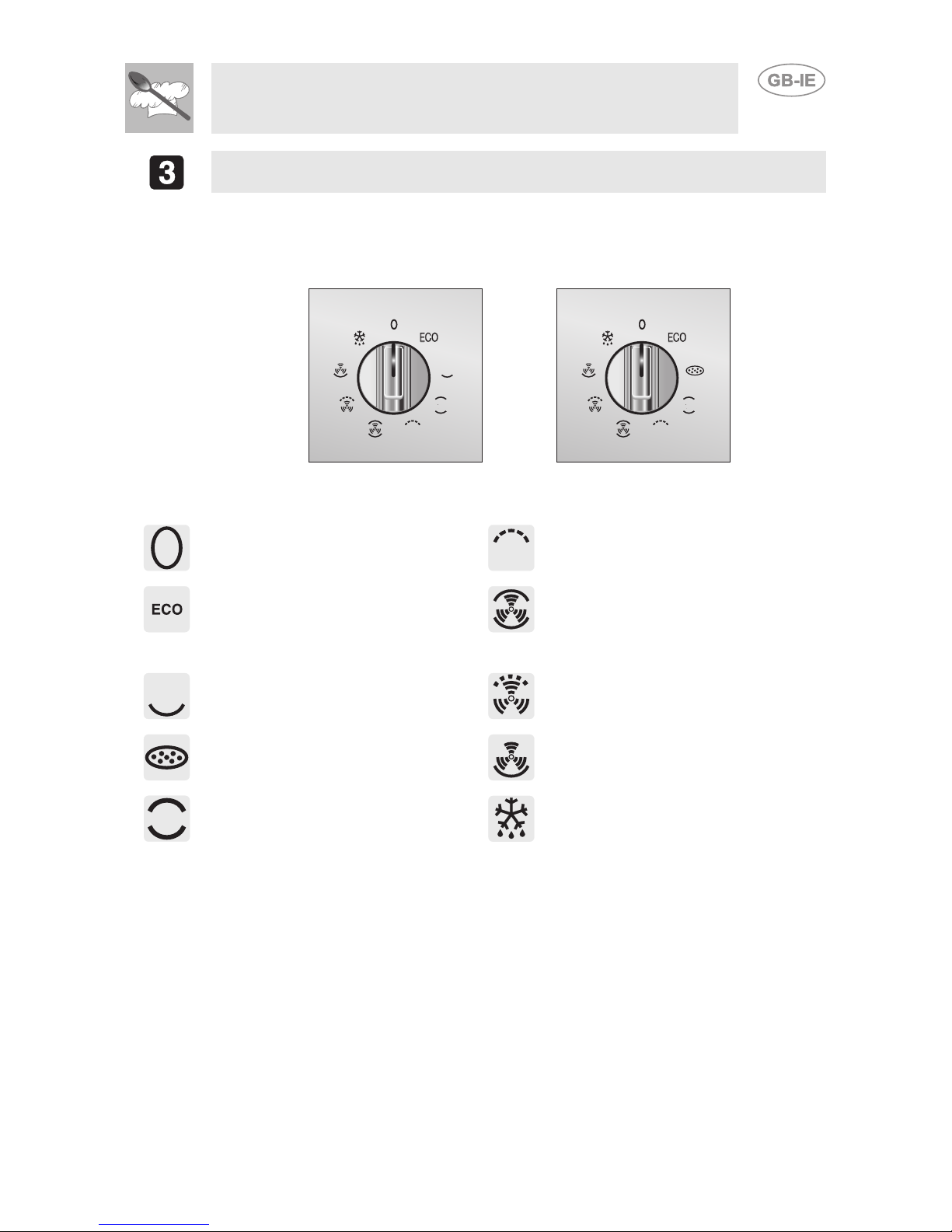

PT2 This knob allows you to select one of the following functions by simply
turning it to the left or to the right.
For convenience, it will be referred to from this point onwards as
PT2.
The following table provides a brief description of the functions that can be
selected:
NO FUNCTION SET GRILL ELEMENT
GRILL ELEMENT OPERATING
ALTERNATING WITH BOTTOM
HEATING ELEMENT +
VENTILATION
UPPER + LOWER HEATING
ELEMENT + VENTILATION
BOTTOM HEATING ELEMENT FULL GRILL ELEMENT +
VENTILATION
PIZZA FUNCTION
(ON SOME MODELS ONLY)
BOTTOM HEATING ELEMENT +
VENTILATION
UPPER + LOWER HEATING
ELEMENT
THAWING

40
Instructions for the user
7. USE OF THE OVEN
7.1 Warnings and general advice
All cooking operations must be carried out with the door closed.
Before using the oven for the first time, pre-heat it to maximum
temperature long enough to burn any manufacturing oily residues which
could give the food a bad taste.
During cooking, do not cover the bottom of the oven with aluminium
or tin foil and do not place pans or oven trays on it as this may
damage the enamel coating. If you wish to use greaseproof paper,
place it so that it will not interfere with the hot air circulation inside
the oven.
The oven accessories intended to come into contact with food are made of
materials that comply with the provisions of Directive 89/109/EEC, dated
21/12/88 and of Decree Law 108, dated 25/01/92.
To prevent any steam in the oven creating
problems, open the door in two stages: half open
(5 cm approx.) for 4-5 seconds and then fully open.
To access food, always leave the door open as
short a time as possible to prevent the temperature
in the oven from falling and ruining the food.
To prevent excessive amounts of condensation from forming on the
internal glass, food should not be left inside the oven for too long after
cooking.
7.2 Operating modes
This product is programmed to have 3 operating conditions:
OFF setting: this condition is set when the knob PT2 is positioned on the
“0” symbol and the current time appears on the viewer.
ON setting: this condition is set when the selection knob PT2 is turned to
any function and the selected temperature appears on the viewer.
Stand-by setting: this condition is set when the selection knob PT2 is
turned to any function and a cooking time has been set and the current
time appears on the viewer.

41
Instructions for the user
7.3 First use
At first use, or after a power failure, the oven's display (DSP1) will show a
flashing symbol. To be able to start any cooking function the current
time must be set.
(For further information on setting or changing the current time see “7.6
Secondary menu”).
7.4 Function selection
To select a cooking function, turn PT2.
Then use the PT1 knob to select the desired temperature
7.4.1 Cooking with preset temperature
Once the desired function has been selected, the oven will begin cooking
at the pre-set time. Cooking is preceded by a pre-heating phase
(common to all functions) which allows the oven to reach the cooking
temperature more quickly.
This phase is indicated by the symbol flashing on the display (DSP1).
At the end of the pre-heating phase, the symbol will remain constantly
on to indicate that the food can be placed inside the oven.
7.4.2 Changing the preset temperature
The temperature preset for each function can be changed to suit the user's
requirements.
At any time while cooking is in progress, turn PT1 in either direction to
increase or decrease the cooking temperature by 5 degrees at a time. PT1
can also be held in the left or right position to increase or decrease the
setting more quickly.
7.5 Programmed cooking procedures
7.5.1 Cooking timed with the timer
From ON status (see point “7.2 Operating modes”), press PT1 once. The
display will show the figures (constantly on) and the symbol
(flashing). Turn PT1 to set the minutes of cooking (from 00:01 to
23:59:00). After a few seconds, the symbol will stop flashing and stay
on constantly; the countdown will start from that moment. At this point it is
also possible to select the cooking function required and wait for the
buzzer to sound, indicating that the cooking time is over.
Press PT1 once to stop the buzzer. You can now set an additional cooking
time by turning PT1, or return to display of the current time by pressing
PT1 twice.
Turn PT2 to the “0” symbol to switch off the oven.
The minute minder also works with no function set.

42
Instructions for the user
Warning. The minute minder does not stop the cooking process. It only
warns the user that the preset number of minutes have passed.
To switch the oven off, turn PT2 to the “0” symbol.
Modifying the data set
Once the countdown has started it is possible to change its duration
during cooking.
When the symbol is steady, press PT1 once. The symbol starts
flashing and PT1 can be turned to change the set duration. A few seconds
after the last change, the symbol will stop flashing, and the countdown
will restart from the new value.
To change the preset temperature, wait for the symbol to become
steady and turn PT1 to the right or left to increase or decrease the cooking
temperature.
7.5.2 Semiautomatic cooking
Semiautomatic cooking is the function which allows a cooking operation to
be started and then ended after a specific length of time set by the user.
Select a cooking function (see point “7.4 Function selection”) and press
PT1 twice. The display will show the figures and the symbol
(flashing).
Turn PT1 to the right or left to set the minutes of cooking (from 00:01 to
23:59). A few seconds after the required duration is set, the symbol will
stop flashing, and semiautomatic cooking will start from that moment. At
the end, the word STOP will appear on DSP1, cooking will stop and a
buzzer will sound; press PT1 once to deactivate it.
If you wish to continue cooking beyond the set time, press PT1 again. The
oven will restart normal operation with the cooking settings selected
previously.
To switch the oven off completely, you must turn PT2 to the “0” symbol.
Modifying the data set
Once semiautomatic cooking has started, its duration can be changed.
When the symbol is steady, press PT1 once. The symbol starts
flashing and PT1 can be turned to change the set duration. A few seconds
after the last change, the symbol will stop flashing, and semiautomatic
cooking will restart from the new value.
To change the preset temperature, wait for the symbol to become
steady and turn PT1 to the right or left to increase or decrease the cooking
temperature.
