Smeg SF4390VCX User manual

Contents
57
EN
1 Instructions 58
1.1 General safety instructions 58
1.2 Manufacturer liability 59
1.3 Appliance purpose 59
1.4 Disposal 59
1.5 Identification plate 60
1.6 This user manual 60
1.7 How to read the user manual 60
2 Description 61
2.1 General Description 61
2.2 Control panel 62
2.3 Other parts 63
2.4 Available accessories 63
2.5 Other cooking containers 64
3 Use 65
3.1 Instructions 65
3.2 First use 66
3.3 Using the accessories 66
3.4 Using the oven 67
3.5 Cooking advice 85
3.6 Special functions 86
3.7 Secondary menu 91
4 Cleaning and maintenance 94
4.1 Instructions 94
4.2 Cleaning the surfaces 94
4.3 Ordinary daily cleaning 94
4.4 Food stains or residues 94
4.5 Removing the door 94
4.6 Cleaning the door glazing 95
4.7 Removing the internal glass panes 95
4.8 Cleaning the inside of the oven 97
4.9 Cleaning the tank 99
4.10 Vapor Clean 102
4.11 Extraordinary maintenance 104
5 Installation 106
5.1 Electrical connection 106
5.2 Cable replacement 106
5.3 Positioning 107
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com

Instructions
58
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Children must not come near the
appliance.
• Never touch the heating elements
during use.
• Keep children under eight years of
age at a safe distance if they are not
constantly supervised.
• Children must never play with the
appliance.
• Never rest metallic objects such as
knives, forks, spoons and lids on the
appliance during use.
• Switch off the appliance immediately
after use.
• Never try to put out a fire or flames
with water: Turn off the appliance
and smother the flames with a fire
blanket or other appropriate cover.
• The appliance must never be
cleaned by unsupervised children.
• Do not clean the appliance
immediately after turning it off – wait
for it to cool down first.
• Have qualified personnel carry out
installation and assistance
interventions according to the
standards in force.
• Do not modify this appliance.
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in the
appliance.
• Do not try to repair the appliance
yourself or without the intervention of
a qualified technician.
• If the power supply cable is
damaged, contact technical support
immediately and they will replace it.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring powders,
stain removers and metallic sponges)
on glass parts, as this could cause
breakage.
• Use wooden or plastic utensils.
• Do not seat on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not obstruct ventilation openings
and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils could
be released.

Instructions
59
EN
• Never leave objects on the cooking
surface.
• Do not use the appliance to heat
rooms for any reason.
• Do not remove the seal on the face
of the oven.
For this appliance
• Ensure that the appliance is switched off
before replacing the bulb.
• Do not rest any weight or sit on the open
door of the appliance.
• Take care that no objects are stuck in the
doors.
1.2 Manufacturer liability
The manufacturer declines all liability for
damage to persons or property caused by:
• Use of the appliance other than that
specified;
• Non-observance of the user manual
provisions;
• Tampering with any part of the
appliance;
• Use of non-original spare parts.
1.3 Appliance purpose
• This appliance is intended for cooking
food in the home environment. Every
other use is considered improper.
• This appliance may be used by children
aged at least 8 and by persons of
reduced physical, sensory or mental
capacity, or lacking in experience in the
use of electrical appliances, provided
that they are supervised or instructed by
adults who are responsible for their
safety.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.4 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
Power voltage
Danger of electrocution
• Disconnect the mains supply.
• Unplug the appliance.

Instructions
60
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for one
basis.
Our appliances are packed in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
1.5 Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
1.6 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user’s reach for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the
packaging plastic bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice

Description
61
EN
2 Description
2.1 General Description
1 Control panel
2 Oven light
3 Seal
4 Door
5 Fan
6 Evaporation tray
7 Water supply tube
8 Rack support frames
Frame shelf

Description
62

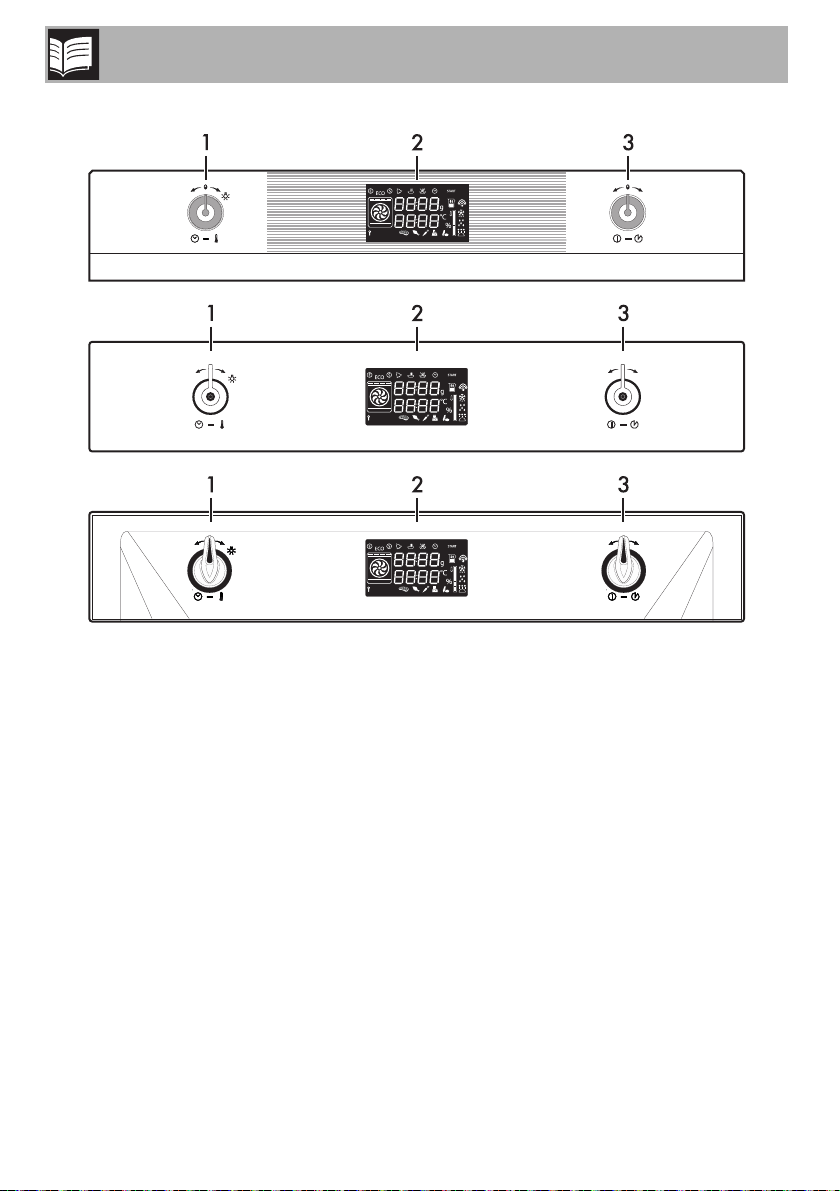

2.2 Control panel
1 Temperature knob
This knob can be used to select:
• The cooking temperature
• The duration of a function
• Programmed cooking procedures
• The current time
• The turning on or off of the light inside the
appliance.
2 Display
Displays the current time, the selected
cooking temperature and function and any
time set.
3 Function knob
This knob can be used to:
• Turn the appliance on and off
• Select a function
• Start or stop a function.

Description
63
EN
2.3 Other parts
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
Cooling fan
The fan cools the oven and comes into
operation during cooking.
The fan causes a steady outflow of air from
above the door which may continue for a
brief period of time even after the appliance
has been turned off.
Interior lighting
The appliance interior lighting comes on:
• When the door is opened
• When any function is selected
• When you turn the temperature knob to
the right (turn the temperature knob to the
right again to turn off the interior lighting).

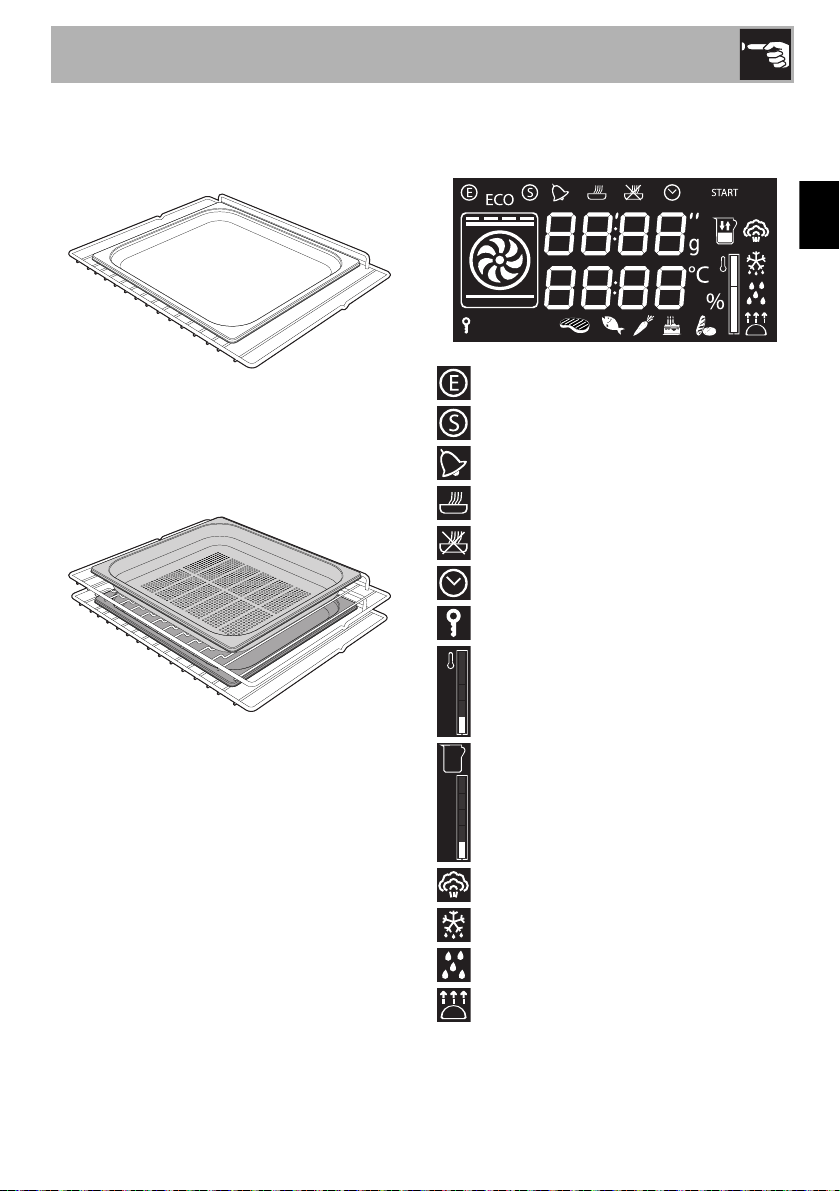

2.4 Available accessories

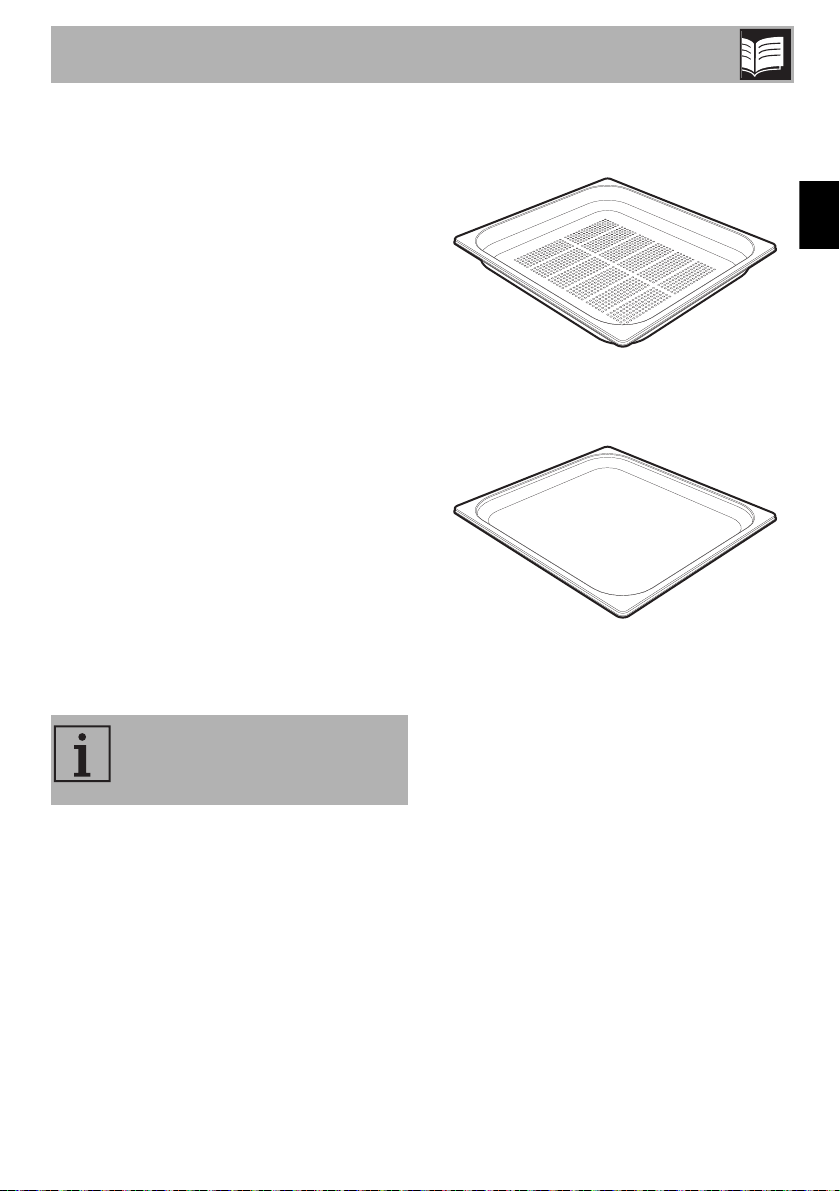

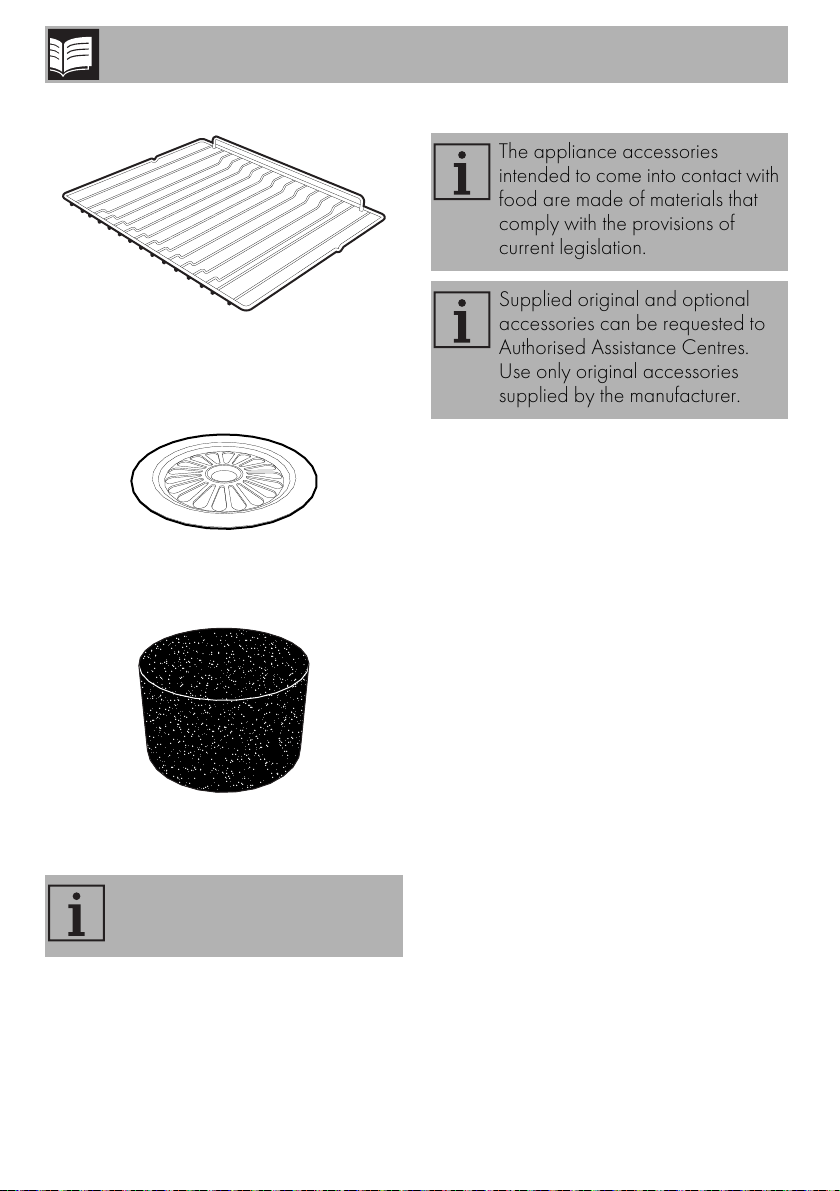

Perforated tray
Useful for steaming fish and vegetables.
Tray
Useful for cooking desserts (with cooking
duration less than 25 minutes, or without
steam), rice, vegetables and cereals, this is
also essential for collecting liquids resulting
from steaming or defrosting foodstuffs
contained in the perforated tray above.
When the door is open, it is not
possible to turn off the interior
lighting.

Description
64
Rack
Useful for supporting containers with food
during cooking.
Evaporation tray cover
Evenly distributes steam inside the oven.
Sponge
Useful for removing condensation from
inside the oven.
2.5 Other cooking containers
• You may also use your own containers
for cooking, as long as they are resistant
to high temperatures.
• For steam cooking, the use of metal
containers is recommended. Metal
facilitates better distribution of heat to the
foods.
• It is normal for metal containers to
deform somewhat during high-
temperature cooking, but they will return
to their original shape when they cool.
• Thick ceramic plates may require more
heat than normal. Longer cooking times
may be necessary.
Some models are not provided
with all accessories.
a
a
a
a
a
