Smeg SFA395X User manual

EN
INSTRUCTION MANUAL
BUILT-IN OVEN
SFA395X
SFPA395X

ENGLISH
1Dear customer, we would like to thank you for your confidence in us.
By choosing a Smeg product, you have opted for solutions where research for beauty meets innovative technical
design to provide unique pieces of furniture.
We hope you get the most out of your household appliance.
Kindest regards.

Contents
3
EN
1 Instructions 4
1.1 General safety instructions 4
1.2 Manufacturer liability 5
1.3 Appliance purpose 5
1.4 Disposal 5
1.5 Identification plate 6
1.6 This user manual 6
1.7 How to read the user manual 6
2 Description 7
2.1 General Description 7
2.2 Control panel 8
2.3 Other parts 8
2.4 Available accessories 9
3 Use 11
3.1 Instructions 11
3.2 First use 11
3.3 Using the accessories 12
3.4 Using the oven 14
3.5 Cooking advice 18
3.6 Special functions 22
3.7 Preset recipes 25
3.8 Personal recipes 31
3.9 Settings 34
4 Cleaning and maintenance 36
4.1 Instructions 36
4.2 Cleaning the surfaces 36
4.3 Ordinary daily cleaning 36
4.4 Food stains or residues 36
4.5 Removing the door 36
4.6 Cleaning the door glazing 37
4.7 Removing the internal glass panels 37
4.8 Cleaning the inside of the oven 38
4.9 Vapor Clean: assisted oven cleaning (on some models only) 40
4.10 Pyrolytic: automatic oven cleaning 43
4.11 Extraordinary maintenance 46
5 Installation 48
5.1 Electrical connection 48
5.2 Cable replacement 48
5.3 Positioning 49
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance's aesthetic and functional qualities.
For further information on the product: www.smeg.com

Instructions
4
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
• Never touch the heating elements
during use.
• Keep children under eight years
of age at a safe distance if they
are not constantly supervised.
• Children must never play with the
appliance.
• Never rest metallic objects such
as knives, forks, spoons and lids
on the appliance during use.
• Switch the appliance off
immediately after use.
• Never try to put out a fire or
flames with water: turn off the
appliance and smother the flames
with a fire blanket or other
appropriate cover.
• The appliance must never be
cleaned by unsupervised children.
• Have qualified personnel carry
out installation and assistance
interventions according to the
standards in force.
• Do not modify this appliance.
• Do not insert pointed metal
objects (cutlery or utensils) into the
slots in the appliance.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents on glass parts (e.g.
powder products, stain removers
and metallic sponges).
• Use wooden or plastic utensils.
• Do not seat on the appliance.
• Do not use steam jets for cleaning
the appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released.
• Never leave objects on the
cooking surface.
• Do not use the appliance to heat
rooms for any reason.

Instructions
5
EN
For this appliance
• Ensure that the appliance is switched off
before replacing the bulb.
• Do not rest any weight or sit on the open
door of the appliance.
• Take care that no objects are stuck in the
doors.
1.2 Manufacturer liability
The manufacturer declines all liability for
damage to persons or property caused by:
• use of the appliance other than the one
envisaged;
• non-observance of the user manual
provisions;
• tampering with any part of the
appliance;
• use of non-original spare parts.
1.3 Appliance purpose
• This appliance is intended for cooking
food in the home environment. Every
other use is considered improper.
• This appliance may be used by children
aged at least 8 and by people of
reduced physical and mental capacity,
or lacking in experience in the use of
electrical appliances, as long they are
supervised or instructed by adults who
are responsible for their safety.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.4 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
• Consign the appliance to the
appropriate selective collection centres
for electrical and electronic equipment
waste, or deliver it back to the retailer
when purchasing an equivalent product,
on a one for one basis.
Power voltage
Danger of electrocution
• Disconnect the main power supply.
• Disconnect the power cable from the
electrical system.

Instructions
6
Our appliances are packed in non-
polluting and recyclable materials.
• Consign the packing materials to the
appropriate selective collection centres.
1.5 Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
1.6 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and in an accessible place for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Use instruction sequence.
• Single use instruction.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the
packaging plastic bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: installation, operation
and inspection.
Safety instructions
Information
Advice

Description
7
EN
2 Description

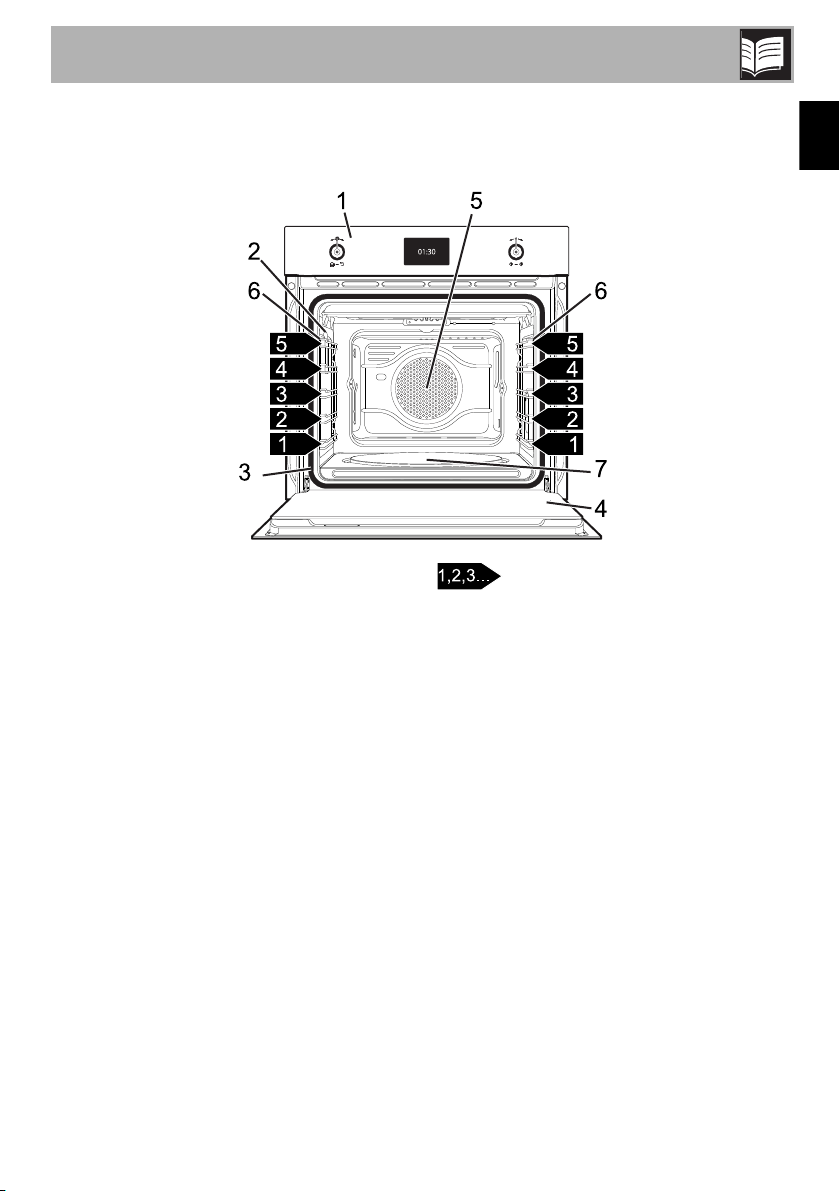

2.1 General Description
1 Control panel
2 Oven light
3 Seal
4 Door
5 Fan
6 Rack/tray support frames
7 Pizza plate
Frame shelf

Description
8
2.2 Control panel
Return knob (1)
Using this knob you can return to the
appliance's previous menu item. It also lets
you manually turn the oven light on and off.
Display (2)
Displays the current time, the cooking
parameters, and all the appliance's
functions.
Control knob (3)
This knob allows you to turn the appliance
on and off and select the various available
functions.
Turn the knob right or left to change/select
the required item. Press to confirm.
2.3 Other parts
Shelves
The appliance features shelves for
positioning trays and racks at different
heights. The insertion heights are indicated
from the bottom upwards (see 2.1 General
Description).
Cooling fan
The fan cools the oven and comes into
operation during cooking.
The fan causes a steady outflow of air from
above the door which may continue even
after the appliance has been turned off.
Interior lighting
The oven light comes on when the door is
opened or any function is selected, except
for , and .
Turn the return knob briefly to the right or left
to activate or deactivate internal lighting.
Keep the knob pressed in for at
least 5 seconds to immediately
complete any cooking program.

Description
9
EN
2.4 Available accessories
Rack
Useful for supporting containers with food
during cooking.
Tray rack
To be placed over the top of the oven tray;
for cooking foods which may drip.
Oven tray
Useful for collecting fat from foods placed
on the rack above.
Deep tray
Useful for collecting fat from foods placed
on the rack.
Pizza plate
Some models are not provided
with all accessories.

Description
10
Specially designed for cooking pizza and
similar dishes.
Pizza spatula
For easily placing the pizza on the pizza
plate.
Pizza plate cover
To replace the pizza plate when it is not in
use.
The pizza plate must only be used
for cooking pizza and similar
dishes. When cooking other
dishes, the pizza plate must be
removed from its compartment and
replaced with the special pizza
plate cover.
The oven accessories intended to
come into contact with food are
made of materials that comply with
the provisions of current legislation.
Original supplied and optional
accessories can be requested to
Authorised Assistance Centres.
Use only original accessories
supplied by the manufacturer.

Use
11
EN
3 Use
3.1 Instructions
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty oven at the maximum
temperature to burn off any residues left
by the manufacturing process.
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands wearing heat
resistant gloves when moving food
inside the oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Do not allow children to get near the
oven when it is in operation.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the oven.
• Do not use or leave flammable materials
near the oven.
• Do not use plastic kitchenware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the oven unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.
Improper use
Risk of damage to enamelled
surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not pour water directly onto very hot
trays.

Use
12
3.3 Using the accessories
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being taken out
accidentally have to face downwards
and towards the oven back.
Tray rack
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.

Use
13
EN
Cover and pizza plate (on some models
only)
With the oven cold, remove the cover from
the bottom and insert the pizza plate. Make
sure that the plate is inserted correctly in the
recess provided.
Use the specially stored programs for
cooking, see “Preset recipes”.
Pizza spatula (on some models only)
Always hold the pizza spatula by the
handle to put food in and take it out of the
oven. You are advised to dust the steel
surface lightly with flour to make it easier to
slide fresh products on and off, as they
could stick to the steel due to their moisture
content.
Improper use
Risk of damage to surfaces
• Do not use the pizza plate other than as
described, for example do not use it on
gas or glass ceramic hobs or in ovens
which are not designed for this purpose.
• If you like oil on your pizza, it is best to
add it after removal from the oven since
oil stains on the pizza plate are unsightly
and may reduce its efficiency.
• If the pizza plate is not in use, cover the
bottom of the oven with the cover
provided.

Use
14
3.4 Using the oven
First use
On the first use, or after a power failure,
will be flashing on the appliance's
display. In order to be able to start any
cooking program, the current time must be
set (if the oven is being turned on for the first
time, it is also recommended you set the
required language).
Press the control knob to enter the settings
menu, see “3.9 Settings”.
Favourites
Press the return knob from the clock screen
to display the last programs or personal
recipes used.
Cooking functions
1. Select “cooking functions” from the menu
by pressing the control knob.
2. Turn the control knob to select the
required function. Press the knob to
confirm the selection.
The appliance language is set to
“English” by default.
When first connecting or after the
power has been cut for a time it
will be necessary to wait a few
seconds before you can interact
with the appliance.

Use
15
EN
3. The appliance will begin the automatic
pre-heat phase. The display will show
the chosen function, the pre-set
temperature, the current time and the
progress bar of the temperature reached
(preheating).
4. When the preheating stage is over a
buzzer will sound to indicate that the
food can be placed inside the oven.
Interrupting a function
Press the return knob to interrupt a cooking
function. Select the required option and
confirm it using the return knob.
Turn the control knob to change
the preset temperature at any time.
Press to confirm or wait 5 seconds.
It is not recommended to place the
dish in the oven during the
automatic pre-heat stage.
Keep the control knob pressed in
for at least 5 seconds to
immediately interrupt cooking at
any time and return to the main
menu.

Use
16
Functions list
Certain functions are not available
on all models.
Eco
The combination of the fan and the
circulaire heating element, in ECO
mode, is particularly indicated for
cooking on a single shelf, with
reduced power consumption.
Static
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes and in any case
particularly suitable for fatty meats
such as goose and duck.
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and in combination
with the rotisserie (where fitted)
gives the food an even browning at
the end of cooking. Perfect for
sausages, spare ribs and bacon.
This function enables large
quantities of food, particularly meat,
to be grilled evenly.
Lower element
The heat coming just from the
bottom allows you to complete the
cooking of foods that require a
higher bottom temperature, without
affecting their browning. Perfect for
cakes, pies, tarts and pizzas.
Fan assisted
The operation of the fan, combined
with traditional cooking, ensures
consistent cooking even with
complex recipes. Perfect for biscuits
and cakes, even when
simultaneously cooked on several
levels. (For multiple-level cooking,
we recommend using the 1st and 4th
shelves).
Turbo
The combination of fan assisted
cooking and traditional cooking
allows different foods to be cooked
on several levels extremely quickly
and efficiently, without odours and
flavours mingling. Perfect for large
volumes that call for intense
cooking. (For multiple-level cooking,
we recommend using the 1st and 4th
shelves).

Use
17
EN
Fan with grill
The air produced by the fan softens
the strong heatwave generated by
the grill, grilling perfectly even very
thick foods. Perfect for large cuts of
meat (e.g. shin of pork).
Fan + bottom
The combination of the fan with just
the lower heating element allows
cooking to be completed more
rapidly. This system is
recommended for sterilising or for
finishing off the cooking of foods
which are already well-cooked on
the surface, but not inside, which
therefore need a little more heat.
Perfect for any type of food.
Circulaire
The combination of the fan and the
circulaire heating element
(incorporated in the rear of the
oven) allows you to cook different
foods on several levels, as long as
they need the same temperatures
and type of cooking. Hot air
circulation ensures instant and even
distribution of heat. It will be
possible, for instance, to cook fish,
vegetables and biscuits
simultaneously (on different levels)
without mixing odours and flavours.
Circulaire + fan with grill
The combination of fan assisted
cooking and traditional cooking
allows you to cook different foods
on several levels extremely quickly
and efficiently, without odours and
flavours mingling. Perfect for large
volumes that call for intense
cooking.

Use
18
3.5 Cooking advice
General advice
• Use a fan assisted function to achieve
consistent cooking at several levels.
• It is not possible to shorten cooking times
by increasing the temperature (the food
could be overcooked on the outside and
undercooked on the inside).
• To prevent condensation from forming on
the glass, hot food should not be left
inside the oven for too long after
cooking.
Advice for cooking meat
• Cooking times vary according to the
thickness and quality of the food and to
consumer taste.
• Use a meat thermometer when roasting
meat, or simply press on the roast with a
spoon. If it is hard, it is ready; if not, it
needs another few minutes cooking.
Advice for cooking with the Grill and the
Fan with grill
• Meat can be grilled even when it is put
into the cold oven or into the preheated
oven if you wish to change the effect of
the cooking.
• With the Fan with grill function, we
recommend that you preheat the oven
before grilling.
• We recommend placing the food at the
centre of the rack.
Advice for cooking desserts/pastries and
biscuits
• Use dark metal moulds: they help to
absorb the heat better.
• The temperature and the cooking time
depend on the quality and consistency
of the dough.
• To check whether the dessert is cooked
right through: at the end of the cooking
time, put a toothpick into the highest point
of the dessert. If the dough does not stick
to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes
out of the oven, on the next occasion
reduce the set temperature by about
10°C, selecting a longer cooking time if
necessary.
Advice for defrost and proving
• Place frozen foods without their
packaging in a lidless container on the
first shelf of the oven.
• Avoid overlapping the food.
• To defrost meat, use the rack placed on
the second level and a tray on the first
level. In this way, the liquid from the
defrosting food drains away from the
food.
• The most delicate parts can be covered
with aluminium foil.
• For successful proving, a container of
water should be placed in the bottom of
the oven.

Use
19
EN
To save energy
• Stop cooking a few minutes before the
time normally used. Cooking will
continue for the remaining minutes with
the heat which has accumulated inside
the oven.
• Reduce any opening of the door to a
minimum to avoid heat dispersal.
• Keep the inside of the appliance clean
at all times.
• (Where fitted) When it is not being used,
remove the pizza plate and put the
cover back in its slot.
Minute minder during function
1. Press the control knob during a cooking
function.
2. Turn the control knob right or left to set
the duration (from 1 minute to 4 hours).
After a few seconds, the symbol
stops flashing and the countdown starts.
3. Wait for the buzzer to indicate that the
time has finished. The symbol flashes.
This function only activates the
buzzer, without stopping cooking.
Turn the knob right or left to select
another minute minder timer or
press the control knob to
deactivate the buzzer.

Use
20
Timed cooking
1. After selecting a cooking function and
temperature, press the control knob
twice.
2. Turn the knob right or left to set the
minutes of cooking from 00:01 to 12:59.
Keep the knob turned to produce a
faster increase or decrease.
3. A few seconds after the required
duration is set, the symbol stops
flashing and timed cooking starts.
4. At the end of the cooking time “cooking
completed” appears on the display and
a buzzer will sound that can be
deactivated by pressing the control
knob.
Modifying the data set during timed
cooking
During operation, it is possible to modify
timed cooking duration:
1. When the symbol is lit steadily and
the appliance is in the cooking stage,
press the control knob. will start
flashing.
2. Turn the control knob right or left to alter
the preset cooking time.
Timed cooking is the function
which allows a cooking operation
to be started and then ended after
a specific length of time set by the
user.
Activation of timed cooking
cancels any minute minder timer
which may previously have been
set.
Turn the control knob to add some
minutes of cooking time.
To extend the cooking time
manually, press the control knob
again. The appliance will resume
its normal operation with the
previously selected cooking
settings.
To turn off the appliance see
“ Interrupting a function”.
