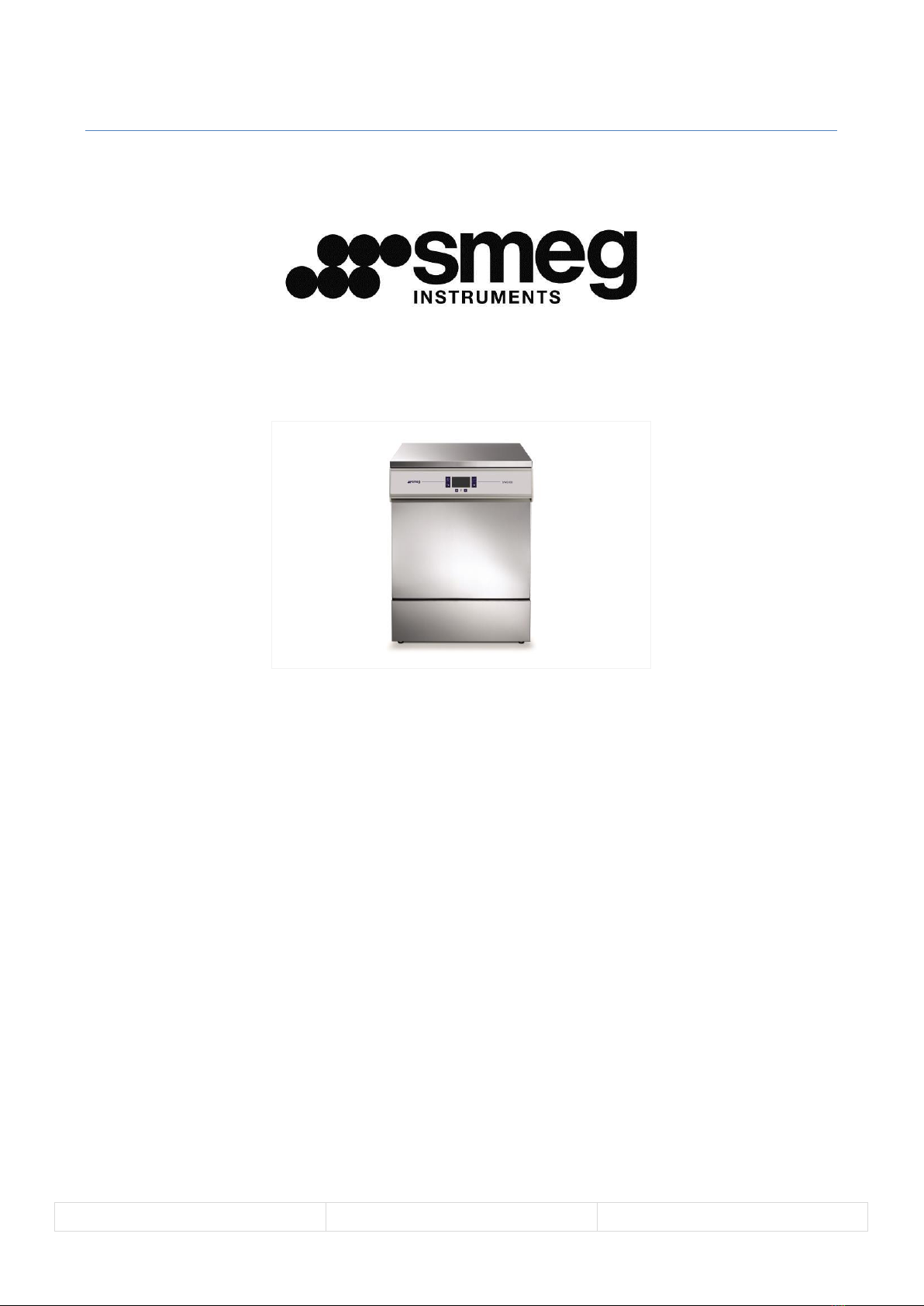

Smeg GW0160 User manual

User manual
GW0160 Series
Page 1 - 70
GW0160
GLASSWARE WASHER
USER MANUAL

User manual
GW0160 Series
Page 2 - 70
READ THE USER MANUAL
This manual is an integral part of the appliance.
Take good care of it and keep it to hand throughout the appliance’s life cycle.
This manual and all the information it contains must be read carefully before using the appliance.
Failure to read, misunderstanding or incorrect interpretation of the instructions provided in this manual may lead to
misuse of the appliance, put the operator at risk and considerably reduce the appliance’s performance.
Installation, maintenance and any repairs must be carried out by authorised technical staff.
Repairs of the appliance performed by unauthorised staff may put the user's safety at risk, and
void the warranty cover.
Any components must always be replaced with genuine Smeg spare parts.
The use of the device in breach of the instructions provided by the manufacturer may jeopardise
the specified protection level (safety of the appliance) and the warranty cover for it (see point 5.4.4
of IEC 61010-1:2001).
The manufacturer declines any liability for uses other than those described in this manual.
Consumables (detergents, air filters, thermal printer paper, etc.) are not covered by the
warranty, except for any manufacturing defects.
The Warranty does not cover any parts found to be faulty due to negligent or careless use,
improper use, failure to comply with the appliance’s operating instructions, incorrect installation
or maintenance, maintenance or repairs performed by unauthorised staff or made with non-
genuine parts, damage during transport, or any circumstances in which the appliance’s defects
cannot be traced back to manufacturing faults. Any work relating to installation and connection to
the intake and drain systems, and the maintenance work described in the operator’s manuals, are
also excluded from the Warranty.
Any accessories may not be installed on the appliance by the user; this must be done by Smeg
authorised technical staff.
To request technical documentation relating to accessories from Smeg: [e-mail]
(ref. 5.4.4.c IEC61010-2-040:2005)
The information in this manual is provided for guidance only. The contents and the equipment described may be
subject to change without notice.
19 390 5038 01
20/11/2014
Manual Ed.
Date

User manual
GW0160 Series
Page 3 - 70
INFORMATION AND AFTER-SALES SERVICE FOR SMEG
INSTRUMENTS DIVISION PRODUCTS
Our Sales Department staff will be able to provide you with information about prices and special offers.
Our After-Sales Department will be able to provide you with guidance about keeping your appliance functioning
correctly and put you in touch with your nearest authorised Service Centre.
INTERNATIONAL CUSTOMERS
PLEASE CONTACT YOUR LOCAL DISTRIBUTOR
[e-mail]
[e-mail]
Our whole product offering can be viewed at:
www.smeg-instruments.com

User manual
GW0160 Series
Page 4 - 70
CONTENTS
1INTRODUCTION................................................................................................................................................... 6
1.1 GW0160 FAMILY - INTENDED USE ...................................................................................................................... 6
1.2 DEFINTITION: “RESPONSIBLE AUTHORITY” IN RELATION TO THE DEVICE.......................................................... 7
1.3 WASHING TROLLEYS AND ACCESSORIES............................................................................................................. 8
1.4 LIST OF MODELS.................................................................................................................................................. 8

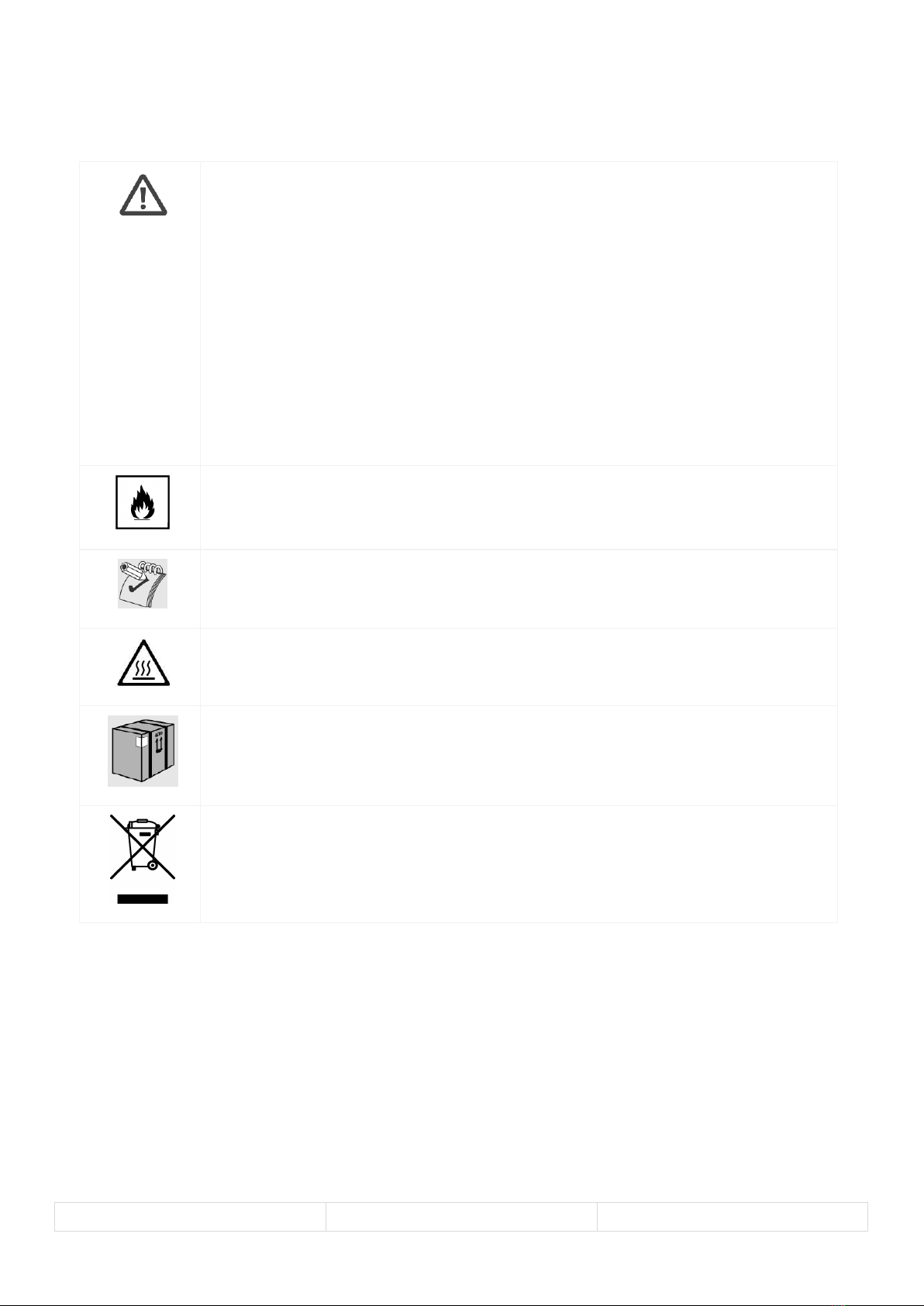

2KEY TO THE SYMBOLS USED IN THE MANUAL AND ON THE APPLIANCE .............................................................. 9
3GENERAL WARNINGS .........................................................................................................................................10
3.1 ACCESSING AND REUSING THE DEVICE AFTER AN INCOMPLETE CYCLE ........................................................... 11
3.2 DOOR OPENING ................................................................................................................................................ 12

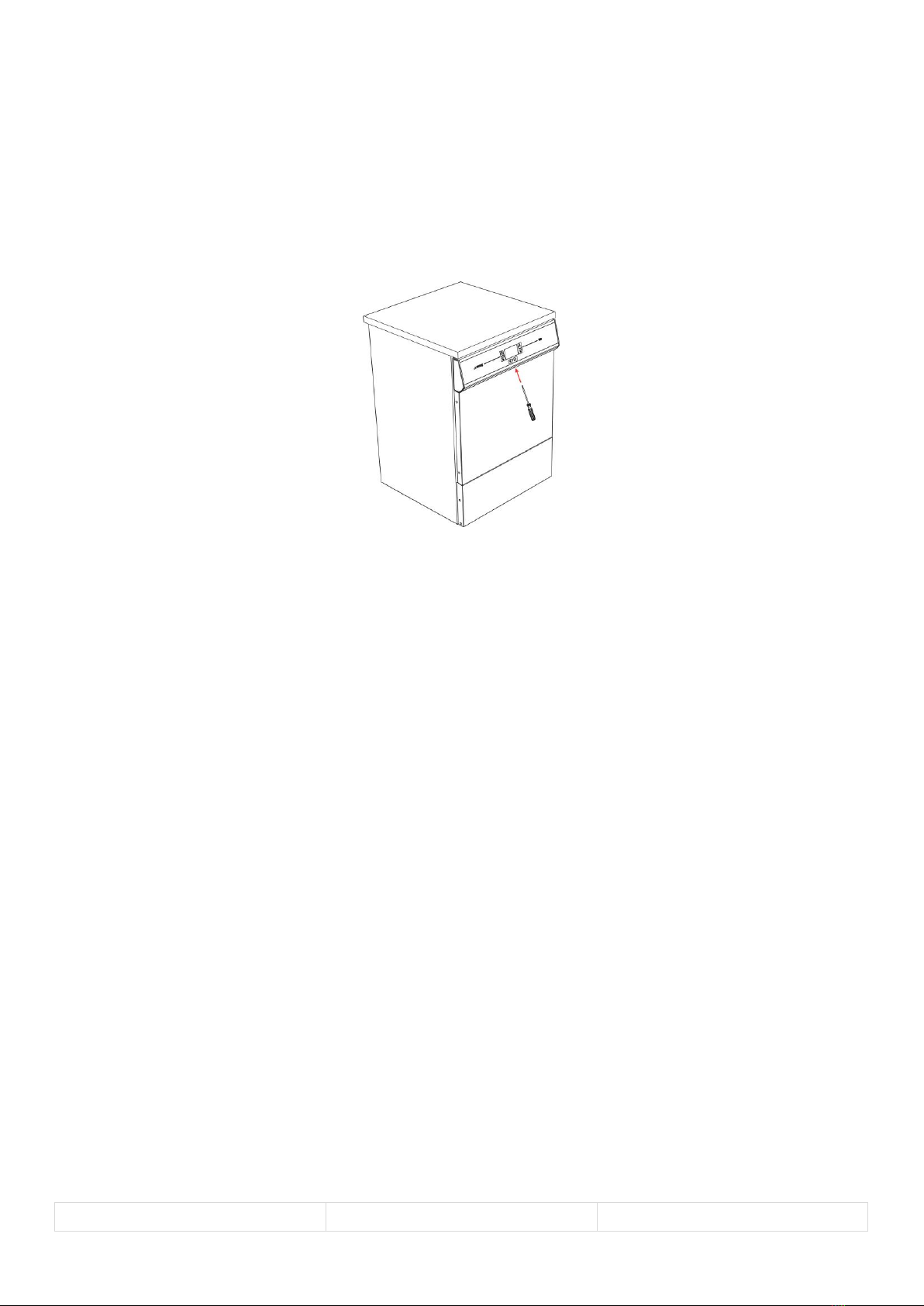

3.3 MANUAL DOOR RELEASE PROCEDURE ............................................................................................................. 13
4DESCRIPTION OF CONTROLS AND PROGRAMS...................................................................................................14

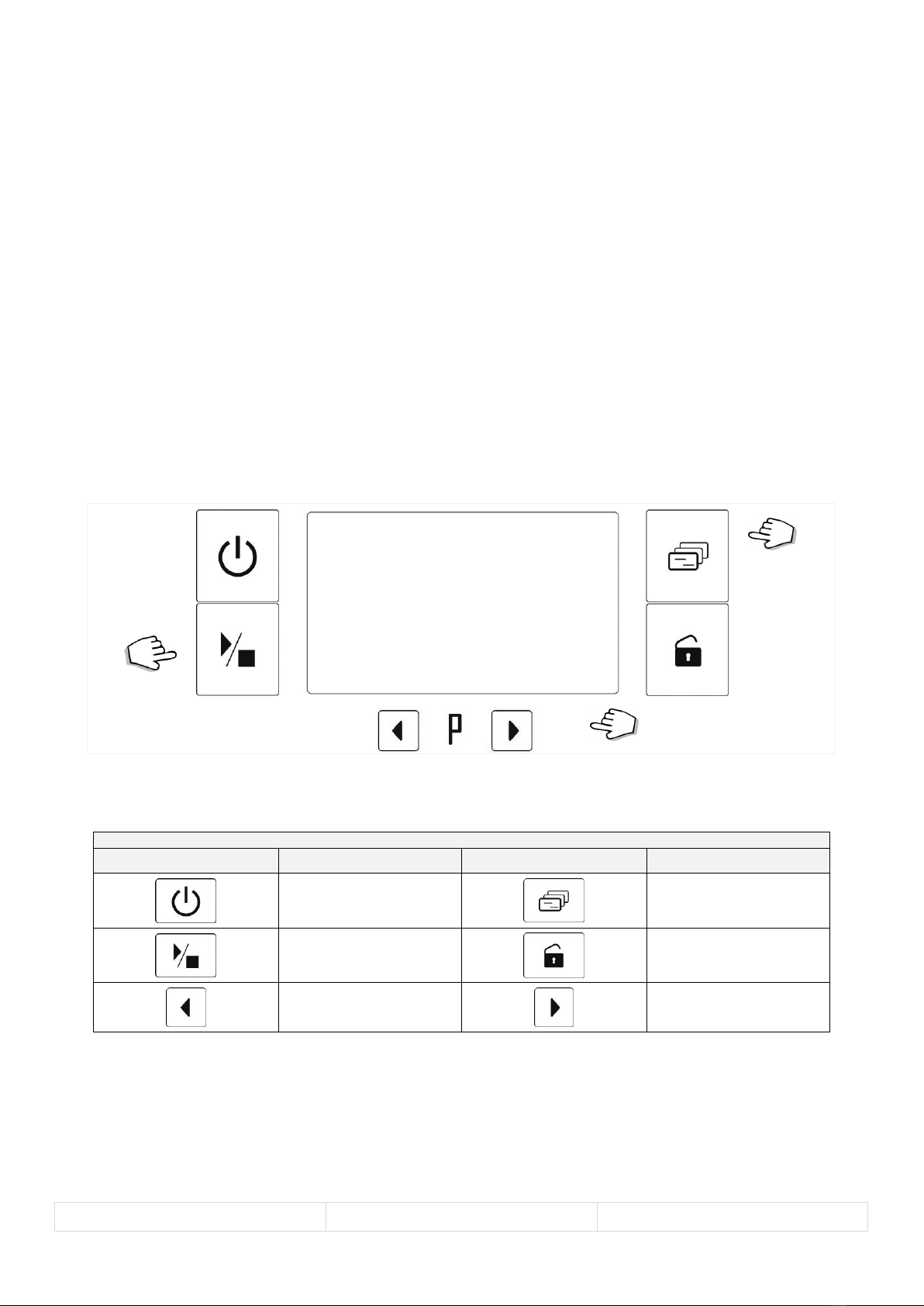

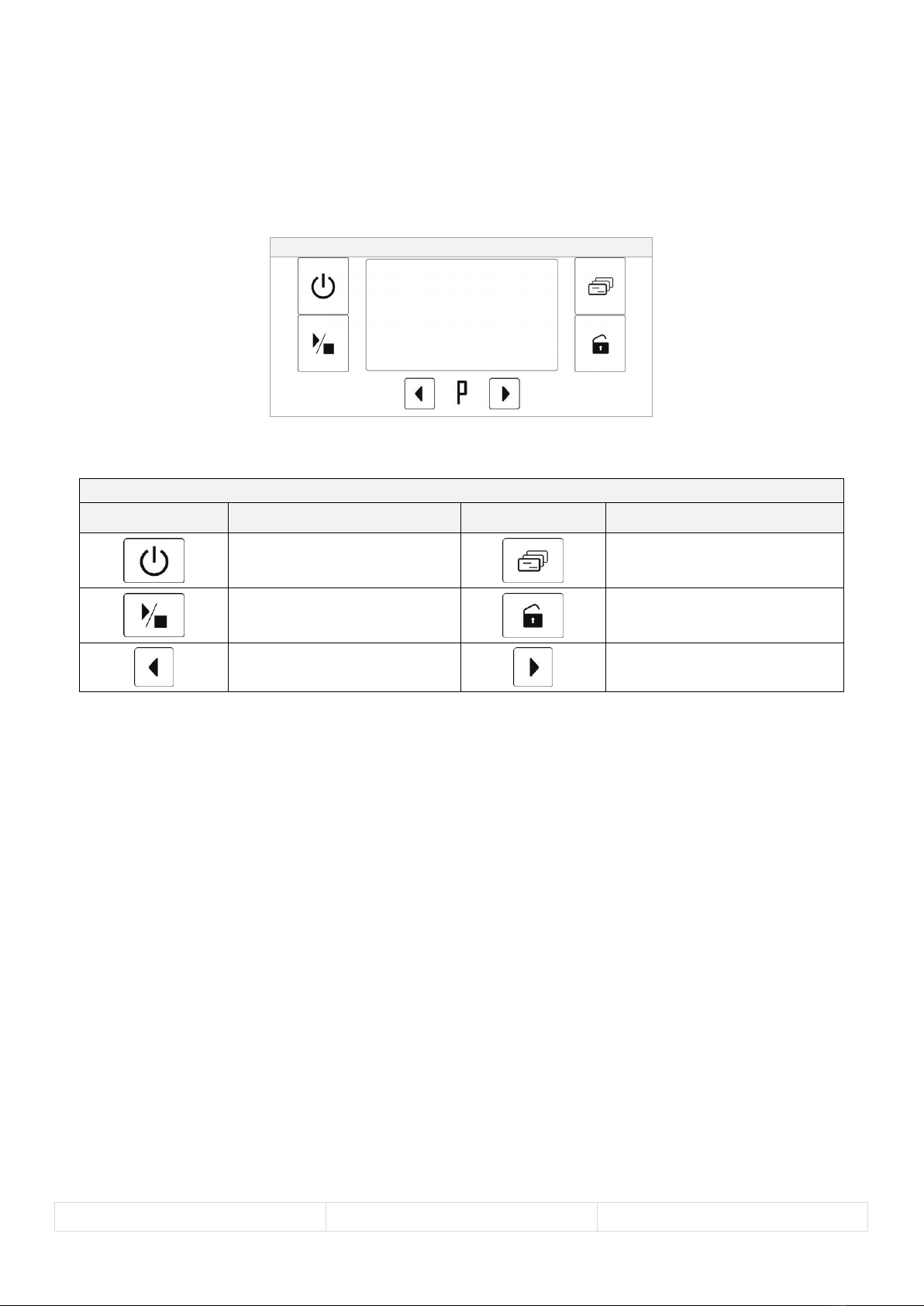

4.1 CONTROLS......................................................................................................................................................... 14

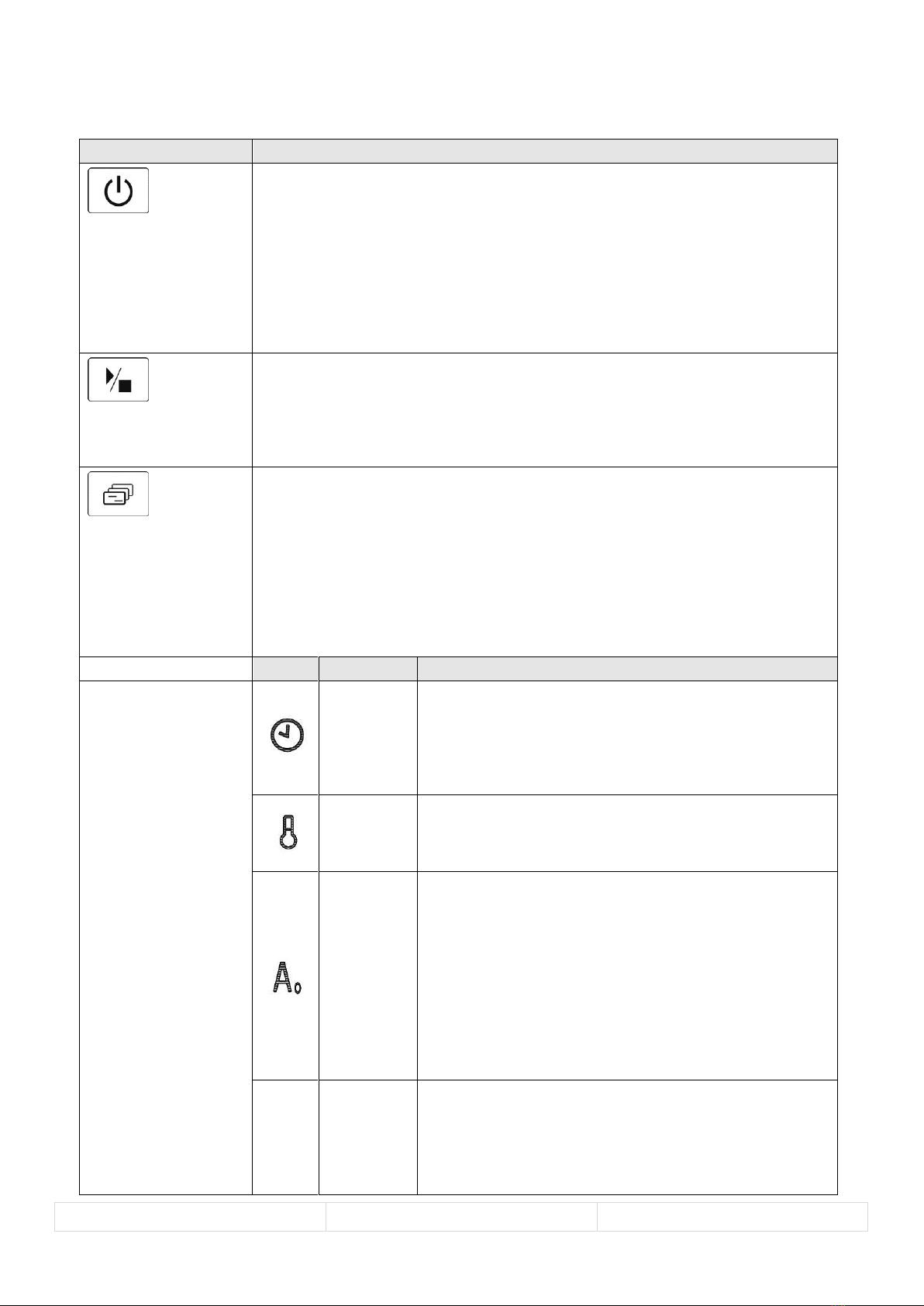

4.2 CONTROLS - DETAILED DESCRIPTION ............................................................................................................... 15

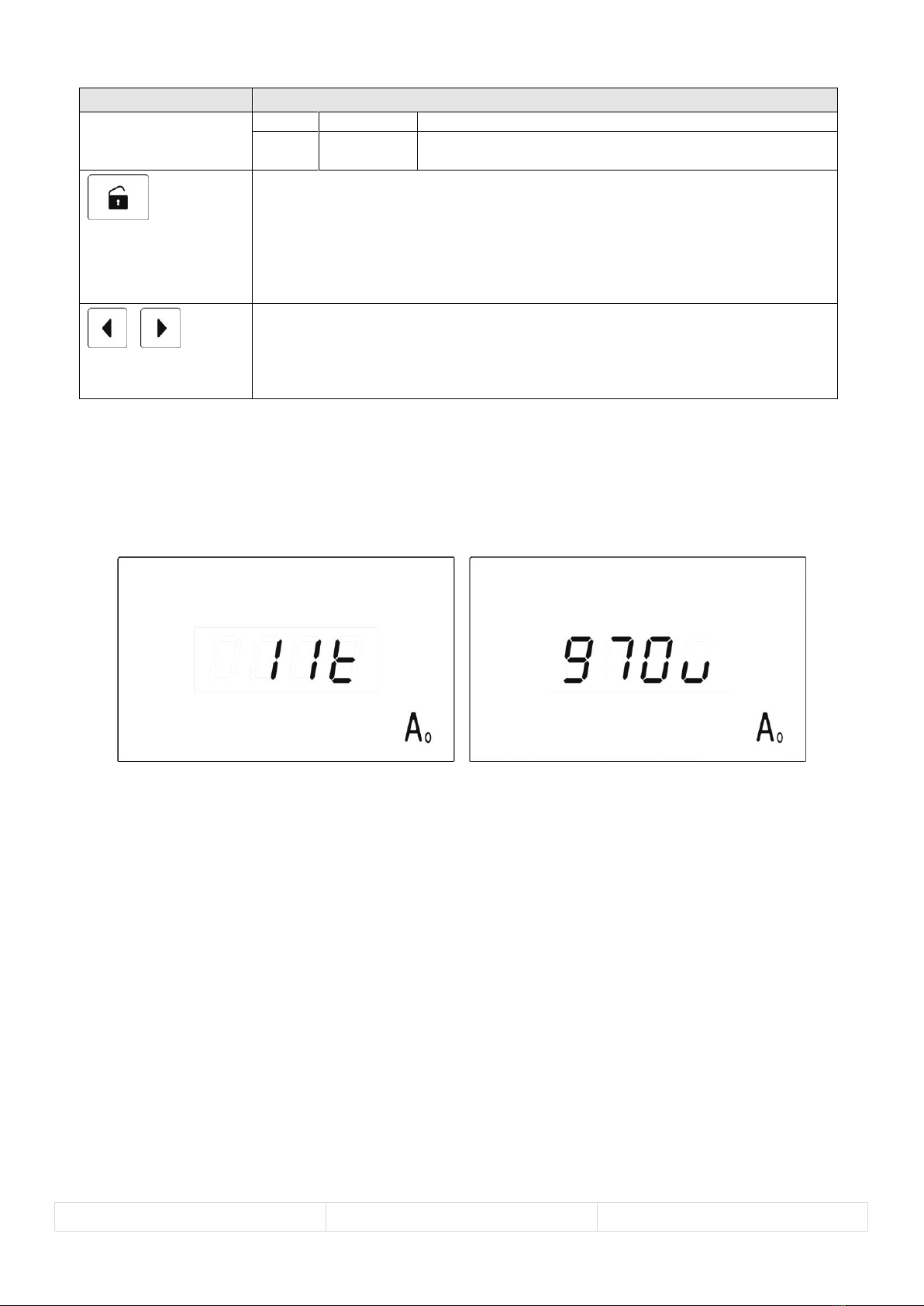

4.2.1 A0 PARAMETER DISPLAY............................................................................................................................ 16

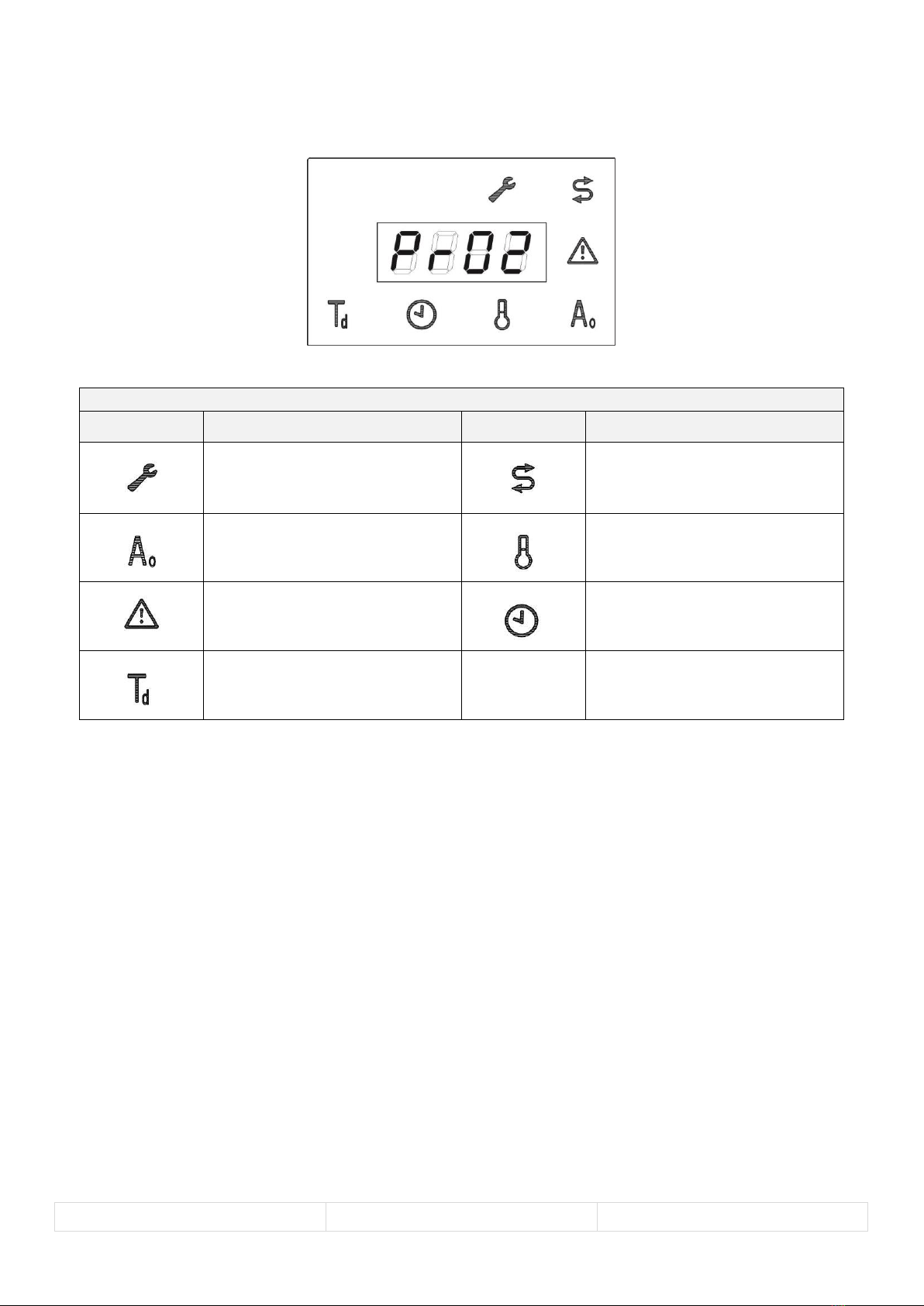

4.3 INDICATOR LEDS - INTRODUCTION................................................................................................................... 17

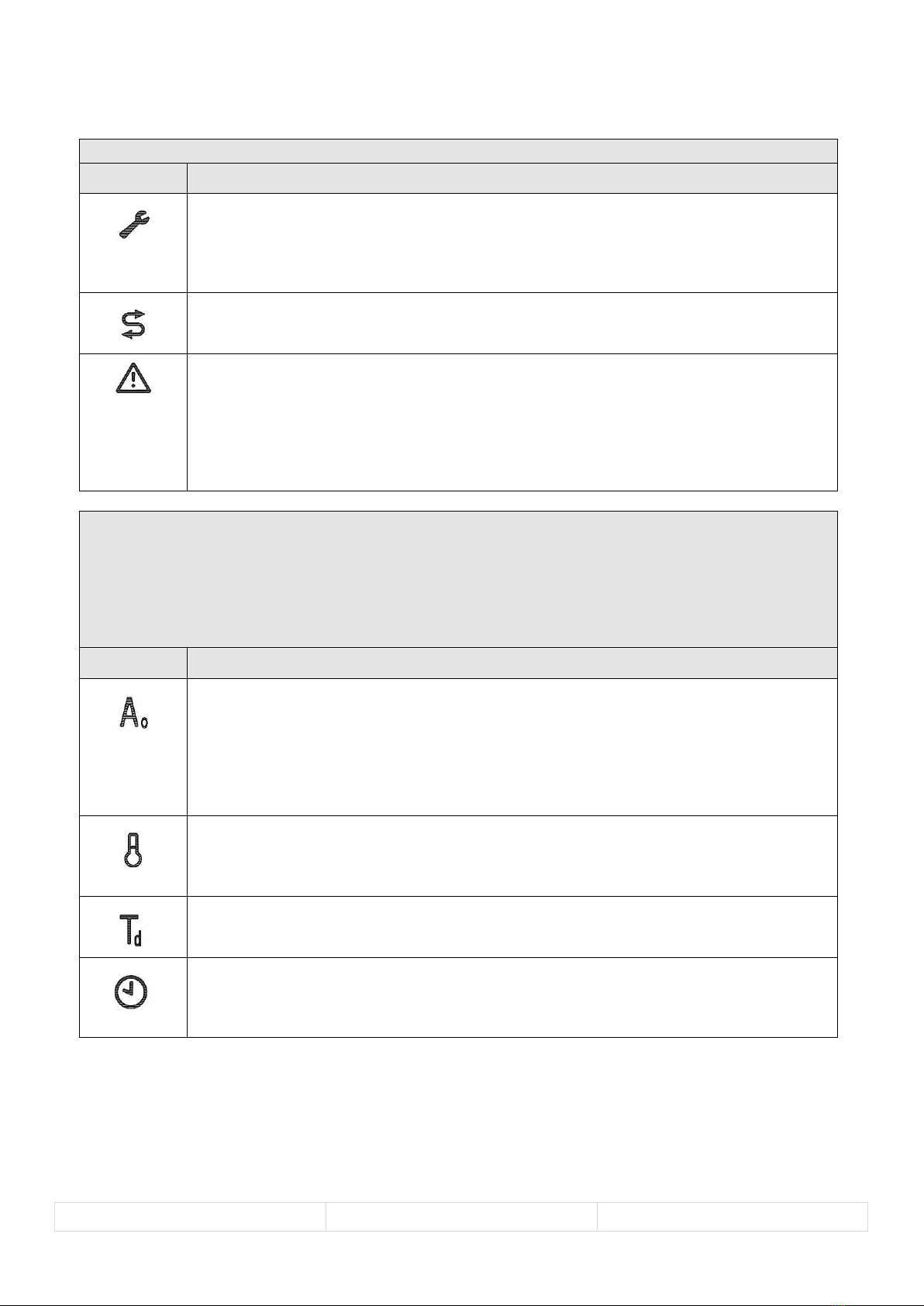

4.4 INDICATOR LEDS - DETAILED EXPLANATION..................................................................................................... 18
4.5 SELECTING THE WASHING PROGRAMME ......................................................................................................... 20
4.6 BRIEF TABLE OF THE PROGRAMS INSTALLED.................................................................................................... 22
4.6.1 RESINS - SOFTENER, REGENERATION AND WASHING PHASE ................................................................... 22
4.7 A0THERMAL DISINFECTION PARAMETER ......................................................................................................... 23
4.8 PREPARING THE LOAD FOR WASHING AND DISINFECTION.............................................................................. 24
4.9 END OF CYCLE ................................................................................................................................................... 25
4.10 INTERRUPTING A PROGRAM IN EXECUTION .................................................................................................... 26
4.11.2 DELAYED START - Starting the program and display................................................................................. 27
4.11.3 TEMPORARY DISABLING OF DEMI WATER................................................................................................ 29
4.11.4 Deleting “Delayed start” - “No Demi” settings ......................................................................................... 30
4.12 RESET PROCEDURE............................................................................................................................................ 30
5SETUP MODE - “FUNCTIONS” .............................................................................................................................31
5.1 ACCESSING THE SETUP MODE / ENTERING THE PASSWORD ........................................................................... 31
5.2 ACCESS AND PARAMETER MODIFICATION ....................................................................................................... 33
5.2.1 “Set“ PARAMETERS ................................................................................................................................... 35
5.2.2 “CLOC” – DATE AND TIME PARAMETERS.................................................................................................. 36
5.2.3 Setting the “PrEn” “Program Enabling” function...................................................................................... 39
6INSTALLATION INSTRUCTIONS ...........................................................................................................................40
6.1 USE OF THE WATER SOFTENER......................................................................................................................... 41
6.2 USING DETERGENT AND NEUTRALISING AGENT .............................................................................................. 42
6.2.1 LIQUID DETERGENT INTAKE SYSTEM ........................................................................................................ 42
6.3 USING THE DETERGENT DISPENSER.................................................................................................................. 44
6.4 RECOMMENDED DETERGENTS ......................................................................................................................... 45
7ALARMS AND WARNING MESSAGES..................................................................................................................47
8CLEANING AND MAINTENANCE .........................................................................................................................52
8.1 CLEANING THE DEVICE AND ITS PARTS............................................................................................................. 52
8.2 IF THE DEVICE IS TO BE OUT OF USE ................................................................................................................. 54
8.3 REUSING THE DEVICE AFTER A PERIOD OUT OF USE ........................................................................................ 55
8.4 TROUBLESHOOTING.......................................................................................................................................... 55
9ROUTINE INSPECTIONS AND MAINTENANCE .....................................................................................................56

User manual
GW0160 Series
Page 5 - 70
9.1 DAILY................................................................................................................................................................. 56
9.2 WEEKLY ............................................................................................................................................................. 56
9.3 EVERY SIX MONTHS .......................................................................................................................................... 56
9.4 EVERY YEAR....................................................................................................................................................... 56
10 TECHNICAL DATA ...........................................................................................................................................57
11 PRODUCT DIMENSIONS - MEASUREMENTS IN MM ........................................................................................60
12 POSITIONING THE APPLIANCE ........................................................................................................................60
13 ELECTRICAL SYSTEM REQUIREMENTS.............................................................................................................62
14 WATER CONNECTION FITTINGS......................................................................................................................64
14.1 WATER INTAKE.................................................................................................................................................. 64
14.1.1 WATER INTAKE CONNECTION................................................................................................................... 64
14.1.2 WATER SUPPLY TAP POSITION.................................................................................................................. 64
14.1.3 WATER SUPPLY SYSTEM REQUIREMENTS................................................................................................. 65
14.1.4 PAD ACCESSORY FOR UNPRESSURISED DEMI WATER .............................................................................. 66
14.2 WATER DRAIN ................................................................................................................................................... 67
15 DATA CONNECTION........................................................................................................................................69

User manual
GW0160 Series
Page 6 - 70
1INTRODUCTION
GW0160 series –professional glassware washing machines, laboratory glassware washers (GW –glassware washer).
Smeg GW0160 family products comply with all the prerequisites of the relevant safety regulations and the standards
in force for electrical equipment.
The table below summarises the product’s main characteristics. (For a full list of models and their configurations refer
to the “LIST OF MODELS” point below).
basic model
CONTROL
ELECTRONIC with MICROPROCESSOR
(with Time and Date functions)
DOOR OPENING
Automatic
DETERGENT DISPENSING
Powder detergent dispenser DD (integral in inner door)
and peristaltic pump P2
OPTIONAL DETERGENT DISPENSING
peristaltic pump P1
TEMPERATURE CONTROL
Single Platinum PT probe (TL1)
RAILS IN CHAMBER FOR TOP BASKET
Yes
WATER INTAKE CONNECTIONS
Mains and Demineralised
PRESET PROGRAMS
Specific LABORATORY programs, TOTAL OF 8 PROGRAMS
1.1 GW0160 FAMILY - INTENDED USE
Laboratory glassware washer.
The appliance is built to provide the following function:
Washing of laboratory glassware with chemical or thermal disinfection;
The appliance cannot be used to sterilize instruments or any other device.
Any use other than that described in this manual constitutes misuse.
SMEG declines all liability for uses other than those stated above.
SMEG declines all liability for any damage caused by the use of the appliance to wash glassware or
instruments not approved by their manufacturers for automatic decontamination by means of
thermal disinfection.
The appliance may only be used by specifically trained staff. Smeg will train the staff assigned to
use the appliance at the time of installation.
Smeg declines all liability in the event of malfunctions or accidents caused by use of the appliance
by untrained staff.
The training of the staff responsible includes specific information on the possible risks involved in
the use of the appliance, and training in the safest possible way of carrying out the operating
procedures.
The Smeg installation engineer is also responsible for notifying the responsible authority of the
USER and SUPERUSER passwords to access the setup parameters. The responsible authority must
keep these passwords in a safe place.
It is the duty of the appliance’s RESPONSIBLE AUTHORITY to ensure that those using the
equipment have been suitably trained in its operation, its safe use and routine checks, and that
this training is suitably maintained.
Staff training should be checked regularly.
The installation engineer is responsible for ensuring that it operates correctly after commissioning.

User manual
GW0160 Series
Page 7 - 70
Safety information supplied in compliance with 5.4.101.1 IEC61010-2-040:2005
Instrument manufacturers’ instructions should always be followed when choosing the most
appropriate disinfection treatment.
In particular, it is important to check the compatibility of the load for treatment with the specific
washing cycle chosen, in terms of the maximum temperatures reached and the chemicals used.
Information supplied in compliance with point 5.4.4.r IEC61010-2-040:2005.
1.2 DEFINTITION: “RESPONSIBLE AUTHORITY” IN RELATION TO THE DEVICE
Responsible authority: “Person or group responsible for the use and ordinary maintenance of the unit and for operator
training.
Definition taken from point 3.5.13 of the IEC61010-1:2001 standard.
The responsible authority should be clearly identified within the facility where the appliance is used, (for example by
recording the relative names and responsibilities on corporate forms).

User manual
GW0160 Series
Page 8 - 70
1.3 WASHING TROLLEYS AND ACCESSORIES
N.B: the device is supplied without the washing trolleys and instrument holder baskets.
Contact Smeg for details of the range of racks and baskets best suited to your washing
requirements.
Visit www.smeg-instruments.com for information about the standard range of products available.
To view the Smeg offering of WASHING ACCESSORIES, click:
LABORATORY DIVISION -> PRODUCTS -> LABORATORY GLASSWARE WASHERS
Any accessories may not be installed on the appliance by the user; this must be done by Smeg
authorised technical staff.
Any components must always be replaced with genuine Smeg spare parts.
1.4 LIST OF MODELS
SYMBOL
MEANING

feature present

optional accessory, installable on the model.
-
feature not present and not installable on the model.
MOD.GW
GW0160
Features
GW0160
GW0160S
DD - Powder detergent dispenser
in inner door

-
P1 - Peristaltic detergent pump


P2 - Neutralising agent peristaltic
pump


Control of detergent dispensing
-
-
Detergent can level control
-
-
Acquastop


ELECTRICAL CONFIGURATION
Three different electrical setups are available for every model included in the table.
The names of the models have different suffixes to identify the power supply rating.
E.g.
- “GW0160-1”, “GW0160S1” indicates single-phase model: “ 1N~ ”
- “GW0160-3”, GW0160S3” indicates three-phase model, 230V between phases, no neutral: “ 3~ ”
- “GW0160”, “GW0160S” If the model does not have a suffix it will be three-phase, with neutral,
400V between phases: “ 3N~ ”.
- “GW4060U”, “GW1160U” and “GW4190U”. The “U” suffix refers to “North American models”, convertible
208V models: 208V 3~ 60Hz * / 208 V ~ 60Hz (* default connection).
Contact Smeg for advice about the model best suited to your needs [e-mail]

User manual
GW0160 Series
Page 9 - 70
2KEY TO THE SYMBOLS USED IN THE MANUAL AND ON THE APPLIANCE
The following is the key to the symbols used on the appliance and in this manual, as required by point 5.4.4.e of
IEC61010-2-040:2005.
Read with particular attention.
(Symbol which appears beside particularly important instructions or warnings).
Warning, danger: refer to the manual.
(The symbol appears on the appliance’s technical dataplate to emphasise that staff must read the
manual before using the device.
The symbol appears in the manual next to safety instructions)
Warning, hot surface.
(the symbol is affixed to the appliance close to parts which may heat to high temperatures and
constitute a burn hazard - do not touch parts near this symbol. The symbol appears in the manual
to emphasise safety instructions relating to the burn hazard).
Warning, electric shock hazard.
(The symbol is affixed close to live parts - the device’s power supply must be disconnected before
doing any work on these parts. Never touch live parts unless the electricity supply is disconnected).
Transport and unpacking precautions.
Flammability hazard.
Biohazard.
At the end of its working life, the product must be consigned to a disposal plant for recovery and
recycling in accordance with the relevant legislation in the country of installation. Contact the
specialist disposal consortia. This appliance is marked according to the European Directive
2002/96/EC on waste electrical and electronic equipment (WEEE). By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate waste handling
of this product.
CE marking; the manufacturer guarantees compliance with the EU directives applicable to the
product.
This symbol appears on the machine’s technical data label and in this manual.

User manual
GW0160 Series
Page 10 - 70
3GENERAL WARNINGS
Leaning or sitting on the open door of the device might cause it to tip over, putting people in
danger. The door is not designed primarily to support loads.
The maximum weight which can be loaded on the door, including the weight of the instrument
trolley, must never exceed 37kg (if the weight of the instrument trolley and baskets is excluded,
the maximum processable load must never exceed 23kg).
With use of the glassware washer, localised or general discolouring of the heating element may
occur. This is normal since it is due to the operating mode and does not reduce the appliance’s
effectiveness.
In the event of malfunction, disconnect the appliance from the electricity supply and turn off the
water tap. Then contact your nearest authorised Service Centre.
Open the door carefully, first waiting for the wash cycle to end.
The appliance has an automatic door opening system; do not force the door open while a program
is in progress.
The appliance must only be used by staff suitably trained in its operation.
The chamber of the appliance is not designed for users to climb into it. The user must never climb
into the chamber; this might put his safety at risk (ref. 7.102 IEC61010-2-040:2005).
Do not place flammable substances inside the device. Do not use flammable detergents.
Never place alcohol or solvents such as turpentine, which might cause an explosion, inside the
appliance. Do not place materials dirty with ash, wax or paint inside the appliance.
DEMI WATER ABSENCE
If demineralised water is not available, the user is responsible for ensuring that the quality of the
water supplied to the medical device does not cause mineral salts or other substances to be
deposited on the treated instruments, rendering their subsequent use unsafe.

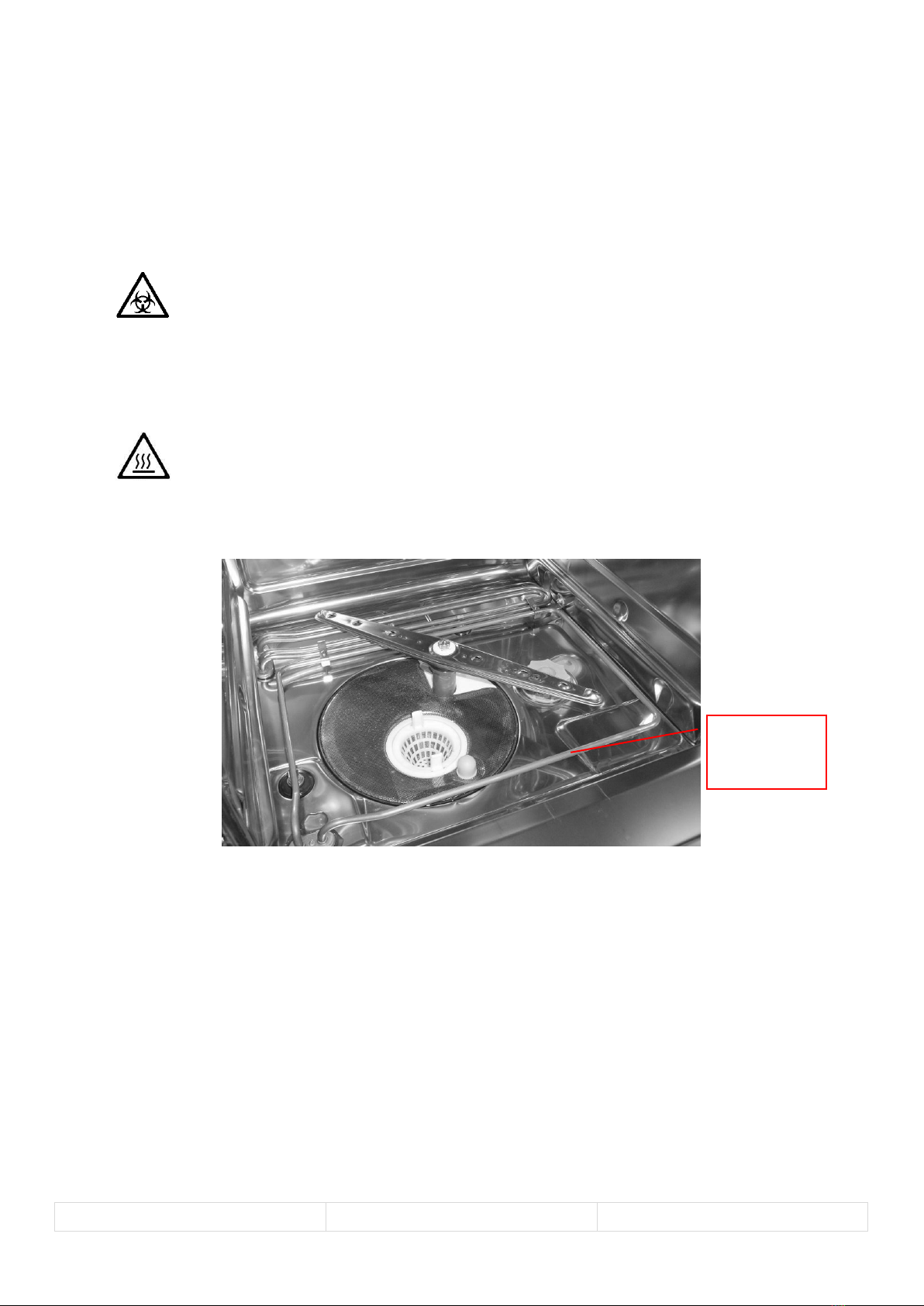

Never touch the heating element immediately after the end of a wash programme.
Do not touch any residual liquids left inside the washing chamber; scalding hazard (ref. 7.102.c
IEC61010-2-040:2005).
When moving the appliance around, a forklift truck or pallet truck must be used.
Before leaving the factory, the base of the appliance is secured to a pallet, which is used for lifting
and transporting it.
Do not use appliances which have been damaged in transit!
If in doubt, contact your dealer.
Once decommissioned, the appliance must be rendered unusable. Cut the power supply cable
after removing the plug / disconnecting the cable from the power socket.
