Smeg LBS108F1 User manual

LBS128F1
LBS108F1
Lavatrice
Washing Machine

2EN
1 Important safety instructions
This section contains safety instructions that will
help protect from risk of personal injury or property
damage. Failure to follow these instructions shall
void any warranty.
General safety
• Thisproductshouldnotbeusedbypersons
with physical, sensory or mental disorders or
unlearned or inexperienced people (including
children)unlesstheyareattendedbyaperson
whowillberesponsiblefortheirsafetyorwho
will instruct them accordingly for use of the
product.
• Neverplacetheproductonacarpet-covered
floor;otherwise,lackofairflowbeneaththe
machine will cause electrical parts to overheat.
Thiswillcauseproblemswithyourproduct.
• Donotoperatetheproductifthepowercable/
plug is damaged. Call the Authorized Service
Agent.
• Haveaqualifiedelectricianconnecta16-Ampere
fuse to the installation location of the product.
• Iftheproducthasafailure,itshouldnotbe
operatedunlessitisrepairedbytheAuthorized
Service Agent. There is the risk of electric
shock!
• Thisproductisdesignedtoresumeoperating
in the event of powering on after a power
interruption.Ifyouwishtocancelthe
programme, see "Cancelling the programme"
section.
• Connecttheproducttoagroundedoutlet
protectedbyafusecomplyingwiththevalues
inthe"Technicalspecifications"table.Donot
neglect to have the grounding installation made
byaqualifiedelectrician.Ourcompanyshall
notbeliableforanydamagesthatwillarise
when the product is used without grounding in
accordance with the local regulations.
• Thewatersupplyanddraininghosesmustbe
securely fastened and remain undamaged.
Otherwise,thereistheriskofwaterleakage.
• Neveropentheloadingdoororremovethefilter
whilethereisstillwaterinthedrum.Otherwise,
risk of flooding and injury from hot water will
occur.
• Donotforceopenthelockedloadingdoor.The
loadingdoorwillbereadytoopenjustafew
minutes after the washing cycle comes to an
end.Incaseofforcingtheloadingdoorto
open, the door and the lock mechanism may
get damaged.
• Unplugtheproductwhennotinuse.
• Neverwashtheproductbyspreadingorpouring
water onto it! There is the risk of electric shock!
• Nevertouchtheplugwithwethands!Never
unplugbypullingonthecable,alwayspullout
bygrabbingtheplug.
• Usedetergents,softenersandsupplements
suitableforautomaticwashingmachinesonly.
• Followtheinstructionsonthetextiletagsandon
the detergent package.
• Theproductmustbeunpluggedduring
installation, maintenance, cleaning and repairing
procedures.
• Alwayshavetheinstallationandrepairing
procedurescarriedoutbytheAuthorized
ServiceAgent.Manufacturershallnotbe
heldliablefordamagesthatmayarisefrom
procedurescarriedoutbyunauthorized
persons.
Intended use
• Thisproducthasbeendesignedfordomestic
use.Itisnotsuitableforcommercialuseandit
mustnotbeusedoutofitsintendeduse.
• Theproductmustonlybeusedforwashingand
rinsing of laundry that are marked accordingly.
• Themanufacturerwaivesanyresponsibilityarisen
from incorrect usage or transportation.
Children's safety
• Electricalproductsaredangerousforthechildren.
Keep children away from the product when it
isinuse.Donotletthemtotamperwiththe
product.Usechildlocktopreventchildrenfrom
intervening with the product.
• Donotforgettoclosetheloadingdoorwhen
leaving the room where the product is located.
• Storealldetergentsandadditivesinasafeplace
away from the reach of the children.
2 Installation
Refer to the nearest Authorised Service Agent for
installation of the product. To make the product
ready for use, review the information in the user
manual and make sure that the electricity, tap water
supply and water drainage systems are appropriate
beforecallingtheAuthorizedServiceAgent.Ifthey
arenot,callaqualifiedtechnicianandplumberto
have any necessary arrangements carried out.
CPreparation of the location and electrical, tap
water and waste water installations at the place
ofinstallationisundercustomer'sresponsibility.
B Installationandelectricalconnectionsofthe
productmustbecarriedoutbytheAuthorized
ServiceAgent.Manufacturershallnotbe
heldliablefordamagesthatmayarisefrom
procedurescarriedoutbyunauthorized
persons.
APrior to installation, visually check if the product
hasanydefectsonit.Ifso,donothaveit
installed.Damagedproductscauserisksfor
your safety.
CMake sure that the water inlet and discharge
hosesaswellasthepowercablearenot
folded, pinched or crushed while pushing
the product into its place after installation or
cleaning procedures.
Appropriate installation location
• Placethemachineonarigidfloor.Donotplaceit
on a long pile rug or similar surfaces.

3EN
• Totalweightofthewashingmachineandthe
dryer-withfullload-whentheyareplaced
ontopofeachotherreachestoapprox.180
kilograms. Place the product on a solid and flat
floor that has sufficient load carrying capacity!
• Donotplacetheproductonthepowercable.
• Donotinstalltheproductatplaceswhere
temperaturemayfallbelow0ºC.
• Placetheproductatleast1cmawayfromthe
edges of other furniture.
Removing packaging reinforcement
Tiltthemachinebackwardstoremovethe
packaging reinforcement. Remove the packaging
reinforcementbypullingtheribbon.
Removing the transportation locks
A Donotremovethetransportationlocksbefore
taking out the packaging reinforcement.
A Removethetransportationsafetyboltsbefore
operating the washing machine, otherwise, the
productwillbedamaged.
1.Loosenalltheboltswithaspanneruntilthey
rotate freely (C).
2.Removetransportationsafetyboltsbyturning
them gently.
3.AttachtheplasticcoverssuppliedintheUser
Manualbagintotheholesontherearpanel.(P)
C Keepthetransportationsafetyboltsinasafe
place to reuse when the washing machine
needstobemovedagaininthefuture.
CNever move the product without the
transportationsafetyboltsproperlyfixedin
place!
Connecting water supply
C Thewatersupplypressurerequiredtorun
theproductisbetween1to10bars(0.1–10
MPa).Itisnecessarytohave10–80litersof
water flowing from the fully open tap in one
minute to have your machine run smoothly.
Attach a pressure reducing valve if water
pressure is higher.
C Ifyouaregoingtousethedoublewater-inlet
productasasingle(cold)water-inletunit,you
must install the supplied stopper to the hot
watervalvebeforeoperatingtheproduct.
(Appliesfortheproductssuppliedwithablind
stopper group.)
C Ifyouwanttousebothwaterinletsofthe
product, connect the hot water hose after
removing the stopper and gasket group from
the hot water valve. (Applies for the products
suppliedwithablindstoppergroup.)
A Modelswithasinglewaterinletshouldnotbe
connectedtothehotwatertap.Insuchacase
the laundry will get damaged or the product will
switch to protection mode and will not operate.
A Donotuseoldorusedwaterinlethoseson
thenewproduct.Itmaycausestainsonyour
laundry.
1.Connectthespecialhosessuppliedwiththe
product to the water inlets on the product. Red
hose(left)(max.90ºC)isforhotwaterinlet,
bluehose(right)(max.25ºC)isforcoldwater
inlet.
AEnsure that the cold and hot water connections
are made correctly when installing the product.
Otherwise,yourlaundrywillcomeouthotatthe
end of the washing process and wear out.
2.Tightenallhosenutsbyhand.Neverusea
wrench when tightening the nuts.
3.Openthetapscompletelyaftermakingthehose
connection to check for water leaks at the
connectionpoints.Ifanyleaksoccur,turnoff
the tap and remove the nut. Retighten the nut
carefully after checking the seal. To prevent
waterleakagesanddamagescausedbythem,
keep the taps closed when the machine is not
in use.
Connecting to the drain
• Theendofthedrainhosemustbedirectly
connected to the wastewater drain or to the
washbasin.
A Yourhousewillbefloodedifthehosecomes
out of its housing during water discharge.
Moreover, there is risk of scalding due to
high washing temperatures! To prevent such
situations and to ensure smooth water intake
and discharge of the machine, fix the end of the
discharge hose tightly so that it cannot come
out.
• Thehoseshouldbeattachedtoaheightofat
least40cm,and100cmatmost.
• Incasethehoseiselevatedafterlayingitonthe
floor level or close to the ground (less than
40cmabovetheground),waterdischarge
becomesmoredifficultandthelaundrymay
come out excessively wet. Therefore, follow the
heightsdescribedinthefigure.

4EN
• Topreventflowingofdirtywaterbackintothe
machine and to allow for easy discharge, do
not immerse the hose end into the dirty water
ordriveitinthedrainmorethan15cm.Ifitis
too long, cut it short.
• Theendofthehoseshouldnotbebent,itshould
notbesteppedonandthehosemustnotbe
pinchedbetweenthedrainandthemachine.
• Ifthelengthofthehoseistooshort,useitby
addinganoriginalextensionhose.Length
ofthehosemaynotbelongerthan3.2m.
To avoid water leak failures, the connection
betweentheextensionhoseandthedrain
hoseoftheproductmustbefittedwellwithan
appropriate clamp as not to come off and leak.
Adjusting the feet
A Inordertoensurethattheproductoperates
moresilentandvibration-free,itmuststand
levelandbalancedonitsfeet.Balancethe
machinebyadjustingthefeet.Otherwise,the
product may move from its place and cause
crushingandvibrationproblems.
1.Loosenthelocknutsonthefeetbyhand.
2. Adjust the feet until the product stands level and
balanced.
3.Tightenalllocknutsagainbyhand.
A Donotuseanytoolstoloosenthelocknuts.
Otherwise,theywillgetdamaged.
Electrical connection
Connect the product to a grounded outlet protected
byafusecomplyingwiththevaluesinthe"Technical
specifications"table.Ourcompanyshallnotbe
liableforanydamagesthatwillarisewhenthe
product is used without grounding in accordance
with the local regulations.
• Connectionmustcomplywithnational
regulations.
• Powercableplugmustbewithineasyreachafter
installation.
• Thevoltageandallowedfuseorbreaker
protection are specified in the “Technical
specifications”section.Ifthecurrentvalueof
thefuseorbreakerinthehouseislessthan16
Amps,haveaqualifiedelectricianinstalla16
Amp fuse.
• Thespecifiedvoltagemustbeequaltoyour
mains voltage.
• Donotmakeconnectionsviaextensioncablesor
multi-plugs.
B Damagedpowercablesmustbereplacedby
the Authorized Service Agents.
First use
Beforestartingtousetheproduct,makesure
that all preparations are made in accordance
withtheinstructionsinsections"Importantsafety
instructions"and"Installation".
To prepare the product for washing laundry, perform
firstoperationinDrumCleaningprogramme.If
yourmachineisnotfeaturedwithDrumCleaning
programme,useCottons-90programmeandselect
Additional Water or Extra Rinse auxiliary functions
aswell.Beforestartingtheprogramme,putmax.
100gofpowderanti-limescaleintothemainwash
detergentcompartment(compartmentnr.II).Ifthe
anti-limescaleisintabletform,putonlyonetablet
intocompartmentnr.II.Drytheinsideofthebellow
with a clean piece of cloth after the programme has
come to an end.
C Useananti-limescalesuitableforthewashing
machines.
CSome water might have remained in the
productduetothequalitycontrolprocessesin
theproduction.Itisnotharmfulfortheproduct.
Disposing of packaging material
Packaging materials are dangerous to children.
Keep packaging materials in a safe place away from
reach of the children.

5EN
Packaging materials of the product are
manufacturedfromrecyclablematerials.Disposeof
them properly and sort in accordance with recycled
wasteinstructions.Donotdisposeofthemwith
normal domestic waste.
Transportation of the product
Unplugtheproductbeforetransportingit.Remove
waterdrainandwatersupplyconnections.Drain
the remaining water in the product completely; see,

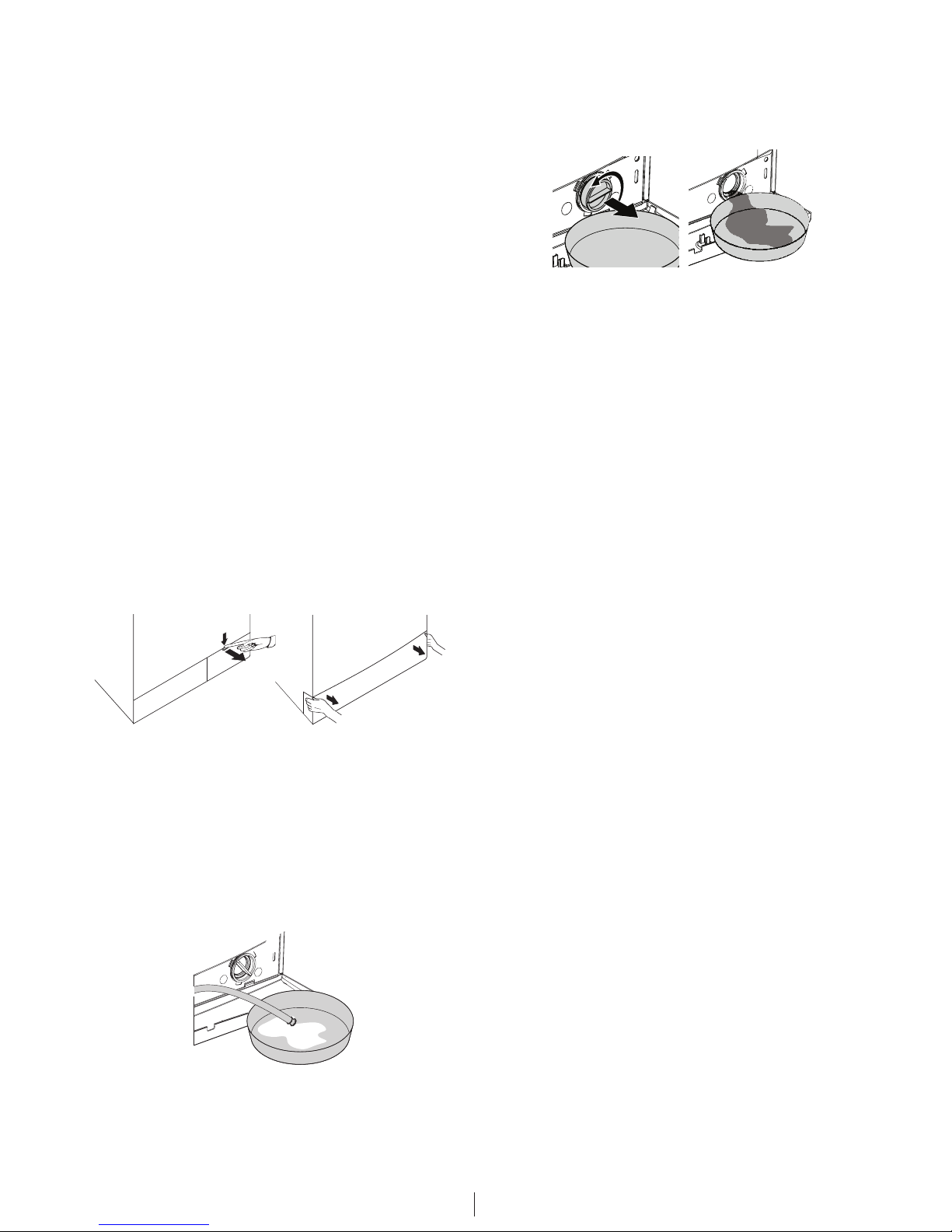

"Drainingremainingwaterandcleaningthepump
filter".Installtransportationsafetyboltsinthereverse
order of removal procedure; see, "Removing the
transportation locks".
CNever move the product without the
transportationsafetyboltsproperlyfixedin
place!
Disposing of the old product
Disposeoftheoldproductinanenvironmentally
friendly manner.
Refer to your local dealer or solid waste collection
centre in your area to learn how to dispose of your
product.
Forchildren'ssafety,cutthepowercableandbreak
the locking mechanism of the loading door so
thatitwillbenonfunctionalbeforedisposingofthe
product.
damagetheproductorcausenoiseproblem.
• Putsmallsizeclothessuchasinfant'ssocksand
nylonstockingsinalaundrybagorpillowcase.
• Placecurtainsinwithoutcompressingthem.
Remove curtain attachment items.
• Fastenzippers,sewloosebuttonsandmendrips
and tears.
• Wash“machinewashable”or“handwashable”
labeledproductsonlywithanappropriate
programme.
• Donotwashcoloursandwhitestogether.New,
dark coloured cottons release a lot of dye.
Wash them separately.
• Toughstainsmustbetreatedproperlybefore
washing.Ifunsure,checkwithadrycleaner.
• Useonlydyes/colourchangersandlimescale
removerssuitableformachinewash.Always
follow the instructions on the package.
• Washtrousersanddelicatelaundryturnedinside
out.
• KeeplaundryitemsmadeofAngorawoolinthe
freezerforafewhoursbeforewashing.Thiswill
reduce pilling.
• Laundrythataresubjectedtomaterialssuchas
flour, lime dust, milk powder, etc. intensely must
beshakenoffbeforeplacingintothemachine.
Such dusts and powders on the laundry may
buildupontheinnerpartsofthemachinein
time and can cause damage.
Correct load capacity
The maximum load capacity depends on the type
of laundry, the degree of soiling and the washing
programme desired.
The machine automatically adjusts the amount of
water according to the weight of the loaded laundry.
AFollow the information in the “Programme
andconsumptiontable”.Whenoverloaded,
machine's washing performance will drop.
Moreover,noiseandvibrationproblemsmay
occur.
Loading the laundry
• Opentheloadingdoor.
• Placelaundryitemslooselyintothemachine.
• Pushtheloadingdoortocloseuntilyouheara
locking sound. Ensure that no items are caught
in the door.
CThe loading door is locked while a programme
isrunning.Thedoorcanonlybeopeneda
while after the programme comes to an end.
A Incaseofmisplacingthelaundry,noiseand
vibrationproblemsmayoccurinthemachine.
3 Preparation
Things to be done for energy saving
Following information will help you use the product in
anecologicalandenergy-efficientmanner.
• Operatetheproductinthehighestcapacity
allowedbytheprogrammeyouhaveselected,
butdonotoverload;see,"Programmeand
consumptiontable".
• Alwaysfollowtheinstructionsonthedetergent
packaging.
• Washslightlysoiledlaundryatlowtemperatures.
• Usefasterprogrammesforsmallquantitiesof
lightly soiled laundry.
• Donotuseprewashandhightemperaturesfor
laundry that is not heavily soiled or stained.
• Ifyouplantodryyourlaundryinadryer,select
the highest spin speed recommended during
washing process.
• Donotusedetergentinexcessoftheamount
recommended on the detergent package.
Sorting the laundry
• Sortlaundryaccordingtotypeoffabric,colour,
anddegreeofsoilingandallowablewater
temperature.
• Alwaysobeytheinstructionsgivenonthegarment
tags.
Preparing laundry for washing
• Laundryitemswithmetalattachmentssuchas,
underwiredbras,beltbucklesormetalbuttons
will damage the machine. Remove the metal
piecesorwashtheclothesbyputtingthemina
laundrybagorpillowcase.
•Takeoutallsubstancesinthepocketssuchas
coins, pens and paper clips, and turn pockets
insideoutandbrush.Suchobjectsmay

6EN
Using detergent and softener

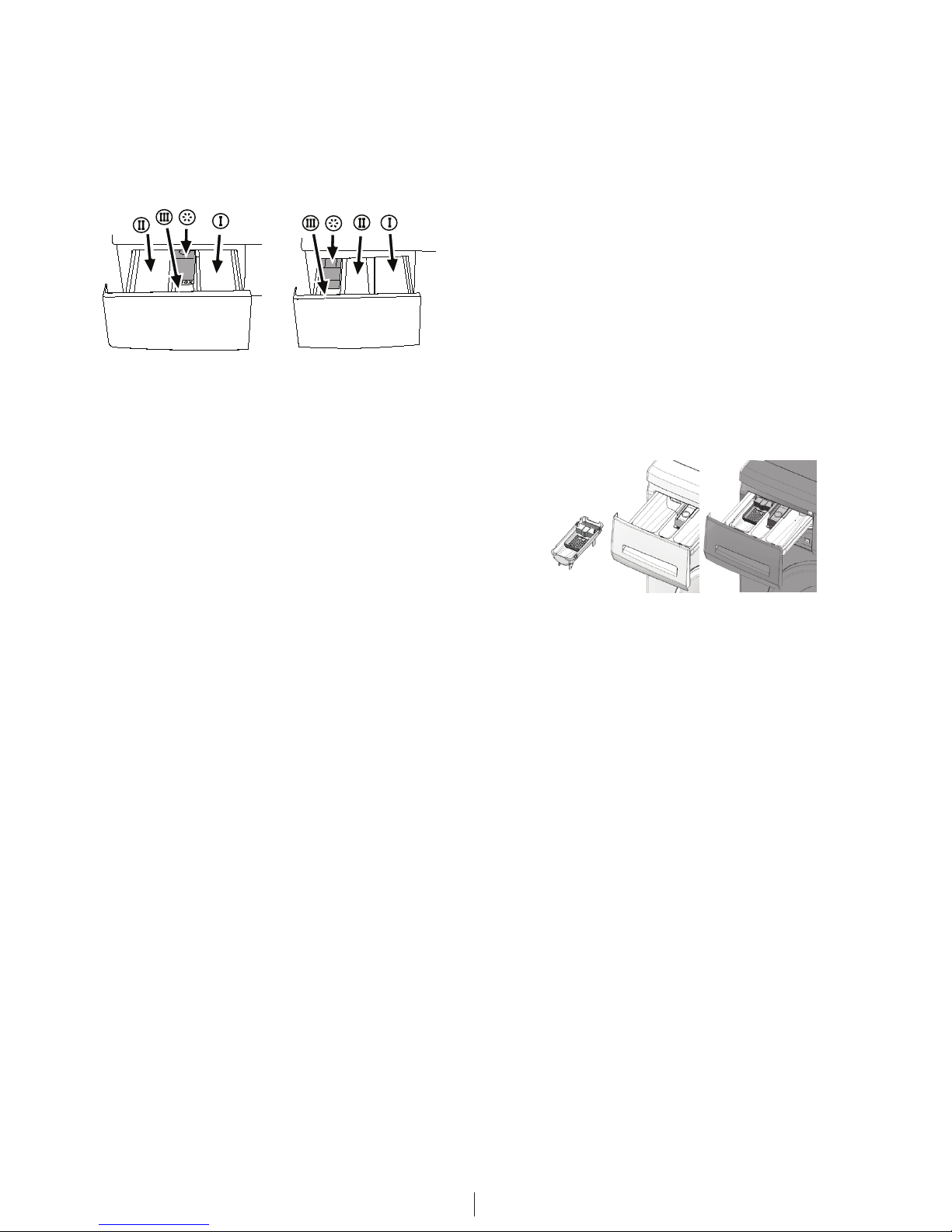

Detergent Drawer
The detergent drawer is composed of three
compartments:
-(I)forprewash
-(II)formainwash
–(III)forsoftener
–(*)inaddition,thereissiphonpieceinthesoftener
compartment.
C Thedetergentdispensermaybeintwodifferent
types according to the model of your machine
asseenabove.
Detergent, softener and other cleaning agents
• Adddetergentandsoftenerbeforestartingthe
washing programme.
• Neveropenthedetergentdrawerwhilethe
washing programme is running!
• Whenusingaprogrammewithoutprewash,
do not put any detergent into the prewash
compartment(compartmentnr.I).
• Inaprogrammewithprewash,donotputliquid
detergent into the prewash compartment
(compartmentnr.I).
• Donotselectaprogrammewithprewashifyou
areusingadetergentbagordispensingball.
Placethedetergentbagorthedispensingball
directly among the laundry in the machine.
• Ifyouareusingliquiddetergent,donotforgetto
placetheliquiddetergentcupintothemain
washcompartment(compartmentnr.II).
Choosing the detergent type
Thetypeofdetergenttobeuseddependsonthe
typeandcolourofthefabric.
• Usedifferentdetergentsforcolouredandwhite
laundry.
• Washyourdelicateclothesonlywithspecial
detergents(liquiddetergent,woolshampoo,
etc.) used solely for delicate clothes.
• Whenwashingdarkcolouredclothesandquilts,it
isrecommendedtouseliquiddetergent.
• Washwoolenswithspecialdetergentmade
specifically for woolens.
A Useonlydetergentsmanufacturedspecifically
for washing machines.
A Donotusesoappowder.
Adjusting detergent amount
Theamountofwashingdetergenttobeused
depends on the amount of laundry, the degree of
soiling and water hardness. Read the manufacturer's
instructions on the detergent package carefully and
follow the dosage values.
• Donotuseamountsexceedingthedosage
quantitiesrecommendedonthedetergent
packagetoavoidproblemsofexcessive
foam, poor rinsing, financial savings and finally,
environmental protection.
• Uselesserdetergentforsmallamountsorlightly
soiled clothes.
• Useconcentrateddetergentsinthe
recommended dosage.
Using softeners
Pour the softener into the softener compartment of
the detergent drawer.
•Usethedosagesrecommendedonthepackage.
•Donotexceedthe(>max<)levelmarkinginthe
softener compartment.
•Ifthesoftenerhaslostitsfluidity,diluteitwithwater
beforeputtingitinthedetergentdrawer.
Using liquid detergents
If the product contains a liquid detergent cup:
• Makesurethatyouhaveplacedtheliquid
detergentcupincompartmentnr."II".
• Usethedetergentmanufacturer'smeasuringcup
and follow the instructions on the package.
•Usethedosagesrecommendedonthepackage.
•Iftheliquiddetergenthaslostitsfluidity,diluteit
withwaterbeforeputtinginthedetergentcup.
If the product does not contain a liquid
detergent cup:
• Donotuseliquiddetergentfortheprewashina
programme with prewash.
• Usethedetergentmanufacturer'smeasuringcup
and follow the instructions on the package.
• Liquiddetergentstainsyourclotheswhenused
withDelayedStartfunction.Ifyouaregoingto
usetheDelayedStartfunction,donotuseliquid
detergent.
Using gel and tablet detergent
Whenusingtablet,gel,etc.detergents,readthe
manufacturer's instructions on the detergent
packagecarefullyandfollowthedosagevalues.If
there is not any instruction on the package, apply
the following.
• Ifthegeldetergentthicknessisfluidalandyour
machinedoesnotcontainaspecialliquid
detergent cup, put the gel detergent into the
main wash detergent compartment during first
waterintake.Ifyourmachinecontainsaliquid
detergent cup, fill the detergent into this cup
beforestartingtheprogramme.
• Ifthegeldetergentthicknessisnotfluidalorinthe
shapeofcapsuleliquidtablet,putitdirectlyinto
thedrumbeforewashing.
• Puttabletdetergentsintothemainwash
compartment(compartmentnr.II)ordirectly
intothedrumbeforewashing.
C Tabletdetergentsmayleaveresiduesinthe
detergentcompartment.Ifyouencountersuch
acase,placethetabletdetergentbetweenthe

7EN
laundry, close to the lower part of the drum in
future washings.
C Usethetabletorgeldetergentwithout
selecting the prewash function.
Using starch
• Addliquidstarch,powderstarchorthedyestuff
into the softener compartment as instructed
on the package.
• Donotusesoftenerandstarchtogetherina
washing cycle.
• Wipetheinsideofthemachinewithadampand
clean cloth after using starch.
Using bleaches
• Selectaprogrammewithprewashandadd
thebleachingagentatthebeginningof
theprewash.Donotputdetergentinthe
prewash compartment. As an alternative
application, select a programme with extra
rinseandaddthebleachingagentwhilethe
machine is taking water from the detergent
compartment during first rinsing step.
• Donotusebleachingagentanddetergentby
mixing them.
• Usejustalittleamount(approx.50ml)of
bleachingagentandrinsetheclothesvery
wellasitcausesskinirritation.Donotpour
thebleachingagentontotheclothesanddo
not use it for coloured clothes.
• Whenusingoxygenbasedbleaches,follow
the instructions on the package and select
a programme that washes at a lower
temperature.
• Oxygenbasedbleachescanbeusedtogether
with detergents; however, if its thickness is
not the same with the detergent, put the
detergentfirstintothecompartmentnr."II"
in the detergent drawer and wait until the
detergent flows while the machine is taking
inwater.Addthebleachingagentfromthe
same compartment while the machine is still
taking in water.
Using limescale remover
•Whenrequired,uselimescaleremovers
manufactured specifically for washing
machines only.
•Alwaysfollowinstructionsonthepackage.

8EN
Tips for efficient washing
Clothes
Light colours and
whites Colors Dark colors Delicates/ Woolens/Silks
(Recommended
temperature range
basedonsoilinglevel:
40-90C)
(Recommended
temperaturerangebased
onsoilinglevel:cold-40C)
(Recommended
temperature range
basedonsoiling
level:cold-40C)
(Recommended
temperature range
basedonsoiling
level:cold-30C)
Soiling Level
Heavily Soiled
(difficult stains
such as grass,
coffee, fruits and
blood.)
Itmaybenecessary
topre-treatthe
stains of perform
prewash. Powder
andliquiddetergents
recommended
forwhitescanbe
used at dosages
recommended for
heavily soiled clothes.
Itisrecommendedto
use powder detergents
to clean clay and soil
stains and the stains
that are sensitive to
bleaches.
Powder and
liquiddetergents
recommended for
colourscanbeusedat
dosages recommended
for heavily soiled clothes.
Itisrecommendedtouse
powder detergents to
clean clay and soil stains
and the stains that are
sensitivetobleaches.
Usedetergentswithout
bleach.
Liquiddetergents
suitablefor
colours and dark
colourscanbe
used at dosages
recommended
for heavily soiled
clothes.
Preferliquid
detergents
produced for
delicate clothes.
Woollen and silk
clothes must
bewashedwith
special woollen
detergents.
Normally Soiled
(For example,
stains caused by
body on collars
and cuffs)
Powder and
liquiddetergents
recommended for
whitescanbeusedat
dosages recommended
for normally soiled
clothes.
Powder and
liquiddetergents
recommended for
colourscanbeusedat
dosages recommended
for normally soiled
clothes.Usedetergents
withoutbleach.
Liquiddetergents
suitablefor
colours and dark
colourscanbe
used at dosages
recommended
for normally soiled
clothes.
Preferliquid
detergents
produced for
delicate clothes.
Woollen and silk
clothes must
bewashedwith
special woollen
detergents.
Lightly Soiled
(No visible stains
exist.)
Powder and
liquiddetergents
recommended for
whitescanbeusedat
dosages recommended
for lightly soiled clothes.
Powder and
liquiddetergents
recommended for
colourscanbeusedat
dosages recommended
for lightly soiled clothes.
Usedetergentswithout
bleach.
Liquiddetergents
suitablefor
colours and dark
colourscanbe
used at dosages
recommended
for lightly soiled
clothes.
Preferliquid
detergents
produced for
delicate clothes.
Woollen and silk
clothes must
bewashedwith
special woollen
detergents.

9EN
4 Operating the product
Control panel
1 - SpinSpeedAdjustmentbutton
2 - Display
3 - TemperatureAdjustmentbutton
4 - ProgrammeSelectionknob
5 - On/Offbutton
6 - DelayedStartbuttons(+/-)
7 - AuxiliaryFunctionbuttons
8 - Start/Pause/Cancelbutton
Display symbols
F1 F2 F3 F4
a - SpinSpeedindicator
b - Temperatureindicator
c - Spinsymbol
d - Temperaturesymbol
e - RemainingTimeandDelayedStart
indicator
f - ProgrammeIndicatorsymbols(Prewash/
MainWash/Rinse/Softener/Spin)
g - Economysymbol
h - DelayedStartsymbol
i - DoorLockedsymbol
j - Startsymbol
k - Pausesymbol
l - AuxiliaryFunctionsymbols
m- NoWatersymbol
Preparing the machine
Make sure that the hoses are connected tightly. Plug
in your machine. Turn the tap on completely. Place
the laundry in the machine. Add detergent and
fabricsoftener.
Programme selection
1.Selecttheprogrammesuitableforthetype,
quantityandsoilingdegreeofthelaundry
in accordance with the "Programme and
consumptiontable"andthetemperaturetable
below.
90˚C Heavilysoiledwhitecottonsandlinens. (coffeetablecovers,tableclothes,
towels,bedsheets,etc.)
60˚C
Normally soiled, coloured, fade proof
cottons or synthetic clothes (shirt,
nightgown, pajamas, etc.) and lightly
soiled white linens (underwear, etc.)
40˚C-
30˚C-
Cold
Blendedlaundryincludingdelicate
textile (veil curtains, etc.), synthetics and
woolens.
2. Select the desired programme with the
ProgrammeSelectionbutton.
CProgrammes are limited with the highest spin
speed appropriate for that particular type of
fabric.
CWhen selecting a programme, always consider
thetypeoffabric,colour,degreeofsoilingand
permissiblewatertemperature.
1
6 7 8
2 3 4 5

10 EN
C Alwaysselectthelowestrequiredtemperature.
Highertemperaturemeanshigherpower
consumption.
CFor further programme details, see "Programme
andconsumptiontable".
Main programmes
Dependingonthetypeoffabric,usethefollowing
main programmes.
• Cotone (Cottons)
Usethisprogrammeforyourcottonlaundry(such
asbedsheets,duvetandpillowcasesets,towels,
bathrobes,underwear,etc.).Yourlaundrywillbe
washed with vigorous washing action for a longer
washing cycle.
• Sintetici (Synthetics)
Usethisprogrammetowashyoursynthetic
clothes(shirts,blouses,synthetic/cottonblends,
etc.).Itwasheswithagentleactionandhasa
shorter washing cycle compared to the Cottons
programme.
Forcurtainsandtulle,usetheSynthetic40˚C
programmewithprewashandanti-creasing
functions selected. As their meshed texture causes
excessivefoaming,washtheveils/tullebyputting
little amount of detergent into the main wash
compartment.Donotputdetergentintheprewash
compartment.
• Lana (Woollens)
Usethisprogrammetowashyourwoolenclothes.
Select the appropriate temperature complying with
thetagsofyourclothes.Useappropriatedetergents
for woolens.
Additional programmes
For special cases, additional programmes are
availableinthemachine.
CAdditional programmes may differ according to
the model of the machine.
• Cotone Eco (Cotton Economic)
Youmaywashyournormallysoileddurablecotton
and linen laundry in this programme with the highest
energy and water saving compared to all other
washprogrammessuitableforcottons.Actualwater
temperature may differ from the declared cycle
temperature. Programme duration may automatically
beshortenedduringlaterstagesoftheprogramme
if you wash less amount (e.g. ½ capacity or less) of
laundry.Inthiscaseenergyandwaterconsumption
willbefurtherdecreasedgivingyoutheopportunity
foramoreeconomicalwash.Thisfeatureisavailable
for certain models having remaining time display.
• Antiallergico (Antiallergic)
Usethisprogrammetowashbabylaundry,andthe
laundrythatbelongstoallergicpersons.Longer
heating time and an additional rinsing step provide a
higher level of hygiene.
• Delicati (Delicate)
Usethisprogrammetowashyourdelicateclothes.It
washes with a gentle action without any interim spin
compared to the Synthetics programme.
• Lavaggio a mano (Hand wash)
Usethisprogrammetowashyourwoolen/delicate
clothesthatbear“notmachine-washable”tagsand
forwhichhandwashisrecommended.Itwashes
laundry with a very gentle washing action to not to
damage clothes.
• Rapido (Daily Express)
Usethisprogrammetowashyourlightlysoiled
cotton clothes in a short time.
• Eco 40
Usethisprogrammetowashyourlaundryforwhich
youcannotuseCottons60°Cprogramme.Itgives
thesameresultwiththeCottons60°Cprogramme
bywashingforalongertimeat40°C,thusenabling
energy saving.
• Mix 40
Usethisprogrammetowashyourcottonand
synthetic clothes together without sorting them.
• Intensivo (Intensive)
Youcanwashyourdurableandheavilysoiled
clothesonthisprogram.Inthisprogram,your
clotheswillbewashedforalongertimeandan
extrarinsecyclewillbemadecomparedtothe
“Cottons” program. You can use it for your heavily
soiledclothesthatyouwishtoberinsedgently.
• Quotidiano (Shirts)
Usethisprogrammetowashtheshirtsmadeof
cotton,syntheticandsyntheticblendedfabrics
together.
• Tende (Curtain)
Usethisprogrammetowashyourtullesand
curtains. Thanks to the special spin profile of the
programme, tulles and curtains crease lesser.
As their meshed texture causes excessive foaming,
washtheveils/tullebyputtinglittleamountof
detergentintothemainwashcompartment.Do
not put detergent in the prewash compartment.
Prewash is used to clean the dirt (dust, sooth, etc.)
onthetulles/curtainsthatcanberemovedeasily.
C Itissuggestedtouserecommended
detergents for curtains in this programme.
• Lavaggio a freddo (Eco Clean)
Usethisprogramme,whichismuchmoresensitive
to environment and natural resources, to wash your
lightlysoiledandunstainedcottonlaundry(max.3.5
kg) in a short time and economically.
C Itisrecommendedtouseliquiddetergentorgel
washing detergent.
Special programmes
For specific applications, select any of the following
programmes.
• Risciacquo (Rinse)
Usethisprogrammewhenyouwanttorinseor
starch separately.
• Centrifuga+Scarico (Spin + Drain)
Usethisprogrammetoapplyanadditionalspin
cycle for your laundry or to drain the water in the
machine.

11 EN
Beforeselectingthisprogramme,selectthe
desiredspinspeedandpressStart/Pause/
Cancelbutton.Themachinewillspinthelaundry
with the set spin speed and drain the water
coming out of them.
Ifyouwishtodrainonlythewaterwithoutspinning
yourlaundry,selectthePump+Spinprogramme
and then select the No Spin function with the help
ofSpinSpeedAdjustmentbutton.PressStart/
Pause/Cancelbutton.
C Usealowerspinspeedfordelicatelaundries.
Temperature selection
Whenever a new programme is selected,
the maximum temperature for the selected
programme appears on the temperature indicator.
To decrease the temperature, press the
TemperatureAdjustmentbutton.Temperature
decreaseswithincrementsof10°andfinally,“-”
symbolindicatingthecoldwashoptionappears
on the display.
C Ifyouscrolltocoldwashoptionandpress
TemperatureAdjustmentbuttonagain,the
recommended temperature for the selected
programme appears on the display. Press
theTemperatureAdjustmentbuttonagainto
decrease the temperature.
Economy symbol
Indicatestheprogrammesandtemperaturesthat
provide energy savings.
C Economysymbolcannotbeselectedin
IntensiveandHygieneprogrammessince
washing is performed in long times and
at high temperatures in order to provide
hygiene.Similarly,Economysymbolcannot
beselectedinBaby,Refresh,DrumCleaning,
Spin and Rinse programmes as well.
Spin speed selection
Whenever a new programme is selected, the
recommended spin speed of the selected
programme is displayed on the spin speed
indicator.
To decrease the spin speed, press the Spin
SpeedAdjustmentbutton.Spinspeeddecreases
gradually. Then, depending on the model of the
product,"RinseHold"and"NoSpin"options
appear on the display. See "Auxiliary function
selection" section for explanations of these
options.
C RinseHoldoptionisindicatedwith“ ”
symbolandNoSpinoptionisindicatedwith“
”symbol.

12 EN
Programme and consumption table
•:Selectable
*:Automaticallyselected,nocanceling.
**:EnergyLabelprogramme(EN60456Ed.3)
***:Ifmaximumspinspeedofthemachineislowerthenthisvalue,youcanonlyselectuptothemaximum
spin speed.
-:Seetheprogrammedescriptionformaximumload.
C Theauxiliaryfunctionsinthetablemayvaryaccordingtothemodelofyourmachine.
C Waterandpowerconsumptionmayvarysubjecttothechangesinwaterpressure,waterhardnessand
temperature,ambienttemperature,typeandamountoflaundry,selectionofauxiliaryfunctionsandspin
speed, and changes in electric voltage.
C Youcanseethewashingtimeoftheprogrammeyouhaveselectedonthedisplayofthemachine.Itis
normalthatsmalldifferencesmayoccurbetweenthetimeshownonthedisplayandtherealwashing
time.
EN 2Auxiliary functions
Programme(°C)
Max.Load(kg) Water Consumption (l) Energy Consumption (kWh) Max.Speed*** Prelavaggio Rapido RisciacquoAggiuntivo Antipiega RinseHold Pet hair removal
Selectable
temperature
range°C
Cotone 90 8 74 2.40 1600 • • • • • • 90-Cold
Cotone 60 8 72 1.70 1600 • • • • • • 90-Cold
Cotone 40 8 72 0.95 1600 • • • • • • 90-Cold
Antiallergico 90 8 72 2.10 1600 * • 90-30
Cotone Eco 60** 8 54 1.39 1600 • 60-Cold
Cotone Eco 60** 4 47 0.97 1600 • 60-Cold
Cotone Eco 40** 4 47 0.78 1600 • 60-Cold
Cotone Eco 40 8 72 0.77 1600 • 60-Cold
Sintetici 60 345 1.00 1200 • • • • • • 60-Cold
Sintetici 40 345 0.45 1200 • • • • • • 60-Cold
Lavaggioafreddo 20 3.5 39 0.16 1600 • 20
Quotidiano 40 3.5 45 0.55 800 • • • * • 60-Cold
Eco40 40 8 52 0.90 1600 • 40
Mix40 40 3.5 45 0.55 1200 • • • • • • 40-Cold
İntensivo 60 8 72 1.60 1600 * • • 60-40
Rapido 90 8 55 1.95 1400 • • 90-Cold
Rapido 60 8 55 1.10 1400 • • 90-Cold
Rapido 30 8 65 0.22 1400 • • 90-Cold
Delicati 40 255 0.30 1200 • • • 40-Cold
Lana 40 1.5 56 0.30 1200 • • 40-Cold
Lavaggioamano 30 1 40 0.25 1200 30-Cold
Tende 40 267 0.50 800 * * * • 40-Cold

13 EN
Auxiliary function selection
Selectthedesiredauxiliaryfunctionsbeforestarting
the programme. Furthermore, you may also select
orcancelauxiliaryfunctionsthataresuitabletothe
runningprogrammebypressingtheStart/Pause
/Cancelbuttonwhenthemachineisoperating.
Forthis,themachinemustbeinastepbeforethe
auxiliary function you are going to select or cancel.
Dependingontheprogramme,pressa,b,cor
dbuttonstoselectthedesiredauxiliaryfunction.
Symboloftheselectedauxiliaryfunctionappearson
the display.
C Somefunctionscannotbeselectedtogether.If
a second auxiliary function conflicting with the
firstoneisselectedbeforestartingthemachine,
thefunctionselectedfirstwillbecanceled
and the second auxiliary function selection
will remain active. For example, if you want to
select Quick Wash after you have selected the
Prewash,PrewashwillbecanceledandQuick
Wash will remain active.
C Anauxiliaryfunctionthatisnotcompatible
withtheprogrammecannotbeselected.(See
"Programmeandconsumptiontable")
C AuxiliaryFunctionbuttonsmayvaryaccording
to the model of the machine.
• Prelavaggio (Prewash)
A Prewash is only worthwhile for heavily soiled
laundry. Not using the Prewash will save energy,
water, detergent and time.
F1appearsonthedisplaywhenyouselectthis
function (a).
• Rapido (Quick Wash)
ThisfunctioncanbeusedinCottonsandSynthetics
programmes.Itdecreasesthewashingtimesand
alsothenumberofrinsingstepsforlightlysoiled
laundry.
F2 appears on the display when you select this
function.
CWhen you select this function, load your
machine with half of the maximum laundry
specifiedintheprogrammetable.
• Risciacquo Aggiuntivo (Rinse Plus)
Thisfunctionenablesthemachinetomakeanother
rinsing in addition to the one already made after the
mainwash.Thus,theriskforsensitiveskins(babies,
allergicskins,etc.)tobeeffectedbytheminimal
detergentremnantsonthelaundrycanbereduced.
F3 appears on the display when you select this
function .
• Antipiega (Anti-Creasing)
This function creases the clothes lesser when they
arebeingwashed.Drummovementisreducedand
spinningspeedislimitedtopreventcreasing.In
addition, washing is done with a higher water level.
F4 appears on the display when you select this
function.
• Rinse Hold
Ifyouarenotgoingtounloadyourclothes
immediately after the programme completes, you
may use rinse hold function to keep your laundry
in the final rinsing water in order to prevent them
from getting wrinkled when there is no water in the
machine.PressStart/Pause/Cancelbuttonafter
this process if you want to drain the water without
spinning your laundry. Programme will resume and
complete after draining the water.
Ifyouwanttospinthelaundryheldinwater,adjust
theSpinSpeedandpressStart/Pause/Cancel
button.
The programme resumes. Water is drained, laundry
is spun and the programme is completed.
• Soaking
TheSoakingauxiliaryfunctionensuresbetter
removalofstainsingrainedintotheclothesby
holding them in the detergent water prior to startup
of the programme.
Time display
Remaining time to complete the programme
appears on the display while the programme is
running. Tim is displayed as “01:30” in hours and
minutes format.
CProgramme time may differ from the values
in the "Programme and consumption
table"dependingonthewaterpressure,
waterhardnessandtemperature,ambient
temperature, amount and the type of laundry,
auxiliary functions selected and the changes at
the mains voltage.
Delayed start
WiththeDelayedStartfunctionthestartupof
theprogrammemaybedelayedupto24hours.
Delayedstarttimecanbeincreasedbyincrements
of30minutes.
C Donotuseliquiddetergentswhenyouset
DelayedStart!Thereistheriskofstainingofthe
clothes.
Opentheloadingdoor,placethelaundryandput
detergent, etc. Select the washing programme,
temperature,spinspeedand,ifrequired,theauxiliary
functions.Setthedesireddelayedstarttimeby
pressingtheDelayedStart+or-buttons.Delayed
Startsymbolflashes.PressStart/Pause/Cancel
button.Delayedstartcountdownstarts.Delayed
Startsymbolilluminatessteadily.Startsymbol
appears. “:” sign in the middle of the delayed start
time on the display starts flashing.
C Additionallaundrymaybeloadedduring
the delayed start period. At the end of the
countdown,DelayedStartsymboldisappears,
washing cycle starts and the time of the
selected programme appears on the display.
Changing the delayed start period
Ifyouwanttochangethetimeduringcountdown:
PressStart/Pause/Cancelbutton.“:”signinthe
middle of the delayed start time on the display stops
flashing.Pausesymbolappears.DelayedStart
symbolflashes.Startsymboldisappears.Setthe
desireddelayedstarttimebypressingtheDelayed
Start+or-buttons.PressStart/Pause/Cancel
button.DelayedStartsymbolilluminatessteadily.
Pausesymboldisappears.Startsymbolappears.
“:” sign in the middle of the delayed start time on the
display starts flashing.

14 EN
Canceling the Delayed Start function
Ifyouwanttocancelthedelayedstartcountdown
and start the programme immediately:
PressStart/Pause/Cancelbutton.“:”signinthe
middle of the delayed start time on the display stops
flashing.Startsymboldisappears.Pausesymbol
andDelayedStartsymbolflashes.Decreasethe
delayedstarttimebypressingtheDelayedStart
-button.Programmedurationappearsafter30
minutes.PressStart/Pause/Cancelbuttontostart
the programme.
Starting the programme
PressStart/Pause/Cancelbuttontostartthe
programme.Startsymbolshowingthestartupof
theprogrammewillturnon.Loadingdoorislocked
andDoorLockedsymbolappearsonthedisplay.
Thesymbolofthestepfromwhichtheprogramme
has started appears on the display (Prewash, Main
Wash, Rinse, Softener and Spin).
Progress of programme
Progress of a running programme is indicated on the
displaywithasetofsymbols.
Relevantsymbolappearsonthedisplayat
thebeginningofeachprogrammestepandall
symbolsremainlitattheendoftheprogramme.
Thefarthermostrightsymbolindicatesthecurrent
programme step.
Prewash
IfthePrewashauxiliaryfunctionisselected,Prewash
symbolappearsonthedisplayindicatingthatthe
prewash step has started.
Main Wash
MainWashsymbolindicatingthatthemainwash
step has started appears on the display.
Rinse
Rinsesymbolindicatingthattherinsingstephas
started appears on the display.
Softener
Softenersymbolindicatingthatthesoftenerstephas
started appears on the display.
Spin
Appearsatthebeginningofthefinalspinstep
and remains lit during Spin and Pump special
programmes.
C Ifthemachinedoesnotpasstothespinning
step,RinseHoldfunctionmightbeactiveorthe
automaticunbalancedloaddetectionsystem
mightbeactivatedduetotheunbalanced
distributionofthelaundryinthemachine.
Loading door lock
There is a locking system on the loading door of the
machine that prevents opening of the door in cases
whenthewaterlevelisunsuitable.
DoorLockedsymbolappearswhentheloading
doorislocked.Thissymbolwillflashuntiltheloading
doorbecomesreadytoopenwhenprogramme
completesorthemachineispaused.Donotforce
toopentheloadingdoorinthisstep.Symbol
disappears when the door is ready to open. You can
openthedoorwhenthesymboldisappears.
Changing the selections after
programme has started
Switching the machine to pause mode
PresstheStart/Pause/Cancelbuttontoswitchthe
machinetopausemode.Pausesymbolappearson
the display indicating that the machine is paused.
Startsymboldisappears.
Changing the speed and temperature settings
for auxiliary functions
Dependingonthesteptheprogrammehasreached,
you may cancel or activate the auxiliary functions;
see, "Auxiliary function selection".
You may also change the speed and temperature
settings; see, "Spin speed selection" and
"Temperature selection".
Adding or taking out laundry
PresstheStart/Pause/Cancelbuttontoswitch
the machine to pause mode. The programme
follow-uplightoftherelevantstepduringwhichthe
machine was switched into the pause mode will
flash. WaituntiltheLoadingDoorcanbeopened.
OpentheLoadingDoorandaddortakeoutthe
laundry.ClosetheLoadingDoor.Makechangesin
auxiliary functions, temperature and speed settings
ifnecessary.PressStart/Pause/Cancelbuttonto
start the machine.
CThe loading door will not open if the water
temperature in the machine is high or the water
levelisabovethedooropening.
Child Lock
UseChildLockfunctiontopreventchildrenfrom
tampering with the machine. Thus you can avoid any
changes in a running programme.
CYou can switch on and off the machine with
On/OffbuttonwhentheChildLockisactive.
When you switch on the machine again,
programme will resume from where it has
stopped.
ToactivatetheChildLock:
Press and hold 2nd and 4thAuxiliaryFunctionbuttons
for 3 seconds. “Con” appears on the display.
CSame phrase will appear on the display if you
pressanybuttonwhenChildLockisenabled.
TodeactivatetheChildLock:
Press and hold 2nd and 4thAuxiliaryFunctionbuttons
for3seconds.“COFF”appearsonthedisplay.
C Donotforgettodisablethechildlockatthe
endoftheprogrammeifitwasenabledbefore.
Otherwise,machinewillnotallowtoselecta
new programme.
Canceling the programme
PressandholdStart/Pause/Cancelbuttonfor3
seconds.Startsymbolflashes.Symbolofthestep
at which the programme was cancelled remains lit.
"END" appears on the display and the programme is
cancelled.
C Ifyouwanttoopentheloadingdoorafteryou
havecancelledtheprogrammebutitisnot
possibletoopentheloadingdoorsincethe
waterlevelinthemachineisabovetheloading

15 EN
door opening, then turn the Programme
SelectionknobtoPump+Spinprogramme
and discharge the water in the machine.
Machine is in Rinse Hold mode
SpinsymbolflashesandPausesymbolilluminates
whenthemachineisinRinseHoldmode.
Ifyouwanttospinyourlaundrywhenthemachine
is in this mode:
AdjustthespinspeedandpressStart/Pause
/Cancelbutton.Pausesymboldisappearsand
Startsymbolappears.Programmeresumes,
discharges the water and spins the laundry.
Ifyouonlywanttodrainthewaterwithout
spinning:
JustpressStart/Pause/Cancelbutton.Pause
symboldisappears.Startsymbolappears.
Programme resumes and discharges the water
only.
End of programme
“End” appears on the display at the end of the
programme.Symbolsoftheprogrammesteps
remain lit. Auxiliary function, spin speed and
temperaturethatwereselectedatthebeginningof
the programme remain selected.
5 Maintenance and cleaning
Servicelifeoftheproductextendsandfrequently
facedproblemsdecreaseifcleanedatregular
intervals.
Cleaning the detergent drawer
Clean the detergent drawer at regular intervals
(every4-5washingcycles)asshownbelow
in order to prevent accumulation of powder
detergent in time.
Press the dotted point on the siphon in the
softener compartment and pull towards you until
the compartment is removed from the machine.
C Ifmorethannormalamountofwaterand
softener mixture starts to gather in the
softenercompartment,thesiphonmustbe
cleaned.
Wash the detergent drawer and the siphon with
plentyoflukewarmwaterinawashbasin.Wear
protectiveglovesoruseanappropriatebrushto
avoid touching of the residues in the drawer with
yourskinwhencleaning.Insertthedrawerback
into its place after cleaning and make sure that it is
seated well.
Cleaning the water intake filters
There is a filter at the end of each water intake
valve at the rear of the machine and also at the
end of each water intake hose where they are
connected to the tap. These filters prevent foreign
substancesanddirtinthewatertoenterthe
washingmachine.Filtersshouldbecleanedas
they do get dirty.
Close the taps. Remove the nuts of the water
intake hoses to access the filters on the water
intake valves. Clean them with an appropriate
brush.Ifthefiltersaretoodirty,takethemout
bymeansofpliersandcleanthem.Takeoutthe
filters on the flat ends of the water intake hoses
together with the gaskets and clean thoroughly
under running water. Replace the gaskets and
filters carefully in their places and tighten the hose

16 EN
nutsbyhand.
Draining remaining water and
cleaning the pump filter
The filter system in your machine prevents solid
itemssuchasbuttons,coinsandfabricfibers
clogging the pump impeller during discharge of
washingwater.Thus,thewaterwillbedischarged
withoutanyproblemandtheservicelifeofthepump
will extend.
Ifthemachinefailstodrainwater,thepumpfilter
isclogged.Filtermustbecleanedwheneverit
iscloggedorinevery3months.Watermustbe
drained off first to clean the pump filter.
Inaddition,priortotransportingthemachine(eg.,
when moving to another house) and in case of
freezingofthewater,watermayhavetobedrained
completely.
A Foreignsubstancesleftinthepumpfiltermay
damage your machine or may cause noise
problem.
Inordertocleanthedirtyfilteranddischargethe
water:
Unplugthemachinetocutoffthesupplypower.
ATemperature of the water inside the machine
mayriseupto90ºC.Toavoidburningrisk,filter
mustbecleanedafterthewaterinthemachine
cools down.
Openthefiltercap.
 Ifthefiltercapiscomposedoftwopieces,press
thetabonthefiltercapdownwardsandpull
the piece out towards yourself.
Ifthefiltercapisonepiece,pullthecapfromboth
sides at the top to open.
C Youcanremovethefiltercoverbyslightly
pushing downwards with a thin plastic tipped
tool,throughthegapabovethefiltercover.Do
not use metal tipped tools to remove the cover.
Some of our products have emergency draining
hose and some does not have. Follow the steps
belowtodischargethewater.
Dischargingthewaterwhentheproducthasan
emergency draining hose:
Pull the emergency draining hose out from its seat
Placealargecontainerattheendofthehose.Drain
thewaterintothecontainerbypullingouttheplugat
theendofthehose.Whenthecontainerisfull,block
theinletofthehosebyreplacingtheplug.Afterthe
containerisemptied,repeattheaboveprocedure
to drain the water in the machine completely. When
drainingofwaterisfinished,closetheendbythe
plug again and fix the hose in its place. Turn the
pump filter to take it out.
Dischargingthewaterwhentheproductdoesnot
have an emergency draining hose:
Place a large container in front of the filter to
catchwaterfromthefilter.Loosenpumpfilter
(anticlockwise) until water starts to flow. Fill the
flowing water into the container you have placed in
front of the filter. Always keep a piece of cloth handy
toabsorbanyspilledwater.Whenthewaterinside
the machine is finished, take out the filter completely
byturningit.Cleananyresiduesinsidethefilter
aswellasfibers,ifany,aroundthepumpimpeller
region.Installthefilter.
A Ifyourproducthasawaterjetfeature,besure
to fit the filter into its housing in the pump.
Never force the filter while installing it into its
housing. Seat the filter into its place completely.
Otherwise,watermayleakfromthefiltercap.
Ifthefiltercapiscomposedoftwopieces,closethe
filtercapbypressingonthetab.Ifitisonepiece,
seatthetabsinthelowerpartintotheirplacesfirst,
and then press the upper part to close.

17 EN
6 Technical specifications
C Technicalspecificationsmaybechangedwithoutpriornoticetoimprovethequalityoftheproduct.
CFigures in this manual are schematic and may not match the product exactly.
C Valuesstatedontheproductlabelsorinthedocumentationaccompanyingitareobtainedinlaboratory
conditionsinaccordancewiththerelevantstandards.Dependingonoperationalandenvironmental
conditions of the product, these values may vary.
Models
Maximum dry laundry capacity (kg)
Height(cm)
Width (cm)
Depth(cm)
Net weight (±4 kg.)
Electricalinput(V/Hz)
Total current (A)
Total power (W)
Spin speed (rpm max.)
Stand-bymodepower(W)
Off-modepower(W)
LBS128F1 LBS108F1
8 8
84 84
60 60
54 54
71 71
230V/50Hz 230V/50Hz
10 10
2200 2200
1200 1000
1.40 1.40
0.20 0.20
Thisappliance’spackagingmaterialisrecyclable.Helprecycleitandprotectthe
environmentbydroppingitoffinthemunicipalreceptaclesprovidedforthispurpose.Your
appliancealsocontainsagreatamountofrecyclablematerial.Itismarkedwiththislabel
toindicatetheusedappliancesthatshouldnotbemixedwithotherwaste.Thisway,the
appliancerecyclingorganisedbyyourmanufacturerwillbedoneunderthebestpossible
conditions,incompliancewithEuropeanDirective2002/96/EConWasteElectricaland
ElectronicEquipment.Contactyourtownhalloryourretailerfortheusedappliance
collection points closest to your home. We thank you doing your part to protect the
environment.

18 EN
7 Troubleshooting
Programmecannotbestartedorselected.
• Washingmachinehasswitchedtoselfprotectionmodeduetoasupplyproblem(linevoltage,water
pressure,etc.).>>>Press and hold Start / Pause button for 3 seconds to reset the machine to
factory settings. (See "Canceling the programme")
Water in the machine.
• Somewatermighthaveremainedintheproductduetothequalitycontrolprocessesinthe
production.>>>This is not a failure; water is not harmful to the machine.
Machinevibratesormakesnoise.
• Machinemightbestandingunbalanced.>>>Adjust the feet to level the machine.
• Ahardsubstancemighthaveenteredintothepumpfilter.>>>Clean the pump filter.
• Transportationsafetyboltsarenotremoved.>>>Remove the transportation safety bolts.
• Laundryquantityinthemachinemightbetoolittle.>>>Add more laundry to the machine.
• Machinemightbeoverloadedwithlaundry.>>>Take out some of the laundry from the machine or
distribute the load by hand to balance it homogenously in the machine.
• Machinemightbeleaningonarigiditem.>>>Make sure that the machine is not leaning on anything.
Machine stopped shortly after the programme started.
• Machinemighthavestoppedtemporarilyduetolowvoltage.>>>It will resume running when the
voltage restores to the normal level.
Programmetimedoesnotcountdown.(Onmodelswithdisplay)
• Timermaystopduringwaterintake.>>>Timer indicator will not countdown until the machine takes
in adequate amount of water. The machine will wait until there is sufficient amount of water to avoid
poor washing results due to lack of water. Timer indicator will resume countdown after this.
• Timermaystopduringheatingstep.>>>Timer indicator will not countdown until the machine reaches
the selected temperature.
• Timermaystopduringspinningstep.>>>Automatic unbalanced load detection system might be
activated due to the unbalanced distribution of the laundry in the drum.
C Machinedoesnotswitchtospinningstepwhenthelaundryisnotevenlydistributedinthedrum
topreventanydamagetothemachineandtoitssurroundingenvironment.Laundryshouldbe
rearrangedandre-spun.
Foam is overflowing from the detergent drawer.
• Toomuchdetergentisused.>>>Mix 1 tablespoonful softener and ½ l water and pour into the main
wash compartment of the detergent drawer.
C Putdetergentintothemachinesuitablefortheprogrammesandmaximumloadsindicatedinthe
“Programmeandconsumptiontable”.Whenyouuseadditionalchemicals(stainremovers,bleachs
and etc), reduce the amount of detergent.
Laundryremainswetattheendoftheprogramme
• Excessivefoammighthaveoccurredandautomaticfoamabsorptionsystemmighthavebeen
activatedduetotoomuchdetergentusage.>>>Use recommended amount of detergent.
C Machinedoesnotswitchtospinningstepwhenthelaundryisnotevenlydistributedinthedrum
topreventanydamagetothemachineandtoitssurroundingenvironment.Laundryshouldbe
rearrangedandre-spun.
A Ifyoucannoteliminatetheproblemalthoughyoufollowtheinstructionsinthissection,consultyour
dealer or the Authorized Service Agent. Never try to repair a nonfunctional product yourself.
2820522011_EN/220411.1717

36 IT
7 Ricerca e risoluzione dei problemi
Impossibileavviareoselezionareilprogramma.
• Lalavatricepotrebbeessereinmodalitàprotezioneautomaticaacausadiproblemiallafornitura
(tensionedellagriglia,pressionedell'acqua,ecc.)>>>Tenere premuto il tasto avvio / pausa per 3
secondi per riportare la lavatrice alle impostazioni di fabbrica. (Vedere "Annullamento del programma")
Acquanellalavatrice.
• Potrebberestaredell'acquanelprodottoinseguitoaiprocessidicontrollodellaqualitàdurantela
produzione.>>>Questo non è un guasto; l'acqua non è pericolosa per la lavatrice.
Lalavatricevibraofarumore.
• Lalavatricepotrebbenonessereinequilibrio.>>>Regolare i piedini per livellare la lavatrice.
• Unasostanzadurapotrebbeessereentratanelfiltrodellapompa.>>>Pulire il filtro della pompa.
• Ibullonidisicurezzaperiltrasportononsonostatirimossi.>>>Rimuovere i bulloni di sicurezza per il
trasporto.
• Laquantitàdibucatonellalavatricepotrebbeesserescarsa.>>>Aggiungere altro bucato nella
lavatrice.
• Lalavatricepotrebbeesseresovraccaricadibucato.>>>Estrarre parte del bucato dalla lavatrice o
distribuire il carico a mano per renderlo più omogeneo nella lavatrice.
• Lalavatricepotrebbeessereinclinatasuqualcosadirigido.>>>Assicurarsi che la macchina non
penda su alcunché.
Lalavatricesièfermatasubitodopol’avviodelprogramma.
• Lamacchinapuòfermarsioccasionalmenteacausadibassatensione.>>>Riprenderà a funzionare
quando la tensione sarà stata riportata a livelli normali.
Iltempodelprogrammanonesegueilcontoallarovescia.(Sumodellicondisplay)
• Iltimerpotrebbearrestarsidurantel'aspirazionedell'acqua.>>>L'indicatore del timer non esegue il
conto alla rovescia finché la lavatrice non aspira una quantità adeguata di acqua. La lavatrice resterà
in attesa sino a quando ci sarà una quantità di acqua sufficiente per evitare risultati di lavaggio
inadeguati a causa della mancanza d’acqua. L'indicatore del timer riprende il conto alla rovescia dopo
ciò.
• Iltimerpotrebbearrestarsidurantelafasediriscaldamento.>>>L'indicatore del timer non esegue il
conto alla rovescia finché la lavatrice non raggiunge la temperatura selezionata.
• Iltimerpotrebbearrestarsidurantelafasedicentrifuga.>>>Il sistema automatico di rilevamento
carico non bilanciato potrebbe essersi attivato a causa della distribuzione sbilanciata del bucato nel
cestello.
C Selabiancherianonèdispostainmanierauniformenelcestello,lalavatricenoneseguiràlafasedella
centrifuga,perevitaredanniallalavatriceealsuoambiente.Ridisporrelabiancheriaedeseguireuna
nuova centrifuga.
Laschiumafuoriescedalcassettodeldetersivo.
• Èstatousatotroppodetersivo.>>>Mescolare un cucchiaio di ammorbidente e mezzo litro di acqua
e versare nello scomparto principale del cassetto per il detersivo.
C Mettereildetersivonellamacchinasecondoilprogrammaeicarichimassimiindicatinellatabella
“Programma e consumo”. Se si usano additivi chimici (agenti di rimozione macchie, candeggine,
ecc.),ridurrelaquantitàdidetersivo.
Ilbucatorestabagnatoallafinedelprogramma
• Potrebbeessersiformataschiumaineccessoepotrebbeessersiattivatounsistemadiassorbimento
schiumaacausadeltroppodetersivousato.>>>Usare la quantità di detersivo consigliata.
C Selabiancherianonèdispostainmanierauniformenelcestello,lalavatricenoneseguiràlafasedella
centrifuga,perevitaredanniallalavatriceealsuoambiente.Ridisporrelabiancheriaedeseguireuna
nuova centrifuga.
A Senonsiriesceadeliminareilproblemanonostantesisianorispettateleistruzioniinquestasezione,
consultare il rivenditore o l'agente autorizzato per l'assistenza. Non cercare mai di riparare il prodotto da
soli.
2820522011_IT/220411.1717
