Smeg WM62121 User manual

Instructions for Use
Washing machine

187348
Thank you for your condence in purchasing our washing machine, and
congratulations on the excellent choice.
Your new washing machine meets the requirements of modern treatment of
laundry. It is rational in the consumption of energy, water and washing agents.
Our appliances are friendly to the environment. Some of the materials may be
recycled, others deposited or decomposed. To avoid pollution of environment,
once your appliance is no longer useful, take it to your local authorized waste
appliance dealer.
The appliance is intended exclusively for use in households. If the appliance is
used for professional purposes, for prot, or for purposes beyond regular use
in a household, or if appliance is used by a person who is not a consumer, the
warranty period equals the shortest warranty period possible as stipulated by
the relevant legislation.
Description of washing machine ..................... 3
Cautions ............................................................. 4
Installation and connection.............................. 6
Operation.......................................................... 10
Tips for washing and energy saving ............. 19
Cleaning and maintenance............................. 21
Failures............................................................. 24
Tables ............................................................... 27
2

187348

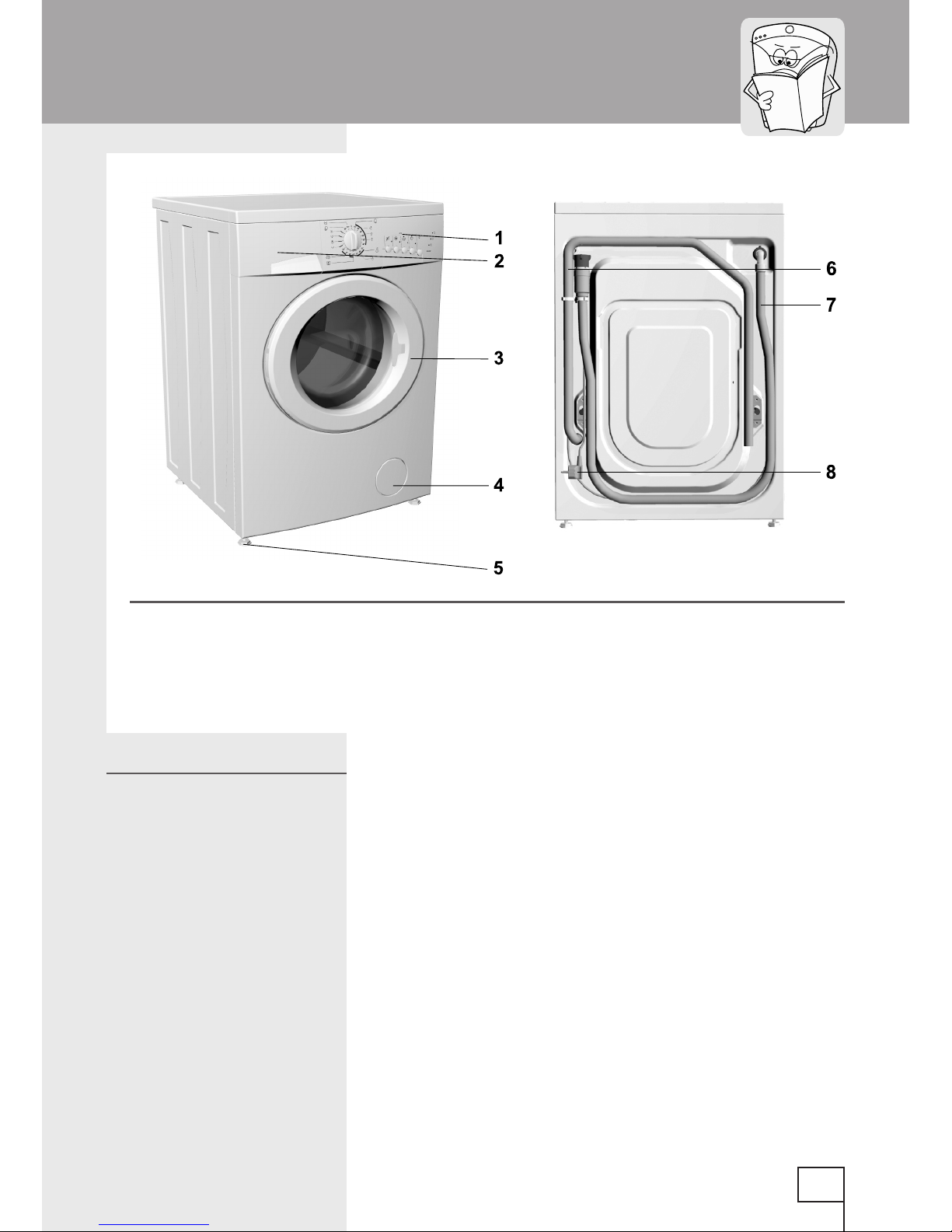

1. Front panel
2. Detergent dispenser
3. Door
4. Filter lid
5. Adjustable legs
6. Water outlet hose
7. Water inlet hose
8. Mains power cable
Dimensions (w x d x h):
600 mm x 600 mm x 850 mm
Depth with door open: 106 cm
Weight (net): 90 kg
Nominal voltage: 230 V, 50 Hz
Power: 2000 W
Max. load: 6 kg
Power socket: (230 V, 50 Hz, 10 A)
Water pressure: min. 0,05 MPa, max. 0,8 MPa
Fuse: 10 A
3
Description of washing machine
Technical information

187348
•
Be sure to remove transport brackets prior rst use of the appliance. Attempted
operation of the blocked machine may result in irreparable damage which is not
covered by the manufacturer’s warranty!
• When connecting your washing machine to water supply, be sure to use brand
new water inlet hose and appropriate sealing gaskets (attached).
• Do not locate the machine in a room with temperature below 0°C. Parts of the
machine may be damaged if frozen.
• Install the washing machine in a perfectly horizontal position, on solid at
concrete oor.
• Follow the instructions for correct installation and water and mains
connections.
• Never immerse the end of the drain hose into the draining water.
• Prior starting the washing cycle lock the door by pressing them at the designed
spot.
• Door may not be open during the washing cycle.
• Use only detergents and softeners for machine wash. Manufacturer may not
assume responsibility for any damage and eventual discoloring of gaskets
and plastic components as a consequence of incorrect use of bleach and/or
coloring agents.
• For removal of lime residues use such agents with added anti-corrosion
agents. Follow the manufacturer’s instructions. Finish the lime removal by
multiple rinsing to remove completely eventual acid residues.
• Never use detergents containing solvents, since there is a danger of creating
toxic gasses which may damage the machine and result in ignition or
explosion.
• Upon completion of washing operation close the water faucet.
• Before any transport block the machine by inserting at least one transport
blocking rod. Prior this operation disconnect the appliance from the mains
power!
• Rating plate with basic information is located above the opening of the
machine.
• The warranty shall not apply to consumables (bulbs), minor discoloration or
deviations of color, increased noise level as a consequence of appliance age,
which does not affect appliance functionality, and aesthetical deciencies
which do not affect appliance functionality or safety.
4
Cautions

187348
Before connecting the appliance read
these instructions carefully. Repairing
the failure arising from inappropriate
connections or use of the appliance is not
covered by the guarantee.
The symbol on the product or on its
packaging indicates that this product
may not be treated as household
waste. Instead it shall be handed over
to the applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product
is disposed of correctly, you will help
prevent potential negative consequences
for the environment and human health,
which could otherwise be caused
by inappropriate waste handling of
thisproduct. For more detailed information
about recycling of this product, please
contact your local city ofce, your
household waste disposal service or the
shop where you purchased the product.
5

187348
In removing the wrapping be careful not to
damage the appliance with a sharp object.
Before connecting the appliance, let it
warm up to room temperature (wait for two
hours).
• Our appliances are packed in environmentally
friendly materials which may be recycled,
deposited or decomposed without any threat to
the environment.
• To this end all wrappings are marked accordingly.
•Move the pipes.
• Loosen screws A at the rear of the machine
(Fig. 1).
• Remove the brackets B (Fig. 1) and slide them
into the groove on the blocking rod (Fig. 2) - the
right one should be turned around.
• Use the brackets to rotate blocking rods for 90°
and pull them out.
• Close the openings with attached plastic pegs.
Save transport brackets for eventual later use.
Be sure to remove the transport brackets
prior rst use, otherwise the appliance
may be permanently damaged. In such
cases the warranty conditions are void.
Fig. 1
Fig. 2
Fig. 2
6
Installation and connection
Package removal
Removal of transport
brackets

187348
• Put the appliance in horizontal position by turning
the adjustable legs.
The legs are adjustable up to +/- 1 cm.
After the adjustment tighten the nuts rmly (A)
- towards the bottom of the machine!
Vibrations, moving of the appliance and
loud operation due to incorrect setting of the
adjustable feet shall not be covered by this
warranty.
The appliance should be placed on a surface
with concrete base; the surface should be
dry and clean in order to prevent slipping.
The adjustable feet should also be cleaned
before installation.
• If you have a tumble dryer of the same
dimensions, you can place it on top of the
washing machine.
To ensure correct operation of the appliance,
water pressure inlet must be between 0,05 and
0,8 MPa.
Minimum water pressure can be established
by measuring the quantity of poured out water.
3 litres of water must be poured out from
completely opened tap in 15 seconds.

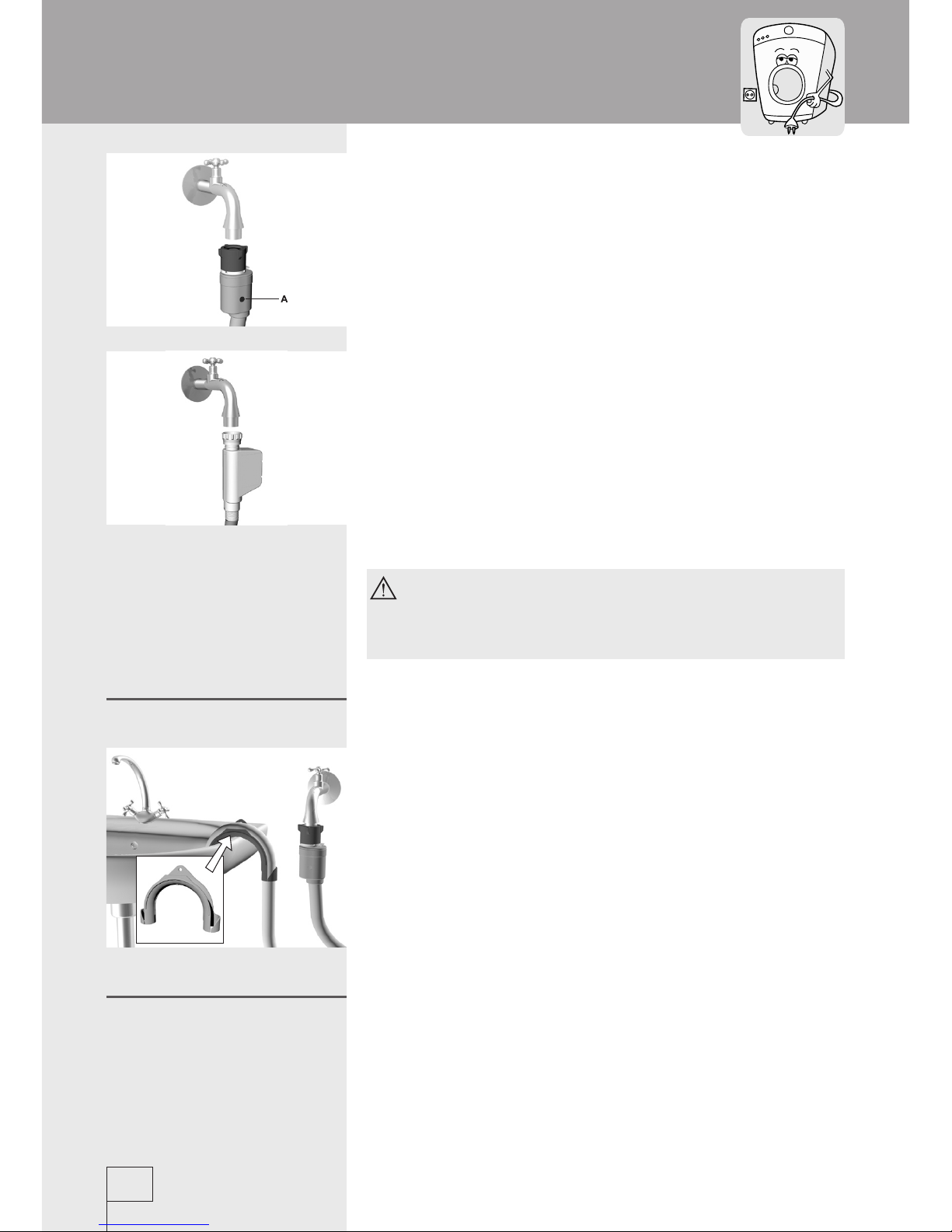

• Insert the gasket with screen into the water inlet
hose thread Screw the hose thread to the water
faucet
• In case of hot and cold water connection, connect
one hose to cold and other to hot water faucet as
marked at the rear of the appliance (letters C and H)
(C - cold; H - hot)
7
Water inlet connection
Leveling the appliance

187348
Partial Aqua-stop (water stop system)
In case of damage on the interior pipe, leaking is
prevented by automatic closing system which stops
water inlet to the machine. In such cases display A
turns red.
Inlet pipe must be replaced.
Complete Aqua-stop
In case of damage on the interior pipe, leaking is
prevented by automatic closing system which stops
water inlet to the machine.
Security system also detects whether there is any
water leakage within the interior of the machine.
In such cases washing is suspended, machine
switches on the pump and signals error.
Do not immerse the Aqua-stop system inlet
pipe into the water, because it contains the
electric valve!

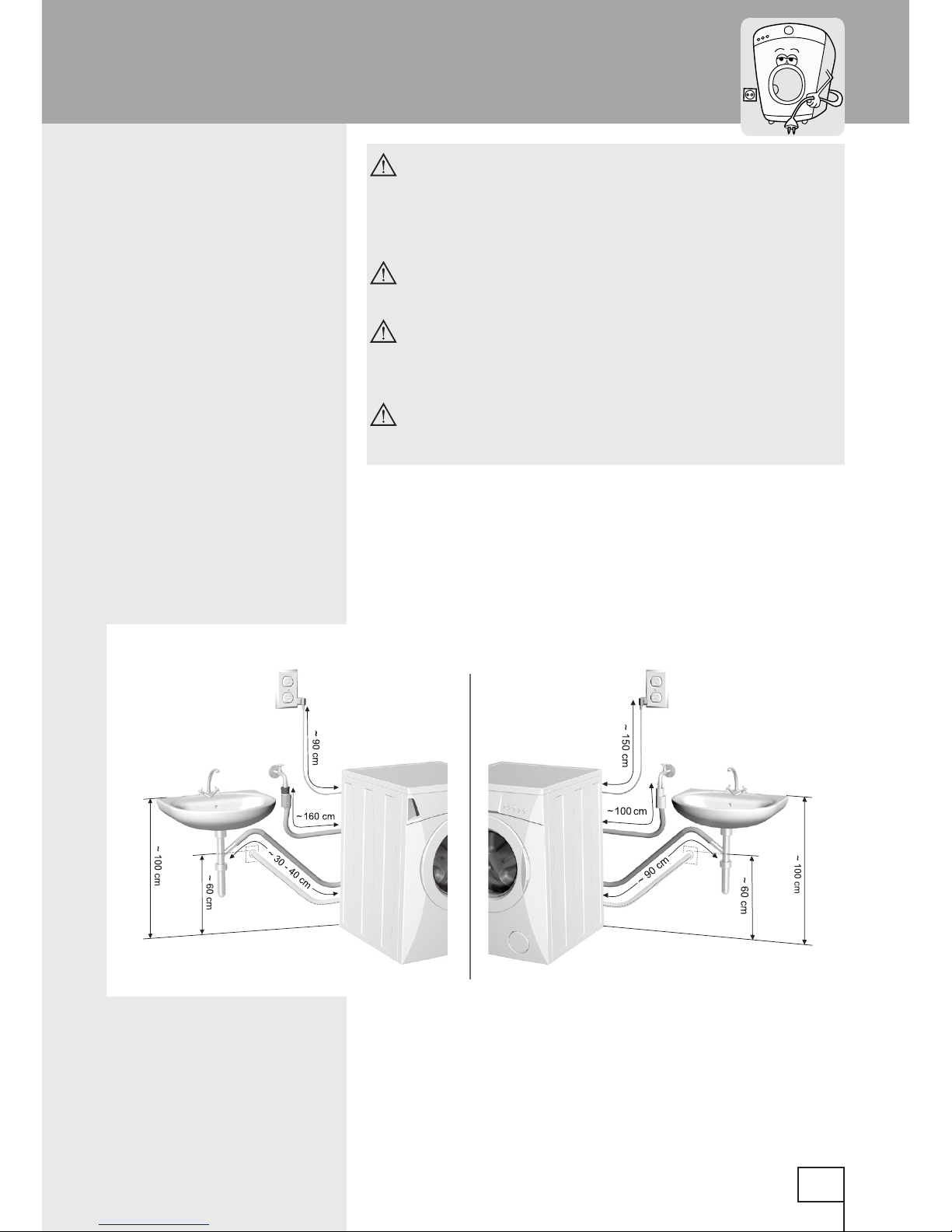

• Fix the outlet hose to run into the sink or the
bathtub, or connect it directly to the wall drain
outlet (diameter min. 4 cm).
• Wall drain must be installed properly and must
enable occasional cleaning.
• Fasten the outlet hose support with a piece of
rope led through the hose elbow, to prevent the
hose from slipping to the oor.
The end of outlet hose should be placed between
minimum 60 cm and maximum 100 cm above the
oor level.
• Plug the mains power cable to the wall mains
socket.
• Required voltage and other information are written
on the rating plate above the door opening of the
machine.
8
Connect the appliance
to the mains supply
Water outlet connection

187348
The wall socket must be accessible at all
times and must be equipped with an earth
lead (in accordance with the local safety
regulations).
The permanent connection must be tted
by an authorized personnel only.
Damaged mains power cable may be
replaced only by the producer or his
authorized personnel.
Never plug the appliance into the electric
shaver socket or hair dryer socket.
If the socket, the machine is connected to, is protected by the
overload protection switch (FID), the nominal differential current
of the switch must be 30 mA (switch mark Idn or I∆n). In case
of a smaller nominal current in the switch, the machine may be
switched off during its normal operation.
9

187348

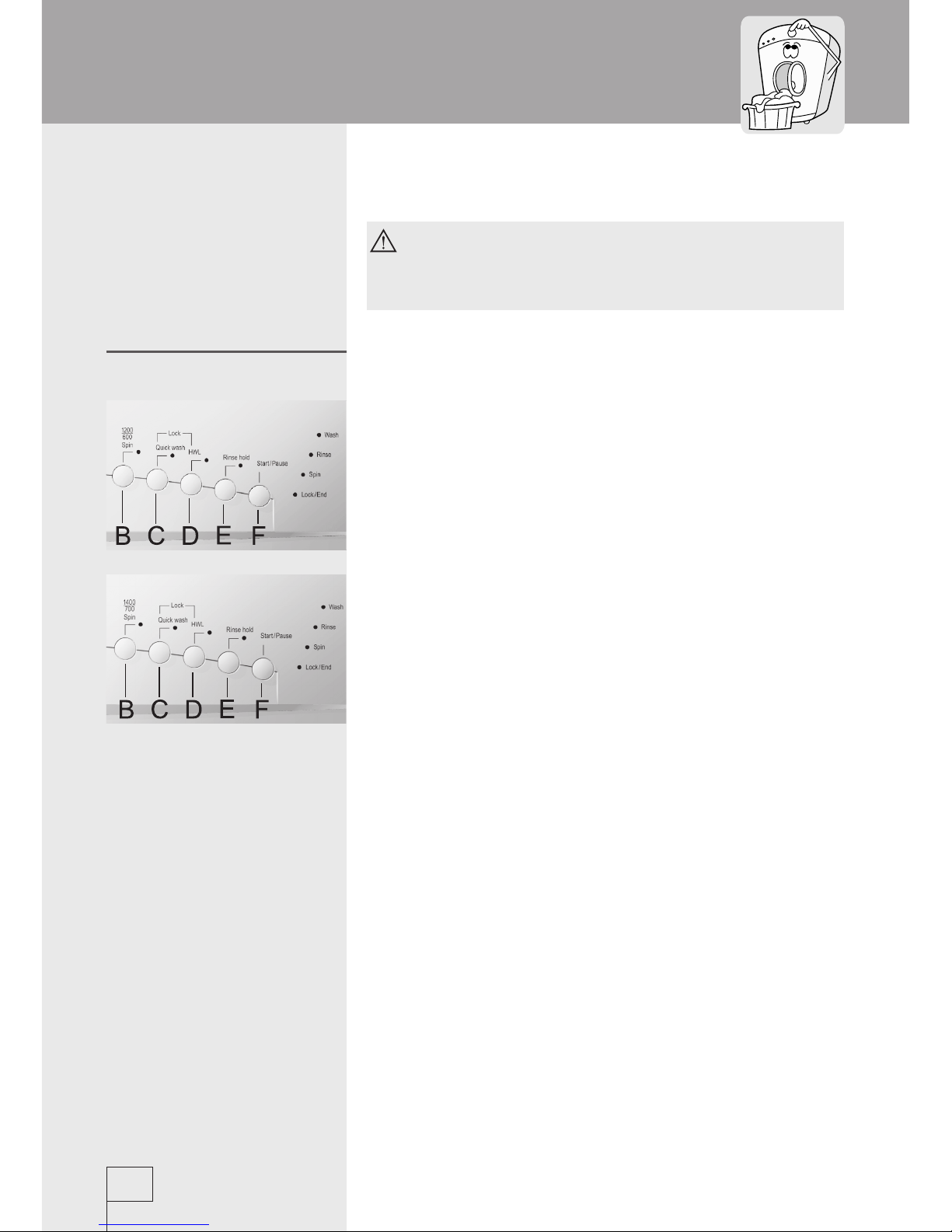

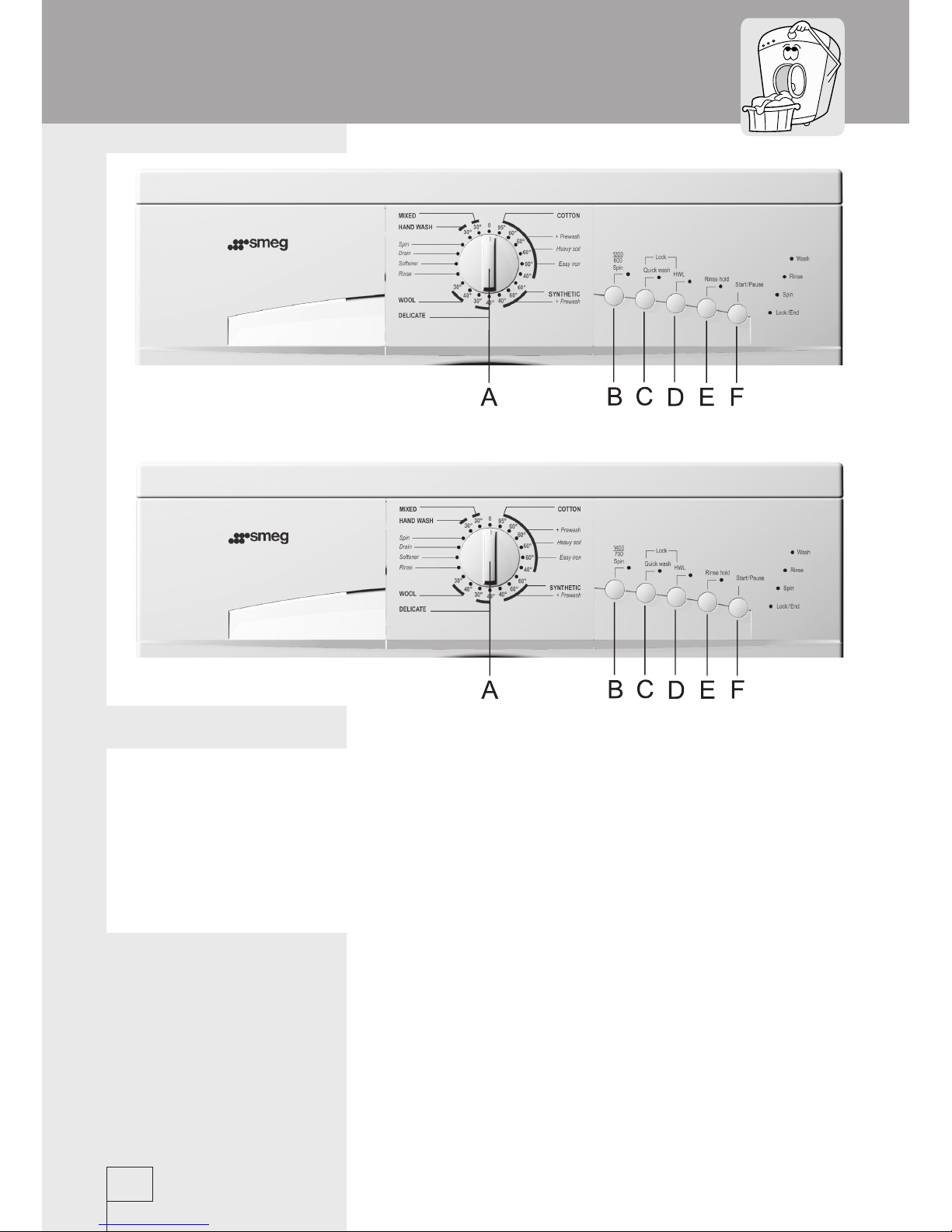

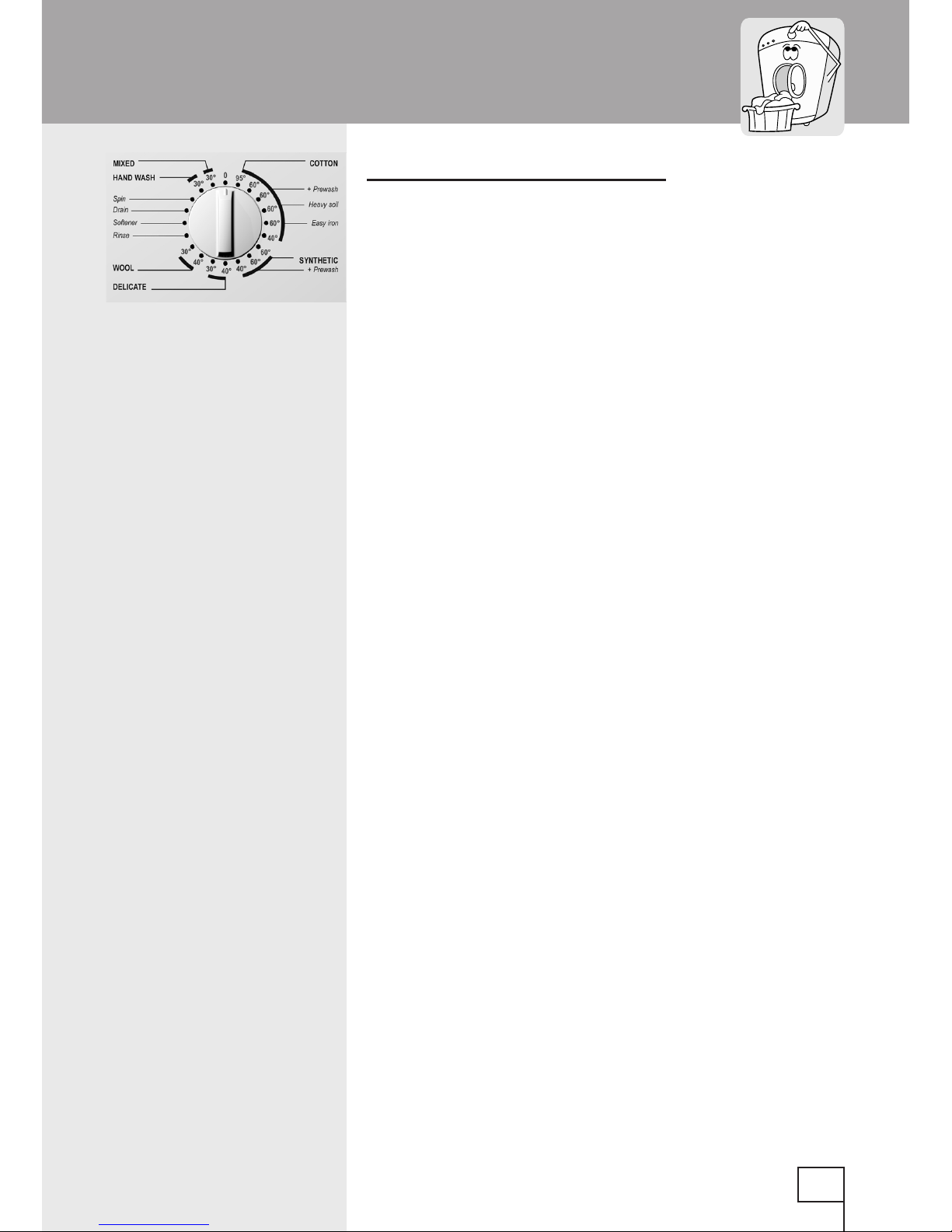

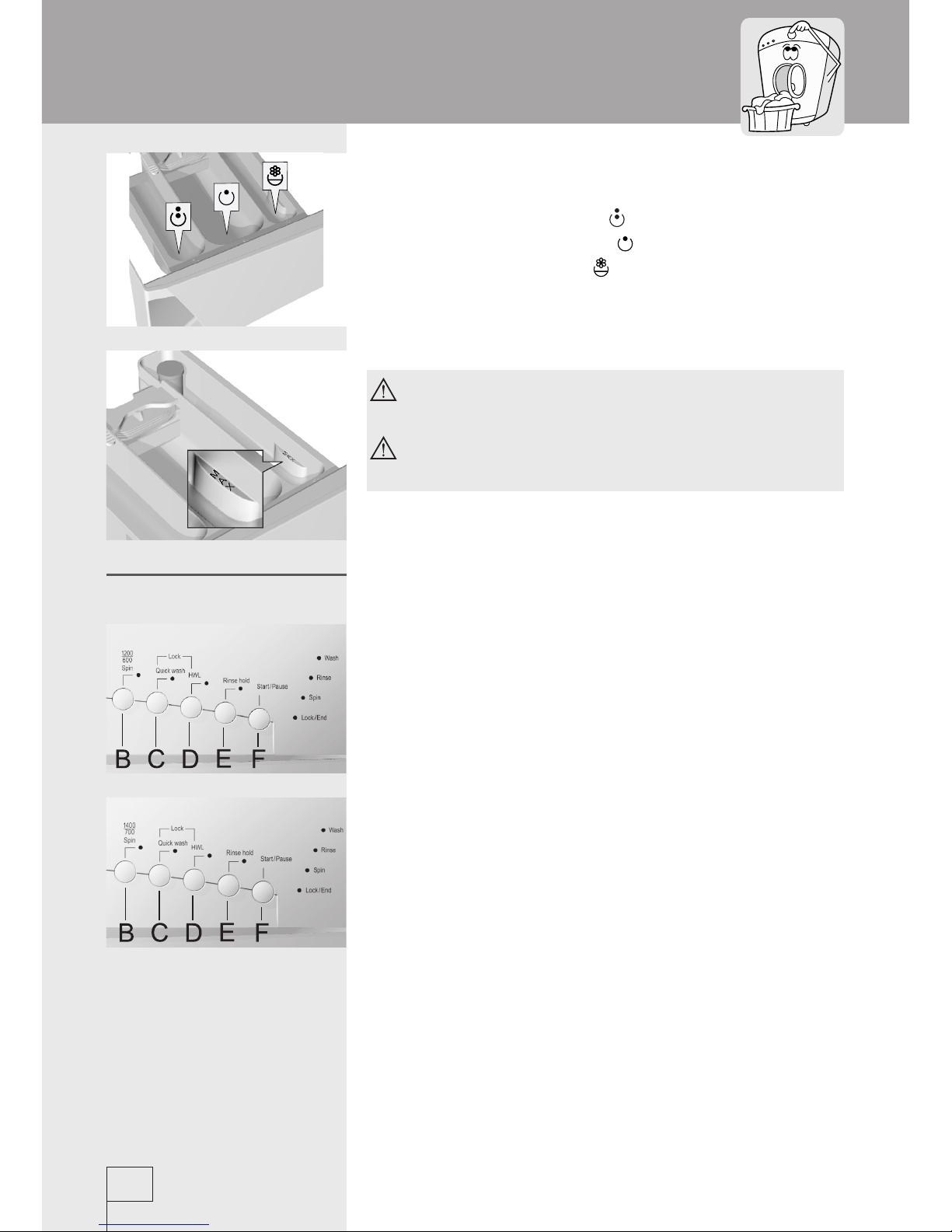

A - program selector
B - Spin - reduced spinning key-
switch
C - Quick wash
D - Higher water level - HWL
E - Rinse hold button
F - START/PAUSE button
Signal LED’s:
- washing program stages
•wash
•rinse
•spin
- Lock / End
10

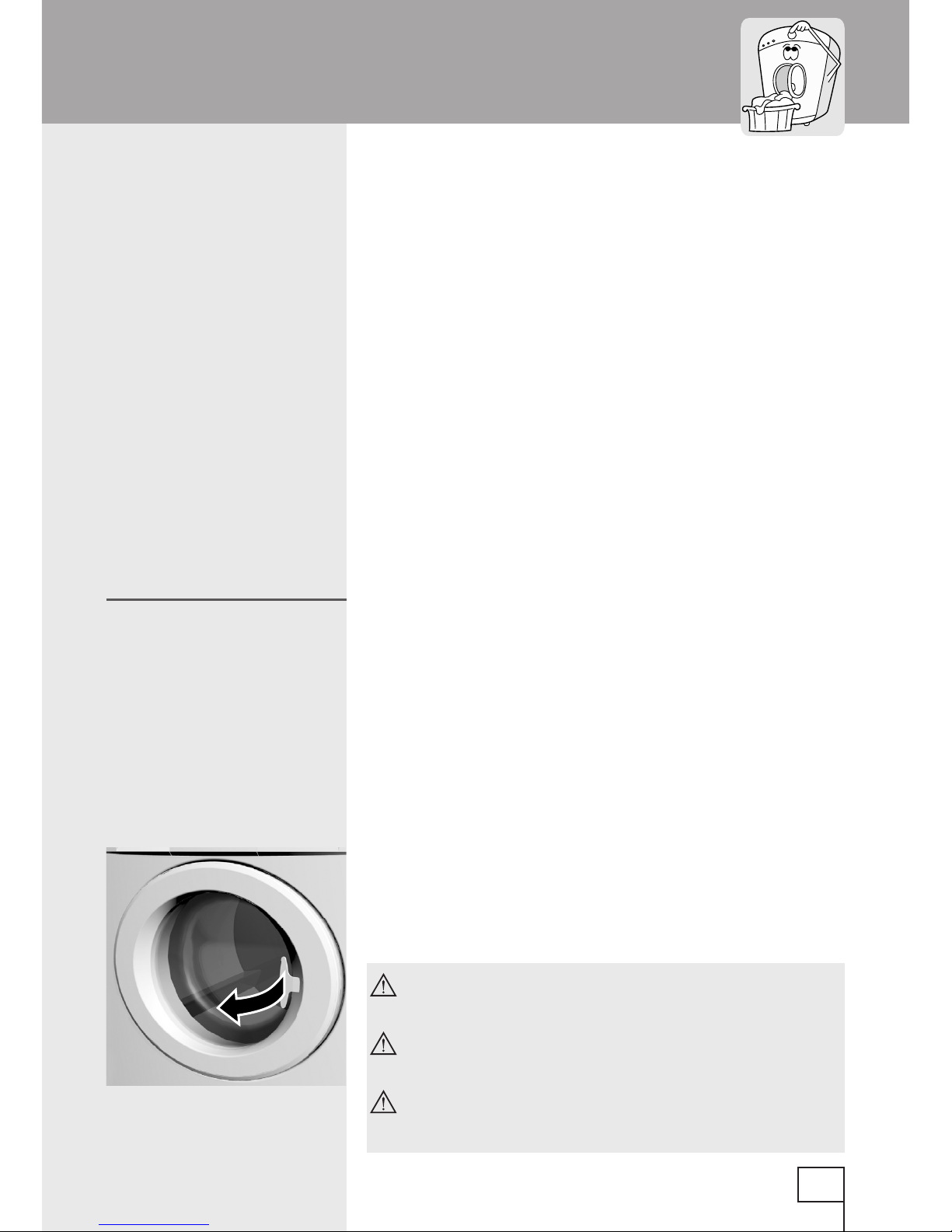

Operation
