Smoke Factory Tour Hazer II User manual

0
See the Performance
Introduction Manual
Type: Tour Hazer II

1
1 Introduction 2
2 Safety Instructions 3
2.1 Danger of Burning 3
2.2 General Safety 3
3 Device and Parts Identification Guide 4
4 Commissioning 6
4.1 Selecting the Location 6
4.2 Installing and Changing the Fluidbottle 6
4.3 Fogfluid 6
4.4 Power Connection of the Tour Hazer II 6
5 Operating Instructions 7
5.1 Controls of the Tour Hazer II 7
5.2 How to turn the device off 8
5.3 Control System 8
5.3.1 External Control 8
5.3.2 DMX512 Control
5.3.2.1 Adjusting DMX-Start-address
5.3.2.2 Adjusting pump and fan output
8
9
9
5.3.3 Standalone Control 9

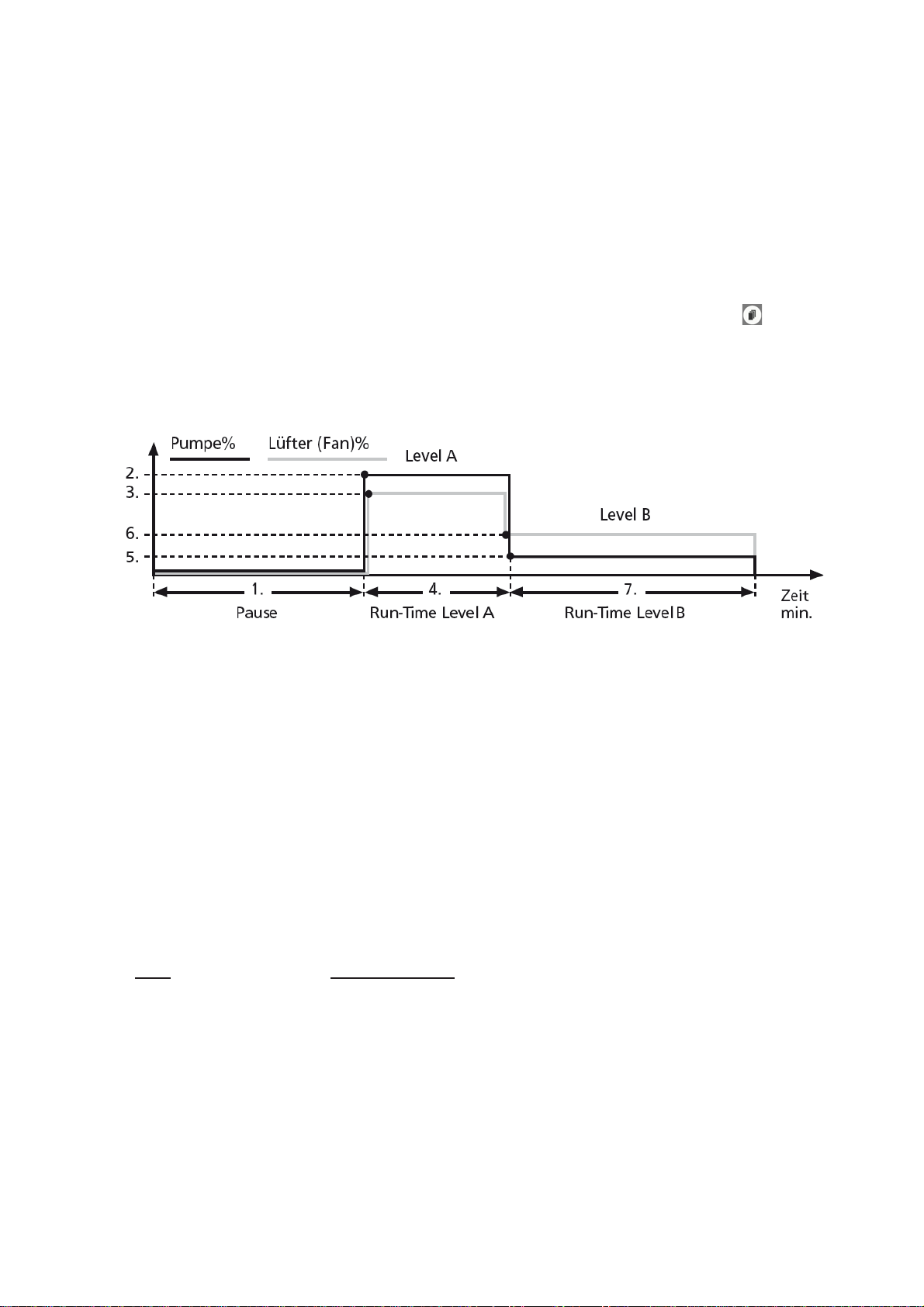

5.3.4 Controlling the device with „Timer“ HDCS 10
5.4 Autostart
5.5 Pin Configuration
11
11
6 Maintenance 12
7 Trouble-Shooting 13
8 Technical Specifications 14
9 Warranty Conditions 15
10 Services 16
Welcome.
Thank you for choosing a
SMOKE FACTORY -DEVICE.
Seite
See the Performance
The S MOKE F ACTORY product range
offers you a vast variety of complete
solutions, both from an innovative
and economical point of view.
On the following pages we will
provide you with a general overview
of the T
OUR H AZER II.

2
1. Introduction
Well-engineered and
innovative.
Fog Generators for
more than 20 years.
S MOKE F ACTORY GmbH is a medium-
sized enterprise
with growing international
orientation.
Our fog generators are the result of many
years of experience and continuous
development in the field of stage
machinery. The development- and
construction-departments cooperate
intensely to provide you with future- and
practice-oriented solutions. The
development-, construction- and
production-operations are performed in our
factory in Hanover, maintaining a high
quality standard.
You acquired a S
MOKE -F ACTORY device that
you will use simply and safely. Thank you
for placing your trust in us. Read and
understand the safety precautions before
operating the machine. Failure to properly
follow these instructions may lead to a fire,
explosion or electrical shock.
Additionally we offer you both complete and
customised solutions.
Our members of staff are highly qualified.
They understand your needs and with their
expertise and experience they have an
overwhelmingly positive effect on our whole
S
MOKE -F ACTORY team.
Please contact us if you wish further
information about our fog generators. We
provide high quality services and offer
advice on choosing the proper fog
generator.
Type: Tour Hazer II
Scotty II
Enterprise TC4 Fan Fogger DMX 3
Data II
Captain D Case
Captain D Factory Fan
Spaceball-II
Fire Trainer

3
¾Warning! Very hot steam escapes from the nozzle. There is a high danger of getting burnt . The smoke
machine must be placed at least 150 cm away from persons and heat-sensitive materials. Assure
yourself that the housing of the fog generator cannot be touched by accident.
¾The smoke machine must be placed at least 150 cm away from inflammable materials.
¾ Occasionally very hot droplets of fluid may escape when in operation. Always keep sufficient safety
distance to prevent damages of all kind.
¾Never open the machine and leave it unattended when connected to a power supply.
¾Don’t use the fog generator close to open fire, pyrotechnics or fireworks!
¾The visibility must not be reduced to fewer than 200 cm. You are responsible for accidents due to
missing visibility.
¾Do not open the smoke machine if it is connected to the power supply (230 V).
¾Do not swallow the fog fluid or avoid direct contact. Keep it away from children. In case of eye contact,
rinse with a lot of water. Consult a doctor should you have accidentally swallowed some fluid.
¾ Spilled fluid or splashed fluid droplets can cause slip hazard. Mop up the fluid and dispose of it according
to regulations. S
MOKE F ACTORY -fluid is completely watersoluble and biodegradable.
¾ Artificially-made fog can be produced in many different ways. The method used here to produce fog, with
a device which works according to the vaporizer principle, is the most harmless one.
¾No case has so far been reported in which a sound human being has been harmed because of using our
device to produce artificial fog. However, this can only be guaranteed if the professional fog generators
are used accordingly, i.e. at the correct vaporization temperatures as well as with the correctly mixed fog
fluid.
2. Safety Instructions
2.1 Danger of Burning
Dan
g
er!
Follow these instructions to avoid fire, explosions
or electrical shocks. Warning!
Don’t endanger yourself. Read the safety
instructions thoroughly.
2.2 General Safety
WARNING!
People with health problems or problems of the respiratory tract or with an inclination for allergies should
avoid any contact with artificially-made fog.
Damages that are caused by non-intended use and non-observance of this instruction manual are borne by the
user himself. The manufacturer does not assume liability.
Modifications of security-relevant parts are strictly forbidden.

4
Fi
g
. 1:Tour Hazer II
–
Front View
3. Device and Parts Identification
Simple and safe.
We offer you complete solutions.
There isn’t any solution that fulfils all
expectations, but for each and every
expectation there is a proper SMOKE
FACTORY-fog generator.
Scotty II or Fire Trainer? It doesn’t matter.
You get the equipment that makes the
difference.
1: Control panel for adjusting the DMX start address
and the output
2: Fog emission
3: Air deflector (Determining direction)
4: DMX-IN
5: DMX-Out
6: Mains supply
7:
Fluid tube inlet
8: Analog input and Radio receiver-connection
or Cable remote-control
9: Fluidcan with canister lid
and fast coupling connection.
1
2
3
4
7
6
5
8
9

5
Fi
g
. 2:Tour Hazer II - Isometric View

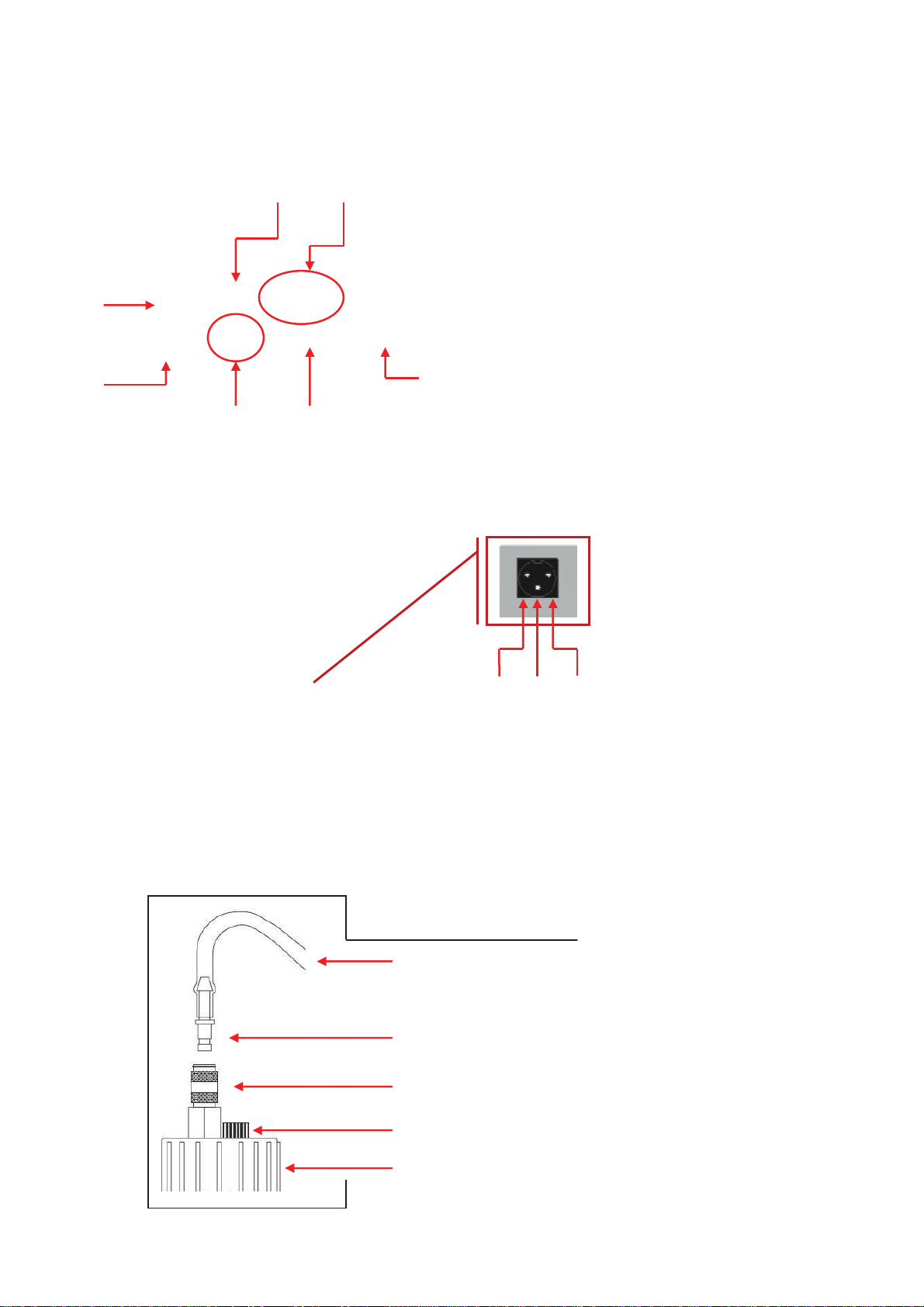

Fig. 3:Tour Hazer II - Isometric View
Fig. 4: Canisterclosing with integrated sinter-filter
Canisterclosing with integrated sinte
r
-filte
r
Pin-Configuration:
See page 11
1
3
2
45
6
1: Control panel
2: Label (Type)
3: Safety guard (Entrapped air fort he fan)
4: Air deflector (rotatable)
5: Connection area: Power, Controls, Medium
6: Canister case
7: Fluid can
1 3 2
1: Fluid tube
2: Attachable coupling
3: Collar to remove the tube
4: Ventilation valve closure
5: Unscrewable canister lid
1
2
3
4
5
7

6
4. Commissionin
g
4.1 Selecting the location
The location must be
¾free from vibrations and shocks,
¾free from dusty or polluted air,
¾a non-flammable place or surrounding,
¾well-ventilated with haze-free air,
¾have an ambient operating temperature between +5°C and +45°C and
¾a relative humidity below 80%.
4.2 Installing and Changing the Fluidbottle
¾Disconnect the fluid tube from the lid by retracting the collar and removing the
attachable coupling.
¾Unscrew the canister lid of the empty container and screw it onto the new
container.
¾Push the attachable coupling into the collar, until you hear a click. Insert the new
canister in a proper position.
4.3 Fogfluid
To guarantee trouble-free operation the special S MOKE F ACTORY fluid must be used.
Use of other liquids will lead to clogging an void the manufacturer‘s warranty.
Don’t use fluid older than five years.
Fog fluid cannot be stored for an indefinite period of time.
If you wish more information about fluids, don’t hesitate to contact us or your local
specialist dealer.
4.4 Power Connection of the Tour Hazer II
Connect the power plug to a safety contact electrical outlet ( DIN 49440/441).
Make sure the outlet has the correct voltage for your machine. (230V/50Hz).
A „P“ and two figures appear on the LED display (for instance P 15).
After approximately 60 sec. the Tour Hazer II is heated up and ready to
be used. Press the Enter-button once (14) to start hazing. The green
Active-LED (1) will light up. After a short interruption the hazing will
begin. After another 30 sec the display dims itself automatically, but can
be reactivated immediately by pressing any button.
Fog fluid
Fig. 5: Adjusting the performance of the fog
generator

7
10
:
11
:
12
:
13: Illuminated
alphanumerical display
14: Enter-Button15: Mode-Button
16: Up/Down-Button
Fig. 11: Adjusting the DMX start address.
Fig.: 13: Turning off the device.Fig.: 12: Switching to Profile mode
Fig. 10: Adjusting the output value for the fan.
5. O
p
eratin
g
Instructions
The Tour Hazer II is a real Touring Hazer. With its
1500 W it is a truly powerful smoke machine. Due to the digital
technique it is possible,
to generate tiny clouds as well as roomfilling fog.
The performance of the fog generator can easily
be adjusted between 1 % and 99%.
.
The optimal equipment of your
SMOKE FACTORY fog generator
is based upon your specific application.
5.1 Controls of the Tour Hazer II
Fig. 6: Adjusting the performance of the fog
generator
TIMER-LED/ Profile-LED,rot
Active-LED, green
DMX
IN -LED, yellow

8

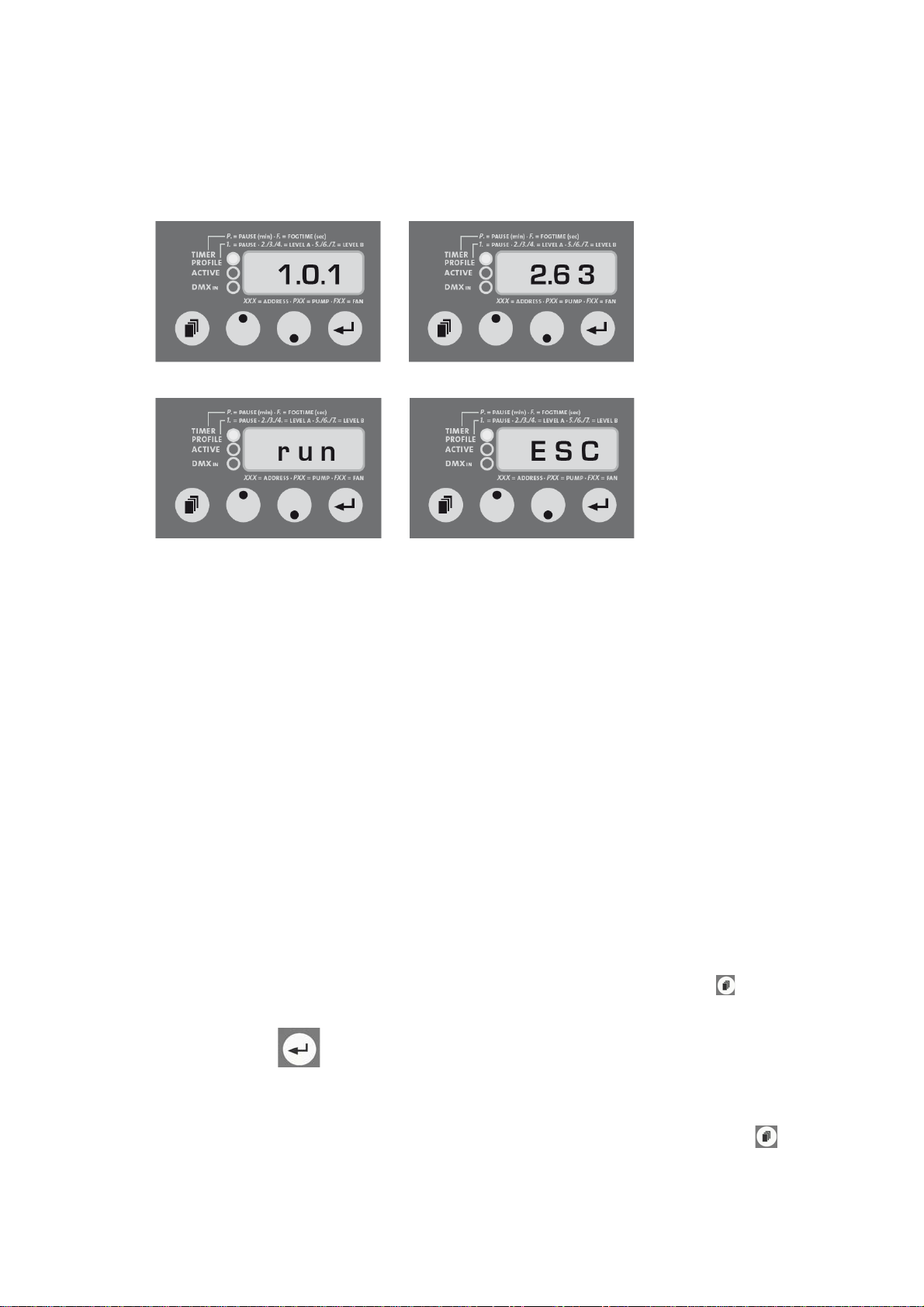

Fig. 7: Turning off the device
Fig. 8: Cooling down the device
Fig. 9: Sufficiently cooled off.
Fig. 14:Tour Hazer II – Front View
Fig. 15: Control panel/ DMX-Signal
5.2 Turning the device off
Press the Mode-Button (15) until „OFF“ appears on the display. After
approximately 60 sec the device automatically changes into the Backlash-
mode, in order to cool down the evaporator and clean up the tubes and HE.
If the evaporator is sufficiently cooled off, a red dot appears on the display that
illustrates that there is power supply voltage.
Within 60 sec after turning off the DMX-Signal the device starts the Backlash mode.
Please ensure that the Tour Hazer II is not disconnected from the power supply too early. Otherwise the tubes and HE
cannot be cleaned properly.
5.3 Control System
5.3.1 External Control
5.3.2 Operating via DMX 512
You may control the Tour Hazer II
externally through the XLR sockets (4, 5, 8) , see fig. 10.
In General:
DMX has always priority, i.e., as soon as the device is controlled via
DMX 512, the values entered through DMX derogate the analog
input.
Connecting the T
OUR H AZER II to a DMX desk, use the 5pol XLR
socket beside the control panel. As soon as the machine receives
a correct DMX signal, the yellow DMX LED will be lit (12).
Plaese note:
The Tour Hazer II occupies two successive channels.
•1st channel = pump
•2nd channel = fan
Afterwards bars appear on the display moving top down. This is illustrating the
cooling off of the device.
4
5
8
4: DMX-IN
5: DMX-Out
8: DMX or analog input and radio remote connection
depending on device.
12: DMX IN -LED, yellow

9
Abb. 16: Control panel/ DMX-Signal

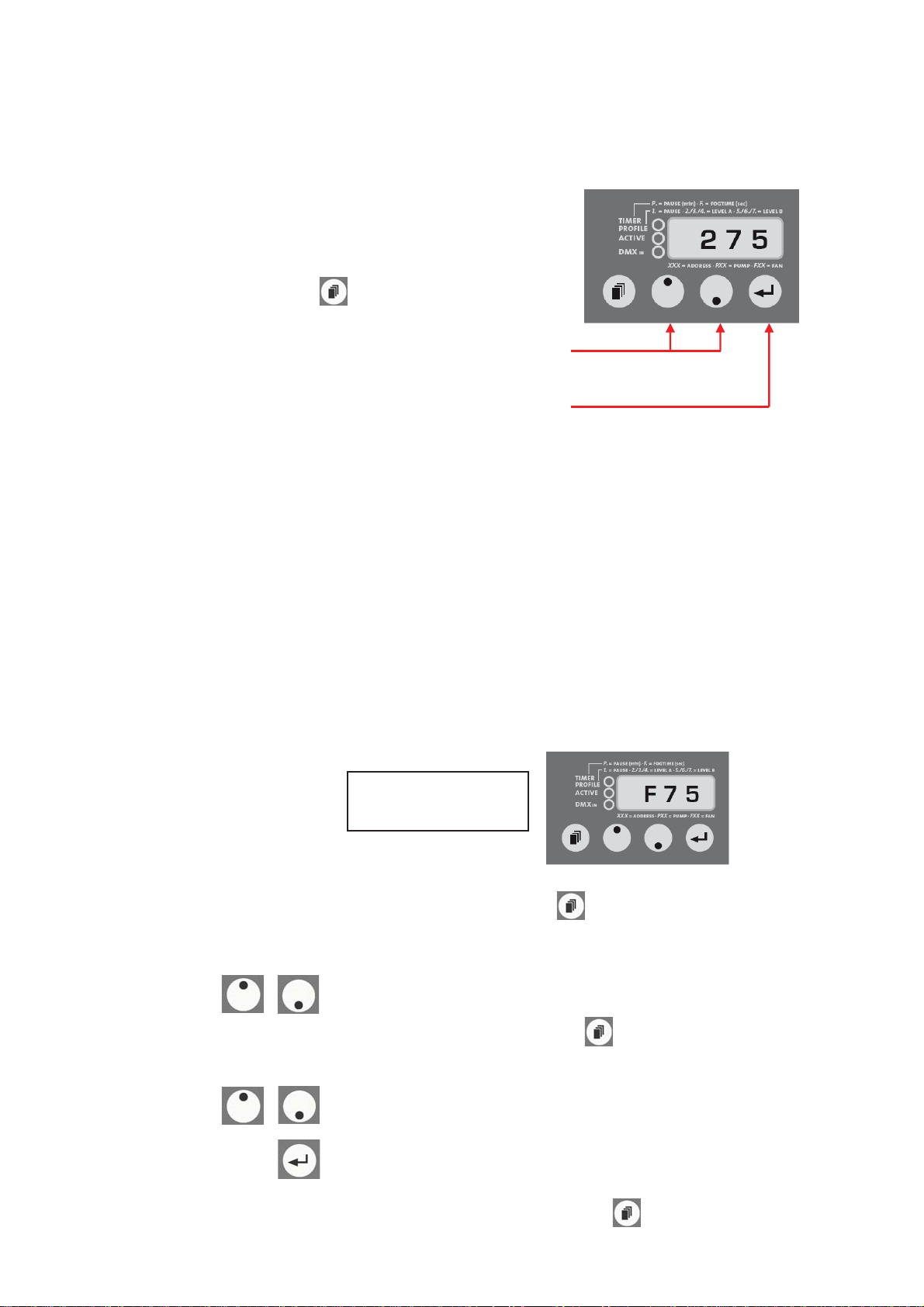

Fig. 17: Adjusting pump value Fig. 18: Adjusting fan value
5.3.2.1 Adjusting the DMX start address
Press the Mode button at the control panel until three
figures appear on the LED display
Adjust the required start address (001-511) by pressing the Up or
Down-button.
Save the start address by pressing the Enter button once.
5.3.3 Standalone mode
The Smoke Factory
–
Hazer II can be used in the standalone mode.
In this mode all data for the pump and the fan must be adjusted directly at the machine.
Press the Mode button at the control panel until a “P”
and two figures appear on the LED display
Adjust the desired data (1 - 99%) by pressing the Up/Down-Button.
By pressing the Enter-Button you turn off the smoke machine and
the optional fan.
Pressing again the Mode-button leads you to the options
¾P = Pumpe
¾F= Fan
5.3.2.2 Adjusting the values for the pump and the fan
Adjustments after activating the Tour Hazer are not necessary. The performance of the pump as well as the
fan can be adjusted via control panel from 1% to 99%.
Press the Mode button again until a „F“ and two figures
appear on the display.
Adjust the desired data (1 - 99%) by pressing the Up/Down-Button.

10
Fi
g
. 19:
A
d
j
ustin
g
the Pre-Runtime Fi
g
. 20: Ad
j
ustin
g
the
p
um
p
value.
Abb. 22: Exiting the profile
Fig. 21: Startuing the profile
You can adjust the variables according to the menu items 1 - 7 (see
above table), by pressing the Mode button until you reach the required
function and adjusting the values with the Up/Down-buttons.
Press and hold the Mode button on the control panel until “Pro”
a
pp
ears on the dis
p
la
y
(
see fi
g
. 12
)
5.3.4 „Timer“ Haze-Density Control System (HDCS)
With the HDCS it is possible to specify a certain user profile.
Two levels (A and B) can be regulated, the haze time and wait time can be adjusted in minutes the pump and the fan
output can be adjusted in percent.
Level A = Menu Item 2, 3, 4
Level B = Menu Item 5, 6, 7
Additionally you can adjust the hazing time (Menu Item 1).
Example: The device has to start hazing after 30 minutes (Menu Item 1). The stage has to be hazed for a period of
10 minutes. To fulfil these requirements a high pump and fan output is required as well as a hazing time of 10 minutes
(Menu Item 2, 3 and 4). After 10 minutes the pump and the fan have to be turned off and the stage must be hazed
another one hour (Menu Items 5, 6 and 7).
Following menu items can be adjusted
1. Pause (Pre-Runtime) 0 - 99 min
2. Pump (level A) 1 - 99 %
3. Fan (level A) 1 - 99 %
4. Run-Time (level A) 0 - 99 min
5. Pump (level B) 1 - 99 %
6. Fan (level B) 1 - 99 %
7. Run-Time (level B) 0 - 99 min
Press and hold the mode button until „run“ appears on the display (fig. 21).
Pressing and holding the Enter-buttons starts the specifically created user
profile.
Press and hold the menu button once to get to the HDCS-Menu Item. The
red Timer/Profile-LED is lit up.

11
The Timer/Profile-LED [10] blinks. The green Active-LED [11] lights up,
as soon as the adjusted pause (Pre-Runtime) has passed and Level A is
started. The user profile can be also started via the remotecontrol.
To return to the standard menu, press and hold the Mode- button
until you see „ESC“ on the display (Fig. 22) and press the Enter-button.
5.4 Autostart
If the Timer is activated but the device disconnected from the mains supply, Tour Hazer II will start automatically
in the Timer Mode with the pre-adjusted values as soon as it is reconnected
.
DMX:
Pin 1 = Ground (Mass)
Pin 2 = DMX-
Pin 3 = DMX+
3pol-XLR (analog):
Pin 1= Ground (Mass)
Pin 2 = 0-10 V + DC in
Pin 3 = 12 V + DC out
max. 50mA
5.5 Pin-Configuration

12
¾Avoid overheating of the smoke machine by high operating temperatures. Don’t let spotlights
directly shine on the device.
¾Do not let the smoke machine run without any fluid as the pump will run dry.
¾Some droplets of condensation will form at the nozzle. That is normal and not a malfunction.
Remove the fluid droplets as they can destroy the electronics.
¾Check the state of the sinter-filter from time to time and clean or replace it when necessary.
CAUTION: The evaporator of our devices must not be cleaned, as the cleaning substances can
fundamentally damage the evaporator. This leads to a loss of the warranty.
¾Clean the fluid bottle before refilling it to avoid dirt that can cause malfunctions.
¾If you install the device permanently you need to maintain a smoke- and fog-free air supply.
Cooling air with concentrated fog can condensate in the device and lead to humidity damages.
BEWARE: Remove the droplets only if the devices is cooled of! Don’t expose you to the Danger of
burning.
6. Maintenance

13
7. Trouble-Shooting
¾Check the external control
¾Check the power supply
¾Check, if there is enough fluid in the canister
¾Check if the connection is permeable
¾Check if fluid tube is unclean
The Tour Hazer II does not produce any haze
The Tour Hazer II hazes uncontrolledly
?
¾Check the external control
¾Check the humidity (High humidity can cause uncontrolled
hazing)
¾Sinterfilter in the canister clo
gg
ed?
Loud humming noise during hazing
The Tour Hazer II deactivates itself
The over temperature protection device is activated.
Remove external heat sources, to maintain air supply. The
device will reactivate as soon as the normal operating
tem
p
erature is reached.
¾The pump runs dry. Avoid generating fog without fluid.
Refill fluid!
¾Check fluid tube, disconnect and reconnect.
¾Fluid tube bent down or defect?
Error report E-4 on the display
¾The machine is getting too hot. The heating switches off and
the machine cools down.
¾ Solution: Disconnect the machine from the mains supply for a
moment and then re-connect it.
Error report E-8 on the display
¾The heating element is clogged
¾Please return the Tour Hazer II for maintanence.

14
8. Technical Specifications
Functional principle Steam Generator without compressor
Electrical power 1500 W
Supply voltage 230V/50Hz, also available with 120V/60 Hz
And with 90V/60 Hz
Fluid consumption
-- TourHazer
-- TourHazer II
Consumption
diagramm
Capacity of fluid bottle 5 Litres
Fog output Adjustable from 1 to 99 %, 1% - steps
Control options DMX 512
0-10 V Analog
Timer
Standalone
XLR-Remote(Optional)
Heating-up time Approximately 1 minute
Temperature controlling Microprocessor
Overheating protection Heater block with thermostat
Protection type IP 41 according to DIN 40050-9
Working temperature 5°C to +45 °C
Dimensions (WxHxL) 533 mm x 248 mm x 442 mm
Weight w/o fluid Approximately 18 kg
Accessories Radio remote and cable remote control
Scope of delivery Tour Hazer II, instruction manual, canister lid for 5 litre can,
power connection

15
9. Warranty Conditions
1. Free of charge, subject to the following conditions (No. 2 - 6) we will repair any defect or fault
in the unit if it is caused by a proven factory fault and has been advised immediately after appearance
and within 6 months of delivery to the end user. Insignificant deviations of the regular production
quality does not guarantee replacement rights, nor do faults or defects caused by water, by generally
abnormal environment conditions or Force Majeure.
2. Guarantee Service will be done in the following way: Faulty parts will be repaired or replaced
according to our choice with the correct parts. Faulty units have to be brought to us or our service
centres or to be sent to us or our service centres at customer‘s expenses. The invoice and/or receipt
showing the purchase date and the serial number has to come with the faulty unit, otherwise this will
not be guarantee service. Replaced parts become our property.
3. The customer loses all rights for guarantee services, if any repairs or adjustments are done to
the units by unauthorized persons and/or if spare parts are used which are nor approved by us. The
right of guarantee service is also lost if fluids other than the original S
OMKE F ACTORY -fluid have been
used or if units are sent to us with full fluid bottles. Also non compliance with the instructions
in this manual or mistakes by incorrect handling/treating of the machine will lead to a loss of
guarantee and also any faults and damages caused by undue force.
4. Carrying costs caused to warranty services are borne by the customer himself.
5. Guarantee services do not cause an extension of the guarantee time or the start of a new guarantee
time. The warranty for replaced parts ends with the guarantee time of the whole device.
6. If a defect/fault can not be repaired by us in a satisfactory time, we will, within 6 months after sale of
the unit, on choice of the customer, either:
- replace the whole unit for free or
- refund the lesser value or
- take back the whole unit and refund the purchase price, but not more than the usual
market price at the time of the refund.
7. Further claims, especially for damages, losses etc. outside the unit are excluded, if the liability is not
statutory.
Outside the Federal Republic of Germany the warranty conditions of our local agencies take effect. Our local
agencies in and outside the Federal Republic of Germany will provide you with the warranty conditions any
time. In case you send the T
OUR H AZER II make sure that the fluid is removed from the bottle.
Effective only for the Federal Republic of Germany
S
MOKE F ACTORY grants you warranty for the “Tour Hazer II“ according to the following conditions

16
10.Service
See the Performance
www.smoke-factory.de
Fog, Smoke & Haze Factory GmbH
Walsroder Str. 159 A
D-30853 Langenhagen/Hannover
Tel.: ++49 (0) 511 - 51 51 02 - 0
Fax: ++49 (0) 511 - 51 51 02 – 22
Email: [email protected]
Internet: www.smoke-factory.de
Responsible for content: Fog, Smoke & Haze Factory GmbH
Design & Arrangement / www.devtecs.de
Service and Contact
We advise you
We help you
We provide you with information material fast und
reliably
