Smoke hollow 6500 Installation instructions

Grill & Smoker
6500
Tools needed for assembly:
Phillips screwdriver, Pliers or Adjust-
able Wrench
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your
fire department.
Failure to follow these instructions could
result in fire or explosion which could
cause property damage, personal injury
or death.
DANGER
1. Never operate this appliance unat-
tended.
2. Never operate this appliance within
10 ft (3.0 m) of any structure, com-
bustible material or other gas cylin-
der.
3. Never operate this appliance within
25 ft (7.5 m) of any flammable liquid.
4. Do not fill cooking vessel beyond
maximum fill-line.
5. Never allow oil or grease to get hot-
ter than 400°F or 200°C. If the tem-
perature exceeds 400°F (200°C) or
if oil begins to smoke, immediately
turn the burner or gas supply OFF.
6. Heated liquids remain at scalding
temperatures long after the cooking
process. Never touch cooking appli-
ance until liquids have cooled to
115°F (45°C) or less.
7. If a fire should occur, keep away
from the appliance and immediately
call your fire department. Do not at-
tempt to extinguish an oil or grease
fire with water.
Failure to follow these instructions could
result in fire or explosion which could
cause property damage, personal injury
or death.
DANGER
Conforms to ANSI STD Z21.58b-2012
OUTDOOR COOKING GAS APPLIANCE
Deluxe Outdoor

2
For Outdoor Use Only
(outside of any type of enclosure)
WARNING
If you smell gas –
● Turn off the gas supply to the appli-
ance
● Extinguish any and all open flames
● Open the Lid of the Grill
● If the odor remains, stay away from
the grill and notify your gas supplier
and/or the Fire Department.
WARNING
● Do not use or store gasoline, kero-
sene, alcohol, or other flammable
liquids or vapors in the vicinity of
this appliance or any other appli-
ance.
● Any LP Gas Cylinder NOT con-
nected for use with the appliance,
shall not be stored in the same vi-
cinity of this or any other appliance.
A LP Propane Gas Cylinder is
needed for operating the gas side of
this grill.
The LP Gas Cylinder is NOT in-
cluded.
This gas grill is only intended for Do-
mestic use, not to be used for any com-
mercial purpose.
WARNING
● Never use the gas or charcoal grill
for INDOOR cooking or heating
● Never use the grill on or in a boat or
recreational vehicle
The combustion fumes from either
the gas or charcoal grill are toxic and
can cause severe illness and possibly
death.
DANGER
The combustion of Propane gas can
yield the formation of chemical com-
pounds known in the state of Califor-
nia，U.S.A., to cause birth defects，
cancer，and other serious health mat-
ters.
WARNING
Read this installation manual before as-
sembling or servicing this appliance.
Failure to follow these instructions may
result in an faulty installation, which
could cause damage to property, per-
sonal injuries or even death.
WARNING
Save these instructions after reading
them in case you need to refer to them
in the future.
IMPORTANT

3
Read all safeguards and assembly instruc-
tions before assembling and operating
your grill/smoker.
Before assembling your new grill/smoker,
unpack all the parts from the box. Care-
fully remove all packing material and lay
out all the parts for easy access and iden-
tification. Do not discard the carton or
packaging until your smoker is fully as-
sembled and operating to your satisfac-
tion.
In order to properly assemble your
smoker, you will only need two tools:
● Phillips head screwdriver
● Pliers or adjustable wrench
(tools not included)
The grill/smoker is heavy and must be
moved around during assembly and be-
fore use. Be sure to have a friend help.
Outdoor Leisure Products, Inc.
5400 Doniphan Drive
Neosho, MO 64850
Toll Free: 866-475-5180
Website: www.olp-inc.com
8:30am to 4:30pm, Central Time
Monday through Friday

4
SAFETY WARNINGS
1. The installation of this grill must conform to local codes, or in the absence of local codes, with either
the National Fuel Gas Code, ANSI Z223.1 / NFPA 54, Natural Gas and Propane Installation Code,
CSA B149.1, or Propane Storage and Handling Code, B 149.2, or The Standard for recreational
Vehicles, ANSI 119.2 / NFPA, and CSA Z240 RV Series, Recreational Vehicle Code, as Acceptable.
2. The Gas Grill side of the grill /smoker is for use with LP (Propane) Gas ONLY! LP Gas Cylinder is NOT
included with the Grill.
3. Never use lighter fluid, gasoline, kerosene, or alcohol for lighting the gas grill.
4. The LP Gas supply Cylinder used must be constructed and marked in accordance with
the Specifications of the U.S. Department of Transportation (D.O.T.) or The Standard for
Cylinders, Spheres and Tubes for Transportation of Dangerous Goods; and
Commission, CAN/CSA-B339, as applicable. It MUST be provided with a Listed Overfilling
Device. Only use 20 pound cylinders that have a type 1 cylinder connection device compatible with the
Connection for Outdoor Cooking Appliances.
5. The LP gas cylinder must be arranged for vapor withdrawal, purging and have an overfilling
prevention device.
6. LP Gas Cylinders must be stored outdoors, out of the reach of children, and must not be
stored in a building, garage or any other enclosed area.
7. The Pressure regulator and Hose Assembly supplied with the Grill, must be
used. Any replacement regulator and hose assemblies must be those specified by the
outdoor cooking gas appliance manufacturer.
8. The LP Gas Cylinder must include a collar to protect the cylinder valve.
9. Do not store a spare LP Gas Cylinder under or near this grill.
10. Never fill the LP Gas Cylinder beyond 80% full. For vapor withdrawal /purging, the cylinder should be
in the upright position.
11. This outdoor cooking gas appliance must only be used outdoors, and must not be
used in a building, garage or any enclosed area
12. The following distances for proper clearance must be maintained :
● Minimum distance from back and sides of the outdoor cooking gas appliance to walls is 36" ( 1 me-
ter )
● Do not use under any overhead combustible constructions
● For outdoor use only
● Remove LP Gas Cylinder from grill if storing grill indoors
13. This outdoor cooking gas appliance is not intended to be installed in or on boats
14. Inspect the Gas Hose before each use. If the Hose has any leak, cut or wear,
it must be replaced BEFORE using the grill
15. Do not try to move the grill while either gas, charcoal or smoker firebox is lit.
16. Wait one hour minimum before touching any metal parts, until they are cool.
17. NEVER leave the grill unattended when in use.
18. Keep children and pets away from the grill when in use.
19. Note: Grease Drip Trays and Grease Cup should be emptied and cleaned after each use to pre-
vent flare – ups and /or grease fires.
IF THESE INSTRUCTIONS ARE NOT FOLLOWED EXACTLY, A FIRE CAUSING
DEATH OR SERIOUS INJURIES MAY OCCUR!

5
READ ALL SAFEGUARDS AND INSTRUCTIONS THOROUGHLY!
YOUR SAFETY IS VERY IMPORTANT – FAILURE TO FOLLOW PROPER PROCEDURES AND
SAFEGUARDS MAY RESULT IN PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
DANGER DANGER
● The GRILL is for outdoor use only!
● Do NOT use this grill for other than its intended
purpose.
● Do not leave grill unattended when in use.
● Do not use gasoline, kerosene or alcohol for light-
ing charcoal, use of any of these or similar prod-
ucts may cause an explosion possibly leading to
severe bodily harm.
● Never operate this grill under any overhead roof
covering, awning or overhang. Never use inside
an enclosed area such as screen patios, garages,
buildings or tents.
● Keep the area clear of all flammable liquids, com-
bustible material including but not limited to wood,
dry plants including grass, brush, paper, and can-
vas.
● Grill is HOT while in use and after use – Avoid
touching hot surfaces. Always wear protective
gloves or mitts when operating the smoker.
● Keep children and pets away from the grill at all
times.
● Do not allow anyone to conduct activities around
the grill during or following its use until the unit
has cooled. The grill is hot during operation and
remains hot for a period of time following its use.
● Always wear shoes and protective clothing during
operation of this smoker.
● Never use glassware, plastic, or ceramic cook-
ware in this grill.
● The firebox lid will be extremely hot.
● When grilling, grease from meat may drip into the
charcoal and cause a grease fire. If this should
happen, close the lid and dampers to suffocate
the flame.
● Do not use water to extinguish grease fires.
● Do not move the unit while it is being used.
● Do not use in windy conditions.
● Use caution when opening the lid, as hot stream
or a flame flare-up could cause burns.
● Before each use, make sure the unit is in good
working condition.
● Use caution after the fire has been extinguished,
the surface will remain hot for some time.
● Be sure all charcoals are cold before emptying, if
necessary pour water on coals before moving
grill.
● Store the grill out of reach of children and in a dry
location when not in use.
● Check grease and or ash level in ash pan often
and empty. Use extreme caution as the smoker,
and metal ash pan will be hot.
● When opening the lids, keep hands, face and
body a safe distance from hot steam and flame
flare-ups.
● Do not allow charcoal and or wood to rest on the
walls of the firebox and cooking chamber. Doing
so will greatly reduce the life of the metal and fin-
ish of you smoker.
● Close lids and all dampers to suffocate flame.
● Never leave coals and ashes in grill unattended.
Before grill can be left unattended, remaining
coals and ashes must be removed from smoker.
● Use caution when lifting or moving smoker to pre-
vent strains and back injuries.
● Properly dispose of all packaging material.
USE CAUTION AND COMMON SENSE WHEN OPERATING YOUR SMOKER. READ ALL INSTRUCTIONS,
WARNINGS AND SAFEGUARDS PRIOR TO ASSEMBLING AND OPERATING YOUR SMOKER.
SAVE THESE INSTRUCTIONS

6
6500 Parts List
Note: For assistance, including missing or damaged parts, call toll free - 866-475-5180
from 8:30 am - 4:30 pm Central Time, Monday - Friday
Quantity Description
62 M6x15 Combo Truss Head Bolts, Black Nickel Plated
6M6x15 KEPS Combo Truss Head Bolts, Black Nickel Plated
8M6 KEPS Nuts Black Nickel Plated
2M4x8 Combo Truss Head Bolts, Black Nickel Plated
3ST4.0*10 Combo Head Screws
18 M6x35 Combo Truss Head Bolts, Black Nickel Plated
2 "R" Clips, Black Nickel Plated
1Small Spring, Black Nickel Plated
1Wrench For Caster Assembly
1 M6 Cap Nut, Black Nickel Plated
4 M5*10 Bolt
2 Short Hinge Pins ,Black Nickel Plated
Hardware pack

7
6500 Parts List
Item NO. Quantity Description Part NO.
1 1 Side Burner Wire Grid Rack 1800CGS-1
2 1 Match Holder TR029
3 1 Side Burner Housing SH5000-15
4 3 “S” Hanging Hooks SH5000-01
5 4 Gas Valve Control Knobs TR037
6 1 Side Burner Assembly 1800CGS-2
7 1 HVR Cover 47183T-03
8 1 Control Panel— 4 Valves ,Electronic Ignitor and HVR SH5000-5
9 1 Left Rear Leg - Yellow Label # 3 1800CGS-8
10 1 LP Gas Cylinder Wire Retainer 1800CGS-10
11 1 LP Gas Cylinder Bottom Support Brace 1800CGS-11
12 1 Left Front Leg - Green Label # 4 1800CGS-9
13 4 Locking Casters 1800CGS-12
14 1 Right Front Leg - Blue Label # 2 1800CGS-24
15 1 Bottom Mesh Shelf SH5000-14
16 1 Right Rear Leg - White Label # 1 1800CGS-13
17 1 Fire Box Support Brace 1800CGS-7
18 1 Charcoal Tray Adjuster Handle TR019
19 1 Firebox Wood Rack 1800CGS-38
20 1 Firebox Bottom Half Assembly 3500-04
21 2 Firebox Cooking Grids 1800CGS-37
22 1 Firebox Top Half Assembly 1800CGS-35
23 1 Charcoal Tray Assembly 47183T-21
24 1 Charcoal Tray Lifting System TR020
25 2 Gas and Charcoal Grill Lid Handles TR049
26 4 Grill Cooking Grids 47183T-11
27 1 Charcoal Grill Lid 6500-02
28 2 Heat Indicators TR041
29 1 Smoker Stack Assembly SH5000-8
30 1 Smoker Stack Lid SH5000-9
31 1 Gas Grill Lid 6500-01
32 1 Warming Rack SH5000-11
33 3 Burner Heat Tents 47183T-24
34 3 Stainless Steel Burners 47183T-02
35 1 Firebox Lid Handle 1800CGS-36
36 1 Gas and Charcoal Grill Cabinet Assembly 6500-03
37 1 Damper Control Knob TR036
38 2 Side Gas Grill Bottom Tray Support Bracket SH5000-12
39 1 Gas Grill Grease Tray SH5000-13
40 1 Removable Grease Cup 1800CGS-26
41 1 Windscreen 6500-04
42 2 Hinge Assembly (Charcoal Grill) 6500-05
43 1 Left Bracket 6500-06
44 1 Right Bracket 6500-07
45 2 Hinge Assembly (Gas Grill) 6500-08
47 1
Hardware Blister Pack 6500-09
48 1 Instruction Manual 6500-10
46 1 Firebox Door (factory installed in Firebox Bottom Half Assembly) 3500-05

8
Assembly
Note: Carefully cut the tape holding the carton together. Cut the carton so that it can lay flat on
the ground to provide a clean surface for assembling your Grill. Remove the packing materials
and all the parts from inside the Cabinet. After unpacking all the parts, check to make sure you
HAVE all the parts. If anything is damaged or missing, contact our toll free number: 866-475-
5180. Discard all packing material in a safe and recyclable manner. Save this Assembly Man-
ual for future reference.
Tools Required: Phillips Head Screwdriver, Adjustable Wrench or Pliers
Step 1: Assembly of Gas Grill Bottom
Tray Support Brackets to the Gas Grill
Cabinet
Locate: (2)Gas Grill Bottom Tray Support
Brackets, (4) M6x15 Bolts
Procedure:
Position the Gas and Charcoal Cabinet upside
down. Refer to Fig.1 and attach the Brackets as
shown using (4) M6x15 bolts.
Step 2: Leg Assembly
Locate: Note- each leg will have an identifica-
tion label on it. (4) Legs, (14) M6X15 bolts
Procedure:
Refer to Fig.2, and Attach the Left Front Leg
– Green Label # 4 and the Left Rear Leg –
Yellow Label #3 as shown using (3) M6X15
bolts for each leg and attach the Right Front
Leg - Blue Label # 2 and Right Rear Leg -
White Label # 1, using (4) M6x15 bolts for
EACH leg.
Note: The Left Legs are attached to the gas
grill and the Right Legs are attached to the
charcoal grill.
Gas Grill Bottom Tray Support Bracket
Fig. 1
Step 3
Fig. 3
Bottom Mesh Shelf Step 3: Attach Bottom Mesh Shelf
Locate: Bottom Mesh Shelf, (4) M6x15 bolts.
Procedure:
Refer to Fig. 3 and attach the Bottom Mesh
Shelf to the Legs as shown using (1) M6x15
bolt in each hole at both ends of the Shelf.
Step 2
Fig. 2
Step 1
Left Front Leg Right Front Leg
Right Rear Leg
Left Rear Leg

9
Assembly
Step 4 Step 4: Attach LP Gas Cylinder Bottom
Support Brace
Locate: The tubular Support Brace, (2) M6x15
bolts
Procedure:
Refer to Fig. 4 and attach the Support Brace to
the INSIDE of the Left Side Front and Rear
Legs using (1) M6x15 bolt at each end of the
Brace.
Step 5: Attach Fire Box Support Brace
Locate: Fire Box Support Brace, (4) M6x15
bolts, (4) M6 KEPS nuts
Procedure:
Refer to Fig. 5 and Place the Fire Box Support
Brace BETWEEN the Legs on the RIGHT side
of the Cabinet, so that the LEDGE is at the
TOP and facing through the Legs. Fasten to
BOTH legs with (2) M6x15 bolts and (2) M6
KEPS nuts on each Leg.
Step 5
Fig. 5
Step 6
Fig. 6
Step 6: Attaching Casters
Locate: (4) Locking Casters
Procedure:
Refer to Fig. 6 and screw a Caster onto each
Leg, then tighten with a wrench.
Note: LOCK ALL CASTERS BEFORE GOING
TO STEP 7.
Then turn assembly right side up.
Fig. 4

10
Side Burner
Assembly

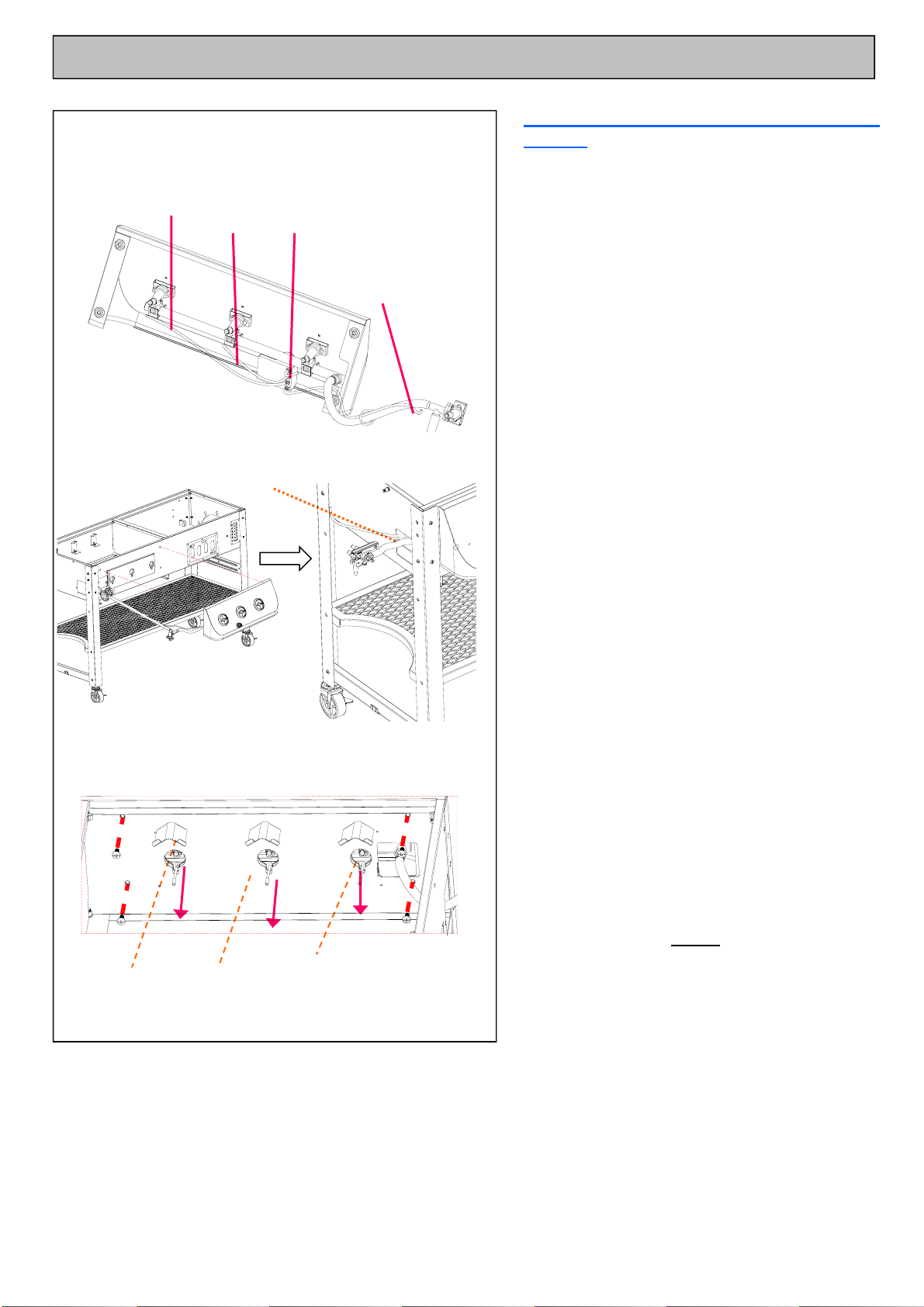

Step 7: Installing the Control Panel As-
sembly
Locate: Fig. 7A shows the inside of the
Control Panel Assembly ( CP has (3) gas
valves mounted on a manifold connected
to the Hose, Side Burner Valve and Regu-
lator assembly (HVR). There is an Elec-
tronic Ignition assembly attached, which
has (4) igniter wires, of different lengths, to
attach to each burner tube and the Side
Burner and (4) M6x15 bolts.
Procedure: Refer to Fig. 7B and carefully
thread the HVR with the Side Burner ig-
niter wire through the opening in the front
face of the Grill, make a turn to the left and
bring it out through the opening in the left
side of the Grill. Allow it to hang free, as
we will later make the connection to the
Side Burner.
Refer to Fig. 7C, and note that at each
opening for the valve and burner connec-
tion, there is a small keyhole slot. The
Burners are numbered 1 to 3, starting with
# 1 as the Left Burner. Carefully push each
of the ignition wires through the holes to
dangle inside, resting in the keyhole slot.
The shortest wire is # 1 and the longest is
for # 3. We will attach these wires to each
burner tube when we install the burners.
Check to be certain that no wires have be-
come disconnected from the Igniter Hous-
ing.
Position the Control Panel in place against
the Front Panel and fasten it with (4)
M6x15 bolts from inside the Grill – see Fig.
7C.
Step 7
Side Burner
Fig. 7A
Fig. 7B
Fig. 7C
Burner 2 Burner 1 Burner 3
Burner 3
Burner 2
Burner 1

11
Assembly
Step 8: Attaching the HVR Cover
Locate: HVR Cover and (2) M6x15 bolts
Procedure: Refer to Fig. 8 and set the
HVR Cover in the front corner of the Gas
Grill Cabinet, so that it covers the actual
HVR where it enters and exits the Cabi-
net. Fasten in place with (2) M6x15 bolts.
Be sure top of cover is positioned under
the rivnut as shown.
Step 8
Step 9
Fig. 9A
Fig. 9B
Fig. 9C
Fig. 9D
Step 9: Attach the Burner Tubes to the
Grill
Locate: (3) Burner Tubes with Igniter elec-
trodes attached and (3) ST 4.0x10 Screws.
Procedure: Attached to each Burner Tube
is an Ignition Electrode with a pin at the end
of the Electrode. You need to attach each
of the (3) ignition wires that you had
pushed through the openings onto the pin
end of the Electrode per Fig. 9A.
Refer to Fig. 9B and Fig 9C. Tilt the burner
tube slightly and insert through the opening
in the front wall of the cabinet. You MUST
make certain that the tip of the valve is
completely INSIDE the end opening of the
Burner Tube.
After each Burner Tube is set in place at
the front of the Cabinet, you must fasten
the Burner Tube to the Burner Support
Brackets at the back of the cabinet with a
ST 4.0x10 screw per Fig. 9D.
Fig.8
Rivnut

12

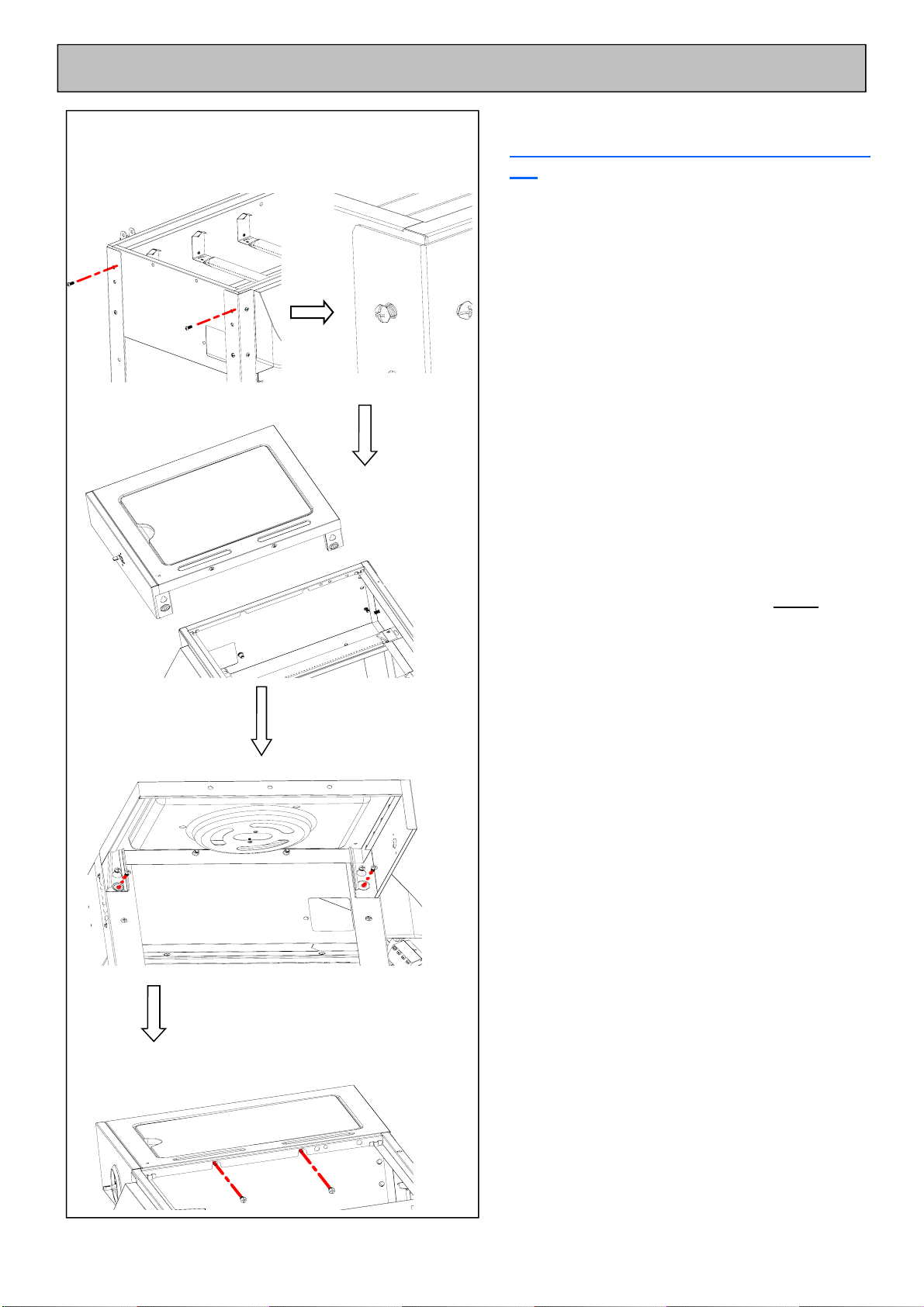

Fig.10A Step 10: Attach the Side Burner Hous-
ing
Locate: Side Burner Housing, (6) M6x15 bolts
Procedure:
Refer to Fig. 10A, Screw in the (2) M6x15 bolts
into the top (2) holes in the left side legs of the
cabinet. BUT, leave about 1/8”of the bolt stick-
ing out, as shown.
Refer to Fig.10B, Position the Burner Housing
over the (2) bolt heads and into the (2) Keyhole
openings. Slide the Housing down to fit the
bolts into the slots, and tighten the bolts to se-
cure the Housing to the Grill as seen in Fig.
10C. Now attach (2) M6x15 bolts into the (2)
bottom holes.
Refer to Fig.10D. Using another (2) M6x15
bolts, attach the Side Burner, from inside the
cabinet.
Assembly
Step 10
Fig.10B
Fig.10C
Fig.10D

13
Assembly
Step 11 Fig.11A Step 11: Assemble the Side Burner Gas
Burner Unit
Locate: (1) Side Burner Housing ( already
attached to the Cabinet), Hose, Valve and
Regulator Assembly (HVR), Igniter with wire,
Burner assembly, (2) M4x8 screws.
Procedure:
Refer to Fig. 11A – Pick up the HVR and
hold the Gas Valve in your hand and UN-
SCREW the (2) M4x6 screws.
Refer to Fig. 11B – Position the valve in
place between the front panel of the Side
Burner and the inner wall. Align the
threaded holes in the valve with the holes
in the Side Burner Housing and attach the
valve using the (2) M4x6 screws that were
removed earlier.
Refer to Fig. 11C and insert the Burner and
Igniter assembly by passing the tube portion
DOWN from the top of the Housing into the
Housing. Then turn the Burner Assembly so
that the tube end is positioned completely
over the Gas Valve Tip.
Refer to Fig. 11D and make certain that the
VALVE TIP is INSIDE the tube. Attach the
Burner Assembly to the Burner Housing with
(2) M4X8 screws from the UNDERSIDE of the
housing as shown.
Refer to Fig 11E and insert the Igniter Wire
into the burner electrode.
Fig.11C
Fig.11E
Fig.11B
Fig.11D

14
Step 12: Assemble the Side Burner Gas
Burner Unit
Locate: Side Burner Wire Grid Rack and (3)”S”
Hooks.
Procedure: Refer to Fig.12.And position the
Side Burner Wire Grid Rack in place, over the
burner, and into the (3) holes .Hang the (3) “S”
Hooks onto the side as shown.
Assembly
Step 13: Attach Firebox Lid Handle
Locate: Firebox Lid Handle, (2) M6x15 bolts
Procedure:
Refer to Fig.13 Lift the Lid up and insert (2)
M6x15 bolts from the INSIDE of the Lid to at-
tach the Handle and Lid into the (2) holes.
Step 13
Fig.13
Step 14 Fig.14 Step 14: Assemble the Firebox
Locate: Firebox Top and Bottom halves,
(8) M6x15 bolts
Procedure:
Refer to Fig. 14 Note- the clean-out door
is in the BOTTOM half and facing to the
RIGHT. The smoke passage opening is in
the TOP half and is facing to the LEFT.
Fasten the two halves together with (8)
M6X15 bolts as shown.
Step 12
Fig.12

15
Assembly
Step 15
Fig.15A
Fig.15B
Fig.15C
Step 15: Attach the Firebox to the
Charcoal Grill Side
Locate: Assembled Firebox and Right Side
of the Charcoal Grill, (6)M6X15 KEPS bolts
Procedure:
Refer to Fig. 15A and screw (5) M6x15
KEPS bolts into the (5) threaded holes in
the side of the Firebox, allowing about a 1/4”
of an inch of the bolt head to remain sticking
out.
Refer to Fig. 15B and place the Firebox in
position so that the (5) bolt heads can fit
into the KEYHOLES, allow the Firebox to
move down, so the bolts slide into place in
the slots and the bottom of the Firebox rests
on the Ledge of the Bracket.
Refer to Fig.15C and fasten (1) M6x15
KEPS bolt through the Bracket and into the
Firebox to secure it in place. Now tighten
the (5) bolts in the Keyhole slots which will
secure the Firebox to the Grill.

16
Assembly
Step 16: Installing the Charcoal Tray
Lifting System
Locate: Charcoal Tray Lift System Lift
Handle, (2) Short Hinge Pins and (2) “R”
Clips and (4) M6X15 bolts .
Procedure:
Refer to Fig.16A.Using (4)M6X15 bolts to
fix the Charcoal Tray Lifting System.
Refer to Figs. 16B and 16C and Slide the
Lift Handle through the adjusting slot and
through the hole of the inside plate. Align
the hole in the end of the Lift Handle with
the holes in the “U” shaped bracket lo-
cated at the back of the Cabinet. Join the
Lift Handle and the “U” shaped Bracket by
inserting a Hinge pin as shown in Fig.
16D.
Then insert an “R” Clip through the hole in
the short Hinge Pin. Attach the Lift Handle
to the Lift System by inserting a Short
Hinge Pin through the “U” shaped Lift Arm
and the hole in the center of the Lift Han-
dle as shown in Fig. 16E.
Step 16
Hole
Inside Cabinet
Fig. 16B
Fig.16C
Fig. 16D
Fig. 16E
Fig. 16A

17
Step 17: Assembling the Gas Grill
Grease Tray and Removable Grease
Cup
Locate: Grease Tray and Removable
Grease Cup
Procedure:
Position the drain hole in the grease tray
to be toward the front of the grill.
Refer to Figs. 17A, 17B, and 17C. Note in
Fig 17C, that there are Guides for the Re-
movable Grease Cup to slide in and out on
from the FRONT of the Grill, so, the guides
must open to the FRONT of the Grill! Stand-
ing at the Front of the Grill, slide the Grease
Tray slightly above the Support Bracket rails
in the front of the Grill. It will drop into place
against the rail stops, which prevent it from
sliding in or out of the Grill.
Note: Grease Drip Trays and Grease
Cup Should be emptied and cleaned
after each use to prevent flare – ups
and /or grease fires.
Assembly
Step 17
Fig. 17B
Fig. 17A
Fig. 17C
Grease Tray
Removable Grease Cup

18
Step 18: Installing the windscreen
Locate: Windscreen, Left Bracket, Right
Bracket, (2) Hinge Assemblies of gas grill, (2)
Hinge Assemblies of charcoal grill, (4) M5X10
bolts, (6) M6X10 bolts, (8) M6X35 bolts
Procedure:
Refer to Fig.18A, attach the Windscreen and
left/right bracket as shown using (4) M5x10
bolts.
Refer to Fig.18B, screw (2) M6X10 bolts on the
firebox, but not tighten up, and keep approxi-
mately 1/8’’ sticking out.
Refer to Fig.18C, insert the assembled wind-
screen into untightened bolts.
Refer to Fig.18D, attach the assembled wind-
screen on the gas grill cabinet using (4) M6X10
bolts. Then put a screw driver through the (2)
holes which in the top of the back windscreen to
access tightening the (2) holes in the wind-
screen.
Refer to Fig.18E, attach (2) hinge assemblies
on the charcoal grill cabinet as shown using (4)
M6X35, and attach (2) hinge assemblies on the
windscreen as shown using (4)M6X35.
.
Assembly
Step 18 Fig. 18A
Fig. 18B
Fig. 18C
Fig. 18D
Fig. 18E
Screw driver

19
Fig. 19A
Step 19: Assembling the Gas Grill
Lid
Locate: The Gas Grill Lid, (1) Heat Indica-
tor, (1) Lid Handle, (2) M6x15 bolts, (4)
M6X35 Bolts
Procedure:
Refer to Fig. 19A and unscrew the nut
from the Heat Indicator stem. Insert the
Heat Indicator through the hole in the front
center of the Lid with the Dial Face out-
side. Secure it to the Lid with the nut you
removed – check to see the dial face is
correctly aligned , then tighten the nut with
wrench.
Refer to Fig.19B and attach the Lid handle
to the Lid with (2) M6x15 bolts as shown.
Refer to Fig.19C, attach gas grill lid and
(2) Hinge Assemblies as shown using (4)
M6X35 Bolts.
Step 19 Gas Grill lid
Fig. 19B
Fig. 19C
Assembly
Step 20: Attach the Warming Rack
on the Gas Grill Side
Locate: Warming Rack, (2) M6x35 Bolts
Procedure:
Refer to Fig. 20 and attach the back of the
Warming Rack to the Lid with (2) M6x35
bolts as shown. Insert the Front Wire Legs
into the holes on each side of the Grill.
Open and close the Lid to be certain the
Warming Rack moves smoothly.
Step 20
Fig. 20

20
Step 21: Assemble Smoke Stack and
Charcoal Grill Lid
Locate: Smoke Stack Assembly, Charcoal
Grill Lid, Smoke Stack Lid, (6) M6x15 bolts,
(4) M6 KEPS nuts, (1) small spring, (1) M6
Cap nut, (1) Heat Indicator, (1) Lid handle,
(4) M6X35 Bolts
Procedure:
Refer to Fig. 21A and 21B Insert the Smoke
Stack Assembly from INSIDE the Lid and fas-
ten it to the Lid with (4) M6x15 bolts and KEPS
nuts. NOTE: the bolts are inserted from the
OUTSIDE of the Lid.
Refer to Fig. 21C and Place the Smoke Stack
Lid onto the threaded stud , add the small
spring and then fasten with the Cap nut tight
enough that the Lid can be rotated to open and
close the Smoke Stack.
Refer to Fig 21D and unscrew the nut from the
stem of the Heat Indicator and follow the same
procedure as before to install it to the Charcoal
Grill Lid.
Refer to Fig. 21E and attach the Lid Handle to
the Lid with (2) M6x15 bolts.
Refer to Fig. 21F, attach charcoal grill lid and
(2) hinge assemblies as shown using (4)
M6X35 Bolts.
Note: The lid with smoke stack must be at-
tached to the charcoal grill side.
Step 22: Attach the Damper Control
Knob.
Locate: Damper Control Knob.
Screw the Damper Control Knob into the slot-
ted hole of the Damper Plate. Check to see
that the plate will slide back and forth easily.
Assembly
Step 21
Fig. 21A
Fig. 21E
Fig. 21F
Fig. 21B
Fig. 21C Fig. 21D
Step 22
Fig.22
