Smoke hollow PS9900 Installation instructions

Grill & Smoker
PS9900
Tools needed for assembly:
Phillips screwdriver, Pliers or Adjust-
able Wrench
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your
fire department.
Failure to follow these instructions could
result in fire or explosion which could
cause property damage, personal injury
or death.
DANGER
1. Never operate this appliance unat-
tended.
2. Never operate this appliance within
10 ft (3.0 m) of any structure, com-
bustible material or other gas cylin-
der.
3. Never operate this appliance within
25 ft (7.5 m) of any flammable liquid.
4. Do not fill cooking vessel beyond
maximum fill-line.
5. Never allow oil or grease to get hot-
ter than 400°F or 200°C. If the tem-
perature exceeds 400°F (200°C) or
if oil begins to smoke, immediately
turn the burner or gas supply OFF.
6. Heated liquids remain at scalding
temperatures long after the cooking
process. Never touch cooking appli-
ance until liquids have cooled to
115°F (45°C) or less.
7. If a fire should occur, keep away
from the appliance and immediately
call your fire department. Do not at-
tempt to extinguish an oil or grease
fire with water.
Failure to follow these instructions could
result in fire or explosion which could
cause property damage, personal injury
or death.
DANGER
Conforms to ANSI STD Z21.58b-2012
OUTDOOR COOKING GAS APPLIANCE

For Outdoor Use Only
(outside of any type of enclosure)
WARNING
If you smell gas –
● Turn off the gas supply to the appli-
ance
● Extinguish any and all open flames
● Open the Lid of the Grill
● If the odor remains, stay away from
the grill and notify your gas supplier
and/or the Fire Department.
WARNING
● Do not use or store gasoline, kero-
sene, alcohol, or other flammable
liquids or vapors in the vicinity of
this appliance or any other appli-
ance.
● Any LP Gas Cylinder NOT con-
nected for use with the appliance,
shall not be stored in the same vi-
cinity of this or any other appliance.
A LP Propane Gas Cylinder is
needed for operating the gas side of
this grill.
The LP Gas Cylinder is NOT in-
cluded.
This gas grill is only intended for Do-
mestic use, not to be used for any com-
mercial purpose.
WARNING
● Never use the gas or charcoal grill
for INDOOR cooking or heating
● Never use the grill on or in a boat or
recreational vehicle
The combustion fumes from either
the gas or charcoal grill are toxic and
can cause severe illness and possibly
death.
DANGER
The combustion of Propane gas can
yield the formation of chemical com-
pounds known in the state of Califor-
nia，U.S.A., to cause birth defects，
cancer，and other serious health mat-
ters.
WARNING
Read this installation manual before as-
sembling or servicing this appliance.
Failure to follow these instructions may
result in an faulty installation, which
could cause damage to property, per-
sonal injuries or even death.
WARNING
Save these instructions after reading
them in case you need to refer to them
in the future.
IMPORTANT
2

Read all safeguards and assembly instruc-
tions before assembling and operating
your grill/smoker.
Before assembling your new grill/smoker,
unpack all the parts from the box. Care-
fully remove all packing material and lay
out all the parts for easy access and iden-
tification. Do not discard the carton or
packaging until your smoker is fully as-
sembled and operating to your satisfac-
tion.
In order to properly assemble your
smoker, you will only need two tools:
● Phillips head screwdriver
● Pliers or adjustable wrench
(tools not included)
The grill/smoker is heavy and must be
moved around during assembly and be-
fore use. Be sure to have a friend help.
Outdoor Leisure Products, Inc.
5400 Doniphan Drive
Neosho, MO 64850
Toll Free: 866-475-5180
Website: www.olp-inc.com
8:30am to 4:30pm, Central Time
Monday through Friday
3

SAFETY WARNINGS
1. The installation of this grill must conform to local codes, or in the absence of local codes, with either
the National Fuel Gas Code, ANSI Z223.1 / NFPA 54, Natural Gas and Propane Installation Code,
CSA B149.1, or Propane Storage and Handling Code, B 149.2, or The Standard for recreational
Vehicles, ANSI 119.2 / NFPA, and CSA Z240 RV Series, Recreational Vehicle Code, as Acceptable.
2. The Gas Grill side of the PS9500 is for use with LP (Propane) Gas ONLY! LP Gas Cylinder is NOT
included with the Grill.
3. Never use lighter fluid, gasoline, kerosene, or alcohol for lighting the gas grill.
4. The LP Gas supply Cylinder used must be constructed and marked in accordance with
the Specifications of the U.S. Department of Transportation (D.O.T.) or The Standard for
Cylinders, Spheres and Tubes for Transportation of Dangerous Goods; and
Commission, CAN/CSA-B339, as applicable. It MUST be provided with a Listed Overfilling
Device. Only use 20 pound cylinders that have a type 1 cylinder connection device compatible with the
Connection for Outdoor Cooking Appliances.
5. The LP gas cylinder must be arranged for vapor withdrawal, purging and have an overfilling
prevention device.
6. LP Gas Cylinders must be stored outdoors, out of the reach of children, and must not be
stored in a building, garage or any other enclosed area.
7. The Pressure regulator and Hose Assembly supplied with the Grill, must be
used. Any replacement regulator and hose assemblies must be those specified by the
outdoor cooking gas appliance manufacturer.
8. The LP Gas Cylinder must include a collar to protect the cylinder valve. Do not obstruct the ventilation
opening of the cylinder enclosure.
9. Do not store a spare LP Gas Cylinder under or near this grill.
10. Never fill the LP Gas Cylinder beyond 80% full. For vapor withdrawal /purging, the cylinder should be
in the upright position.
11. This outdoor cooking gas appliance must only be used outdoors, and must not be
used in a building, garage or any enclosed area
12. The following distances for proper clearance must be maintained :
● Minimum distance from back and sides of the outdoor cooking gas appliance to walls is 36" ( 1 meter )
● Do not use under any overhead combustible constructions
● For outdoor use only
● Remove LP Gas Cylinder from grill if storing grill indoors
13. This outdoor cooking gas appliance is not intended to be installed in or on boats
14. Inspect the Gas Hose before each use. If the Hose has any leak, cut or wear,
it must be replaced BEFORE using the grill
15. Do not try to move the grill while either gas, charcoal or smoker firebox is lit.
16. Wait one hour minimum before touching any metal parts, until they are cool.
17. NEVER leave the grill unattended when in use.
18. Keep children and pets away from the grill when in use.
19. Note: Grease Drip Trays and Grease Cup should be emptied and cleaned after each use to prevent flare –
ups and /or grease fires.
IF THESE INSTRUCTIONS ARE NOT FOLLOWED EXACTLY, A FIRE CAUSING
DEATH OR SERIOUS INJURIES MAY OCCUR!
4

READ ALL SAFEGUARDS AND INSTRUCTIONS THOROUGHLY!
YOUR SAFETY IS VERY IMPORTANT – FAILURE TO FOLLOW PROPER PROCEDURES AND
SAFEGUARDS MAY RESULT IN PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
DANGER DANGER
● The GRILL is for outdoor use only!
● Do NOT use this grill for other than its intended
purpose.
● Do not leave grill unattended when in use.
● Do not use gasoline, kerosene or alcohol for light-
ing charcoal, use of any of these or similar prod-
ucts may cause an explosion possibly leading to
severe bodily harm.
● Never operate this grill under any overhead roof
covering, awning or overhang. Never use inside
an enclosed area such as screen patios, garages,
buildings or tents.
● Keep the area clear of all flammable liquids, com-
bustible material including but not limited to wood,
dry plants including grass, brush, paper, and can-
vas.
● Grill is HOT while in use and after use – Avoid
touching hot surfaces. Always wear protective
gloves or mitts when operating the smoker.
● Keep children and pets away from the grill at all
times.
● Do not allow anyone to conduct activities around
the grill during or following its use until the unit
has cooled. The grill is hot during operation and
remains hot for a period of time following its use.
● Always wear shoes and protective clothing during
operation of this smoker.
● Never use glassware, plastic, or ceramic cook-
ware in this grill.
● The firebox lid will be extremely hot.
● When grilling, grease from meat may drip into the
charcoal and cause a grease fire. If this should
happen, close the lid and dampers to suffocate
the flame.
● Do not use water to extinguish grease fires.
● Do not move the unit while it is being used.
● Do not use in windy conditions.
● Use caution when opening the lid, as hot stream
or a flame flare-up could cause burns.
● Before each use, make sure the unit is in good
working condition.
● Use caution after the fire has been extinguished,
the surface will remain hot for some time.
● Be sure all charcoals are cold before emptying, if
necessary pour water on coals before moving
grill.
● Store the grill out of reach of children and in a dry
location when not in use.
● Check grease and or ash level in ash pan often
and empty. Use extreme caution as the smoker,
and metal ash pan will be hot.
● When opening the lids, keep hands, face and
body a safe distance from hot steam and flame
flare-ups.
● Do not allow charcoal and or wood to rest on the
walls of the firebox and cooking chamber. Doing
so will greatly reduce the life of the metal and fin-
ish of you smoker.
● Close lids and all dampers to suffocate flame.
● Never leave coals and ashes in grill unattended.
Before grill can be left unattended, remaining
coals and ashes must be removed from smoker.
● Use caution when lifting or moving smoker to pre-
vent strains and back injuries.
● Properly dispose of all packaging material.
USE CAUTION AND COMMON SENSE WHEN OPERATING YOUR SMOKER. READ ALL INSTRUCTIONS,
WARNINGS AND SAFEGUARDS PRIOR TO ASSEMBLING AND OPERATING YOUR SMOKER.
SAVE THESE INSTRUCTIONS
5

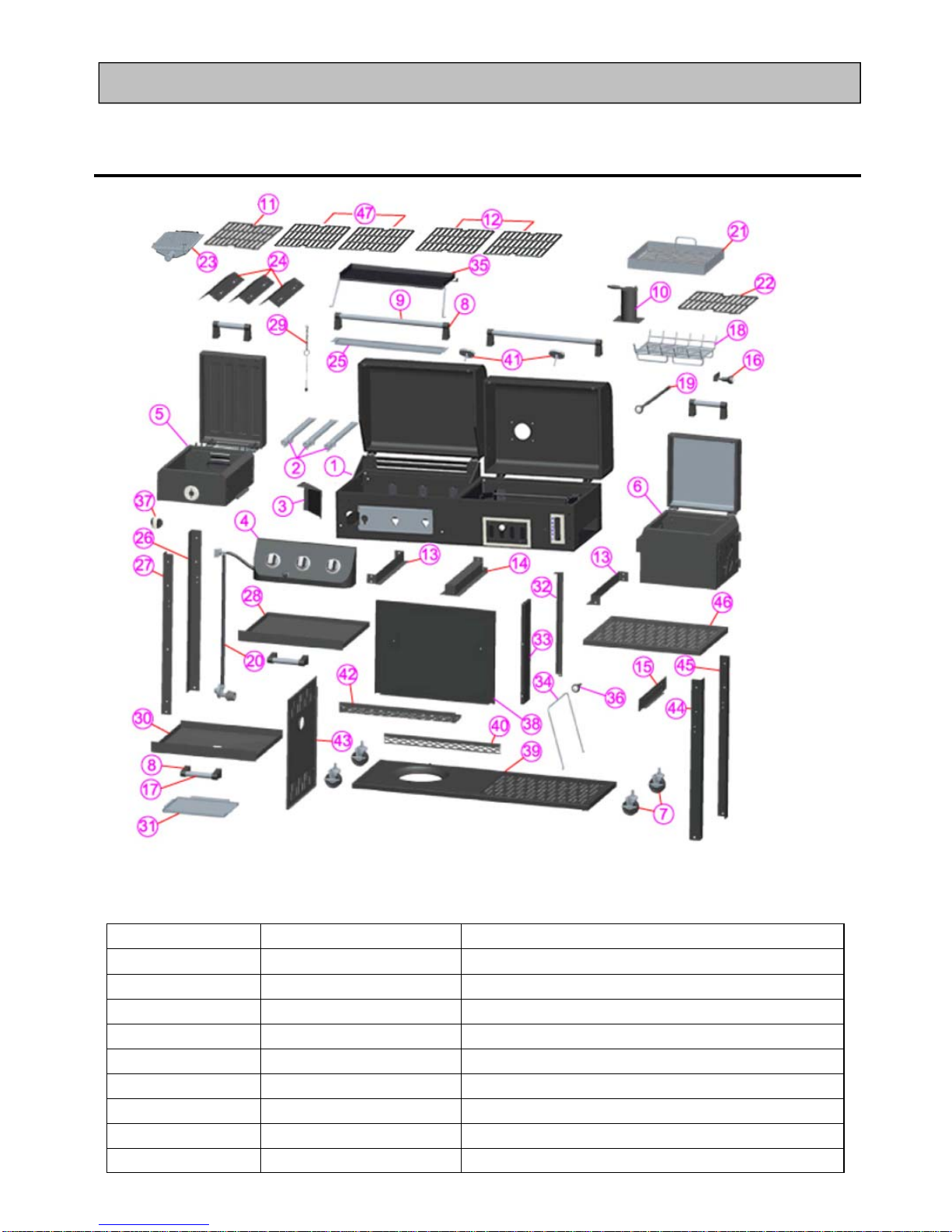

PS9900 Parts List
Note: For assistance, including missing or damaged parts, call toll free - 866-475-5180
from 8:30 am - 4:30 pm Central Time, Monday - Friday
Hardware Pack
Item Quantity Description
1 108 M6X15 Combo Head Bolts
2 2 M6X30 Combo Head Bolts
3 5 ST4.0*10 Combo Head Screws
4 14 M6 KEPS Nuts
5 2 Hinge Pins
6 2 R Clips
7 1 AA Battery
8 1 M6 Metal Lock Nut
9 1 Wheel Wrench
6

PS9900 Parts List
Item NO. Quantity Description Part No.
1 1 Gas And Charcoal Cabinet With Lids PS9900-01
2 3 Burner Tubes With Ignition Electrodes 47183T-02
3 1 HVR Cover 47183T-03
4 1 Control Panel Assembly 47183T-04
5 1 Sear Burner Housing and Lid Assembly PS9500-05
6 1 Firebox Housing. 47183T-06
7 4 Locking Caster Wheels TR007
8 12 Handle Stand- Off TR008
9 2 Long Handle Tube TR009
10 1 Smoke Stack Assembly TR010
11 1 Sear Burner Cooking Grid 47183T-11
12 2 Charcoal Cooking Grids PS9900-12
13 2 Side Drip Tray Guides 47183T-13
14 1 Center Drip Tray Guide 47183T-14
15 1 Firebox Support Bracket TR015
16 1 Firebox Door Handle TR016
17 4 Short Handle Tube TR017
18 1 Firebox Wood Rack 47183T-18
19 1 Charcoal Tray Lift Handle TR019
20 1 Hose,Valves and Regulator (HVR) 47183T-20
21 1 Charcoal Tray 47183T-21
22 1 Firebox Cooking Grid 47183T-22
23 1 Sear Burner PS9900-23
24 3 Heat Tents 47183T-24
25 1 Gas Grill Lid Heat Shield 47183T-25
26 1 Left Rear Leg - Yellow Label # 3 47183T-26
27 1 Left Front Leg - Green Label # 4 47183T-27
28 1 Charcoal Drip Tray TR028
29 1 Matchlighter and chain TR029
30 1 Gas Drip Tray 47183T-30
31 1 Removable Grease Cup 47183T-31
32 1 Rear Vertical Support 47183T-32
33 1 Front Vertical Support 47183T-33
34 1 Cylinder Retainer Wire 47183T-34
35 1 Warming Rack TR035
36 1 Damper Knob TR036
37 1 Sear Burner Gas Valve Knob TR037
38 1 Cart Front Panel 47183T-38
39 1 Bottom Shelf 47183T-39
40 1 Lower Condiment Front Mesh 47183T-40
41 2 Heat Indicators with wing nut and washer TR041
42 1 Middle Condiment Rack 47183T-42
43 1 Cart Left Side Panel 47183T-43
44 1 Right Front Leg - Blue Label # 2 47183T-44
45 1 Right Rear Leg - White Label # 1 47183T-45
46 1 Middle Mesh Shelf 47183T-46
48 1 Hardware Blister Pack 47183T-47
49 1 Instruction Manual PS9900-49
47 2 Gas Cooking Grids PS9900-47
7

Assembly
Note: Carefully cut the straps holding the carton together. Cut the carton sleeve so that it can
lay flat on the ground to provide a clean surface for assembling your Grill. Remove the packing
materials and all the parts from inside the Cabinet. After unpacking all the parts, check to make
sure you HAVE all the parts. If anything is damaged or missing, contact our toll free number:
866-475-5180. Discard all packing material in a safe and recyclable manner. Save this Assem-
bly Manual for future reference.
Note: “ Do not tighten any bolts until instructed to do so at a later date”
Tools Required: Phillips Head Screwdriver, Adjustable Wrench or Pliers
Step 1: Front Leg Assembly
Locate: Cabinet and Lid Assembly, Left
Front Leg #4, and Right Front Leg #2
and (7) M6x15 bolts.
Note: Each Leg will have an identifica-
tion label. Do not tighten any bolts
until instructed to do so later in the
assembly. (After you complete step

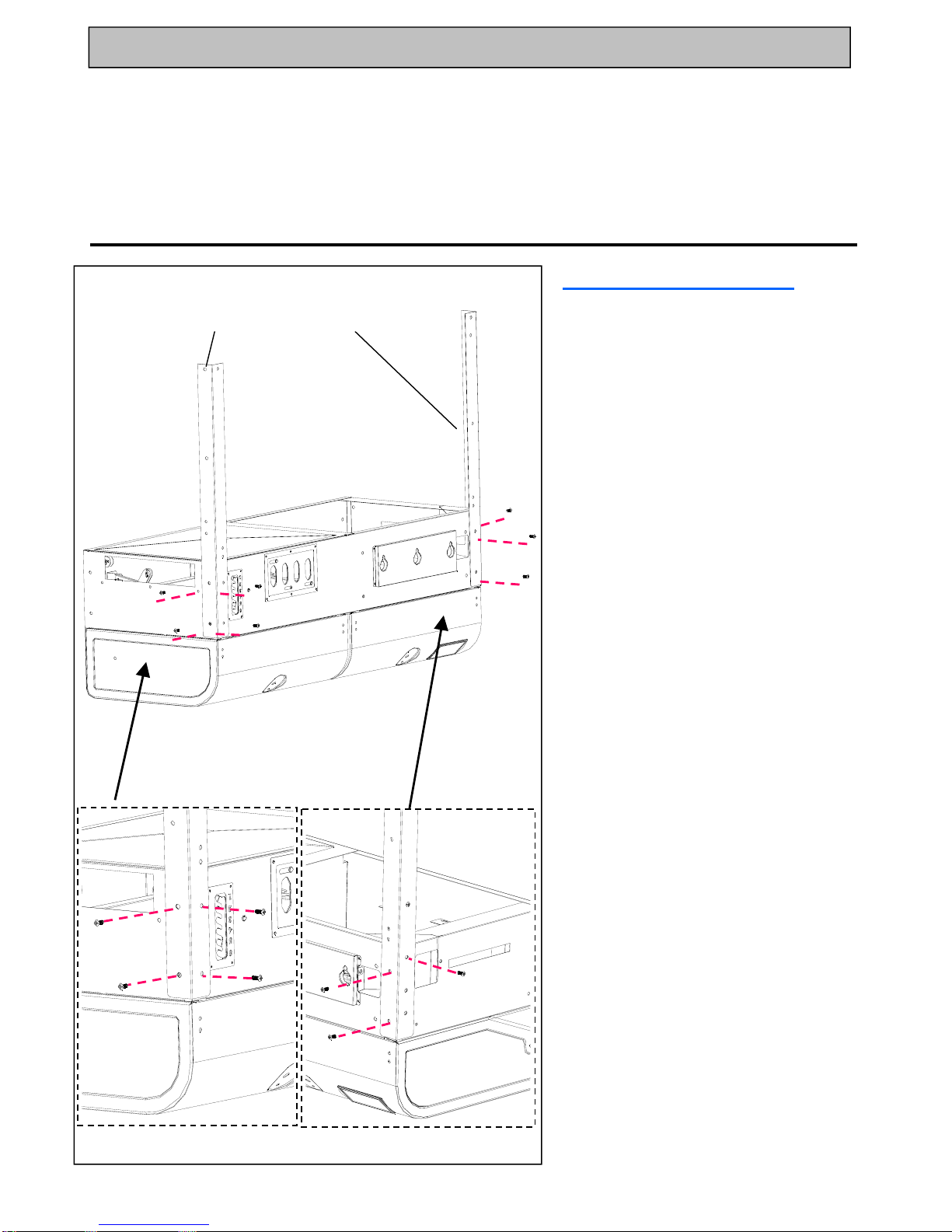

14)
Procedure: Position Cabinet Upside
Down as shown in Fig. 1 and attach
the Left Front Leg using (3) M6x15
bolts and the Right Front leg using (4)
M6x15 bolts, as shown in Fig. 1.
Step 1
Right Front Leg #2 Left Front Leg #4
Fig. 1
8

Left Rear Leg #3
Assembly
Step 2 Step 2: Rear Leg Assembly
Locate: Left Rear Leg #3 and Right
Rear Leg #1 and (6) M6x15 bolts
Procedure: Attach Left Rear Leg us-
ing (2) M6x15 bolts and Right Rear
Leg using (4) M6x15 bolts, as shown
in Fig. 2.
Fig. 2
9
Right Rear Leg #1
#4
#2

Assembly
10
Step 3 Step 3: Assembly of the Cart Left Side
Panel:
Locate: Locate the Cart Left Side Panel and
(4) M6x15 Bolts and the Assembled Grill
Procedure: Refer to Fig. 3 and slide the
Panel into position on the Left Side of the
Grill, inside the Legs. Fasten to the Legs us-
ing (4) M6x15 bolts. Do not fully tighten
bolts.
Note: The Bent Sides (Flanges) must face
inward! The large hole for the gas hose
should be positioned closer to the Grill
Cabinet assembly.
Bent Side
Fig. 3

Assembly

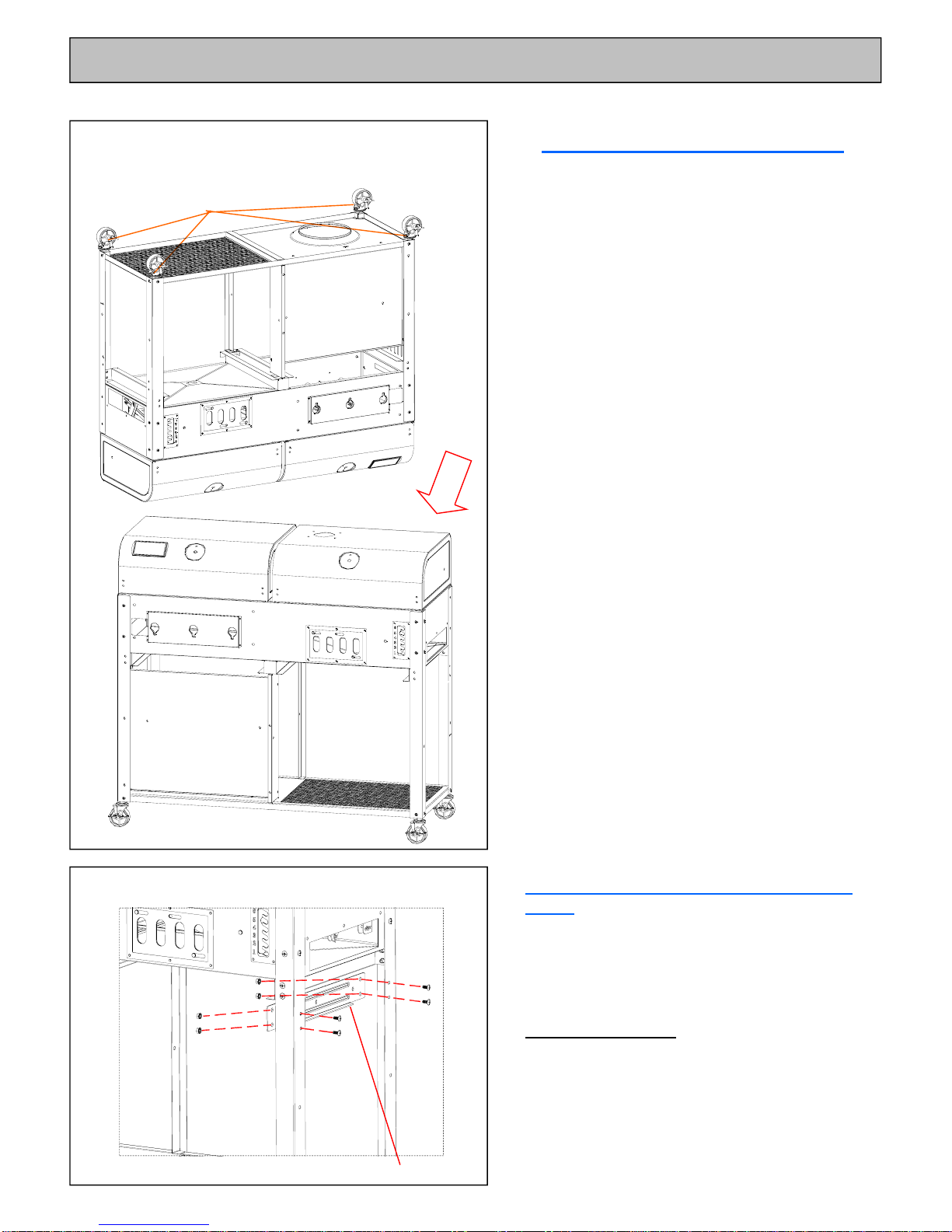

Step 4 Step 4: Assemble the Side Drip Tray Guides
Locate: (2) Side Drip Tray Guides, (1) Center
Drip Tray Guide and (10) M6x15 bolts.
Procedure: Place a side Drip Tray Guide inside
the Left Side Legs, as shown in Fig. 4A and fas-
ten with (4) M6x15 bolts. Place a Side Drip Tray
Guide inside the Right Side Legs, and fasten
with (4) M6x15 bolts. From in front of the Grill,
find the threaded hole on the underside of the
Cabinet and partially insert an M6x15 bolt as
shown in Fig. 4B. Position the Center Drip Tray
Guide so that the “keyhole” fits over the partially
installed bolt – refer to Fig. 4C. Then gently
push the Guide towards the back of the Grill
Cabinet so that the Tab of the Guide, fits over
the threaded hole in the lower back side of the
Cabinet and fasten with an M6x15 bolt as
shown in Fig. 4D. Now, tighten the M6x15 bolt
that is partially installed at the front of this Cen-
ter Guide.
Fig. 4B
Fig. 4C
Fig. 4D
Fig. 4A
11

Assembly

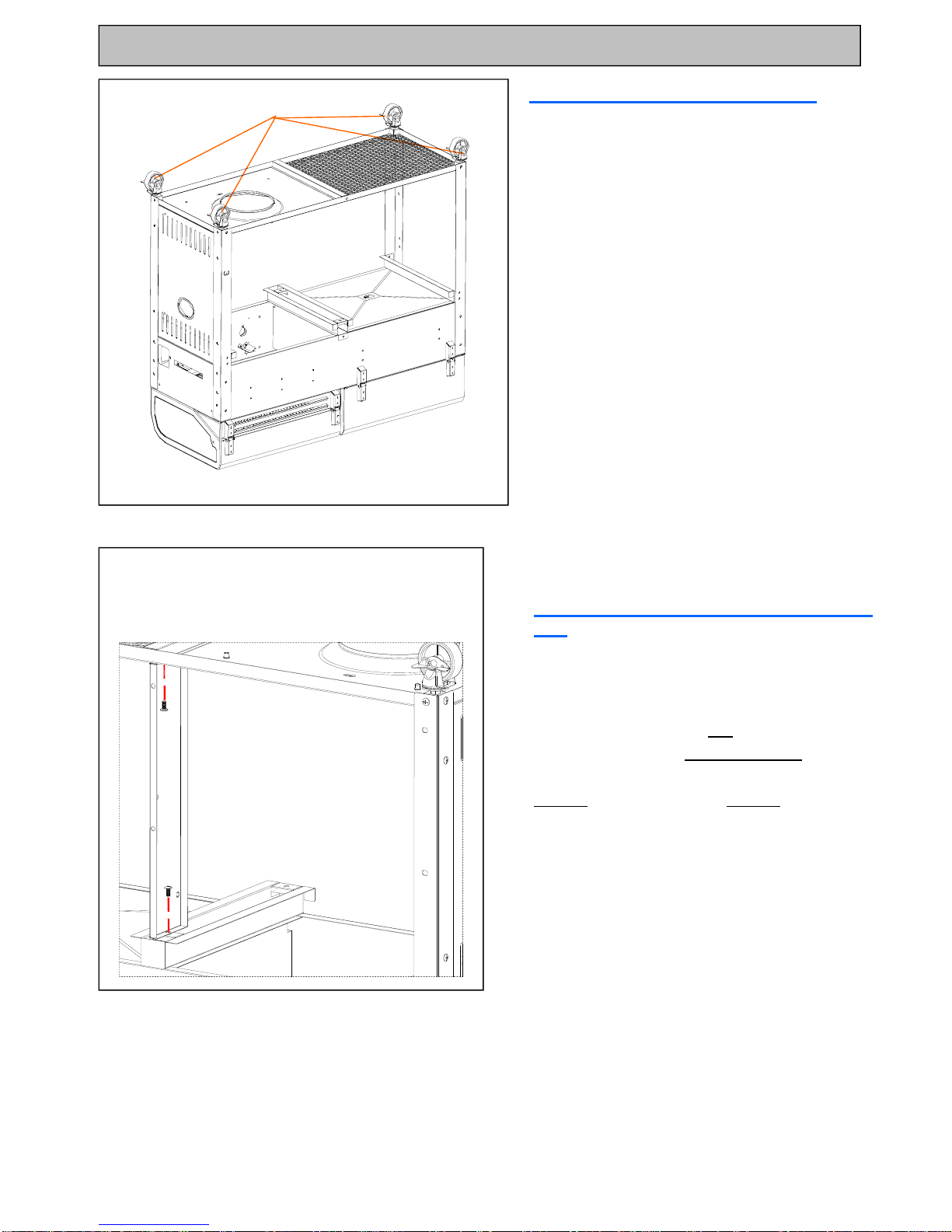

Step 5: Caster Wheels Assembly
Locate: Bottom Shelf and (4) Locking
Caster Wheels
Procedure: Refer to Fig. 5, and screw a
Caster Wheel into each of the (4) corners
of the bottom of the Bottom Shelf. Then,
using the wrench, tighten the nut holding
the Caster wheel securely.
Step 6: Bottom Shelf Assembly
Locate: Cabinet Assembly with Legs and
Bottom Shelf Assembly with Caster Wheels
and (8) M6x15 bolts.
Procedure: Refer to Fig. 6 and with the
Cabinet Assembly STILL upside down, at-
tach the Bottom Shelf assembly using (2)
M6x15 bolts at each Leg.
Step 5
Step 6
Fig.5
Fig.6
12

Assembly
Step 7 Step 7: Locking the Caster Wheels
Locate: The Assembly you have just pre-
pared
Procedure: Refer to Fig. 7. Each Caster
Wheel has a tab on its side. Push down
on each tab and check that the wheel can-
not turn. This is a convenience procedure,
so that when you turn the Grill Assembly
right side up, it will not move or roll away.
13
Step 8: Assemble the Front Vertical Sup-
port
Locate: Front Vertical Support and (2)
M6x15 bolts.
Procedure: Attach the top of the Front Ver-
tical Support to the front underside of the
Center Drip Tray Guide. Then attach the
bottom of the Support to the top of the Bot-
tom Shelf, using the two M6x15 bolts as
shown in Fig. 8. Make sure the (2) holes in
the Vertical Support are facing the Grill
front.
Step 8
Locked
Fig.8
Fig.7

Assembly

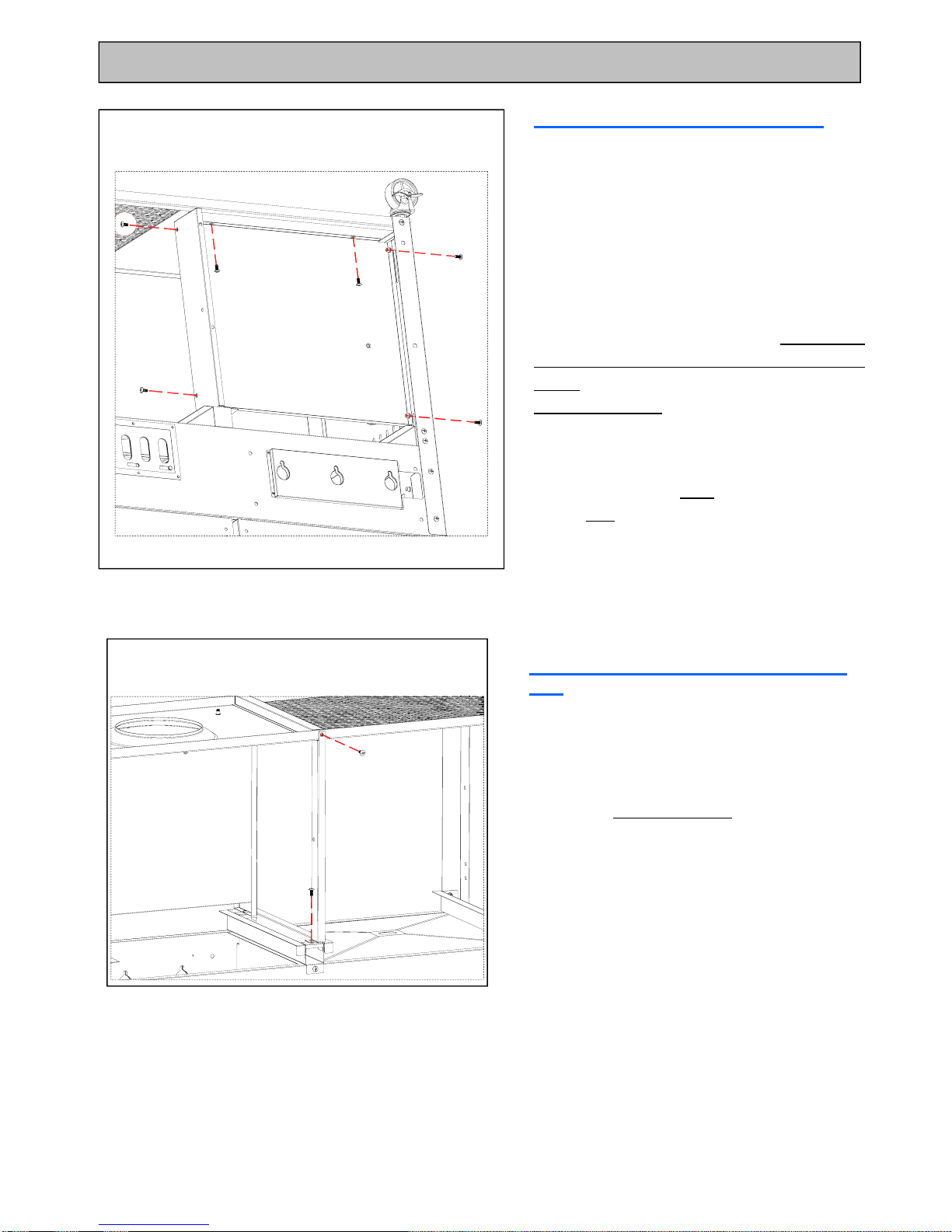

Step 9: Attach the Cart Front Panel
Locate: Cart Front Panel, Assembled: Cart
Left Side Panel, Front Vertical Support
and Bottom Shelf and (6) M6x15 bolts
Procedure: Refer to Fig. 9. Attach the Cart
Front Panel to the (2) threaded holes in
the Bottom Shelf with (2)M6x15bolts.
PLEASE Note: When in place, the back of
the Cart Front Panel will be inside and
away from the front edge of the Bottom
Shelf with the bent edges (flanges) facing
toward the front of the Grill. This is to form
the space for the Condiment Racks!
Next attach the Cart Front Panel to the (2)
threaded holes in both the Cart Left Side
Panel and the Front Vertical Support, us-
ing (2)M6x15 bolts for each part.
Step 9 Fig. 9
Step 10: Attach the Back Vertical Sup-
port
Locate: Back Vertical Support and (2)
M6x15 bolts
Procedure: Attach the Back Vertical Sup-
port to the back underside of the Center
Drip Tray Guide and the back flange of the
Bottom Shelf as shown in Fig. 10.
Step 10 Fig. 10
14

Assembly
Step 12: Assemble the Firebox Support
Brace
Locate: Firebox Support Brace, (4) M6x15
Bolts and (4) M6 KEPS nuts.
Procedure: Place the Firebox Support Brace
inside and between the Right Side Legs, so
that the ledge of the Brace is at the bottom
and facing out as shown in Fig. 12.
Insert M6x15 bolts through the Legs and
then through the Brace as shown. Screw on
the M6 KEPS nuts and tighten securely.
Step 12 Fig.12
Ledge
Step 11: Turn the Grill to be Upright.
Now, with the help of at least one other
person, turn the Grill Assembly right side
up. It should look like the Fig. 11.
Step11 Fig.11
Locked
15

Assembly
Step 13. Attach the Condiment Racks
Locate: Middle Condiment Rack, Lower
Condiment Front Mesh and (6) M6x15
bolts.
Procedure: Attach Middle Condiment
Rack to the Left Front Leg, Front Vertical
Support and the Cart Front Panel with (4)
M6x15 bolts. Then attach the Lower Con-
diment Front Mesh to the Left Front leg
and to the Front Vertical Support using (2)
M6x15 bolts as shown in Fig. 13A and Fig.
13B
Step 14: Attach the Middle Mesh Shelf
Locate: Middle Mesh Shelf and (4) M6x15
bolts
Procedure: Attach the Middle Mesh Shelf
to both Right Legs and to both Vertical
Supports using (4) M6x15 bolts as shown
in Fig. 14.
Fully tighten all bolts at this time.
Step 13
Step 14
16
Fig.13A
Fig.13B
Fig.14

Assembly
Step 15: Assemble Handle to the Gas Lid
Locate: Gas Lid, (2) Handle Stand-offs, (1)
Long Handle Tube, (4) M6x15 bolts and (1)
Gas Lid Heat Shield
Procedure: Refer to Fig. 15. Open the Gas
Grill Lid and fit the Heat Shield in place in-
side the lid over the (4) holes for attaching
the Handle. Place (2) M6x15 bolts through
the Heat Shield and then the Lid holes on
one side of the Lid. Fit a Handle Stand-off
over the bolts and attach the Stand-off to the
Lid. Fit the long Handle Tube into both
Stand-offs and then repeat the procedure of
inserting the screws through the Heat
Shield, the Lid and into the other Stand-off.
Tighten all (4) bolts securely.
Step 15
Fig.15
Step 16 Step 16: Assemble Handle to Charcoal Lid
Locate: Charcoal Lid, (2) Handle Stand-offs,
(1) Long Handle Tube and (4) M6x15 bolts
Procedure: Refer to Fig. 16. Open the Char-
coal Grill Lid. Place (2) M6x15 bolts through
the Lid holes on one side of the Lid. Fit a
Handle Stand-off over the bolts and attach
the Stand-off to the Lid. Fit the long Handle
Tube into both Stand-offs and then repeat the
procedure of inserting the screws through the
Lid and into the other Stand-off. Tighten all
(4) bolts securely.
Fig.16
Gas Lid Heat Shield
17

Assembly

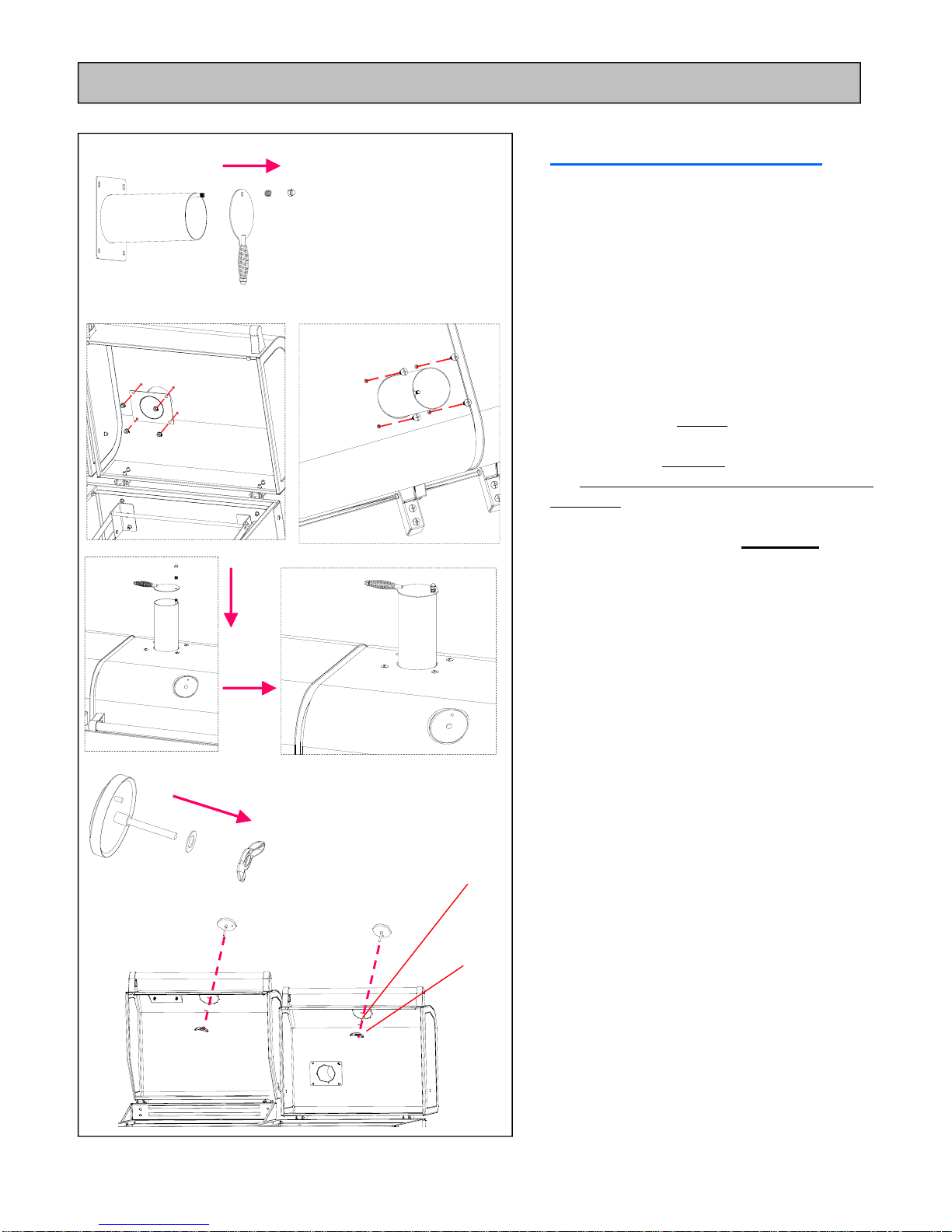

Step 17: Attach the Smoke Stack
Locate: Charcoal Lid Assembly, (1)
Smoke Stack Assembly, (4) M6x15 bolts
and (4) M6 KEPS nuts, and (2) Heat Indi-
cators
Procedure: Refer to Fig. 17A and unscrew
the dome nut, and remove it and the small
spring which attaches the Cap to the
Smoke Stack.
Insert the Smoke Stack Assembly through
the Lid from the inside as Shown in
Fig.17B .Note: the Smoke Stack Cap at-
taching screw must be located towards
the right hand side of the Lid as shown in
Fig.17C. Attach the Smoke Stack Assem-
bly to the Lid with (4) M6x15 bolts inserted
through the Lid from the OUTSIDE. Fas-
ten the Smoke Stack Assembly to the Lid
with (4) KEPS nuts securely INSIDE the
Lid as shown in Fig.17B.
Replace the Smoke Stack Cap as shown
in Fig.17D and the position of the handle
as shown in Fig. 17D.
Unscrew the wing nut and washer from
each of the Heat Indicators as shown in
Fig.17E.
Place (1) Heat Indicator into the area in
the center of EACH Grill Lid and fasten in
place with the washer and wing nut as
shown in Fig.17F.
Step 17
Fig.17 A
Fig.17 B Fig.17 C
Fig.17 D
Fig.17 E
Fig.17 F
Wing Nut
Washer
18

Assembly

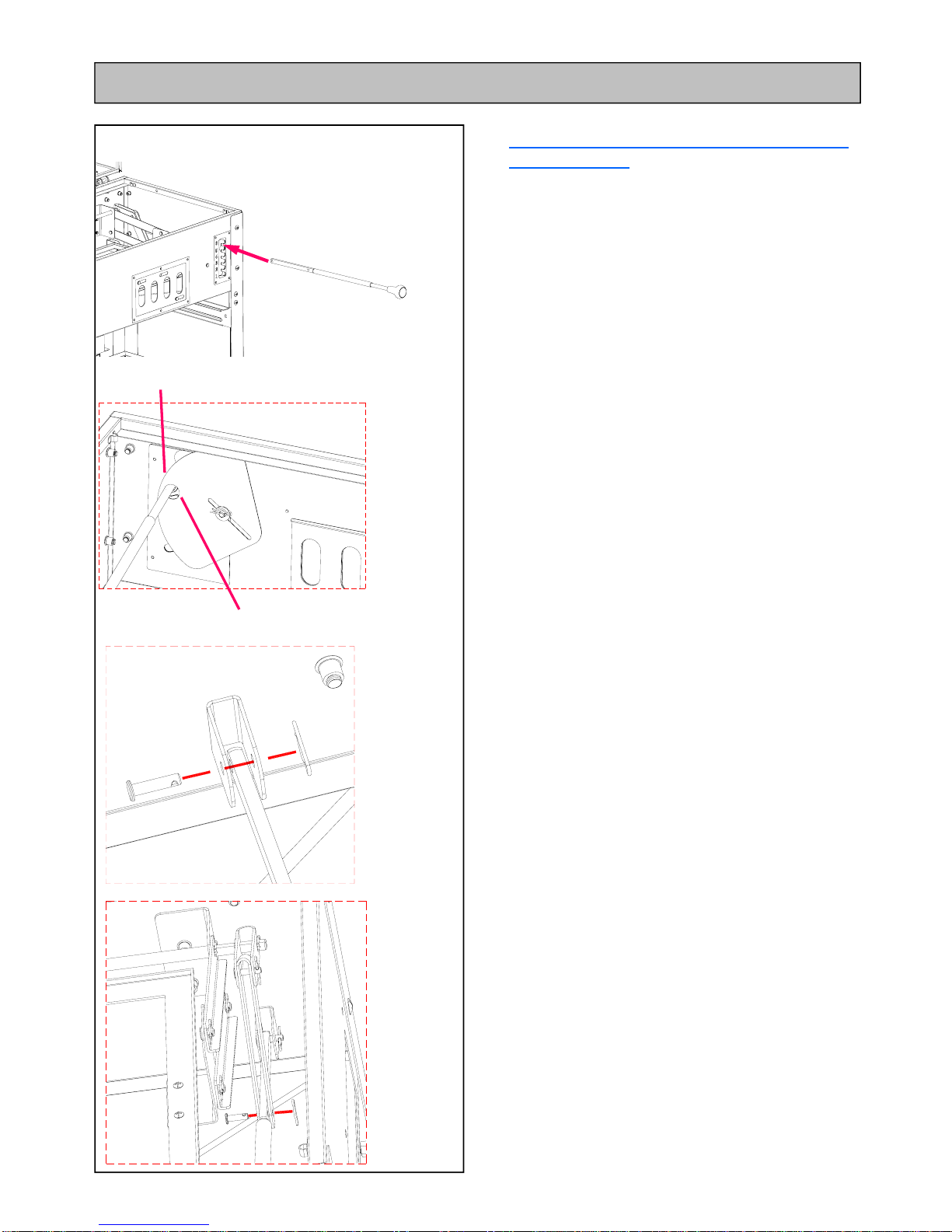

Step 18: Installing the Charcoal Tray
Lifting System
Locate: Charcoal Tray Lift System Lift Han-
dle, (2) Hinge Pins and (2) “R” Clips
Procedure: Refer to Figs. 18A and 18B and
Slide the Lift Handle through the adjusting
slot and through the hole of the inside
plate. Align the hole in the end of the Lift
Handle with the holes in the “U” shaped
bracket located at the back of the Cabinet.
Join the Lift Handle and the “U” shaped
Bracket by inserting a Hinge pin as shown
in Fig. 18C.
Then insert an “R” Clip through the hole in
the Hinge Pin. Attach the Lift Handle to the
Lift System by inserting a Hinge Pin
through the “U” shaped Lift Arm and the
hole in the center of the Lift Handle as
shown in Fig. 18D.
Then insert an “R” clip through the hole in
the Hinge Pin. You should now be able to
adjust the Charcoal Tray Lifting System to
your desired height by moving the Lift Han-
dle to the left and then raising or lowering it.
Step 18
Hole
Inside Cabinet
Fig. 18 A
Fig.18 B
Fig. 18 C
Fig. 18 D
19

Assembly
Step 19: Attach the Handle to the Firebox
Lid and the Firebox to the Grill Assembly
Locate: Firebox and Lid Assembly, (2) Han-
dle Stand-offs, (1) Short Handle Tube, (10)
M6x15 bolts, and (6) KEPS nuts
Procedure: Refer to Fig. 19A. Open the Fire-
box Lid and place (2) M6x15 bolts through
the Lid holes on one side of the Lid. Fit a
Handle Stand-off over the bolts and attach
the Stand-off to the Lid. Fit the Short Handle
Tube into both Stand-offs and then repeat
the procedure of inserting the screws through
the Lid and into the other Stand-off. Tighten
all (4) bolts securely.
Refer to Fig. 19B and Align the Firebox As-
sembly with the rectangular opening in the
right side of the Grill Cabinet, so that it is
resting on the ledge of the Firebox Support
Bracket. Insert (3) M6x15 bolts through the
Firebox and the Cabinet Wall. Attach (3) M6
KEPS nuts to each of the bolts. Insert (3) M6
x15 bolts through the Firebox and the Fire-
box Support Bracket and attach (3) KEPS
nuts to the bolts. Make certain that all bolts
are securely tightened.
Step 20: Attach the Firebox Door Handle
Locate: Firebox and Lid Assembly, Firebox
Door Handle, (1) M6x15 bolt and (1) Metal
lock nut
Procedure: Refer to Fig. 20 and Place the
Firebox Door Handle on the outside of the
Firebox Door and insert an M6x15 bolt
through the Door Handle and the Door as
shown. Attach an M6 metal lock nut. Tighten
with wrench or pliers until the Handle can still
move freely.
Step 19 Fig.19 A
Fig.19 B
20
Step 20 Fig.20
