Smoke hollow VT280SS1 Installation instructions

Tabletop Gas Grill
VT280SS1
Tools needed for assembly:
Phillips screwdriver, Pliers or Adjust-
able Wrench
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odor continues, keep away from
the appliance and immediately call
your fire department.
Failure to follow these instructions could
result in fire or explosion which could
cause property damage, personal injury
or death.
DANGER
1. Never operate this appliance unat-
tended.
2. Never operate this appliance within
10 ft (3.0 m) of any structure, com-
bustible material or other gas cylin-
der.
3. Never operate this appliance within
25 ft (7.5 m) of any flammable liquid.
4. Do not fill cooking vessel beyond
maximum fill-line.
5. Never allow oil or grease to get hot-
ter than 400°F or 200°C. If the tem-
perature exceeds 400°F (200°C) or
if oil begins to smoke, immediately
turn the burner or gas supply OFF.
6. Heated liquids remain at scalding
temperatures long after the cooking
process. Never touch cooking appli-
ance until liquids have cooled to
115°F (45°C) or less.
7. If a fire should occur, keep away
from the appliance and immediately
call your fire department. Do not at-
tempt to extinguish an oil or grease
fire with water.
Failure to follow these instructions could
result in fire or explosion which could
cause property damage, personal injury
or death.
DANGER
Conforms to ANSI Std Z21.89-2013
Outdoor cooking specialty gas appliance

2
WARNING
For Outdoor Use Only
(outside of any type of enclosure)
WARNING
If you smell gas –
● Turn off the gas supply to the appli-
ance
● Extinguish any and all open flames
● Open the Lid of the Grill
● If the odor remains, stay away from
the grill and notify your gas supplier
and/or the Fire Department.
WARNING
● Do not use or store gasoline, kero-
sene, alcohol, or other flammable
liquids or vapors in the vicinity of
this appliance or any other appli-
ance.
● Any LP Gas Cylinder NOT con-
nected for use with the appliance,
shall not be stored in the same vi-
cinity of this or any other appliance.
● A LP Propane Gas Cylinder is
needed for operating the gas side of
this grill.
● The LP Gas Cylinder is NOT in-
cluded.
● This gas grill is only intended for
Domestic use, not to be used for
any commercial purpose.
WARNING
● Never use the gas or charcoal grill
for INDOOR cooking or heating
● Never use the grill on or in a boat or
recreational vehicle
The combustion fumes from either
the gas or charcoal grill are toxic and
can cause severe illness and possibly
death.
DANGER
The combustion of Propane gas can
yield the formation of chemical com-
pounds known in the state of Califor-
nia，U.S.A., to cause birth defects，
cancer，and other serious health mat-
ters.
WARNING
Read this installation manual before as-
sembling or servicing this appliance.
Failure to follow these instructions may
result in an faulty installation, which
could cause damage to property, dam-
age personal injury or death.
Save these instructions after reading
them in case you need to refer to them
in the future.
IMPORTANT
CALIFORNIA PROPOSITION 65
1. Combustion by-products produced
when using this product contain
chemicals known to the State of
California to cause cancer, birth de-
fects, and other reproductive harm.
2. This product contains chemicals,
including lead and lead compounds,
known to the State of California to
case cancer, birth defects, and
other reproductive harm.
Wash your hands after handling this
product.
WARNING

3
Read all safeguards and assembly instruc-
tions before assembling and operating
your grill.
Before assembling your new grill, unpack
all the parts from the box. Carefully re-
move all packing material and lay out all
the parts for easy access and identifica-
tion. Do not discard the carton or packag-
ing until your grill is fully assembled and
operating to your satisfaction.
In order to properly assemble your grill,
you will only need two tools:
● Phillips head screwdriver
● Pliers or adjustable wrench
(tools not included)
The grill is heavy and must be moved
around during assembly and before use.
Be sure to have a friend help.
Outdoor Leisure Products, Inc.
5400 Doniphan Drive
Neosho, MO 64850
Toll Free: 866-475-5180
Website: www.olp-inc.com
8:30am to 4:30pm, Central Time
Monday through Friday

4
SAFETY WARNINGS
1. The installation of this grill must conform to local codes, or in the absence of local codes, with either
the National Fuel Gas Code, ANSI Z223.1 / NFPA 54, Natural Gas and Propane Installation Code,
CSA B149.1, or Propane Storage and Handling Code, B 149.2, or The Standard for recreational
Vehicles, ANSI 119.2 / NFPA, and CSA Z240 RV Series, Recreational Vehicle Code, as Acceptable.
2. The Gas Grill is for use with LP (Propane) Gas ONLY! LP Gas Cylinder is NOT included with the Grill.
3. Never use lighter fluid, gasoline, kerosene, or alcohol for lighting the gas grill.
4. The LP Gas supply Cylinder used must be constructed and marked in accordance with the Specifica-
tions of the U.S. Department of Transportation (D.O.T.) or The Standard for
Cylinders, Spheres and
Tubes for Transportation of Dangerous Goods; and Commission, CAN/CSA-B339, as applicable. It
MUST be provided with a Listed Overfilling Device. Only use 20 pound cylinders that have a type 1 cyl-
inder connection device compatible with the Connection for Outdoor Cooking Appliances.
5. The LP gas cylinder must be arranged for vapor withdrawal, purging and have an overfilling prevention
device.
6. LP Gas Cylinders must be stored outdoors, out of the reach of children, and must not be stored in a
building, garage or any other enclosed area.
7. The Pressure regulator and Hose Assembly supplied with the Grill, must be used. Any replacement
regulator and hose assemblies must be those specified by the outdoor cooking gas appliance manu-
facturer.
8. The LP Gas Cylinder must include a collar to protect the cylinder valve.
9. Do not store a spare LP Gas Cylinder under or near this grill.
10. Never fill the LP Gas Cylinder beyond 80% full. For vapor withdrawal /purging, the cylinder should be
in the upright position.
11. This outdoor cooking gas appliance must only be used outdoors, and must not be used in a building,
garage or any enclosed area.
12. The following distances for proper clearance must be maintained :
● Minimum distance from back and sides of the outdoor cooking gas appliance to walls is 36" ( 1 me-
ter )
● Do not use under any overhead combustible constructions
● For outdoor use only
● Remove LP Gas Cylinder from grill if storing grill indoors
13. This outdoor cooking gas appliance is not intended to be installed in or on boats.
14. Inspect the Gas Hose before each use. If the Hose has any leak, cut or wear, it must be replaced BE-
FORE using the grill.
15. Do not try to move the grill while the gas chamber is lit.
16. Wait one hour minimum before touching any metal parts, until they are cool.
17. NEVER leave the grill unattended when in use.
18. Keep children and pets away from the grill when in use.
19. Note: Grease Cup should be emptied and cleaned after each use to prevent flare – ups and /or
grease fires.
IF THESE INSTRUCTIONS ARE NOT FOLLOWED EXACTLY, A FIRE CAUSING
DEATH OR SERIOUS INJURIES MAY OCCUR!

5
READ ALL SAFEGUARDS AND INSTRUCTIONS THOROUGHLY!
YOUR SAFETY IS VERY IMPORTANT – FAILURE TO FOLLOW PROPER PROCEDURES AND
SAFEGUARDS MAY RESULT IN PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
DANGER DANGER
● The GRILL is for outdoor use only!
● Do NOT use this grill for other than its intended
purpose.
● Do not leave grill unattended when in use.
● Do not use gasoline, kerosene or alcohol for light-
ing charcoal, use of any of these or similar prod-
ucts may cause an explosion possibly leading to
severe bodily harm.
● Never operate this grill under any overhead roof
covering, awning or overhang. Never use inside
an enclosed area such as screen patios, garages,
buildings or tents.
● Keep the area clear of all flammable liquids, com-
bustible material including but not limited to wood,
dry plants including grass, brush, paper, and can-
vas.
● Grill is HOT while in use and after use – Avoid
touching hot surfaces. Always wear protective
gloves or mitts when operating the smoker.
● Keep children and pets away from the grill at all
times.
● Do not allow anyone to conduct activities around
the grill during or following its use until the unit
has cooled. The grill is hot during operation and
remains hot for a period of time following its use.
● Always wear shoes and protective clothing during
operation of this grill.
● Never use glassware, plastic, or ceramic cook-
ware in this grill.
● The cooking chamber lid will be extremely hot.
● Do not use water to extinguish grease fires.
● Do not move the unit while it is being used.
● Do not use in windy conditions.
● Use caution when opening the lid, as hot stream
or a flame flare-up could cause burns.
● Before each use, make sure the unit is in good
working condition.
● Use caution after the fire has been extinguished,
the surface will remain hot for some time.
● Store the grill out of reach of children and in a dry
location when not in use.
● When opening the lids, keep hands, face and
body a safe distance from hot steam and flame
flare-ups.
● Close lids and all dampers to suffocate flame.
● Never leave coals and ashes in grill unattended.
● Use caution when lifting or moving grill to prevent
strains and back injuries.
● Properly dispose of all packaging material.
USE CAUTION AND COMMON SENSE WHEN OPERATING YOUR GRILL. READ ALL INSTRUCTIONS,
WARNINGS AND SAFEGUARDS PRIOR TO ASSEMBLING AND OPERATING YOUR GRILL.
SAVE THESE INSTRUCTIONS

6
Hardware Pack
Quantity Description
10 M6x12 Combo Truss Head Bolts, Black Nickel Plated
2M5x17 Shoulder Bolts, Black Nickel Plated
6 M5x10 Combo Truss Head Bolts, Black Nickel Plated
2 M5 Nuts
2M6x20 Combo Truss Head Bolts, Black Nickel Plated
6Spring Washers
VT280SS1 Parts List
Note: For assistance, including missing or damaged parts, call toll free - 866-475-5180
from 8:30 am - 4:30 pm Central Time, Monday - Friday
4
5
6
7
8
9
10
11
12
13
14
15 16 17 18
3 2
1
19

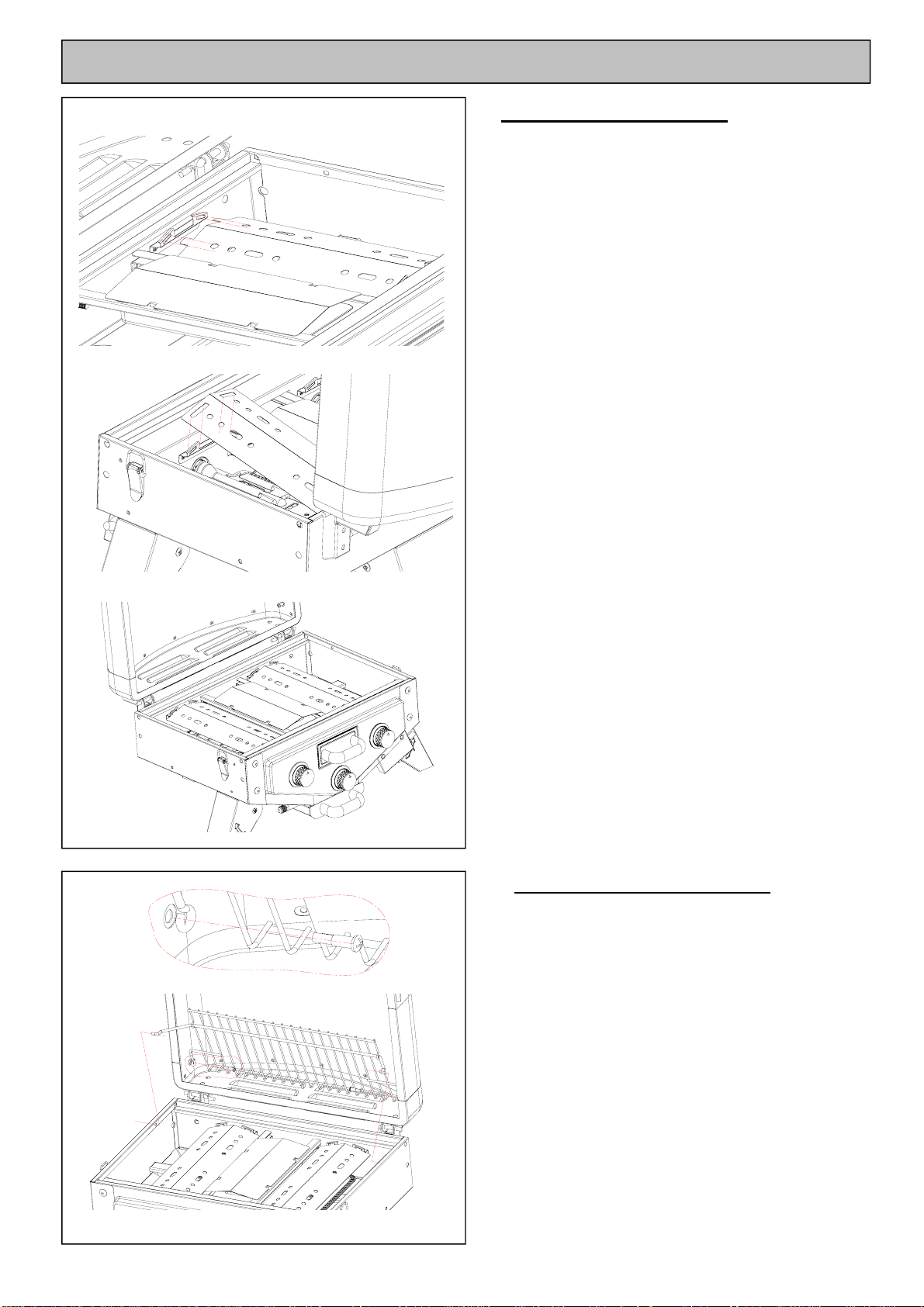

Item No. Quantity Description Part No.
1 1 Grill Lid and Firebox Assembly VT280SS1-01
2 1 Wood Chip Box Left Rail VT280RDS-19
3 1 Wood Chip Box Right Rail VT280RDS-20
4 1 Warming Rack VT280RDS-04
5 1 Heat Indicator VT280RDS-05
6 1 Lid Handle VT280RDS-06
7 1 Lid Decorative Plate VT280SS1-07
8 2 Cooking Grid VT280RDS-08
9 1 Wood Chip Box Tent VT280RDS-09
10 1 Wood Chip Box Lid VT280RDS-10
11 1 Wood Chip Box VT280RDS-11
12 1 Wood Chip Box Front Panel Assembly VT280RDS-12
13 1 Wood Chip Box Handle VT280RDS-13
14 2 Side Supporting Leg VT280RDS-14
15 2 Heat Tent VT280RDS-15
16 1 Grease Tray Handle VT280RDS-16
17 1 Grease Tray VT280RDS-17
18 1 Rear Supporting Leg VT280RDS-18
19 1 Wood Chip Box Lock VT280RDS-22

7
Assembly
Note: Carefully cut the tape holding the carton together. Cut the carton so that it can lay flat on
the ground to provide a clean surface for assembling your Grill. Remove the packing materials
and all the parts from inside the Cabinet. After unpacking all the parts, check to make sure you
HAVE all the parts. If anything is damaged or missing, contact our toll free number: 866-475-
5180. Discard all packing material in a safe and recyclable manner. Save this Assembly Manual
for future reference.
Tools Required: Phillips Head Screwdriver, Adjustable Wrench or Pliers

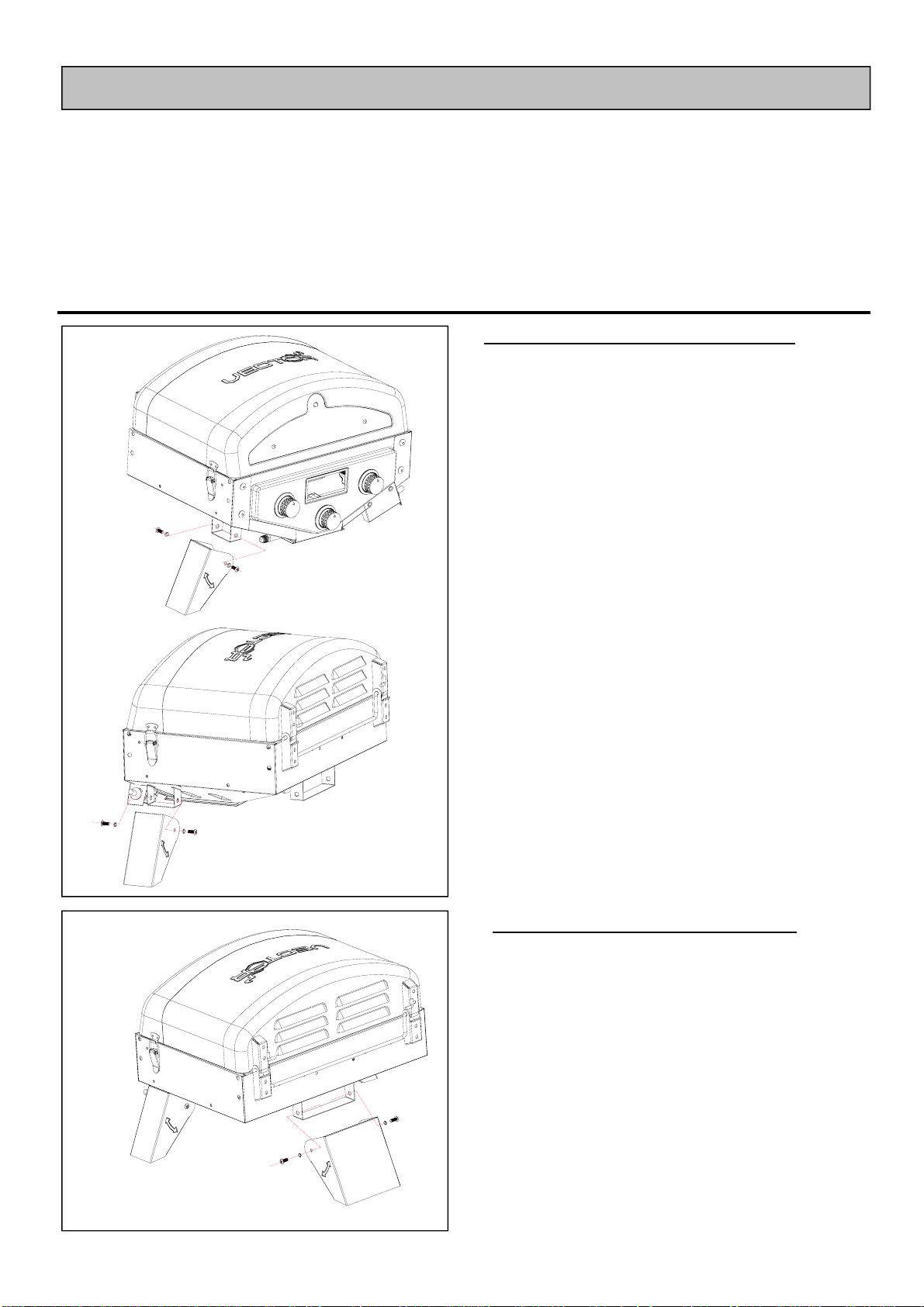

Step 2
Step 1 Step 1: Attach the Side Supporting Legs
Locate: Grill Lid and Firebox Assembly, (2) Side
Supporting Legs, (4) spring washers and (4) M6x12
bolts
Procedure: Attach (2) Side Supporting Legs to the
Grill Lid and Firebox Assembly using (4) spring
washers and (4) M6x12 bolts as shown in Fig. 1A
and Fig. 1B.
Fig. 1A
Fig. 1B
Step 2: Attach the Rear Supporting Leg
Locate: Rear Supporting Leg, (2) spring washers
and (2) M6x12 bolts
Procedure: Attach the Rear Supporting Leg to the
Grill Lid and Firebox Assembly using, (2) spring
washers and (2) M6x12 bolts as shown in Fig. 2.
Fig. 2

8
Assembly

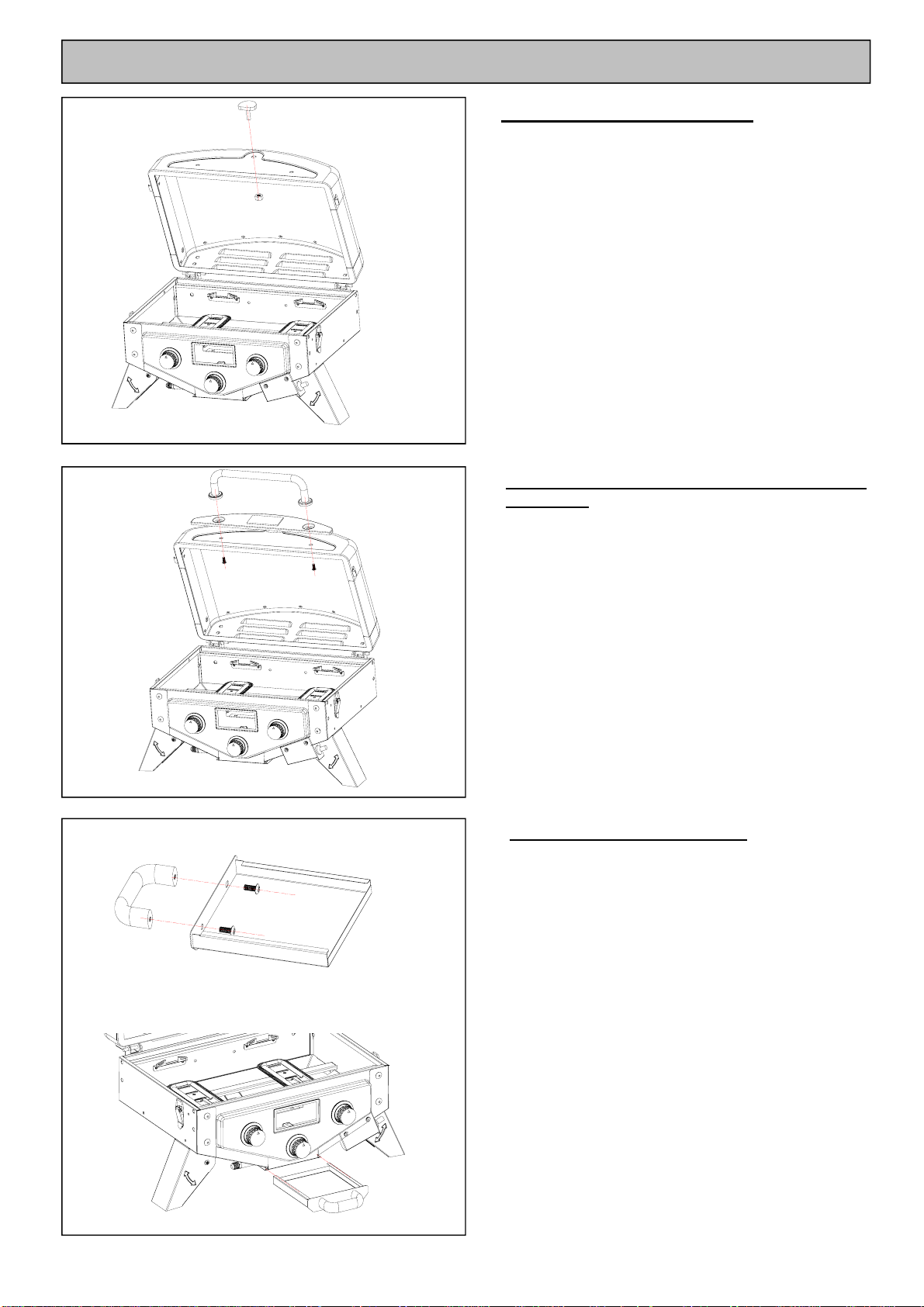

Step 3
Step 5
Step 3: Attach the Heat Indicator
Locate: Heat Indicator
Procedure: Remove the nut from the Heat Indica-
tor first, then attach the Heat Indicator to the Grill
Lid using the nut as shown in Fig. 3.
Fig. 3
Fig. 5A
Step 5: Attach the Grease Tray
Locate: Grease Tray and Handle, (2) M6x12 bolts
Procedure:
Attach the Grease Tray Handle to the Grease
Tray using (2) M6x12 bolts as shown in Fig. 5A.
Slide the Grease Tray Assembly into the bottom
of the Firebox as shown in Fig. 5B.
Step 4: Attach the Lid Decorative Plate and
Lid Handle
Locate: Lid Decorative Plate, Lid Handle and (2)
M6x20 bolts
Procedure: Attach the Lid Decorative Plate and
Lid Handle to the Grill Lid using (2) M6x20 bolts
as shown in Fig. 4.
Fig. 5B
Step 4
Fig. 4

9
Assembly
Step 6: Attach the Wood Chip Box Rails
Locate: Wood Chip Box Left & Right Rails, (4)
M5x10 bolts
Procedure:
Push the Wood Chip Box Left Rail into the rectan-
gular hole in the Front Panel of the Firebox as
shown in Fig. 6A.
Attach the bracket of the Wood Chip Box Left Rail
to the left side of front panel using (1) M5x10 bolt
as shown in Fig. 6B.
Attach the Wood Chip Box Left Rail to the Rear
Panel of the Firebox using (1) M5x10 bolt as
shown in Fig. 6C.
Refer to Fig. 6A to Fig. 6C, attach the Wood Chip
Box Right Rail to the Firebox as shown in Fig. 6D.
Step 6
Fig. 6B
Fig. 6A
Fig. 6C
Fig. 6D

10
Assembly

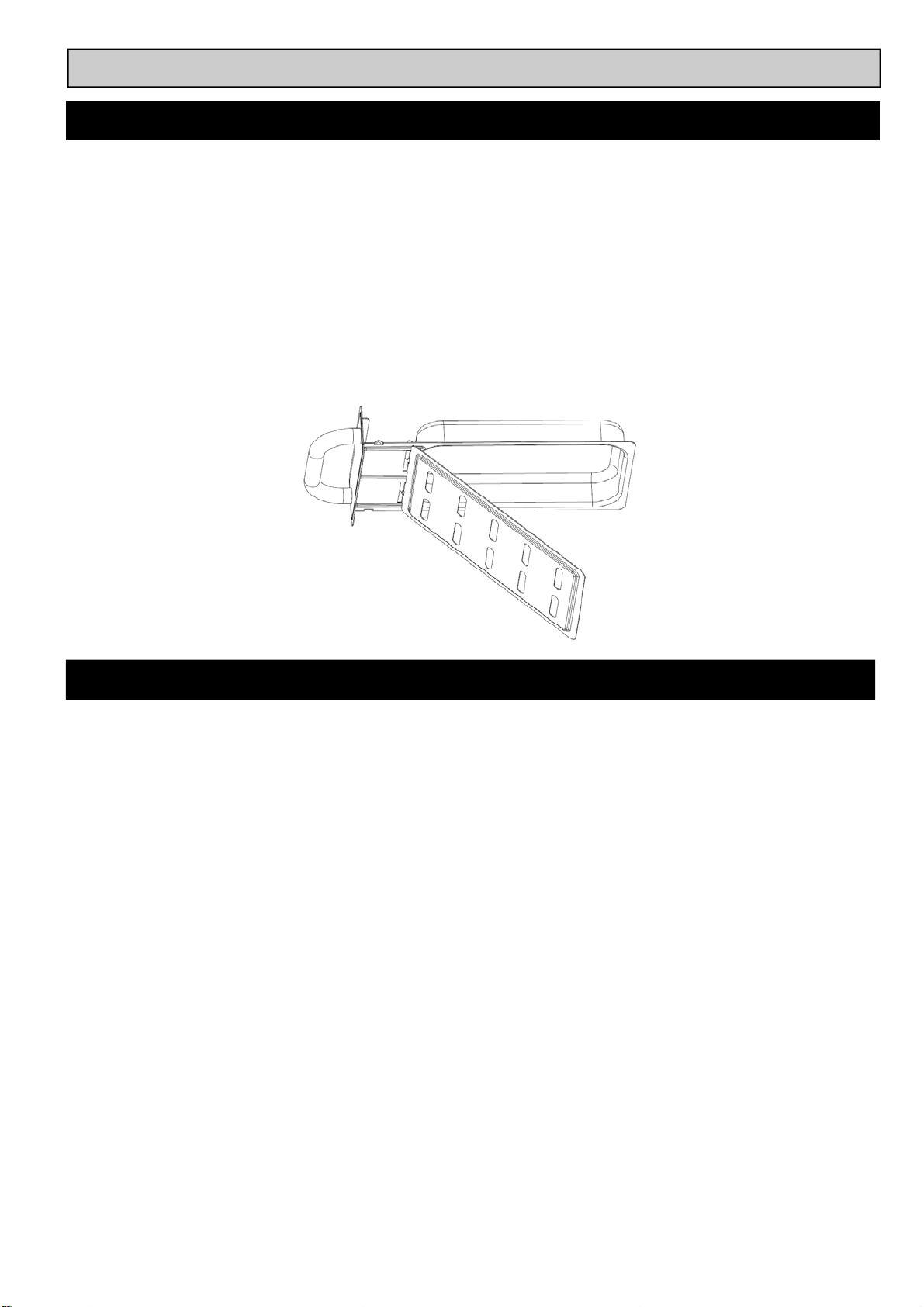

Step 7 Step 7: Attach the Wood Chip Box Assembly
Locate: Wood Chip Box, Wood Chip Box Front
Panel Assembly, Wood Chip Box Lid, Wood Chip
Box Handle, Wood Chip Box Lock, Wood Chip
Box Tent, (2) M6x12 bolts, (2) M5x10 bolts and
(2) M5 nuts
Procedure:
Attach the Wood Chip Box Handle and Wood
Chip Box Lock to the Front Panel Assembly using
(2) M6x12 bolts as shown in Fig. 7A.
Attach the Wood Chip Box to the Front Panel As-
sembly using (2) M5x10 bolts and (2) M5 nuts as
shown in Fig. 7B.
Insert the Wood Chip Box Lid into the slots in the
Front Panel Assembly as shown in Fig. 7C.
Slide the Wood Chip Box Assembly into the Fire-
box as shown in Fig. 7D.
Position the Wood Chip Box Tent onto the Wood
Chip Box Assembly as shown in Fig 7E. Set onto
wood chip rails and push back into place.
Fig. 7A
Fig. 7C
Fig. 7D
Fig. 7B

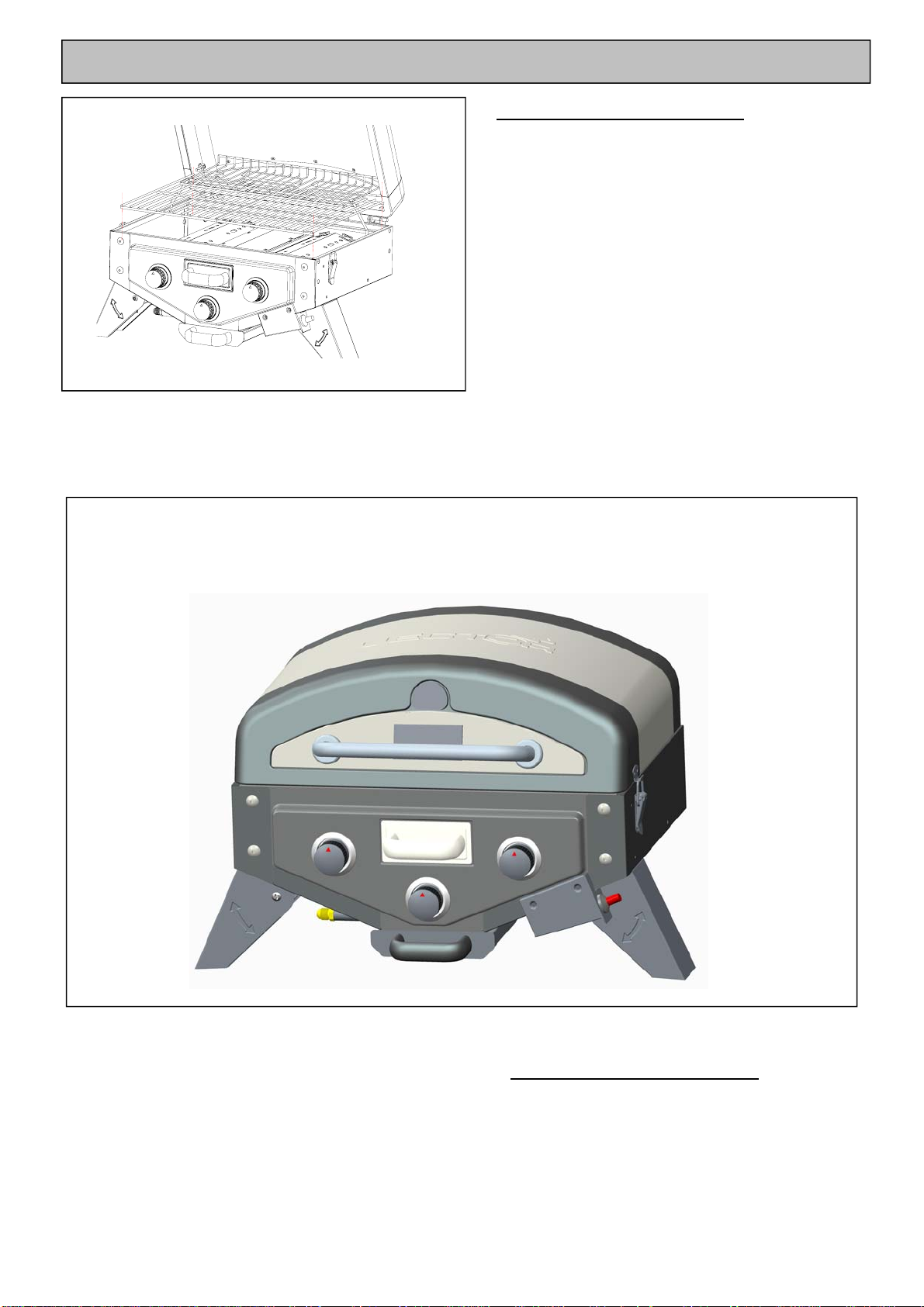

Fig. 7E
