Snap Fresh BBT-YOM02 User manual
20V CORDLESS STRING TRIMMER
User Manual
BBT-YOM02
Read all safety rules and instructions carefully before operating this tool.
+1 833 635 0955
Please scan the QR CODE for more services.
CONTENTS
Contents .................................................................................................................................................................................. 2
.................................................................................................................................................................
......................................................................................................................................................... 9
4-9
........................................................................................................................................................................ 10-13
............................................................................................................................................................................. 13-15
.............................................................................................................................................................................
................................................................................................................................................................................
15
16
Maintenance
Warranty
Operation
Assembly
Machine information
Safety warnings
........................................................................................................................................................................................ 3
Symbols
2
Observe caution and safety notes.
Caution - electric shock!
Danger to life.
No-load speed.
AC Voltage.
Wear hearing protection,
dust protection mask, protective
glasses and protective gloves,
heavy footwear.
Keep children away from electrical
power tools.
Check that the device, mains
lead and plug are in good
condition.
Safety class II.
Dispose of packaging and appliance
in an environmentally friendly way!
Protect the battery from
temperatures above 50 ° C.
SYMBOLS
3
n0
V~
Attention! The blade continues to
turn after releasing the switch.
The cutting diameter is 260 mm.
Guaranteed sound power level 96dB.
Charge and store only at
temperatures between 3° C and 40° C.
Do not throw it into the water. Charge
the battery fully before storage.
0
Protect the battery from heat and re.
Protect the battery from water and
moisture.

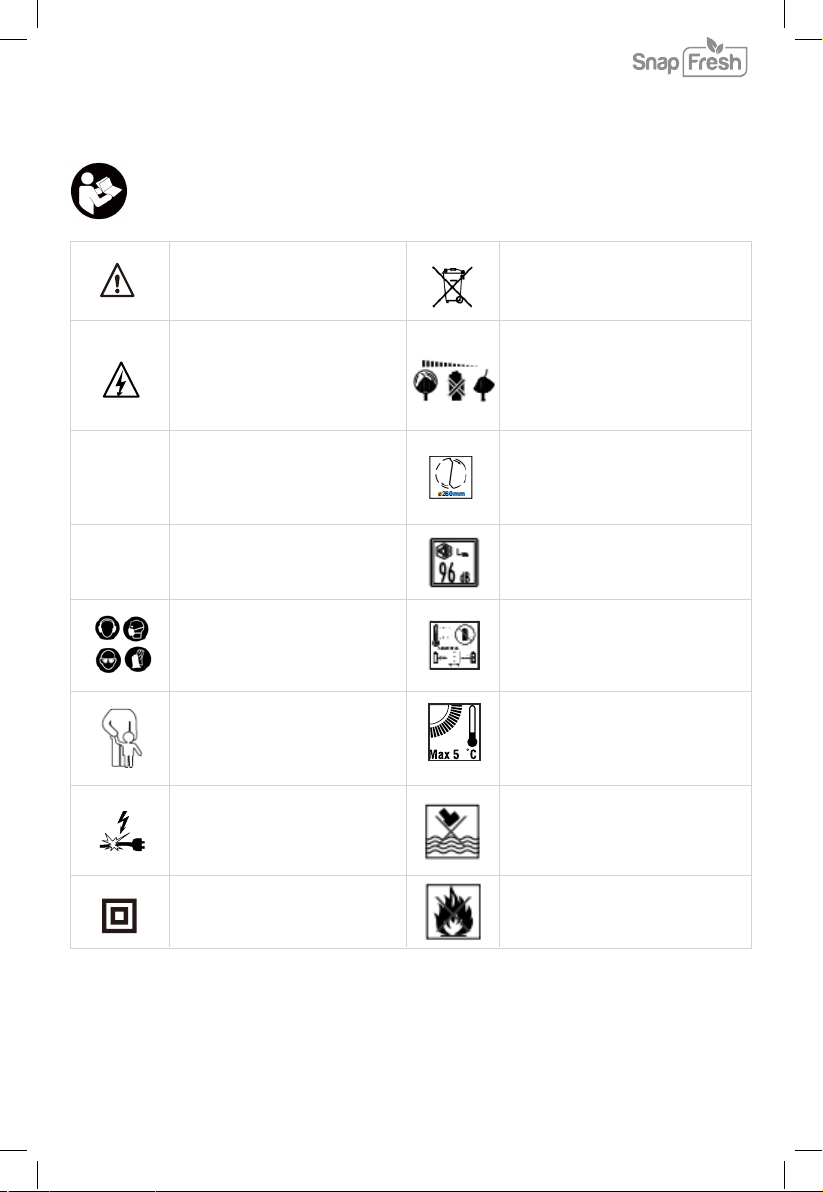

The following symbols are used in the user manual or on the product:
SAFETY WARNINGS
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1) Work area safety
.
.
.
.
.
.
.
.
.
Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2)
Electrical safety
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets
will reduce the risk of electric shock.
Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. The use of an RCD reduces the risk of electric shock.
4
5
.
.
3) Personal safety
Stay alert, watch what you are doing and use common sense when operating a power tool. Do not
use a power tool while you are tired or under the inuence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.
Use personal protective equipment. Always wear eye protection
.
Protective equipment such as
dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions
will reduce personal injuries.
.
.
.
.
.
Prevent unintentional starting. Ensure the switch is in the o-position before connecting to power
source or battery pack, picking up or carrying the tool. Carrying power tools with your nger
on the switch or energizing power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, The jewelry or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. The use of dust-collection can reduce dust, related hazards.
.
.
.
.
.
.
.
4) Power tool use and care
Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and o. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may aect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
Keep cutting tools sharp andclean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
The use of the power tool, accessories and tool bits, etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power tool for
operations dierent from those intended could result in a hazardous situation.
SAFETY WARNINGS FOR STRING TRIMMER OPERATIONS
•
•
Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re or serious injury.
•
Improper handling of the string trimmer can lead to injury.
•
Check the string trimmer before use for any damage.
•
Never use the string trimmer with damaged or missing protective cover.Note that after you switch
o the string trimmer, the cutting head and blades continue rotating for a few seconds. after a few
seconds. Wait until the cutter stops completely before you transport, maintain or store the string
trimmer.
6
.
.
.
5) Battery tool use and care
Recharge only with the charger specied by the manufacturer. A charger that is suitable for one
type of battery pack may create a risk of re when used with another battery pack.
Only use power tools with specically designated battery packs. Use of any other battery packs
may create a risk of injury and re.
When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a
re.
.
Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
6) Service
Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
WARNING!
.
.
.
Do not use a battery pack or tool that is damaged or modied. Damaged or modied batteries may
exhibit unpredictable behaviour resulting in re, explosion or risk of injury.
Do not expose a battery pack or tool to
re or excessive temperature. Exposure to
re or
temperature above 130 °C may cause explosion. NOTE The temperature „130 °C“ can be replaced by
the temperature „265 °F“.
Follow all charging instructions and do not charge the battery pack or tool outside the temperature
range speci
ed in the instructions. Charging improperly or at temperatures outside the speci
ed
range may damage the battery and increase the risk of
re.
•
Never service damaged battery packs. Service of battery packs should only be performed by the
manufacturer or authorized service providers.
If under extreme conditions any electrolyte should escape from the battery, it's essential to
avoid contact with skin. If electrolyte does come into contact with your skin, rinse it o with
water. In the event of electrolyte contact with your eyes, it's essential to consult a doctor.
•
Keep all parts of the body away from the cutter blades. Do not remove cut material or hold
material to be cut when blades are moving. Make sure the switch is o when clearing jammed
material. A moment of inattention while operating the string trimmer may result in serious personal
injury.
•
Carry the string trimmer by the handles, with the blades stopped. Proper handling of the string
trimmer will reduce possible personal injury from the cutter blades.
•
Hold the string trimmer by insulated gripping surfaces only, because the cutter blade may contact
hidden wiring. Cutter blades contacting a "live" wire may make exposed metal parts of the power
tool "live" and could give the operator an electric shock.
•
Do not expose to rain. Do not cut wet grass.
•
Improper handling of the string trimmer can lead to damage to the string trimmer.
•
Do not attempt to cut hard objects.
•
Use the edging guide as well as the blade guard to avoid unnecessary wear on the blades and tool.
7
•
•
•
Before the use of the charger and the battery pack, read the instruction manual for it carefully.
During the charging process, the current used should correspond to the current of the battery
charger.
Never let moisture, rain or splashed water reach the charging location. The ambient temperature
must not be less than 0ºC nor exceed 40ºC when charging. Do not use or store string trimmer or
batteries in temperatures in excess of 49ºC.
•
Battery packs which are defective or damaged, or can no longer be re-charged, must be
disposed of as hazardous waste. Hand them over at a special collection point. Never harm our
environment. Do not throw unusable battery packs away into the domestic waste, into re or
into water.
•
If the electrical cable is damaged, it may only be replaced by the supplier or by his repair
workshop. Have repairs carried out only by an authorized specialist only.
•
Use only battery packs that have been produced by the original manufacturer. Use only the
charger supplied with your string trimmer.
•
Always keep the surface of the charger free from dust and dirt.
•
Insert the battery pack into the charger. Follow the guidelines provided concerning polarity.
•
Always remove the battery pack before working on the string trimmer.
•
When the battery pack is outside the string trimmer, cover the contacts to avoid short circuits
(e.g. from tools or metal surfaces)
• Do not throw battery packs into water or re, risk of explosion!
BATTERY PACK AND CHARGER SAFETY INSTRUCTIONS
NOTE! - Risk of damage!
•
Protect the battery pack from impacts, and don’t attempt to open it.
•
Never discharge the battery pack completely, and recharge occasionally if not used for a
prolonged period.

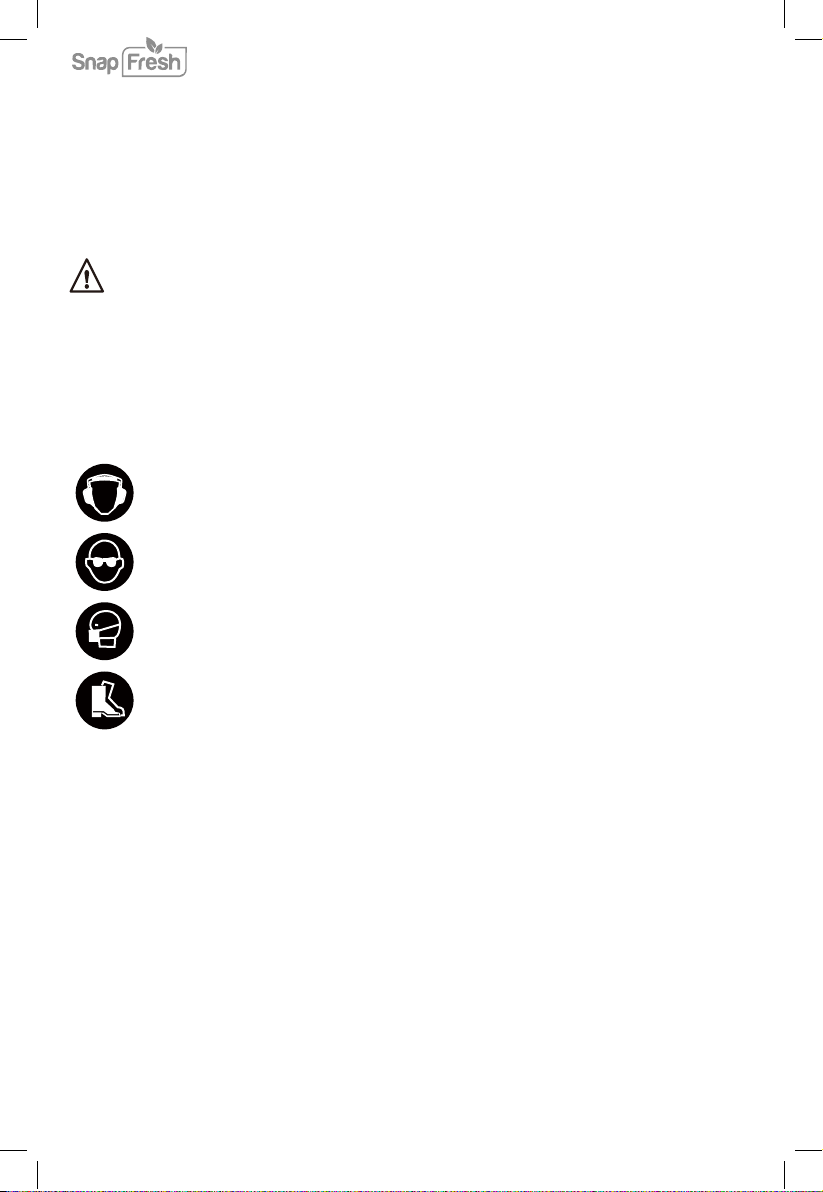

Wear hearing protection while operating the power tool.
Wear eye protection while operating the power tool.
Use a dust mask or respirator for applications that generate dust.
Wear foot protection while operating the power tool.
It is recommended that the charger is always supplied via a residual current device with a
rated current of 30mA or less.
8
Charge only BBT-DC20A and BBT-DC40A type rechargeable battery packs with the charger.
Other types of batteries may burst causing personal injury and damage.
MACHINE INFORMATION
Technical Specications
9
Model No. BBT-YOM02
Rated voltage 20V
No load speed
Model Number BBT-DC20A
Battery type Lithium-ion
Voltage 20V
Capacity 2.0 Ah
Recommended charger BBT-YFT20V
Weight 0.3 kg
Model Number BBT-YFT20V
Charger input 100-120V~60Hz 65W
Charger output 21V 2.5A
Charging time 2Ah battery 60 minutes
Charging time 4Ah battery 120 minutes
Recommended batteries BBT-DC20A, BBT-DC40A
Weight 0.36 kg
Only use the following batteries of the SnapFresh
power 20V battery platform. Using any other batteries
could cause serious injury or damage the tool.
BBT-DC20A 20V, 2Ah Lithium-ion
BBT-DC40A 20V, 4Ah Lithium-ion
The following charger can be used to charge these batteries.
BBT-YFT20V Quick charger
8500 rpm
Telescopic handle 0.93m - 1.16m adjustable
Cutting width 260mm
The batteries of the SnapFresh power 20V battery platform are interchangeable with all the SnapFresh
power 20V battery platform tools.
10
•
•
ASSEMBLY
11
1. Hand Grip
2. Switch Lock
3. ON/OFF Switch
4. Battery level indicator
5.
Battery Holder
6.
Battery Pack
7.
Front Handle
8.
Blade Storage
9. Handle Clamp Screw
10. Telescopic Shaft
11. Head Swivel Lock
12. Shaft Lock Sleeve
13.
Motor Housing
14.
Head Angle Lock
15.
Blade Guard
16.
Cutting Head
17. Blade (20pcs supplied)
18. Edging Guide
19. Battery Release Button
20. Charger
21.
Charge Indicator Lights
22.
Screws 2pc
23.
Front Handle Bracket
12
Remove the string trimmer from the packaging and layout on a at and stable surface.

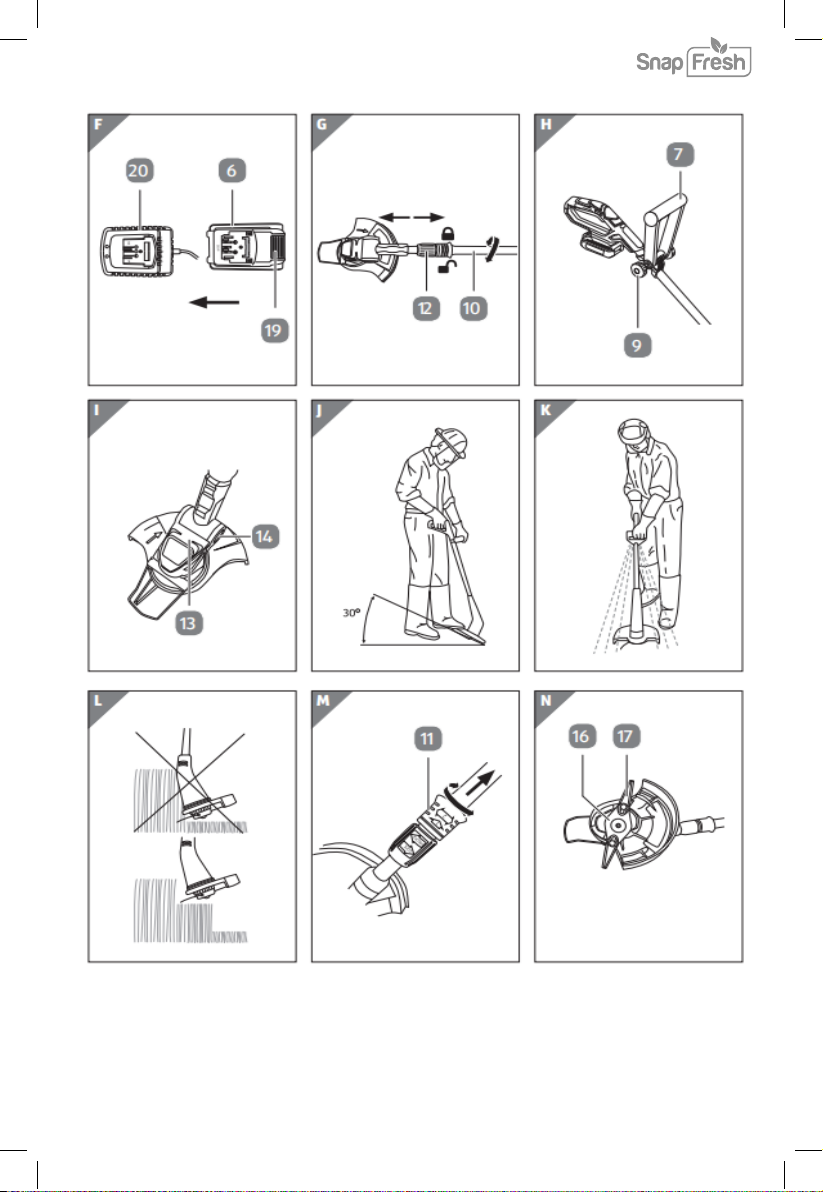

Check whether all parts are present (see Fig. A & B).
•
•
Check whether any individual parts are damaged. If so, do not use the string trimmer.
Contact the address given on the back of this Manual. If possible, keep the original packaging
of the string trimmer for storage and for future reference.
Place the Blade Guard 15 on the underside on the Motor Housing 13 and screw in place with 2
Screws 22 (see Fig. C). Tighten these screws fully.
Insert the Edge Guide 18 into the holes provided in the Guard (see Fig. C).
Mount the Blade Guard and Edging Guide:
Mount the Front Handle:
Adjust the height of the Cutting Head
Place the Front Handle 7on the Front Handle Bracket 23. The teeth of the Bracket and the
Handle must mesh (see Fig. D). Insert the Handle Clamp Screw 9 through the hole in the Bracket
and Handle and tighten it fully by hand. Conrm that the Handle is rmly seated.
To get an optimal working position, adjust the height of the Cutter Head 17 by shortening or
lengthening the Telescopic Shaft 10.
- Place the String Trimmer on the oor or workbench.
- Release the Shaft Lock Sleeve 12 (see Fig. G).
- Slide the Telescopic Shaft to the desired length.
- Tighten the Shaft Lock Sleeve.
•
13
OPERATION
General Warnings:
The battery is shipped partially charged and must be fully charged before rst use.
The battery reaches its maximum capacity only after approximately 5 discharge/charge cycles.
•
•
Charge batteries regularly. Batteries also discharge slowly when they are not used.
The battery warms up slightly during charging. This is normal.
•
•
Never discharge the battery completely. This can lead to a defect of the battery.
The battery charge level is shown by the Charge Indicator Lights 21.
•
•
Insert the mains plug of the Charger 20 into the power outlet socket.
To charge the battery, proceed as follows:
Press the Battery Release Button 19 and pull the battery out of the Battery Holder 5.
•
•
Slide the battery into the Charger’s battery holder until it audibly clicks into place (see Fig. F).
The Charge Indicator 21 lights up red at the beginning. The charge indicator lights up green
when the battery is fully charged.
•
•
Let the battery cool down to room temperature if it has warmed up during charging.
Unplug the Charger, then press the Battery Release Button and remove the Battery from the
Charger.
•
Never allow children or people unfamiliar with these instructions to operate the trimmer.
Keep the area clear of all bystanders, children and pets while using the trimmer.
Stop the trimmer immediately if anyone enters the area within a 10m radius of the trimmer
when in operation.
•
•
•
Insert and remove the Battery:
Li-ion Battery Pack:
Note:
Charge the Battery Pack 6 in good time, to increase the service life. Recharge when you nd that
the performance of the String trimmer subsides.
Charge the Battery:
To insert the Battery Pack 6, press the Battery Release Button 19 and slide it into the Battery
Holder 5 on the handle 1 (see Fig. E). It will clip into place.
To remove the Battery Pack, press the Release Button and pull it out of the Battery Holder.
•
•
14
Preparation:
Operation:
Never operate the trimmer when you are tired, ill, or under the inuence of alcohol, drugs or
medicine.
Use the trimmer for cutting grass and light weeds only. Do not use it for any other purpose.
•
•
Keep in mind that the user is responsible for accidents or hazards occurring to other people or
their property.
•
Always wear protective non-slip footwear and long trousers. Wear eye protection!
Before use, check that there are no damaged parts. A defective switch, or any other part that is
damaged, should be properly repaired or replaced by an authorized service facility.
•
•
Consider the environment in which you are working. Walk the work area before starting, to ensure
it is clear of wires, sticks, stones and debris.
•
Make sure the head attachment and handles are properly installed and securely fastened.
•
Make sure all guards, deectors and handles are properly and securely attached.
•
Do not use the trimmer in bad weather, especially if there is a risk of lightning.
Use the trimmer in daylight, or in good articial light.
•
•
Do not use on wet grass.
•
Take care to keep proper footing and balance at all times - do not walk backward when using
the trimmer.
•
Walk, never run.
•
Keep the cutting head below waist level at all times - do not cut overhead.
Do not cut on surfaces other than grass on earth.
•
•
Never operate the trimmer with damaged guards or without guards in place.
•
Never t metal replacement cutting blades. Use only genuine original equipment SnapFresh
cutting blades.
•
Keep hands and feet away from the cutting blades at all times, and especially when switching on
the trimmer.
•
Always pick up or carry the trimmer by the handles only.
•
Beware of objects that may be thrown by the cutting blades. They will leave the trimmer at high
speed.
Switch o and remove the battery before:
servicing, leaving the trimmer unattended, cleaning your trimmer, changing cutter blades,
adjusting guards, checking for any damage after hitting an object, checking for any damage
if the trimmer starts to vibrate abnormally and when performing normal maintenance.
Remove the battery when storing trimmer.
•
•
Always ensure that ventilation openings are kept clear of debris
•
15
MAINTENANCE
Replacement of cutting blades:
Attention! Always remove the battery before carrying out any work on the machine.
To clean the tool, use a dry or moist, but not wet towel. Many cleaning agents contain chemical
substances which may cause damage to the plastic parts of the tool. Do not use any strong or
ammable cleaners such as petrol, paint thinner, turpentine or similar cleaning agents. Always
keep air ventilation holes free of dust deposits to prevent overheating. Wear a dust mask and use
a soft brush to clean the ventilation holes.
Servicing this tool must be done by a qualied person only. Service or maintenance performed
by unqualied personnel could result in a risk of injury.
If the tool does not work properly, return the tool to a service facility for repair.
If the electrical cable is damaged, it may only be replaced by the supplier or by his repair
workshop.
The cutting blades are attached to the cutter head by placing the large keyhole molded into each
blade over the pins on the bottom of the cutter head. Pull the blades outwards to snap the smaller
portion of the keyhole tightly onto the pin.
To remove a blade, push in towards the center of the cutting head until the large hole is centered
on the pin and slide o.
Spare blades can be carried in the handgrip of the front handle. Twist the end cap out to access
the blades.
Battery disposal:
This symbol indicates that the batteries supplied with this product must not be treated as
general household waste. To remove them safely, you must bring them to your retailer or
discard them in special containers provided for the community. At the end of the device's
life, remember to remove the batteries.
16
WARRANTY
Ningbo Babytec Technology Co., Ltd (Hereinafter referred to as Babytec) warrants this product
against defects in materials and/or workmanship under normal use for a period of ONE (1) YEAR
from the date of purchase by the original purchaser (’Warranty Period’).
If a defect arises and a valid claim is received within the Warranty Period, at its option, Babytec will either 1)
repair the defect at no charge, using new or refurbished replacement parts, or 2) replace the product with a
new product that is at least functionally equivalent to the original product, or provide a store credit in the
amount of the purchase price of the original product. A replacement product or part, including a part
installed in accordance with instructions product by Babytec, assumes the remaining warranty of the
original product. When a product or part is exchanged, any replacement item becomes your property and
the replaced item becomes Babytec’s property. When a store credit is given, the original product must be
returned to Babytec and becomes Babytec’s property.
prepared to describe the product that needs service and the nature of the problem.
The following circumstances are excluded from this guarantee:
•
Repairs and or alterations have been made or attempted to the machine by unauthorized service
centers;
•
Normal wear and tear;
•
The tool has been abused, misused or improperly maintained;
•
Non-original spare parts have been used.
Allrightsreservedby Ningbo Babytec Technology Co.,Ltd
(Monday - Friday 9 a.m. - 5 p.m. EST 6 a.m. - 2 p.m. PST)
+1 833 635 0955
Table of contents
Other Snap Fresh Trimmer manuals
