Snapkis SafeFix 1-11 User manual

SafeFix 1-11
9-36KG
Imported by:
Global Outsource Soluons,
601 Sims Drive, Pan-I Complex
Singapore 387382
Item No.: SKS18004

Contens
Product Description
1. Important Notice......................................................................................................
2. Car Seat Parts .........................................................................................................
3. Understanding Your Vehicle...................................................................................
4. Adjustment and Installation of the Car Seat.........................................................
4-1 How to adjust reclining position...............................................................................
4-2 How to adjust shoulder belt.....................................................................................
4-3 How to adjust height of the headrest.......................................................................
4-4 How to use buckle....................................................................................................
4-5 How to use 5-point harness system.........................................................................
4-6 How to install and remove ISOFIX（M-FIT）..........................................................
4-7 How to install Top Tether.........................................................................................
4-8 How to remove and fit on seat cover.......................................................................
5. Installation methods................................................................................................
5-1 ISOFIX+Top Tether (9-18KG).................................................................................
5-2 Vehicle 3-point belt + M-FIT + Top Tether(15-36KG).............................................
6. Cleaning and Maintenance......................................................................................
7. Notice........................................................................................................................
3
5
7
9
9
9
10
11
11
13
15
16
17
17
17
18
19
15KG-36KG
9KG-18KG
12
Group Installation Methods Approral type The scope of
application
I
II,III
ISOFIX+TT Universal ISOFIX
Semi-UniversalVehicle 3-point+M-FIT+TT
User instructions
We are pleased that our SafeFix 1-11 car seat may accompany your child safely
through a new stage of his or her life.
In order to protect your child, SafeFix 1-11 car seat must always be used and
installed as described in these instructions.
If you have any other questions regarding its usage, please contact us.

34
1.Important Notice:
1. Please read this manual carefully before installation, incorrect installation may result
in serious injury. In this case, the importer assumes no responsibility.
2. This car seat is suitable for children of 9 kg to 18 kg (Group 1), 15 kg to 25 kg
(Group 2) and 22kg to 36 kg (Group 3).
3. (1) This is an ISOFIX child restraint. It is approved to Regulation GB 27887 - 2011
and can be installed in vehicles fitted with ISOFIX anchorage systems. (2) It will fit
vehicles with positions approved as ISOFIX position (as detailed in the vehicle
handbook), depending on the category of the car seat and of the fixture. (3) The
ISOFIX size class for which this car seat is intended is: Group I (9kg - 18kg), B1.
4. Never place the car seat on the vehicle seat with an active airbag.
5. Never use the car seat without a cover. Never use any cover which is not
recommended by importer to replace the old cover because the cover constitutes an
integral part of the car seat performance.
6. When the car seat is not provided with a textile cover, it should be kept away from
sunlight,otherwise it may be too hot for child's skin.
7. Do not use the damaged car seat.
8. Buckle cannot be in semi-locked status. Always ensure the car seat is secured
before using. In case of emergency child can be taken out quickly.
9. Do not make any additions or changes to the harness system of car seat, otherwise
it could seriously affect the safety and functionality.
10. Always keep the car seat secured in the vehicle even when it is unoccupied. The
child should not be left on the car seat unattended.
11. If you have any question about the use and installation of the car seat, please
contact our service hotline.
12. Keep the car seat away from corrosive fluids.
13. Do not use a second-hand car seat.
14. All parts of the car seat (including harness system) should be secured properly so
that the car seat does not become jammed in the vehicle door, seat runners, etc.
15. Please ensure that any lap strap is worn as low as possible, over your child’s hips.
16. The car seat should be changed when it has been subject to violent stress in an
accident.
17. Any luggage or other objects liable to cause injuries in the event of a collision shall
be properly secured.
18. The instructions should be retained for the life span of the car seat.
19. Do not use any load bearing contact points other than those described in the
instructions and marked on the car seat.
20. Any straps holding the car seat to the vehicle should be tight. Any straps
restraining the child should be adjusted according to the child’s body and not be
twisted.

5
1 2 3 4
5 6 7 8
9 10 11 12
13 14 15 16
17
21
18 19 20
1
2
3
4
6
7
5
8
9
10
12
13
2
11
2. Car Seat Parts
PARTNO. PART PART PARTNO. NO. NO.
Headrest
Shoulder belt
Adjuster strap
Knob
Lap belt slot
Back cover
ISOFIX insert
guides
ISOFIX（M-FIT）ISOFIX adjust
strap
Yoke connect
plate
Headrest
adjust handle Top Tether Top Tether fix hook
Angle adjust
handle
Buckle Buckle pad
Buckle slot
(under the cover)
Quick adjuster
button
Shoulder belt
guide slot Inner cushion Shoulder pad
6
20
15
16
17
18
14
5
19 21

Before using the Isofix and Top Tether, make sure the vehicle is equipped with Isofix
fixing anchor. Only when the anchor match the car seat Isofix, then install the car seat.
Read the vehicle user manual, check whether vehicle seats are equipped with ISOFIX
system, whether the recommended Isofix type match the car seat Isofix size.
The car seat Isofix Type is “B1”
3. Understanding Your Vehicle
Please read the instruction carefully,
so that the car seat can be installed correctly.
ISOFIX size
Vehicle seat Isofix fixing anchor
Correct device/suitable Wrong device/not suitable
Vehicle seat belt—shoulder belt
Vehicle seat belt--- lap belt
Do not use car seat in the passenger seat with an active airbag.
The car seat can be used if this passenger seat has a shoulder and lap belt
Lap belt
B1 ISO/F2X
78
Top Tether
Car seat top anchorage
A
anchor point
under car seat
IS OF IX

Press the base of the child car
seat Awith one hand and pull
the angle adjust handle 10 with
the other hand. Adjust the car
seat to the most suitable
position. 3 reclining positions
available.
Caution: The shoulder belt
holes B( as shown in the
picture on the left) position
should be slightly above the
child’s shoulder.
Down: Push the headrest adjust handle 13
downwards.
Caution:
1. Loosen the shoulder belt 5according
to section 4-2 when using 5-point
harness system.
2. When using the vehicle seat belt to
secure the car seat, the headrest can
be adjusted directly.
Up: Pull the headrest adjust handle 13 on the
top of the headrest.
To tighten: Pull the adjuster strap 9forward gently.
Caution: The quick adjuster
button 8has mistake-proof
function, please operate
according to the pictures
To loosen: Press the quick adjuster
button 8with one hand, grab both
shoulder belts 5with the other hand
(Do not pull the shoulder pad 4 ), and
pull towards yourself.
Caution:
1. Finger pinch notice!
2. Group I (9-18KG) has
3 recline positions.
3. Group II,III (15-36KG)
can only be adjusted in
the first position.

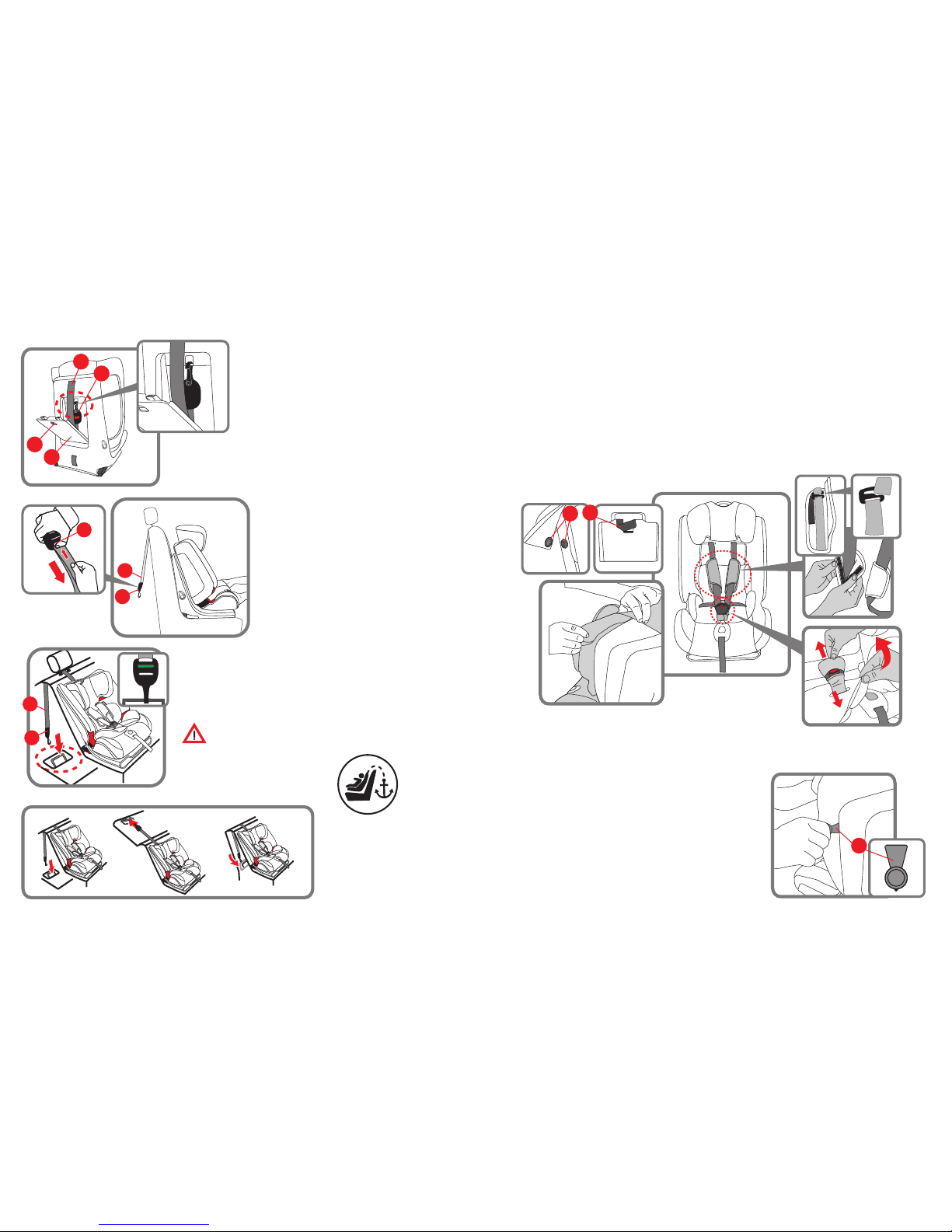

4. Adjustment and Installation of the Car Seat
4-1 How to adjust reclining position
4-2 How to adjust shoulder belt
4-3 How to adjust height of the headrest
9
12
3
10
A
8
5
4
9
5
13
B
1
10
FINGER PINCH NOTICE
Front facing
（9-36kg）
123

Take off the buckle pad 7, twist the crotch belt Cand push the belt from position ato b.
After adjusting, check the belt to make sure it is not twisted, pull the buckle 6several
times to make sure it is correctly fitted, put on the buckle pad 7.
1. Place the child in the car seat, let the shoulder belt 5
and shoulder pad 4go above the child’s shoulder, put
the child’s leg on the two sides of the adjuster belt.
1. Release the buckle 6.
2. Remove both shoulder pads 4from the shoulder belt.
3. Remove shoulder connecting belt Efrom the metal
connecting clip F.
4. Remove shoulder pads 4from the child car seat.
5. Remove the buckle pad 7and remove the front part
of cover so the buckle 6can slide through the slot.
6. Take out the foam in
the buckle slot 11 and
hide the buckle 6,the
buckle is inverted into
the buckle slot (as the
pictures).
2. Put the right and left tongues Dof the buckle 6together,
and insert to the buckle, it is locked when “CLICK” is heard
and it turn to green sign. Pull the adjust strap to tighten the
shoulder belt 5, meanwhile ensure the child’s shoulder is
comfortable.
Caution: Grab both shoulder belt 5with two
fingers and pull the adjuster strap 9with the other
hand gently, when the back of the hand that is
holding onto the shoulder belt touching the child’s
body, stop pulling the adjuster strap.
Caution: Car seat could not be used if there’s no
shoulder belt pad 4and buckle pad 7during
installation.
Secuing the child
Removing the 5-point harness system
Check whether the car seat has inner cushion, remove the inner cushion first
before removing the 5-point harness system.
4-4 How to use buckle
4-5 How to use 5-point harness system
6
6
C
a
b
45
7
6
5
D
5
9
4
E
F
7
6
6
11
11 12

7. Open the back cover 16, press the quick adjust button
8with one hand, pull the shoulder belt 5out along with
the yoke connect plate 19 to the end with another hand.
2. Pull the lower part of the ISOFIX adjust strap 18,
pull towards the showed red arrow direction, then the
ISOFIX locking arm will be pulled out after you hear
“CLICK”
3. Hold the Isofix towards the ISOFIX 17
insert guides and make sure both lock arms
engage on both sides”CLICK”.
4. Twist the knob 21 ,and push the car seat
towards the backrest applying firm, even
pressure on both sides.
5. Gently shake the car seat, and check
whether the indication is green to ensure
the ISOFIX is fixed firmly.
1. Squeeze the red release button Ltowards the
red arrow direction, until the ISOFIX locking arm
and Isofix anchor disconnected.
2. Push both ISOFIX 17 locking arms into the car
seat base.
Caution: When pulling the ISOFIX adjust strap,
pull the lower end of ISOFIX adjust strap (such as
shown in Figure red circle).
9. Adjust the headrest to the highest positon,
remove the headrest fabric cover Gand body cover
H.
10. Pull the shoulder belt 5forward against the car
seat (out of the shoulder belt hole), fold the buckle
insert plates Dinto an relative insert hole J.
11. Assemble the cover back to normal.
1. If your vehicle is not equipped with standard ISOFIX
insert guides 20, please use the two inserts guides in
the package of this product, clip the two inserts guides
with the cut-out facing upwards (as picture) onto the
two ISOFIX attachment points Kof your vehicle.
8. Remove the shoulder belts 5 out from the
yoke connect plate 19.
ISOFIX into the car seat
Remove ISOFIX from vehicle seat

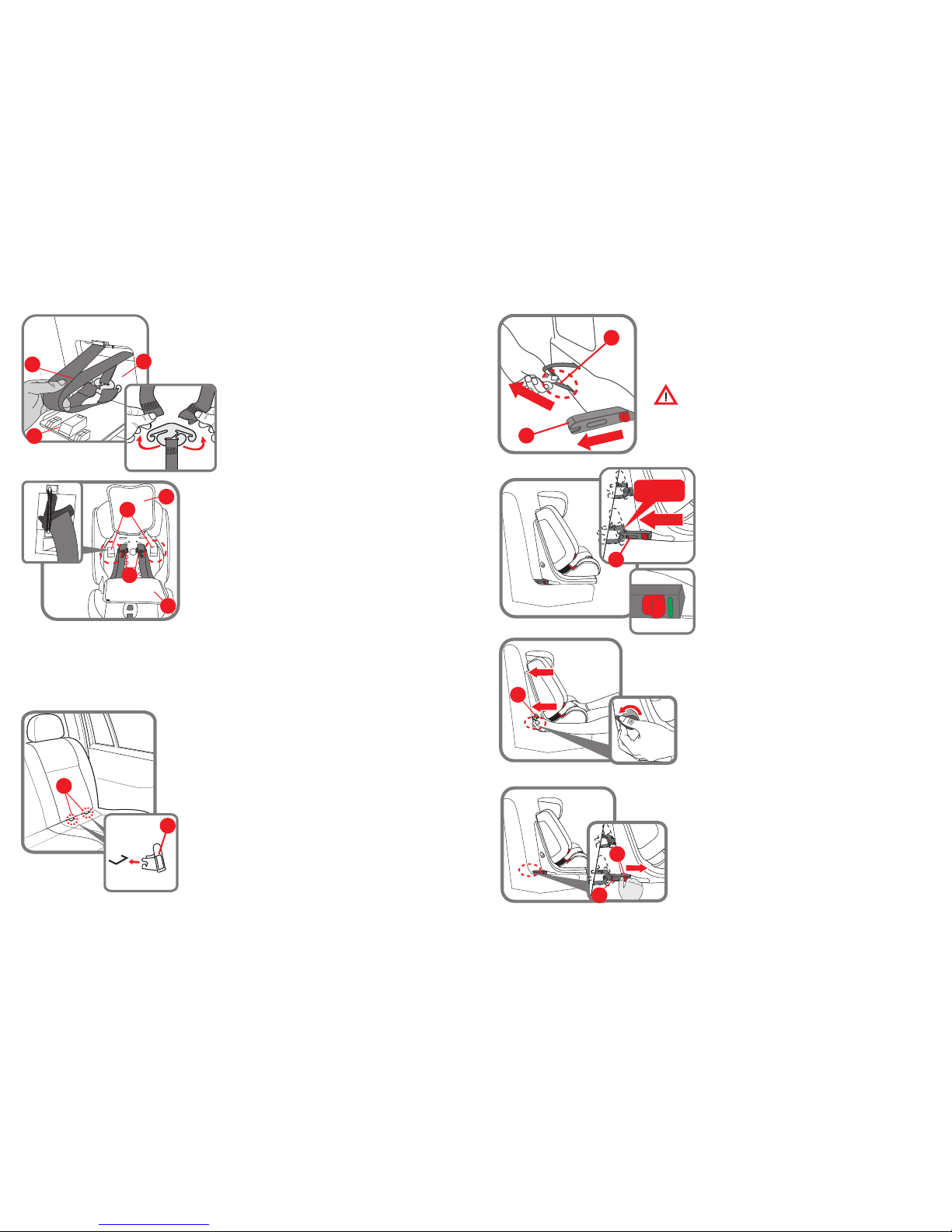

4-6 How to install and remove ISOFIX
16
19
5
J
D
G
H
Tip: Make sure the buckle inserts are inserted
tightly.
Tip: only when about two ISOFIX marks
show green pattern (Figure), ISOFIX is
correctly buckled up.
Tip: ISOFIX attachment points is between the seat
and backrest.
13 14
20
K
17
18
L
17
21
17
咔 嚓

Tip: When the Top Tether and Top
Tether fix hook are not in use, they can
be rolled up and put on the Top Tether fix
hook on the rear cover (as shown).
Tip: The Top Tether 14 should go
through the bottom of the vehicle
seat headrest. (If the vehicle seat
headrest cannot be adjusted, then go
Tip: Before removing the cover, release the button Pand elastic Qfirst.
Tip: Use the plastic piece Rto fit the cover.
Remember install the elastic Qand buttons P.
Note! Check whether the
hook of the top tether
and anchor is secure.
1. Press the button of back cover M, take
the Top Tether 14 and Top Tether fix
hook 15 out and close the back cover 16.1. Adjust the child car seat to the most upright position, adjust the headrest to the
highest position.
2. Release the buckle, take the inner cushion out, remove the shoulder pad and buckle
pad.
3. Remove the headrest pad and body pad carefully.
4. Fix the Top Tether fix hook 15 on the anchor of the
vehicle seat according to the vehicle seat user manual,
then pull the Top Tether 14 until the indicator shows
green.
1. Adjust the car seat to the most upright
position and adjust the headrest to the highest
position.
2. Refit the headrest cover and body cover
carefully.
3. Install the shoulder pad and buckle pad.
2. Put the car seat towards the
driving direction on the vehicle seat.
3. Press the button Nto adjust the
Top Tether.
4-7 How to install Top Tether 4-8 How to remove and fit on seat cover
Removing seat cover
Fitting on seat cover
Caution: Do not use luggage hook to replace the
one on the Top Tether. Check the vehicle to find
the sign.
M
16
14
15
14
15
N
15
14
15 16
Q
P
R

Remove the 5-point harness system before
installation(4-5) Important:
The seat is a safety feature. Never use the car seat without it and do not put your child
safety at risk by using other replacement cover which could stop the seat from
protecting your child as it should.
Washing instruction:
The cover is removable and can be washed at 30°C, hang dry only.
1. Open the Back cover 16 take out Top Tether 14.
2. Fix the ISOFIX 17 to the vehicle ISOFIX anchor,
Push the car seat inwards and ensure it is firmly
installed. (4-6)
3. Fix the Top Tether 14 to the vehicle Top Tether
anchor , ensure it is firmly installed. (4-7)
4. Place the child on to the car seat and install with
5-point harness system. (4-5)
1. Adjust the car seat to the most upright
position(4-1).
2. Open the Back cover take out Top Tether.
3. Fix the M-FIT to the vehicle ISOFIX anchor,
Push the car seat, place the child on the car seat,
ensure fixed firmly(4-6).
4. Fix the Top tether to the vehicle Top Tether
anchor, ensure fixed firmly (4-7).
5. Make sure the vehicle belt S go through
shoulder belt guide slot 2, and above the child
shoulder( as shown in the picture)
6. Make sure the vehicle lap belt T go through lap
belt guide slot 12 and fixed into lap belt guide slot.
5. Installation Methods
6. Cleaning & Maintenance
5-1 Isofix+Top Tether Group I 9 to 18kg
(approx 9months to 4 years)
5-2 3-point vehicle seat belt + M-FIT + Top Tether Group II+III 15-36Kg
(approx 4 years to 12 years)
Caution:
1.check the car seat and 5-point harness,
make sure both the car seat and child are
secured.
2.make sure Top Tether strap and harness
belt are not twisted.
3. If your child weighs less than 11 KG, it is
recommended to keep the inner cushion 3in
the car seat.
4.It is recommended to use the equipped
ISOFIX insert guide 20.
Caution:
1. Tighten the car seat by adjusting the vehicle belt until firmly installed
2. Make sure vehicle belt is not twisted.
3. Make sure the car seat at the most upright position while the child is Group
II,III(15-36KG).
4. It is recommended to use the equipped ISOFIX insert guide 20.
17 18
15
14
17
15
2
S
S
T
12
T
14
CLICK
Machine wash, cold Do not bleach Do not dry cleaning Do not tumble dry Do not iron
3
17

7. Notice 1
Notice 2
1. This is an Isofix child restraint system. It is approved to regulation ECE R44/04,For
general use in vehicles fitted with Isofix anchorages system.
2 It will fit vehicles with position approved as Isofix position( as detailed in the vehicle
user manual), depending on the category of the car seat and of the fixture.
3. The mass group and the Isofix size class for which this device is intended is Group
1(9-18kg), B1.
19
This Child Restraint is classified for "Semi-universal" use and is
suitable for fixing into the seat positions of the following cars:
CAR
(See the car list) Yes Yes No
FRONT REAR
Outer Centre
Seat positions in other cars may also be suitable to accept this child restraint.
If in doubt, consult either the child restraint manufacturer or the retailer.
