Snapkis UltraFix 0-11 User manual

UltraFix 0-11
USER MANUAL
Group 0+,I,II,III
Suitable from 0kg to 36kg
(approx. Birth to 11 yrs)
Approved to ECE R44-04 standard
(Please read this instruction manual carefully before installation)

1 2
1. Understanding Your Vehicle
Notice：This child restraint is suitable for the following cars:
Vehicles without ISOFIX
anchorages systems
Yes Yes
Vehicles with ISOFIX
anchorages systems
!
Contents
WARNING
This car seat can only be installed using
a 3-point seat belt .
Vehicle seat belt – shoulder belt
Vehicle seat belt – lap belt
1. Understanding Your Vehicle..................................................................................2
2. Safety information...............................................................................................3
3. Checklist before use.............................................................................................5
4. Car seat parts......................................................................................................6
5. How to fasten the harness buckle.........................................................................7
6. How to adjust and secure the harness...................................................................7
7. How to ensure the shoulder belts are at the correct height.....................................8
8. How to adjust the shoulder belts..........................................................................9
9. How to adjust the reclining position of the car seat..............................................10
10.How to adjust the height of the headrest............................................................10
11. How to rotate the car seat...................................................................................11
12. How to install the top tether...............................................................................11
13. How to install car seat rear-facing for Group 0+ (0-13kg)......................................12
14. How to install car seat forward facing for Group I (9-18kg)....................................15
15. How to install car seat forward facing for Group II,III (15-36kg)..............................19
16. How to remove the car seat cover.......................................................................21
17. Cleaning & Maintenance....................................................................................22
Vehicles without ISOFIX anchorages systems
1. This is a “Universal” child restraint. It is approved to ECE R44-04, for general use in
vehicles and it will fit most, but not all vehicles.
2. A correct fit is likely if the vehicle is capable of accepting a “Universal child restraint
for this age group.
3. If in doubt, please contact manufacturer or retailer.
Vehicles with ISOFIX anchorages systems
1. This is an ISOFIX child restraint. It is approved to ECE R44-04, for general use in
vehicles fitted with ISOFIX anchorages systems.
2. It will fit vehicles with positions approved as ISOFIX positions (detailed in the
vehicle handbook), depending on the category of the child seat and fixture.
3. The mass group and the ISOFIX size class for which this device is intended is class E.

3 4
2. Safety Information
This car seat can only be installed on a forward facing passenger seat. Do not
install the child car seat at the lateral and rear-facing passenger seat.
Suitable to install car seat at
this position
Do not install car seat at
this position
Do not install the car seat at the
front passenger seat with an
active airbag
Only suitable for this passenger
seat if equipped with 3-point
seat belt
Note: Above illustration is based on a left-hand drive
!
For your child’s safety, please read this
user manual carefully.
WARNING
1. Please read the instruction of ISOFIX anchorages sytems as detailed in the vehicle
handbook carefully before installation.
2. This car seat should only be installed by an adult and is suitable for children from
0 to 36 kg. Please do not allow children who do not meet the applicable weight to use
the product.
3. Do not install this car seat in a forward facing position if your child weighs less than
9kg.
4. This car seat can be installed both forward and rear-facing. Do not place the car
seat on the front passenger seat with an active airbag.
5. Please follow the installation diagrams on the car seat or user manual when
installing the car seat in your vehicle.
6. The car seat should be properly secured so that your child is well-protected in the
event of an accident.
7. Always keep the car seat secured in the vehicle even when it is unoccupied.
8. For your child’s safety, do not use a damaged or second-hand car seat. This car seat
should be changed when it has been subjected to violent stress in an accident.
9. Never use the car seat without the cover.
10. Do not put your child at risk by using other replacement cover which could prevent
the car seat from protecting your child as it should.
11. Please cover the car seat properly when the vehicle is parked under direct sunlight.
The parts of the car seat that are not provided with a textile cover should be kept
away from direct sunlight, otherwise it may be too hot for your child’s skin.
12. The harness buckle cannot be in semi-locked state. Always ensure the car seat is
securely installed before using. In case of emergency, your child can be taken out
quickly.
13. Keep the car seat away from corrosive fluids.
14. Please keep the child car seat in a safe place when not in use. Do not place heavy
objects on the car seat.
15. Please follow the installation instructions closely. Do not allow the car seat to be
jammed in the vehicle door, seat runners, etc.
16. Do not make any additions or changes to the car seat. Do not use other installation
methods except for the instructions provided in the user manual.
17. Do not use any load bearing contact points other than those described in the
instructions and marked on the car seat.
18. Any luggage or other objects liable to cause injuries in the event of collision should
be properly secured.
19. Do not install car seat on an unlocked foldable vehicle seat as it may lead to the car
seat losing its eectiveness in an emergency brake situation.
20. Do not put any padding under the car seat to increase height because it may cause
the car seat to lose its eectiveness in the event of an accident.
21. Do not leave your child on the car seat unattended.
22. Please stop your vehicle in a safe area when your child accidentally unfastens the
seat belt. Secure the seat belt properly before continuing the journey.
23.Any straps holding the car seat to the vehicle should be tight. Any straps
restraining the child should be adjusted according to the child’s body and not be
twisted.
24. The lap section of the harness should be worn as low as possible, over your child’s
hips.
25. The user manual should be retained for the life span of the car seat.

3. Checklist before use
56
4. Car seat parts
ISOFIX attachment
points (vehicle)
For your child’s safety, please follow instructions below:
Rear-facing (Group 0+)
Child with a body weight
between 0-13 kg
(approx. birth to 1 year)
Forward facing (Group I)
Child with a body weight
between 15-36 kg
(approx. 3 years to 11 years)
Forward facing (Group II, III)
Seat belt slot
5-point harness
system
Quick adjuster
button
Harness adjuster strap
Rotating button
Blue belt hook
Shoulder pad
connecting plate
Height Adjuster
Headrest
Shoulder belt
Shoulder pad
Inner cushion
Buckle
Buckle pad
Reclining
adjustment
lever
Top tether belt
fix hook
Top tether system
ISOFIX locking arms
ISOFIX insert guides
ISOFIX unlock button
Yoke connect
plate
Secure child properly in child restraint
1. Correct shoulder strap height.
2. 5-point harness is not twisted.
3. 5-point harness is secured and tight.
Car seat installation
1. Ensure car seat is not damaged.
2. Must install on a vehicle seat without
an active airbag.
3. Make sure the car seat is installed
properly on the vehicle seat.
Child with a body weight
between 9-18 kg
(approx. 9 months to 4 years)
Shoulder belt
route slot

PRESS
78
A
B
C
5. How to fasten the harness buckle
click
Step 1 Step 2 Step 3
Follow the steps shown in the diagrams above:
Step 1: Put the right and left tongues of the buckle together. Ensure the buckle
tongues are firmly together.
Step 2: Insert the joined tongues into the harness buckle until you hear a “click”
sound. Make sure the harness buckle is secure by pulling the shoulder belt
upwards.
Step 3: To release the harness, press the red button on the harness buckle. The red
button passed the safety test and meets the safety standards. It is dicult for a
child to unfasten the harness buckle on his own.
6. How to adjust and secure the harness
Loosening the harness
Press the quick adjuster button and pull the
shoulder belts towards yourself to loosen the
harness.
Tighten the
harness
Tightening the harness
Place your child in the car seat. Fasten the joined
tongues into the harness buckle. Adjust the
position of the lap and shoulder belts. Pull the
harness adjuster strap until the harness is tight.
!Important: Tighten the harness as far as
possible, while ensuring your child is
comfortable.
7. How to ensure the shoulder belts are at the
correct height
For your child’s safety, always check that
the height of the shoulder belts are
adjusted according to the size/height of
your child. The shoulder belt should be
at the same level as your child’s shoulder
or slightly higher (as shown in the
diagram).

Forward facing - First level
Forward facing - Third level Rear facing - Most recline
Forward facing - Second level
10
9

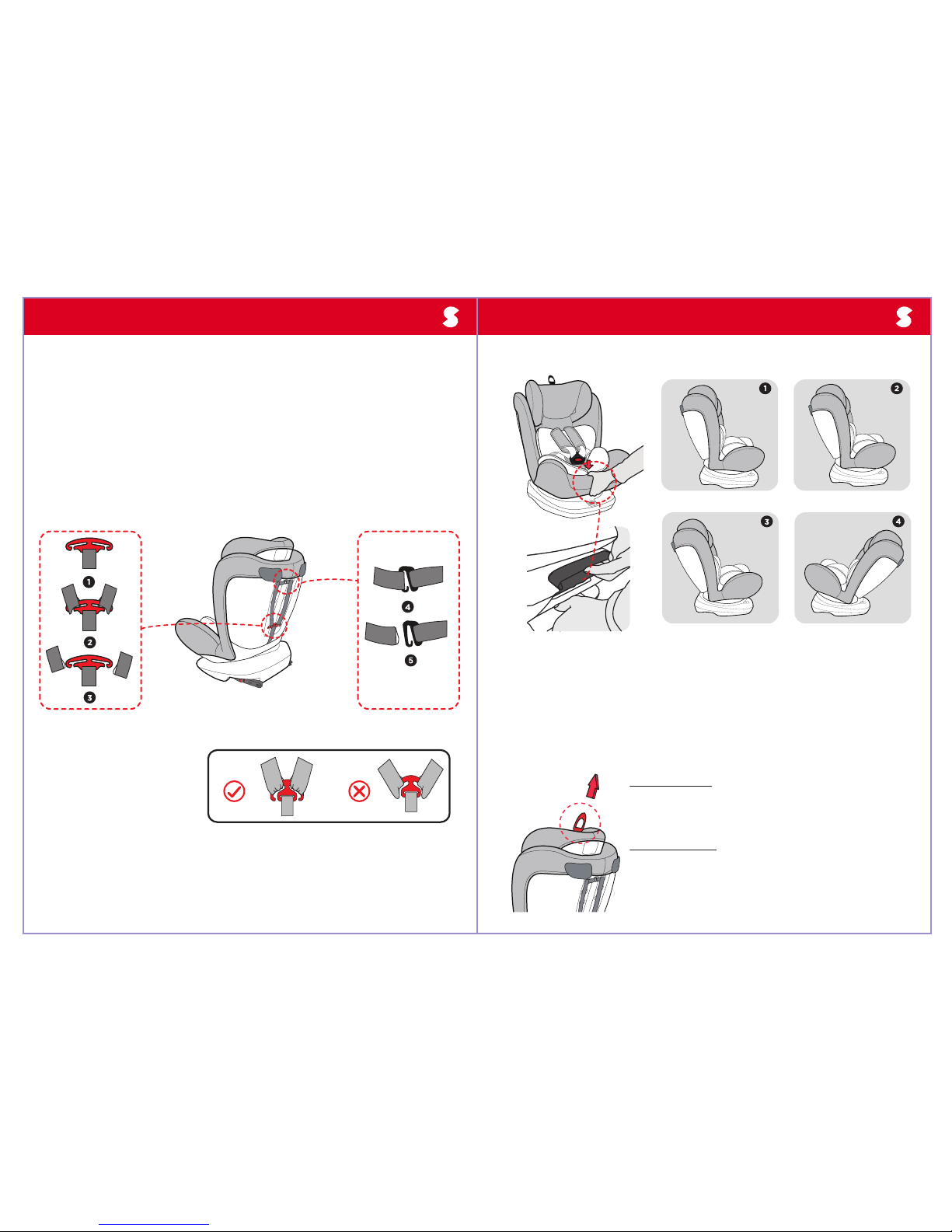

8. How to adjust the shoulder belts
Important: Make sure both
shoulder belts are of the same
height, not twisted, and fitted
properly into the yoke connect
plate.
9. How to adjust the reclining position of the car seat
10. How to adjust the height of the headrest
If the height of the shoulder belt is not suitable for your child, adjust according to the
following steps:
Step 1: From the back of the car seat, remove both shoulder belts from the yoke
connect plate.
Step 2: Release the shoulder pad from shoulder pad connecting plate, pull both
shoulder belts and shoulder pads out from the shoulder belt route slot.
Step 3: Insert the shoulder belts and shoulder pads into the appropriate shoulder belt
route slot. Fit the shoulder belts into the yoke connect plate and fit the shoulder pads
into the shoulder pad connecting plate.
Pull the reclining adjustment lever and adjust the car seat to the most suitable
position. Release the reclining adjustment lever and you should hear a “click” sound.
For forward facing installation, this car seat can be adjusted to three reclining
positions. For rear-facing installation, please adjust the car seat to the third level, then
press the rotating button to rotate the car seat towards rear-facing direction.
To raise headrest
Pull both headrest and height adjuster upwards to an
appropriate position until you hear a“click” sound.
To lower headrest
While pulling the height adjuster upwards, push the
headrest downwards to an appropriate position until you
hear a“click” sound.
Step 1 Step 2

11. How to rotate the car seat
12. How to install the top tether
11 12
Vehicles without ISOFIX anchorage systems:
Step 1: Adjust the car seat to the third reclining
position level, then press the rotating button
to rotate the car seat towards rear-facing
direction until you hear a “click” sound.
Press the rotating button to rotate the car seat for easier side loading/unloading
of the child, then rotate back to desired direction until you hear a “click” sound.
Notice: Do not drive unless car seat is front or real-facing direction. The car seat
must be properly secured
.
Step 1: Pull out the top tether and press
the release button on the top tether
system to lengthen the belt.
Step 2: Pass the top tether through the
slot between the headrest and
backrest. Fix the hook of the top tether
on the vehicle seat’s top tether anchor
according to the vehicle usage
manual.
Tighten the top tether until the
indicator shows green.
13. How to install car seat rear-facing for Group
0+ (0-13kg, approx. birth to 1 year)
Notice:
1. Do not install this car seat in a forward
facing position if your child weighs less than
9kg. Adjust the car seat to the most reclining
position level (please refer to section 9).
Shake the car seat before use to make sure it
has been installed securely.
2. Ensure the harness is not twisted.

13 14
Step 1: Clip the two insert guides with the
cut-out facing upwards onto the two ISOFIX
attachment points of your vehicle.
Tip: ISOFIX attachment points are between
the seat and backrest.
Step 2: Place the car seat facing the vehicle
seat backrest. Press the ISOFIX unlock button
and push both ISOFIX locking arm into the
insert guides, until they engage on both sides
and you hear a “click” sound.
The locking arms are only correctly engaged if
both of the indicators on the ISOFIX unlock
buttons are green.
Step 3: Pull the vehicle seat belt and pass
the vehicle shoulder belt through the back
of the backrest. The vehicle lap belt should
go through the gap between the car seat
backrest and armrest (make sure the vehicle
lap belt has been placed behind the inner
cushion). Fasten the seat belt into the
buckle until you hear a “click” sound.
Step 4: When you pull out the vehicle belt, it
should go through the car seat’s blue belt
hook and the slot between headrest and
backrest.
Tighten the vehicle seat belt according to
the direction of the arrows. Make sure the
seat belt is tight and remove any slack.
Vehicles with ISOFIX anchorage systems:
Step 2: Place the car seat facing the vehicle
seat backrest. Make sure the front of the car
seat is resting firmly against the vehicle seat
backrest.
Click
Click
×
√
Step 3: Pull out the top tether and press the
release button on the top tether system to
lengthen the belt.

15 16
14. How to install car seat forward facing for Group I
(9-18kg, approx. 9mths to 4 years)
Vehicles without ISOFIX anchorage systems:
Click
Step 4: Pass the top tether through the
slot between the headrest and
backrest. Fix the hook of the top tether
on the vehicle seat’s top tether anchor
according to the vehicle usage
manual.
Tighten the top tether until the
indicator shows green.
Step 1: Adjust the car seat to the suitable
position (level 1, 2 or 3). Place the car seat
forward facing on the vehicle seat. Make
sure it is resting firmly against the vehicle
seat backrest.
Step 2: Pull the vehicle seat belt and pass
the vehicle shoulder belt through the seat
belt slot on the headrest. The vehicle lap
belt should go through the gap between
the car seat backrest and armrest.
Step 3: Pass the vehicle belt through the
back of the inner cushion to the other side
and fasten the seat belt into the buckle
until you hear a “click” sound.
Notice: The vehicle shoulder belt ➀ and the
vehicle lap belt ➁ should be placed behind
the inner cushion.
Step 4: Tighten the vehicle seat belt
according to the direction of the arrows.
Make sure the seat belt is tight and remove
any slack.
➀
➁

C1 2
17 18

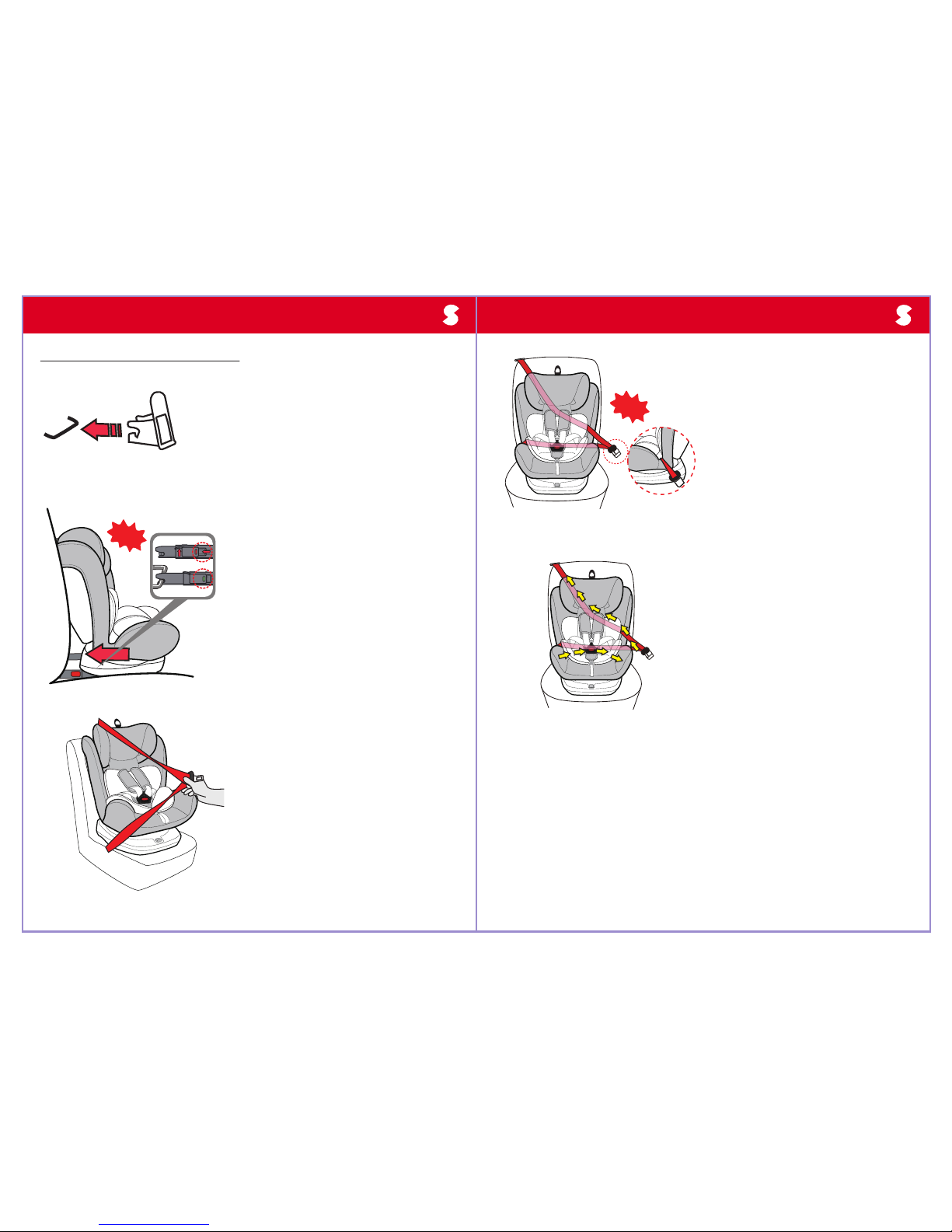

Vehicles with ISOFIX anchorage systems:
Click
Click
Step 1: Clip the two insert guides with the
cut-out facing upwards onto the two
ISOFIX attachment points of your vehicle.
Tip: ISOFIX attachment points are between
the seat and backrest.
Step 2: Place the car seat forward facing on
the vehicle seat. Press the ISOFIX unlock
button and push both ISOFIX locking arms
into the insert guides, until they engage on
both sides and you hear a “click” sound.
The locking arms are only correctly engaged
if both of the indicators on the ISOFIX
unlock buttons are green.
Step 3: Pull the vehicle seat belt and pass
the vehicle shoulder belt through the seat
belt slot on the headrest. The vehicle lap
belt should go through the gap between the
car seat backrest and armrest.
×
√
➀
➁
Step 4: Pass the vehicle belt through the
back of the inner cushion to the other side
and fasten the seat belt into the buckle
until you hear a “click” sound.
Notice: The vehicle shoulder belt ➀ and the
vehicle lap belt ➁ should be placed behind
the inner cushion.
Step 5: Tighten the vehicle seat belt
according to the direction of the arrows.
Make sure the seat belt is tight and remove
any slack.

19 20

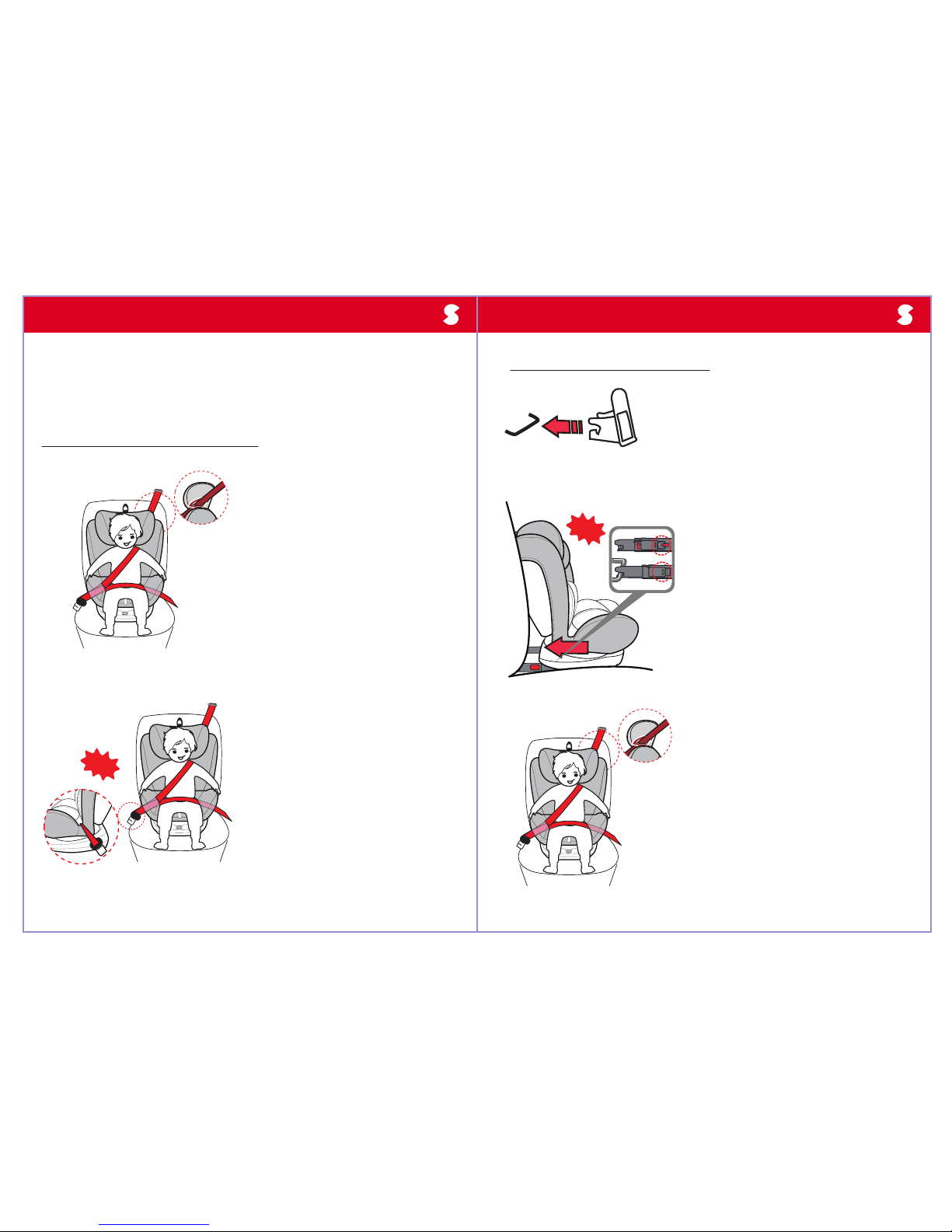

15. How to install car seat forward facing for
Group II, III (15-36kg, approx. 3 to 11 years)
Important: Before installing the car seat, remove the 5-point harness system
and inner cushion.
Vehicles without ISOFIX anchorage systems:
Vehicles with ISOFIX anchorage systems:
Click
Step 1: Clip the two insert guides with
the cut-out facing upwards onto the two
ISOFIX attachment points of your vehicle.
Tip: ISOFIX attachment points is between
the seat and backrest.
Step 2: Place the car seat forward facing
on the vehicle seat. Press the ISOFIX
unlock button and push both ISOFIX
locking arms into the insert guides, until
they engage on both sides and you hear a
“click” sound.
The locking arms are only correctly
engaged if both of the indicators on the
ISOFIX unlock buttons are green.
Step 3: Pull the vehicle seat belt and pass
the vehicle shoulder belt through the seat
belt slot on the headrest. The vehicle lap
belt should go through the gap between
the car seat backrest and armrest.
Step 1: Pull the vehicle seat belt and pass
the vehicle shoulder belt through the seat
belt slot on the headrest. The vehicle lap
belt should go through the gap between
the car seat backrest and armrest.
Step 2: Fasten the seat belt into the buckle
until you hear a “click” sound. Pull the
vehicle seat belt upwards and make sure
the seat belt is tight.
Click
×
√

21 22
16. How to remove the car seat cover
Click
Step 1: Adjust the reclining position of
the car seat to level 3. Remove the buckle
metal plate from the crotch belt hole.
Step 2: From the front of the car seat,
remove the shoulder pads and shoulder
belts (
please refer to section 8). Then the
inner cushion and main cover can be
removed easily.
Notice: To re-fit the car seat cover,
please follow the above method in the
reverse order.
30°C
Machine (gentle
cycle)/ Hand
wash, below 30˚C
Do not bleach Do not
tumble
Do not ironDo not wring
17. Cleaning & Maintenance
Periodically check the car seat for damaged or worn parts. Do not use this car seat
if any part is damaged or worn.
5-point harness buckle
A5-point harness buckle is a safety feature. Please use water to clean the 5-point
harness buckle as food, drink and other residues may easily accumulate in the
buckle. If the buckle is jammed, please contact manufacturer or retailer.
5-point harness belts and plastic components
Wipe the 5-point harness belts and plastic components with warm water and mild
soap.
Car seat cover
Never use this car seat without the cover.
The car seat cover is washable. We do not recommend removing the car seat cover
frequently. Please refit the car seat cover after washing and make sure all
components are refitted properly.
Machine/Hand wash the car seat cover in water below 30˚C with mild soap. Do
not use any solvent, cleaning chemicals and lubricant on the car seat.
Do not remove or make any additions to the car seat cover and 5-point harness
system.
Flat dry. Avoid drying the seat cover in direct sunlight.
Do not dry clean.
Step 4: Fasten the seat belt into the
buckle until you hear a “click” sound. Pull
the vehicle seat belt upwards and make
sure the seat belt is tight.
