#6-3041 SNAPPERIZER KIT for
SNAPPER 21" STEEL DECK MOWERS
This kit will install on all 21” Steel Deck: Hi-Vac
(Rolled under edge type of deck), “M” prefix and “F”
prefix Series Walk Behind Mowers. This kit will
convert your SNAPPER 21" mower into an effective
pulverizer of leaves, pine straw, light twigs and
similar lawn debris. The Snapperizer is intended
primarily for use with grass catcher equipped mowers
to vacuum and bag the pulverized material. But, can
also be used with side discharge mowers to
broadcast materials back onto the lawn.
RECOMMENDED USE: Install the Snapperizer for Spring
and Fall clean-ups but remove it during the regular grass
cutting season. The mower will cut grass with the
Snapperizer if no more than 1/2" is being cut off the top,
however, heavy and/or wet clippings will quickly clog the
Snapperizer screen. Use the Snapperizer under the
driest possible conditions for best results. Your mower
will do a great job of vacuuming driveways and walks with
only the bottom plate of the kit installed.
PREPARING THE MOWER FOR SNAPPERIZER
WARNING
Before attempting any adjustments, maintenance,
service, or repairs, stop engine and blade, always
remove key from ignition switch, remove spark plug
wire and secure wire away from spark plug.
1. Disconnect the spark plug wire and secure it away from
the plug to prevent unintentional starting.
2. Empty the fuel tank or tape vent in fuel filler cap closed
to prevent leakage.
3. Tilt the mower back on its handles and block deck in
raised position to allow working on the underside of the
deck.
WARNING
Wear heavy leather gloves when handling or working
around cutting blades. Blades are extremely sharp and
can cause severe injury. Never use a cutting blade that
shows signs of excessive wear or damage.
4. Block cutting blade to prevent it's turning then remove
the blade. Save blade and hardware; these items will be
reinstalled after the screen is in position.
5. Use a metal scraper and wire brush to remove dirt and
grass clippings from the underside of the deck to allow
proper fitting of the Snapperizer screen.
INSTRUCTION #4-6554 (REV. 1, 2/24/99)
INSTALLING THE SNAPPERIZER
1. Position the screen on underside and turn it until the
three studs on the screen go through the matching holes
in deck then secure with three split lockwashers and hex
nuts on topside of deck. See Figure 1.

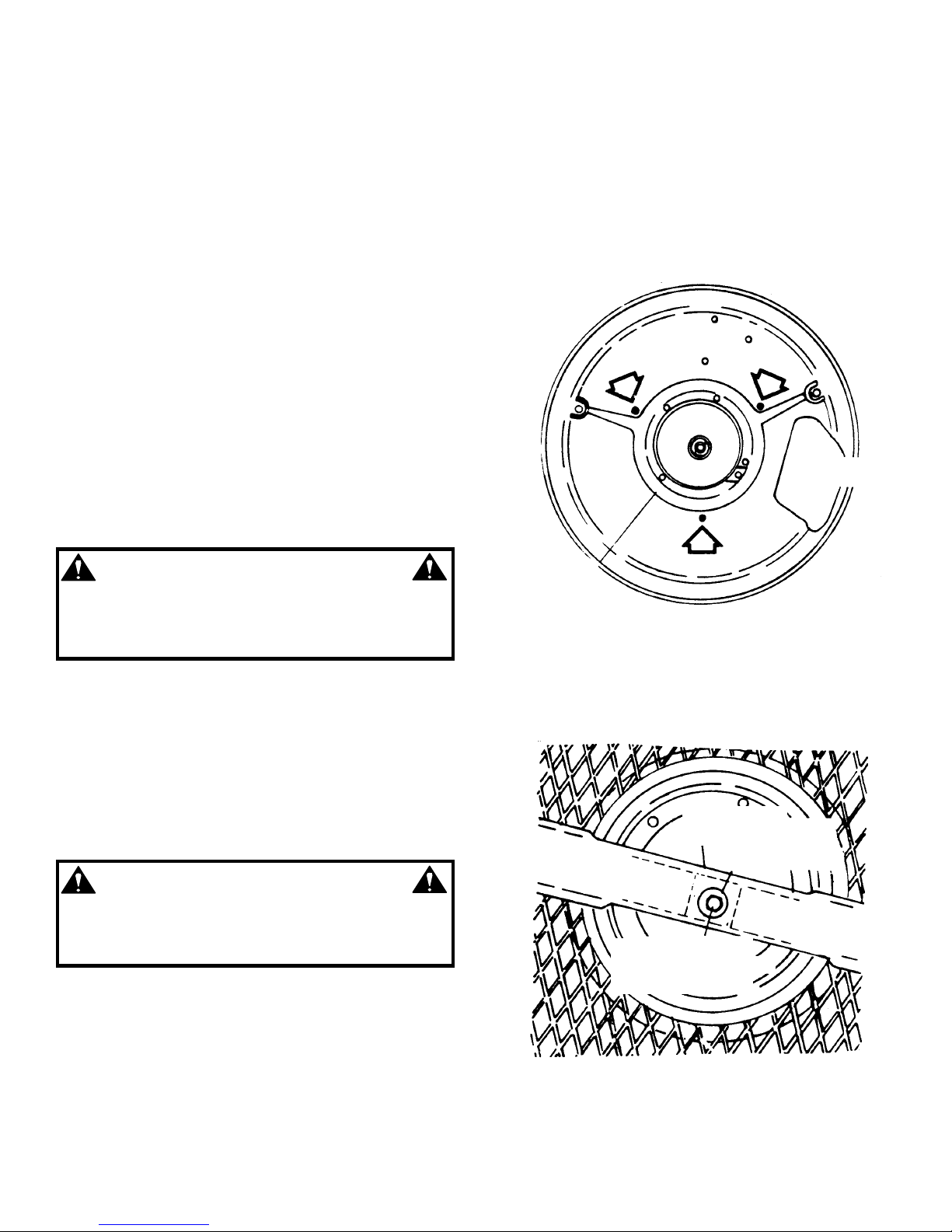

UNDERSIDE VIEW OF DECK
Figure 1 - Screen Mounting Holes
2. Reinstall the cutting blade, position widest part of cone
washer next to the blade then reinstall the retaining screw
and tighten to 30 to 40 ft. lbs. torque. See Figure 2.
Figure 2 - Blade Installed After Screen
(over)
DISCHARGE
OPENING
FRONT OF
MOWER
HUB (UNDER
BLADE
)
CONE WASHER
TIGHTEN SCREW
TO 30 TO 40 FOOT
POUNDS

2
#6-3041 SNAPPERIZER KIT
3. Hook the ends of the springs over the tabs on the
bottom plate as shown. See Figure 3. After hooking the
springs on the tabs, use pliers to squeeze each hook
closed over the tab.
CLOSE ENDS WITH PLIERS
Figure 3 - Spring Connection Detail
4. Position the bottom plate with FRONT marking
between the front wheels. See Figure 4. Hook the
ends of each spring over the nearest wheel arm
bracket. Reconnect the spark plug wire to ready the
mower for operation.
Figure 4 - Bottom Plate Marking
OPERATING HINTS
Before starting the engine, raise the mower deck into
the highest cutting height (lowest notches) or in position
to allow maximum pulverizing with minimum of grass
being cut. Run engine at top speed and low ground
speed for best results. If leaf build-up is high, push
down on handles to raise deck above the pile then lower
deck slow enough to allow pulverizing without choking
the deck with leaves and stalling the engine.
CAUTION: The Snapperizer is not intended for
shredding large sticks or tree limbs. The area must be
cleared of stones, wire, large sticks or other objects,
which could jam the blade and stall the engine. If
jamming occurs, and cannot be cleared by rotating
blade with recoil starter, DISCONNECT and SECURE
SPARK PLUG WIRE, raise deck and manually rotate
blade until jamming object can be removed.
KIT PARTS LIST
ITEM PART NO. DESCRIPTION
1 5-1243 SCREEN, Fastener Assembly
2 7-2002 RING, Bottom
3 9-0223 NUT, 5/16-24 Hex (3)
4 9-0187 WASHER, 5/16 Split Lock (3)
5 1-2587 SPRING (4)
AIR CLEANER SERVICE NOTE: The pulverizing of dry
debris is a dusty/dirty operation. Because of this, wear a
facemask and service the air cleaner after use under
such conditions rather than waiting for normal service
interval. Also, keep grass catcher bag clean to allow for
proper air flow.
INSTRUCTION #4-6554 (REV. 1, 2/24/99)
TAB ON BOTTOM
PLATE (RING)
POSITION FRONT MARKING
