Snapper EI User manual

Parts Manual fo
r
Revision 2,
TWO-STAGE INTERMEDIATE FRAM
E
SERIES 5 & 6
COPYRIGHT
©
2006
McDonough, GA, 30253 U.S.A.
TP 400-5038-2-IS-N
10/3/2006 Manual No. 7006070
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
SNOW THROWER
MODEL
EI5225
EI75225
EI7524
6
EI75246
E
EI8245
EI85245
I5225
I75225
I75246
E
I8245
E
I85245
E

Table Of Content
s
TP 400-5038-2-IS-N
Manual No. 7006070TWO-STAGE INTERMEDIATE FRAME
SERIES 5 & 6 3
PAGE GROUP
4UPPER HANDLES, DASH, CONTROLS
8CHUTE CRANK CONTROL
10 COLLECTOR HOUSING (3 Piece Bolted)
12 DISCHARGE CHUTE
14 AUGERS, IMPELLER, GEAR CASE, SHAFT
16 TRACTION DRIVE GROUP
20 ENGINE, PULLEYS, IDLER (5 HP Tecumseh)
24 ENGINE, PULLEYS, IDLER (7-1/2, 8, 8-1/2 HP Briggs)
30 WHEELS
32 DECALS
34 ELECTRIC START COMPONENTS

UPPER HANDLES, DASH, CONTROLS
TP 400-5038-2-IS-N
Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME
SERIES 5 & 6
4

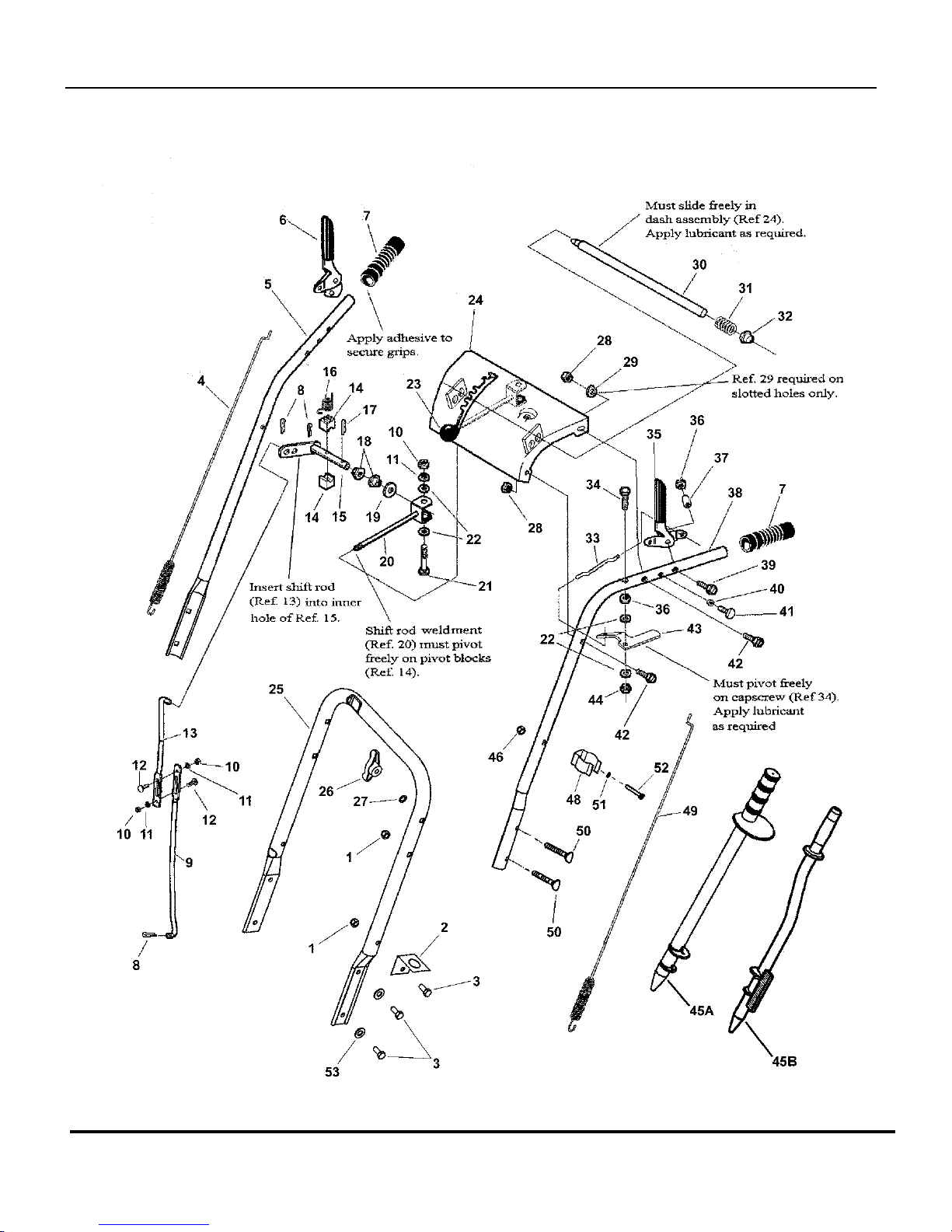

UPPER HANDLES, DASH, CONTROLS
Footnotes:
TP 400-5038-2-IS-N
Manual No. 7006070TWO-STAGE INTERMEDIATE FRAME
SERIES 5 & 6 5
Part No Descri
p
tionItem Qt
y
Note
1 1919438 2 NUT, 5/16-18 Hex Nyloc or 7091298
2 1726727 1 BRACKET, Snow Stick- Lower
3 1921332 4 SCREW, 5/16-18 x 3/4” Hex Head Cap or 7091318
4 7027426 1 CLUTCH CABLE, Auger Drive- RH part number is stamped on cable
5 1726574 1 HANDLE, Upper, Right Hand
6 1722638 1 GRIP, Clutch, RH
7 1726317 2 GRIP, Foam, Black
8 1722460 3 HAIR PIN
9 1666255 1 ROD, Shift, Lower
10 1916622 2 NUT, 1/4-20 2B Hex
11 1916964 3 LOCKWASHER, 1/4” Spring
12 1931317 2 BOLT, 1/4-20 x 2” Short Square Neck Carriage, GR 5
13 1720238 1 ROD, Upper, Shift
14 1668524 2 BLOCK, Pivot
15 1720240 1 WELDMENT, Shift Rod Pivot
16 1715123 1 SPRING, Compression
17 1918452 1 COTTER PIN, .125 x 1.00
18 1668185 2 BUSHING, .500 ID x .750 OD x .25
19 1924361 1 WASHER, 1/2” Flat (.531 ID x 1.250 OD x .08 Thick)
20 1668523 1 WELDMENT, Shift Rod
21 1960705 1 SCREW, 1/4-20 x 2-1/4” Hex Flange Lock
22 1921319 2 WASHER, .250 (.27 ID x .62 OD)
23 1726734 1 KNOB, Tapered - 3/8-16 Internal Thread- Red
24 1726983 1 WELDMENT, Dash
25 1726572 1 HANDLE, Lower
26 7035744 2 WING KNOB, 5/16-18
27 7090391 2 WASHER, 5/16” Internal Tooth Lock
28 1960686 4 NUT, 5/16-18 Hex Flange Nyloc
29 1919326 2 WASHER, .312 (.34 ID x .75 OD) or 7014098
30 1722633 1 ASSEMBLY, Rod w/Pin includes items 32, 47, 54, 55 &
56.
31 1722690 1 SPRING, Compression
32 1960519 1 PUSH NUT
33 1722630 1 ROD, Hold Down
34 1960662 1 SCREW, 1/4-20 x 2” Hex Head Cap, GR 5
35 1722667 1 GRIP, Clutch, LH
36 1923358 2 NUT, 1/4-20 Hex Centerlock
37 1715655 2 SPACER, Handle

UPPER HANDLES, DASH, CONTROLS
TP 400-5038-2-IS-N
Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME
SERIES 5 & 6
6

UPPER HANDLES, DASH, CONTROLS
Footnotes:
TP 400-5038-2-IS-N
Manual No. 7006070TWO-STAGE INTERMEDIATE FRAME
SERIES 5 & 6 7
Part No Descri
p
tionItem Qt
y
Note
38 1726573 1 HANDLE, Upper, Left Hand
39 1922837 2 SCREW, 1/4-20 x 1-1/2” Hex Head Cap
40 1715654 2 SPACER, .268 ID x .394 x .165
41 1960671 2 SCREW, 1/4-20 x 3/4” Pan Head Torx Self-Tap
42 1921221 5 SCREW, 5/16-18 x 1-1/2” Hex Head Cap, GR 5
43 1722631 1 LEVER, Pivot
44 1920397 2 NUT, 1/4-20 Hex Nyloc
45A 7075909 1 SNOW STICK
45B 1733209 1 SNOW STICK w/Brush replaces 7075909
46 7091267 1 NUT, #10-24 Hex Center Lock
47 1722632 1 ROD, Hand Control not shown; part of item 30
48 7071895 1 HOLDER, Snostik- Upper
49 7027425 1 CLUTCH CABLE, Ground Drive- LH parts number is stamped on
cable
50 7091189 4 BOLT, 5/16-18 x 2” Curved Head Square Neck GR 2
51 7090011 1 WASHER, #10 Internal Tooth Lock
52 7091266 1 SCREW, #10-24 x 2” Hex Washer Head Machine, GR 5
53 1917356 4 LOCKWASHER, Spring .312 or 7091315
54 1722635 1 BUSHING, .250 ID x .375 OD x .750 not shown; part of item 30
55 1722634 1 PIN, Clevis not shown; part of item 30
56 1722613 1 SPRING, Compression not shown; part of item 30

CHUTE CRANK CONTROL
TP 400-5038-2-IS-N
Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME
SERIES 5 & 6
8

CHUTE CRANK CONTROL
Footnotes:
TP 400-5038-2-IS-N
Manual No. 7006070TWO-STAGE INTERMEDIATE FRAME
SERIES 5 & 6 9
Part No Descri
p
tionItem Qt
y
Note
1 1960093 1 PUSH NUT, Pal. .375 Dia. Stud Cap
2 1714084 1 KNOB, Spinner
3 1667588 3 BUSHING, .376 x .437 x .20
4 7028152 1 ROD, Chute, Upper
5 1960074 1 CLIP, .093 Dia. Hair Pin
6 1720577 1 SPLICE, Chute Handle
7 1926228 1 SPRING PIN, .156 x 1.000
8 1726939 1 ROD, Chute Lower
9 1918452 1 COTTER PIN, .125 x 1.00
10 1718793 1 BRACKET, Universal Gear
11 1921319 3 WASHER, .250 (.27 ID x .62 OD)
12 1960518 2 RETAINER, 1/4” Bolt
13 1960252 2 BOLT, 1/4-20 x 5/8” Short Square Neck Carriage
14 1718593 2 GEAR, Universal
15 1960103 1 WASHER, 3/8” Flat- Black
16 1916168 1 SPRING PIN, .125 x .750
17 7028159 1 WORM SHAFT
18 1960294 2 NUT, 1/4-20 Hex Flange Lock
19 7014001 1 ROLL PIN, 1/8 x 3/4”
20 7021828 1 WORM
21 7011724 1 WASHER, .44 x .78 x .025 Curved
22 7028162 1 BRACKET, Worm
23 7091070 1 NUT, 5/16-18 Hex Flange Lock
24 7091138 1 SCREW, 5/16-18 x 5/8” Hex Head Cap, GR 5
25 7090539 1 SCREW, 1/4-20 x 1/2” Hex Washer Self-Tap

COLLECTOR HOUSING (3 Piece Bolted)
TP 400-5038-2-IS-N
Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME
SERIES 5 & 6
10

COLLECTOR HOUSING (3 Piece Bolted)
Footnotes:
TP 400-5038-2-IS-N
Manual No. 7006070TWO-STAGE INTERMEDIATE FRAME
SERIES 5 & 6 11
Part No Descri
p
tionItem Qt
y
Note
1 7072542 1 END PLATE, RH- Auger Housing- Red
2 7072547 1 WELDMENT, Auger Housing - 22” - Red
2 7072567 1 WELDMENT, Auger Housing - 24” - Red
3 1930659 3 RETAINER NUT, 5/16-18
4 7072544 1 END PLATE, LH- Auger Housing- Red
5 7300099 1 BLADE, Scraper- 22” replaces 1675080
5 7200098 1 BLADE, Scraper- 24” replaces 1725352
6 1726457 2 BEARING, Auger
7 1665982A 1 RETAINER, Bearing
8 108202 1 BALL BEARING
9 7072552 2 SKID SHOE, Reversible- Red or 1727854
10 1916965 4 WASHER, 3/8” Split Lock or 7091320
11 1931315 12 BOLT, 1/4-20 x 1/2” Short Square Neck Carriage, GR 5 or 7091604
12 7090204 3 SCREW, 5/16-18 x 5/8 Hex Head Cap, GR 5 or 1925205
13 1930641 12 NUT, 1/4-20 Hex Flange Lock Large
14 1960711 4 BOLT, 3/8-16 x 3/4” Square Neck Carriage or 7091923
15 1924940 4 WASHER, 3/8” Flat or 7090122
16 1960687 4 NUT, 3/8-16 Hex Nyloc
17 7091742 6 SCREW, 5/16-18 x 1” Hex Washer Self-Tap
18 7072549 2 CAP, Bearing, Red
19 7091315 3 WASHER, 5/16” Split Lock or 1917356
20 7091208 5 BOLT, 1/4-20 x 7/16” Short Square Neck Carriage, GR 5
21 7091065 5 NUT, 1/4-20 Hex Flange Lock

DISCHARGE CHUTE
TP 400-5038-2-IS-N
Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME
SERIES 5 & 6
12

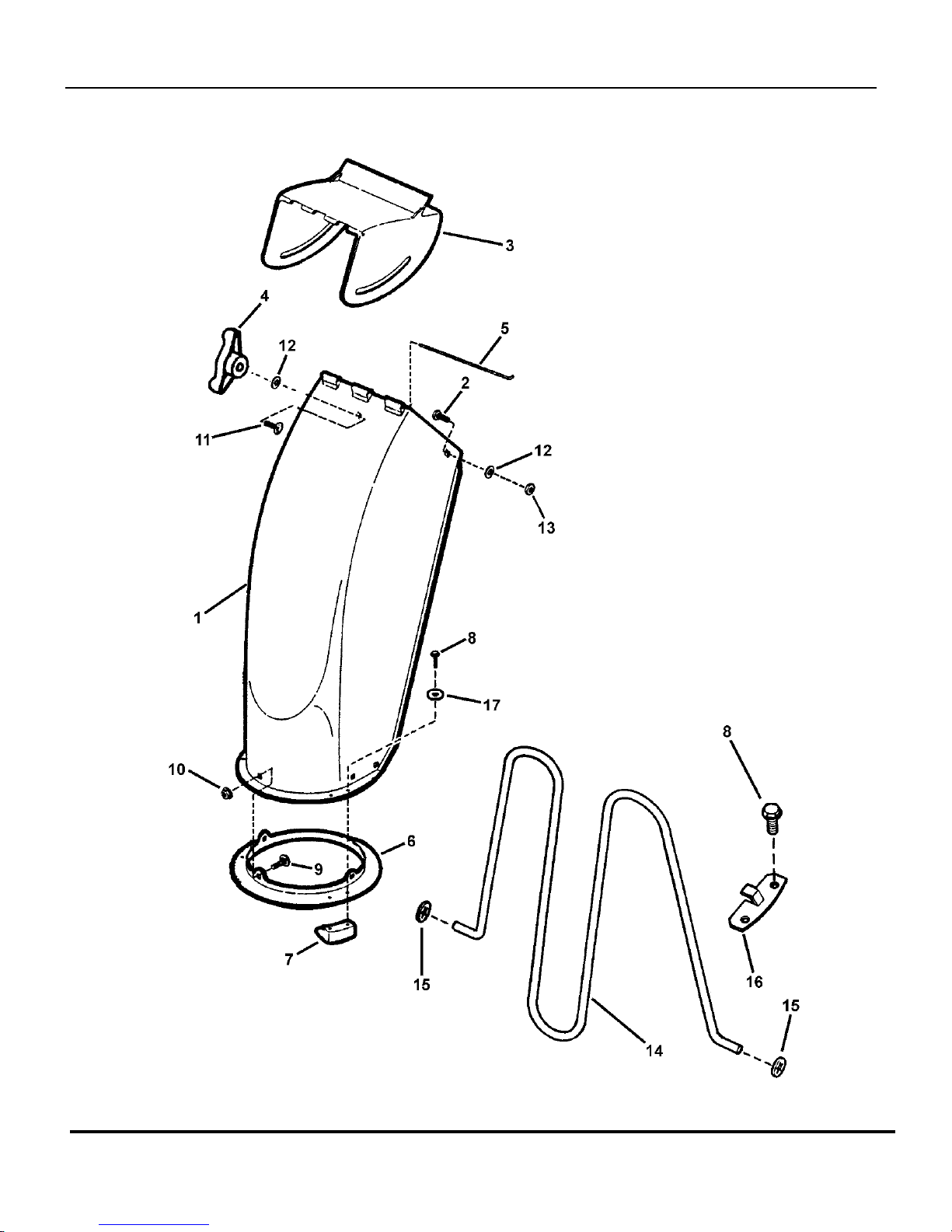

DISCHARGE CHUTE
Footnotes:
TP 400-5038-2-IS-N
Manual No. 7006070TWO-STAGE INTERMEDIATE FRAME
SERIES 5 & 6 13
Part No Descri
p
tionItem Qt
y
Note
1 7028217 1 CHUTE, Discharge A Chute/Deflector Assy
(7075321) includes items 1, 3 &
5.
2 7091021 1 SCREW, 5/16-24 x 3/4” Hex Head Cap, GR 5
3 7028846 1 DEFLECTOR, Chute
4 7035744 1 WING KNOB, 5/16-18
5 7028253 1 WIRE PIN
6 7039765 1 CHUTE RING
7 7011938 3 RETAINER, Spout
8 7091075 6 SCREW, #10-24 x 5/8” Hex Washer Self-Tap
9 7091077 3 BOLT, 5/16-18 x 5/8” Square Neck Carriage, GR 5
10 7091070 3 NUT, 5/16-18 Hex Flange Lock
11 7091097 1 BOLT, 5/16-18 x 3/4” Square Neck Carriage, GR 5
12 7091076 2 WASHER, .34 x .69 x .08 Flat
13 7091074 1 NUT, 5/16-24 Hex Center Lock, GR B
14 7019692 1 WIRE, Safety used on Euro models
15 7023673 2 PUSH-ON FASTENER, 5/32” Dia. used on Euro models (Arden
#BV5928)
16 7032559 2 RETAINER, Safety Wire used on Euro models
17 7091552 6 WASHER, 7/32” Flat used on Euro models
For deflector & decal ass'y order 7072058 (domestic) or 7074741 (european).

AUGERS, IMPELLER, GEAR CASE, SHAFT
TP 400-5038-2-IS-N
Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME
SERIES 5 & 6
14

AUGERS, IMPELLER, GEAR CASE, SHAFT
Footnotes:
TP 400-5038-2-IS-N
Manual No. 7006070TWO-STAGE INTERMEDIATE FRAME
SERIES 5 & 6 15
Part No Descri
p
tionItem Qt
y
Note
1 1715091 1 PULLEY, Auger Input
2 7090848 2 SET SCREW, 5/16-18 x 1/2” Square Head Cup Point or 1928721
3 7012699 2 KEY, 3/16 x 3/4” Woodruff or 7010211
4 1960474 1 SET SCREW, 3/8-16 x 1/2” Square Head
5 1715120A 1 WELDMENT, Impeller
6 1612093 1 OIL SEAL
7 1666425 1 BUSHING
8 936098 1 PIN, Drive-Loc, 3/16 x 1-1/2”
9 1721680 1 COLLAR, Thrust
10 1715580 1 SHAFT, Rolled Worm
11 1670971 1 WASHER, Thrust (.562 ID x 1.000 OD x .030/.032 Thick)
12 1666424 1 FLANGE, Bushing
13 1676027 2 OIL SEAL
14 7091576 6 NUT 1/4-20 Hex replaces 7092126
15 1726732 1 GEAR CASE, LH- Intermediate
16 1721676 1 GASKET, Gear Case
17 1676026 2 BUSHING
18 1726538 1 SHAFT, Auger, 22”/24”
19 1676024 1 GEAR, Worm
20 1726733 1 GEAR CASE, RH- Intermediate
21 7092128 1 PIPE PLUG, 1/8-27 NPTF 3/4 Taper x .31 Long Hex Drive
22 7092125 6 SCREW, 1/4-20 x 7/8” Hex Head Cap, GR 5
23 921133 1 FITTING, Grease
24 1726536 1 WELDMENT, 22” Auger, RH
25 1726535 1 WELDMENT, 22” Auger, LH
26 7023590 2 COTTER PIN, 1/4” Self Locking replaces 7091597
27 1668344 2 SHEAR PIN, .248 ID x 1-3/4” Long
28 1960114 4 WASHER
29 927794 2 RING, External Retaining (for .75 dia. Shaft)
30 7015894 1 KEY, #605 Woodruff
31 1612112 1 TUBE, Low Density Polyethylene Extruded
32 7092127 12 FLAT WASHER, .268 ID x .591 OD x .063 Thick
33 7090052 6 WASHER, 1/4” Split Lock

TRACTION DRIVE GROUP
TP 400-5038-2-IS-N
Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME
SERIES 5 & 6
16

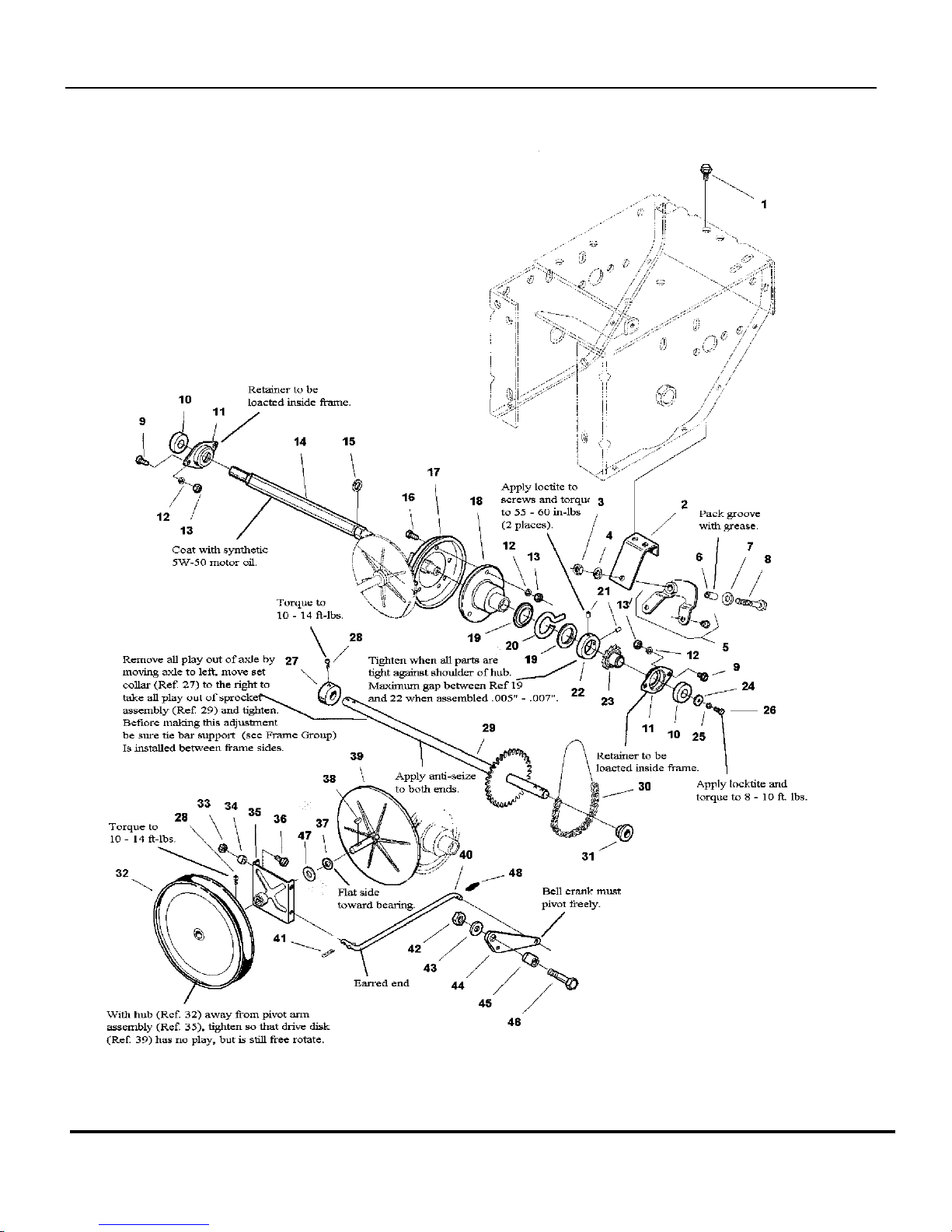

TRACTION DRIVE GROUP
Footnotes:
TP 400-5038-2-IS-N
Manual No. 7006070TWO-STAGE INTERMEDIATE FRAME
SERIES 5 & 6 17
Part No Descri
p
tionItem Qt
y
Note
1 1930601 3 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap or 7090361
2 1673994A 1 BRACKET, Bushing
3 7091302 1 NUT, 3/8-16 Hex, GR 5 or B
4 7091320 1 WASHER, 3/8” Split Lock or 1916965
5 1669256 1 ASSEMBLY, Shift Arm w/Bushing includes weldment (1666213) &
bushing (1669255)
6 1666114 1 BUSHING, Spacer, .380 ID x .750 OD x 1.030 Long
7 7090122 1 WASHER, 3/8” SAE Flat or 1924940
8 7091305 1 SCREW, 3/8-16 x 2” Hex Head Cap, GR 5 or 1923701
9 7091138 4 SCREW, 5/16-18 x 5/8” Hex Head Cap, GR 5
10 1722703 2 BALL BEARING, .669 ID x .574 OD
11 1667341 2 RETAINER, Bearing
12 1917356 4 LOCKWASHER, 5/16” Spring or 7091315
13 7090196 7 NUT, 5/16-18 Hex, GR B or 5 or 1917372
14 7072432 1 HEX SHAFT
15 927794 1 RING, External Retaining (for 3/4 Dia Shaft)
16 7091318 3 SCREW, 5/16-18 x 3/4” Hex Head Cap or 1921332
17 1725428 1 DRIVEN DISC or 7018782
18 1665995 1 HUB, Friction Disc
19 1678956 2 COLLAR, Thrust
20 1666207 1 PIN, Slide
21 7091829 2 SET SCREW, 1/4-20 x 1/2 w/Patch Lock or 1724333
22 1667335 1 COLLAR, Set, 1.251 ID x 2.00 OD x .50 Long
23 7072459 1 SPROCKET #35, 12 Tooth
24 1960353 1 WASHER, 1/4 ID x 5/8 OD x .134/.109 Flat or 7091294
25 1916964 1 LOCKWASHER, 1/4” Spring
26 1923341 1 SCREW, 1/4-20 x 3/4” Hex Head Cap, GR 5 or 7091495
27 8021010 1 COLLAR, Set, .756 ID x 1.249 OD x .50
28 7090848 2 SET SCREW, 5/16-18 x 1/2” Square Head Cup Point or 1928721
29 7072474 1 WELDMENT, Axle & Sprocket
30 7072491 1 CHAIN, Roller, #35, 25.5” Long
31 1715101 1 BUSHING
32 1715253 1 PULLEY, Traction
33 7090951 2 NUT, 5/16-18 Large Head Center Lock or 1935048
34 1665844 2 SPACER, .328 ID x .562 OD x .144/.149 Thick
35 1726778 1 ASSY, Pivot Plate/Hub w/Bearing includes weldment (1726779),
bushing (1666855) & bearing
(1665521)
36 7090204 2 SCREW, 5/16-18 x 5/8 Hex Head Cap, GR 5 or 1925205
37 1666379 1 WASHER

TRACTION DRIVE GROUP
TP 400-5038-2-IS-N
Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME
SERIES 5 & 6
18

TRACTION DRIVE GROUP
Footnotes:
TP 400-5038-2-IS-N
Manual No. 7006070TWO-STAGE INTERMEDIATE FRAME
SERIES 5 & 6 19
Part No Descri
p
tionItem Qt
y
Note
38 7091214 1 KEY, Hi-Pro, #HP-506 or 930672
39 1719879 1 DRIVE DISC, w/ Spindle
40 1715131 1 ROD, Pivot
41 7091598 1 COTTER PIN, 1/8 x 3/4”
42 7091575 1 NUT, 5/16-18 Hex Nyloc Light or 1919438
43 1919326 2 WASHER, .312 (.34 ID x .75 OD) or 7014098
44 1700473 1 BELLCRANK
45 1666106 1 BUSHING
46 7091908 1 SCREW, 5/16-18 x 1-3/4 Hex Head Cap, GR 5 or 1922127
47 1924366 1 WASHER, Plain, .75 ID x 1.31.OD x .10
48 7091593 1 COTTER PIN, 3/8” Self Lock

ENGINE, PULLEYS, IDLER (5 HP Tecumseh)
TP 400-5038-2-IS-N
Manual No. 7006070 TWO-STAGE INTERMEDIATE FRAME
SERIES 5 & 6
20
