Snapper CICFR5505HV User manual

Parts Manual fo
r
Revision 9,
INTERMEDIAT
E
SERIES 3, 4 & 5
COPYRIGHT
©
2006
McDonough, GA, 30253 U.S.A.
TP 400-5172-9-RT-N
2/28/2006 Manual No. 7006047
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
REAR TINE TILLERS
MODEL
CICFR5505H
V
EICFR5004B
EICFR5004B
EICFR5505B
V
ICFR5004B
ICFR5505B
V
ICFR7005B
V
IR5003B
NIR5003B

Table Of Content
s
TP 400-5172-9-RT-N
Manual No. 7006047INTERMEDIATE
SERIES 3, 4 & 5 3
PAGE GROUP
4HANDLES, CONTROLS, WEIGHTS
6MAIN CASE/GEARS (Series 3)
10 MAIN CASE/GEARS (Series 4&5)
14 TILLER HEAD COMPONENTS
16 SHIFT & DRIVE COMPONENTS
20 WHEELS, TIRES, RIMS
22 DECALS
24 DECALS (continued)
26 DECALS (continued)
28 DECALS (continued)
30 CULTIVATOR SHIELD KIT
32 HILLER - FURROWER KIT

HANDLES, CONTROLS, WEIGHTS
TP 400-5172-9-RT-N
Manual No. 7006047 INTERMEDIATE
SERIES 3, 4 & 5
4

HANDLES, CONTROLS, WEIGHTS
Footnotes:
TP 400-5172-9-RT-N
Manual No. 7006047INTERMEDIATE
SERIES 3, 4 & 5 5
Part No Descri
p
tionItem Qt
y
Note
1 7018808 1 CABLE Clutch
2 7091575 5 NUT, 5/16-18 Hex Center Lock Was 91067
3 7015252 1 SPRING, Tine
4 7091601 12 NUT, 5/16-18 Hex Flange Lock Was 91070
5 7091681 7 BOLT, 5/16-18 x 1” Hex Flange Lock
6 7034746 1 BAR, Handle IRT
7 7036170 1 PANEL, Tiller Dash
8 7014681 2 BUSHING
9 7014682 1 COVER, Cable
10 7032593 1 CATCH, Bail
11 7018787 1 BAIL
12 7091540 4 SCREW, 5/16-18 x 1-1/2” Hex Head Cap GR5 Was 91066
13 7090831 1 SCREW, 5/16-18 x 2-3/4” Hex Head Cap GR5
14 7090361 12 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap
15 7038221 1 SUPPORT, Handle
16 7091612 4 BOLT, 5/16-18 x 1-1/2” Sq. Neck Carriage GR5 Was 90582
17 7090861 4 BOLT, 5/16-18 x 1-3/4” Sq. Neck Carriage GR5
18 7091303 3 BOLT, 5/16-18 x 3/4” Square Neck Carriage GR5 Was 91072
19 7036171 1 BAR, Stand-Up
20 7035107 1 BOX, Weight
21 7011791 1 RETAINER, 5/16” Bolt (Black) not used on ICFR5004B
22 7038223 7 WEIGHT, Steel
23 7032496 2 BRACKET, Weight
24 7091076 16 WASHER, 5/16” Flat
7061794 1 BAG, Hardware - IR5003B Contains 2 each of P/N's 28725
and 91606 (see Tiller Head
Component Page)

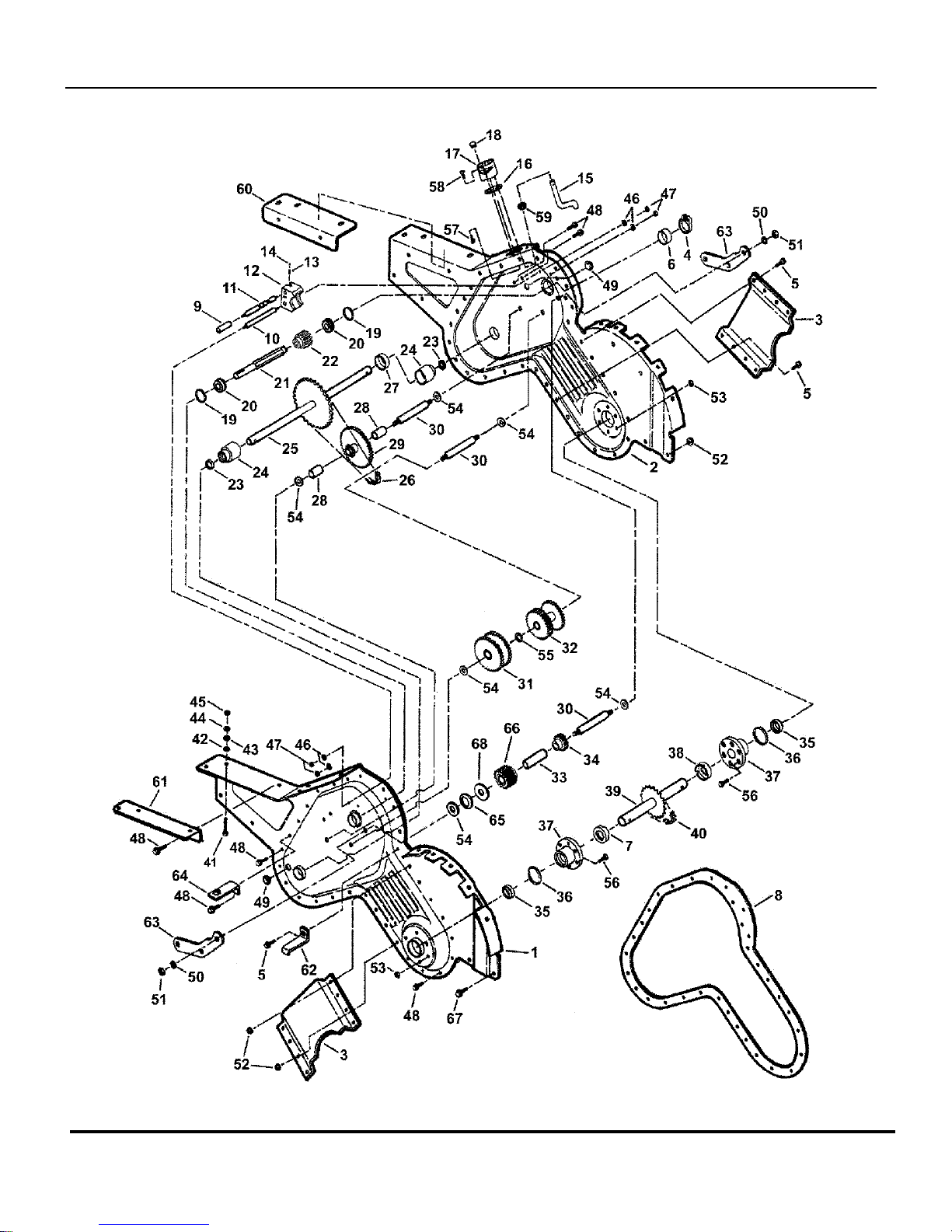

MAIN CASE/GEARS (Series 3)
TP 400-5172-9-RT-N
Manual No. 7006047 INTERMEDIATE
SERIES 3, 4 & 5
6

MAIN CASE/GEARS (Series 3)
Footnotes:
TP 400-5172-9-RT-N
Manual No. 7006047INTERMEDIATE
SERIES 3, 4 & 5 7
Part No Descri
p
tionItem Qt
y
Note
7061821 ASSEMBLY, Case, Complete (Series 3) service kit
1 7034681 1 CASE HALF, Left Hand
2 7034682 1 CASE HALF, Right Hand
3 7034677 2 REINFORCEMENT, Case
4 7015597 1 CLAMP, Speedy
5 7091681 7 BOLT, 5/16-18 x 1” Hex Flange Lock
6 7015598 1 SEAL, Cap
7 7028672 1 SPACER, Tine Shaft (Short)
8 7028753 1 GASKET, Main Case IR5003B Tiller
9 7045130 1 SPACER, Main Shaft (.64” long)
10 7021977 1 PIN, Guide
11 7022512 1 SHAFT, Main Detent (4 Position)
12 7046604 1 FORK, Primary Shaft
13 7023252 1 SPRING, Compression Was 14500
14 7014469 1 BALL, Detent
15 7015405 1 CRANK, Shift
16 7015679 1 GASKET, Shift Arm Pivot
17 7015313 1 PIVOT, Shift Arm
18 7015409 1 PLUG, 1/2” Button
19 7015350 1 O-RING
20 7010756 1 BEARING, .625 x 1.37 x .435
21 7023849 1 SHAFT, Input
22 7028717 PINION, Input
23 7015136 1 SEAL, Oil
24 7015319 1 BEARING, Axle
25 7040609 1 WELDMENT, Axle (#40/34T)
26 7015347 1 CHAIN, Traction #40
27 7015318 1 SPACER, Wheel Shaft (.686” Thick)
28 7015348 2 SPACER, 5/8 x 1.11”
29 7018790 1 GEAR & SPROCKET
30 7045127 3 SHAFT, Gear
31 7053826 1 * ASSY, Tine Drive Gear, #50, Sprkt 10T, Gear 34T
32 7054412 1 * ASSEMBLY, Wheel Drive Gear
33 7042764 1 SPACER, Reverse (2.567” Long)
34 7051653 1 * ASSEMBLY, Reverse Idler
35 7015342 1 SEAL, Oil
36 7015343 1 O-RING
NOTE: * Part # 15339 DX Bearings are included, if purchased separately they must be pressed in.

MAIN CASE/GEARS (Series 3)
TP 400-5172-9-RT-N
Manual No. 7006047 INTERMEDIATE
SERIES 3, 4 & 5
8

MAIN CASE/GEARS (Series 3)
Footnotes:
TP 400-5172-9-RT-N
Manual No. 7006047INTERMEDIATE
SERIES 3, 4 & 5 9
Part No Descri
p
tionItem Qt
y
Note
37 7018869 1 BEARING, Tine Shaft
38 7029890 1 SPACER, Tine Shaft Long
39 7041726 1 WELDMENT, Tine Shaft (#50/18T)
40 7028476 1 CHAIN, Tine (Endless Roller) #50
41 7091513 4 SCREW, 5/16-24 x 1-3/4” Hex Head Cap GR5 Was 91689
42 7011791 1 RETAINER, 5/16” Bolt (Black)
43 7091076 16 WASHER, 5/16” Flat
44 7091690 4 WASHER, 5/16” Split Lock
45 7091297 4 NUT, 5/16-24 Hex Was 91692
46 7090053 4 WASHER, 1/4” Internal Tooth Lock Was 91023
47 7090095 4 NUT, 1/4-20 Hex Was 91024
49 7011024 1 PLUG
48 7091946 21 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap
50 7090873 3 WASHER, 7/16” Internal Tooth Lock
51 7090460 3 NUT, 7/16-20 Hex
52 7091601 8 NUT, 5/16-18 Hex Flange Lock Was 91070
53 7091584 6 NUT, 1/4-20 Hex Flange Lock Was 91065
54 7090953 3 SHIM-WASHER
55 7020938 1 SHIM WASHER, 5/8”
56 7090072 12 SCREW, 1/4-20 x 5/8” Hex Head Cap GR5 Was 79405
57 7091122 1 SCREW, 1/4-20 x 1/2” Hex Washer Self-Tap Was 90539
58 7091819 3 SCREW, 1/4-20 x 3/4” Hex Washer Self-Tap Was 90362
59 7023514 1 O-RING, #012
60 7038647 1 REINFORCEMENT, R.H. Frame
61 7038648 1 REINFORCEMENT, L.H. Frame
62 7034680 1 BRACE, Belt Cover
63 7061174 1 SIDE PLATE Was 33415
64 7033962 1 BRACKET, Belt Cover- IRT
65 7033531 3 WASHER, Shim
66 7090606 4 BOLT, 5/16-18 x 5/8” Hex Flange Lock Was 91510
NOTE: * Part # 15339 DX Bearings are included, if purchased separately they must be pressed in.

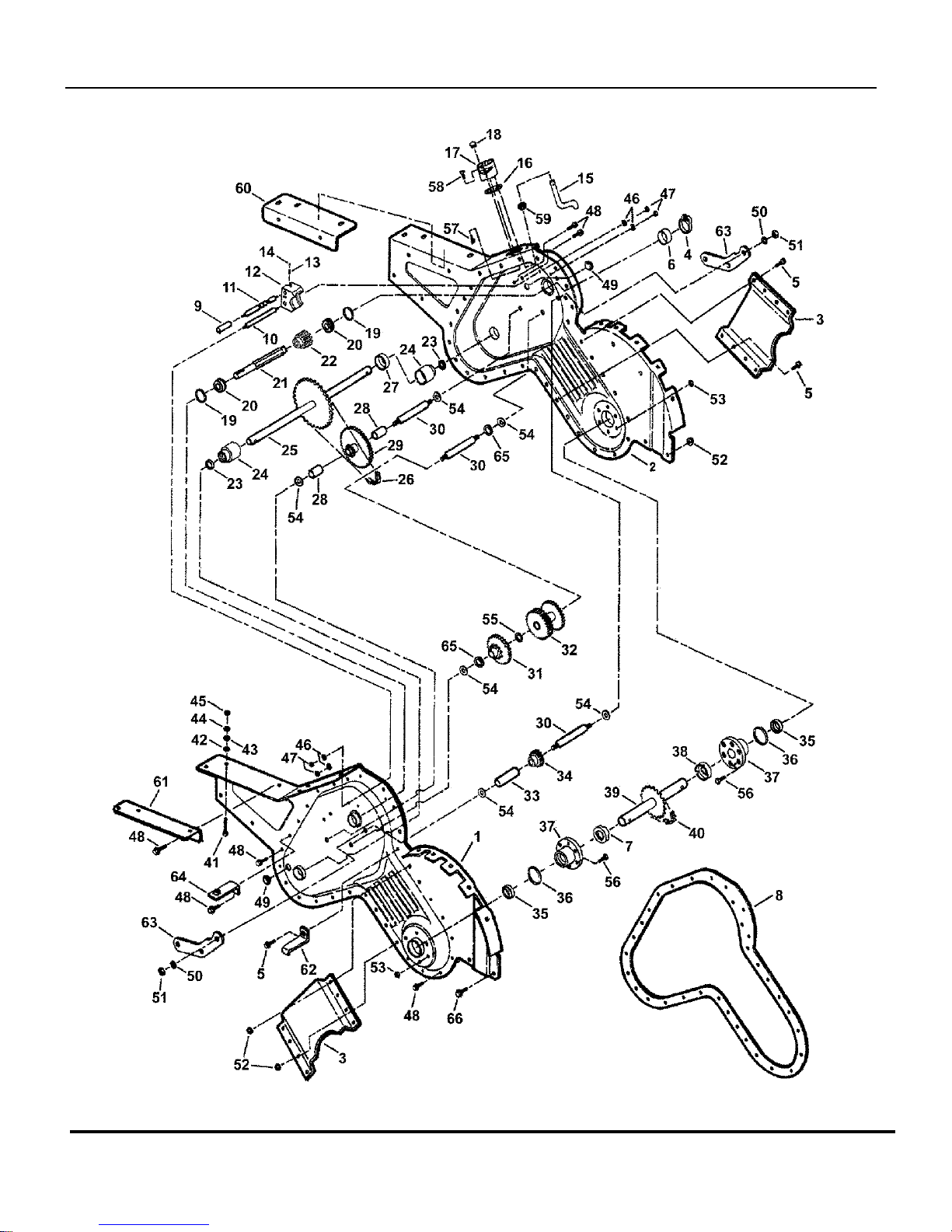

MAIN CASE/GEARS (Series 4&5)
TP 400-5172-9-RT-N
Manual No. 7006047 INTERMEDIATE
SERIES 3, 4 & 5
10

MAIN CASE/GEARS (Series 4&5)
Footnotes:
TP 400-5172-9-RT-N
Manual No. 7006047INTERMEDIATE
SERIES 3, 4 & 5 11
Part No Descri
p
tionItem Qt
y
Note
7057824 1 ASSEMBLY, Tiller Case
1 7034681 1 CASE HALF, Left Hand
2 7034682 1 CASE HALF, Right Hand
3 7034677 2 REINFORCEMENT, Case
4 7015597 1 CLAMP, Speedy
5 7091681 7 BOLT, 5/16-18 x 1” Hex Flange Lock
6 7015598 1 SEAL, Cap
7 7028672 1 SPACER, Tine Shaft (Short)
8 7028753 1 GASKET, Main Case IR5003B Tiller
9 7046787 1 SPACER, Main Shaft (.47” long)
10 7021977 1 PIN, Guide
11 7046786 1 SHAFT, Main Detent (5 Position) ICFR
12 7046604 1 FORK, Primary Shaft
13 7023252 1 SPRING, Compression Was 14500
14 7014469 1 BALL, Detent
15 7015405 1 CRANK, Shift
16 7015679 1 GASKET, Shift Arm Pivot
17 7015313 1 PIVOT, Shift Arm
18 7015409 1 PLUG, 1/2” Button
19 7015350 1 O-RING
20 7010756 1 BEARING, .625 x 1.37 x .435
21 7023849 1 SHAFT, Input
22 7046785 1 PINION, Input ICFR
23 7015136 1 SEAL, Oil
24 7015319 1 BEARING, Axle
25 7040609 1 WELDMENT, Axle (#40/34T)
26 7015347 1 CHAIN, Traction #40
27 7015318 1 SPACER, Wheel Shaft (.686” Thick)
28 7015348 2 SPACER, 5/8 x 1.11”
29 7018790 1 GEAR & SPROCKET
30 7045127 3 SHAFT, Gear
31 7057823 1 * ASSY, F&R Tine Drive Gear #50, Spkt 10T Gear 34T
32 7054412 1 * ASSEMBLY, Wheel Drive Gear
33 7046791 1 SPACER, Reverse Idler (1.245” long)
34 7051653 1 * ASSEMBLY, Reverse Idler
35 7015342 1 SEAL, Oil
36 7015343 1 O-RING
NOTE: * Part # 15339 DX Bearings are included, if purchased separately they must be pressed in.

MAIN CASE/GEARS (Series 4&5)
TP 400-5172-9-RT-N
Manual No. 7006047 INTERMEDIATE
SERIES 3, 4 & 5
12

MAIN CASE/GEARS (Series 4&5)
Footnotes:
TP 400-5172-9-RT-N
Manual No. 7006047INTERMEDIATE
SERIES 3, 4 & 5 13
Part No Descri
p
tionItem Qt
y
Note
37 7018869 1 BEARING, Tine Shaft
38 7029890 1 SPACER, Tine Shaft Long
39 7041726 1 WELDMENT, Tine Shaft (#50/18T)
40 7028476 1 CHAIN, Tine (Endless Roller) #50
41 7091513 4 SCREW, 5/16-24 x 1-3/4” Hex Head Cap GR5 Was 91689
42 7011791 1 RETAINER, 5/16” Bolt (Black)
43 7091076 16 WASHER, 5/16” Flat
44 7091690 4 WASHER, 5/16” Split Lock
45 7091297 4 NUT, 5/16-24 Hex Was 91692
46 7090053 4 WASHER, 1/4” Internal Tooth Lock Was 91023
47 7090095 4 NUT, 1/4-20 Hex Was 91024
48 7091946 21 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap
49 7011024 1 PLUG
50 7090873 3 WASHER, 7/16” Internal Tooth Lock
51 7090460 3 NUT, 7/16-20 Hex
52 7091601 8 NUT, 5/16-18 Hex Flange Lock Was 91070
53 7091584 6 NUT, 1/4-20 Hex Flange Lock Was 91065
54 7090953 3 SHIM-WASHER
55 7020938 1 SHIM WASHER, 5/8”
56 7090072 12 SCREW, 1/4-20 x 5/8” Hex Head Cap GR5 Was 79405
57 7091122 1 SCREW, 1/4-20 x 1/2” Hex Washer Self-Tap Was 90539
58 7091819 3 SCREW, 1/4-20 x 3/4” Hex Washer Self-Tap Was 90362
59 7023514 1 O-RING, #012
60 7038647 1 REINFORCEMENT, R.H. Frame
61 7038648 1 REINFORCEMENT, L.H. Frame
62 7034680 1 BRACE, Belt Cover
63 7061174 1 SIDE PLATE Was 33415
64 7033962 1 BRACKET, Belt Cover- IRT
65 7033531 3 WASHER, Shim
66 7058469 1 * ASSY, Gear 16T (Incl. two 15339 DX Bearings)
67 7090606 4 BOLT, 5/16-18 x 5/8” Hex Flange Lock Was 91510
68 7072801 1 WASHER, Shim .63 x 1.24 x .05
NOTE: * Part # 15339 DX Bearings are included, if purchased separately they must be pressed in.

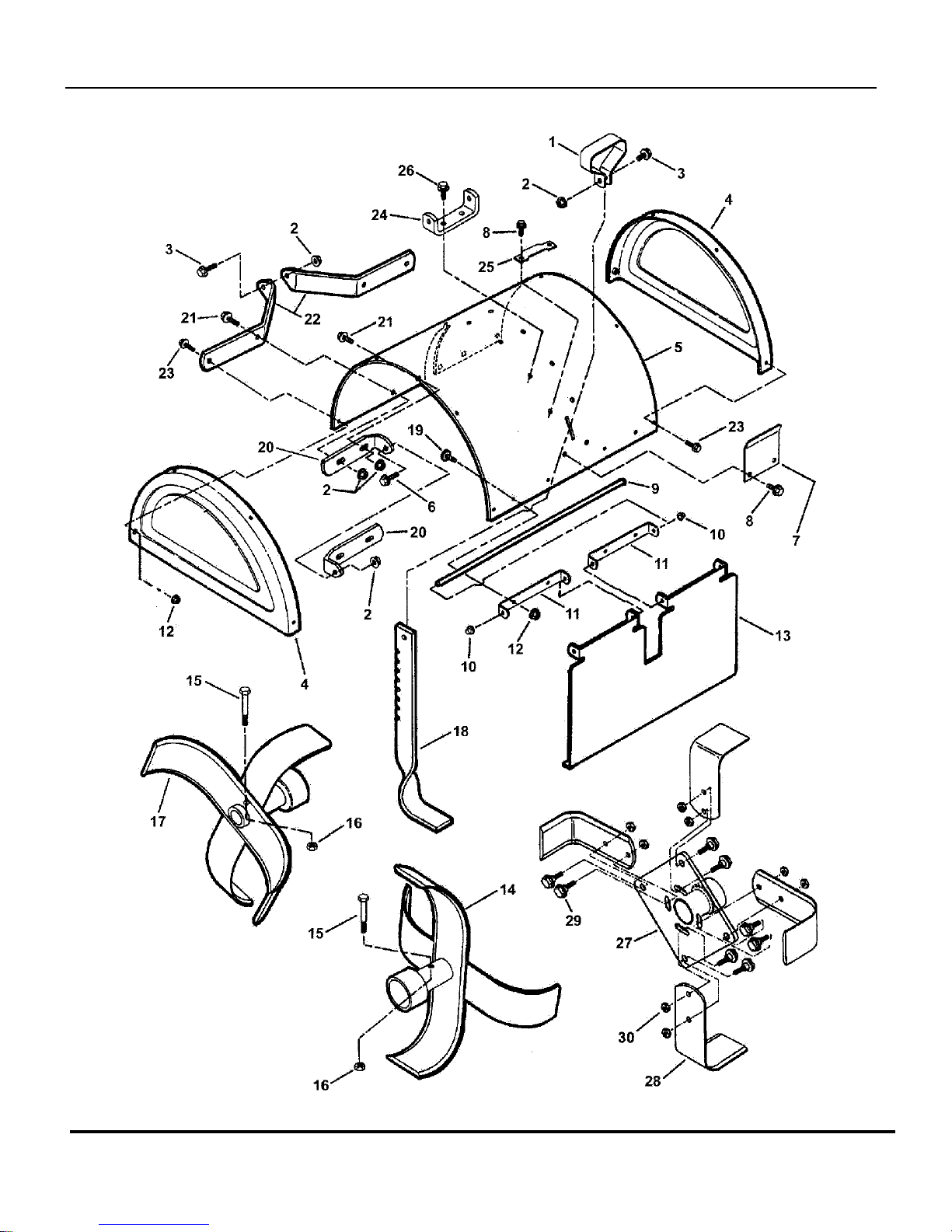

TILLER HEAD COMPONENTS
TP 400-5172-9-RT-N
Manual No. 7006047 INTERMEDIATE
SERIES 3, 4 & 5
14

TILLER HEAD COMPONENTS
Footnotes:
TP 400-5172-9-RT-N
Manual No. 7006047INTERMEDIATE
SERIES 3, 4 & 5 15
Part No Descri
p
tionItem Qt
y
Note
1 7032553 1 HANDLE, Depth Bar
2 7091601 7 NUT, 5/16-18 Hex Flange Lock Was 91070
3 7091681 2 BOLT, 5/16-18 x 1” Hex Flange Lock
4 7034745 2 COVER, Side Tine IR5003B
5 7034684 1 COVER, Tine IR5003B
6 7091602 2 BOLT, 5/16-18 x 1-1/2” Hex Flange Lock GR5
7 7034756 1 SPRING, Depth Bar IR5003B
8 7090361 8 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap
9 7032494 1 PIN, Drag Shield (1/4” Dia. x 14-1/2” Steel Rod)
10 7091020 2 PUSHNUT, 1/4”
11 7032536 2 HINGE, Half
12 7091584 6 NUT, 1/4-20 Hex Flange Lock Was 91065
13 7036168 1 SHIELD, Drag
14 7075157 1 WELDMENT, Right Tine Was 49735
15 7028725 2 SCREW, 5/16-24 x 2” Hex Head Cap GR5
16 7091606 2 NUT, 5/16-24 Hex Center Lock
17 7075158 1 WELDMENT, Left Tine Was 49734
18 7038235 1 DEPTH-BAR
19 7091604 4 BOLT, 1/4-20 x 1/2” Short Neck Carriage GR5
20 7034683 2 REINFORCEMENT, Rear Tine Cover
21 7090595 4 BOLT, 5/16-18 x 5/8” Hex Flange Lock GR5
22 7038272 2 REINFORCEMENT, Front Tine Cover
23 7090290 3 SCREW, 1/4-20 x 3/4” Hex Washer Self-Tap Was 91686
24 7034755 1 BRACKET, Support IR5003B
25 7034757 1 PLATE, Latch
26 7091841 2 SCREW, 5/16-18 x 1” Hex Washer Self-Tap Was 91742
7057831 ASSEMBLY, Tine (Incl. items 27 thru 30) ICFR5004B, EICFR5004B,
ICFR5505BV, CICFR5505HV,
EICFR5505BV and
ICFR7005BV only
27 7046798 1 WELDMENT, Tine Hub ICFR
28 7075142 8 TINE, 11.5” (.312” Thick) Was 38215
29 7014981 16 BOLT, 3/8-24 Shoulder
30 7090524 16 NUT, 3/8-24 Hex Top Lock GR C
7090289 8 NUT, 3/8-24 Hex Center Lock GR5 or B

SHIFT & DRIVE COMPONENTS
TP 400-5172-9-RT-N
Manual No. 7006047 INTERMEDIATE
SERIES 3, 4 & 5
16

SHIFT & DRIVE COMPONENTS
Footnotes:
TP 400-5172-9-RT-N
Manual No. 7006047INTERMEDIATE
SERIES 3, 4 & 5 17
Part No Descri
p
tionItem Qt
y
Note
1 7047884 1 WELDMENT, Shift Lever
2 7091601 8 NUT, 5/16-18 Hex Flange Lock Was 91070
3 7013550 1 ROLL PIN 3/16 x 1”
4 7091303 3 BOLT, 5/16-18 x 3/4” Square Neck Carriage GR5 Was 91072
5 7090361 12 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap
6 7090959 1 BOLT, 5/16-18 x 2-1/2” Short Neck Carriage GR5
7 7023851 1 TUBE, 3/8” I.D. x 1-7/8” Long
8 7011791 1 RETAINER, 5/16” Bolt (Black)
9 7038646 1 PLATE, Shift
10 7033349 2 BUSHING, Rubber
11 7017018 1 COVER, Shift
7046932 1 COVER, Shift
12 7091294 3 WASHER, 1/4” Flat Was 90055
13 7090290 3 SCREW, 1/4-20 x 3/4” Hex Washer Self-Tap Was 91686
14 7032843 1 BRACKET, Idler Pivot (shown)
7074749 1 BRACKET, Idler Pivot (not shown)
15 7090964 1 BOLT, 3/8-16 x 1-1/2” Flat Head Carriage
16 7032846 1 BRACKET, Idler Arm (shown)
7074748 1 BRACKET, Idler Arm (not shown)
17 7013849 1 SPACER, 5/16” I.D.
18 7010948 1 PULLEY, Idler ( 2” Outside Diameter)
19 7032662 1 GUIDE, Idler
20 7091585 1 NUT, 3/8-16 Hex Center Lock GR5 or B Was 90546
21 7090595 1 BOLT, 5/16-18 x 5/8” Hex Flange Lock GR5
22 7016314 1 WASHER, 11/32” Flat
23 7012830 1 KEY, 3/16 Sq. x 3/4” Long
24 7011194 1 PULLEY, Driven (9” Outside Dia.)
25 7090201 3 SCREW, 5/16-18 x 5/16” Hex Set
26 7015403 1 BELT, Drive (4L Kevlar 19.09” effective length)
27 7023852 1 SPACER, 5/8” Internal Dia.
28 7091102 1 WASHER, 1/4” Belville
29 7091122 1 SCREW, 1/4-20 x 1/2” Hex Washer Self-Tap Was 90539
30 7033962 1 BRACKET, Belt Cover- IRT
31 7091946 21 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap
32 7016022 1 COVER, Belt
33 7090951 1 NUT, 5/16-18 Hex Large Flange Center Lock
34 7091076 16 WASHER, 5/16” Flat
NOTE: * Purchase engine parts from engine manufacture dealer.

SHIFT & DRIVE COMPONENTS
TP 400-5172-9-RT-N
Manual No. 7006047 INTERMEDIATE
SERIES 3, 4 & 5
18

SHIFT & DRIVE COMPONENTS
Footnotes:
TP 400-5172-9-RT-N
Manual No. 7006047INTERMEDIATE
SERIES 3, 4 & 5 19
Part No Descri
p
tionItem Qt
y
Note
35 7090322 3 SCREW, 5/16-24 x 1/2” Hex Head Cap GR5 Was 91685
36 7090391 3 WASHER, 5/16” Internal Tooth Lock
37 7032541 1 GUIDE, Belt
38 7011809 1 PULLEY, Engine (2-1/2” Outside Dia.)
39 7015226 1 GUIDE, Belt (Finger)
40 7011762 1 BOOT, Spark Plug
41 7091841 2 SCREW, 5/16-18 x 1” Hex Washer Self-Tap Was 91742
* ENGINE, B&S 5 HP Mod 130202-0127-01
* ENGINE, B&S 5.5 HP Mod 126432-0036-E1
* ENGINE, Honda 5.5 HP Mod GX160K1QX2 Type 553700
1 * ENGINE, B&S 7 HP Mod 120332-0208-E1
42 7073743 1 MUFFLER GUARD, 5HP B&S #391237(Euro) not shown
7074764 1 MUFFLER GUARD, 5.5HP B&S (not shown)
43 7073801 1 SCREW, B&S #94810 (Euro) (not shown)
44 7073802 1 SCREW, B&S #94887 (Euro) (not shown)
45 7074765 1 SCREW, B&S #95259 (Euro) (not shown)
46 7028620 2 SPACER, .340 I.D. x .63 O.D. x .310 Thick
NOTE: * Purchase engine parts from engine manufacture dealer.

WHEELS, TIRES, RIMS
TP 400-5172-9-RT-N
Manual No. 7006047 INTERMEDIATE
SERIES 3, 4 & 5
20
