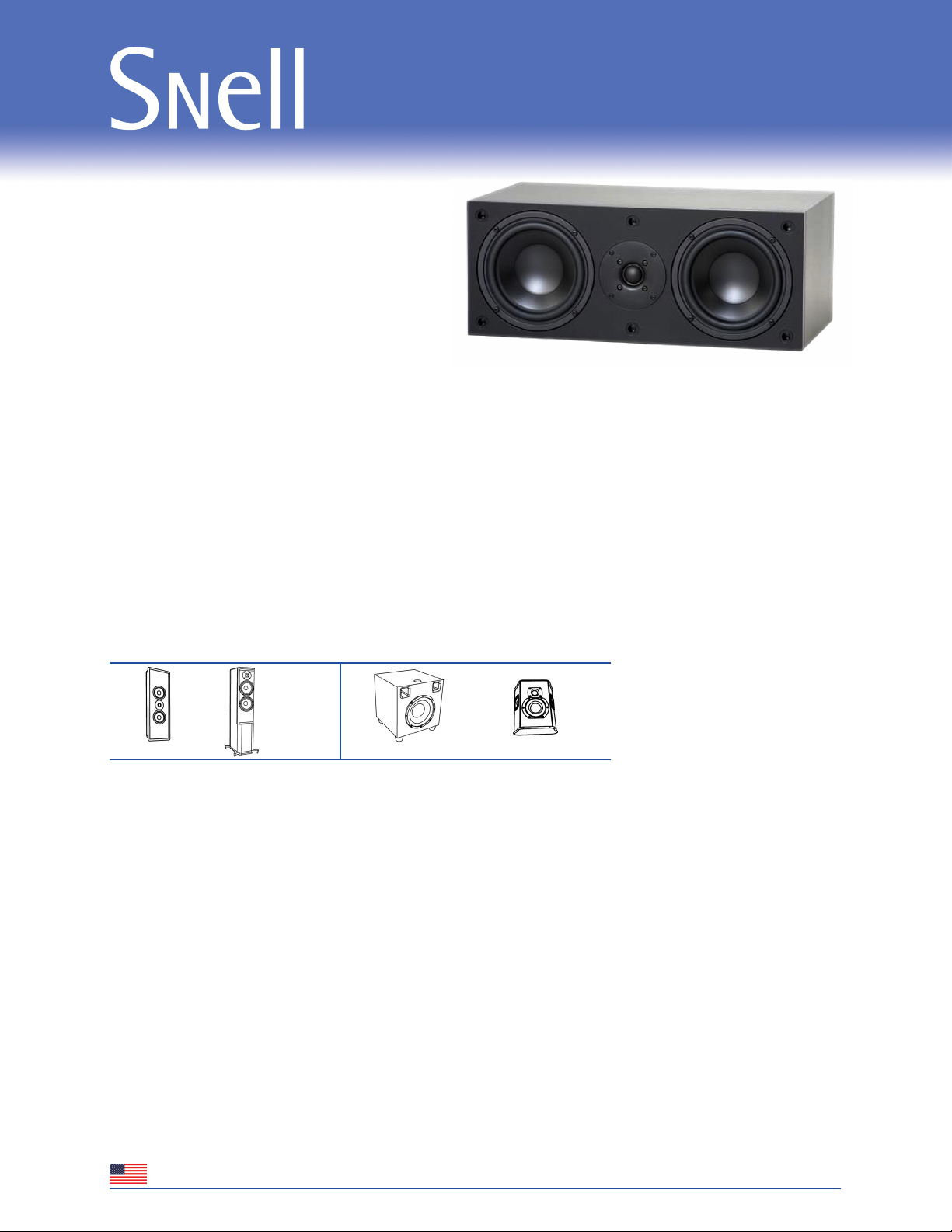

FOR BUILT-IN CABINETS, A UTILITY VERSION OF
THE ACCLAIMED D7 TOWER
The unique cabinet design, placement switch and wide
dispersion tweeter of the IC D7 bring the performance of
a freestanding high-end tower to an in-cabinet bookshelf
enclosure. Conventional bookshelf loudspeakers sound
“chesty” and image poorly when used in in-cabinet
applications. The IC D7 is a 6.5-inch, D’Appolito Array,
designed by Snell chief engineer, Joe D’Appolito, to fit
into furniture and millwork, and, is tuned to compensate
for the sonic problems that these cabinet boundaries
cause. The twin 6.5-inch long throw woofers provide extended bass and plenty of output, while the 1-inch low-
resonance, silk dome tweeter enables a large sweet spot for better stereo imaging. The IC D7 uses the same
components as the Snell D7 Tower and IW D7 in-wall monitor, mounted in a robust, texture-painted enclosure. This
high output LCR can be used for Left, Center and Right or mixed and matched with these two siblings to provide clean,
impactful sound with an effortless and “airy” soundstage… perfect for music and movies.
Design:
Acoustic Suspension
D’Appolito array
Frequency Response
62Hz-20kHz ± 3dB
Sensitivity
[1Watt (2.83v) @ tm]
90 dB
Impedance
Nominal 4 Ohms
Maximum Output
110 dB
Recommended Power
50 Watts minimum
250 Watts maximum
Tweeter
1-inch SEAS silk dome
Woofer
Two 6.5-inch Copolymer cone,
6mm Excursion
Crossover Frequency
2.2 kHz
Crossover
Discrete tweeter, and woofer
circuit boards. Time alignment
and coherency are achieved
through the transition region from
driver to driver. Each crossover is
individually tuned by our
technicians to ± 0.5db of the
Master Reference.
Boundary compensation
"Normal" – When placed on
stands away from wall.
"Boundary"– When placed on
shelf or near wall.
Wiring
Bi-amp, bi-wire ready
Connections
5-way satin, nickel-plated, brass
terminals, accepts 5/16 - inch
spades, pins, banana plugs and
bare wire to 12 gauge.
Cabinet Construction
Hardwood veneer over 3/4-inch
MD Panels. 3/4 -inch textured
painted.
Grille
Black cloth over MDF frame.
Finishes
Textured black paint. Can
be ordered in most wood
and paint finishes.
Weight
30 lbs.
Manufactured in the USA by Snell Acoustics, Peabody MA 01960 • www.snellacoustics.com • 978-538-6262 • © Snell Acoustics, Inc • All specifications subject to change without notice.
IC-D7
Premier Series
Like all Snell loudspeakers, each IC-D7 is hand tuned for natural imaging and sonic depth.
Application Alternatives: System Suggestions:
D7 In Room
IW-D7 In Wall SR7 Surround
IC Basis 300 Sub
Dimensions:
• 19.5”Wide • 7.75”High • 11”Deep
