ICS Sub 24 mk3 Powered Subwoofer
Owner‘s Manual
ICS Sub 24 mk3
2
SAFETY INSTRUCTIONS
Warning: To reduce the
risk of fire or electric
shock, do not expose this appliance to rain or moisture.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated ”danger-
ous voltage“ within the product’s enclosure that may be
of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert you to the presence
of important operating and maintenance (servicing) in-
structions in the literature accompanying the appliance.
Read Instructions: All the safety and operating instruc-
tions should be read before the appliance is operated.
Retain Instructions: The safety and operating instruc-
tions should be retained for future reference.
Heed Warnings: All warnings on the appliance and in
the operating instructions should be adhered to.
Follow Instructions: All operation and other instruc-
tions should be followed.
Water and Moisture: The appliance should not be used
near water—for example, near a bathtub, washbowl,
kitchen sink, laundry tub, in a wet basement, or near a
swimming pool, etc.
Carts and Stands: The appliance should be used only
with a cart or stand that is recommended by the manu-
facturer.
Wall or Ceiling Mounting: The appliance should not be
mounted to a wall or ceiling.
Ventilation: The appliance should be situated so that its
location or position does not interfere with its proper
functioning. For example, the appliance should not be
situated on a bed, sofa, rug, or similar surface that may
obstruct the heat sink surfaces; or placed in a built-in
installation, such as a bookcase or cabinet that may
impede the flow of air near the heat sink surfaces.
Heat: The appliance should be situated away from heat
sources, such as radiators, stoves, or other appliances
that produce heat.
Power Sources: The appliance should be connected to a
power supply only of the type described in the operation
instructions or as marked on the appliance.
Power Cord Protection: Supplies should be routed so
that they are not likely to be walked on or pinched by
items placed upon or against them. Pay particular at-
tention to cords and plugs, convenience receptacles, and
the point where they exit from the appliance.
Cleaning: The appliance should only be cleaned as
recommended by the manufacturer.
Non-Use Periods: The power supply cord should be
unplugged from the outlet when left unused for long
periods of time.
Object and Liquid Entry: Care should be taken so that
objects do not fall into and liquids are not spilled into
the inside of the appliance.
Damage Requiring Service: The appliance should be
serviced if any of the following events occur:
u
The power supply or plug has been damaged.
u
Objects have fallen, or liquid has been spilled into the
appliance.
u
The appliance has been exposed to rain.
u
The appliance does not appear to operate normally or
exhibits a marked change in performance.
u
The appliance has been dropped, or the enclosure is
damaged.
Servicing: The user should not attempt to service the
appliance beyond what is described in the operating
instructions. For all other servicing, consult your dealer
or contact Snell Acoustics.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
3
SPECIFICATIONS
Frequency Response (±3dB) 23-200Hz; 20Hz at -6dB
Amplifier Power 550 watts; BASH®
Crossover Low Pass for Subwoofer Variable from 50 to 150Hz
Crossover High Pass for Line Out Fixed at 80Hz, 12dB/octave
Bass Unit Dual 12-inch (305mm) long throw cast chassis woofers
Cabinet Construction Double-wall 3/4-inch MDF. Internal Double-H bracing.
Grille Black cloth covered grille
Controls Turn On switch with instant On and ten-minute Off delay, Phase Switch
and Front mounted volume control
Dimensions (HxWxD, feet installed) 30.75” x 17.5” x 21.75” (78.1cm x 44.45 x 55.25cm) – positioned vertically
19.25” x 29” x 21.75 ” (48.9cm x 44.45 x 55.25cm) – positioned horizontally
(depth includes grille and amplifier fins,
feet account for 1.75” / 4.44cm of height)
Weight 113 lbs. (51.26kg)
Finish Black utility finish, hand-sanded, hand-painted
Accessories 4 cabinet feet
INTRODUCTION
We designed the ICS Sub 24 mk3 for maximum output
and performance for today’s digital formats. With bass
extension to 20 Hz (-6dB), and output over 105 dB at an
average listening position in a 3,000 cubic foot room,
the ICS Sub 24 mk3 meets the demanding specifications
of THX Ultra 2.
In addition to powerful and sophisticated electron-
ics and drivers, the ICS Sub 24 mk3 offers outstanding
flexibility. The cabinet has been designed to function in
either a horizontal or vertical orientation and front-
mounted gain control provides easy access for subwoof-
er level adjustments.
4
5
FEATURES
1 Crossover Low-Pass Filter Control
This control sets the frequency of the low-pass filter,
and is fully adjustable from 50 to 150Hz. Bass sound
below the selected setting are directed to the ICS Sub 24
mk3 amplifier and speaker.
2 Low Level Inputs
Use this input when your system has preamp outs and
amplifier inputs.
3 Low Level High Pass Outputs
When the low level inputs are used, these outputs
provide the signal that goes to the power amplifier in
the system. The signal from these outputs is high pass
filtered to remove bass sound below 80 Hz.
4 Bass Management Switch
When the ICS Sub 24 mk3 is used with receivers or sur-
round sound controllers that have built-in THX control
systems, set this switch to “THX/External”. This setting
bypasses the low pass filter and ALL the crossover con-
trols of the ICS Sub 24 mk3. To use the subwoofer’s low
pass filtering and front panel gain control set this switch
to “Internal”.
5 Speaker Level Inputs
The ICS Sub 24 mk3 also has high-level inputs that can
be used when preamp outputs/power amp inputs are
not available. The 5-way gold-plated terminals accept
spade lugs to 5/16 inch, pins, banana plugs, and up to
12-gauge bare wire. When main speakers are connected
to the speaker level
6 Bass Level Control
The Bass Level control adjusts the sound level output
of the ICS Sub 24 mk3. It is located on the front of the
cabinet, behind the grille.
To access the control grasp the top and bottom
edges of the grill and pull it straight off the front of the
cabinet. A typical setting for the control is around the
12 o’clock position.
7 Bass Drivers
The ICS Sub24 mk3 uses two 12-inch (305mm) custom-
built long-throw drivers, a coated paper cone, santoprene
surround, and a die-cast aluminum chassis.
8 Phase Switch
Determines whether the subwoofer adds or cancels in
the crossover region. The proper setting changes based
upon the current location of the speaker.
9 Turn On Mode
This switch controls the automatic power up function.
When the switch is set to Auto On, the amplifier will pow-
er up when it senses an input signal. If no input signal is
present, the amplifier switches to low power standby mode
after 8-10 minutes. The LED next to the Power switch lights
green when the amplifier is on, and yellow when it is in
standby mode. Put the switch in the Always On position to
defeat the automatic power down feature.
0 Power Switch
The main power switch is located next to the power cord
socket. Push in the top side of the switch to turn on the
main power to the system. Push in the bottom side to
turn off the main power. Usually the only time the main
power switch should be turned off is when the sub-
woofer will not be used for an extended period of time,
such as when you are away on a vacation.
- Handmade Cabinets
Our cabinet department hand assembles each unit,
and then hand sands each several times. The result is a
cabinet of exceptional workmanship, with sharp corners
and smooth sides.
6
Non-THX Low Level Connection
When connecting the ICS Sub 24 mk3 to
electronics that does not have a THX control
system, use the low level (also called line level)
connections whenever possible. Even if you
do not have a separate preamp and power
amp, many receivers and integrated ampli-
fiers include ”Preamp Out“ and ”Amplifier In“
connectors.
When using the low level connections, the
signal from the High Pass Outputs that is
returned to your amplifier is high pass filtered
to remove sound below 80Hz. This is a non-
adjustable filter. It is not affected by the setting of the Crossover control. See the Fine Tuning section of this manual
for more information.
Subwoofer Output Connection
Some electronics have monophonic subwoofer
outputs. If your system has this type of an output
it can be connected to either of the low level
inputs. The benefit of using this type of connec-
tion instead of using the THX setting is that it
does not bypass the controls of the ICS Sub24
mk3.. You can still use the level control to adjust
the output of the subwoofer. Typically such out-
puts are low pass filtered, so you should set the
ICS Sub 24 mk3 crossover control to it’s highest
setting to minimize its effect. If listening test show there is an excess of mid-bass sound you may want to use a lower
crossover control setting. See the “Fine-Tuning Your Subwoofer” section for more information.
Warning: To reduce the risk of electric shock, always switch off the subwoofer and the amplifier and or receiver when
making connections to the subwoofer and speakers.
THX® Connection
Use this setup when the ICS Sub 24 mk3 is con-
nected to a receiver or surround sound controller
that has a built-in THX control system. This input
bypasses ALL the crossover and control circuitry
of the ICS Sub 24 mk3.
CONNECTION
7
High Level Connection
If the electronics in your system does not have Preamp Output/Power Amp Input connections, the ICS Sub 24 mk3 can
be connected via the speaker wiring using the “High Level” Connections. There are two methods for making high level
connections the ICS Sub 24 mk3.
The 5-way binding posts on the ICS Sub 24 mk3 permit easy connec-
tion to banana plugs, spade lugs, and bare wire. If you are connecting
bare wires be sure to twist the wire strands into a neat bundle. Be sure
there are no loose strands that could touch another terminal and cause a
short-circuit.
NOTE: When making high level connections be sure to maintain proper polarity - that
is connect + to + (positive) to (positive) and - to - (negative) to (negative). All wire has one
of its conductors marked in some way to make it easy to trace the connections. Typically there
is a stripe on the insulation or a rib molded into it. Or the insulation will be transparent and the wire strands of one
conductor will be copper colored and the other will be silver colored.
8
High Level Connection
The method for making high level connections is to connect both the ICS Sub 24 mk3 and the main speakers directly
to the amplifier. Consequently the main speakers will operate full range. High pass filtering is available only via the
low level inputs or through your processor
There are two connection methods. Both methods are electrically equivalent. Which one you use will depend largely
on you physical set up of your room.
One method is to connect both the main
speakers and the ICS Sub 24 mk3 directly to
the amplifier.
The other method is to connect the amplifier to the
main speakers and then run extension wires from
the main speakers to the ICS Sub 24 mk3.
9
CONNECTING TWO ICS Sub 24 mk3’s
You may wish to use two ICS Sub 24mk’s, particularly if you are in a large room.
u
Double subwoofers may be wired
with either speaker-level or line-level
connections.
u
Be sure the Phase Switch is set the
same on both units.
To connect two ICS Sub 24 mk3’s using
line-level inputs, use “Y” connectors to
daisy chain the ”PREAMP OUT“ signal to
the input of a second ICS Sub 24 mk3.
To connect two ICS Sub 24 mk3’s using speaker-level inputs, use the ”HIGH LEVEL INPUTS“ binding posts on one sub-
woofer to daisy chain to the second ICS Sub 24 mk3.
10
PLACEMENT
Typically the ICS Sub 24 mk3 will produce the smoothest response when placed against a wall. Placement in a corner
will further enhance bass output allowing you to run operate the subwoofer at a lower power level. Experiment with
subwoofer placement while at the same time adjusting crossover frequency, output level, and phase. (See section on
Fine-Tuning Your Subwoofer below.)
Choose a musical selection with a heavy and continuous bass line. Play a short section several times until you have a
firm impression of it in your mind. Then try another location to see if it provides smoother or more balanced response
. Repeat this process until you are content with the bass response you are getting. Strive for a smooth, solid bass
response that does not emphasize any part of the bass range.
Once a location for the subwoofer has been selected, you may want to attach the supplied cabinet feet. There are two
side of the cabinet that have pre-drilled pilot holes for the feet. This enables you to use either a vertical or horizontal
orientation.
Note: Avoid placing the ICS Sub 24 mk3 close to a television or monitor. There should be at least 8 inches (20cm) be-
tween the two components. If getting the best sound, together with the physical constrains of the room, require that
the two units must be closer than that you can purchase a magnetic shielding kit from Snell Acoustics.
FINE-TUNING YOUR SUBWOOFER
Note: If you are connecting the ICS Sub 24 mk3 to a THX receiver/controller, set the Bass Management switch to
“THX/External”. (See the “THX Connection” section on page 6.) This bypasses all the crossover circuits and level controls
in the amplifier. All audio controlling is done by the THX receiver/controller.
Setting the Internal Crossover
When using the standard Low Inputs or High Level inputs you will need to adjust the internal crossover to make the
ICS Sub 24 mk3 sonically blend with the main speaker in the system.
If you are using line-level inputs and returning the high-pass filtered signal to the amplifier (see the diagram on page
6), begin by setting the crossover at 100Hz. Some rooms naturally overemphasize bass in this region, creating an
undesirable ”bump“ or ”boomy“ quality in the sound. If this is the case with your room, try turning the crossover down
to 80Hz. On the other hand‚ some rooms have a natural tendency to ”swallow up“ the bass in the 100Hz region, caus-
ing the sound to appear thin. In rooms of this type, try setting the crossover at 125Hz. This may help to round out the
overall sound.
If you are running your main speakers full range, set the crossover close to the bass cut-off frequency of your main
speakers. See the specifications for your main speakers for information. This will help achieve a smooth, seamless
blend between your speakers and the subwoofer. Experiment until you are happy with the main speaker-to-subwoofer
transition.
11
Bass Level Control
The Bass Level control adjusts the volume of the ICS Sub 24 mk3 output. The Level Control should be adjusted to
achieve a good main speaker-to-subwoofer balance. However there is significant interaction between the Crossover
control and the Bass Level control. This interaction affects the sound in the midbass range where the transition from
the main speakers to the subwoofer occurs. If you are hearing too much midbass, adjust the crossover frequency
down while increasing the bass level. This decreases midbass output while increasing the amount of lower bass energy.
Conversely, turning down the bass level while slightly increasing the crossover frequency will increase the ratio of mid
bass-to-low bass sound. The result will be a sound with a ”quick“ quality. Experiment while listening to a variety of
sources. Adjust the ICS Sub 24 mk3 Crossover and Bass Level controls until you achieve a smooth and seamless blend
with the main speakers .
Setting the Phase
The proper setting for the Phase Switch changes based upon the location of the speaker. To determine the correct
setting for your room, use a source with a full and continuous bass line. Have a second person repeatedly switch the
Phase Switch from one position to the other. You will notice that one position will deliver stronger midbass sound. This
is the proper position for the Phase Switch. If the midbass now seems too prominent, compensate by slightly lowering
the crossover frequency or the output level.
How To Care For Your Speakers
➤ Use a soft terry cloth towel slightly dampened with water, glass cleaner, or a diluted mild detergent. The towel
should be just damp enough to wipe the surface clean without leaving a trail of moisture.
➤ Do not use abrasive cleaners or any cleaner containing chemicals harsher than those found in glass cleaner.
300 Jubilee Drive, P.O. Box 3717
Peabody, MA 01961-3717
phone: 978-538-6262
fax: 978-538-6266
email: info@snellacoustics.com
web: www.snellacoustics.com
©2005 Snell Acoustics.
All Rights Reserved.
Specifications are subject
to change without notice.
Covered by patents issued
and or pending.
Part #542-1024-2
LIMITED WARRANTY
During the warranty period, Snell Acoustics will repair, for the original owner, any defect in materials or workmanship
that occurs in normal use of the speaker system, without charge for parts and labor. The warranty period for all parts
of the ICS Sub 24 mk3, except the amplifier, is five (5) years. The warranty period on the amplifier is one (1) year.
Your responsibilities are to use the product according to the instructions supplied, to provide safe and secure trans-
portation to an authorized Snell Acoustics service representative, and to present proof of purchase from an authorized
Snell dealer in the form of your sales slip when requesting service.
Excluded from this warranty is damage that results from abuse, misuse, accidents, shipping, repairs, or modifications
by anyone other than an authorized Snell Acoustics service representative. This warranty is void if the serial number
has been removed or defaced.
This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
If Service Seems Necessary
Contact the dealer from whom you purchased the speaker system. If that is not possible, call us at
978-373-6114, or write to:
Snell Acoustics
300 Jubilee Drive, P.O. Box 3717
Peabody, MA 01961-3717
We will promptly advise you of what action to take. If it is necessary to return your speaker system to the factory,
please ship it prepaid in the original factory packaging. Please note that Snell Acoustics will not be held liable for
shipping damage due to improper packaging. After it has been repaired, we will return it freight-prepaid in the U.S. or
Canada.
Manufactured under license from Lucasfilm Ltd.
Lucasfilm and THX are registered trademarks of Lucasfilm Ltd.
BASH - U.S. Patent #5,075,634 and 5, 510, 753 patent pending.
Table of contents
Other Snell Subwoofer manuals
Snell
Snell Powered Subwoofer ICS Sub 24 User manual
Snell
Snell Premier Basis 150 User manual
Snell
Snell Premier Basis 300 User manual
Snell

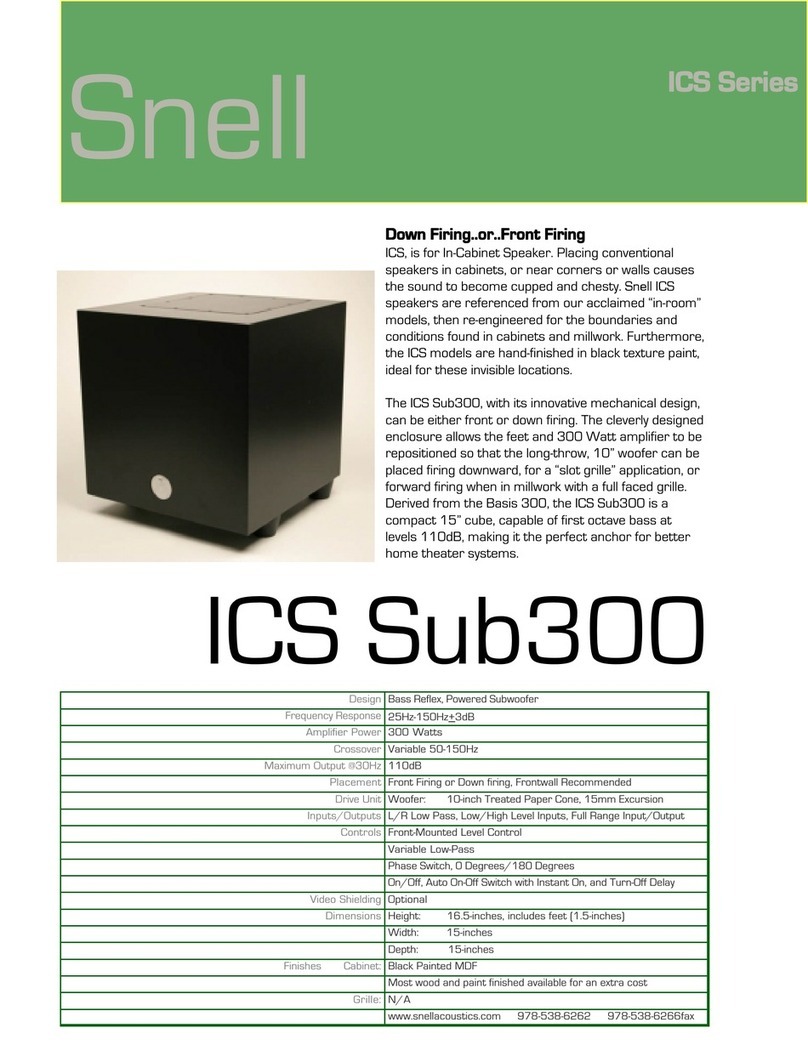

Snell ICS Sub300 User manual
Snell
Snell AMS Sub 10 User manual
Snell
Snell ICS Sub 300 User manual
Snell
Snell Premier Basis 300 User manual
Snell
Snell Basis 150 User manual
Snell
Snell QBx Sub User manual
Snell
Snell ICS Sub 12 User manual
