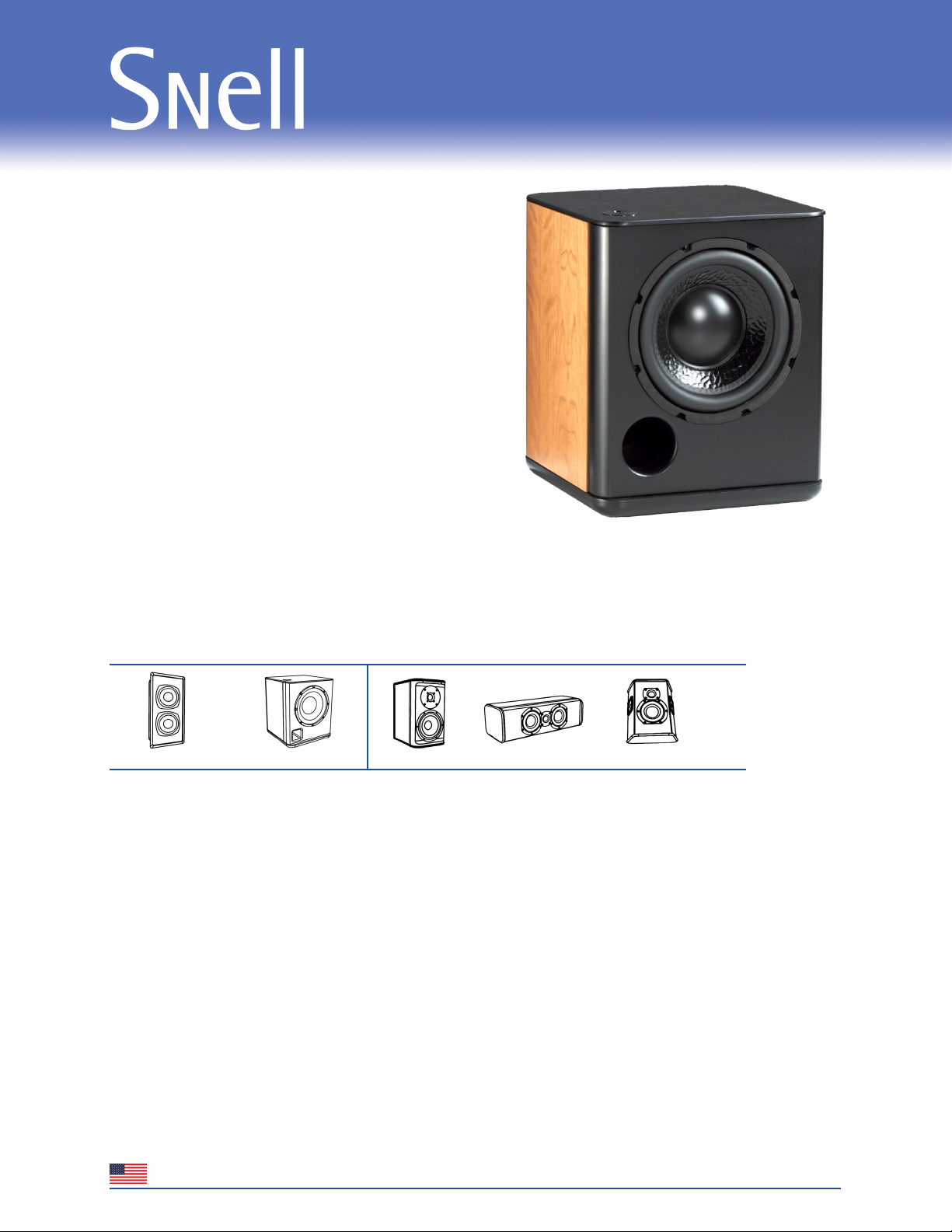

Snell Premier Basis 150 User manual

Design:
Bass Reflex Powered
Subwoofer
Frequency Response
32Hz-150Hz ± 3dB
-6dB at 29Hz
Maximum Output
105 dB
Amplifier Power
150 Watts
Internal Power Amplifier
Woofer
Single 10 - inch long
excursion cone
Crossover
Variable 50-150Hz
Control
Top-Mounted Level Control
Variable Low-Pass
Phase Switch, 0 Degrees/180
Degrees, On/Off, Auto On-Off
Switch with Instant On, and
Turn-Off Delay.
Line Level Inputs
Low-level inputs allow
adjustment of crossover
frequency and subwoofer level.
Speaker Level Inputs
High-level inputs allow
adjustment of crossover
frequency & subwoofer level.
5 way gold-plated terminals
accept spades to 5/16 - inch,
pins, banana plugs, and bare
wire to 12 gauge.
End Cap
1/4 - inch aluminum,
anodized black.
Cabinet Construction
Hardwood veneer over
5/8 - inch MDF Panels. Full
length brace with integrated
port flare.
Radiused 2.25 inch satin black
MDF baffle.
Grille
Perforated steel with black
powder-coat paint.
Finishes
Hand-sanded natural Cherry.
Black-painted Walnut. Can be
ordered in most wood and
paint finishes.
Weight
59 lbs.
Manufactured in the USA by Snell Acoustics, Peabody MA 01960 • www.snellacoustics.com • 978-538-6262 • © Snell Acoustics, Inc • All specifications subject to change without notice.
Like all Snell loudspeakers, each Basis 150 is hand tuned for natural imaging and sonic depth.
Basis 150
Premier Series
Application Alternatives: System Suggestions:
CR7 Center
IC-Basis 150 In-Cabinet SR7 Surround
IW-Basis150 In-Wall
Compact and Powerful!
We squeezed the performance of a much larger subwoofer into
a gorgeous cabinet that’s about the size of a 14-inch cube. As a
result, you can showcase the Basis 150 in full view, hide it away
in an AV cabinet, or discreetly place it behind furniture, all while it
fills your room with fast, deep, clean bass to 30 Hz — low enough
to reproduce the deepest orchestral notes. This sub’s special
features include a custom built, long excursion, 10-inch woofer,
a powerful 150 Watt amplifier and a few tricks from our chief
engineer, Dr. Joe D’Appolito Ph.D.
The elegant Basis 150 is hand crafted in Massachusetts from real
wood and solid aluminum. Ideal for Music and Movie Systems.
Voiced for all Snell speakers. We tuned the Basis 150 to match
the precision and balance of all Snell Series 7 models. Perfect for
most listening rooms. The Basis 150 can produce a remarkable
107dB of continuous output in a 3,000 cubic-foot room. Bass
extension suitable for all movie soundtracks and music
recordings. Bass extension to 30Hz (-3dB). Designed by Snell’s
chief engineer, Joe D’Appolito Ph.D. “The Basis 150 is a compact
subwoofer of exceptional output, clarity and speed.”
Dimensions:
13.5”High
15.75”Wide
14.25”Deep
K7 Monitor
