Sno-Way STD200000 Guide

SERVICE
PARTS
MANUAL
ST, MT & HT SERIES SNOW PLOWS
ST SERIES SERIAL NUMBERS AFTER
STD200000
STG200000
MT SERIES SERIAL NUMBERS AFTER
MTD200000
MTG200000
HT SERIES SERIAL NUMBERS AFTER
HTD200000
HTG200000
97100740F
©2006 Sno-Way® International

1
TABLE OF CONTENTS
Page
PARTS LIST INTRODUCTION.................................................................................... 2
POWER PACK FRAME - ST SERIES......................................................................... 3
POWER PACK FRAME - MT & HT SERIES............................................................... 5
BLADES - ST SERIES ................................................................................................ 7
BLADES - MT & HT SERIES...................................................................................... 9
HYDRAULIC SYSTEM - GRAVITY DOWN - STG, MTG, HTG................................. 11
HYDRAULIC SYSTEM - DOWN PRESSURE SYSTEM - STD, MTD, HTD ............. 12
HYDRAULIC POWER UNIT - GRAVITY DOWN - STG, MTG, HTG......................... 13
HYDRAULIC POWER UNIT - DOWN PRESSURE SYSTEM - STD, MTD, HTD ..... 15
LIFT CYLINDERS - GRAVITY DOWN SYSTEM - STG, MTG, HTG ........................ 17
LIFT CYLINDERS - DOWN PRESSURE SYSTEM - STD, MTD, HTD ..................... 18
ANGLE CYLINDERS - ST, MT, HT ........................................................................... 19
POWER PACK WIRING - ST, MT, HT ....................................................................... 20
CONTROL SYSTEM WIRING - ST, MT, HT.............................................................. 21
EMERGENCY KIT..................................................................................................... 22
NUMERICAL INDEX ................................................................................................. 23

2
Below is parts listing with four columns. The first column is the "ITEM", the second is the "PART NUMBER", The third is
the "DESCRIPTION" and the fourth is the "QUANTITY".
The "ITEM" is the number used in the corresponding illustration.
The "PART NO." Is the number used to order replacement parts. If a number does not appear
in the column the part is only available by ordering the complete assembly.
The "DESCRIPTION" is the name of the replacement part. At times the name
may be indented, this means that the indented parts are part of the preceding
assembly.
The "QTY." Is the quantity needed to service the assembly
illustrated, not the complete product.
USING THIS PARTS LIST
PARTS LIST INTRODUCTION
Our dealership network stands by to provide you with any assistance you may require, including genuine Sno-Way
service parts. All parts should be obtained from or ordered through your dealer. Give complete information about the
part as well as the Model Number and Serial Number of your machine.
Record the Serial Number in the space provided in your Owner’s Manual for quick reference. The Serial Number for the
unit is on a plate located on the left frame gusset of the Hopper Frame.
"Right" and "Left" are determined from a position sitting on the Operators Seat of the vehicle.
We reserve the right to make changes or improvements in the design or construction of any part without incurring the
obligation to install such changes in any unit previously delivered.
1 96100083 O-ring 1
2 96001529 Elbow 3
3 98100036 Capscrew, Hex.,3/8"-16NC x 7/8"9
ITEM PART NO. DESCRIPTION QTY.

3
POWER PACK FRAME - ST SERIES
1
2
4
3
5
6
78
9
10
11
12
13
15 14
16 17 18
20
21
22
23
24
19 25
18
17
16
29
22
28
30
23
22
24
23
26
27 22
56
27
32
33
31
8
54
53
55 52
55
52
51
50
49
6
4
36
47 46
48
29 22
30 22 23
45
43
44
40
41 42
36
35
37
8
31 13
34
38
39
58
57

4
POWER PACK FRAME - ST SERIES
1 98100005 Nut, Hex, 1-1/4" .............................................................................................. 1
2 96100073 Plate, Locking, Nut.......................................................................................... 1
3 98009022 Capscrew, Hex, 3/8"-16 x 1" ........................................................................... 1
4 98009008 Washer, Lock. 3/8".......................................................................................... 2
5 96105005 Platform, Pump............................................................................................... 1
6 98009077 Nut, Hex, 3/8"-16 ............................................................................................ 3
7 98009009 Nut, Hex, Nylock, 3/8"-16................................................................................ 2
8 98009032 Washer, Flat, 3/8" ........................................................................................... 5
9 96105006 Cover, Pump ................................................................................................... 1
10 97100750 Decal, Down Pressure .................................................................................... 1
97100752 Decal, Gravity Down ....................................................................................... 1
11 98019230 Washer, Flat, 5/16" ......................................................................................... 4
12 98019176 Screw, Flange HD, Self Tapping, 5/16" x 3/4"................................................. 4
13 98009169 Pin, Lynch, 1/4" x 1-9/16" ............................................................................... 3
14 96105057 Pin, Hitch, 3/4" x 7-7/8"................................................................................... 1
15 96104928 Ass’y, Lift Link ................................................................................................. 1
16 98100105 Pin, Cotter, 1/8" x 1"........................................................................................ 2
17 98100104 Washer, 3/8" ................................................................................................... 2
18 96102130 Spring, Latch .................................................................................................. 2
19 96103524 Ass’y, Stand .................................................................................................... 1
20 96103519 Pin, Latch........................................................................................................ 1
21 96102168 Spacer, Stand ................................................................................................. 1
22 98100176 Washer, Special, Hardened ............................................................................ 7
23 98009013 Nut, Lock, Hex Head, 1/2"-13 ......................................................................... 4
24 98100172 Nut, Jam, Hex Head ....................................................................................... 2
25 96102131 Pin, Latch........................................................................................................ 1
26 98100062 Cap Screw, Hex Head, 1/2"-13 x 2-1/4".......................................................... 1
27 96104924 Spacer, Lift Arm .............................................................................................. 2
28 96104920 Ass’y, Bellcrank............................................................................................... 1
29 98009036 Cap Screw, Hex Head, 1/2"-13 x 3-1/2".......................................................... 2
30 96105014 Spacer, Bellcrank............................................................................................ 2
31 98009034 Cap Screw, Hex, 3/8"-16 x 1-1/4" ................................................................... 3
32 97100005 Decal, Patent .................................................................................................. 1
33 98009017 Cap Screw, Hex, 1/2"-13 x 3".......................................................................... 2
34 96105046 Pin, Hitch ........................................................................................................ 2
35 97100004 Decal, Important ............................................................................................. 2
36 98009013 Nut, Hex, Nylock 1/2"-13................................................................................. 4
37 96101956 Clamp, Cable .................................................................................................. 1
38 96104284 A-Frame .......................................................................................................... 1
39 96001044 Cylinder, Angle (details on page 19)............................................................... 2
40 96105278 Ass’y, Cylinder Lock Clamp ............................................................................ 1
41 Pin, Wire Lock................................................................................................. 1
42 Cylinder Lock Clamp....................................................................................... 1
43 98100251 Pin, Special, 5/8" x 3-1/2" ............................................................................... 1
44 96104885 Cylinder, Lift, Down Pressure (details on page 18)......................................... 1
96105043 Cylinder, Lift, Gravity Down (details on page 17)............................................ 1
45 98009085 Pin, Cotter, 5/32" x 1-1/2" ............................................................................... 1
46 98009030 Washer, Flat, 3/4" ........................................................................................... 2
47 98100099 Pin, Special..................................................................................................... 2
48 98009175 Pin, Clevis, 3/4" x 2-1/2" ................................................................................. 2
49 98009055 Cap Screw, Hex, 1/2"-13 x 4-1/2" ................................................................... 2
50 98100028 Cap Screw, Hex, 1"-14 x 7"............................................................................. 1
51 96100919 Frame, Swing.................................................................................................. 1
52 98009039 Washer, Flat, 5/8" ........................................................................................... 4
53 96102781 Eyebolt, 5/8"-11 x 4-1/2" ................................................................................. 2
54 96101061 Spring, Trip ..................................................................................................... 2
55 98009078 Nut, Hex, 5/8"-11 ............................................................................................ 4
56 98100010 Cap Screw, Hex Head, 1/2"-13 x 2" ................................................................ 1
57 98100266 Cap Screw, Hex Head, 1/4"-20 x 6" ................................................................ 1
58 98100255 Nut, Nylock, 1/4"-20........................................................................................ 1
ITEM PART NO. DESCRIPTION QTY

5
POWER PACK FRAME - MT & HT SERIES
1
2
34
3
5
6
7
8
9
67
5
11
15 16 17
18
19
14
13
12
10
20
21
22 23
25
26
24
2928
27
28
29
30
41
43
28
38
28
39
39
42 31 32
33
34 40
39
38
28
36
35
33
32
31
24
45
46
47 48
50
49
51
39
28
42
28
43
37
44
52
55
57
56
55
53
54
58
59

6
POWER PACK FRAME - MT & HT SERIES
1 96001392 Spring, Trip...................................................................................................... 2
2 98009037 Eyebolt, 5/8"-11 x 6"........................................................................................ 2
3 98009078 Nut, Hex, 5/8"-11............................................................................................. 4
4 98009039 Washer, Flat, 5/8"............................................................................................ 4
5 98009175 Pin, Clevis, 3/4" x 2-1/2".................................................................................. 2
6 98100099 Pin, Special ..................................................................................................... 2
7 98009030 Washer, Flat, 3/4"............................................................................................ 2
8 96103881 Frame, Swing, MT.......................................................................................... 1
96100058 Frame, Swing, HT .......................................................................................... 1
9 98009005 Washer, Flat, 1"............................................................................................... 1
10 96104818 Platform, Pump ............................................................................................... 1
11 98009009 Nut, Hex, Nylock, 3/8"-16 ................................................................................ 1
12 96100073 Plate, Lock, Nut............................................................................................... 1
13 98100005 Nut, Hex, 1"-14................................................................................................ 1
14 98009022 Cap Screw, Hex, 3/8"-16 x 1".......................................................................... 1
15 98009077 Nut, Hex, 3/8"-16............................................................................................. 2
16 96101956 Clamp, Cable .................................................................................................. 1
17 98009032 Washer, Flat, 3/8"............................................................................................ 2
18 98009008 Washer, Lock, 3/8" .......................................................................................... 2
19 98009034 Cap Screw, Hex, 3/8"-16 x 1-1/4".................................................................... 2
20 96105006 Cover, Pump ................................................................................................... 1
21 97100750 Decal, Schematic, Down Pressure.................................................................. 1
97100752 Decal, Schematic, Gravity Down..................................................................... 1
22 98019230 Washer, Flat, Black, 5/16" ............................................................................... 4
23 98019176 Screw, Flange HD, Self Tapping, Black, 5/16" x 1".......................................... 4
24 98009169 Pin, Lynch, 1/4" x 1-9/16"................................................................................ 3
25 96105057 Pin, Hitch, 3-1/4" x 7-7/8"................................................................................ 1
26 96103914 Bar, Lift............................................................................................................ 1
27 98100062 Cap Screw, Hex, 1/2"-13 x 2-1/4".................................................................... 1
28 98100176 Washer, Special Hardened ............................................................................. 7
29 96102271 Spacer, Lift Bar ............................................................................................... 2
30 98100010 Cap Screw, Hex, 1/2"-13 x 2".......................................................................... 1
31 98100105 Cotter Pin, 1/8" x 1"......................................................................................... 2
32 98100104 Washer, Plate, 3/8".......................................................................................... 2
33 96102130 Spring, Latch................................................................................................... 2
34 96103524 Assembly, Stand ............................................................................................. 1
35 96103519 Pin, Latch, 2-1/4" Long.................................................................................... 1
36 96102168 Spacer, Stand ................................................................................................. 1
37 98009017 Cap Screw, Hex, 1/2"-13 x 3", MT................................................................... 2
98009042 Cap Screw, Hex, 5/8"-11 x 3-1/2", HT............................................................. 2
38 98100172 Nut, Hex Jam, 1/2"-13 ..................................................................................... 2
39 98009013 Nut, Hex, Nylock, 1/2"-13 ................................................................................ 4
40 96102131 Pin, Latch, 2" Long.......................................................................................... 1
41 96102927 Bellcrank ......................................................................................................... 1
42 96102227 Spacer, Bellcrank ............................................................................................ 2
43 98009036 Cap Screw, Hex, 1/2"-13 x 3-1/2".................................................................... 2
44 97100005 Decal, Patent................................................................................................... 1
45 96105046 Pin, Hitch......................................................................................................... 2
46 96105279 Lock, Cylinder Clamp Assembly, Gravity Down
96105278 Lock, Cylinder Clamp Assembly, Down Pressure ........................................... 1
47 Pin................................................................................................................... 2
48 Clamp, Cylinder Lock, Gravity Down............................................................... 1
Clamp, Cylinder Lock, Down Pressure............................................................ 1
49 98100007 Pin, Clevis, 3/4" x 4"........................................................................................ 1
50 98009085 Pin, Cotter, 5/32" x 1-1/2"................................................................................ 1
51 96001261 Cylinder, Lift, Gravity Down............................................................................. 1
96100085 Cylinder, Lift, Down Pressure.......................................................................... 1
52 97100004 Decal, Important ............................................................................................. 2
53 96105073 A-Frame, MT ................................................................................................... 1
96105072 A-Frame, HT ................................................................................................... 1
54 98100028 Cap Screw, Hex, 1"-14 x 7", MT...................................................................... 1
98100004 Cap Screw, Hex, 1"-14 x 8", HT ...................................................................... 1
55 98009013 Nut, Hex, Nylock, 1/2"-13, MT......................................................................... 4
98009038 Nut, Hex, Nylock, 5/8"-11, HT ......................................................................... 4
56 98009055 Cap Screw, Hex, 1/2"-13 x 4-1/2", MT ............................................................ 2
98009197 Cap Screw, Hex, 5/8"-11 x 6", HT ................................................................... 2
57 96101057 Cylinder, Angle, MT......................................................................................... 2
96001262 Cylinder, Angle, HT ......................................................................................... 2
58 98100266 Cap Screw, 1/4"-20 x 6" .................................................................................. 1
59 98100255 Nut, Nylock, 1/4"-20 ........................................................................................ 1
ITEM PART NO. DESCRIPTION QTY

7
BLADES - ST SERIES
15
16
17
14
13
12
23
24
22
30
1
21 29
25
20
4
5
3
10
2
8
18
27 7
6
26
28
23
24
31
19
18 9
11

8
BLADES - ST SERIES
1 96006002 Kit, Guide, Blade (includes 2 Guides and Mounting Hardware)...................... 1
2 Deflector, Formed, (see Note)......................................................................... 1
3 96101257 Hardware Kit ................................................................................................... 1
4 98019176 Screw, Self Tapping....................................................................................... 14
5 98019230 Washer, Flat, 5/16”........................................................................................ 14
6 98009077 Nut, Hex, 3/8”-16 (use with Polymer Wearstrip)............................................ 12
98009009 Nut, Hex, Nylock, 3/8”-16 (use with Steel Wearstrip).................................... 12
7 98009008 Washer, Lock,3/8” (use with Polymer Wearstrip) .......................................... 12
8 97100001 Decal, Warning ............................................................................................... 1
9 97100006 Decal, Important ............................................................................................. 1
10 Frame, 72"....................................................................................................... 1
Frame, 80"....................................................................................................... 1
Frame, 90"....................................................................................................... 1
11 96101445 Blade Skin, Polycarbonate, 72" (includes “Sno-Way” Decal) .......................... 1
96101446 Blade Skin, Polycarbonate, 80" (includes “Sno-Way” Decal) .......................... 1
96103069 Blade Skin, Polycarbonate, 90" (includes “Sno-Way” Decal) .......................... 1
12 96101634 Kit, Wearstrip, Steel, 72" (includes Mounting Hardware) ................................ 1
96101635 Kit, Wearstrip, Steel, 80" (includes Mounting Hardware) ................................ 1
96102789 Kit, Wearstrip, Steel, 90" (includes Mounting Hardware) ................................ 1
96108011 Kit, Wearstrip, Polymer, 72" (includes Mounting Hardware)............................ 1
96108012 Kit, Wearstrip, Polymer, 80" (includes Mounting Hardware)............................ 1
13 98009061 Bolt, Carriage, Grade 5, 3/8”-16 x 1-1/2” ..................................................... 12
14 96001191 Shoe Assembly ............................................................................................... 2
15 98009169 Pin, Lynch, 1/4” x 1-9/16” ................................................................................ 1
16 98009127 Washer, Flat, 3/4”.......................................................................................... 18
17 Shoe, Cast, 3/4” Shaft..................................................................................... 1
18 97100018 Decal, Warning ............................................................................................... 2
19 96103042 Blade Skin, Steel, 72" (includes “Sno-Way” Decal)......................................... 1
96103043 Blade Skin, Steel, 80" (includes “Sno-Way” Decal)......................................... 1
96103044 Blade Skin, Steel, 90" (includes “Sno-Way” Decal)......................................... 1
20 98009150 Nut, Nylock, 5/16”-18 ...................................................................................... 2
21 98009149 Cap Screw, Hex, 5/16”-18 x 1 ......................................................................... 2
22 96100264 Retainer, Blade, 72" ........................................................................................ 1
96100265 Retainer, Blade, 80" ........................................................................................ 1
96100266 Retainer, Blade, 90" ........................................................................................ 1
23 98019230 Washer, Flat, 5/16”.......................................................................................... 8
24 98019176 Screw, Self-Tapping, 5/16” x 1" ....................................................................... 8
25 96100213 Retainer, Bracket............................................................................................. 2
26 96100872 Bracket, Shoe.................................................................................................. 2
27 98009034 Cap Screw, Hex, 3/8”-16 x 1-1/4”.................................................................... 8
28 98009009 Nut, Nylock, 3/8”-16 ........................................................................................ 8
29 98009230 Washer, Flat, 5/16”.......................................................................................... 2
30 97100912 Decal, Sno-Way, Polycarbonate...................................................................... 1
31 97100911 Decal, Sno-Way, Steel .................................................................................... 1
NOTE: Formed Deflectors are available only as a 96" Three-Pack - Part Number 99100154.
ITEM PART NO. DESCRIPTION QTY

9
BLADES - MT & HT SERIES
14
15
16
17
18
10
9
13
23
21 22
19
9
19
12
8
21
23
24
25
11
20
2
3
1
6
7
5
4

10
BLADES - MT & HT SERIES
1 96006002 Kit, Guide, Blade (includes 2 Guides and Mounting Hardware)...................... 1
2 97100006 Decal, Important ............................................................................................. 1
3 Frame, 69" - MT .............................................................................................. 1
Frame, 80" - MT .............................................................................................. 1
Frame, 90" - MT & HT ..................................................................................... 1
Frame, 96" - HT............................................................................................... 1
Frame, 108" - HT............................................................................................. 1
4 97100001 Decal, Warning ............................................................................................... 1
5 97100018 Decal, Warning ............................................................................................... 2
6 98009012 Washer, Lock, 1/2” (used with Polymer Wearstrip) ....................................... 12
7 98009076 Nut, Hex., 1/2” - 13 (used with Polymer Wearstrip)....................................... 12
8 96101609 Kit, Flat Polycarbonate, 69" (includes “Sno-Way” Decal) - MT........................ 1
96100817 Kit, Flat Polycarbonate, 80" (includes “Sno-Way” Decal) - MT........................ 1
96100818 Kit, Flat Polycarbonate, 90" (includes “Sno-Way” Decal) - MT & HT .............. 1
96100819 Kit, Flat Polycarbonate, 96" (includes “Sno-Way” Decal) - HT ........................ 1
96101839 Kit, Flat Polycarbonate, 108" (includes “Sno-Way” Decal) - HT ...................... 1
9 98009099 Bolt, Carriage, Gr. 5, 1/2”-13 x 2" (used with Polymer Wearstrip)................... 2
98009171 Bolt, Carriage, Gr. 5, 1/2”-13 x 1-1/2” (used with Steel Wearstrip) ............... 12
10 98009013 Nut, Hex., Nylock, 1/2” - 13 (used with Steel Wearstrip) ............................... 12
11 96101401 Bracket, Shoe.................................................................................................. 2
12 96102565 Kit, Wearstrip, Polymer, 69"(includes Mounting Hardware) - MT .................... 1
96100234 Kit, Wearstrip, Polymer, 80" (includes Mounting Hardware) - MT ................... 1
96100236 Kit, Wearstrip, Polymer, 90" (includes Mounting Hardware) - MT & HT .......... 1
13 96100521 Kit, Wearstrip, Steel, 80" (includes Mounting Hardware) - MT........................ 1
96100237 Kit, Wearstrip, Steel, 90" (includes Mounting Hardware) - MT & HT............... 1
96100239 Kit, Wearstrip, Steel, 96" (includes Mounting Hardware) - HT ........................ 1
96101837 Kit, Wearstrip, Steel, 108" (includes Mounting Hardware) - HT ...................... 1
14 96102542 Shoe Assembly ............................................................................................... 2
15 Shoe, Cast, 1" Shaft........................................................................................ 1
16 Spacer, 1"........................................................................................................ 1
17 98009005 Washer, Flat, 1"............................................................................................. 14
18 98009169 Pin, Lynch, 1/4” x 1-9/16” ................................................................................ 1
19 97100911 Decal, Sno-Way (used with Steel Blade) ........................................................ 1
97100912 Decal, Sno-Way (used with Polycarbonate Blade).......................................... 1
20 98009034 Capscrew, Hex., 3/8”- 16 x 1-1/4” ................................................................... 8
21 98019176 Screw, Self Tapping......................................................................................... 8
22 96103048 Blade Skin, Steel 80", Bolt on Style (includes “Sno-Way” Decal) - MT ........... 1
96103047 Blade Skin, Steel, 90", Bolt on Style (includes “Sno-Way” Decal) - MT & HT. 1
96103046 Blade Skin, Steel, 96", Bolt on Style (includes “Sno-Way” Decal) - HT .......... 1
96103045 Blade Skin, Steel, 108", Bolt on Style (includes “Sno-Way” Decal) - HT ........ 1
23 98019230 Washer, Flat, 5/16”.......................................................................................... 8
24 96100749 Retainer, Blade, 69" - MT................................................................................ 1
96100265 Retainer, Blade, 80" - MT................................................................................ 1
96100266 Retainer, Blade, 90" - MT & HT....................................................................... 1
96100267 Retainer, Blade, 96" - HT ................................................................................ 1
96100752 Retainer, Blade, 108" - HT .............................................................................. 1
25 98009009 Nut, Nylock, 3/8”-16 ........................................................................................ 8
ITEM PART NO. DESCRIPTION QTY

11

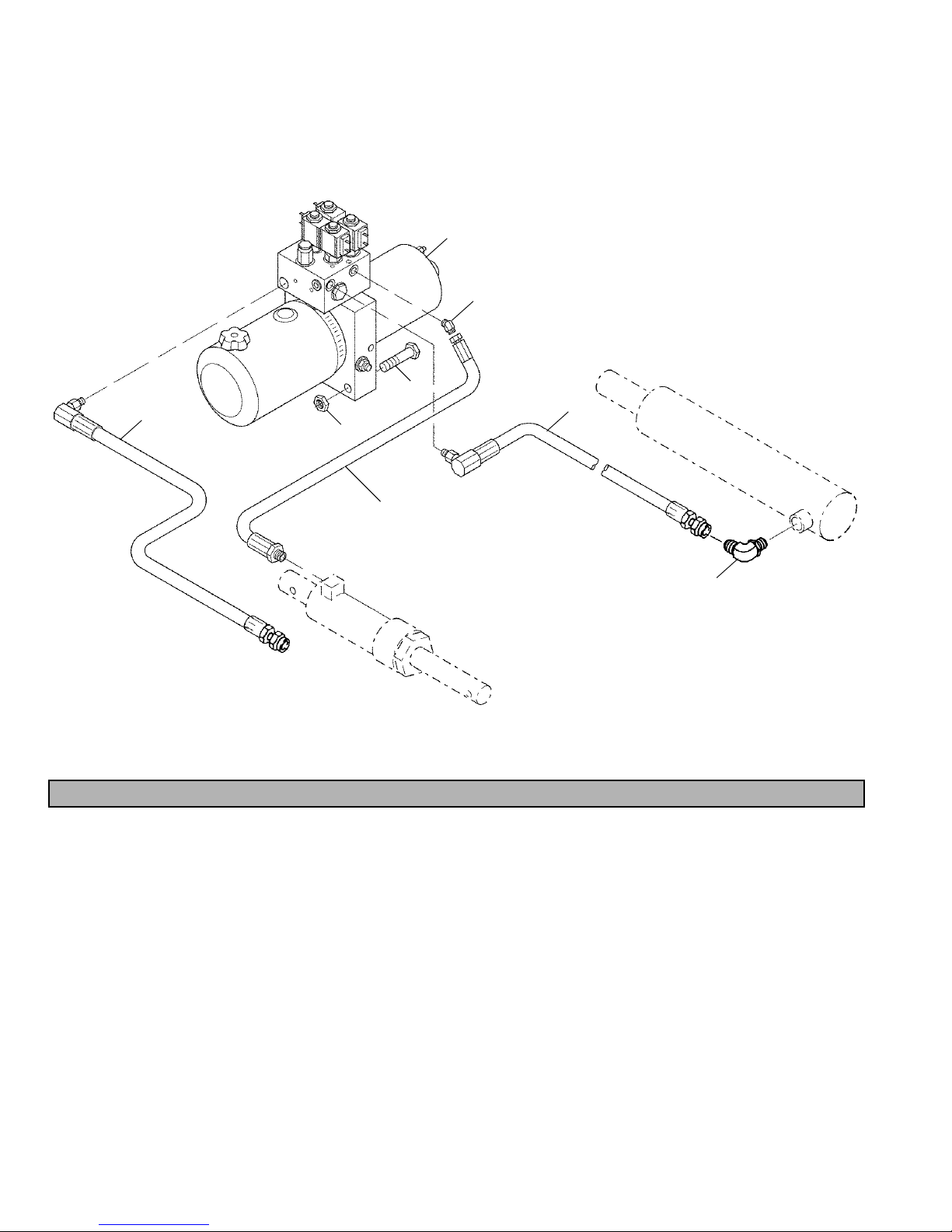

HYDRAULIC SYSTEM
GRAVITY DOWN - STG, MTG, HTG
1 96105421 Power Unit, STG (detail on page 13).............................................................. 1
96104160 Power Unit, MTG & HTG (detail on page 13) ................................................. 1
2 96100003 Fitting, Elbow, 45 Degree................................................................................ 1
3 96104340 Hose, Hydraulic, 18.00" .................................................................................. 1
4 96100002 Fitting, Elbow, 90 Degree................................................................................ 2
5 96106070 Hose, Hydraulic, 27.50" .................................................................................. 2
6 98100264 Capscrew, Hex Head, 5/16"-18 x 2-1/4" ......................................................... 2
7 98009150 Nylock, Hex Head, 5/16"-18............................................................................ 2
1
55
2
4
3
6
7
ITEM PART NO. DESCRIPTION QTY

12

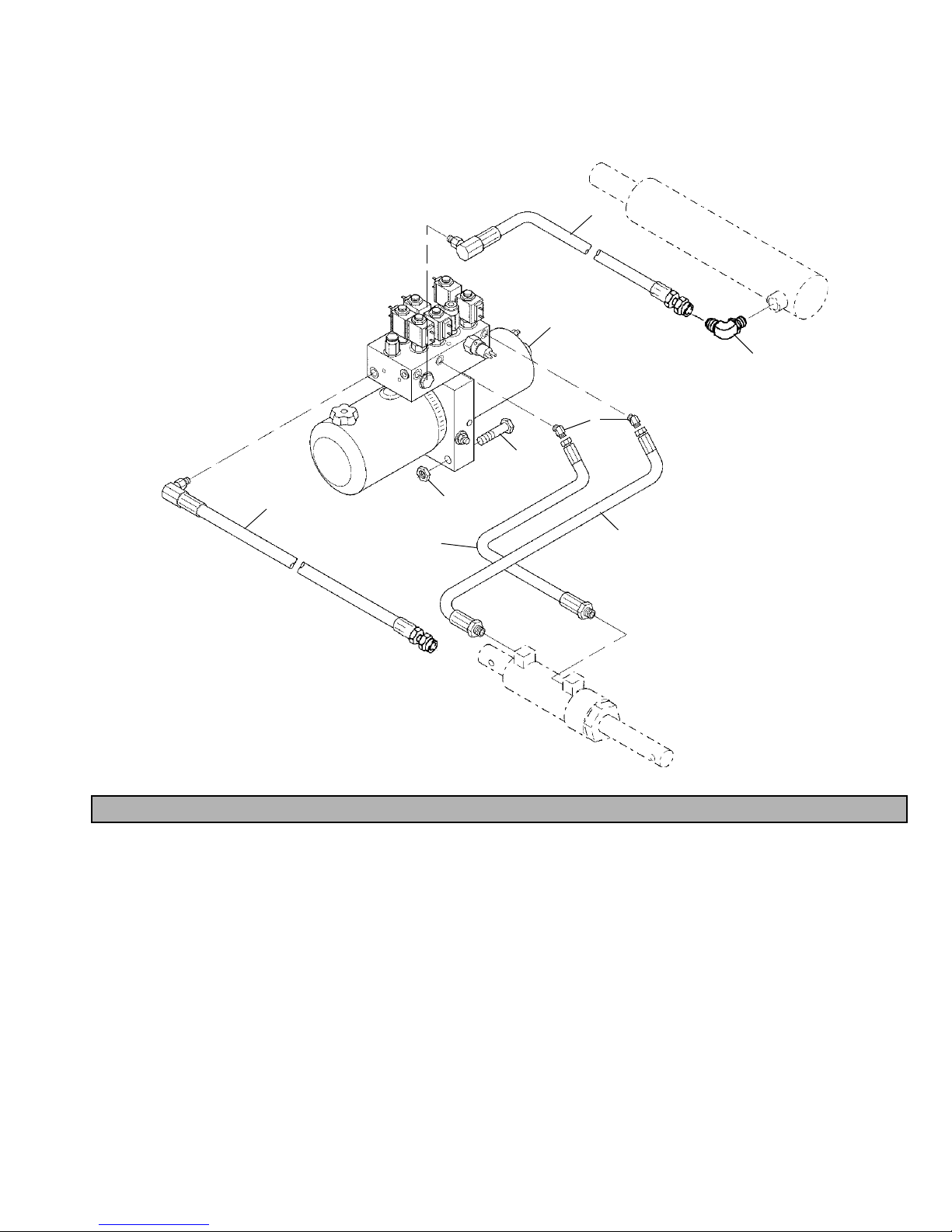

HYDRAULIC SYSTEM
DOWN PRESSURE SYSTEM - STD, MTD, HTD
1 96105075 Power Unit, STD (detail on page 15) .............................................................. 1
96104162 Power Unit, MTD (detail on page 15).............................................................. 1
96104163 Power Unit, HTD (detail on page 15) .............................................................. 1
2 96100003 Fitting, Elbow, 45 Degree................................................................................ 2
3 96104953 Hose, Hydraulic, 18.00" .................................................................................. 1
4 96100002 Fitting, Elbow, 90 Degree................................................................................ 2
5 96106070 Hose, Hydraulic, 27.50" .................................................................................. 2
6 98100264 Capscrew, Hex Head, 5/16"-18 x 2-1/4" ......................................................... 2
7 98009150 Nylock, Hex Head, 5/16"-18............................................................................ 2
8 96104242 Hose, Hydraulic, 16.50" .................................................................................. 1
5
5
1
6
2
7
4
3
8
ITEM PART NO. DESCRIPTION QTY

13
HYDRAULIC POWER UNIT
GRAVITY DOWN - STG, MTG, HTG
1
2
4
4
4
7
6
6
8
5
6
6
5
5
9
13
12
2
13
12
13
12 10
14
10
10
15A
15B
16
17 18
19
21
22
20
23
24
25
27
26
30
29
28
10
11
B
C
D
A
3
3
3
3
32
33
31
16
34
15C

14
HYDRAULIC POWER UNIT
GRAVITY DOWN - STG, MTG, HTG
1 Valve Assembly .............................................................................................. 1
2 96106273 Valve, Check ................................................................................................... 1
3 96105275 Nut, Coil Retaining.......................................................................................... 4
4 96108341 Valve, 10V DC ................................................................................................ 3
5 Cartridge (use 96108341) .............................................................................. 3
6 96105274 Coil ................................................................................................................. 4
7 96108342 Valve, 10V DC ................................................................................................ 1
8 Cartridge (use 96108342) .............................................................................. 1
9 96105237 Screw.............................................................................................................. 3
10 96105234 Fitting, Plug..................................................................................................... 4
11 96105255 Fitting, Orifice - HTG & MTG .......................................................................... 1
96106105 Kit, Orifice - HTG & MTG (to adjust drop rate) ............................................... 1
96105422 Fitting, Orifice - STG)...................................................................................... 1
96106104 Kit, Orifice - STG (to adjust drop rate) ............................................................ 1
12 96105250 Screen, Inline.................................................................................................. 3
13 96105251 Spring, Retaining ............................................................................................ 3
14 96105243 Valve, Relief, Cross Over................................................................................ 1
15A 96105233 Motor, 12V DC - HTG & MTG......................................................................... 1
15B 96105254 Motor, 12V DC - STG (serial numbers 200000 - 200226) .............................. 1
15C 96106802 Motor, 12VDC - STG (serial numbers 200230 - ) ........................................... 1
16 Bearing, Motor Base....................................................................................... 1
17 96105232 Base Assembly, Pump .................................................................................... 1
18 96105317 Seal, Shaft ...................................................................................................... 1
19 96105314 O-Ring ............................................................................................................ 2
20 96105313 Parts Kit, Relief Valve ..................................................................................... 1
21 96105315 O-Ring ............................................................................................................ 1
22 96105316 O-Ring ............................................................................................................ 1
23 96105248 Pump Assembly.............................................................................................. 1
24 96105247 Screw, Socket Head Cap ................................................................................ 4
25 96105249 Tube, Return ................................................................................................... 1
26 96105246 Tube, Suction .................................................................................................. 1
27 96105245 Filter, Suction.................................................................................................. 1
28 96105241 Reservoir ........................................................................................................ 1
29 96105244 Filler Cap ........................................................................................................ 1
30 96105231 Clamp ............................................................................................................. 1
31 96105318 Filter, Return ................................................................................................... 1
32 96105312 Brush, Replacement Kit - HTG & MTG........................................................... 1
33 96105324 Brush, Replacement Kit - STG (serial numbers 200000 - 200236) ................ 1
34 96106803 Brush, Replacement Kit - STG (serial numbers 200230 - ) ............................ 1
ITEM PART NO. DESCRIPTION QTY

15

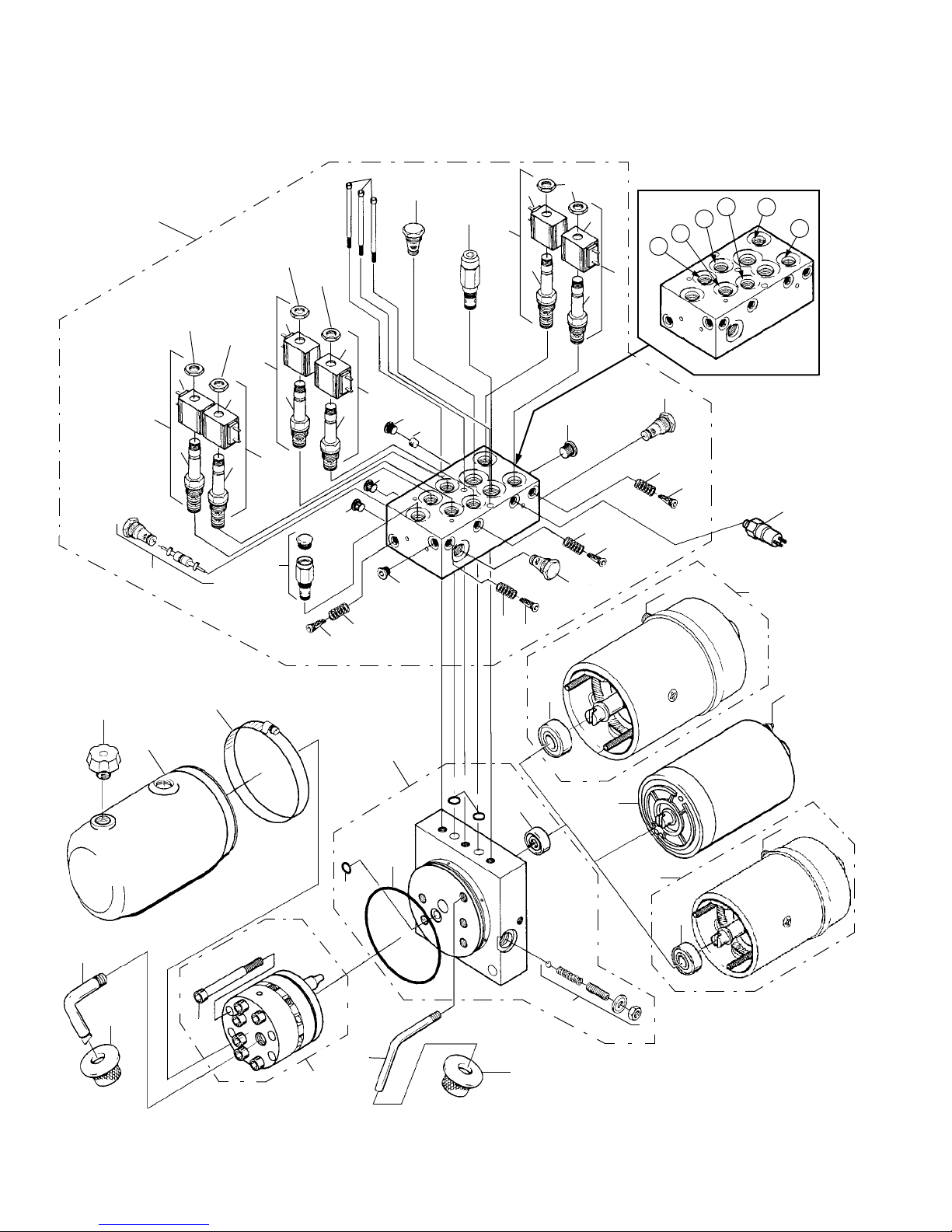

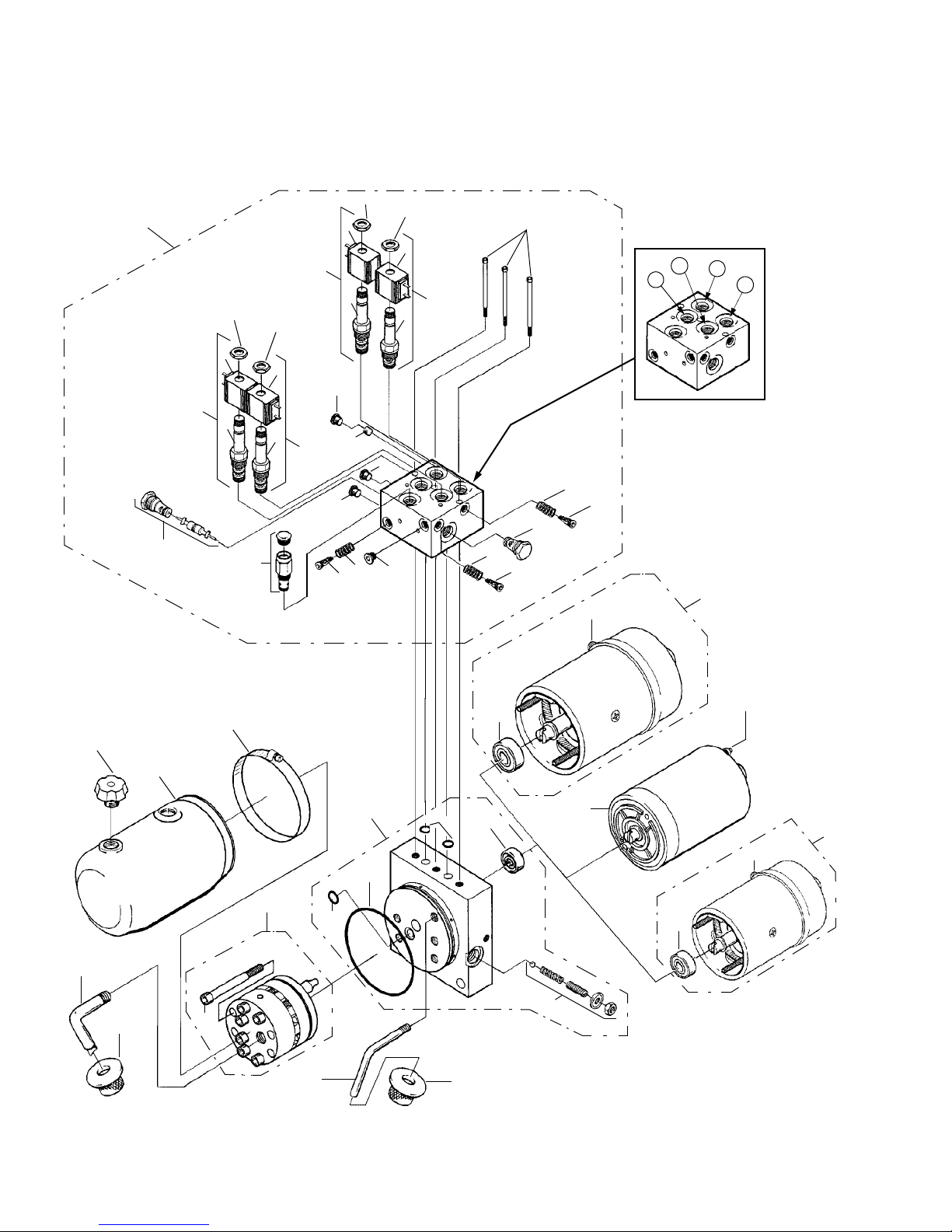

HYDRAULIC POWER UNIT
DOWN PRESSURE SYSTEM - STD, MTD, HTD
1
2
4
4
5
6
6
5
8
8
7
7
6
6
4
7
5
8
11 6
10 6
9
14
10
13
12
18
12
12
13
13
2
15
16
15
15
15
17
13
12
20
19A
19B
21
22
23
24
25
26
34
27
28
30
29
32
31
33
B
C
EF
AD
3
3
3
3
3
36
37
35
38
20
19C

16
HYDRAULIC POWER UNIT
DOWN PRESSURE SYSTEM - STD, MTD, HTD
1 Valve Assembly ...............................................................................................1
2 96106273 Valve, Check....................................................................................................1
3 96105275 Nut, Coil Retaining ..........................................................................................6
4 96108341 Valve, 10V DC .................................................................................................3
5 Cartridge (use 96108341) ...............................................................................3
6 96105274 Coil ..................................................................................................................6
7 96108342 Valve, 10V DC .................................................................................................3
8 Cartridge (use 96108342) ...............................................................................3
9 96105237 Screw ..............................................................................................................3
10 96105238 Valve, Check....................................................................................................2
11 96105239 Valve, Relief, Down Pressure - HTD................................................................1
96105253 Valve, Relief, Down Pressure - STD & MTD....................................................1
12 96105250 Screen, Inline ..................................................................................................4
13 96105251 Spring, Retaining.............................................................................................4
14 96105240 Fitting, Plug .....................................................................................................2
15 96105234 Fitting, Plug .....................................................................................................4
16 96105255 Fitting, Orifice ..................................................................................................1
96106105 Kit, Orifice (to adjust drop rate) .......................................................................1
17 96105243 Valve, Relief, Crossover ..................................................................................1
18 96100311 Switch, Pressure - HTD...................................................................................1
96101976 Switch, Pressure - STD & MTD.......................................................................1
19A 96105233 Motor, 12V DC - HTD & MTD ..........................................................................1
19B 96105254 Motor, 12V DC - STD (serial number 200000 - 201452) ................................1
19C 96106802 Motor, 12V DC - STD (serial number 201470 - )
20 Bearing, Motor Base........................................................................................1
21 96105232 Base Assembly, Pump.....................................................................................1
22 96105313 Parts Kit, Relief Valve ......................................................................................1
23 96105314 O-Ring .............................................................................................................2
24 96105315 O-Ring .............................................................................................................1
25 96105316 O-Ring .............................................................................................................1
26 96105317 Seal, Shaft.......................................................................................................1
27 96105248 Pump Assembly ..............................................................................................1
28 96105247 Screw, Socket Head Cap.................................................................................4
29 96105246 Tube, Suction...................................................................................................1
30 96105245 Filter ................................................................................................................1
31 96105241 Reservoir .........................................................................................................1
32 96105244 Filler Cap .........................................................................................................1
33 96105231 Clamp ..............................................................................................................1
34 96105249 Tube, Return....................................................................................................1
35 96105318 Filter, Return....................................................................................................1
36 96105312 Brush Replacement Kit - HTD & MTD.............................................................2
37 96105324 Brush Replacement Kit - STD (serial number 200000 - 201452)...................1
38 96106803 Brush Replacement Kit - STD (serial number 201470 - )...............................1
ITEM PART NO. DESCRIPTION QTY

17
LIFT CYLINDERS
GRAVITY DOWN SYSTEM - STG, MTG, HTG
1 96105043 Cylinder, Lift, 1-1/2” (Single Action) - STG ..................................................... 1
96001261 Cylinder, LIft, 2" (Single Action) - MTG & HTG............................................... 1
2 96005034 Kit, Seal, For 1-1/2” Cylinder - STG................................................................ 1
96005046 Kit, Seal, For 2" Cylinder - MTG & HTG ......................................................... 1
3 96005036 Nut, Gland For 1-1/2” Cylinder (includes Wiper) - STG .................................. 1
96005100 Nut, Gland, For 2" Cylinder (includes Wiper) - MTG & HTG........................... 1
1
3
2
ITEM PART NO. DESCRIPTION QTY

18
LIFT CYLINDERS
DOWN PRESSURE SYSTEM - STD, MTD, HTD
1 96104885 Cylinder, Lift, 2" (Double Action) - STD........................................................... 1
96100085 Cylinder, Lift, 2-1/2” (Double Action) - MTD & HTD ........................................ 1
2 96105257 Kit, Seal, For 2" Cylinder - STD ...................................................................... 1
96101516 Kit, Seal, For 2-1/2” Cylinder - MTD & HTD .................................................... 1
3 96105259 Nut, Gland, For 2" Cylinder - STD................................................................... 1
96100492 Nut, Gland, For 2-1/2” Cylinder - MTD & HTD ................................................ 1
1
3
2
ITEM PART NO. DESCRIPTION QTY

19
ANGLE CYLINDERS - ST, MT, HT
1 96001044 Cylinder, Angle, 1" - ST................................................................................... 1
96101057 Cylinder, Angle, 1-1/4” - MT ............................................................................ 1
96001262 Cylinder, Angle, 1-1/2” - HT ............................................................................ 1
2 96005035 Kit, Seal, 1" - ST.............................................................................................. 1
Seal, Square End................................................................................. 1
Seal, Inner............................................................................................ 4
Seal, Domed (metal or plastic)............................................................. 1
96101082 Kit, Seal, 1-1/4” - MT....................................................................................... 1
Seal, Square End................................................................................. 1
Seal, Inner............................................................................................ 4
Seal, Domed (metal or plastic)............................................................. 1
96005034 Kit, Seal, 1-1/2” - HT ....................................................................................... 1
Seal, Square End................................................................................. 1
Seal, Inner............................................................................................ 4
Seal, Domed (metal or plastic)............................................................. 1
3 96005101 Nut, Gland, 1" (includes Wiper) - ST............................................................... 1
96101566 Nut, Gland, 1-1/4” (includes Wiper) - MT ........................................................ 1
96005036 Nut, Gland, 1-1/2” (includes Wiper) - HT ........................................................ 1
4 96100419 Ring, Guide, 1" - ST ........................................................................................ 1
96101084 Ring, Guide, 1-1/4” - MT ................................................................................. 1
96100417 Ring, Guide, 1-1/2” - HT.................................................................................. 1
1
3
2
4
ITEM PART NO. DESCRIPTION QTY
