B32057
UNDERCARRIAGE KIT
Dodge Ram 2500/3500 2003 - 09
Parts List & Installation Instructions
A DIVISION OF DOUGLAS DYNAMICS, LLC
Blizzard, PO Box 245038, Milwaukee, WI 53224-9538 • www.blizzardplows.com
May 15, 2016
Lit. No. B64045, Rev. 04

Lit. No. B64045, Rev. 04 2 May 15, 2016
SAFETY DEFINITIONS
NOTE: Indicates a situation or action that can lead
to damage to your snowplow and vehicle or other
property. Other useful information can also be
described.
SAFETY
WARNING
Indicates a potentially hazardous situation
that, if not avoided, could result in death or
serious personal injury.
CAUTION
Indicates a potentially hazardous situation
that, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.
WARNING/CAUTION & INSTRUCTION
LABELS
Become familiar with and inform users about the
warning and instruction labels on the back of the
blade.
NOTE: If labels are missing or cannot be read, see
your sales outlet.
Instruction Label
Crush
Hazard
Label
POWER PLOW™ &
SP
EEDWING™ Blades
Only
(both sides)
Multiple Pinch Points Label
Warning/Caution Label

Lit. No. B64045, Rev. 04 3 May 15, 2016
SAFETY PRECAUTIONS
Improper installation and operation could cause
personal injury and/or equipment and property damage.
Read and understand labels and the Owner's Manual
before installing, operating or making adjustments.
PERSONAL SAFETY
• Remove ignition key and put the vehicle in park or
in gear to prevent others from starting the vehicle
during installation or service.
• Wear only snug-tting clothing while working on
your vehicle or snowplow.
• Do not wear jewelry or a necktie, and secure long
hair.
• Wear safety goggles to protect your eyes from
battery acid, gasoline, dirt and dust.
• Avoid touching hot surfaces such as the engine,
radiator, hoses and exhaust pipes.
• Always have a re extinguisher rated BC handy,
for ammable liquids and electrical res.
FIRE AND EXPLOSION
Be careful when using gasoline. Do not use gasoline
to clean parts. Store only in approved containers away
from sources of heat or ame.
CELL PHONES
A driver's rst responsibility is the safe operation of
the vehicle. The most important thing you can do
to prevent a crash is to avoid distractions and pay
attention to the road. Wait until it is safe to operate
Mobile Communication Equipment such as cell phones,
text messaging devices, pagers or two‑way radios.
VENTILATION
SAFETY
WARNING
Gasoline is highly ammable and gasoline
vapor is explosive. Never smoke while
working on vehicle. Keep all open ames
away from gasoline tank and lines. Wipe up
any spilled gasoline immediately.
WARNING
Lower the blade when vehicle is parked.
Temperature changes could change
hydraulic pressure, causing the blade to
drop unexpectedly or damaging hydraulic
components. Failure to do this could result in
serious personal injury.
CAUTION
Refer to the Power Match selection system
for minimum vehicle recommendations and
ballast requirements.
WARNING
Do not exceed GVWR or GAWR including the
blade and ballast. The rating label is found on
the driver-side vehicle door cornerpost.
WARNING
Remove blade assembly before placing
vehicle on hoist.
WARNING
The driver shall keep bystanders clear of the
blade when it is being raised, lowered or angled.
Do not stand between the vehicle and the blade
or within 8 feet of a moving blade. A moving or
falling blade could cause personal injury.
WARNING
Keep hands and feet clear of the blade and
A-frame when mounting or removing the
snowplow. Moving or falling assemblies could
cause personal injury.
WARNING
To prevent accidental movement of the blade,
always turn the control OFF whenever the
snowplow is not in use. The power indicator
light will turn OFF.
WARNING
Vehicle exhaust contains lethal fumes.
Breathing these fumes, even in low
concentrations, can cause death. Never
operate a vehicle in an enclosed area without
venting exhaust to the outside.

Lit. No. B64045, Rev. 04 4 May 15, 2016
TORQUE SPECIFICATIONS
CAUTION
Read instructions before assembling.
Fasteners should be nger tight until
instructed to tighten according to the torque
chart. Use standard methods and practices
when attaching snowplow, including proper
personal protective safety equipment.
TORQUE CHART
Grade Identication for J429–Grade 5 Bolt Grade Identication for J429–Grade 8 Bolt
SAE J429 Grade 5 Torque Values SAE J429 Grade 8 Torque Values
Nominal
Thread Size
Clamp Loads
(lb)
Tightening Torque Nominal
Thread Size
Clamp Loads
(lb)
Tightening Torque
"Lubricated" "Dry" "Lubricated" "Dry"
1/4‑20 2,000 6 ft‑lb 8 ft‑lb 1/4‑20 2,850 9 ft‑lb 12 ft‑lb
5/16‑18 3,350 13 ft‑lb 18 ft‑lb 5/16‑18 4,700 18 ft‑lb 25 ft‑lb
3/8‑16 4,950 23 ft‑lb 31 ft‑lb 3/8‑16 6,950 32 ft‑lb 44 ft‑lb
7/16 ‑14 6,800 37 ft‑lb 50 ft‑lb 7/16‑14 9,600 53 ft‑lb 70 ft‑lb
1/2‑13 9,050 57 ft‑lb 75 ft‑lb 1/2‑13 12,800 80 ft‑lb 107 ft‑lb
9/16‑12 11,600 82 ft‑lb 109 ft‑lb 9/16‑12 16,400 115 ft‑lb 154 ft‑lb
5/ 8 ‑11 14,500 113 ft‑lb 151 ft‑lb 5/ 8 ‑11 20,300 159 ft‑lb 211 ft‑lb
3/4‑10 21,300 200 ft‑lb 266 ft‑lb 3/4‑10 30,10 0 282 ft‑lb 376 ft‑lb
7/8‑9 29,435 321 ft‑lb 430 ft‑lb 7/8‑9 41,550 454 ft‑lb 606 ft‑lb
1‑8 38,600 482 ft‑lb 640 ft‑lb 1‑8 54,540 680 ft‑lb 900 ft‑lb
8.8 Grade Identication for Metric–Grade 8.8 Bolt 10.9 Grade Identication for Metric–Grade 10.9 Bolt
Metric Class 8.8 Torque Values Metric Class 10.9 Torque Values
Diameter
(mm)
Clamp Loads
(lb)
Tightening Torque Diameter
(mm)
Clamp Loads
(lb)
Tightening Torque
"Lubricated" "Dry" "Lubricated" "Dry"
51,389 3 ft‑lb 5 ft‑lb 51,987 5 ft‑lb 7 ft‑lb
61,965 6 ft‑lb 8 ft‑lb 62,812 8 ft‑lb 11 ft‑lb
72,826 10 ft‑lb 13 ft‑lb 74,044 14 ft‑lb 19 ft‑lb
83,579 14 ft‑lb 19 ft‑lb 85,121 20 ft‑lb 27 ft‑lb
10 5,672 28 ft‑lb 37 ft‑lb 10 8,116 40 ft‑lb 53 ft‑lb
12 8,243 49 ft‑lb 65 ft‑lb 12 11,79 6 70 ft‑lb 92 ft‑lb
14 11,246 77 ft‑lb 103 ft‑lb 14 16,092 111 ft‑ lb 148 ft‑lb
16 15,882 125 ft‑lb 167 ft‑lb 16 21,970 173 ft‑lb 231 ft‑lb
18 19,423 172 ft‑lb 229 ft‑lb 18 26,868 238 ft‑lb 317 ft‑lb
20 24,784 244 ft‑lb 325 ft‑lb 20 34,284 338 ft‑lb 450 ft‑lb
NOISE
Airborne noise emission during use is below 70 dB(A)
for the snowplow operator.
VIBRATION
Operating snowplow vibration does not exceed
2.5 m/s2to the hand‑arm or 0.5 m/s2to the whole
body.

Lit. No. B64045, Rev. 04 5 May 15, 2016
PUSHBEAM
PUSHBEAM HEIGHT
The recommended pushbeam height for this
undercarriage assembly is 12‑1/2" from the center
of the pushbeam to level ground. DO NOT exceed
14‑1/2" in height for this undercarriage.
12-1/2"

Lit. No. B64045, Rev. 04 6 May 15, 2016
UNDERCARRIAGE INSTALLATION
INSTALLATION INSTRUCTIONS
NOTE: For easier assembly and installation,
vehicle and all snowplow components should
be on a smooth, level, hard surface, such as
concrete.
1. Remove the bumper and adjustable bumper
mount plates from the truck frame rail.
NOTE: The fascia will need to be permanently
removed or notched for reinstallation.
Discard mount plate hardware.
2. Install the support arms to the truck frame rail.
The passenger side will install behind the front
stabilizer bar and the driver side will install behind
the power steering gear box. Secure the rear
hole with 5/8" cap screws, 5/8" washers and
5/8" locknut and washer with handle.
NOTE: The locknut and washer with handle will
allow you to position the nut through the frame
rail. Use silicone to position the washer on the
nut.
Finger tighten the fasteners until all undercarriage
parts are in place.
3. Replace the adjustable bumper mount plates by
aligning the slotted holes with those in the truck
frame rail, frame spacer and hanger plates. Each
hanger plate should be positioned on the inside
of the frame rail. Attach components through
the top mount hole with 1/2" x 4" cap screws,
1/2" washers and locknuts.
NOTE: Each adjustable bumper mount plate must
be positioned at its maximum height on the truck
frame.
4. Position the hanger plate support brackets
against the hanger plate and under the frame rail.
Secure the top hole in the bracket through the
hanger plates, frame spacer and bottom hole of
the bumper mount plates with 1/2" x 4‑1/2" cap
screws, 1/2" washers and locknuts.
NOTE: If the vehicle is equipped with tow hooks,
the tow hook bracket behind the bumper may
need to be trimmed.
5. Secure each support bracket to the hanger plates
using 5/8" x 1‑3/4" cap screws, 5/8" washers and
locknuts.
6. Mount the front holes of the pushbeam square
with the bottom of each hanger plate using
1/2" x 1‑1/2" cap screws, 1/2" washers and
locknuts. Align the rear holes of the pushbeam
with the rear holes on the hanger plates and with
the holes in the support arms. Secure all three
with 1/2" x 2" cap screws, 1/2" washers and
locknuts.
NOTE: The support arms mount on the inside of
the pushbeam.
Tighten the pushbeam hardware according to the
torque chart.
7. Level the pushbeam with the oor and tighten the
remaining hardware according to the torque chart
8. Replace the bumper and fascia. Notch fascia to t.
9. Install adapter (PN 29279) according to the
instructions included with the adapter.
NOTE: After ve to ten hours of snowplow usage,
retorque all undercarriage assembly fasteners.

Lit. No. B64045, Rev. 04 7 May 15, 2016

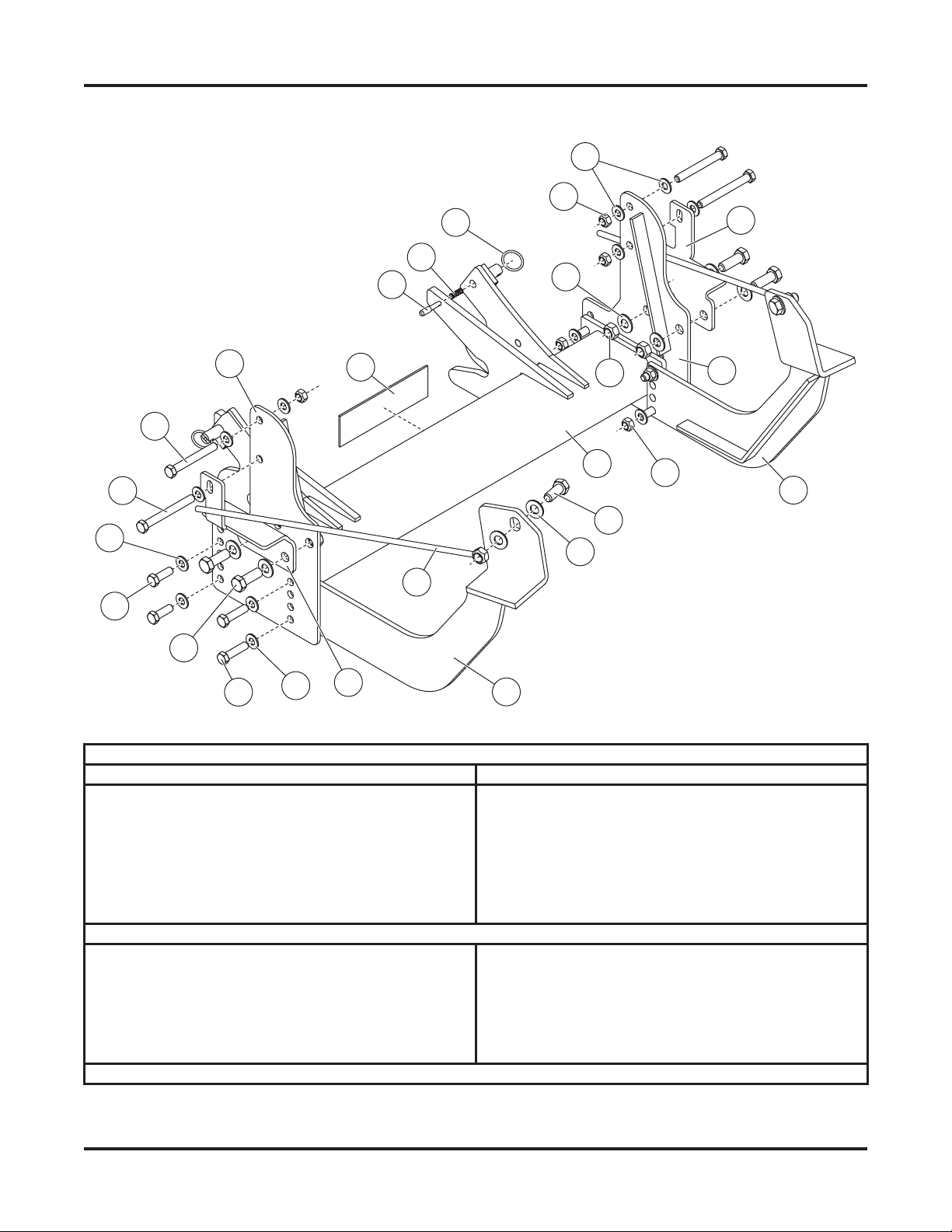

UNDERCARRIAGE PARTS LIST
B32057 Undercarriage Kit
Item Part Qty Description Item Part Qty Description
1B32058 1Pushbeam 8B32067 1 Support Arm – PS
2B63161 1Label, Pushbeam 9B32066 1 Support Arm – DS
3B61309 2 Split Ring, 1.25 OD 10 B32138 1 Hanger Plate – DS
4B61000 2Compression Spring SS 11 B32061 1 Hanger Plate Support Bracket – DS
5B40079 2 A‑Frame Latch Pin 12 B32070 2 5/8‑11 x 22 Locknut and Washer
6B32060 1 Hanger Plate Support Bracket – PS w/Handle
7B32139 1 Hanger Plate – PS ns B61339 1Hardware Kit
B61339 Hardware Kit
13 41/2-13 x 2 Hex Cap Screw G5 19 12 5/8 Hardened Flat Washer
14 41/2-13 x 1-1/2 Hex Cap Screw G5 20 24 1/2 Hardened Flat Washer
15 45/8-11 x 1-3/4 Hex Cap Screw G5 21 12 1/2-13 Hex Locknut GC Distorted
16 21/2-13 x 4-1/2 Hex Cap Screw G5 Thread
17 21/2-13 x 4 Hex Cap Screw G5 22 45/8-11 Hex Locknut GC Distorted
18 25/8-11 x 1-1/2 Hex Cap Screw G5 Thread
ns = not shown SS = Stainless Steel G = Grade
6
10
1
22
20
2
3
4
5
8
9
11
12
16
17
13
18
21
19
20
21
7
19
15
14
20

Lit. No. B64045, Rev. 04 8 May 15, 2016
Copyright © 2016 Douglas Dynamics, LLC. All rights reserved. This material may not be reproduced or copied, in whole or in part, in
any printed, mechanical, electronic, lm or other distribution and storage media, without the written consent of Blizzard. Authorization to
photocopy items for internal or personal use by Blizzard outlets or snowplow owner is granted.
Blizzard reserves the right under its product improvement policy to change construction or design details and furnish equipment when so
altered without reference to illustrations or specications used. Blizzard or the vehicle manufacturer may require or recommend optional
equipment for snow removal. Do not exceed vehicle ratings with a snowplow. Blizzard offers a limited warranty for all snowplows and
accessories. See separately printed page for this important information. The following are registered (®) or unregistered (™) trademarks of
Douglas Dynamics, LLC: BLIZZARD®, POWER HITCH™, POWER HITCH™ 2, POWER PLOW™, SPEEDWING™.
Printed in U.S.A.
A DIVISION OF DOUGLAS DYNAMICS, LLC
Blizzard
PO Box 245038
Milwaukee, WI 53224‑9538
www.blizzardplows.com
