Snom snomONE-ST402 User manual

1@ 2011 snom TechnologyAG
snomONE – ST402: Installation and Provisioning
Installation and
Provisioning
snomONE – ST402

2@ 2011 snom TechnologyAG
snomONE – ST402: Installation and Provisioning
Installing the Software
1. Downloads: http://wiki.snomone.com -> Downloads
After update, the software must be licensed (even the free version).
Login, and then choose your license under Admin -> Settings -> License
2. Updates: http://wiki.snomone.com -> Updates

3@ 2011 snom TechnologyAG
snomONE – ST402: Installation and Provisioning

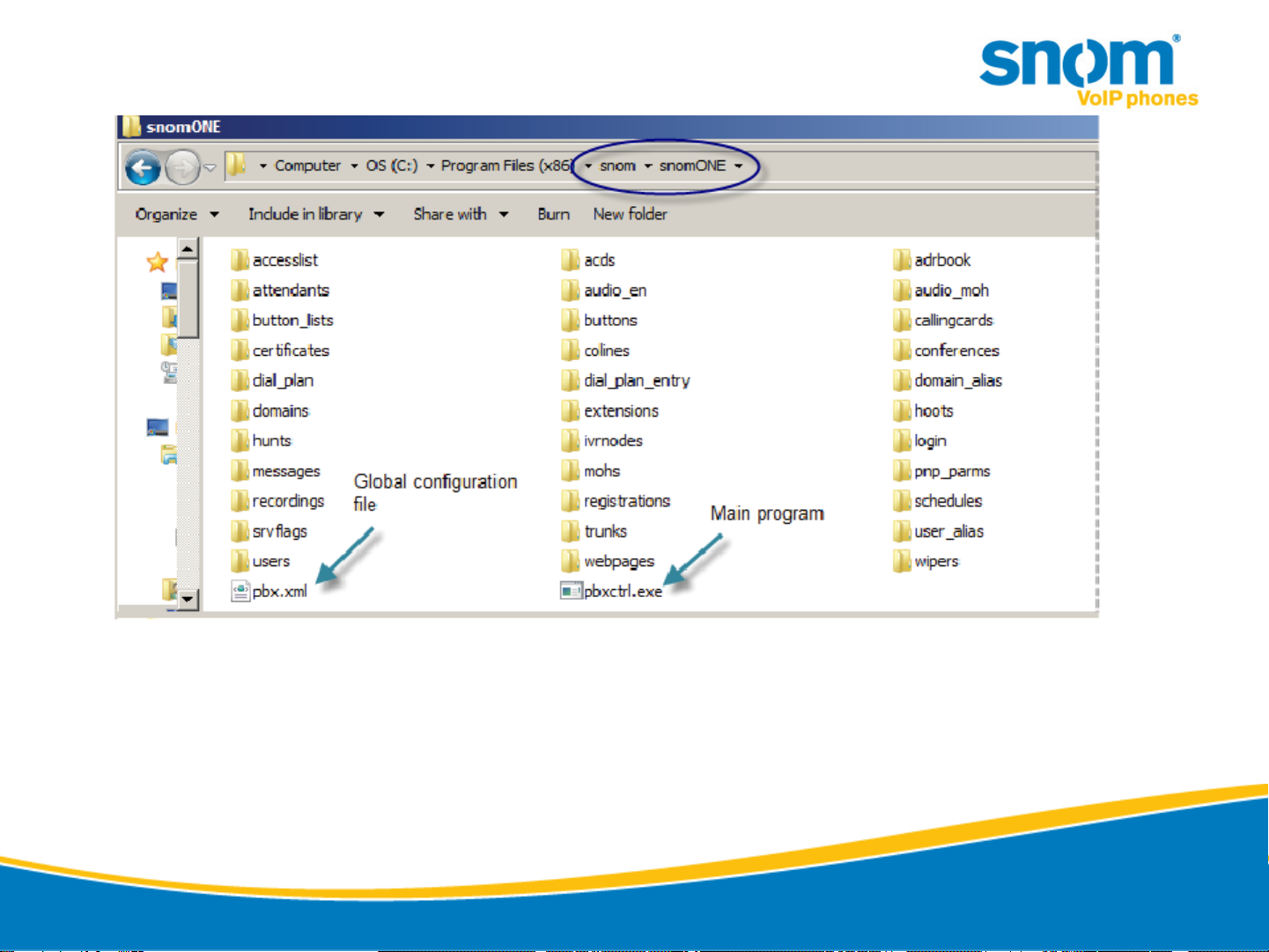

snom ONE Directory Structure
Default directory in Windows: Program Files/snom/snomONE
Default directory in Linux: /usr/local/snomONE
Default directory in Mac: /usr/Applications/snomone

4@ 2011 snom TechnologyAG
snomONE – ST402: Installation and Provisioning

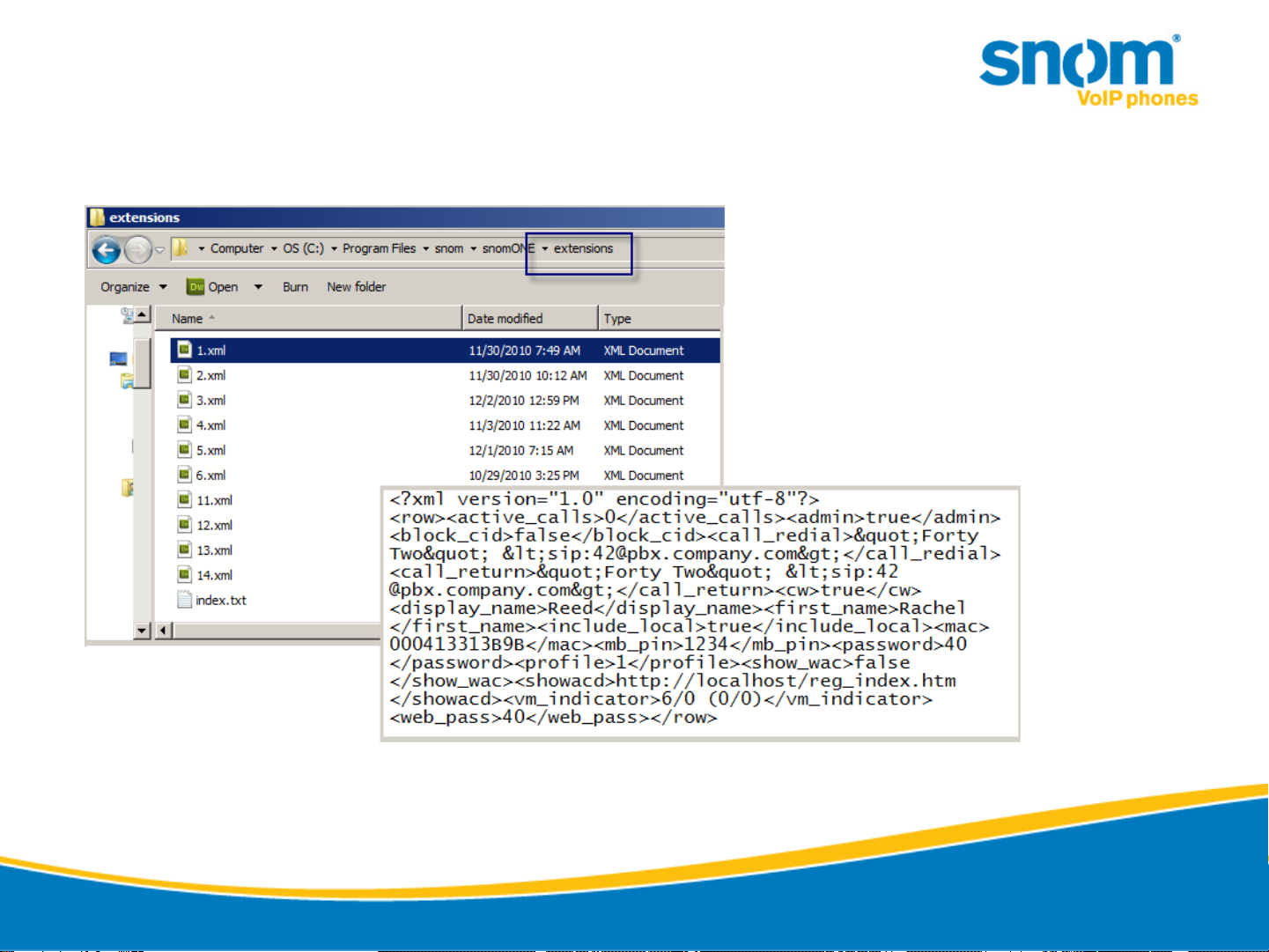

Sample Folder and XML File

5@ 2011 snom TechnologyAG
snomONE – ST402: Installation and Provisioning
5
© 2011 snom technologyAG
Author: Alexander Feldt , Christian Niemczik
snomEssentials - ST112: Auto Provisioning Overview
Installing and setting up
snom ONE SOHO
snom ONE SOHO

6@ 2011 snom TechnologyAG
snomONE – ST402: Installation and Provisioning
6
© 2011 snom technologyAG
Author: Alexander Feldt , Christian Niemczik
snomEssentials - ST112: Auto Provisioning Overview
SOHO Environment: Overview
PoE Switch
6
Phone 2: snom821Phone 1: snom320
Internet:
snom_guest
invoipwetrust
snom ONE soho

7@ 2011 snom TechnologyAG
snomONE – ST402: Installation and Provisioning
7
© 2011 snom technologyAG
Author: Alexander Feldt , Christian Niemczik
snomEssentials - ST112: Auto Provisioning Overview
snom SOHO: Installation (1)

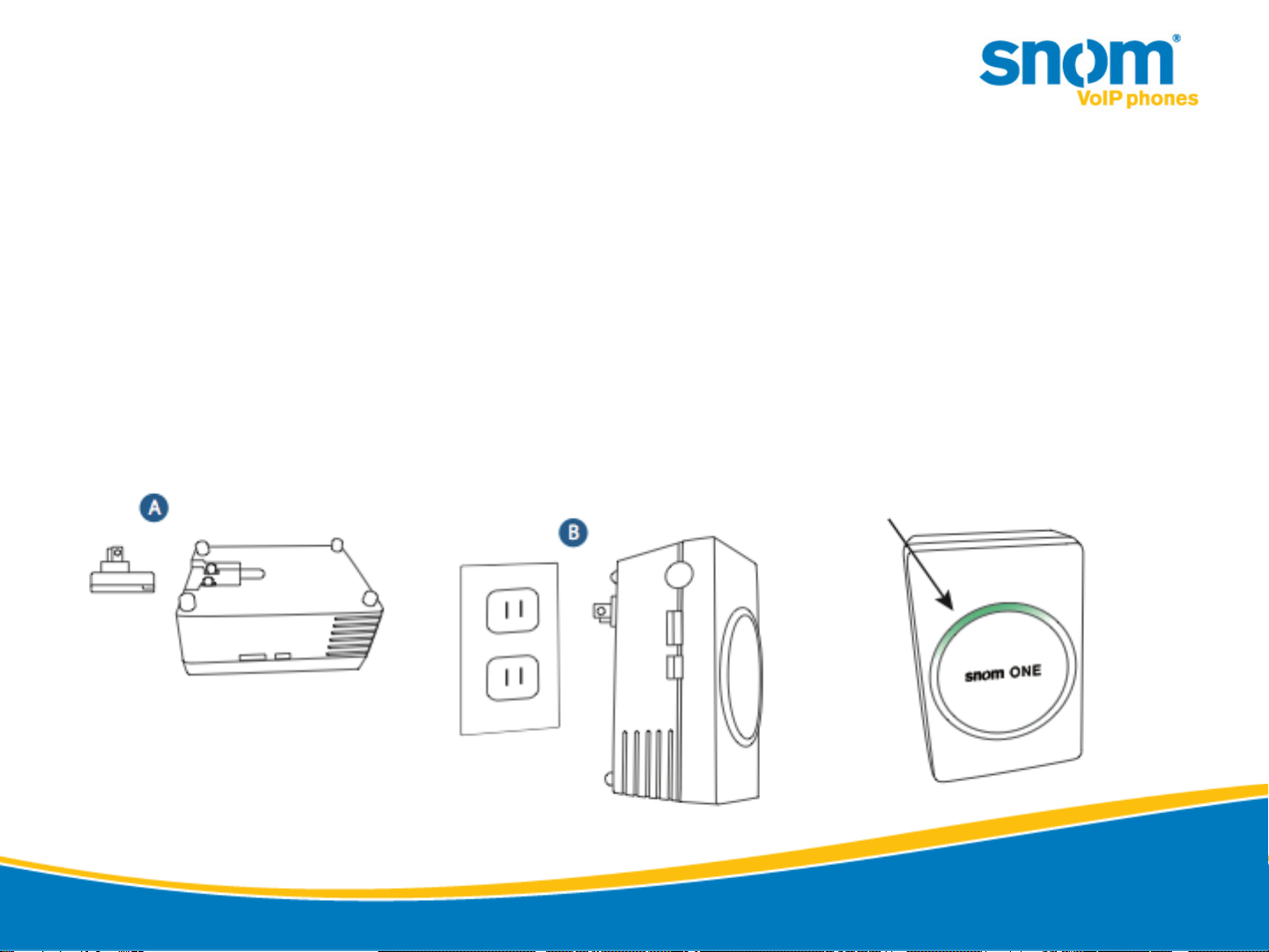

•Insert the appropriate plug adapter into the
device (A), then plug it into the wall (B).
–Note: Make sure the green LED is lit. This
indicates that output is present.
7

8@ 2011 snom TechnologyAG
snomONE – ST402: Installation and Provisioning
8
© 2011 snom technologyAG
Author: Alexander Feldt , Christian Niemczik
snomEssentials - ST112: Auto Provisioning Overview
•Insert one end of the Ethernet cable into the Ethernet port of the
SoHo and the other one into a non PoE port of the provided PoE
switch.
–Note: Make sure your switch/hub is not connected to your
existing LAN
•Connect your Laptop to another free non PoE port of the provided
PoE switch and make sure your laptop receives an IP address via
DHCP (192.168.168.X).
8
snom SOHO: Installation (2)

9@ 2011 snom TechnologyAG
snomONE – ST402: Installation and Provisioning
9
© 2011 snom technologyAG
Author: Alexander Feldt , Christian Niemczik
snomEssentials - ST112: Auto Provisioning Overview
•Enter 192.168.168.254:81 into a web browser
•Log in using the following login credentials:
–User: admin
–Password: snomONE
•Click “Admin”
9
snom SOHO:Configuration

10 @ 2011 snom TechnologyAG
snomONE – ST402: Installation and Provisioning

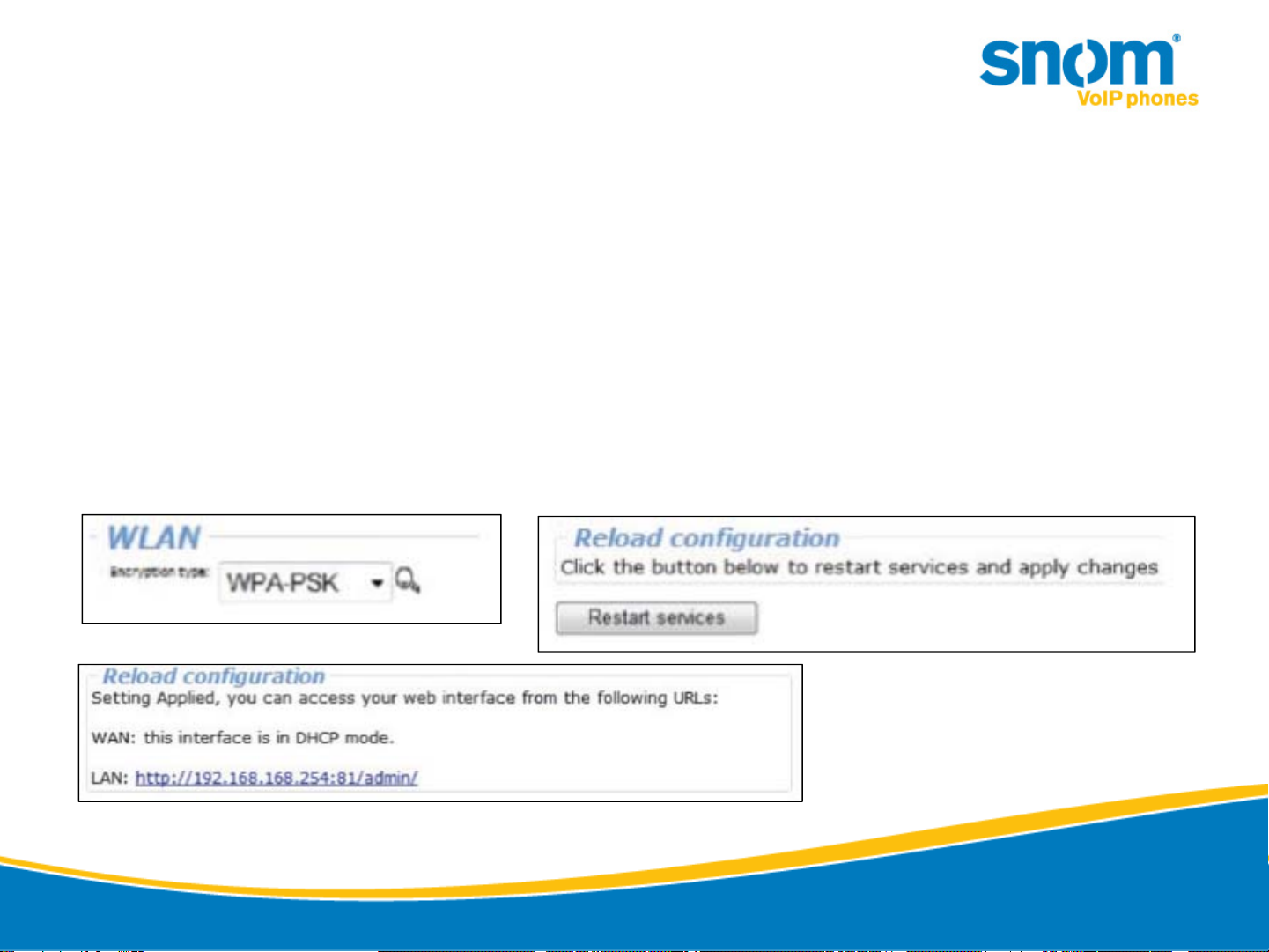

snom SOHO:Configuration
•In order to connect to the Internet via an existing AP, select the
WLAN SSID. The encryption type will be detected automatically.
–Click “Save”, then “Apply” from the left navigation panel and
finally “Restart services”
–After the restart click on the link to refresh the page
–Make sure the blue LED on the SoHo is solid and your internet
connection is working
1
0
© 2011 snom technologyAG
Author: Alexander Feldt , Christian Niemczik
snomEssentials - ST112: Auto Provisioning Overview
10

11 @ 2011 snom TechnologyAG
snomONE – ST402: Installation and Provisioning
1
1
© 2011 snom technologyAG
Author: Alexander Feldt , Christian Niemczik
snomEssentials - ST112: Auto Provisioning Overview
Accessing files - using Samba
11

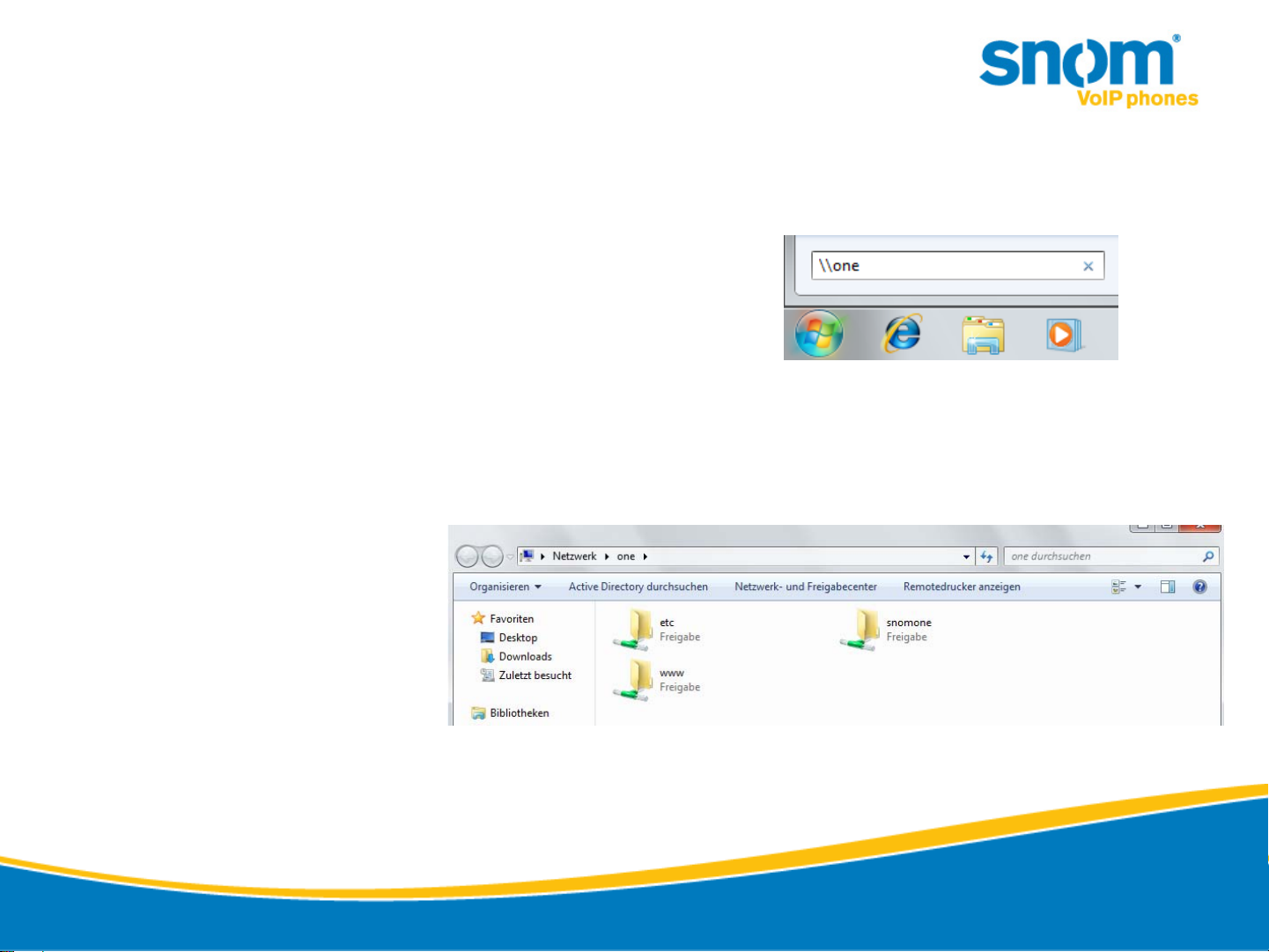

•in Windows click Start and type
\\one or \\192.168.168.254 in the
small textbox that appears
–User: admin
–Password: snomONE
‣The snom ONE
default directory
can be
accessed under
“snomone”

12 @ 2011 snom TechnologyAG
snomONE – ST402: Installation and Provisioning
1
2
© 2011 snom technologyAG
Author: Alexander Feldt , Christian Niemczik
snomEssentials - ST112: Auto Provisioning Overview
Accessing the files – using ssh
12
‣Install Putty or any other ssh client
‣Host: 192.168.168.254 (or “one”)
‣Port: 8722
‣User: root
‣Password: snomONE

13 @ 2011 snom TechnologyAG
snomONE – ST402: Installation and Provisioning
1
3
© 2011 snom technologyAG
Author: Alexander Feldt , Christian Niemczik
snomEssentials - ST112: Auto Provisioning Overview
Login and License Activation
13

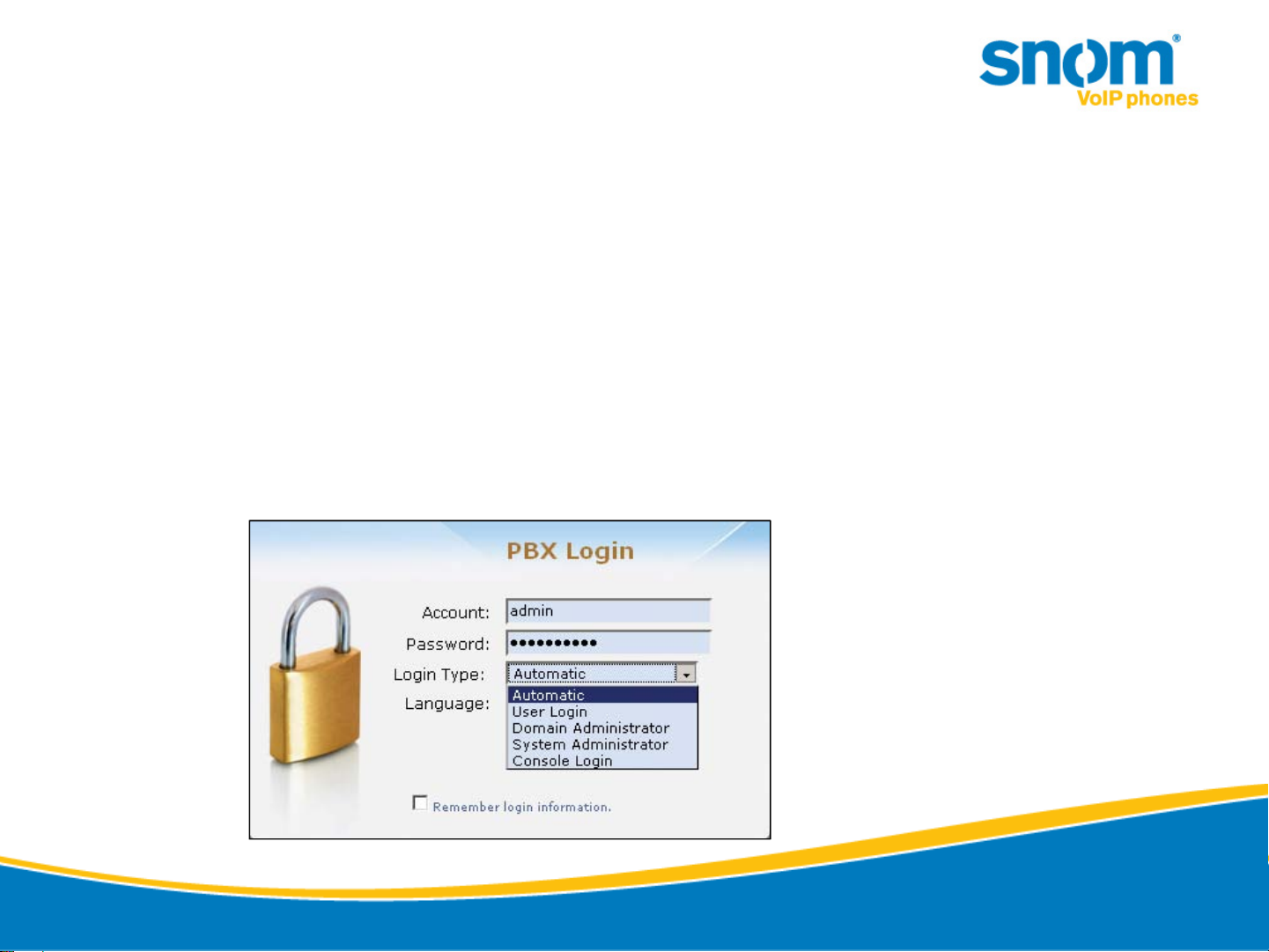

•Enter 192.168.168.254 or “one” in a web browser
•Log in using the following credentials:
–User: admin
–Password: <empty>
•Navigate to “Admin” > “Settings” > “License” and activate the
license for “snom ONE free trial”

14 @ 2011 snom TechnologyAG
snomONE – ST402: Installation and Provisioning
Exercises:
1. Get familiar with the snom ONE file system.
Find the snom ONE default directory on your
server
2. Locate the pbxctrl.exe and pbx.xml files.
3. Listen to some of the .wav files in the
snom/snomONE/audio_en folder.
snom ONE File System

15 @ 2011 snom TechnologyAG
snomONE – ST402: Installation and Provisioning
Web-interface based
Configuration overview

16 @ 2011 snom TechnologyAG
snomONE – ST402: Installation and Provisioning

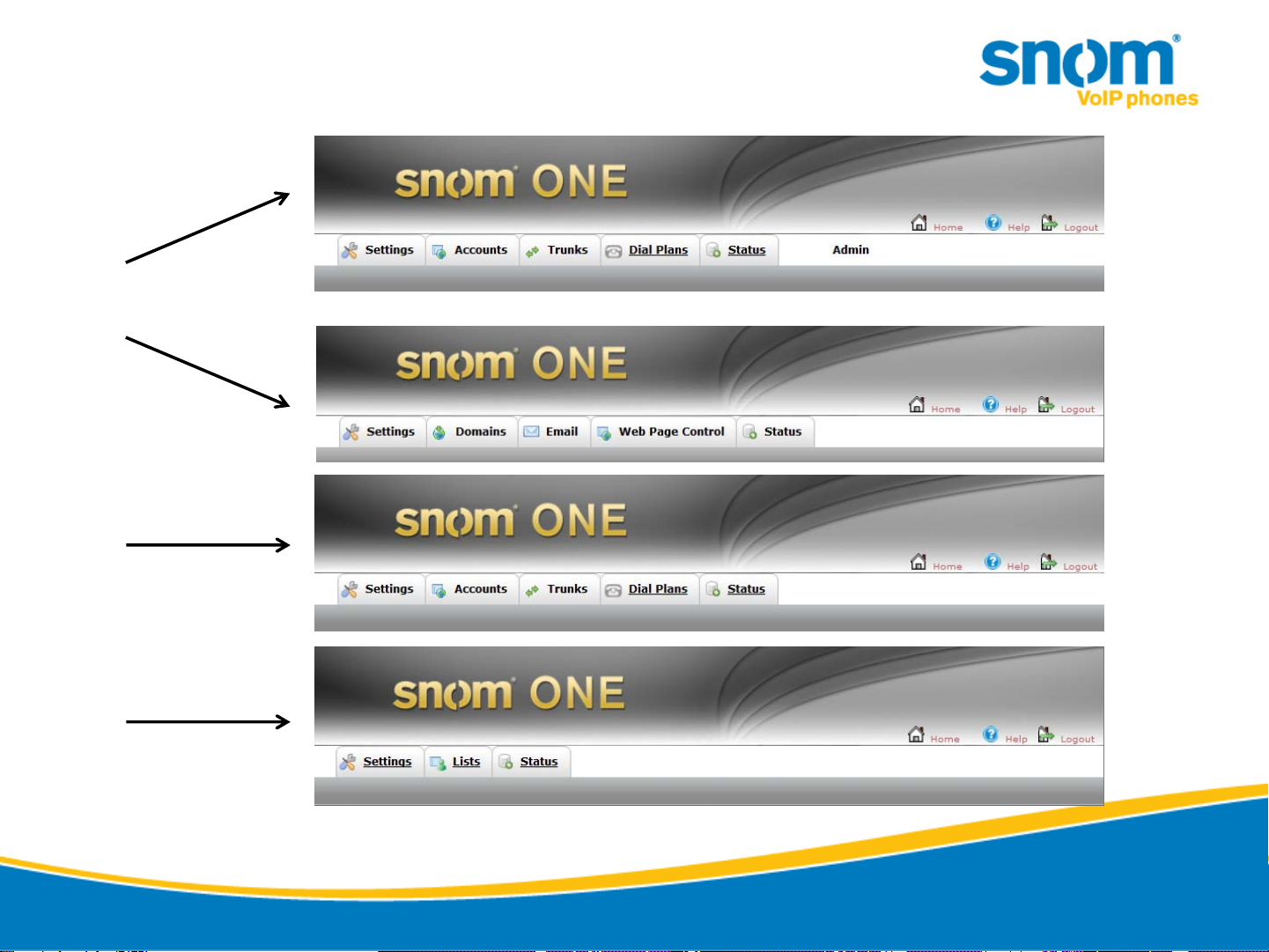

Web Interfaces
Admin
Domain admin
User
Single domain
Multiple domains

17 @ 2011 snom TechnologyAG
snomONE – ST402: Installation and Provisioning

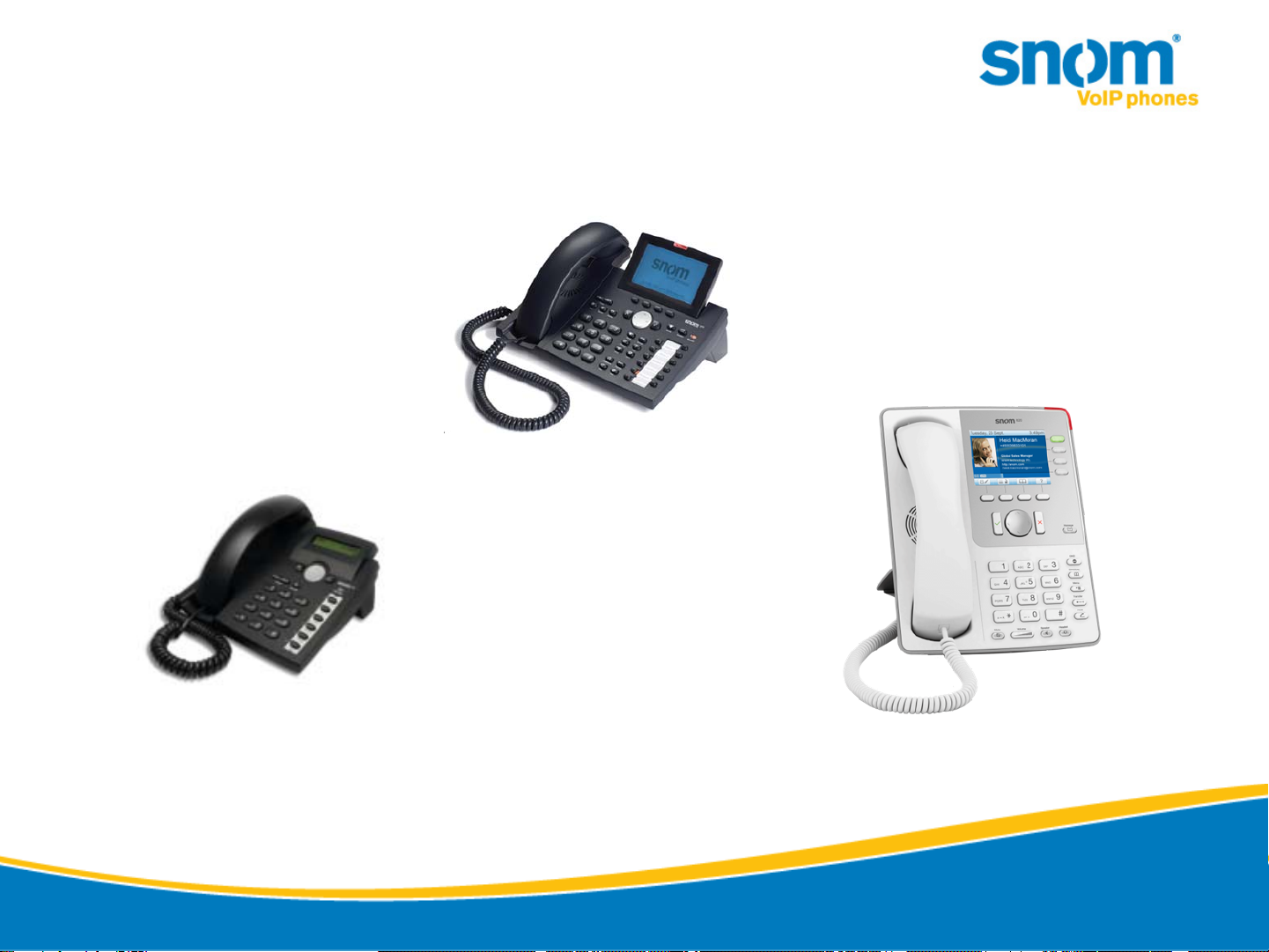

Test the installation
Reset your phones to factory default, or plug them in if
they have not been plugged in before.

18 @ 2011 snom TechnologyAG
snomONE – ST402: Installation and Provisioning
Understanding Plug and Play

19 @ 2011 snom TechnologyAG
snomONE – ST402: Installation and Provisioning
PnP options
Method of Plug and
Play Use Case Scenario How it's Used
Manual Setting up
a few phones
In this mode, you can permanently set the MAC address in the extension account. This will bind the registration to a specific
phone. The MAC address can be used in multiple extensions, and multiple MAC addresses can be assigned to the same
extension. This allows for users to have multiple phones. (Use a space to separate the MAC addresses.)
Permanent
Assignment (*)
Deploying phones
in a specified order
in a large office
In this mode, you can easily assign MAC addresses to a large number of extensions. For example, rather than entering 100
different MAC addresses into separate user accounts, you can use the star symbol (*) to expedite the process. The system will
assign a permanent extension to each phone once it boots up and requests a configuration from the system. The system will
remember the MAC address of the phone and from that point on, the extension number will be used exclusively for that phone.
This mode requires that a star (*) be used in the Bind to MAC Address field.
Temporary
Assignment (?)
Setting up phones
at trade shows,
class rooms, etc.
This mode simplifies preparation when setting up at trade shows and for classroom training sessions. When this mode is used, the
system will not remember which phone had been assigned to which extension. A phone might receive a new extension number
every time it boots up. (As long as no other user agent is registered to a particular extension, the extension will be availablefor
plug and play.) This mode requires that a question mark (?) be used in the Bind to MAC Address field.

20 @ 2011 snom TechnologyAG
snomONE – ST402: Installation and Provisioning

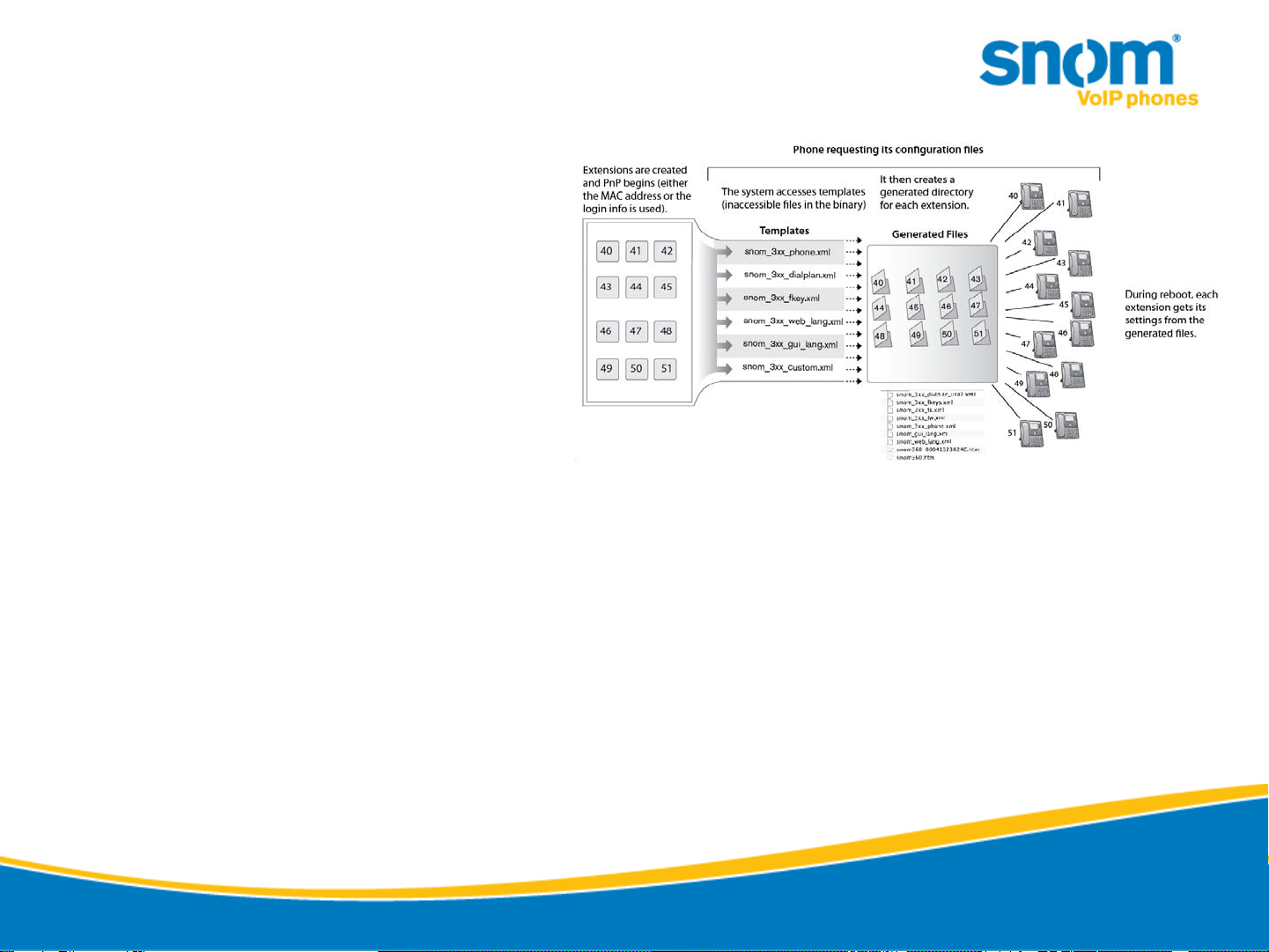

Plug and Play Flowcharts
[5] 2011/02/28 18:41:39:SIP Rx udp:10.11.111.10:1024:
Via: SIP/2.0/UDP 10.11.111.10:1024;rport
From: <sip:MAC%3a000413261D97@vlan111.testlab.snom.com>;tag=1295169367
To: <sip:MAC%3a000413261D97@vlan111.testlab.snom.com>
Call-ID: 996761057@10.11.111.10
CSeq: 1 SUBSCRIBE
Event: ua-profile;profile-type="device";vendor="snom";model="snom370";version="8.4.27"
Expires: 0
Accept: application/url
Contact: <sip:10.11.111.10:1024>
Content-Length: 0
[5] 2011/02/28 18:41:39:SIP Tx udp:10.11.111.10:1024:
SIP/2.0 200 Ok
Via: SIP/2.0/UDP 10.11.111.10:1024;rport=1024
From: <sip:MAC%3a000413261D97@vlan111.testlab.snom.com>;tag=1295169367
To: <sip:MAC%3a000413261D97@vlan111.testlab.snom.com>;tag=347044a11d
Call-ID: 996761057@10.11.111.10
CSeq: 1 SUBSCRIBE
Expires: 0
Content-Length: 0
[5] 2011/02/28 18:41:39:SIP Tx udp:10.11.111.10:1024:
NOTIFY sip:10.11.111.10:1024 SIP/2.0
Via: SIP/2.0/UDP 10.11.111.201:5060;branch=z9hG4bK-
a6777a98342a8905ac28b134389d72e8;rport
From: <sip:MAC%3a000413261D97@vlan111.testlab.snom.com>;tag=347044a11d
To: <sip:MAC%3a000413261D97@vlan111.testlab.snom.com>;tag=1295169367
Call-ID: 996761057@10.11.111.10
CSeq: 1634432139 NOTIFY
Max-Forwards: 70
Subscription-State: terminated;reason=noresource
Event: ua-profile
Content-Type: application/url
Content-Length: 42
https://10.11.111.201:443/prov/snom370.htm
-The phone boots up and sends a SUBSCRIBE
request to a multicast address
-snom ONE replies the request and sends the
phone the configuration file path
-snom ONE generates the configuration files (each
new request) and writes them in the ‚generated‘
directory
