Snorkel S2646E User manual

February 2011
Serial number 1107120411 and after
Part Number 0410051
MANUAL
OPERATOR’S

The aerial platform is not electrically insulated. Death or serious injury will result from contact
with, or inadequate clearance from, an energized conductor.
Do not go closer than the Minimum Safe Approach Distance as dened by ANSI standards.
Regard all conductors as energized.
Allow for electrical wire sag and aerial platform sway.
If the platform, scissors structure, or any part of the aerial platform contacts a high-voltage electrical
conductor, the entire machine can become electrically charged.
If that happens, remain on the machine and do not contact any other structure or object. This in-
cludes the ground, adjacent buildings, poles, and any other objects that are not part of the aerial
platform.
Such contact could make your body a conductor to the other object, creating an electrical shock
hazard resulting in death or serious injury.
If an aerial platform is in contact with an energized conductor the platform operator must warn ground
personnel in the vicinity to stay away. Their bodies can conduct electricity creating an electrical shock
hazard resulting in death or serious injury.
Do not approach or leave the aerial platform until the electricity has been turned off.
Do not attempt to operate the lower controls when the platform, scissors structure, or any part of
the aerial platform is in contact with a high-voltage electrical conductor or if there is an immediate
danger of such contact.
Personnel on or near an aerial platform must be continuously aware of electrical hazards, recogniz-
ing that death or serious injury can result from contact with an energized conductor.
© Snorkel – all rights reserved
California
Proposition 65 Warning
Battery posts, terminals and related accessories contain lead
and lead components, chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm.
Wash hands after handling.

S2646E/S3246E – 0410051
Table of Contents
Chapter 1 – Introduction
Aerial Platform Features .........................................1
Options .................................................................1
Operator’s Manual..................................................1
Safety Alerts..........................................................1
Operation ..............................................................1
Maintenance..........................................................2
Manual of Responsibilities ......................................2
Additional Information .............................................2
Chapter 2 – Specifications
Component Identification.........................................3
General Specifications S2646E ...............................4
Aerial Platform ....................................................4
Platform .............................................................4
Function Speed...................................................4
Drive System ......................................................4
Drive/Lift Level Sensor Interlock ............................4
Tires ..................................................................4
Electrical System ...............................................4
Hydraulic System ...............................................4
Ambient Air Temperature Operating Range ............4
General Specifications S3246E ...............................5
Aerial Platform ....................................................5
Platform .............................................................5
Function Speed...................................................5
Drive System ......................................................5
Drive/Lift Level Sensor Interlock ............................5
Tires ..................................................................5
Electrical System ...............................................5
Hydraulic System ...............................................5
Ambient Air Temperature Operating Range ............5
Chapter 3 – Safety
Electrocution Hazards ............................................7
Minimum Safe Approach Distance ...........................7
Prestart Inspection .................................................8
Work Place Inspection and Practices ......................8
Operation ..............................................................8
Tip-Over and Falling Hazards ...................................8
Electrical System ..................................................9
Hydraulic System ..................................................9
Placards and Decals ..............................................9
Chapter 4 – Safety Devices
Emergency Stop Controls ..................................... 11
Drive Motion Alarm ............................................... 11
Pothole Protector Skids ........................................ 11
Drive/Lift Pothole Protector Interlock ......................12
Drive/Lift Level Sensor Interlock .............................12
Lowering Alarm ....................................................12
Emergency Lowering Handle .................................12
Safety Prop .........................................................12
Guardrails ...........................................................13
Ground Fault Circuit Interrupter..............................13
Tilt Alarm.............................................................13
Horn ...................................................................13
Flashing Light ......................................................13
Chapter 5 – Gauges and Displays
Hour Meter ..........................................................15
Ammeter .............................................................15
Battery Condition Indicator ....................................15
Chapter 6 – Batteries
General Maintenance ...........................................17
Charging .............................................................17
Chapter 7 – Controls
Battery Disconnect Switch....................................19
Lower Controls.....................................................19
Emergency Stop Button..................................... 19
Control Selector Switch ..................................... 19
Platform Raise/Lower Switch.............................. 19
Upper Controls.....................................................19
Emergency Stop Button..................................... 20
Drive/Lift Selector Switch ................................... 20
Joystick ........................................................... 20
Interlock ........................................................... 20
Steer Switch..................................................... 20
Drive Range Switch ........................................... 20
Horn Button .........................................................20
Battery Condition Indicator ....................................20
Circuit Breaker Reset Button.................................20
Chapter 8 – Prestart Inspection
Operator’s Manual................................................21
Electrical System ................................................21
Battery Fluid Level ............................................ 21
Battery Terminals .............................................. 21
Battery Charger ................................................ 21
Safety Prop .........................................................22
Cables and Wiring Harness...................................22
Hydraulic System ................................................23
Fluid Level ........................................................ 23
Hoses and Fittings ............................................ 23
Free-Wheeling Valve .......................................... 23
Tires and Wheels .................................................24
Ground Strap .......................................................24
Lower Control Station ...........................................24
Operating Controls ............................................ 24
Emergency Stop ............................................... 24
Lowering Alarm ....................................................24
Pothole Protector Interlock....................................24
Emergency Lowering ............................................25
Structures ...........................................................25
Weldments....................................................... 25
Slide Pads ....................................................... 26
Fasteners ......................................................... 26

Table of Contents
S2646E/S3246E – 0410051
Upper Control Station ...........................................26
Guardrail System .............................................. 26
Platform Extension............................................ 26
Swing-Down Rails ............................................. 27
Brakes ............................................................. 27
Operating Controls ............................................ 27
Emergency Stop ............................................... 27
Lowering Alarm ................................................. 27
Drive Motion Alarm ............................................ 27
Electrical Power Outlet .........................................28
Flashing Light ......................................................28
Battery Condition Indicator ....................................28
Placards and Decals ............................................28
Prestart Inspection Checklist ................................31
Chapter 9 – Operation
Preparing for Operation .........................................33
Lower Controls.....................................................33
Upper Controls.....................................................33
Driving.................................................................34
Drive Range Switch ........................................... 34
Drive Speeds .................................................... 34
Drive/Lift Level Sensor Interlock .......................... 34
Steering ..............................................................35
Platform ..............................................................35
Raising and Lowering ........................................ 35
Extending......................................................... 35
Swing-Down Rails ............................................. 36
Swing-Out Trays ..................................................36
Electrical Power Outlet .........................................37
Wallboard Loading ...............................................37
Chapter 10 – Stowing and Transporting
Stowing ...............................................................39
Transporting ........................................................39
Lifting With a Forklift ......................................... 39
Winching.......................................................... 39
Driving.............................................................. 40
Hoisting ........................................................... 41
Securing for Transport ....................................... 42
Chapter 11 – Emergency Operation
Emergency Lowering ............................................43
Towing ................................................................43
Chapter 12 – Troubleshooting
Troubleshooting Chart ...........................................45
Appendix A – Glossary
Limited Warranty

S2646E/S3246E – 0410051 1
Chapter1 –Introduction
Aerial Platform Features
The aerial platform is a self-propelled scissors lift that
has been designed to raise personnel, their tools, and
material to the workstation. The S2646E has one hy-
draulic cylinder to raise and lower the platform and the
S3246E has two cylinders. A hydraulic motor on each of
the front wheels provides power to move the machine.
The standard machine includes the following features.
• Proportional drive and lift up control
• Drivable at full height
• Drive motion alarm
• Non-marking tires
• Automatic pothole protection system
• Level sensor with drive/lift interlock
• Hour meter
• Manual lowering valve
• Lockable battery disconnect switch
• Tie-down lugs
• Lifting lugs
• Heavy duty battery charger with ammeter
• Swing-out hydraulic and electrical component trays
• Non-slip metal platform floor
• Three foot platform extension
• Swing-down platform rails
• 125 volt AC electrical outlet with GFCI
• Scissor arm safety support prop
• Lowering alarm
• Removable upper controls
• Forklift loadable from three sides
• Rear forklift pockets
• Platform entry gate with safety chain
• Five year limited warranty
The aerial platform has been manufactured to conform to
all applicable requirements of the following organizations.
• Occupational Safety and Health Administration
(OSHA)
• American National Standards Institute (ANSI)
•Canadian Standards Association (CSA)
Options
The following options may be provided on the machine.
• Horn
• Flashing light
• Lanyard anchors
• Key switch
• Battery condition indicator
• Swinging platform entry gate
• Platform entry gate with gravity gate
Operator’s Manual
This manual provides information for safe and proper op-
eration of the aerial platform. Because it covers more
than one model, some figures may only represent what
is actually on the machine. Read and understand the
information in this Operator’s Manual before operating
the aerial platform on the job.
Additional copies of this manual may be ordered from
Snorkel. Supply the model and manual part number from
the front cover to assure that the correct manual will be
supplied.
All information in this manual is based on the latest prod-
uct information at the time of publication. Snorkel reserves
the right to make product changes at any time without
obligation.
SafetyAlerts
A safety alert symbol is used throughout this manual to
indicate danger, warning, and caution instructions. Fol-
low these instructions to reduce the likelihood of per-
sonal injury and property damage. The terms danger,
warning, and caution indicate varying degrees of personal
injury or property damage that can result if the instruc-
tion is not followed.
Danger
Indicates an imminently hazardous situation which,
if not avoided, will result in death or serious injury.
This signal word is to be used in the most extreme
situations.
Warning
Indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury.
Caution
Indicates a potentially hazardous situation which, if
not avoided, may result in minor or moderate in-
jury. It may also be used to alert against unsafe
practices.
Notes
Notes are used to provide special information or helpful
hints to assist in aerial platform operation, but do not
indicate a hazardous situation.
Operation
The aerial platform has built-in safety features and has
been factory tested for compliance with Snorkel specifi-
cations and industry standards. However, any personnel
lifting aerial platform can be potentially dangerous in the
hands of untrained or careless operators.
Warning
The potential for an accident increases when the
aerial platform is operated by personnel who are
not trained and authorized. Death or serious injury
can result from such accidents. Read and under-
stand the information in this manual and on the plac-
ards and decals on the machine before operating
the aerial platform on the job.

Chapter 1 – Introduction
2S2646/S3246 – 0410051
Training is essential and must be performed by a quali-
fied person. Become proficient in knowledge and actual
operation before using the aerial platform on the job. You
must be trained and authorized to perform any functions
of the aerial platform. Operation of the aerial platform must
be within the scope of the machine specifications.
The operator bears ultimate responsibility for following all
manufacturer’s instructions and warnings, regulations and
safety rules of their employer and/or any state or federal
law.
Maintenance
Every person who maintains, inspects, tests, or repairs
the aerial platform must be qualified to do so. Following
the daily prestart inspection in this Operator’s Manual
will help keep the aerial platform in optimum working con-
dition. Other maintenance functions must be performed
by maintenance personnel who are qualified to work on
the aerial platform.
Do not modify this aerial platform without prior written
consent of the Snorkel Engineering Department. Modifi-
cation may void the warranty, adversely affect stability, or
affect the operational characteristics of the aerial plat-
form.
Manual of Responsibilities
All owners and users of the aerial platform must read,
understand, and comply with all applicable regulations.
Ultimate compliance to OSHA regulations is the respon-
sibility of the user and their employer.
ANSI publications clearly identify the responsibilities of
all personnel who may be involved with the aerial plat-
form. A reprint of the “Manual of Responsibilities for Deal-
ers, Owners, Users, Operators, Lessors and Lessees of
ANSI/SIAA92.6-1999Self-PropelledElevatingWorkPlat-
forms” is available from Snorkel dealers or from the fac-
tory upon request.
Copies are also available from:
Scaffold Industry Association, Inc.
P. O. Box 20574
Phoenix, AZ 85036-0574 USA
Additional Information
For additional information contact your local dealer or
Snorkel at:
Snorkel International
P.O. Box 1160
St. Joseph, MO 64502-1160 USA
1-800-255-0317
http://www.snorkellifts.com

S2646E/S3246E – 0410051 3
Chapter 2 – Specifications

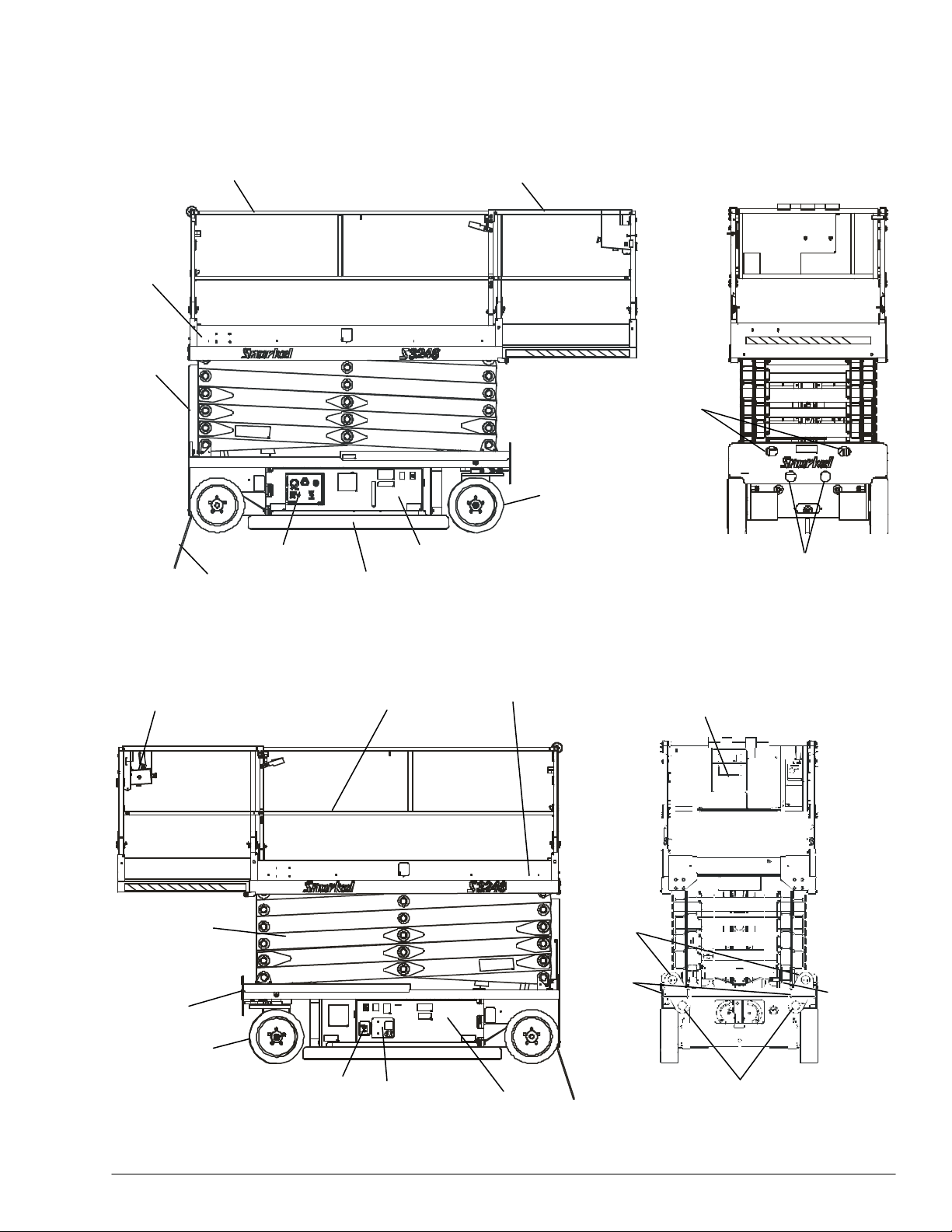

Component Identification
Chassis
Battery Charger
Upper Controls
Platform Platform Extension Deck
Left Side Battery Tray
Battery Disconnect
Switch
Pothole Protector Skid
Operator’s
Manual
Scissors
Structure
Guardrails
Toeboards
Entry Step
Ground Strap
Right Side
Rear
Front
Lower Controls Hydraulic Tray
Lifting Lugs
Tie-down Lugs
Drive and Steer
Wheels
Drive and Steer
Wheels
Forklift
Pockets
Lifting Lugs
Electrical
Power Outlet
Emergency
Lowering
Handle
Tie-down Lugs

Chapter 2 – Specifications
4S2646E/S3246E – 0410051
General Specifications S2646E
Aerial Platform
Working height 32′(9.75 m)
Maximum platform height 26′(7.9 m)
Turning radius
Inside 10″(25.4 cm)
Outside 101″(2.5 m)
Wheelbase 75″(1.9 m)
Ground clearance
Pothole protector raised 4″(10.1 cm)
Pothole protector lowered 1″(2.5 cm)
Maximum wheel load 2,480 lbs (1125 kg)
Maximum ground pressure 166 psi (11.7 kg/cm²)
Weight, GVW
Approximate 5,200 lbs (2359 kg)
Stowed width 46″(116.8 cm)
Stowed length 96″(243.8 cm)
Stowed height
Guardrails raised 88″(223.5 cm)
Guardrails lowered 61″(154.9 cm)
Platform
Dimensions
Main 45″x 94″(114.3 cm x 238.7 cm)
Extension 41″x 36″(104.1 cm x 91.4 cm)
Total length with extension 130″(330.2 cm)
Rated work load
Total 1,000 lb (453.5 kg)
Extension 250 lb (113.3 kg)
Maximum number of occupants
Outside 1 person
Inside 3 people
AC outlet 120 V, 15 amp
Function Speed
Platform raise 25 to 35 seconds
Platform lower 50 to 60 seconds
High drive
Platform lower than 7 to 8 feet (2.1 to 2.4 m)
0 to 2 mph (3.2 km/h)
Low drive
Platform higher than 7 to 8 feet (2.1 to 2.4 m)
0 to 0.5 mph (0.8 km/h)
Drive System
Standard Two wheel drive
Gradeability 25%
Maximum drive height 26′(10.9 m)
Drive/Lift Level Sensor Interlock
Side-to-side 2 degrees
Front-to-rear 4 degrees
Tires
Nonmarking solid rubber 16″x 5″(40.6 cm x 12.7 cm)
Electrical System
Voltage 24 V DC negative chassis ground
Source Four - 6 V 240 amp hour batteries
Fluid recommended distilled water
Charger 25 amp
Hydraulic System
Maximum pressure 3,100 psi (21,373.75 kPa)
Reservoir capacity 9 US gal (34 l)
System capacity 9.25 US gal (35 l)
Maximum operating temperature 160°F (71°C)
Hydraulic fluid recommended
Above 10°F (-13°C) Mobil DTE-13M (ISO VG32)
Below 10°F (-13°C) Mobil DTE-11M (ISO VG15)
Ambient Air Temperature Operating Range
Fahrenheit 0°F to 110°F
Celsius -18°C to 43°C

Chapter 2 – Specifications
S2646E/S3246E – 0410051 5
General Specifications S3246E
Aerial Platform
Working height 38′(11.58 m)
Maximum platform height 32′(9.75 m)
Turning radius
Inside 10″(25.4 cm)
Outside 101″(2.5 m)
Wheelbase 75″(1.9 m)
Ground clearance
Pothole protector raised 4″(10.1 cm)
Pothole protector lowered 1″(2.5 cm)
Maximum wheel load 2,928 lbs (1328 kg)
Maximum ground pressure 196 psi (13.8 kg/cm²)
Weight, GVW
Approximate 6,620 lbs (3003 kg)
Stowed width 46″(116.8 cm)
Stowed length 96″(243.8 cm)
Stowed height
Guardrails raised 94″(238.7 cm)
Guardrails lowered 67″(170.1 cm)
Platform
Dimensions
Main 45″x 94″(114.3 cm x 238.7 cm)
Extension 41″x 36″(104.1 cm x 91.4 cm)
Total length with extension 130″(330.2 cm)
Rated work load
Total 700 lb (317.5 kg)
Extension 250 lb (113.3 kg)
Maximum number of occupants
Outside 1 person
Inside 2 people
AC outlet 120 V, 15 amp
Function Speed
Platform raise 40 to 50 seconds
Platform lower 50 to 60 seconds
High drive
Platform lower than 7 to 8 feet (2.1 to 2.4 m)
0 to 2 mph (3.2 km/h)
Low drive
Platform higher than 7 to 8 feet (2.1 to 2.4 m)
0 to 0.5 mph (0.8 km/h)
Drive System
Standard Two wheel drive
Gradeability 25%
Maximum drive height 32′(9.75 m)
Drive/Lift Level Sensor Interlock
Side-to-side 2 degrees
Front-to-rear 4 degrees
Tires
Nonmarking solid rubber 16″x 5″(40.6 cm x 12.7 cm)
Electrical System
Voltage 24 V DC negative chassis ground
Source Four - 6 V 240 amp hour batteries
Fluid recommended distilled water
Charger 25 amp
Hydraulic System
Maximum pressure 3,100 psi (21,373.75 kPa)
Reservoir capacity 9 US gal (34 l)
System capacity 9.25 US gal (35 l)
Maximum operating temperature 160°F (71°C)
Hydraulic fluid recommended
Above 10°F (-13°C) Mobil DTE-13M (ISO VG32)
Below 10°F (-13°C) Mobil DTE-11M (ISO VG15)
Ambient Air Temperature Operating Range
Fahrenheit 0°F to 110°F
Celsius -18°C to 43°C

Chapter 2 – Specifications
6S2646E/S3246E – 0410051
