SnowEx Drop Pro 600 User manual

November 1, 2019
Lit. No. 78565, Rev. 02
Drop Pro™ 600 Drop Spreader
SD-600-1
Owner's Manual
CAUTION
Read this manual before installing or operating
the spreader.
TrynEx International, LLC, 531 Ajax Drive, Madison Heights, MI 48071-2429 • www.snowexproducts.com
This Owner's Manual is for SnowEx®Drop Pro 600 drop spreaders with serial numbers
beginning with 180101 and higher.

Lit. No. 78565, Rev. 02 3 November 1, 2019
TABLE OF CONTENTS
INTRODUCTION ....................................................... 5
Owner's Information Form .................................... 5
SAFETY ..................................................................... 6
SafetyDenitions.................................................. 6
Warning/Caution Labels ....................................... 6
Serial Number Label ............................................. 7
Safety Precautions................................................ 8
Fuses .................................................................... 8
Personal Safety..................................................... 9
Fire and Explosion ................................................ 9
Cell Phones........................................................... 9
Ventilation ............................................................. 9
Battery Safety ....................................................... 9
Noise..................................................................... 9
Vibration................................................................ 9
Spreader Weight ................................................... 9
Torque Chart ....................................................... 10
LOADING ................................................................. 11
Certication......................................................... 11
Approximate Material Weights............................ 11
MOUNTING THE SPREADER............................... 12
Model SD-600-1 ................................................ 12
OPERATING THE SPREADER ............................. 13
Driving and Spreading on Snow and Ice ............ 13
Powering the Control .......................................... 14
Starting and Stopping Spreader ......................... 14
Controlling Material Application .......................... 15
BLAST/Maximum Application....................... 15
Cab Control Modes............................................. 15
Standby Mode .............................................. 15
Ready Mode ................................................. 15
ON Mode ...................................................... 15
Error Mode ................................................... 15
Cab Control Codes ............................................. 16
Setup Codes................................................. 16
Information Codes........................................ 16
Error Codes .................................................. 16
Setup Procedures ............................................... 18
Calibrate Empty Hopper Setting................... 18
Clearing Empty Hopper Calibration Data ..... 18
Adjust LED Brightness Level........................ 18
Spreading Tips.................................................... 19
MAINTENANCE ......................................................20
Lubrication .......................................................... 20
After Each Use.................................................... 20
At the End of Each Season or After
Extended Storage............................................20
Storage ...............................................................20
Fuse Replacement.............................................. 20
HARNESS WIRING DIAGRAM ............................. 21
TROUBLESHOOTING GUIDE............................... 22

Lit. No. 78565, Rev. 02 4 November 1, 2019

Lit. No. 78565, Rev. 02 5 November 1, 2019
INTRODUCTION
This manual has been prepared to acquaint you with
the safety information, operation, and maintenance of
your new tailgate spreader. Please read this manual
carefully and follow all recommendations. This will
helpensureprotableandtrouble-freeoperationof
your tailgate spreader. Keep this manual accessible. It
is a handy reference in case minor service is required.
When service is necessary, bring your spreader to
your distributor. They know the spreader best and are
interested in your complete satisfaction.
NOTE: This spreader is designed to spread snow
and ice control materials only. Do not use it
for purposes other than those specied in this
manual.
Warranty Registration
Follow the directions on the SnowEx®Warranty
Registration and Customer Survey form included in
the spreader literature kit.
The registration form is also available online at
www.snowexproducts.com. Under "Support" select
"Warranty Registration."
OWNER'S INFORMATIONOWNER'S INFORMATION
Owner's Name:Owner's Name: ____________________________________________________________________________________________________________________________________________
Date Purchased:Date Purchased: __________________________________________________________________________________________________________________________________________
Distributor Name:Distributor Name: ____________________________________________________________________________________ Phone:Phone:__________________________________
Distributor Address:Distributor Address:______________________________________________________________________________________________________________________________________
Vehicle Model:Vehicle Model: __________________________________________________________________________________________ Year:Year: ____________________________________
Spreader Model:Spreader Model: __________________________________________________ Serial #:Serial #:____________________________________________________________________
Spreader Weight:Spreader Weight:__________________________________________lb/kglb/kg

Lit. No. 78565, Rev. 02 6 November 1, 2019
SAFETY DEFINITIONS
NOTE: Indicates a situation or action that can lead
to damage to your spreader and vehicle or other
property. Other useful information can also be
described.
SAFETY
WARNING/CAUTION LABELS

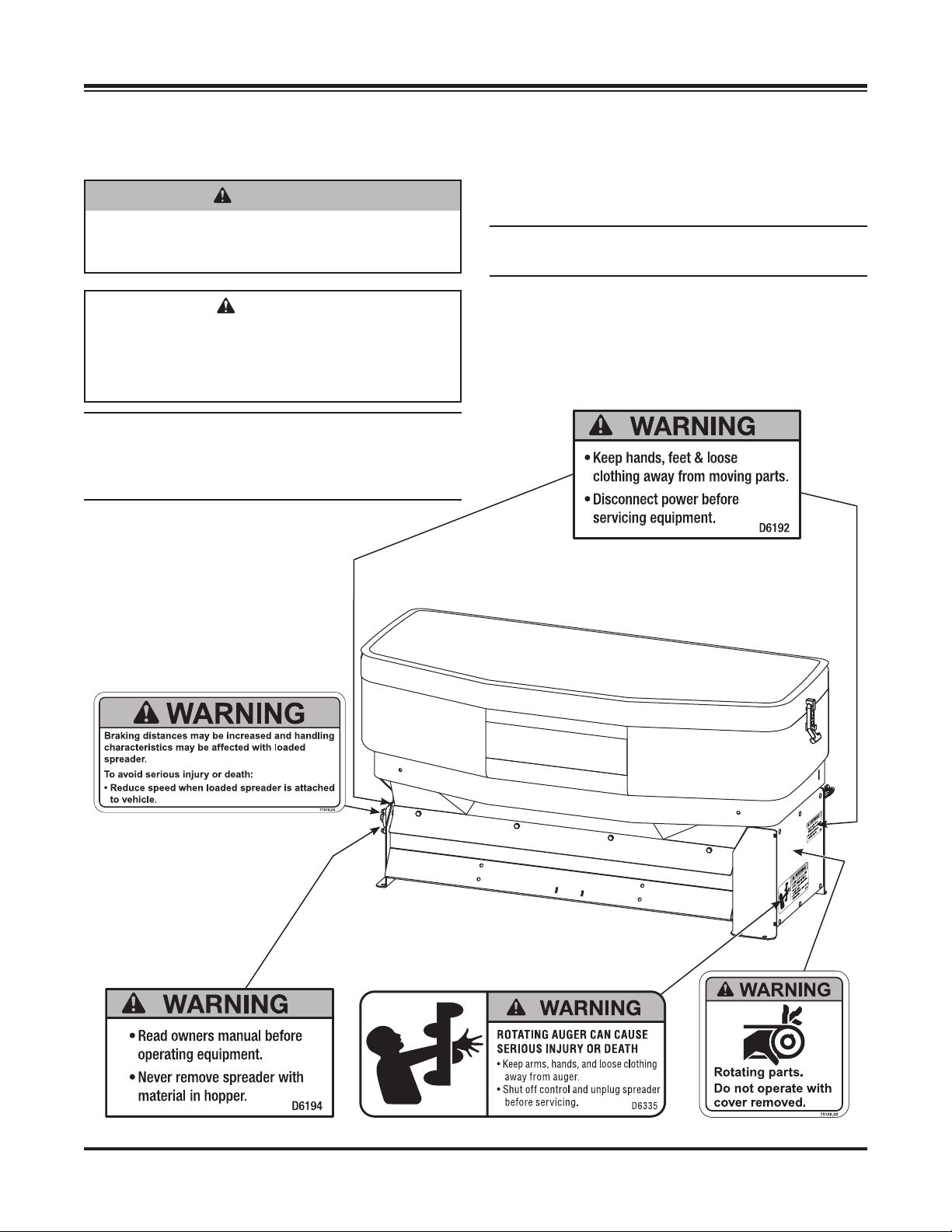

Please become familiar with the warning and caution
labels on the spreader.
NOTE: If labels are missing or cannot be read, see
your sales outlet.
CAUTION
Indicates a potentially hazardous situation
that, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.
WARNING
Indicates a potentially hazardous situation
that, if not avoided, could result in death or
serious personal injury.
(both sides)
(under cover)

Lit. No. 78565, Rev. 02 7 November 1, 2019
SAFETY

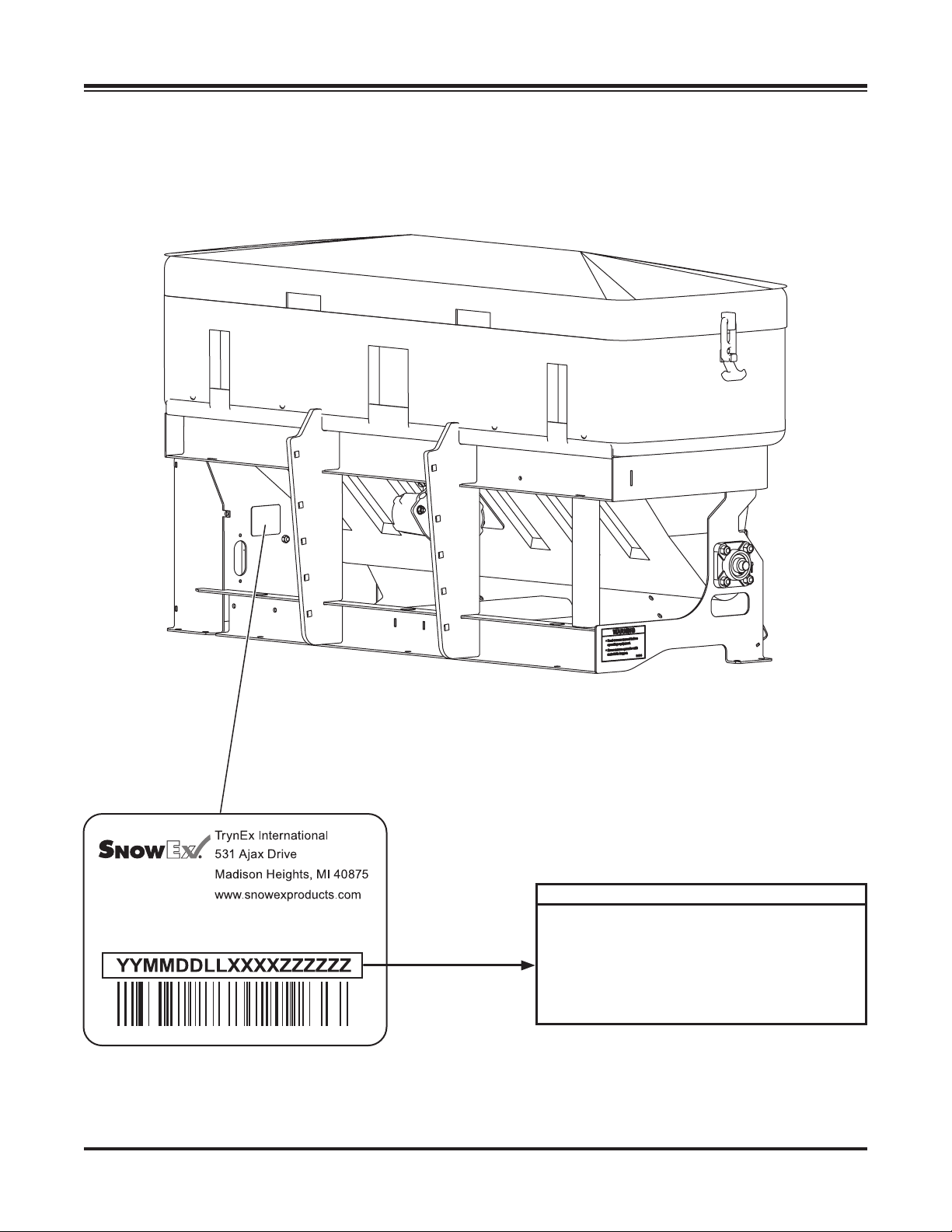

SERIAL NUMBER LABEL
Code Denition
YY 2-Digit Year
MM 2-Digit Month
DD 2-Digit Day
LL 2-Digit Location Code
XXXX 4-Digit Sequential Number
ZZZZZZ 5−7-DigitAssemblyPartNumber
6.0 CU FT DROP SPREADER

Lit. No. 78565, Rev. 02 8 November 1, 2019
SAFETY
SAFETY PRECAUTIONS
Improper installation and operation could cause
personal injury and/or equipment and property
damage. Read and understand labels and the
Owner's Manual before installing, operating, or making
adjustments.
WARNING
• Driver to keep bystanders minimum of
25 feet away from operating spreader.
• Before working with the spreader, secure all
loose-tting clothing and unrestrained hair.
• Before operating the spreader, verify that all
safety guards are in place.
• Before servicing the spreader, wait for
conveyor, auger, and spinner to stop.
• Do not climb into or ride on spreader.
WARNING
Overloading could result in an
accident or damage. Do not exceed
GVWR or GAWR ratings as found on
the driver-side door cornerpost of
the vehicle. See Loading section to determine
maximum volumes of spreading material.
WARNING
Do not install the control for this product in
the deployment path of an air bag. Refer to
vehicle manufacturer's manual for air bag
deployment area(s).
CAUTION
During the hopper spreader installation
we recommend the addition of an OSHA
compliant Backup Alarm. This alarm is
required for OSHA governed employers.
CAUTION
Disconnect electric and/or hydraulic power
and tag out if required before servicing or
performing maintenance.
CAUTION
DO NOT leave unused material in
hopper. Material can freeze or solidify,
causing unit to not work properly.
Empty and clean after each use.
NOTE: Lubricate grease ttings after each use.
Use a good quality multipurpose grease.
FUSES
The electrical system contains several
automotive-style fuses. If a problem should occur
and fuse replacement is necessary, the replacement
fuse must be of the same type and amperage rating
as the original. Installing a fuse with a higher rating
candamagethesystemandcouldstartare.Fuse
Replacement, including fuse ratings and locations, is
located in the Maintenance section of this Owner's
Manual.
CAUTION
If rear directional, CHMSL light, or brake
stoplights are obstructed by the spreader, the
lights shall be relocated, or auxiliary directional
or brake stoplights shall be installed.
CAUTION
• Do not operate a spreader in need of
maintenance.
• Before operating the spreader, reassemble
any parts or hardware removed for cleaning
or adjusting.
• Before operating the spreader, remove
materials such as cleaning rags, brushes,
and hand tools from the spreader.
• Before operating the spreader, read the
engine owner's manual, if so equipped.
• While operating the spreader, use auxiliary
warning lights, except when prohibited by law.
• Tighten all fasteners according to the
Torque Chart. Refer to Torque Chart for the
recommended torque values.

Lit. No. 78565, Rev. 02 9 November 1, 2019
SAFETY
Tailgate Spreader Description Wt (lb) Wt (kg)
Drop Pro™ 600 – Model SD-600-1 175 80
PERSONAL SAFETY
• Remove ignition key and put the vehicle in PARK
or in gear to prevent others from starting the
vehicle during installation or service.
• Wearonlysnug-ttingclothingwhileworkingon
your vehicle or spreader.
• Do not wear jewelry or a necktie, and secure long hair.
• Wear safety goggles to protect your eyes from
battery acid, gasoline, dirt, and dust.
• Avoid touching hot surfaces such as the engine,
radiator, hoses, and exhaust pipes.
• AlwayshaveareextinguisherratedBChandy,
forammableliquidsandelectricalres.
FIRE AND EXPLOSION
Be careful when using gasoline. Do not use gasoline
to clean parts. Store only in approved containers away
fromsourcesofheatorame.
CELL PHONES
Adriver'srstresponsibilityisthesafeoperationof
the vehicle. The most important thing you can do
to prevent a crash is to avoid distractions and pay
attention to the road. Wait until it is safe to operate
Mobile Communication Equipment such as cell
phones, text messaging devices, pagers, or two-way
radios.
WARNING
Gasoline is highly ammable and gasoline
vapor is explosive. Never smoke while
working on vehicle. Keep all open ames
away from gasoline tank and lines. Wipe up
any spilled gasoline immediately.
VENTILATION
BATTERY SAFETY
NOISE
Airborne noise emission during use is below 70 dB(A)
for the spreader operator.
VIBRATION
Operating spreader vibration does not exceed 2.5 m/s2
to the hand-arm or 0.5 m/s2to the whole body.
SPREADER WEIGHT
CAUTION
Batteries normally produce explosive gases
which can cause personal injury. Therefore,
do not allow ames, sparks, or lit tobacco
to come near the battery. When charging or
working near a battery, always cover your
face and protect your eyes, and also provide
ventilation.
• Batteries contain sulfuric acid, which burns
skin, eyes, and clothing.
• Disconnect the battery before removing or
replacing any electrical components.
WARNING
Vehicle exhaust contains lethal fumes.
Breathing these fumes, even in low
concentrations, can cause death. Never
operate a vehicle in an enclosed area without
venting exhaust to the outside.

Lit. No. 78565, Rev. 02 10 November 1, 2019
TORQUE CHART
1/4-20 10
91
54
1/4-28 12
11
71
5/16-1
81
50 212
5/16-2
41
70 240
3/8-16 269 376
3/8-24 29
74
20
7/16-1442
96
06
7/16-20
9/16-12
9/16-18
5/8-11
5/8-18
3/4-10
3/4-16
7/8-9
7/8-14 47
46
69
64
49
091-8
1-12 70
49
95
1/2-13
1/2-20
11.9
13.7
24.6
27.3
43.6
26.9
53.3
93
148
49.4
69.8
77.9
106.4
120.0
8.4
9.7
17.4
19.2
30.8
35.0
49.4
55.2
75.3
85.0
M6 x 1.00
M12 x 1.75
M8 x 1.25
M14 x 2.00
M10 x 1.50
M27 x 3.00
M22 x 2.50
M30 x 3.50
M24 x 3.00
M20 x 2.5011.1
19.5
38.5
67
107
7.7
613
778
1139
1545
450
428
562
796
1117
M33 x 3.50
M36 x 4.00
2101
2701
1468
1952
325
M16 x 2.00 231167
M18 x 2.50 318222
Recommended Fastener Torque Chart
Size Size
Torque (ft-lb)
Grade
5
Grade
8
Metric Fasteners Class 8.8 and 10.9
These torque values apply to fasteners
except those noted in the instructions.
Torque (ft-lb)
Grade
5
Grade
8
Size Size
Torque (ft-lb)
Class
8.8
Class
10.9
Torque (ft-lb)
Class
8.8
Class
10.9
Inch Fasteners Grade 5 and Grade 8
CAUTION
Read instructions before assembling.
Fasteners should be nger tight until
instructed to tighten according to the Torque
Chart. Use standard methods and practices
when attaching spreader, including proper
personal protective safety equipment.
SAFETY

Lit. No. 78565, Rev. 02 11 November 1, 2019
LOADING
APPROXIMATE MATERIAL WEIGHTS
NOTE: If spreader and ice control material loading
is in doubt, weigh vehicle for compliance with
vehicle ratings.
This manual covers vehicles which have been
recommended for carrying the spreader. Please see
your local dealer for proper vehicle applications.
CERTIFICATION
WARNING
Overloading could result in an accident or
damage. Do not exceed GVWR or GAWR
as found on the driver-side cornerpost of
vehicle.
WARNING
New untitled vehicle installation of a spreader
requires National Highway Tra󰀩c Safety
Administration altered vehicle certication
labeling. Installer to verify that struck load of
snow or ice control material does not exceed
GVWR or GAWR rating label and complies
with FMVSS.
CAUTION
Read and adhere to manufacturer's
ice-control material package
labeling including Safety Data
Sheet requirements.
WARNING
Do not overload vehicle. Use chart below
to calculate weight of material. Weights of
material are an average for dry materials.
CAUTION
Never use wet materials or materials with
foreign debris with any of these spreaders.
These units are designed to handle dry, clean,
free-owing material.
MATERIAL WEIGHTS
Density
Material (lb/ft3)(lb/yd3)(kg/m3)
Salt 80 2160 1282
Sand 100 2700 1602
Material densities are approximate and are based on dry,
loose material. It is the responsibility of the operator to
know the weight of the material to be spread and the vehicle
carrying capacity.

Lit. No. 78565, Rev. 02 12 November 1, 2019
The spreader shall be installed according to
instructions supplied. Your local outlet is trained to
provide this service and service your spreader with
factory original parts.
MOUNTING THE SPREADER
CAUTION
During removal or mounting, securely grip
spreader to avoid dropping.
MODEL SD-600-1
Mounts are sold separately for the model SD-600-1
spreader. Refer to the instructions packed with the
selected mount.

Lit. No. 78565, Rev. 02 13 November 1, 2019
DRIVING AND SPREADING ON SNOW
AND ICE
Follow your vehicle owner's manual instructions for
driving in snow and ice conditions. Remember, when
you drive on snow or ice, your wheels will not get good
traction. You cannot accelerate as quickly, turning
ismoredi󰀩cult,andyouwillneedlongerbraking
distance.Wetandhardpackedsnoworiceo󰀨erthe
worst tire traction. It is very easy to lose control. You
willhavedi󰀩cultyaccelerating.Ifyoudogetmoving,
youmayhavepoorsteeringanddi󰀩cultbraking,
which can cause you to slide out of control.
WARNING
Drinking and then driving or spreading is
very dangerous. Your reexes, perceptions,
attentiveness, and judgment can be a󰀨ected
by even a small amount of alcohol. You can
have a serious or even fatal collision if you
drive after drinking. Please do not drink then
drive or spread ice-control materials.
Here are some tips for driving in these conditions:
• Drive defensively.
• Do not drink, then drive or spread ice-control
materials.
• Spread or drive only when you have good visibility
for operating a vehicle.
• If you cannot see well due to snow or icy
conditions, you will need to slow down and keep
more space between you and other vehicles.
• Slow down, especially on higher-speed roads.
Your headlamps can light up only so much road
ahead.
• Ifyouaretired,pullo󰀨inasafeplaceandrest.
• The spreader's size and location reduce driver
visibility to the rear of the vehicle. We recommend
an OSHA compliant backup alarm for all governed
employers.
• Keep your windshield and all glass on your vehicle
clean to see around you.
• Dress properly for the weather. Wear layers of
clothing;asyougetwarm,youcantakeo󰀨layers.
OPERATING THE SPREADER

Lit. No. 78565, Rev. 02 14 November 1, 2019
If any button is pressed on the control, it will wake and
check again for spreader connection. If no spreader is
detected, it will act as described above. If a spreader
is detected, it will transition to Ready Mode.
STARTING AND STOPPING SPREADER
To start the spreader, press the ON/OFF button. The
control backlights are illuminated when the vehicle
ignition is ON and the spreader is connected. When
the spreader is ON, the ON/OFF button and inner arc
around the control knob will also illuminate.
To stop the spreader, press the ON/OFF button
again.
The ON/OFF button also operates as an emergency
stop when required.
NOTE: The vehicle ignition must be ON to start
the spreader.
NOTE: If vehicle ignition is turned OFF while
spreader is running, the motors will stop.

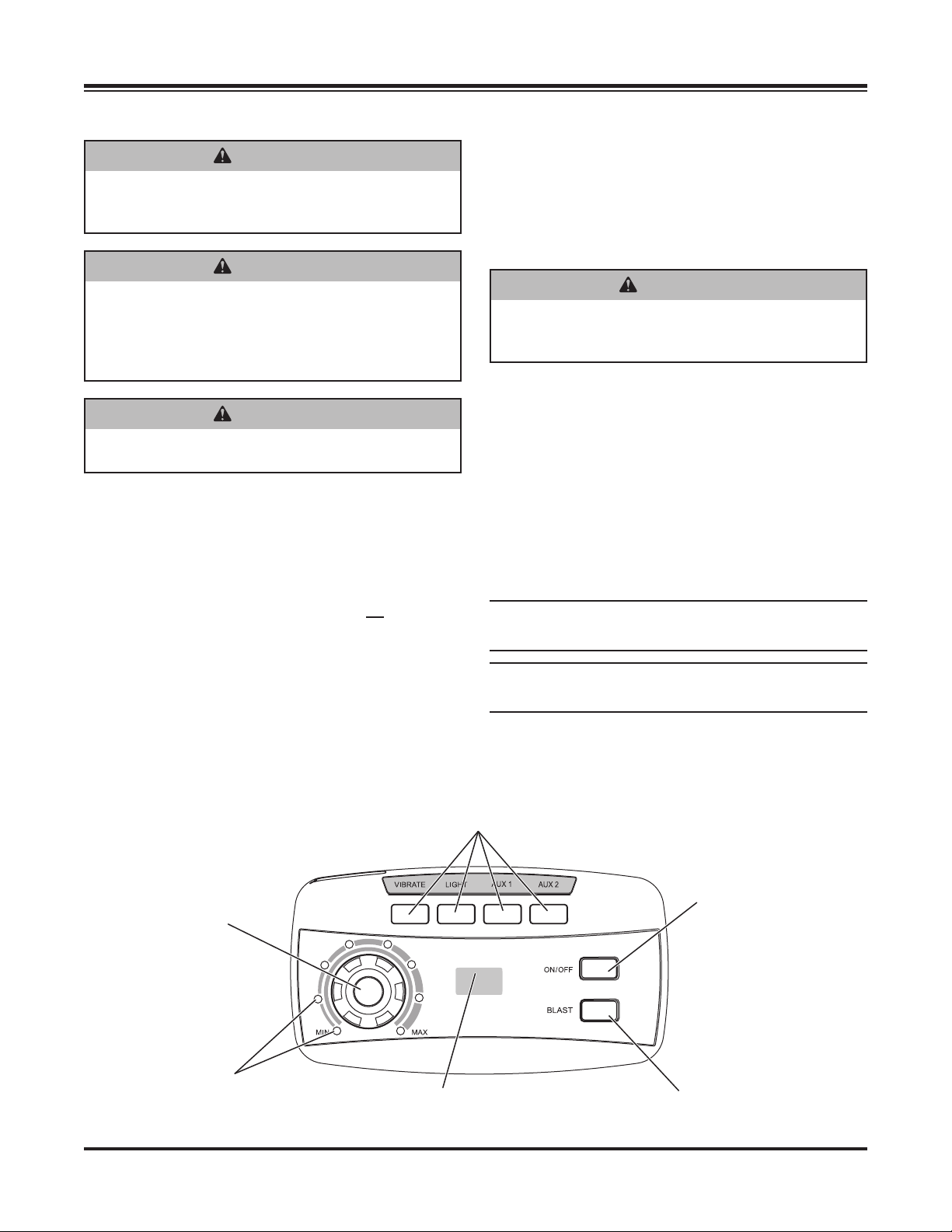

Control Knob
Indicator Lights
(8 per Knob) Status/Error Code
Display (red)
Accessory
Control Buttons
BLAST Button
(maximum application)
ON/OFF Button
& Emergency Stop
POWERING THE CONTROL
Power is not applied to the control until the vehicle
ignition is turned to ACC or ON. Once the control
has power it performs a light check and displays the
software version on the status display. The control
then checks for a connected spreader. If no spreader
is detected, the control does the following:
• nC (no connection) appears on the red status
displayforveseconds;
• A single beep will sound;
• Control enters standby mode with no lights
illuminated.
OPERATING THE SPREADER – CAB CONTROL
WARNING
Never operate equipment when under the
inuence of alcohol, drugs, or medications that
might alter your judgment and/or reaction time.
WARNING
Never allow children to operate or climb on
equipment.
WARNING
Never exceed 45 mph (72 km/h) when loaded
spreader is attached to vehicle. Braking
distances may be increased and handling
characteristics may be impaired at speeds
above 45 mph (72 km/h).
WARNING
Before starting the spreader, the driver shall
verify that all bystanders are a minimum of
25 feet away from operating spreader.

Lit. No. 78565, Rev. 02 15 November 1, 2019
Ready Mode
Vehicle ignition is set to ACC or ON; cab control is OFF.
Control has power. Spreader is detected.
The control knob can be set to start-up conditions,
but the auger will not operate until the cab control is
turned ON.
(Accessory lights and vibrator are operational.) The
BLAST function is not operational.
ON Mode
Vehicle ignition is set to ACC or ON; cab control is ON.
Auger motor will start. All cab control functions
are operational. (Accessory lights and vibrator are
operational.)
During normal spreader operation no control codes are
displayed. Information or setup codes will appear when
relevant. These codes will not stop spreader operation.
Error Mode
When an error condition occurs, spreader operation
willshutdown.Atwo-charactererrorcodewillash
on the display and a beep will sound. If there are
multipleerrorcodes,thecodeswillashinarepeating
sequence.
Refer to the Error Codes portion of the
following Cab Control Codes table. Also see the
Troubleshooting Guide section of this manual.
Once the error condition has been resolved, press the
ON/OFF button to clear the error code(s). Press the
ON/OFF button again to resume spreader operation.
The error code will reappear if the error condition
hasnotbeenrectied.Iftheerrorconditionpersists,
contact your authorized dealer.
Multiple resets within a short time frame will cause
the hopper module to time out if components are
overheating. The control will display an EF error code.
Accessory work lights and AUX 1 can be used when
anerrorcodeisine󰀨ect,andwillremainintheir
current state. The vibrator and AUX 2 will not function.
OPERATING THE SPREADER – CAB CONTROL
CONTROLLINGMATERIALAPPLICATION
The material application settings can be adjusted
while spreader is ON or OFF. Settings are shown by
the indicator lights around the control knob. When the
spreader is OFF, a single LED will light to show the
current setting. When the spreader is ON, the number
of blue LEDs illuminated will increase/decrease as the
knob is turned clockwise/counterclockwise.
The control knob adjusts the auger speed. Turning the
knob clockwise will increase the amount of material
applied.
Turning the control knob counterclockwise will
decrease the amount of material applied.
BLAST/Maximum Application
1. Press and hold the BLAST button when maximum
application is needed temporarily. The BLAST
button will illuminate while depressed.
2. Release the button when maximum application
settings are no longer needed.
NOTE: Auger speed reverts to the previous
settings once the BLAST button is released.
CAB CONTROL MODES
Standby Mode
Vehicle ignition is set to ACC or ON; cab control is
OFF. Control has power. No spreader was detected.
No lights are illuminated on the control. Press any
button to wake.

Lit. No. 78565, Rev. 02 16 November 1, 2019
OPERATING THE SPREADER – CAB CONTROL
Setup Codes
Code Denition Procedure
Cb Calibrate the Empty Hopper setting. With control in ON mode, press and hold the left control knob until the
Cb code displays. Calibration cycle is automatic.*
Cc Clear calibration data for Empty Hopper
setting; clear EH code.
Press the right control knob to clear all calibration data during the
calibration cycle.
LS Set LED brightness level. With control in Ready mode, press and hold left control knob to get
LS code. Release pressure and turn left control knob to desired
brightnesssetting.WaitforconrmingSL code to display.*
SL ConrmsthatLEDbrightnesslevelhas
been reset.
* For full instructions, see the "Setup Procedures" section.
Information Codes
Code Denition Response
dU Not applicable to tailgate spreaders.
Possibly indicates a harness or
module issue.
Contact authorized dealer.
EH Empty hopper (beep will sound). Check hopper for material.
Recalibrate Empty Hopper setting as described above for Cb code.
Lb Low battery. Hopper module is sensing
<10V. (Lb becomes an error code
when module senses <6V.)
Refer to the Lb row under "Error Codes" (next page).
CAB CONTROL CODES
Table continues on next page.
Error Codes – Spreader Operation Stopped
Code Denition Possible Cause Suggested Solution
bb Bad button. Button is stuck.
Button was pressed while
vehicle ignition was entering
ACC or START mode.
Possible harness issue.
Inspect control. Free up button.
Do not press any spreader cab control buttons
while the vehicle ignition is being engaged.
Check connections and integrity of vehicle
harness.
bH Bad hopper. Possible module or control
mismatch.
Replace control or module. Use only genuine
service parts. Contact authorized dealer.
CE No communication with
spreader module.
Loose connection.
Module lost power.
Conrmthatspreaderandcontrolharnessesare
connected to the vehicle harness. Check power
to spreader module, all connections, fuses, and
power studs. Check that port B is plugged into
the module.
CF Control malfunction. Control is overheating.
May be a combination of faults.
Inspect connections at spreader module, hopper
drive motor, and auger drive motor.

Lit. No. 78565, Rev. 02 17 November 1, 2019
OPERATING THE SPREADER – CAB CONTROL
CAB CONTROL CODES continued
Error Codes – Spreader Operation Stopped – continued
Code Denition Possible Cause Suggested Solution
CP Not applicable to tailgate
spreaders. See suggested
solution.
Not applicable to tailgate
spreaders.
Reset the control by pressing the ON/OFF
button. If CP code continues to display, contact
authorized dealer.
Ct Control is hot. Cab temperature is too high.
Control overheated.
TurnspreaderOFFandallowcontroltocoolo󰀨.
EF Excessive drive faults. Too many HO and/or SO
error codes; hopper module
overheating.
Control times out for 60 seconds.
Ensure that auger and/or spinner are not jammed.
Lb Low battery. Hopper
module is sensing <6V.
Bad connection or low battery.
Snowplow or other vehicle
power use may be driving
down voltage.
Voltage is measured at the hopper module, so
Lb code may indicate cable voltage loss. Check
battery, alternator, and connections.
nC No connection. Spreader not connected to
vehicle harness.
Connect vehicle and spreader harness.
Check vehicle harness fuse.
Inspect spreader and vehicle harnesses.
Check module.
OH Overheating. Spreader module is too hot.
Spreader module malfunction.
Accessories wiring/function
problem.
Drive motor overload.
Allowacool-o󰀨period–60secondsorlonger.
Check for loose harness connections.
Check accessory connections. Check integrity of
accessory wiring and harness.
Clear jammed material.
Contact authorized dealer.
OH . Overheating module –
microprocessor.
rS Reset of spreader module. Power loss to module detected
on startup.
Reset the control by pressing the ON/OFF button.
Check vehicle harness and battery connection.
SO Auger drive overload –
software trip.
Material jammed in auger area. Inspect auger and auger drive components for
alignment and condition. Check for damage to
bearings, shafts, and sprockets.
Adjust and replace parts as required.
SO . Auger drive overload –
hardware trip.
SP Auger power issue.
No motor present.
Auger drive motor is not
connected.
Possible motor defect.
Check connections to the motor (SPIN and GND
posts on the module).
Replace the motor.

Lit. No. 78565, Rev. 02 18 November 1, 2019
SETUP PROCEDURES
Calibrate the Empty Hopper Setting
(Cb and EH Codes)
Calibrating the empty hopper setting enables the cab
control to alert the operator when the hopper is empty.
Recalibrate the empty hopper setting at the start of
each ice-control season.
1. Ensure that the hopper is empty before beginning
the calibration.
2. Turn the vehicle ignition to ACC or ON. Press
the ON/OFF button on the cab control to turn the
control ON.
3. Press and hold the control knob for approximately
10 seconds until the Cb code displays.
4. The calibration cycle will begin. The blue LEDs
around the knob will illuminate in succession until
all eight are lit.
5. When the automatic calibration cycle is complete,
the control will automatically revert to the previous
material application settings.
If the control is turned OFF or loses power during
the calibration cycle, the calibration data will be lost.
Make sure the control is ON and restart the calibration
process at Step 3.
Once the empty hopper setting has been calibrated,
the EHcodewillashonthedisplayandabeepwill
sound whenever the hopper is empty. The EH code is
informational only and will not stop spreader operation.
Clearing Empty Hopper Calibration Data (Cc Code)
The empty hopper calibration may be cleared, if
desired. The control will no longer display the EH
status code when the hopper is empty.
Start the calibration cycle as described above. At
Step 4, press the control knob during the calibration
cycle to clear all calibration data. The Cc (Clear
Calibration) code will display and the control will exit
Cc mode automatically.
Adjust LED Brightness Level
(SL and LS Codes)
The brightness setting of the cab control lights can be
adjusted from 1 to 16. The factory default setting is 8.
1. Turn the vehicle ignition to ACC or ON. If
necessary, press the cab control ON/OFF button
to turn the control OFF.
2. Press and hold the control knob for approximately
3 seconds until the LS code is displayed.
3. Release the knob and turn it clockwise or
counterclockwise to increase/decrease the
brightness level. The light level number will show
in the status display.
4. After selecting the desired brightness level, wait
a few seconds for the SLconrmationcodeto
display.
NOTE: A brightness level setting of 12 or higher is
recommended for daylight conditions.
OPERATING THE SPREADER – CAB CONTROL

Lit. No. 78565, Rev. 02 19 November 1, 2019
SPREADING TIPS
• Spread ice melters with the storm to prevent
unmanageable levels of ice.
• Never exceed 10 mph (16 km/h) when spreading.
• For a heavier pass, drive slower.
• Never operate spreader near pedestrians.
• Calculate spread pattern when near vegetation.
OPERATING THE SPREADER

Lit. No. 78565, Rev. 02 20 November 1, 2019
MAINTENANCE
LUBRICATION
To keep your spreader running smoothly, observe the
following recommendations:
• Lubricate bearings after every 20 hours of use.
• Apply a small amount of light oil to latches as
needed.
AFTER EACH USE
• Washoutthehopperandrinseo󰀨allexternal
surfaces.
• Apply dielectric grease on all electrical
connections to prevent corrosion.
AT THE END OF EACH SEASON
OR AFTER EXTENDED STORAGE
• Washoutthehopperandrinseo󰀨allexternal
surfaces.
• Apply dielectric grease on all electrical
connections to prevent corrosion.
• Lubricateallgreasettingswithgoodquality
multipurpose grease.
• Oil or paint all bare metal surfaces.
• If motor cover is removed for any reason, use
siliconesealanttoensureweatherproongof
enclosure.
STORAGE
Unplug the cab control from the control harness at the
end of the season, or when the spreader is removed
from the vehicle. Store the spreader and cab control in
a clean, dry location, away from direct sunlight.
FUSE REPLACEMENT
See the Harness Wiring Diagram on the following
page for fuse ratings and locations.
If a problem should occur and fuse replacement is
necessary, the replacement fuse must be of the same
type and amperage rating as the original. Installing a
fuse with a higher rating can damage the system and
couldstartare.
WARNING
Never remove the spreader with material in
the hopper.
CAUTION
• When replacing parts use only original
manufacturer's parts. Failure to do so will
void warranty.
• The control is a solid-state electronic unit
and is not serviceable. Any attempt to
service will void warranty.
• There are no serviceable parts in the
motor/transmission assembly. Any attempt
to service will void warranty.
• When pressure washing motor enclosure
area, keep spray at least 36" away from
motor enclosures.
CAUTION
Disconnect electric power at spreader
electrical wiring harness connection and tag
out if required before servicing or performing
maintenance.
CAUTION
DO NOT leave unused material in
hopper. Material can freeze or solidify,
causing unit to not work properly.
Empty and clean after each use.
