SNOWJOE POWERJOE 24V-PS1-RM User manual

A Division of Snow Joe®, LLC Model 24V-PS1-RM Form No. SJ-24V-PS1-RM-880E-M-V1
OPERATOR’S MANUAL
© 2021 by Snow Joe®, LLC
All rights reserved. Original instructions. SAVE THESE INSTRUCTIONS
1
CORDLESS PAINT SPRAYER
24-VOLT MAX* | 4.0 Ah

A Division of Snow Joe®, LLC Model 24V-PS1-RM Form No. SJ-24V-PS1-RM-880E-M-V1
OPERATOR’S MANUAL
© 2021 by Snow Joe®, LLC
All rights reserved. Original instructions. SAVE THESE INSTRUCTIONS
2
CORDLESS PAINT SPRAYER
24-VOLT MAX* | 4.0 Ah
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death. Save all warnings and
instructions for future reference.
General Safety
mWARNING! When using the paint sprayer basic safety
precautions should always be followed to reduce the risk of
re, electric shock, and personal injury. These include:
Work Area Safety
1. Keep work area clean and well-lit – Cluttered, dark
areas invite accidents.
2. Keep children, bystanders, and pets away – All
spectators, including pets, should be kept a safe distance
away from the work area.
3. Do not operate power tools in explosive atmospheres
– Such as in the presence of ammable liquids, gases, or
dust. Power tools create sparks which may ignite the dust
or fumes.
Personal Safety
1. Stay alert – Watch what you are doing. Use common
sense. Do not operate the paint sprayer when you are
tired, or under the inuence of alcohol or drugs.
2. Dress properly – Do not wear loose clothing or jewelry.
They can get caught in moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts.
3. Avoid unintentional starting – Ensure the On/O switch
is in the OFF position before inserting the battery, picking
up or carrying the tool. Do not carry the tool with your
nger on the trigger.
4. Do not overreach – Keep proper footing and balance at
all times. Proper footing and balance enable better control
of the cordless paint sprayer in unexpected situations.
5. Use personal protective equipment – Always wear eye
protection. Protective equipment such as dust mask, non-
skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
6. Remove accessories or attachments before turning
paint sprayer on.
7. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used – Use of dust collection
can reduce dust-related hazards.
Tool Use and Care
1. Do not force the tool – It will perform better with less
likelihood of personal or mechanical injury if it is used at
the rate for which it was designed.
2. Do not use the paint sprayer if switch does not turn on
or o – Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
3. Disconnect the battery pack from the paint
sprayer before making any adjustments, changing
accessories, or storing the paint sprayer – Such
preventive safety measures reduce risk of starting the
power tool accidentally.
4. Store idle paint sprayer out of reach of children or
other untrained persons – paint sprayers are dangerous
in the hands of untrained users.
5. Maintain the cordless paint sprayer – Check for
misalignment or binding of moving parts, breakage
of parts, and any other condition that may aect the
sprayer's operation. If damaged, have the paint sprayer
serviced before using. Many accidents are caused by
poorly maintained tools.
6. Use the paint sprayer, accessories etc. in accordance
with these instructions, taking into account the
working conditions and the work to be performed
– Use of the paint sprayer for operations dierent from
those intended could result in a hazardous situation.
Battery Tool Use and Care
1. Recharge only with the charger specied by the
manufacturer – A charger that is suitable for one type
of battery pack may create a risk of re when used with
another battery pack.
2. Use this cordless paint sprayer only with Snow Joe®+
Sun Joe®iON+ 24V series lithium-iON batteries – Use
of other battery packs may create a risk of injury or re.

3
3. Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, ush with water. If liquid contacts eyes,
additionally seek medical help – Liquid ejected from the
battery may cause irritation or burns.
Service
1. If your power tool requires service, contact an
authorized Snow Joe®+ Sun Joe®dealer or call the
Snow Joe®+ Sun Joe®customer service center at
1-866-SNOWJOE (1-866-766-9563). Only identical
replacement parts should be utilized for repairs. This will
ensure that the safety of the power tool is maintained.
2. If the battery charger cable is damaged, it must be
immediately replaced to avoid a hazard. Contact
the Snow Joe®+ Sun Joe®customer service center at
1-866-SNOWJOE (1-866-766-9563) for assistance.
3. Accessories: The use of accessories or attachment
other than those recommended in this manual might
present a hazard.
4. When servicing, only use the identical replacement parts.
Safety Rules for Cordless
Paint Sprayer
mCAUTION! DANGER OF INJURY! Never point the
spray gun to yourself or other person or pets.
1. Only coating material such as paint, enamels, varnishes,
etc, with a ash point of 73.5ºF (23ºC) and above can be
sprayed without any additional warming.
2. This device may not be suitable for working in locations
which are covered by the explosion protection regulations.
3. When spraying, make sure there's no source of ignition,
like open re, cigarrettes, cigars, pipes, sparking, glowing
wires, hot surfaces, etc. in the area.
4. Wear breathing protection when spraying.
5. Inside and outside care must be taken to make sure that
no solvent vapors can be sucked into the device.
6. When working outdoors, consider the eect of wind,
which will aect the direction of the spray.
7. When working indoors, make sure there will be
sucient ventilation.
8. Do not spray at the device.
9. Do not let children play with this device. Keep it out of
reach of children.
10. Do not use the device to spray ammable liquids.
11. Do not clean the device with ammable solvents.
12. Take precautionary measures against potential hazards
from the liquid that need to be sprayed. Follow the
instructions given by the liquid manufacturer.
13. Do not spray any liquid with unknown potential hazard.
14. Forbidden to spray to the hatch of the motor etc.
Battery + Charger
Safety Instructions
We pay a great deal of attention to the design of every battery
pack to ensure that we supply you with batteries that are safe,
durable and have a high energy density. The battery cells have
a wide range of safety devices. Each individual cell is initially
formatted and its electrical characteristic curves are recorded.
This data is then used exclusively to be able to assemble the
best possible battery packs.
Despite all the safety precautions, caution must always be
exercised when handling batteries. The following points must
be obeyed at all times to ensure safe use. Safe use can only
be guaranteed if undamaged cells are used. Incorrect handling
of the battery pack can cause cell damage.
IMPORTANT! Analyses conrm that incorrect use and poor
care of high-performance batteries are the main factors
responsible for personal and/or product damage.
mWARNING! Use only approved replacement batteries;
other batteries may damage the cordless paint sprayer and
cause it to malfunction, which can lead to personal injury.
mWARNING! Do not use a battery pack or appliance that
is damaged or modied. Damaged or modied batteries may
exhibit unpredictable behavior resulting in re, explosion or
risk of injury.
Do not modify or attempt to repair the appliance or the battery
pack except as indicated in the instructions for use and care.
Have your battery pack serviced by a qualied repair person
using only identical replacement parts. This will ensure that the
safety of the battery pack is maintained.
mCAUTION! To reduce the risk of injury, charge the
iON+ 24V lithium-ion battery pack only in its designated
iON+ 24V lithium-ion charger. Other types of chargers present
risk of re, personal injury and damage. Do not wire a battery
pack to a power supply plug or car cigarette lighter. Such
misuse will permanently disable or damage the battery pack.
• Avoid dangerous environments – Do not charge the
battery pack in rain, snow or in damp or wet locations.
Do not use the battery pack or charger in the presence of
explosive atmospheres (gaseous fumes, dust or ammable
materials) because sparks may be generated when inserting
or removing the battery pack, which could lead to a re.
• Charge in a well-ventilated area – Do not block the
charger vents. Keep them clear to allow for proper
ventilation. Do not allow smoking or open ames near a
charging battery pack. Vented gases may explode.
NOTE: The safe temperature range for the battery is
41°F – 105ºF (5°C – 40.5°C). Do not charge the battery
outside in freezing weather; charge it at room temperature.
• Maintain charger cord – When unplugging the charger, pull
the plug, not the cord, from the receptacle to reduce the
risk of damage to the electrical plug and cord. Never carry

4
the charger by its cord or yank it by the cord to disconnect
it from the receptacle. Keep the cord away from heat, oil
and sharp edges. Make sure the cord will not be stepped
on, tripped over or subjected to damage or stress when the
charger is in use. Do not use the charger with a damaged
cord or plug. Replace a damaged charger immediately.
• Do not use an extension cord unless it is absolutely
necessary – Using the wrong, damaged or improperly
wired extension cord poses a risk of re and electric shock.
If an extension cord must be used, plug the charger into a
properly wired 16 gauge or larger extension cord with the
female plug matching the male plug on the charger. Make
sure that the extension cord is in good electrical condition.
• Charger 24VCHRG-AC is rated for 100 – 240 volt AC
only – The charger must be plugged into an
appropriate receptacle.
• Use only recommended attachments – Use of an
attachment not recommended or sold by the battery
charger or battery pack manufacturer may result in risk of
re, electric shock or personal injury.
• Unplug charger when not in use – Make sure to remove
battery packs from unplugged chargers.
mWARNING! To reduce the risk of electric shock,
always unplug the charger before performing any cleaning or
maintenance. Do not allow water to ow into the charger.
Use a Ground Fault Circuit Interrupter (GFCI) to reduce
shock hazards.
• Do not burn or incinerate battery packs – Battery
packs may explode, causing personal injury or damage.
Toxic fumes and materials are created when battery packs
are burned.
• Do not crush, drop or damage battery packs – Do not
use the battery pack or charger if they have sustained a
sharp blow, been dropped, run over or have been damaged
in any way (i.e. pierced with a nail, hit with a hammer,
stepped on, etc.).
• Do not disassemble – Incorrect reassembly may pose
a serious risk of electric shock, re or exposure to toxic
battery chemicals. If the battery or charger are damaged,
contact an authorized Snow Joe®+ Sun Joe®dealer or
call the Snow Joe®+ Sun Joe®customer service center at
1-866-SNOWJOE (1-866-766-9563) for assistance.
• Battery chemicals cause serious burns – Never let a
damaged battery pack contact the skin, eyes or mouth.
If a damaged battery pack leaks battery chemicals, use
rubber or neoprene gloves to safely dispose of it. If skin
is exposed to battery uids, wash the aected area with
soap and water and rinse with vinegar. If eyes are exposed
to battery chemicals, immediately ush with water for 20
minutes and seek medical attention. Remove and dispose
of contaminated clothing.
• Do not short circuit – A battery pack will short circuit if
a metal object makes a connection between the positive
and negative contacts on the battery pack. Do not place a
battery pack near anything that may cause a short circuit,
such as paper clips, coins, keys, screws, nails and other
metallic objects. A short-circuited battery pack poses a risk
of re and severe personal injury.
• Store your battery pack and charger in a cool, dry
place – Do not store the battery pack or charger where
temperatures may exceed 105ºF (40.5ºC), such as in
direct sunlight or inside a vehicle or metal building during
the summer.
Information about the battery
1. The battery pack supplied with your cordless paint
sprayer is only partially charged. The battery pack has to
be charged completely before you use the tool for the
rst time.
2. For optimum battery performance, avoid low discharge
cycles by charging the battery pack frequently.
3. Store the battery pack in a cool place, ideally at 77°F
(25°C) and charged to at least 40%.
4. Lithium-ion batteries are subject to a natural aging
process. The battery pack must be replaced at the latest
when its capacity falls to just 80% of its capacity when
new. Weakened cells in an aged battery pack are no
longer capable of meeting the high power requirements
needed for the proper operation of your paint sprayer, and
therefore pose a safety risk.
5. Do not throw battery packs into an open re as this poses
a risk of explosion.
6. Do not ignite the battery pack or expose it to re.
7. Do not exhaustively discharge batteries. Exhaustive
discharge will damage the battery cells. The most
common cause of exhaustive discharge is lengthy
storage or non-use of partially discharged batteries.
Stop working as soon as the performance of the battery
falls noticeably or the electronic protection system
triggers. Place the battery pack in storage only after it
has been fully charged.
8. Protect batteries and the tool from overloads. Overloads
will quickly result in overheating and cell damage inside
the battery housing even if this overheating is not
apparent externally.
9. Avoid damage and shocks. Immediately replace batteries
that have been dropped from a height of more than one
meter or those that have been exposed to violent shocks,
even if the housing of the battery pack appears to be
undamaged. The battery cells inside the battery may have
suered serious damage. In such instances, please read
the waste disposal information for proper battery disposal.
10. If the battery pack suers overloading and overheating,
the integrated protective cuto will switch o the
equipment for safety reasons.
IMPORTANT! Do not press the ON/OFF switch any more
if the protective cut-o has been activated. This may
damage the battery pack.
11. Use only original battery packs. The use of other batteries
poses a re risk and may result in injuries or an explosion.

5
Information about the charger and the
charging process
1. Please check the data marked on the rating plate of the
battery charger. Be sure to connect the battery charger
to a power supply with the voltage marked on the rating
plate. Never connect it to a dierent mains voltage.
2. Protect the battery charger and its cord from damage.
Keep the charger and its cord away from heat, oil and
sharp edges. Have damaged cords repaired without delay
by a qualied technician at an authorized Snow Joe®+
Sun Joe®dealer or call the Snow Joe®+ Sun Joe®
customer service center at 1-866-SNOWJOE
(1-866-766-9563).
3. Electrical plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
grounded appliances. Unmodied plugs and matching
outlets will reduce the risk of electric shock.
4. Keep the battery charger, battery pack and the cordless
tool out of the reach of children.
5. Do not use the supplied battery charger to charge other
cordless tools.
6. During periods of heavy use, the battery pack will become
warm. Allow the battery pack to cool to room temperature
before connecting it to the charger to recharge.
7. Do not overcharge batteries. Do not exceed the maximum
charging times. These charging times only apply to
discharged batteries. Frequent insertion of a charged or
partially charged battery pack will result in overcharging
and cell damage. Do not leave batteries connected to the
charger for days on end.
8. Never use or charge batteries if you suspect that it has
been more than 12 months since the last time they were
charged. There is a high probability that the battery
pack has already suered dangerous damage
(exhaustive discharge).
9. Charging batteries at a temperature below 41°F (5°C) will
cause chemical damage to the cells and may cause a re.
10. Do not use batteries that have been exposed to heat
during the charging process, as the battery cells may have
suered dangerous damage.
11. Do not use batteries that have suered curvature or
deformation during the charging process or those that
exhibit other atypical symptoms (gassing, hissing,
cracking, etc.).
12. Never fully discharge the battery pack (maximum
recommended depth of discharge is 80%). A complete
discharge of the battery pack will lead to premature aging
of the battery cells.
Protection from environmental inuences
1. Wear suitable work clothes. Wear safety goggles.
2. Protect your cordless tool and the battery charger from
moisture and rain. Moisture and rain can cause dangerous
cell damage.
3. Do not use the cordless tool or the battery charger near
vapors and ammable liquids.
4. Use the battery charger and cordless tools only in dry
conditions and at an ambient temperature of 41ºF – 105°F
(5°C – 40.5°C).
5. Do not keep the battery charger in places where the
temperature is liable to reach over 105°F (40.5°C). In
particular, do not leave the battery charger in a car that is
parked in the sunshine.
6. Protect batteries from overheating. Overloads,
overcharging and exposure to direct sunlight will result
in overheating and cell damage. Never charge or work
with batteries that have been overheated – replace them
immediately, if possible.
7. Store the charger and your cordless tool only in dry
locations with an ambient temperature of 41ºF – 105°F
(5°C – 40.5°C). Store your lithium-ion battery pack in a
cool, dry place at a temperature of 77°F (25°C). Protect
the battery pack, charger and cordless tool from humidity
and direct sunlight. Only place fully charged batteries in
storage (charged to at least 40%).
8. Prevent the lithium-ion battery pack from freezing. Battery
packs that were stored below 32°F (0°C) for more than
60 minutes must be discarded.
9. When handling batteries, be wary of electrostatic charge.
Electrostatic discharges can damage the electronic
protection system and the battery cells. Avoid electrostatic
charging and never touch the battery poles.

6
Safety Symbols
The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all
instructions on the machine before attempting to assemble and operate.
READ THE OPERATOR'S
MANUAL(S) – Read, understand,
and follow all instructions in the
user manual(s) before attempting
to assemble and operate.
SAFETY ALERT – Indicates a
precaution, a warning, or a danger.
WEAR EYE PROTECTION –
For protection against injury, wear
safety goggles.
WARNING! Do not expose the unit
to rain or wet conditions. Keep dry.
Symbols SymbolsDescriptions Descriptions
Indoor use only. Only use
battery charger indoors.
Respirators, protective clothing, and
gloves will reduce the possibility of
personal injuries.
WARNING! Risk of Explosion-Do
not spray ammable liquids.
DISPOSAL – Waste produced by electrical machine items should not be handled like normal
household rubbish. Please recycle where recycle facilities exist. Check with your local authority or
retailer for recycling advice.
Keep bystanders and children a
safe distance away.

7
Know Your Cordless Paint Sprayer
Read the owner’s manual and safety instructions carefully before operating the cordless paint sprayer. Compare the illustration
below to the cordless paint sprayer in order to familiarize yourself with the location of the various controls and adjustments. Save
this manual for future reference.
1. Spray gun assembly
2. Spray width control lever
3. Air cap
4. Tip collar
5. Paint container
6. Suction tube (inside)
7. 1.5 mm nozzle tip (White)
8. Battery compartment
9. 1.8 mm nozzle tip (Black)
10. 2.2 mm nozzle tip (Red)
11. Push lock button
12. Push button for battery
indicator
13. Battery indicators
14. Handle
15. On/O switch
16. Flow control knob
17. Switch trigger lever
18. Quick release knob
19. Air Vent
20. Turbine
21. iON+ 24V lithium-ion charger
(24VCHRG-AC)
22. Charger plug
23. Charge socket
24. Viscosity cup
25. Spare spray width
control lever
26. iON+ 24V lithium-ion battery
(24VBAT) featuring exclusive
EcoSharp®technology
27. Needle clean-out tool
28. Cleaning brush
3
2
4
5
6
7
8 9 10
12
1314
15
16
17
18
19
20
21
22
23
26
24
27
28
1
11
25

8
Technical Data
Battery Voltage*........................................................... 24V D.C.
Battery Capacity.............................................................. 4.0 Ah
Battery Run Time Max .................................................. 20 mins
Charger Input .................................................... 100 – 240V AC,
50 – 60 Hz, 50 W
Charger Output ................................................... 25.2V DC
1400 mA
Charging Time Max ................................................ 2 hrs 40 min
Motor............................................................................... 210 W
Max Flow....................................................... 3.2 Gallon/charge
(12 l/charge)
Nozzle Size.......................................... 1.5 mm/1.8 mm/2.2 mm
Max Viscosity .................................................... 85 – 100 DIN-s
Paint Container Capacity ..................................... 32  oz (1.0 l)
Weight (Paint sprayer alone)............................. 2.64 lbs (1.2 kg)
Weight (With battery installed)............................... 4.4 lbs (2 kg)
*Initial no-load voltage, when fully charged, peaks at 24 volts; nominal voltage
under typical load is 21.6 volts.
Unpacking
Carton Contents
• Sprayer turbine assembly
• Spray gun assembly
• 2 nozzle tips (the third one is pre-assembled
inside the paint sprayer)
• Viscosity cup
• Spare spray width control level
• iON+ 24V lithium-ion battery
• iON+ 24V lithium-ion battery charger
• Needle clean-out tool
• Cleaning brush
• Manuals with registration card
1. Carefully remove the cordless paint sprayer and check to
see that all of the above items are supplied.
2. Inspect the product carefully to make sure no breakage or
damage occurred during shipping. If you nd damaged or
missing parts, DO NOT return the unit to the store. Please
call the Snow Joe®+ Sun Joe®customer service center at
1-866-SNOWJOE (1-866-766-9563).
NOTE: Do not discard the shipping carton and packaging
material until you are ready to use your new cordless paint
sprayer. The packaging is made of recyclable materials.
Properly dispose of these materials in accordance with
local regulations.
IMPORTANT! The equipment and packaging material are
not toys. Do not let children play with plastic bags, foils,
or small parts. These items can be swallowed and pose a
suocation risk!
Assembly
mWARNING! Do not insert the battery until assembly is
complete. Failure to comply could result in accidental starting
and possible property damage.
mWARNING! Assemble this unit in well ventilated area.
Make sure there's no ammable vapors around.
1. Make sure the quick release knob is in the unlock position,
and insert the spray gun assembly fully inside the opening
on the end of the sprayer turbine assembly (Fig. 1).
2. Push and rotate the quick release knob to lock in position
to x the assembly (Fig. 2).
Battery Pack Operation
The equipment is powered by a lithium-ion battery. The battery
pack is completely sealed and maintenance free.
mWARNING! Before rst use, the battery requires at least
2 hrs 40 min charge time to be fully charged. When the battery
is at low capacity, recharge for 2 hrs 40 min again before
resuming operation.
Battery Charge Level Indicator
The battery pack is equipped with a push button for checking
the charge level. Simply press the push button to read o the
battery charge level from the LEDs of the battery indicator:
Fig. 1
Quick
release
button
Spray gun
assembly
Turbine
Fig. 2
Lock
Unlock
1Push in
2Rotate

9
• All 3 level monitoring LEDs are lit: Battery charge level
is high.
• 2 level monitoring LEDs are lit: Battery charge level is
decreasing. Stop work as soon as possible.
• 1 level monitoring LED is lit: Battery is at. Stop work
IMMEDIATELY and charge the battery. Otherwise the
battery’s service life will be greatly shortened.
NOTE: If the charge level button does not appear to be working,
connect the battery to the charger and charge as needed.
NOTE: Immediately after using the battery pack, the charge
level button may display a lower charge than it will if checked
a few minutes later. The battery cells “recover” some of their
charge after resting.
Charger Operation
mWARNING! Charge only iON+ 24V lithium-ion battery
packs with its compatible iON+ 24V lithium-ion charger.
Other types of batteries may cause personal injury and
damage. Other types of batteries may cause personal injury
and damage.
To reduce the risk of electric shock, do not allow water to ow
into the charger's AC/DC plug.
When to Charge the iON+ 24VBAT
Lithium-Ion Battery
NOTE: The iON+ 24VBAT lithium-ion battery packs do
not develop a "memory" when charged after only a partial
discharge. Therefore, it is not necessary to run down the
battery pack before placing it into the charger.
• Use the battery charge indicator lights to determine when to
charge your iON+ 24VBAT lithium-ion battery pack.
• You can "top-o" your battery pack's charge before starting
a big job or after a long day of use.
Charging the Battery
1. Press the push lock buttons on the battery to pull the
battery pack out of the equipment (Fig. 3).
2. Check that the mains voltage is the same as that marked
on the rating plate of the battery charger. Then, plug the
charger adapter into an appropriate AC power outlet.
Connect the charger plug into the charge socket of the
battery to start charging (Fig. 4).
3. The battery will take approximately 2 hrs 40 min to charge.
The battery indicator LEDs will twinkle and illuminate one
by one during the charging process. Unplug the charger
immediately when the 3 LEDs are all illuminated.
mCAUTION! FIRE HAZARD. When disconnecting the
charger from the battery, be sure to unplug the charger from
the outlet rst, then disconnect the charger from the battery.
mWARNING! This charger does not automatically turn
o when the battery is fully charged. Please take care not
to leave the battery plugged into the charger. Switch o or
unplug the charger at the mains when charging is complete.
Charge level button
The battery is at 30% capacity
and requires charging
The battery is at 60% capacity
and requires charging soon
The battery is at full capacity
Light IndicatorsLights
Fig. 3
Push lock button
(on both sides)
Fig. 4
Battery
indicators

10
4. Timely recharging of the battery will help prolong the
battery's life. You must recharge the battery pack when
you notice a drop in the equipment's power.
IMPORTANT! Never allow the battery pack to become fully
discharged as this will cause irreversible damage to the battery.
Preparation
Material Preparation
The material being used may need to be thinned (diluted)
with the proper solvent as specied by the material
manufacturer. Never exceed the thinning advice given by the
coating manufacturer.
mWARNING! Do not spray material that has a ashpoint
lower than 73.5ºF (23ºC).
After thinning the material, use the viscosity cup included to
test the viscosity of the material. Follow the instruction below
for proper testing the viscosity.
1. Stir the spraying material thoroughly before measuring
viscosity (Fig. 5).
2. Dip the viscosity cup completely into the spraying material
and make sure the cup is lled with the material. Hold the
cup with material over the container, measure the amount
of time in seconds it takes for the stream of the material
owing out to "break" or stop being a constant stream out
of the bottom of the cup. This is the Runout Time (Fig. 6).
3. For proper runout time of specic material, refer the
thinning table below.
THINNING TABLE
Material Reference Runout Time
Oil enamel 25-40 seconds
Oil based primer 30-45 seconds
Latex No thinning required
Oil stain No thinning required
Clear sealer No thinning required
Polyurethane No thinning required
Varnish 20-50 seconds
mWARNING! Do not spray material that has a runout
time greater than 70 seconds.
NOTE: Before lling the spray material into the paint container,
make sure to strain the material to remove any impurities in the
paint, which may enter and clog the system. Impurities in the
paint will give poor performance and a poor nish.
Working Environment Preparation
• Make sure the surface is properly prepared for the best
nish. The surface should be free from dust, dirt, rust or
grease. Lightly pressure wash decks or exterior surfaces
and wait until they are dry to start spraying.

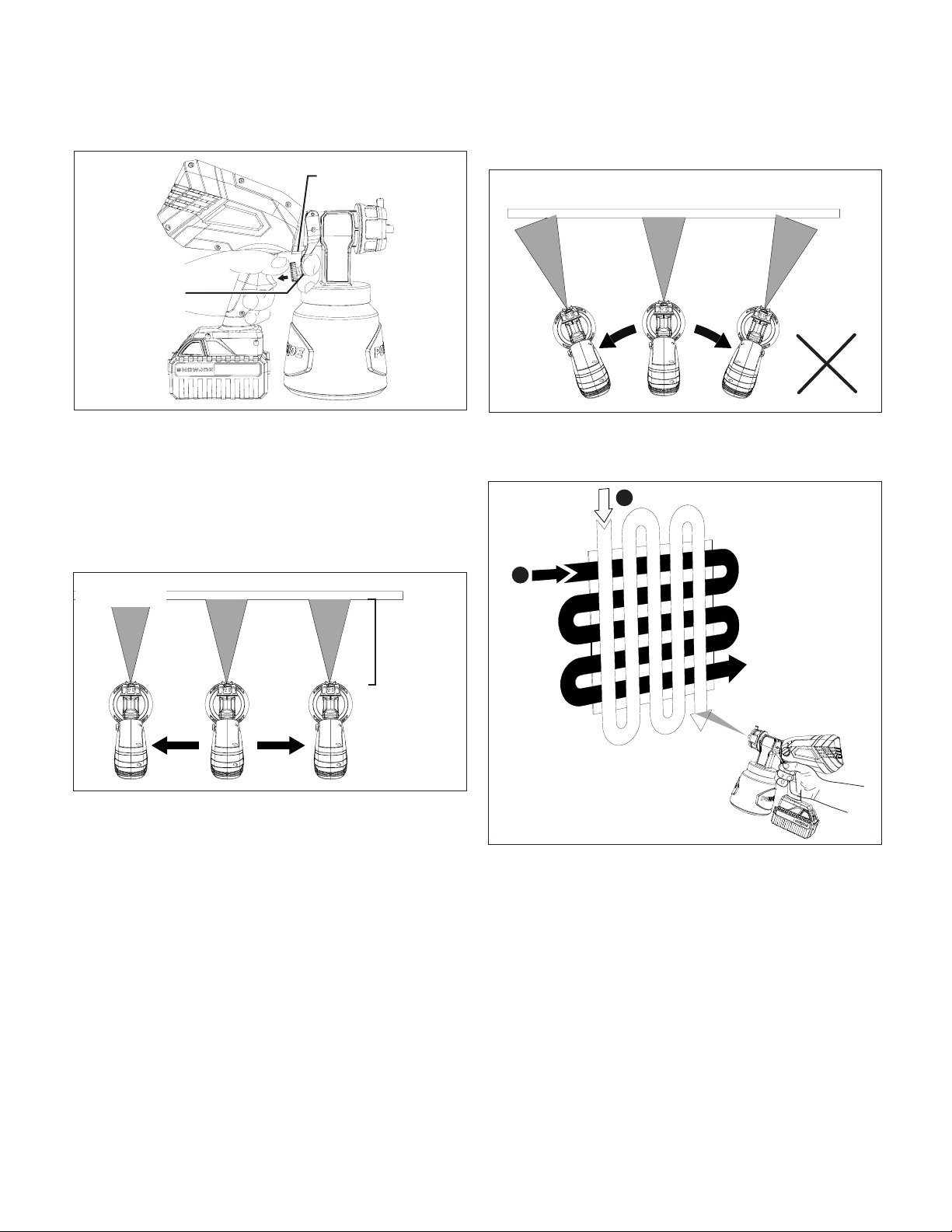

• This cordless paint sprayer is equipped with HVLP
technology, which will help to avoid most overspray issues.
However, it's still recommended to mask all edges and
other areas during spraying. Use drop cloths to protect the
oor and anything else in the spraying area that needs to
remain untouched.
• Before starting, have gloves, paper towels, rags, etc.
available for unexpected spills.
Fig. 5
Fig. 6
Viscosity
cup
