Soca SL-150 User manual

SOCA TECHNOLOGY CO., LTD.
COPYRIGHT 2003 NOV V2.0
SL-150
Magnetic Lock for Sliding
Door Installation Manual

1
1. Specifications:
◎ All-in-one design for easy installation. The lock itself would not have any
residual magnetism.
◎ Adjustable width (59mm~89mm) for use of different sliding doors’ slots.
◎ Armature which can be adjusted horizontally or vertically for better fitting.
◎ Multi-voltage input design to fit all sliding doors (DC12V, AC110V, AC220V).
◎ Input of DC12V to the reader when AC current is used with maximum of
200mA overload protection.
◎ The lock itself is equipped with release switch and indicator for better
maintenance of the sliding doors.
◎ Built-in photocoupler connects with egress delay circuit push button
point for easy installation.
◎ Maximum holding force of 80kg/ 175lbs.
◎ Currents: 150mA (depending on DC12V testing).
◎ Dimensions
Magnetic lock body : 110mm(L)＊89mm(W)＊56mm(H).
Armature : 40mm(L)＊65mm(W)＊136mm(H).
Total weight : 1.1kg.

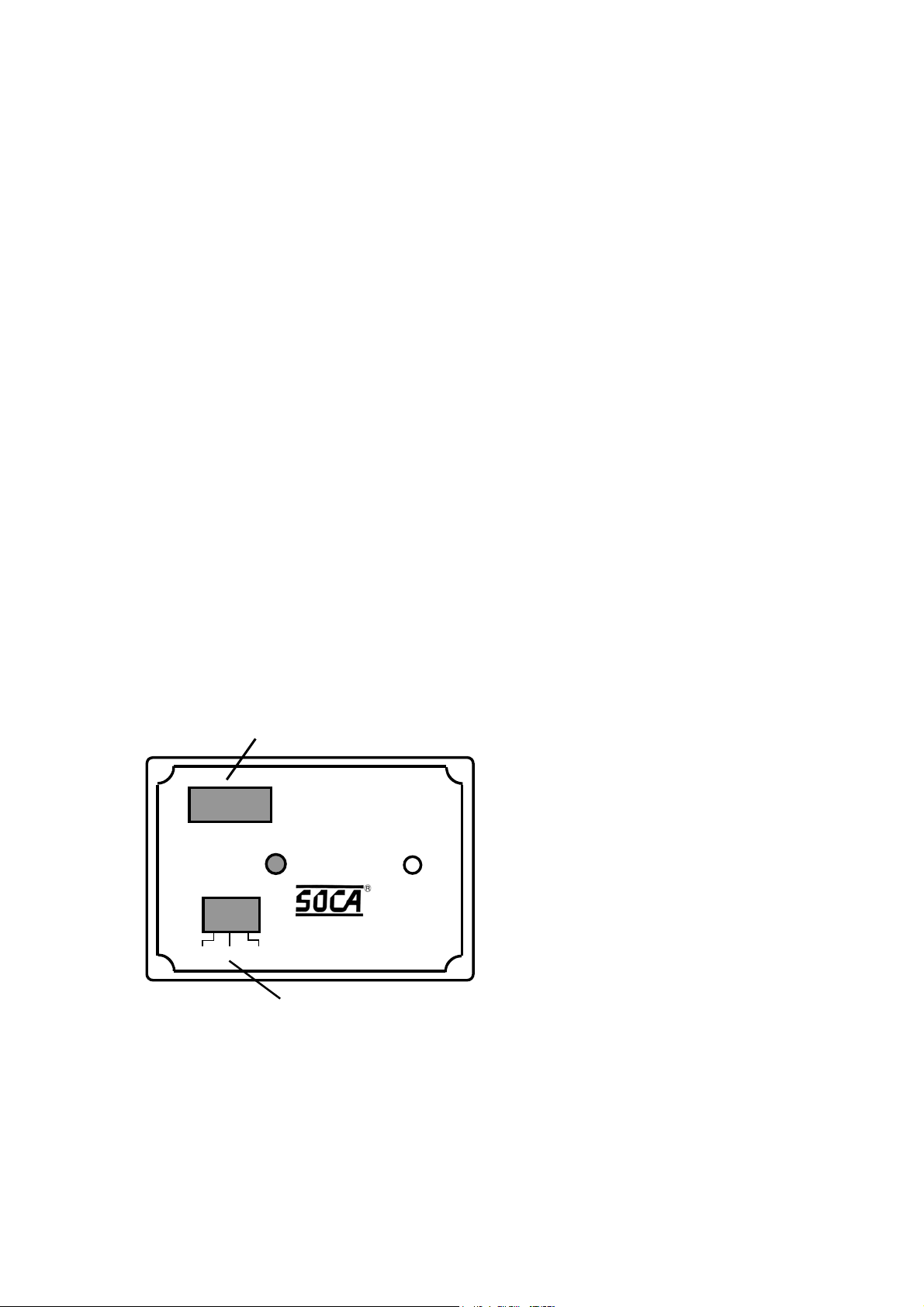

2. Panel:
.
◎3PIN connector: To set either 110V or 220V.
◎5PIN connector: DC12V，external push button, triggers to open door.
◎Release switch: For better maintenance of sliding door.
◎Indicator (red):
(1). Normal state: Blinking
(2). Door opening: Light on
0V 110V 220V
Indicator
Magnetic lock
for Sliding door
SL-150
Red
Brown
Green
Blue
Purple
: DC+12V
: GND
: External push button
: Trigger to open door
: Trigger to open door
Release
switch
5PIN connector
3PIN connector
Red : DC+12V
Brown : GND
Green : External push button
Blue : Trigger to open door
Purple : Trigger to open door

2
P.S. (1) Please select only one power input (DC12V or 110V or 220V)
(2)Trigger to door open relay contact rating: 1A/30VDC, 0.5A/120VAC.
3. Connector:
4. Connector Wiring:
A . Use of DC12V only
Trigger to open door
GND
+12V
5PIN
DC
External push button
Trigger to open door
AC220V
Purple
Blue
Green
Brown
Red
Yellow
Red
Black
3PIN AC110V
AC0V
Trigger to open door
GND
+12V
5PIN
DC
External push button
Trigger to open door
AC220V
Purple
Blue
Green
Brown
Red
Yellow
Red
Black
3PIN AC110V
AC0V
DC12V Output
External
Push button
External
Infrared
Sliding door
COM
N.O
5PIN
Purple
Blue
Green
Brown
Red
Yellow
Red
Black
3PIN
Reader or
Controller
Not use
Normal open pole only
AP-10
DC 12V

3
B. Use of AC220V only
C . Use of AC110V only:
DC12V Output
External
Push button
External
Infrared
Sliding door
COM
N.O
5PIN
Purple
Blue
Green
Brown
Red
Yellow
Red
Black
3PIN
Reader or
Controller
To AC 220V
Normal open pole only
DC12V Output
External
Push button
External
Infrared
Sliding door
COM
N.O
5PIN
Purple
Blue
Green
Brown
Red
Yellow
Red
Black
3PIN
Reader or
Controller
To AC 110V
Normal open pole only

4
5. Precautions:
(1) Before installation, please check the voltage and polarity of the power supply
in order to avoid wrong connection causing damage to the magnetic lock.
(2) Please make sure the armature is fitted correctly to avoid any damage
to the door before use.
(3) Please do not conduct any repairment or any modification to the
system, unless by qualified personnel.
(4) Warranty period for the magnetic lock is 1 year.
6. Installations:
A. The use of the template is to fix the lock body to the adjustable bracket. 8
adjustable screws adjust the lock body on the template’s two long vertical slits.
B. There are 2 adjustable screws for all 4 sides of the template for stronger
position holding and to avoid any damage to the template.
C. Use fixed screws to fit the lock body to the slot tightly.
（2）Template assembly
Adjustable screws（A）
Adjustable brackets（Top
）
Adjustable brackets（Bottom）
Fixed screws
Adjustable screws（B）
Lock body
Template
（1）Physical installation
Armature
Door Door
Magnetic lock Bracket
Bracket

5
A. Loosen all 8 adjustable screws (A and B). Adjust the bracket (bottom) to the
lowest point and tighten all 4 adjustable screws (A).
B. Fit the lock body to the slot. Adjust the bracket (top) to the slot.
C. Finally, tighten all 4 adjustable screws (B) and all fixed screws.
Fixed screws
Adjustable screws（A）
Adjustable screws（B）
Adjustable brackets（Bottom）
Adjustable brackets（Top）
（3）Adjusting the brackets
（4）Adjusting the armature
Loosen the fixed screws and move
the armature to the different
direction to suit different door.
Adjusting the armature
horizontally
Adjusting the armature
vertically.
(Left) (Right)
