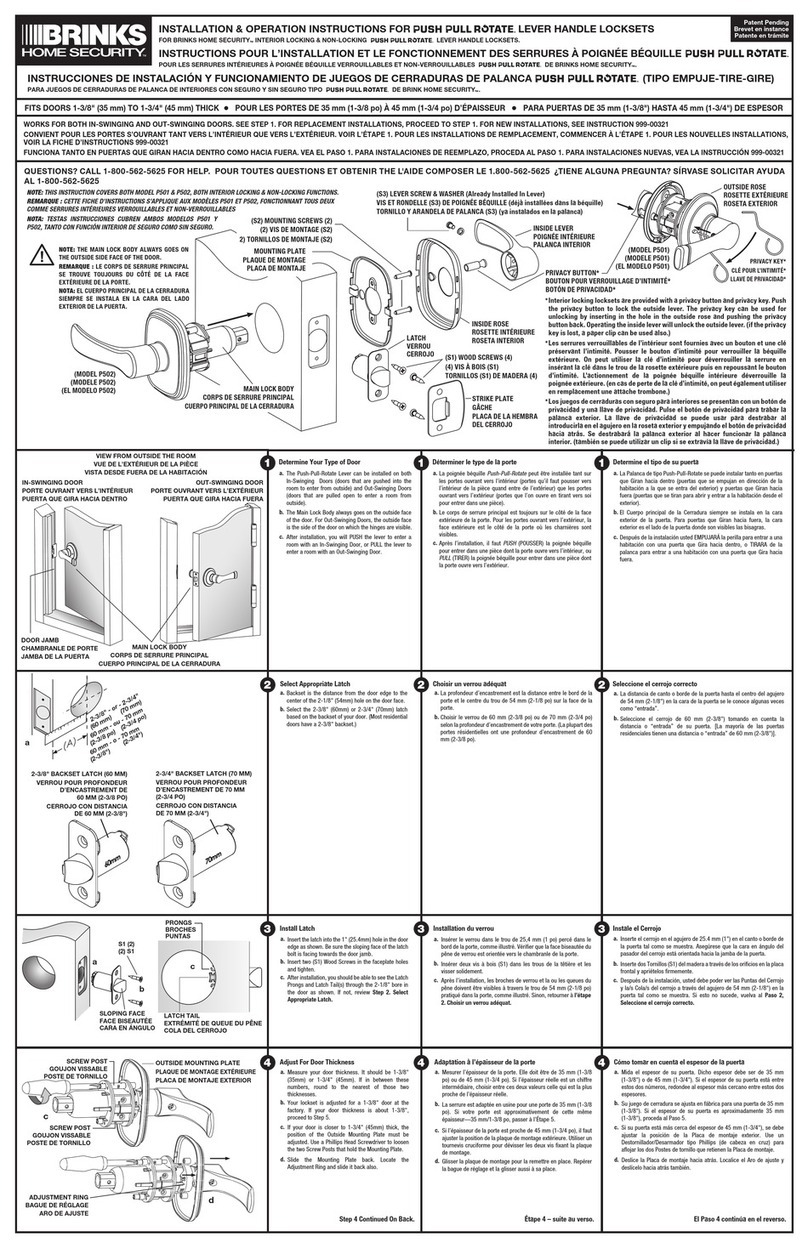

Brinks Push pull rotate Installation instructions

999-00370E_EN

FOR ENTRY DOOR HANDLESETS WITH INTERIOR LEVER.

FITS DOORS 1-3/8" (35 mm) TO 1-3/4" (45 mm) THICK

WORKS ONLY FOR IN-SWINGING DOORS. SEE INSTRUCTION STEP 1.

HANDLESET COMPONENT LISTING

A - Handle Latch

B - Main Lock Body Mounting Plate

D - Lever

C - Inside Lever Rose

E - Main Lock Body

F - Handle Assembly

G - Bushing

H - Washer

I - Screw Cover

J - Outside Lower Rose

(Not Included with all Models)

K - Handle Strike Plate

QUESTIONS? CALL 1-800-562-5625 FOR HELP.

INSTALLATION & OPERATION INSTRUCTIONS FOR

HANDLESETS

S1 (2)

S2 (2)

S3 (2)

T2 (2)

YOUR HANDLESET MAY OR MAY

NOT BE SUPPLIED WITH A

DEADBOLT OR DEADBOLT

EXTERIOR. IF IT IS, PLEASE SEE

SEPARATE INSTRUCTIONS FOR

DOOR PREPARATION AND

INSTALLATION OF THE DEADBOLT.

SCREWS

Latch Screws (2)

Strike Plate Screws (2)

Main Lock Body Machine Screws (2)

Installed in Lever

Lower Handle Machine Screw (1)

Lever Retention Screw (1) & Lockwasher (1)

Handle Pivot Bolt (with O-Ring) (1)

TOOLS

T1 - Hex Wrench

T2 Hex Adaptor (2)

QUESTIONS?

CALL 1-800-562-5625

FO R H E LP.

View From Outside The Room

Install on In-Swinging Doors Only

STEP 1

Door Jamb Door Jamb

NOTE: INSTALL ON IN-SWINGING DOOR ONLY.

QUESTIONS? CALL 1-800-562-5625 FOR HELP.

INSTALLATION & OPERATION INSTRUCTIONS

FOR HANDLESETS

FOR ENTRY DOOR HANDLESETS WITH INTERIOR LEVER.

Main Lock Body

In-swinging Door In-swinging Door

PUSH

FOR REPLACEMENT INSTALLATIONS ONLY.

FOR NEW INSTALLATIONS, SEE INSTRUCTION 999-00375E_EN

FITS DOORS 1-3/8" (35 mm) TO 1-3/4" (45 mm) THICK.

a. For Push-Pull-Rotate Handlesets, the Handle Assembly is intended to go on the outside of the door.

b. Therefore, the Push-Pull-Rotate Handleset can only be installed on doors that "push" open into rooms (In-Swinging doors.)

IMPORTANT!

45 mm

Notch

35 mm

Notch

Lug

Adjustment

Screw Post

Hex Adaptor

Hexagonal

End Shape

Adjustment

Ring

Screw

Post

Screw Post

Outside Mounting Plate

Hex Adaptor

Threaded Post

a. Measure your door thickness. It should be 1-3/8"

(35 mm) or 1-3/4" (45 mm). If in between these

numbers, round to the nearest of those two

thicknesses.

b. Your lockset is adjusted for a 1-3/4" door at the

factory.If your door thickness is about 1-3/4",

proceed to Step 3.

c. If your door is closer to 1-3/8" (35mm) thick, the

position of the Outside Mounting Plate must be

adjusted. It is held in place by two Screw Posts

which have a hexagonal shape on the end; two

Hex Adaptors are provided so that a Phillips Head

Screwdriver can be used to quickly unscrew the

two posts that hold the Mounting Plate.

d. Slide the Mounting Plate back. Locate the Adjust-

ment Ring and slide it back also.

e. Rotate the Adjustment Ring until the two 35mm

notches on the ring are aligned with the two Lugs

on the Main Lock Body. These Lugs are located in

line with the Screw Posts.

f. Slide the Adjustment Ring against the Lugs.

g. Slide the Outside Mounting Plate back against the

Adjustment Ring and secure it by screwing the two

Screw Posts back into the Threaded Posts on the

Mounting Plate, alternating between the posts so

that they are tightened evenly. Tighten them both

rmly.

Note: If the Hex Adaptors are lost, an adjustable

wrench can be used to loosen and tighten the

Screw Posts. Be careful not to overtighten.

Adjust For Door Thickness

STEP 2

a. b.

2-3/8" - or - 2-3/4"

(60 mm) (70 mm)

2-3/8" Backset

Latch (60 mm)

2-3/4" Backset

Latch (70 mm)

Handle Latches (A)

Sloping Face

Handle Latch (A)

Prongs

Latch Tail

S1 (2)

If your model has an

Outside Upper Rose

with straight sides,

make sure the sides

are parallel with the

door edge before

tightening the screws

in Step 6.

Main Lock Body (C)

Outside

Upper Rose

Sloping

Face

Latch Tail

Retractor

Latch Bolt

Cylindrical Case

Prongs

Latch Tail

Retractor

INSIDE VIEW

OUTSIDE VIEW

a. Backset is the distance from door edge to center

of hole on door face. (See Illustration).

b. Select the Correct Handle Latch (A).

Select the 2-3/8" (60 mm) or 2-3/4" (70 mm)

latch based on the backset of your door. (Most

residential doors have a 2-3/8" backset.)

a. Insert the Handle Latch (A) into the 1" (25.4 mm)

hole in the door edge as shown. Be sure the

sloping face of the latch bolt is facing towards

the door jamb.

b. Insert two (S1) Latch Screws in the faceplate

holes and tighten.

c. After installation, you should be able to see the

Latch Prongs and Latch Tail(s) through the 2-1/8"

bore in the door as shown.

If not, review Step 3b. Select Correct Handle

Latch.

Note: The sloping face of the latch bolt always faces

the door jamb and the Main Lock Body (C).

a. Insert the Main Lock Body (C) through the 2-1/8"

(54 mm) hole in the door.

b. Look through the hole from the inside of the door

to guide the Main Lock Body.

c. Make sure that the Cylindrical Case engages with

the Latch Prongs and the Retractor interlocks

with the Latch Tail.

d. Test by pushing the Outside Spindle - the bolt

should retract.

Backset: Select the Correct

Handle Latch (A)

STEP 3

Handle Latch (A) Installation

STEP 4

Install the Main Lock Body

STEP 5

(S3)

a,c

Main Lock Body

Mounting Plate (D)

Main Lock Body

Mounting Plate (D)

Inside Knob

Rose (E)

INSIDE VIEW

c. b.

Handle Pivot Bolt (S6)

Bushing (G)

Handle

Assembly (F)

Handle

Assembly (F)

Spindle

Connector Plate

Hex Wrench (T1)

Spindle Slot

Outer Rose (J)

(Not provided

with every model)

Screw Post

Tabs

5/16" Hole

a. Place the Main Lock Body Mounting Plate (D)

over the spindle of Main Lock Body (C) with the

words ‘FACE OUT’ visible. Position the plate

against the door face with the mounting holes

aligned vertically.

b. For models with a square or rectangular

mounting plate and inside rose, make sure the

straight vertical side of the mounting plate is

parallel with the door edge before fully tighten-

ing the (S3) screws.

c. Insert the two (S3) Main Lock Body Machine

Screws through the holes in the plate and

engage the threaded screw posts of the Main

Lock Body (C). After making sure the plate is

oriented according to Step 6b, tighten the

screws rmly.

d. Install the Inside Rose (E) by aligning with the

notches on the Mounting Plate and snapping it

on.

a. Install Bushing (G) onto the (S6) Handle Pivot

Bolt.

b. For models provided with an Outside Lower

Rose (J), slip it onto the Mounting Hub. Tabs

protruding into the hole in the rose will align

with cutouts in the Mounting Hub to keep the

rose oriented correctly.

c. Insert the Screw Post on the bottom of Handle

Assembly (F) into the 5/16" Hole in the door.

(Hole C on the template).

d. Align the Connector Plate of the Handle

Assembly (F) with the Slot in the Spindle and

carefully insert the Connector Plate into the

Slot. Hold the Handle in place.

e. Using the Hex Wrench (T1), insert the (S6)

Handle Pivot Bolt and Bushing (G) through the

Bolt Hole in the Spindle from the side that has

the large recess. This side always faces the

latch.

f. The (S6) Handle Pivot Bolt will pass through the

slot in the Connector Plate until it engages the

threads in the opposite wall of the Spindle. Turn

the Large Hex Bolt clockwise until the bolt is

tightened rmly and is ush with the Spindle.

Bolt Hole

(Large

Recess)

Handle Pivot

Bolt (S6)

& Bushing (G)

Install the Main Lock Body

Mounting Plate and Inside Rose

STEP 6

Install Handle Assembly

STEP 7

(S2)

Latch Bolt

Handle Strike Plate (K)

INSIDE BOTTOM VIEW

Screw Cover

Cutout

Screw Post

Screw Cover (I)

Washer (H)

Lower Handle

Machine Screw (S4)

Bottom of Handle

Assembly (F)

5/16" Hole

(HOLE C)

Washer Flat Tab

Inside Lever

Spindle

(S5)

a. Insert the (S4) Lower Handle Machine Screw

through the hole in the "cup" side of the

Washer (H).

b. Place the Washer (H) against the door and

insert the (S4) screw through the washer and

into the 5/16" hole (HOLE C), engaging the

threaded screw post of Handle Assembly (F).

For best appearance, it is recommended to

position the at tab of the Washer (H) facing

down. Tighten the (S4) screw rmly with a

Phillips Head screwdriver.

c. Snap Screw Cover (I) onto Washer (H).

Install (S4) Lower Handle

Machine Screw

STEP 8

a. Push the Inside Lever (D) onto the Spindle of the

Main Lock Body (C) until it stops. Make sure the

tip of the lever is pointed away from the door

edge.

b. Tighten the (S5) Lever Retention Screw located

on the inside of the lever with a Phillips Head

screwdriver.

c. Test the security and operation of the lever by

pulling it from the end, and/or rotating it up and

down. The latch bolt should retract.

Install Inside Lever

STEP 9

a. Secure the Handle Strike Plate (K) with two (S2)

Strike Plate Screws.

Tighten rmly.

b. It is important for Push-Pull-Rotate Locks for

the Latch Bolt to move freely in and out of the

Handle Strike Plate (K).

Install Handle Strike Plate

STEP 10

999-00370E_EN

OUTSIDE VIEW

INSIDE VIEW

Inside Lever

ROTATE UP

ROTATE DOWN

PUSH

PULL

TOP VIEW
