Soehnle Web Connect Analysis User manual

WEB CONNECT ANALYSIS
Instruction Manual
BMI

2
Content
1. Introduction 3
1.1 Proper use 3
1.2 Safety information 4
1.3 Why is body analysis sensible? 6
1.4 Bio Impedanz Analysis (BIA) 6
1.5 The body mass index (BMI) 7
1.6 Rules for weighing 8
2. Start-up operation 10
2.1 Description of the device 10
2.2 System requirements 11
2.3 Installation 11
2.4 Insert or replace batteries 11
2.5 Activate connection between web box and scale 12
2.6 Messages 12
 &RQ¿JXUH,3VHWWLQJPDQXDOO\ 
2.8 Setting up the user account 14
2.9 Entering personal data I unit of measurement (kg - lb -st) I Target weight. 15
3. Body analysis 16
4. The personal account 17
4.1 The main menu 17
4.2 Diagram display 17
4.3 Tabular display 18
5. Feedback 18
6. Deleting Account 18
7. Messages 19
 7HFKQLFDOVSHFL¿FDWLRQV 
9. Declaration of conformity 21
10. Disposal 21
11. Service and Support 22
12. Guarantee 22

3
1. Introduction
1.1 Proper use
With professional Bio Impedance Multi-Frequency Measurement, ”Web Connect Analysis” always delivers precise
data regarding body weight, muscle mass, fat and water content. Therefore, the body analysis scale ensures the
SHUIHFWRYHUYLHZ7RJHWKHUZLWKDSHUVRQDODFFRXQWRQWKHZHE62(+1/(RIIHUVDKLJKTXDOLW\¿WQHVVSODWIRUPIRU
anyone wanting to stay active and healthy.
With our products we would like to support you in your personal responsibility for your body. If you are unsure of
which measures are suitable for your personal wellbeing, it is imperative that you obtain professional advice from a
physician or dietician.
This body analysis scale is designed for persons 17 years of age or older.
Up to 8 people can register per scale.
This device is not designed for medical and commercial use.
Please thoroughly read these instructions, particularly the safety information, and follow the instructions for care.
Please store these instructions for future use.
Further information can be found at our website at www.soehnle.com.

4
1.2 Safety information
Danger
Improper use may result in hazards that may lead to death or severe injury.
Warning
Improper use may, in certain circumstances, cause injuries and pose risks to your health.
Attention
Improper use may result in injury or property damage.
Notes
Important information
Danger
Never use this device with
•electronic medical devices, e.g. pace makers
•electronic life-sustaining systems, e.g. heart/lung machines
•portable electronic medical devices, e.g. electrocardiographs
This device may cause malfunctions in the above-mentioned electronic medical devices.
•1HYHUXVHWKHGHYLFHRQVOLSSHU\ÀRRUFRYHUV
• Risk of slipping if your feet or the surface of the platform are wet.
Dry your feet and the platform prior to using the device.
 1HYHUWKURZXVHGEDWWHULHVLQWRRSHQÀDPH'DQJHURIH[SORVLRQ
• Never short-circuit batteries.
Warning
•Consult a physician or a dietician before reducing your weight.
•Keep the device away from small children.
•Support physically handicapped persons in the use of this device.
•Always step onto the intended location of the device and never on the edges and corners; always stand still
during the analysis.
•Be sure to use the right type of battery. Insert the battery with the pole in the correct direction. Always use a
fresh battery when replacing the battery and never use batteries from different manufacturers, with different
charges, or batteries with visible damages - this could result in overheating or explosions.
•Always store batteries outside of the reach of children.

5
Attention
7KHLQGLYLGXDOFRPSRQHQWVRIWKLVGHYLFHPD\QRWEHGLVDVVHPEOHGUHSDLUHGRUPRGL¿HG
•Batteries contain chemicals. A leakage of these chemicals could result in damages to objects or bodily injuries.
If battery acid comes into contact with the eye, immediately rinse the eye with plenty of water and contact a
physician.
•Remove the batteries from the device if it is not used for a long time.
Notes
7KHUHVXOWPD\EHIDOVL¿HG
• in the vicinity of cellular phones
• in the vicinity of heat sources or locations with variations in temperature
• in locations with great humidity and
LQORFDWLRQVWKDWDUHLQÀXHQFHGE\YLEUDWLRQVRULPSDFWV
• when operating the device on carpets.
Therefore it is imperative that you always place the device on a solid surface.
• Never subject the device to direct sunlight.
• Never step on the display terminal.
• Dispose used batteries according to the regulations of your country
•Clean the parts of this device only with a damp cloth and some mild cleaning agents if required. Corrosive or
abrasive cleaning agents will cause damages.

6
1.3 Why is body analysis sensible?
A balanced and controlled diet and exercise are the true “secrets” for great health, moderate body weight, and
general wellbeing.
For this, a Soehnle body analysis scale will enable you to determine the body values that are relevant for your
health.
Values recommended by health experts
Men
Women
Age Body fat* Body
water
Muscle
mass Body fat* Body water
Muscle
mass
low normal Above-
average
Very
high normal normal low normal Above- average
Very
high normal normal
16-18 < 8 8-18 18-24 > 24 > 58.5 > 38 < 15 15-25 25-33 > 33 > 52.5 > 28
18-30 < 8 8-18 18-24 > 24 > 57 > 38 < 20 20-29 29-36 > 36 > 49.5 > 28
30-40 < 11 11-20 20-26 > 26 > 56 > 38 < 22 22-31 31-38 > 38 > 47.5 > 28
40-50 < 13 13-22 22-28 > 28 > 55 > 38 < 24 24-33 33-40 > 40 > 46.5 > 28
50-60 < 15 15-24 24-30 > 30 > 54 > 38 < 26 26-35 35-42 > 42 > 46 > 28
60+ < 17 17-26 26-34 > 34 > 53 > 38 < 28 28-37 37-47 > 47 > 45 > 28
* Based on NIH/WHO BMI guidelines (US National Institute of Health/World Health Organization).
1.4 Bio Impedanz Analysis (BIA)
BIA is the common measurement method among Body Balance body analysis scales. This method does not
directly measure values like body fat, body water, and muscle mass but instead measures the electric resistance
(impedance) of the body.
The impedance measurement is performed by 4 electrodes located on the platform of the scale. This is done by
DKDUPOHVVZHDNHOHFWULFDOVLJQDOZKLFKLVVHQGWKURXJKWKHERG\P$7KHHOHFWULFFXUUHQWLVDEOHWRÀRZ
EHWWHUWKURXJKERG\ÀXLGVZDWHUZKLFKDUHFRQWDLQHGFKLHÀ\LQWKHPXVFOHVRIWKHKXPDQERG\WKDQWKURXJKERG\
fat. The higher the body‘s resistance against the electric signal, the higher the body fat content and the lower the
body water content. And vice-versa: the higher the muscle mass in percent, the higher the body water content in
percent and the lower the body fat content in percent.

7
1.5 The body mass index (BMI)
The foundation of this calculation is the body mass index - an index number that can be used to interpret body
weight in terms of the risk it poses to your health.
The index number is calculated based on the body weight in kilogram, divided by the body height squared
(example: BMI =
75 kg
1,75 m x 1,75 m = 24,5)
&ODVVL¿FDWLRQRIWKHERG\ZHLJKWEDVHGRQ%0,
(Source: World health organization, 2000)
BMI (kg/m²) Classification
< 18.5 Underweight
18.5 - 24.9 Normal weight
25.0 - 29.9 Overweight
 Adiposity
30.0 - 34.9 Adiposity level I
35.0 - 39.9 Adiposity level II
 Adiposity level III

8
1.6 Rules for weighing
The weight of an adult can change by approx. 2-3 kg during one day.
For a reliable weight control it is therefore important to maintain constant weighing conditions.
That’s why it’s best to weigh oneself
• sober
• always at the same time: the time between 6 p.m. and 8 p.m. is best for body analysis.
• undressed
(QVXUHWKHVWXUG\DQGVHFXUHSODFHPHQWRIWKHSODWIRUP7H[WLOHRUVRIWÀRRUVXUIDFHVFDQLQÀXHQFHWKH
measurement results rather strongly.
,QRUGHUWRSUHYHQWIDOVL¿FDWLRQRIWKHZHLJKLQJUHVXOWWKHVFDOHVKRXOGQRWEHPRYHGIRUPLQXWHVSULRUWRWKH
weighing process.
The body analysis
• Step on platform barefoot.
• Stand on the platform symmetrically. An uneven load on the platform may falsify the weighing result.
• Stand still.
• Do not hold on to anything for support.
$OZD\VZHLJK\RXUVHOIDWWKHVDPHORFDWLRQ(QYLURQPHQWDOFKDQJHVLHÀRRUFRYHULQJVWHPSHUDWXUHKXPLGLW\
can result in a variance of weighing results.
&LUFXPVWDQFHVLQÀXHQFLQJDERG\DQDO\VLV
ThHERG\PDVVLQIRUPDWLRQSURYLGHGE\WKHELRLPSHGDQFHPHDVXUHPHQWPHWKRGFDQÀXFWXDWHGXULQJWKHFRXUVH
of a day. This is not due to a lack of precision of the Body Balance body analysis scales, but rather due to the
ÀXFWXDWLRQVRIWKHERG\¶VGDLO\ZDWHUFRQWHQW
The human body may lose up to 2 - 3 kg of body water while sleeping. Therefore, the body is usually dehydrated
(lacking water) immediately after getting up in the morning. However, the lower the body water content, the higher
the body resistance and the calculated body fat content while the calculated muscle mass is lower.
:DWHUUHVHUYHVDUHUH¿OOHGRYHUWKHFRXUVHRIDGD\DQGWKHPHDVXUHPHQWYDOXHVUHWXUQWRDQRUPDOUDQJH
While regular weighing is recommended immediately after waking, body analysis should be performed in the
evening. The time between 6:00 p.m. and 8:00 p.m. is usually best for body analysis.
22 %
21 %
20 %
19 %
18 %
17 %
Körperfett-
anteil
Zeit
06:00 08:00 10:00 12:00 14:00 16:00 18:00 20:00

9
2WKHUFLUFXPVWDQFHVLQÀXHQFLQJDERG\DQDO\VLV
%HVLGHVIXQGDPHQWDOÀXFWXDWLRQVLQGDLO\PHDVXUHPHQWYDOXHVÀXFWXDWLRQVPD\DOVRDULVHGXHWRFKDQJHVLQWKH
water content due to the consumption of foods and liquids, menstruation, illness, exercise, and bathing.
Implausible results may occur among
• persons with fever, edema, or osteoporosis
• persons in dialysis treatment
• persons taking cardiovascular medicines
• pregnant women
• youth under the age of 16
• persons of the Asian and African population group.

10
2. Start-up operation
2.1 Description of the device
Scale
Web Box






14
15
16
17
18
19
20



10
11
12
13

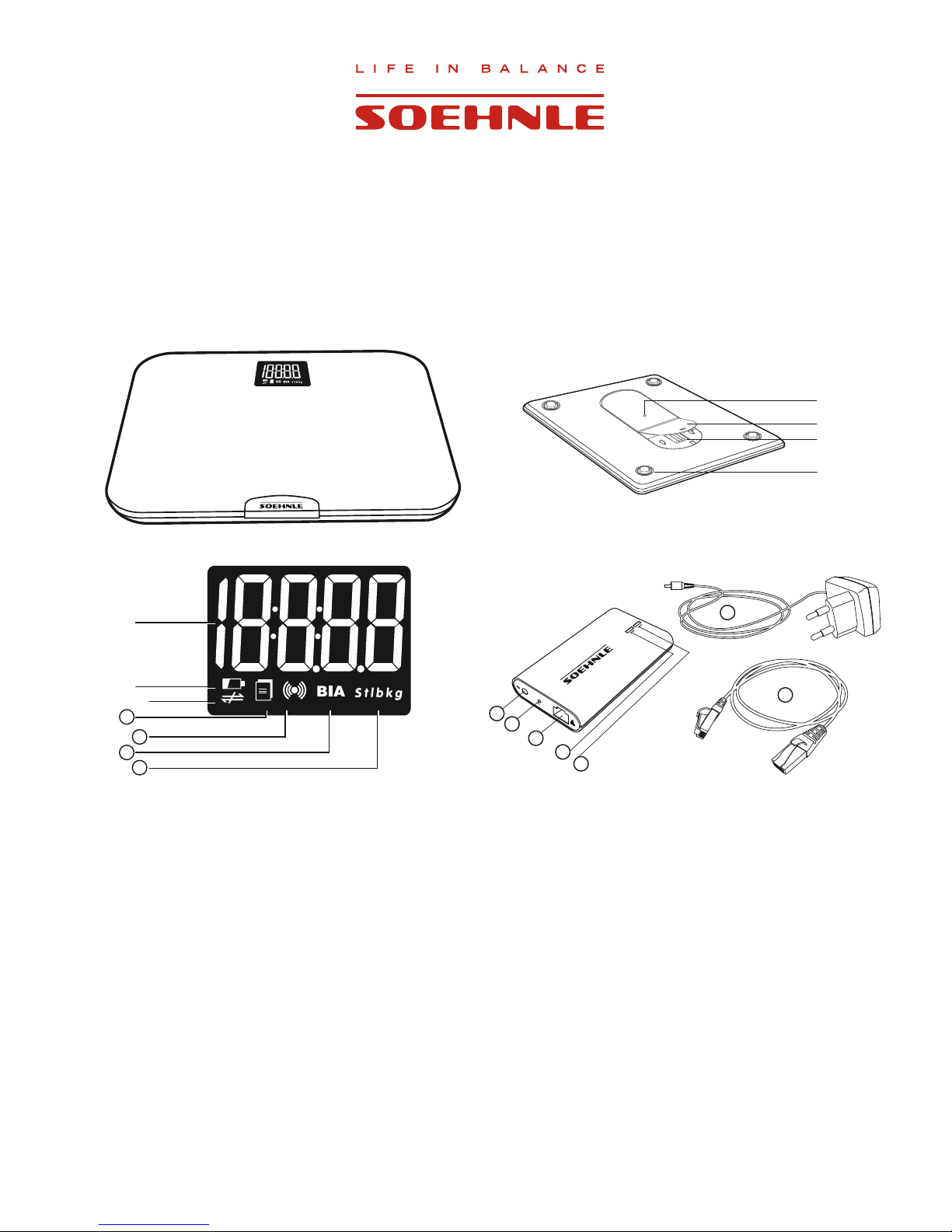

1. Display
2. Weighing platform
3. Activation key
4. Battery cover
5. Battery compartment
6. Weighing cell
7. Measured value
8. Weak battery
9. Internet connection disrupted
10. Determine data for transmission
11. Data transmission
12. Body fat measurement
13. Measurement unit
14. Power supply socket
15. Reset key
16. Broadband interface
17. Internet connection indicator
18. Network connection indicator
19. Power supply unit
20. Internet cable

11
2.2 System requirements
1. Broadband router with one free LAN port (10 Mbit/s) and internet access
2. Internet-capable device (e.g. smartphone, tablet or PC/MAC) with web browser of the newest generation. No
software or app installation required.
3. Valid email address for registration on the portal.
2.3 Installation
1. Connect the web box with the power supply unit to the
power network.
2. Use the network cable to connect the web box to the
router.
The connection is established when both LEDs light up.
Troubleshooting should be performed according to the
GLVSOD\LIRQHRUERWK/('VÀDVK
WAN = check internet connection
LAN = check router or connection to the router
2.4 Insert or replace batteries
Open battery compartment of weighing platform.
Insert batteries. Observe correct polarity.
Attention
When replacing used batteries, only use fresh batteries of the same type. Never use batteries of a different type or
RIGLIIHUHQWFKDUJHVWDWXV
As an alternative to regular alkaline batteries, NiMh accumulator batteries with a low self-discharge rate are also
recommended.
Important: accumulator batteries must be recharged outside of the device.

12
2.5 Activate connection between web box and scale
The distance between the web box and the scale should not exceed
20 cm during activation.
Push the button on the back of the scale to start activation.
Activation was successful if [ ] is displayed.
However, if the scale displays E8, activation failed.
2.6 Messages
Problem Cause Solution
LAN and WAN LED are
dark Error in power supply Check the web box power supply connection
LAN and WAN LED are
flashing
Web box does not
communicate with the
router
1) Check the router power supply connection
2) Check the connection between web box and router
LAN LED lights up,
WAN LED flashes
Network is okay
but the web box does not
communicate with the
network
1) If the DHCP function was activated on the router:
push reset key on web box to reset to factory settings.
2) If the DHCP function was not activated on the
router: follow chapter 2.
LAN and WAN LED light
up. Data transmission
was successful but data
is not displayed in the
personal account
No user selected Please set up user, see chapter 2.8
Data cannot be allocated
automatically to a user
Please follow the steps in chapter 3 to allocate data to
a user.

13

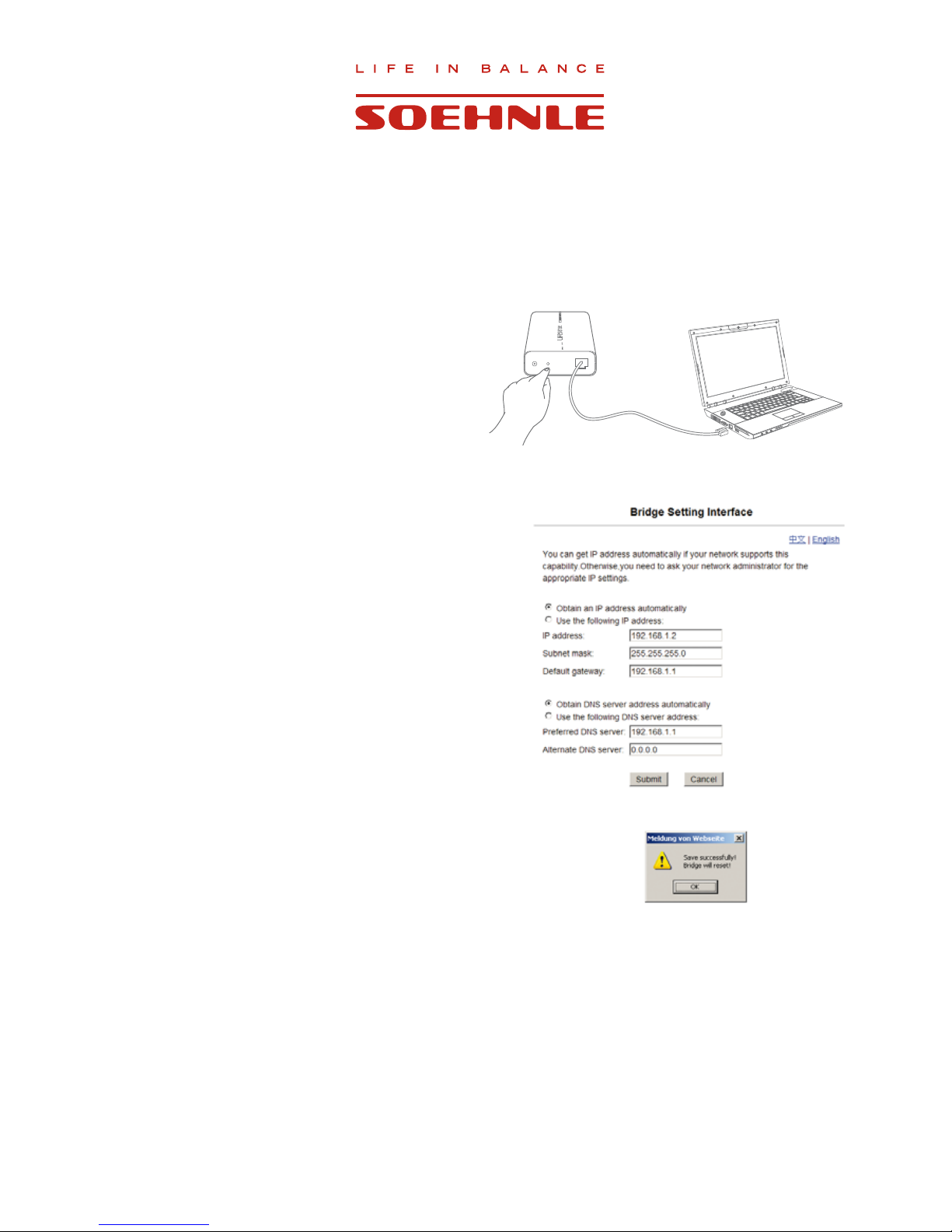

&RQ¿JXUH,3VHWWLQJPDQXDOO\
,QUDUHFDVHVLWPLJKWEHQHFHVVDU\WRFRQ¿JXUH,3DGGUHVVHV
manually. This might be the case if the DHCP* function is
deactivated on the router. If this is the case, please continue as
follows:
1. The web box must be switched on (both LEDs are
ÀDVKLQJ
2. Push the reset key and hold it for approx. 5 seconds.
Both LEDs will light up simultaneously.
 :KHQERWK/('VEHJLQWRÀDVKUHOHDVHWKHNH\
3. Then connect web box and PC using the network cable.
4. Access the network connections via Start => Control panel =>
Network connections.
5. Click on LAN connection (for WIN95 use right mouse button)
and select settings.
6. Next to internet protocol, mark (TCP/IP) and select settings.
7. You now have the choice to obtain the IP address automatically
RUWRFRQ¿JXUHLWPDQXDOO\
Select ”Use following IP address” and enter the following
IP address: 192.168.1.5 Subnet mask: 255.255.255.0 and
FRQ¿UP
8. Now enter the following information into your browser:
http://192.168.1.2/
The adjacent input screen will appear and must contain this
LQIRUPDWLRQSUHFLVHO\&KDQJHLIUHTXLUHGDQGWKHQFRQ¿UP
9. The web box can now be connected via the router (chapter 2.3).
 7KH'\QDPLF+RVW&RQ¿JXUDWLRQ3URWRFRO'+&3SURYLGHVD
IUDPHZRUNIRUSDVVLQJFRQ¿JXUDWLRQLQIRUPDWLRQWRKRVWVRQD
TCP/IP network.

14
2.8 Setting up the user account
1. Visit the website “my.soehnle.com/new”
2. Select the desired language.
3. Go to ”Registration” and enter your user name and your
personal email address.
Note: The scale can be used by up to 8 persons. Each
user must have its own email address.
4. Continue with ”Send”.
5. You will now receive an email with your user name and
password.
Note: You can see your personal data at any time in
your login area.
6. Select ”Start” and enter your user name and password.
Continue with ”Login”.
7. Enter the ID number of the web box (bridge) and the
VFDOH<RXZLOO¿QGWKHVHRQWKHERWWRPRIWKHUHVSHFWLYH
product.
Note: Please note that for synchronization, scale and
web box must be ready for operation and an internet
connection must be established (WAN and LAN LED
light up).
Start synchronization.
 6WHSRQWRWKHVFDOHZLWKLQWKHQH[W¿YHPLQXWHVZLWK
bare feet and if possible undressed, and stand still until
the display goes out.
9. If your weight is being displayed in ”My Soehnle”,
SOHDVHFRQ¿UPXVLQJ´<HV´
10. Personal data will be entered next (chapter 2.8.1)

15
2.9 Entering personal data
0RUHSHUVRQDOGDWDPXVWEHHQWHUHGWR¿QLVKVHWWLQJXSWKHXVHUDFFRXQW
This data is absolutely necessary for interpretation of the measurement
data.
1. Select language
2. Enter gender
3. Enter the name with which you would like to be addressed
4. Set up birthdate
5. Enter body height
6. Select activity level
7. Select desired unit of measurement for display (kg - lb -st).
8. Enter target weight.
9. The user name can be changed here
10. If the password is to be changed, this can be entered here.
11. Email address can be changed here
&RQ¿UPHQWULHVZLWK´6DYH´
Note: Personal data can be changed anytime.
It is also possibly to completely delete the account.
Use ”Logout” to log out.

16
3. Body analysis
A body analysis is only possible with bare feet. Personal data must have been entered beforehand.
For concise results, please step onto the platform without any clothing and under the same conditions
(time, food consumption, etc.).
Note: an internet connection must be available if the data is to be transmitted to your personal account. Only the
weight will be displayed if no internet connection is available. The measured data will not be saved.
1. Step onto platform.
2. The weight will be displayed.
Stand still while the body analysis is being performed and during data transmission.
The data will be automatically allocated to your personal account.
Note
In rare cases, an automatic allocation to one account is not possible.
The user must then be allocated manually.
The user will receive a note in its personal account that data cannot be allocated to a
user.
Have the list displayed to you and accept the data into your account or tap on ”Ignore”.
The data will then remain available for another user.

17
4. The personal account
4.1 The main menu
1. Go to my.soehnle.com, enter your user name and your password and tap
on ”Login”.
2. You will be in the main menu.
The values that were determined last and the difference to your desired
weight will be displayed.
Links to the other information pages are available here:
- Diagram display
- Table display
 0\SUR¿OHVHHFKDSWHU
4.2 Diagram display
Select the period for review and the parameter to be displayed.
Body weight
Body fat content
Body water content
Muscle mass
Use ”Filter data” to individually adjust the period for review and the parame-
ters to be displayed.

18
4.3 Tabular display
Go to ”Table”.
Select the period for review (week, month, 6 months, year, or customized
via ”Filter data”) for which the values are to be displayed.
If you tap on next to an individual value, you can edit this data or
add a comment.
Use ”Add data manually” to add weight values and comments without using
the scale.
5. Feedback
8VH´0\SUR¿OHIHHGEDFN´WRVHQGXVUHPDUNVUHJDUGLQJWKLVSURJUDPRUWKH
product.
6. Deleting Account
8VH³0\SUR¿OHGHOHWHDFFRXQW´WRGHOHWH\RXUSHUVRQDODFFRXQW
All data will be irretrievably deleted after a security query and the
FRUUHVSRQGLQJFRQ¿UPDWLRQ

19
7. Messages
Problem Cause Solution
No display
No batteries or batteries are
empty Insert or replace batteries
Batteries inserted incorrectly Insert batteries correctly
Display while
the product is
being activated or
synchronized
1. Radio communication is
interrupted
2. Distance between scale and
web box is too great during
activation
Activate the product again with a
distance of 20 cm between scale
and web box.
Network error Check the network connection
The product has not been
synchronized
Synchronize the product (see
chapter 2.8)
Display while the
product is being used
Broadband error
:$1/('ÀDVKHV Check the internet connection
Weak batteries Replace batteries
1. The connection between
scale and web box has been
interrupted
2. The scale is outside of the
radio range
Bring the scale back to the radio
range of the web box.
Interrupt the power supply of the
web box for 30 seconds.
Your measurement results cannot
be transmitted due to a network
error
Check the network connection
Overload display Load scale with max. 150 kg.
BIA is
not being
displayed
The user is not standing on the
scale with bare feet Step onto scale with bare feet
Last measured data is not being
displayed in the personal account
The measured data cannot be
allocated to a user.
Go to your personal account and
accept the data (see chapter 3.0)
Broadband error
:$1/('ÀDVKHV Check the internet connection

20
7HFKQLFDOVSHFL¿FDWLRQV
Web Box
- Radio frequency: 434 MHz
- Power supply unit: Model: BLJ5W050100P-V
Input: 100-240V~50/60Hz, 150mA
Output: 5V ᄍ1000mA
Scale
- Load capacity x graduation = max 150 kg x 100 g / max 330 lb / 0.2 lb
- Display precision: Body fat content: 0.1%
Body water content: 0.1%
Muscle mass: 0.1%
- Body height: 100-250 cm
- Age: 17-99 years
- 8 memory slots for individual persons
- Measurement current: < 0.1 mA RMS, 50/5 kHz
- Radio frequency: 434 MHz
- Batteries: 4 x 1.5 V AAA batteries included in the scope of delivery.
As an alternative to regular alkaline batteries, NiMh accumulator batteries with a low self-discharge rate are also
recommended.
Important
Accumulator batteries must be recharged outside of the device.
