Sola 610 User manual

SOLA 610
0.7, 1, 1.5, 2 & 3kVA
50/60HzSinglePhase
UninterruptiblePowerSystem
AbpCompany
Installationand
OperationManual
Savetheseinstructions!
This manual contains important instructions that should
be followed during installation and maintenance of the UPS.
Conservercesinstructions!
Cette notice contient des instructions importantes
concernant la securite!
The Answer in Power Protection
Ref: 610MANUAL
Rev 4 Issued:Feb 98

The Answer in Power Protection
SAVE THESE INSTRUCTIONS
THIS MANUAL CONTAINS IMPORTANT INSTRUCTIONS FOR YOUR UPS
WARNING!
This unit has an internal battery and is capable of
generating dangerous voltages. Do not open the unit by
removing the outer case. Please read SAFETY
WARNINGS on Pages v and vi.
The unit can generate power even when disconnected
from the utility supply. Ensure you read this manual
carefully and are aware of the correct operating
parameters.
How to talk to us
If you have any problem, a question, or require any information on SOLA’s extensive
range of UPS and power protection equipment, this is where to contact us.
SOLA Australia Ltd
13 Healey Road
Dandenong, Victoria 3175
Australia
Telephone: [phone]
Fax: [phone]
Service: 1800 034 401 Free Call (callers outside Melbourne)
9768 3105 (Melbourne metro callers)
SOLA Home Page Address .... www.solaaust.com.au
SOLAAustralia Ltd
Customer Service Offices
Adelaide Brisbane Melbourne Perth Sydney
(08-8347 3622 (07-3891 1211 (03-9706 5662 (08-9478 3511 (02-9949 6000
Fax: [phone] Fax: [phone] Fax: [phone] Fax: [phone] Fax: [phone]

The Answer in Power Protection
SOLA 610 UPS General Information
1.1 Table of Contents
i
Page Number
1. General Information
1.1 Table of Contents ..................................................................... i
1.2 Notice to UPS owners............................................................... ii
1.3 Preface..................................................................................... iii
1.4 FCC & Dept. of Communications Notice.................................... iv
1.5 Safety Notice and Warnings ...................................................... v
2. Installation
2.1 Introduction and product description.......................................... 1
2.2 Sizing the load .......................................................................... 1
2.3 Types of loads .......................................................................... 2

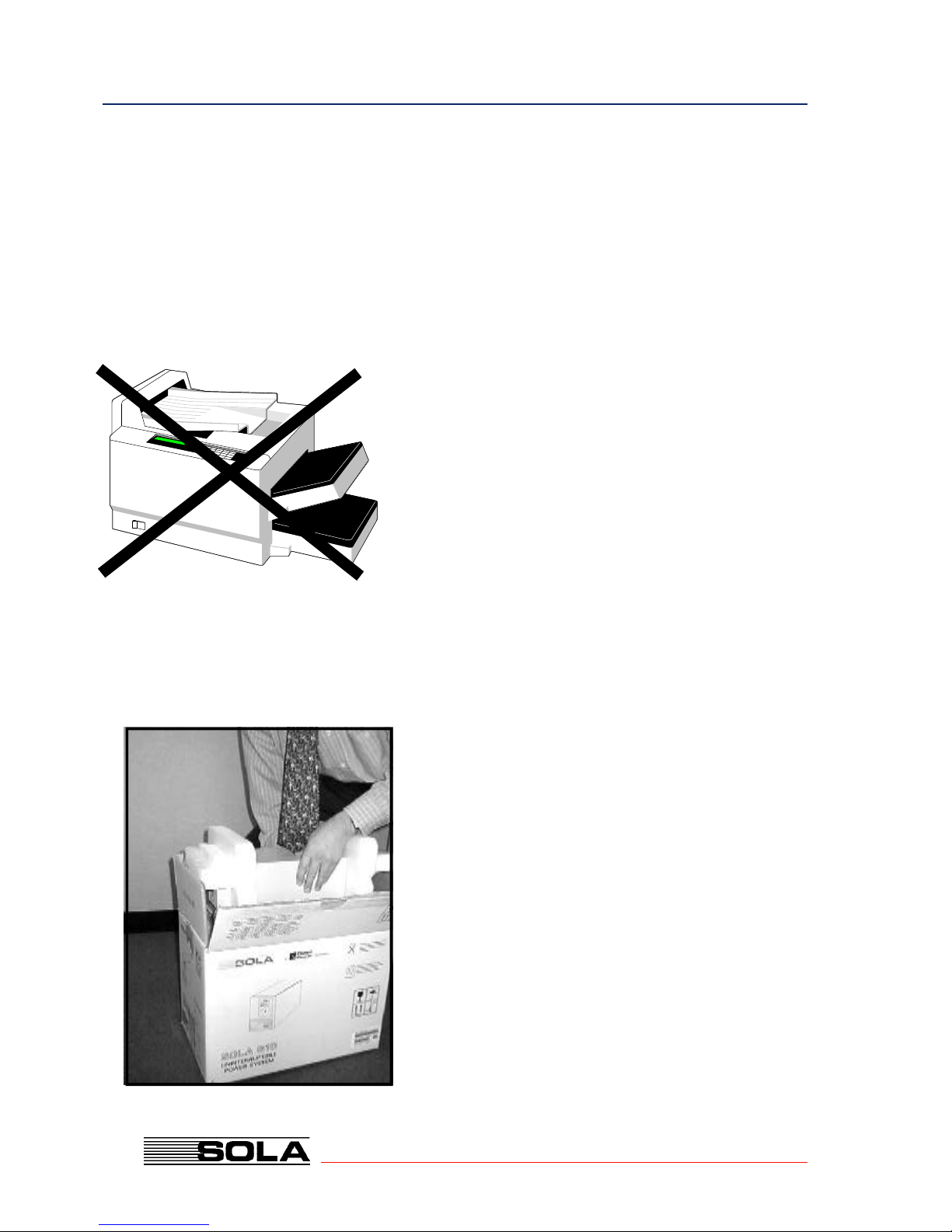

2.4 Laser Printers and your UPS..................................................... 2
2.5 Unpacking your UPS ................................................................ 2
2.6 UPS locations ........................................................................... 3
2.7 Recharging the UPS battery...................................................... 4
2.8 External Battery connection ...................................................... 4

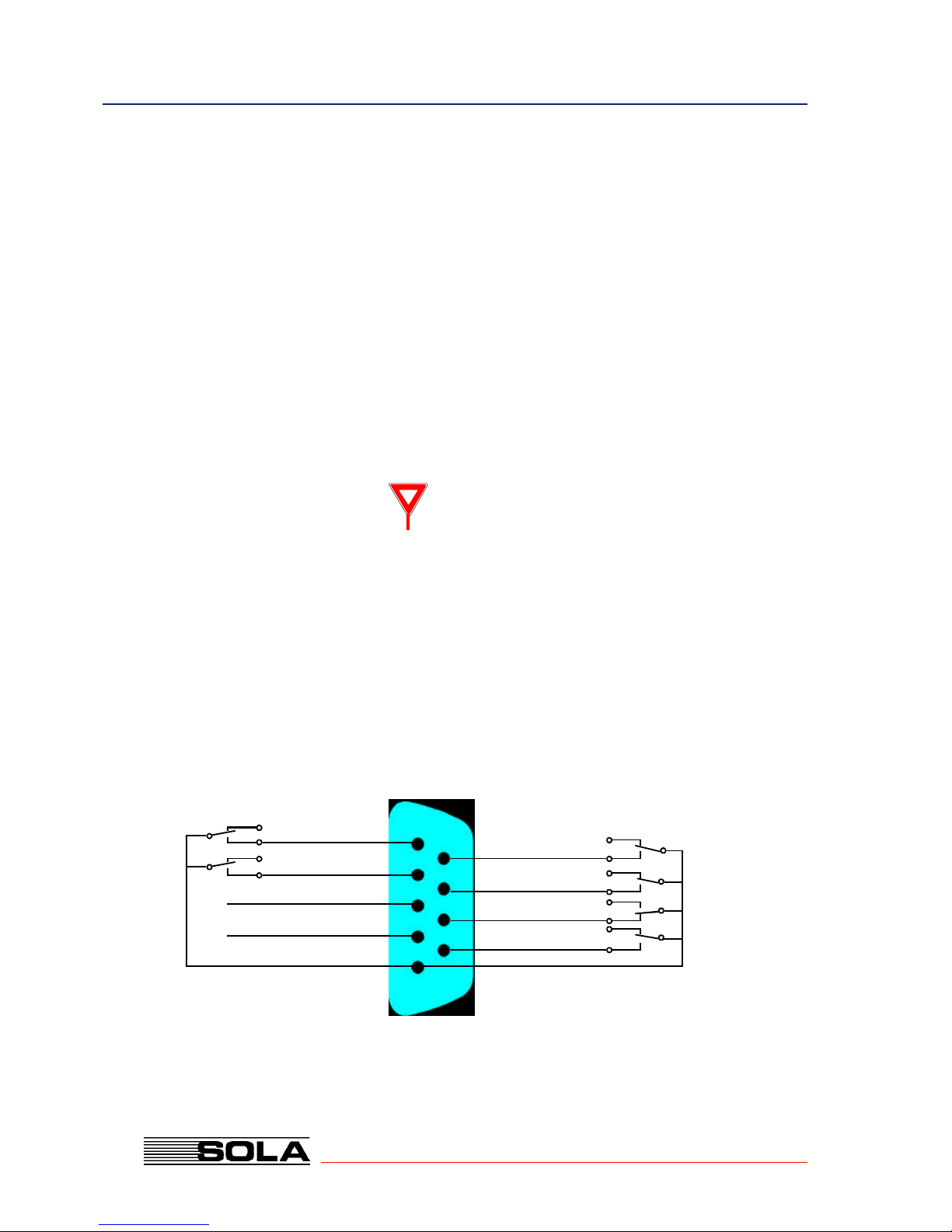

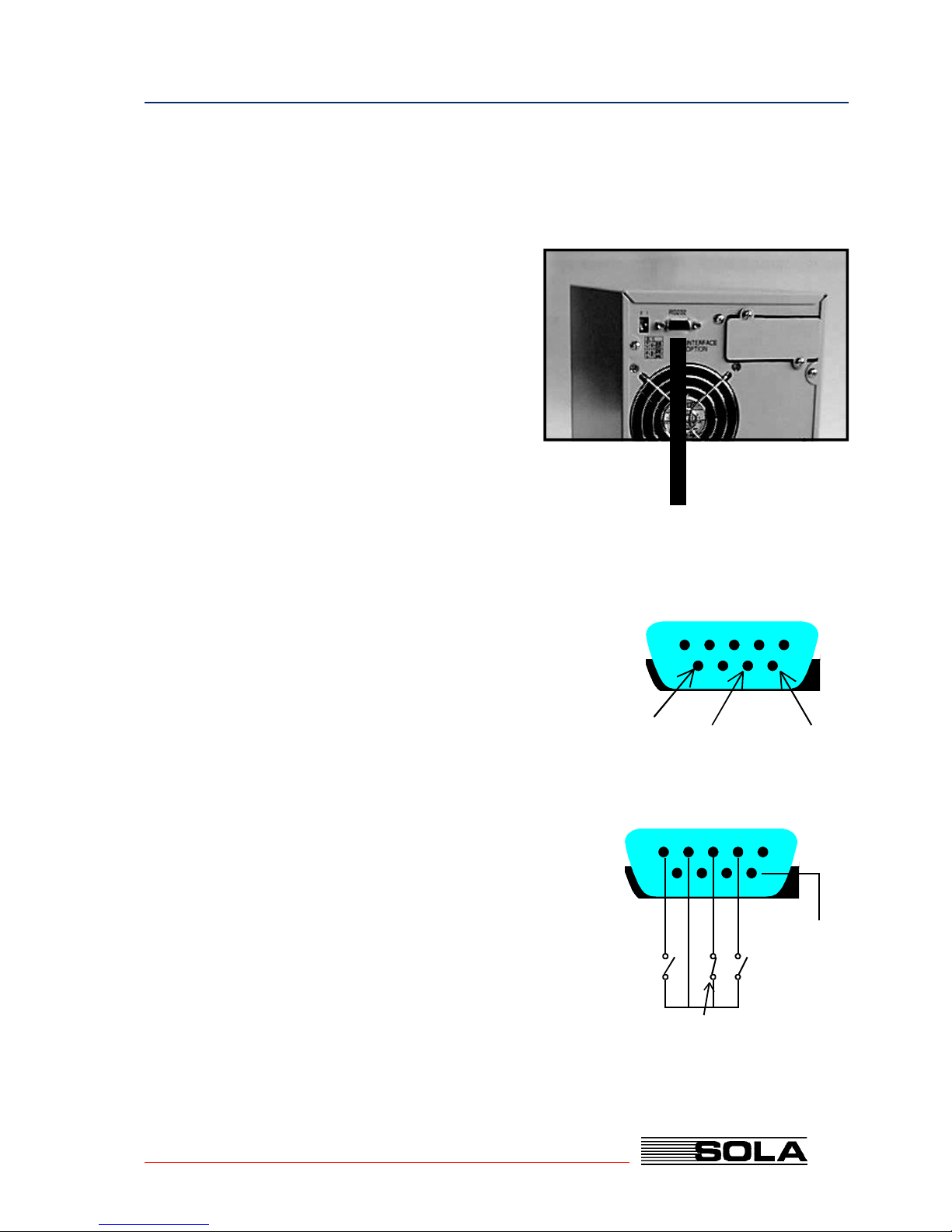

2.9 Setting up the UPS monitoring from your computer ................... 5
3. UPS Operation
3.1 Switching on the UPS ............................................................... 6
3.2 When the power fails ................................................................ 6
3.3 When the power returns............................................................ 7

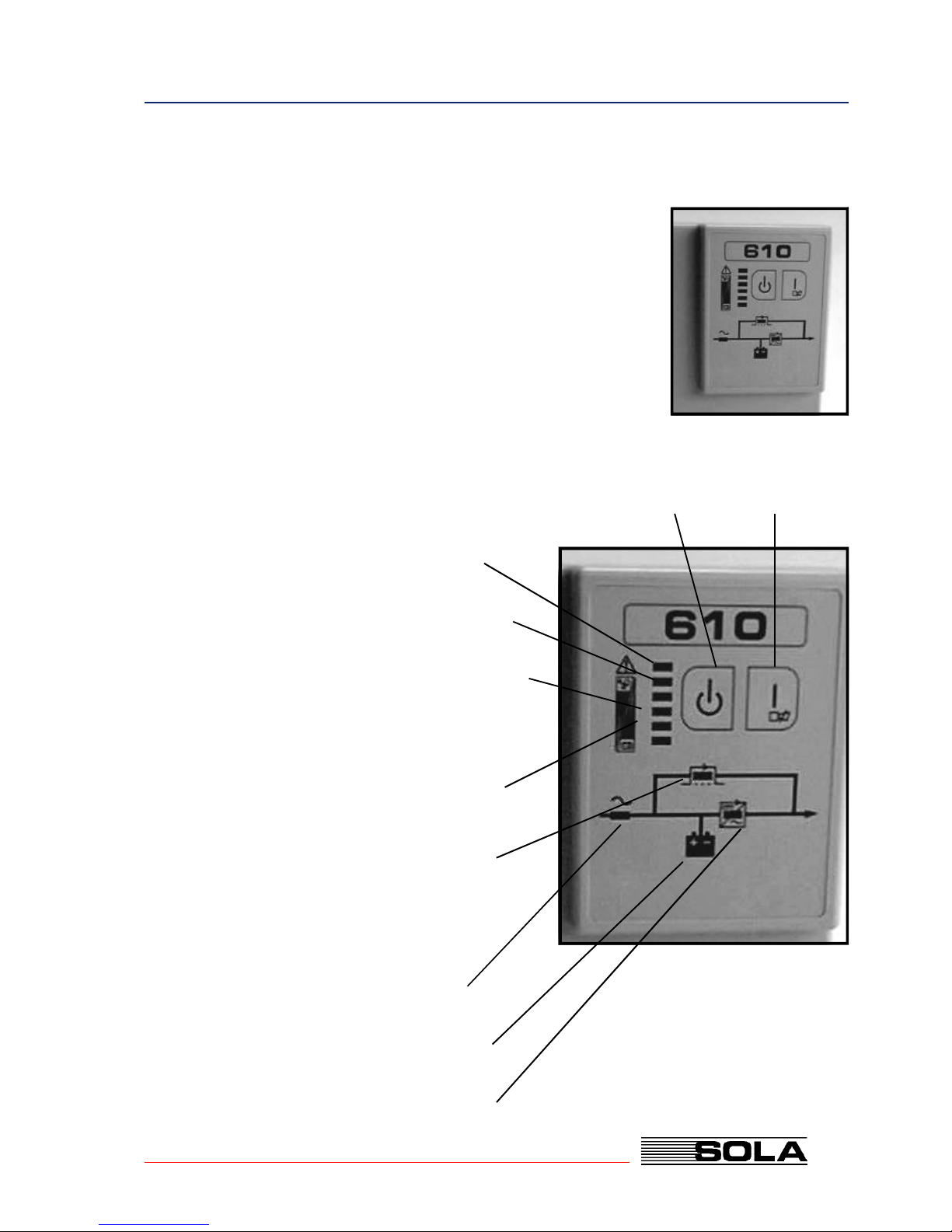

3.4 Front panel indicators ............................................................... 7
4. Optional Features
4.1 Internal Battery Data ................................................................. 8
4.2 External Battery Options ........................................................... 9
4.3 Installing and Operating CheckUPS II® ..................................... 11
4.4 Installation and Operation of the AS400® card option ................ 11
4.5 Installation and operation of the SNMP Card option ................... 13
5. Maintenance and Warranty
5.1 Storage .................................................................................... 14
5.2 Maintenance and Cleaning........................................................ 14
5.3 Trouble shooting ....................................................................... 15
5.4 Model specifications ................................................................. 16
5.5 Warranty .................................................................................. 18
5.6 Serviceinstruction andservice locations ................................... 19

The Answer in Power Protection
SOLA 610 UPS General Information
1.2 Notice to UPS Owners
ii
Thank you for choosing a SOLA product, your answer in power
protection. Over many years SOLA has built a reputation by
designing and manufacturing top quality, reliable power quality
products. Your SOLA unit is designed for trouble-free operation
in a normal commercial environment.
In the unlikely event that your SOLA does need repair, please
refer to Section 5.6 of this manual. Should you wish to upgrade
the service guarantee to the premier FASTFIX exchange
service, or extend your warranty beyond the initial two years,
please contact your local SOLA office.
We encourage you to read this manual carefully in order to get
full benefit from the features built into your SOLA product. It is
recommended that you register your purchase by completing
the warranty registration card at the back of this manual..
WARNING!
This unit has an internal battery
and is capable of generating
dangerous voltages. Do not open
the unit by removing the outer
case. Please read the SAFETY
WARNINGS on pages v and vi.

The Answer in Power Protection
SOLA 610 UPS General Information
1.3 Preface
SOLA makes no warranty of any kind with regard to this
document, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose. SOLA shall
not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing,
performance, or use of this material.
This document contains proprietary information which is
protected by copyright. All rights are reserved. No part of this
document may be photographed, reproduced or translated to
another language without the prior written consent of SOLA.
This manual contains technical information about the following
SOLAUPSsystems@
iii
Rating VAModel No. Part No. Input/Output
Voltage Frequency (autoselecting) Socket type
7000610-0700A S610-0700-A000-00240V50/60 Hz Australian
10000610-1000A S610-1000-A000-00240V50/60 Hz Australian
15000610-1500A S610-1500-A000-00240V50/60 Hz Australian
20000610-2000A S610-2000-A000-00240V50/60 Hz Australian
30000610-3000A S610-3000-A000-00240V50/60 Hz Australian

The Answer in Power Protection
SOLA 610 UPS General Information
1.4 FCC&Departmentof CommunicationsNotice
iv
FCC NOTICE
This equipment generates and uses radio frequency energy; and, if installed in a residential
environment, may cause interference to radio and television reception. It has been type tested
and found to comply with the limits for a Class A/B* digital device, pursuant to part 15 of the
FCC rules. These limits provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Should the unit be installed
in a residential environment, it is the user's responsibility to remedy potential television and/or
radio interference. The following FCC booklet may be helpful in resolving interference:
How to Identify and Resolve Radio-TV Interference Problems (Stock Number 004-00-
00345-4)
This booklet is available from the U.S. Government Printing Office, Washington, DC 20402.
DEPARTMENT OF COMMUNICATIONS NOTICE
This digital apparatus does not exceed the Class A/B* limits for radio noise emissions from
digital apparatus as set out in the Radio Interference Regulations of the Canadian Department
of Communication.
AVIS DU MINISTERE DES COMMUNICATIONS
Les emissions de bruit radioelectrique produites par ce dispositif numerique respectant les
normes de Classe A/B* afferentes aux dispositifs numeriques enoncees dans le Reglement
relatif au brouiliage radioelectrique du Ministere Canadien des Communications.
The products meet the above as follows:
1. FCC Part 15 Class A for 700VA, 1000VA, 2000VA, 3000VA, 120V version.
2. EN50082-1/EN55022 Class B for 700VA, 1000VA, 2000VA, 3000VA 230V version.
3. Requirements for fixation of C-Tick 240V logo in Australia.

The Answer in Power Protection
SOLA 610 UPS General Information
1.5 SafetyNoticeandWarnings
Important! Please read this before installing your UPS.
Warnings, Cautions and Notes appear throughout this manual. Please familiarise yourself with them
as they are essential for your safety and will enable you to maximise longevity of your UPS.
!
?
WARNING
Denotes a procedure or practice, which, if not performed correctly or adhered to,
may result in personal injury. Do not proceed beyond a Warning sign until the
indicated conditions are fully understood and met.
CAUTION
Denotes a procedure or practice, which, if not performed correctly or adhered to,
may result in damage to equipment. Do not proceed beyond a Caution sign until
the indicated conditions are fully understood and met.
Note
Denotes an essential procedure or practice.
v
SafetyWarnings
1. SERIOUS INJURY CAN OCCUR IF THE UNIT ENCLOSURE IS OPENED BY
UNQUALIFIED PERSONNEL. THERE ARE NO USER-SERVICEABLE PARTS
INSIDE THE UPS.
2. This unit is capable of supplying AC voltage even if there is no input present. Although
the System On/Off Switch on the front of the UPS is protected from accidental
actuation, be careful the unit does not become unintentionally enabled.
3. The SOLA 610 is not authorised for use as a critical component in life support devices
without the express written approval of the President of Best Power, as used herein:
a. Life support devices are devices or systems which sustain life, and whose failure
to perform can be reasonably expected to result in a significant injury to the
user.
b. A critical component is any component of a life support device or system whose
failure to perform can be reasonably expected to cause the failure of life support
or the system, or to affect its safety or effectiveness.
4. The SOLA 610 is a physically small package. Do not install the unit in a high traffic
area where people could trip on the unit, or its cables or cords.
5. Do not place objects or stack other equipment on top of the unit.

The Answer in Power Protection
SOLA 610 UPS General Information
1.5 SafetyNoticesandWarnings(cont.)
vi
Safety Warnings (cont.)
6. The SOLA 610 is intended for indoor use only.
7. Do not install the unit next to open windows where uncontrolled environmental
conditions could affect the unit.
8. Avoid plugging the unit into a wall outlet controlled by a switch. If the outlet is
controlled by a switch, cover or protect the switch from being accidentally turned
off. The wall switch will not turn off the UPS; instead the UPS may draw energy
from its battery and continue to supply output voltage. This may result in a loss
of backup protection until the battery is recharged.
9. A BATTERY CAN PRESENT A RISK OF ELECTRICAL SHOCK AND/OR
BURN FROM HIGH SHORT-CIRCUIT CURRENT. OBSERVE PROPER
PRECAUTIONS.
UNE BATTERIE PEUT PRÉSENTER UN RISQUE DE CHOC ÉLECTRIQUE,
DE BRÛLURE PAR TRANSFER D'ÉNERGIE. SUIVRE LES PRÉCAUTIONS
QUI S'IMPOSENT.
10. PROPER DISPOSAL OF BATTERIES IS REQUIRED. REFER TO YOUR
LOCAL CODES FOR DISPOSAL REQUIREMENTS.
L'ÉLIMINATION DES BATTERIES EST RÈGLEMENTÉE. CONSULTER LES
CODE LOCAUX À CET EFFET.
11. The input cord is the main disconnect.
Der Netzkabel is der Netztrennung.
12. The unit must be installed near the equipment to be powered and the socket-
outlet must be easily accessible.
Die Steckdose soll nahe des Geraetes eingebaut werden und leichter Zugang
haben.
13. No user-serviceable parts inside.
Kein gebrauche Zugang noetig.
14. Battery replacement by qualified service personnel only.
Batterieaustauch nur vom qualifizierten Wartungspersonal durchgefuehrt
werden.

The Answer in Power Protection
SOLA 610 UPS Installation
Electrical equipment is often rated in VA (volt-amps). This
represents the rated voltage times the rated current, i.e. 230
Volts x 2 Amp = 460VA.
Check your equipment for the manufacturer’s label. This label
should state the equipment’s desired operating voltage (V) and
current (A) drawn by the equipment. The manufacturer’s label is
usually found on the external rear or underside of the equipment,
or in the handbook or operator’s manual.
Most computers and their related components are rated at
"worst case", with all of the expansion slots or bays fully loaded
at low line voltage, so your actual load is probably less than the
load indicated by the manufacturer.
2.1 IntroductionandProduct Description
2.2 Sizing your Load
An Uninterruptible Power System is designed to connect between
your utility supply wall outlet or distribution board
and your critical load. Its function is to continually
monitor the availability and quality of the electrical
supply and to recreate the mains voltage to remain
within the UPS specifications, as detailed for each
model.
Your SOLA 610 is an advanced true on-line sine
wave UPS with bypass line, utilising double
conversion technology.
The utility power enters the UPS where it is
rectified to a DC voltage which will float charge the
battery as well as run the DC to AC inverter. The
inverter generates the true sine wave output,
recreating the utility supply voltage. A bypass path
is provided through a transfer switch, should the
UPS become overloaded or an inverter fault occur.
Because the UPS is an on-line design, conditioned power is provided
continuously to your load. During an electrical power failure, the unit
employs its internal maintenance free battery to supply continuous
power for as long as the battery is capable. The UPS autonomy after
a power failure will depend on (a) the size of the UPS and the load of
your equipment (b) the size of the battery used (either the standard
internal battery or external battery pack options), and (c) the state of
the battery and battery charge when the power failure occurs.
Batteries have a finite life that can be affected by excessive use and/
or high ambient temperatures. Under normal operation, you should
expect a 3-5 year life from your UPS battery.
1

The Answer in Power Protection
SOLA 610 UPS Installation
The SOLA 610 UPS is designed to power all modern computer
equipment “loads”. The UPS output is specifically designed to
work with switching power supplies found in today's
microprocessor-based equipment.
SOLA does not recommend protecting laser printers
with this UPS. Laser printers have a heating cycle
which provides adhesion of the toner to the paper.
This heating cycle draws large amounts of electrical
current and will overload your UPS.
Most laser printers are not mission critical and can
therefore be protected with a power conditioner rather
than a UPS. Just be sure that the power conditioner
you purchase can accommodate the high inrush
currents of a laser printer. If your printer is mission-
critical and you want to protect it with a UPS, the UPS
must be sized to accommodate the high peak current
surge of the printer.
Although the packaging for your SOLA 610 was designed
specifically for this unit and serves it well in protecting the unit
from damage, you should unpack the unit immediately
and check for signs of concealed damage that may
have occurred in transit. Concealed damage is damage
that may not be apparent by the outside appearance of
the packaging.
In case of damage, please notify the delivering carrier
at once to examine the goods, regardless of the
external condition of the boxes. Under U.S. Shipping
Regulations, damage claims must be collected by the
consignee. Once your claim is established, damaged
merchandise may be returned for repair (see Page 33
for Return Policy). Do not return shipping-damaged
merchandise until after your claim has been
established with the carrier.
Do not destroy packing material or boxes until the
carrier's agent has examined them. Save all
packaging materials in case reshipment of the UPS
is required. Any damage sustained in transit when
shipped from the user, especially in an incorrect
container, will not be covered under warranty.
2.3 Types of Loads
2.4 Laser Printers and your UPS
2.5 Unpacking your UPS
2

The Answer in Power Protection
SOLA 610 UPS Installation
Your UPS should be in a controlled environment. A controlled
environment is one that is indoor, temperature-controlled and free of
conductive or semi-conductive contaminants.The SOLA 610 is
intended for indoor use only. There should be adequate ventilation and
the location should be free of dust and fumes. Do not install the unit next
to open windows where uncontrolled environmental conditions could
affect the unit. Do not install the unit in any type of enclosure without first
calling SOLA Technical Support. The unit must have unrestricted air flow.
CAUTION
The environmental specifications shown in Table 1
(below) show the temperature and humidity limits of
the UPS. Do not exceed these limits.
2.6 UPSLocations
ENVIRONMENTALSPECIFICATIONS
Ambient Operating < 1500 m 0oC to 40oC (32oF to 104oF)
Temperature 1500 - 3000 m 10oC to 35oC
Ambient Storage All Models: -15oC to 40oC (5oF to 104oF)
Humidity All Models: 20% to 95%, non condensing
Altitude All Models: 8,000 feet (2500M) max.
To optimise the performance of your UPS we
recommend you ensure the battery is fully charged
before you use the UPS to support your critical load.
To recharge the battery, place the UPS close to a wall
outlet and connect the matching line cord to the UPS
receptacle then plug it into the wall socket. For units
that have hardwired connections, have your electrical
contractor install the UPS wiring.
When power is supplied to the UPS (without operating
any front panel switches), the UPS will go through a
short test sequence, and the cooling fan will start.
On the front panel the line indicator and the
bypass indicator will illuminate. At this time there
is power available at the output sockets.
Table 1
2.7 RechargingtheUPSBattery
!
3

The Answer in Power Protection
SOLA 610 UPS Installation
Note
The battery backup feature of the UPS is
not available in this mode. See 3.1
“Switching on the UPS” to enable the
battery backup mode.
In this mode, (and normal UPS operating mode) recharging
occurs automatically and will take 10 hours if the batteries are
completely discharged. As UPS units are normally delivered with
charged batteries, providing the UPS has not been in storage for
a long time, it will not take long for the battery to reach full
capacity.
CAUTION
IN ALL CONDITIONS, if the UPS is connected
to a live supply, AC POWER IS PRESENT AT
THE UPS RECEPTACLES (or output terminals)
The front panel OFF/ON does NOT control the
delivery of power to the output receptacles.
All units, excluding the 700VA model, can be fitted
with an external battery option to increase the
autonomy when the UPS is operating during a mains
failure. Refer Section 4.1 for selection of external
battery options for your specific UPS.
On the rear of each of the UPS units 1-3kVA capacity
you will find an external battery receptacle. If you
have purchased an external battery option, it will be
supplied with an interconnecting cable to connect into
this receptacle. Use only the matching battery option
for your UPS rating. Using the incorrect battery option
may cause damage to your UPS system. Once
connected, your UPS will maintain the charge in the
external battery providing the utility mains is available.
!
?
2.8 ExternalBatteryConnection
2.7 RechargingtheUPSBattery(cont.)
External Battery Connector
4

The Answer in Power Protection
SOLA 610 UPS Installation
Your UPS is fitted with a DB9 communications
connector on the rear panel. From this connector,
you can access opto coupled outputs indicating
mains failure or low battery.
Alternatively, RS232 serial communications is
available. This RS232 provides a proprietary
command sequence for the computer to monitor the
utility and the UPS status and to control the UPS
output. The data format of the RS232 is 2400bps, 8
bit data, 1 stop bit and no parity.
The battery test mode is also available through the RS232
command sequence whilst the UPS is operating and the
power is normal. During the test, the 4 LED’s (line, bypass,
battery and inverter) will light alternatively until the test is
completed.
Each UPS is supplied with a package of CHECKUPS II®
Advanced UPS communications software. This package
includes the correct interconnection cable for your SOLA 610
UPS. If your computer does not have a DB9 connector on
the serial port, use a standard DB9-DB25 adaptor, available
at most computer accessory stores. The CD-ROM provided
with your UPS includes software for many standard operating
systems and detailed manuals in Adobe Acrobat format. All
utilities required to read and/or print the manuals are included
on the CD-ROM. Refer to section 4.2 & 4.3 for more details
of CheckUPS II® and it’s capabilities.
If you have purchased an AS400® card option, this will be
installed in the communications slot. Be careful to connect
your AS400® interface cable to the correct DB9 connector.
Refer to Section 4.4 for more details of the AS400® card
option.
If you have purchased an SNMP option card, this will be
fitted into the communications slot. Only one (1) card, either
AS40® or SNMP can be fitted into the slot at any one time.
Refer Section 4.5 for more details of the SNMP Card option.
2.9 Settingup theUPS Monitoring fromyour Computer
DB9
5
12345
6789
RS232 Pin Assignment
GND RX
12345
6789
Remote
Shutdown
SeeNote1
N/O,closes
onLow
Battery
N/C,closes
onInput
Powerfailure
N/O,closes
onInput
Powerfailure
TX
Note 1
Remoteshutdown whenin
batterymode only(i.e.noinput
mainspower).
Keepingthispin high(+5~+12V)
for500mswillturn off the UPS
inverterwhen noinputmains
present.

The Answer in Power Protection
SOLA 610 UPS Operation
Inverter
After completing the installation and battery
recharge, switch on the UPS by pressing the front
panel switch ‘I’. The unit will now commence a
system check sequence before establishing it’s
own inverter power.
Firstly, all the Load Level LEDs will illuminate
together then one by one. Within a few seconds the
Inverter indicator will illuminate, indicating the
inverter has now started and the bypass indicator
will extinguish indicating that the UPS is now in
normal mode.
120V Models only - If during the test sequence the
Line indicator flashes instead of remaining
constant, you have a wiring fault and the line and
neutral conductors are reversed.
If the Line indicator flashes and the battery
indicator illuminates at the same time, your
incoming utility AC source voltage and/or frequency
is out of the UPS specification. The UPS is drawing
energy from the batteries.
You may now start the critical equipment that you
connected to the UPS. If the load level indicator
exceeds 100% and the audible alarm sounds twice
per second, you have plugged too many items into
the UPS and overloaded it. Remove the non critical
items and check the load level indicators.
When the utility AC source fails, the UPS will
continue to deliver output to the UPS receptacle
from the internal or external batteries and the UPS
inverter. When this occurs, an audible alarm will
sound every 4 seconds and the “line” indicator will
extinguish. The battery indicator will be illuminated
to show that the battery is now being discharged.
The audible alarm can be silenced by pressing the
“I” push button on the front panel. If the battery
continues to discharge until the low battery charge
point is reached, the audible alarm will sound
again. At any time, the audible alarm can be
reactivated by pressing the “on” switch on the front
panel.
3.1 Switching on the UPS
3.2 When the Power Fails
}
Fault Overload
Line
Bypass
Load Level
and Runtime
lights
Battery
Inverter
Battery
6
OFF
Switch
ON
Switch

The Answer in Power Protection
SOLA 610 UPS Operation
3. 4 Front Panel Indicators
When the utility AC Line returns after a power failure, the Line
indicatorwill illuminate again,the audible alarm will silenceand
the UPS will automatically commence the recharging of the
battery. The battery indicator will go out and the UPS will return
tonormal operation.
Your SOLA 610 UPS is fitted with 10 indicators to provide you
with a simple but comprehensive explanation of the UPS status,
The function of these LED indicators are detailed below:-
3.3 When the Power Returns
}
Fault
Overload
Line
Bypass
Runtime
7
This will illuminate when a fault condition
occurs in the UPS. At this time the
audible alarm will sound continuously.
This will illuminate when the UPS is
overloaded.
These perform two functions during different
operating modes of the UPS. When utility AC
mains is present, these will show the
equipment load connect as a percentage of
the UPS capacity in 25% increments.
When the UPS is in battery mode, these
lights will show the amount of battery
capacity remaining as a percentage of the
full battery capacity in 25% increments.
This light illuminates when the bypass line is
in use and the UPS power is being sourced
directly from the utility AC supply. When
starting the UPS the bypass line will always
be in service with the light illuminated until
the inverter has started and accepted the
load.
This light will illuminate when there is normal
AC voltage entering the UPS from the utility
supply.
This light illuminates during mains failure,
showing that the battery is discharging.
This inverter light should be on during
normal (utility available) or mains failure
mode. When OFF, the UPS cannot provide
battery backup power.
Load Level
Battery
Inverter
OFF
Switch ON Switch

The Answer in Power Protection
SOLA 610 UPS Optional Features
8
700VA1000VA1500VA2000VA3000VA
DC Float Voltage27.4V41.1V55.2V110.4V110.4V
Nominal DC Bus Voltage24V36V48V96V96V
Battery Rating7.0AH
12V DC7.0AH 12V DC7.0AH 12 VDC7.0AH 12V DC7.0AH 12V DC
No. Batteries2 3 4 8 8
Discharge Time @ Full
Load (pf = 0.7)> 6 min> 6 min> 5 min> 12 min> 6 min
Recharge Time to 90%8 hours minimum
Cut Off Voltage20V DC30V DC40V DC80V DC80V DC
4.1 InternalBatteryData

The Answer in Power Protection
SOLA 610 UPS Optional Features
External battery packs may be connected to the SOLA 610
1kVA, 1.5kVA, 2kVA and 3kVA models to give extended
autonomy during power failure.
The standard battery packs available are listed below:
4.2ExternalBatteryOptions
*Runtimes are approximate and depend on state of charge
of batteries at time of power failure, ambient temperature,
connected load, age of battery, etc.
Larger runtimes are available on request.
Battery Packs to suit UPS Model - 0610-1000A (1000VA)
Part Number * Runtime with UPS and additional Battery Pack
Half Load Full Load
0610-1BAT-1000 41 18
0610-2BAT-1000 68 28
0610-3BAT-1000 170 80
0610-4BAT-1000 230 110
0610-5BAT-1000 305 150
Battery Packs to suit UPS Model - 0610-1500A (1500VA)
Part Number * Runtime with UPS and additional Battery Pack
Half Load Full Load
0610-1BAT-1500 35 16
0610-2BAT-1500 60 25
0610-3BAT-1500 150 72
0610-4BAT-1500 210 100
0610-5BAT-1500 270 135
Battery Packs to suit UPS Model - 0610-2000A (2000VA)
Part Number * Runtime with UPS and additional Battery Pack
Half Load Full Load
0610-1BAT-2000 60 25
0610-2BAT-2000 88 40
0610-3BAT-2000 225 115
0610-4BAT-2000 305 150
0610-5BAT-2000 400 195
0610-6BAT-2000 450 225
Battery Packs to suit UPS Model - 0610-3000A (3000VA)
Part Number * Runtime with UPS and additional Battery Pack
Half Load Full Load
0610-1BAT-3000 35 16
0610-2BAT-3000 60 25
0610-3BAT-3000 150 70
0610-4BAT-3000 210 100
0610-5BAT-3000 270 135
0610-6BAT-3000 310 150
9

The Answer in Power Protection
SOLA 610 UPS Optional Features
This page intentionally left blank
10

The Answer in Power Protection
SOLA 610 UPS Optional Features
4.3 Installingand Operating CheckUPSII®
You may wish to have additional output alarms or interface with
an IBM AS400® unit. In this situation, you will need to purchase
an additional alarm card option (Part No. 0610-AS400) which
will install in the communications slot on the rear of the UPS.
The AS400® card option is fitted with two (2) connectors, one
DB9 female and one ES 2 pin. The output available from these
connectors is as follows:-
Output 1 (DB9 female connector)
4.4 Installation and Operationof the AS400®card option
Pin. No.Signal NameDefinition I/O Comments
1UPS FailNormally open, Active will closeORelay contact
2Summary AlarmNormally open, Active will close.
Active when UPS fails, bypass
activated, Utility input failure and
low battery status
ORelay contact
3Remote Shutdown (-)Ground
4Remote Shutdown (+)Activated by +5~12V for 1 sec
duration I
5CommonCommon connection for Pins
1,2,6,7,8 & 9Relay common
6BypassNormally open. Will close when
UPS is in Bypass Mode.ORelay contact
7Battery low Normally open. Will close when
battery is almost fully discharged. ORelay contact
8UPS - ONNormally open. Will close when
UPS is on. ORelay contact
9Utility Line Failure Normally open. Will close when the
AC input fails. ORelay contact
11
YourUPSissuppliedwithaCD-ROMand
communicationscabletoinstallandoperateCheckUPS
II®.
ToinstallCheckUPSII ® onyourcomputer,followthe
installationenclosedwiththeCD-ROM.

The Answer in Power Protection
SOLA 610 UPS Optional Features
To install the AS 400® card complete the following :-
1. Shutdown the UPS, turn the UPS OFF and remove the
input line cord from the wall socket. If the UPS is hard
wired, isolate the UPS at the supply point and make safe.
CAUTION : Even with the UPS switched off
dangerous voltages may still be present at
the UPS or its outlets.
2. Remove the communications slot cover on the rear of the
UPS by removing the two retaining screws. Slide the
AS400® card option into the slot and secure it with
supplied screws.
3. Store the communications slot cover plate for
reinstallation should the AS400® card option be removed
and decommissioned in the future.
4. The AS400® card will now be operational when the UPS
is turned on and returned to service.
Output 2 (ES 2 Pin connector)
4.4 Installation and Operationof the AS400®card
option(cont.)
!
12
A plug with link is supplied with the AS400® card option. This
plug must be installed for normal operation. If this plug is
removed, the load will be transferred to bypass.
The plug is removed only in applications where an external
maintenance bypass switch is used (refer to instructions
provided with the optional external maintenance bypass switch).
1
2
3
4
5
6
7
8
9
Remote Shutdown -
Remote Shutdown +
Summary Alarm
UPS Fail Bypass Active
Battery Low
UPS ON
Utility Fail
