Sola UPS 325 User manual

USER GUIDE
ups 325
400 VA, 750 VA and 1000 VA
ACompany

Important Notice
The UPS ground (earth) conductor carries leakage current from the loads in addition to any
leakage current generated by the UPS. This UPS generates no more than 1 mA of current. To
limit the total leakage current to 3.5 mA, the load leakage must be limited to 2.5 mA. The
three-wire receptacle that you plug the UPS into must have a good (low-impedance) ground
(protective earth) connection to provide a safe path for leakage current.

u p s 325
®
400 VA, 750 VA and 1000 VA
User Guide
STM-0302B
© Copyright 1999, Best Power. All rights reserved.

SOLA Never Stops Innovating
ups325
If You Have a Question
Customer Support
If you have a question or problem, Table 4, Troubleshooting, may help. If you need
more help, please have your UPS model number and serial number (on the back
label) nearby, and call the SOLA office nearest you (see the SOLA Offices
Section).SOLA’s service technicians have in-depth knowledge of the UPS and power
problems.
SOLA may request that you return the UPS. If this happens, we will give you a
Return Authorization (RA) number. When you return a SOLA 325 to the factory
for any reason, please use the original packing material in which your unit was
shipped to you. You may be responsible for repair charges for shipping damaged
units which are not packed in SOLA packing material.If you have discarded the
original packing material, please call the nearest SOLA office so that we can send
new packing material to you. If you have any questions, please feel free to call or fax
the nearest SOLA office. Please do not return your SOLA 325 without calling SOLA.
SOLA will advise you where to ship your SOLA325.

1
SOLA Never Stops Innovating
ups325
Table of Contents
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
UPS Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Quick Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Installing CheckUPSII Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Symbols, LEDs and Audible Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Replacing the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Battery Replacement Instructions – 400VA Model . . . . . . . . . . . . . . . . . . . . . . . .10
Battery Replacement Instructions – 750VA and 1000VA Models . . . . . . . . . . . . .11
Communication Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Appendix A: Adjusting Voltage Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
SOLA Australia Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Trademarks
Windows is a registered trademark of Microsoft Corporation.
All other brand and product names are trademarks or registered trademarks of their respective
holders.

2
SOLA Never Stops Innovating
ups 325
Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS!
SAVE THESE INSTRUCTIONS!
This User Guide contains important instructions for your SOLA 325 that must be followed
during installation and maintenance of the UPS and batteries.
The installation and use of this product must comply with all national, federal, state, municipal or
local codes that apply. For assistance, call SOLA Service or your local SOLA office.
If the SOLA 325 unit has been damaged during shipment, call your vendor immediately.
If the SOLA 325 unit is stored, the batteries should be recharged every 6 months. If stored
above 25 °Celsius, recharge the batteries more often.
CAUTION!
Whenever the unit’s On/Off switch is “On,” there may be dangerous voltage present at the
unit’s outlets. This is because the unit’s battery supplies power even if the unit is not plugged
into the wall outlet. The unit contains dangerous voltages.
To reduce the risk of electric shock, install in a temperature-controlled and humidity-
controlled indoor area free of conductive contaminants.
The power supply cord is intended to serve as the disconnect device. The socket-outlet shall
be near the equipment and shall be easily accessible.
All servicing of this equipment must be performed by qualified service personnel.
Before maintenance or repair, all connections must be removed. Before maintenance, repair,
or shipment, the unit must be completely switched off and unplugged or disconnected.

3
SOLA Never Stops Innovating
ups325
UPS Features
The SOLA 325 provides protection against power problems, including power outages, brownouts
and sudden increases in power. It also provides spike suppression and line noise
filtering to protect your equipment. Front panel LEDs and an audible alarm keep you aware of
the unit’s status. Use the drawings below to identify features of the unit.
Controls and Indicators
Line/Buck-boost
400VA Model
Battery Mode
% Load or Battery Charge
(see page 6)
Alarm/Program Button
On/Standby Button
Front and Side Views Back Views
Network Surge
Protection
DB9
Communication
Port
Output
Receptacles (2)
Input Connector
Fuse
750VA and 1000VA Models
Network Surge
Protection
DB9
Communication
Port
Output
Receptacles (4)
Input Connector
Circuit Breaker

4
SOLA Never Stops Innovating
ups 325
Quick Startup
1If your SOLA 325 UPS has a removable power cord, connect the power cord to the back of the unit. Plug the UPS into a wall outlet. Even if the UPS is turned off, the battery charger
will operate when input power is applied to the UPS.
2Let the unit charge the battery for at least 8 hours. You may use the unit while the battery charges, but the battery backup runtime will be reduced until the battery is fully charged.
3Note: The On/Off button must be pressed and held for about one second to turn the SOLA 325 unit on or off. To start the unit, press and hold the On/Off button (the bottom button on
the front panel). When the unit starts, it will beep, then light all of the front panel lights for a
moment, and then light them one at a time. Next, the UPS will do a battery test. While it
does this test, the battery light , and other lights are on that indicate the amount of charge in
the battery. After the battery test, the top green light should remain on.
If the unit beeps, or if the top light does not remain on even though input power is available
from the wall outlet, go to the Troubleshooting section.
4Switch off the equipment you want to protect, and plug it into the outlets on the back of the SOLA 325.
5Switch on the protected equipment, one at a time. If the UPS beeps an alarm when you start your equipment, the UPS may be overloaded. See the Troubleshooting section.
The bottom four lights on the front of the UPS show the % of the UPS’s power that your
equipment is using. See Symbols, LEDs and Audible Alarms Section for more information.
6The Surge Protection jacks will protect network equipment that uses an RJ-45 connection. Plug the 10BASE-T network connection into the
surge protection jack labeled “IN” on the back of the SOLA 325. Plug
the protected equipment into the surge protection jack labeled “OUT.”
Network cabling is not provided. This connection is optional. It is not
needed to use the SOLA 325.
7Please fill out the warranty registration card and return it to your local SOLA office.
RJ-45

5
SOLA Never Stops Innovating
ups 325
Installing CheckUPS II Software
Your UPS is supplied with a CD-ROM and communications cable to install and operate
CheckUPS II.
To install CheckUPS II on your computer, follow the installation instructions enclosed with the
CD-ROM.

6
SOLA Never Stops Innovating
ups 325
Table 2: Symbols and LEDs
Symbols and LEDs What It Means
Steady: Acceptable input power is present. The unit is
running on line power.
Off: No input power is present or the unit is switched off.
The unit is running on battery power.
Output Overload: Refer to Tables 3 and 4.
Replace the battery or UPS Fault. Refer to Tables 3 and 4
Blinking: The unit is boosting or bucking utility power.
Boost = Automatically increases low input power to prevent
the unit from switching to battery.
Buck = Automatically decreases high input power to prevent
the unit from switching to battery.
AC LINE
(Green)
LINE CORRECTION
(Green)
BATTERY MODE
(Yellow)
OVERLOAD
(Yellow)
WARNING
(Yellow)
Symbols, LEDs and Audible Alarms
The front panel LEDs and an audible alarm indicate the unit status. The unit beeps whenever the
unit is on battery power or an alarm is present. See Table 3 for information on beep coding.
In the figure below, bucking means that SOLA 325 is reducing high input voltage, and boosting
means SOLA 325 is increasing low input voltage.
A
B
C
D
Steady: SOLA 325 is operating on AC line.
Steady: SOLA 325 is operating on batteries.
AC Line Operation:
A, B, C and D indicate
percent of full load.
A, B, C & D with D flashing,
load = 110% or higher.
A, B, C & D = 75 - 100%
A, B & C = 50 -75%
A & B = 25 - 50%
A = 0 - 25%
Battery Operation:
A, B, C and D indicate
battery charge.
A, B, C & D = 75 - 100%.
B, C & D = 50 - 75%
C & D = 25 - 50%
D = 0 - 25%; when D is
flashing, less than 2 minutes
of runtime remain.
Blinking: SOLA 325 is bucking or
boosting input AC line.
Blinking = ALARM Condition
C = UPS shutdown due to output overload time-out
B = UPS failed the battery test
B & C = UPS shutdown due to command from
cummunication (RS232, remote shutdown
or External SNMP)
A & B = UPS shutdown due to main relay failure or
short circuit on output
A = UPS Fault (overcharge)

7
SOLA Never Stops Innovating
ups 325
Table 3: Audible Alarms
Number of Beeps What It Means
1 every 5 seconds Line Loss: The unit is on battery power. See Table 4 for more information.
2 every 5 seconds Low Battery Alarm: The unit was running on battery power and shut down due to very low battery voltage. The unit will restart automatically when acceptable
power returns.
Continuous 1) Output Short Circuit
2) Starting Fault: Input voltage out of range when unit is turned on.
Continuous UPS Fault: UPS internal failure
1 beep every second
3 every 5 minutes
3 every 5 minutes
Output Overload: Too much load equipment.
Battery Undercharged: While on line operation, low battery voltage indicates
that the battery will provide minimal backup time.
Replace the Battery: The battery needs to be replaced. See “Replacing the Bat-
teries” on page 10.
To silence an alarm, press the alarm silence button on the front panel (see Page 3 for the location
of this button). The beep will stop, but the alarm light will stay on. Note: Silencing the alarm
does not solve the problem that caused it. See Tables 3 and 4.
If your SOLA 325 runs on batteries frequently because the input utility line varies often, you may
want to adjust your SOLA 325 to accept wider voltage variations before switching to batteries.
Appendix A describes how to adjust the SOLA 325 from the front panel in response to specific
utility power problems. You should have an electrician check your nominal line voltage and
determine if the problem is due to a “Surge” (high) voltage or “Brownout” (low) voltage.
Changing the setting without this knowledge could make the problem worse.

8
SOLA Never Stops Innovating
ups325
Troubleshooting
If you have a question or problem, the troubleshooting table may help. (See Table 4.) If you need
assistance, phone SOLA Service or your local SOLA office. Please have the model number and
serial number (located on the rear of the unit) available.
If the unit must be returned, SOLA will give you a Return Authorization (RA) number. Please
phone SOLA for an RA number before returning the unit for any reason.
*If the SOLA 325 battery does not recharge after 24 hours in the 3-beeps/5-minute alarm state, the alarm
changes to 3 beeps/10 seconds, indicating the battery must be replaced.
Table 4: Troubleshooting
1. Remove load and reset UPS.
2. Phone SOLA Service.
1. Output short circuit.
2. UPS Fault
Yellow WARNINGLED on.
Continuous beep.
1. Remove load equipment.
2. Reduce load level until the beeping
stops.
The power required by the
equipment is too high.
Yellow OVERLOADLED is blinking,
one beep every second.
Plug the unit into a working wall outlet
for at least 8 hours to allow the batteries
to charge. After recharge, if the SOLA
325 will not operate on batteries, or
SOLA 325 beeps twice every 5 seconds
on batteries, phone SOLA Service.
Very low battery voltage.Yellow BATTERYLED on,
green LINELED off,
two beeps every ten seconds.
Use the unit on utility power; wait for
full recharge. The beeps automatically
stop when the battery is charged to allow
for a safe shutdown.
Battery not charged
following a power
outage.*
Green LINELED on,
Yellow WARNINGLED off,
three beeps every five minutes.
1. Wait for power to return.
2. Make sure the power cord is
connected.
3. Reset the circuit breaker.
4. Phone SOLA Service.
1. Utility power outage.
2. Loose plug.
3. Tripped circuit breaker.
4. Power cord failure.
Yellow BATTERYLED on,
green LINELED off,
one beep every ten seconds.
Turn the unit off and then on to reset
the “Replace Battery” alarm and LEDs.
Replace the battery. See “Replacing the
Batteries” on page 9.
Unit has failed the battery
test.
Green LINELED on,
Yellow WARNINGLED on,
three beeps every ten seconds.
What To DoPossible ReasonsProblem

9
SOLA Never Stops Innovating
ups 325
Replacing the Batteries
SOLA 325’s batteries are user-replaceable and can be replaced while the SOLA 325 has AC
input applied and powers the load. This means that, if necessary, you can replace the batteries
while the UPS is running. Before you replace the batteries, make sure that you read the safety
information below.
Note: If you have a power outage while you are replacing the batteries, the UPS will not be
able to run on battery power and your protected equipment will shut down.
CAUTION!
The batteries used in the UPS and battery pack can produce dangerous voltage and high
current. Therefore, the batteries may cause severe injury if their terminals contact a tool or the
UPS cabinet. Be very careful to avoid electrical shock and burns from contacting terminals
while you replace the batteries.
Batteries contain caustic acids and toxic materials and can rupture or leak if mistreated.
Remove rings and metal wristwatches or other jewelry. Do not carry metal objects in your
pockets: these objects could fall into the UPS.
Never allow any tool to contact both a battery terminal and the UPS cabinet or another
battery terminal. Do not lay tools or metal parts on top of batteries.
To ensure continued superior performance of your UPS and to maintain proper charger
operation, you must replace the UPS batteries with the same number and type of batteries.
These batteries must be the same type as the original batteries: valve-regulated, low
maintenance. The replacement batteries should have the same voltage and ampere-hour rating
as the original batteries.
Assume that old batteries are fully charged. Use the same precautions you would use when
handling a new battery. Do not short battery terminals with a cable or tool! Batteries contain
lead. Many areas have regulations about disposing of used batteries. Please dispose of old
batteries properly. DO NOT dispose of batteries in a fire because the batteries could explode.
Do not open or mutilate batteries. Released electrolyte is harmful to the skin and eyes. It may
be toxic.
This equipment may produce ozone. Take precautions to ensure that the concentration of
ozone is limited to a safe value (0.1 ppm {0.2 mg / m3} calculated as an 8-hour time-weight-
ed average).

10
SOLA Never Stops Innovating
ups 325

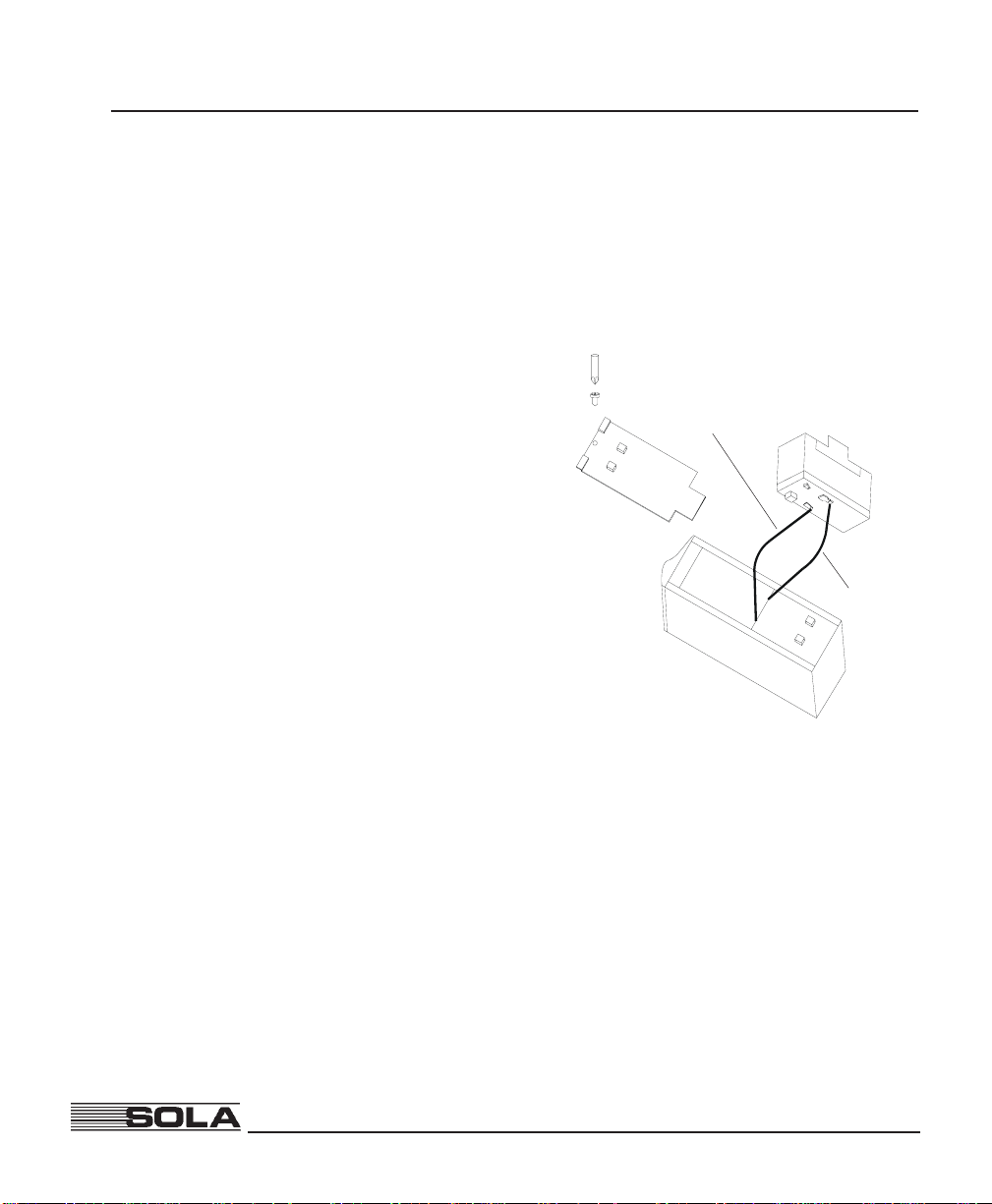

Battery Replacement Instructions - 400VA Model
1Phone SOLA Service to order a replacement battery pack. It must be the same type and rat- ing of the original batteries. See Battery information in Specifications.
2If it is necessary, the batteries may be replaced while the SOLA 325 is running with the protected equipment attached. Option: You may switch off and unplug the protected load
equipment from the SOLA 325. Then, turn off the SOLA 325 and disconnect the line cord.
3On the bottom of the SOLA 325, remove the Phillips screw at the top of the battery door and slide the door off.
4Use the flap attached to the battery to lift it out of the unit.
5Disconnect the battery cables from the old batttery. Dispose of the old
battery properly.
6Connect the battery cables to the new battery; red to positive (+), black to
negative (-). Carefully install the battery
back in to the SOLA 325.
7Slide the battery door back into place and secure with the Phillips screw
removed in step 3.
8If you followed the option in Step 2: Reconnect the line cord to the SOLA 325 unit and turn the unit on. Reconnect the load equipment. Switch on the protected load equipment
one piece at a time.
Black
Red

11
SOLA Never Stops Innovating
ups 325
Battery Replacement Instructions - 750VA and 1000VA Models
1Phone SOLA Service to order a replacement battery pack. It must be the same type and rating of the original batteries. See Battery information in Specifications.
2If it is neccessary, the batteries may be replaced while the SOLA 325 is running with the protected equipment attached. Option: You may switch off and unplug the protected load
equipment from the SOLA 325. Then, turn off the SOLA 325 and disconnect the line cord.
3Grab the bottom of the front cover and carefully remove it from the unit by pulling up and away from the unit. Place the front cover, with the LED panel and ribbon cable attached, on
top of the unit so it is out of your way
while replacing the batteries.
4Remove the two screws from the interior panel to gain access to the batteries.
5Disconnect the red and black cables from the used battery pack.
6Use the tabs attached to the batteries to remove the batteries from the SOLA 325.
7Slide the new batteries into the unit. Recon- nect the cables to the new battery pack; red
to positive (+), black to negative (-).
8Position the battery cables so they will not be pinched by the interior panel. Install the panel and the screws.
Carefully snap the front cover, with the attached LED panel and ribbon cable, back onto the
unit. Dispose of old batteries properly
9If you followed the option in step 2: Reconnect the line cord to the SOLA 325 and turn the unit on. Reconnect the load equipment. Switch on the protected load equipment one piece at
a time.
Red
Black

12
SOLA Never Stops Innovating
ups 325
Communication Port
The SOLA 325 is plug-and-play compatible with Windows 95 and 98.
CheckUPS II management software is provided with the SOLA 325. An interface cable for the
following systems is also provided.
SCO UNIX/XENIX UNIX and Compatible Systems OS/2
Windows 3.X, 95 and NT Novell NetWare
Pinouts
Pin 1 RS232 Receive Data: Receives incoming RS232 communication data.
Pin 2 RS232 Transmit Data: Sends outgoing RS232 communication data.
Pin 3 Normally Open On Battery Contact: A normally open contact that closes 15 seconds
(pulls to Common) after the UPS switches to battery power.
Pin 4 Common: The signal ground for all signal pins.
Pin 5 Normally Open Low Battery Alarm Contact: A normally open contact that closes
(pulls to Common) during a Low Battery Alarm. This tells CheckUPS II and other
shutdown software when to start a computer shutdown.
Pin 6 Plug and Play Sense for Windows 95.
Pin 7 Remote Shutdown: Shorting this pin to Common for at least 5 seconds while the UPS is
operating on battery, shuts the UPS off after 120 seconds.
Pin 8 Normally Closed On Battery Contact: A normally closed contact that opens
15 seconds (releases from Common) after the UPS switches to battery power.
Pin 9 Unused.
Contacts consist of open collector circuits capable of switching up to +30 VDC at 6 mA into a
resistive load.

13
SOLA Never Stops Innovating
ups325
Specifications
Line Transient Protection:Passes ANSI/IEEE C62.41 Category A testing.
Safety Compliance:TUV/GS Listed, AS3260
EMC Compliance:CISPR 22 Class B, Vfg 243-91/46-92 B, EN55022, CE Mark Self-certified to: CE
Marking Directive 93/68/EEC, Low Voltage Directive 73/23/EEC, C-Tick, AS3548.
Noise (RF) Suppression:Full-time EMI/RFI filtering.
Efficiency:> 95% on line
Capacity VA/Watts:400VA / 250W; 750VA / 470W; 1000VA / 630W
Voltage Nominal: (A Model): 240 VAC
Voltage Range: (AModel): 0 - 300 VAC, operating on battery and buck/boost, 197 - 283 VAC without
battery discharge.
Frequency:50/60 Hz auto-sensing 57 - 63 Hz (60 Hz); 47 - 53 Hz (50 Hz) (50/60 Hz ± 0.5 Hz on battery.)
Minimum Runtime (minutes):400VA Model:Full load: 4.5 minutes. Half load: 17 minutes.
750VA Model:Full load: 4.5 minutes. Half load: 17 minutes.
1000VA Model: Full load: 4.5 minutes. Half load: 15 minutes.
Transfer Time:2-6 ms typical.
Battery:Sealed, maintenance-free, valve-regulated, UL 924 recognized.
400 VA Models:One 12 V, 9.0 AH batteries.Nominal Voltage is 12 VDC.
750 VA Models:Two 12 V 7.0/7.2 AH batteries. Nominal Voltage is 24 VDC.
1000 VA Models:Three 6 V 12.0 AH batteries. Nominal Voltage is 18 VDC.
Automatic Battery Test: Automatic battery test occurs upon startup and every 14 days thereafter. Alarm
will sound if the battery fails this test.
Battery Recharge Time (to 95% of capacity):400VA, 750VA and 1000VA: 8 hours. Recharge time is
lowered with reduced load.
Overcurrent Protection (on line):All Models: Fused and Circuit Breaker.
Input Fault Current (maximum): All Models:15A.
AC input Plug/Cord Information: 400VA: CEE 22 recessed plug
750VA: CEE 22 recessed plug
1000VA: CEE 22 recessed plug
AC Output Distribution: 400VA: two Australian 10 ampere receptacles
750VA: four Australian 10 ampere receptacles
1000VA: four Australian 10 ampere receptacles

14
SOLA Never Stops Innovating
ups325
Load Compatibility:Can support 100% power factor corrected, switch-mode power supply load.
Audible Noise:< 40 dBA at one meter
Ventilation:Air around the unit must be free of dust, chemicals, or other materials that corrode or
contaminate. Air must be free to move around the unit.
Operating Temperature:0° - 40° C.
Storage Temperature: -15° to +50° C. Battery life is reduced above 25 ° C.
If the SOLA 325 unit is stored, the batteries should be recharged every 6 months. If stored above 25°
Celsius, recharge the batteries more often.
Humidity:5% - 95% RH (non-condensing).
Altitude: 3000m (10,000 ft maximum)
Dimensions (Height x Width x Length):400 VA:155 x 100 x 363 mm
750 VA: 213 x 163 x 363 mm
1000 VA:213 x 163 x 363 mm
Weight:400: 7.5 kg,
750: 14 kg,
1000:
16 kg.
SOLAreserves the right to change specifications without prior notice.
Warranty
Warranty Information
This Warranty is subject to SOLA's standard Conditions of Sale which govern all sales of products by
SOLA Australia Ltd.
1.SOLA products, in general, are warranted against failure due to faulty materials and/or workmanship for
a period of two years from despatch date (ex SOLA store) as per invoice. The Ferroresonant and 95
Series Power Conditioners and SOLA Dry Type Transformers have an extended warranty - 5 years from
date of despatch.
2.If, within the applicable Warranty period, any SOLA product does not meet the warranty specified
above, and the product was installed and operated in accordance with Australian standards and SOLA
standard installation procedures, SOLA shall thereupon correct any defects due to faulty materials
and/or workmanship.

15
SOLA Never Stops Innovating
ups 325
3. Any modification made to the product other than those made by SOLA or its authorised representative
may cause the Warranty to be void.
4. For units up to 3kVA that are installed as a portable device, the Warranty covers repair or replacement
of defective parts at the factory, or other service locations as nominated by SOLA Australia, provided
the unit has been returned by the user packed adequately to prevent shipping damage, and approval has
been obtained from SOLA Australia Ltd before shipment. All costs associated with the return of the
product to SOLA Australia are at the customer's expense.
For hardwired products 3kVA and above, the Warranty covers on site repair (Metropolitan area, Capital
Cities only), during normal working hours, by SOLA technicians or appointed agents. For units
installed in remote locations, SOLA Australia may, at its discretion, request the equipment to be
recovered and returned to the factory or other nominated service locations. In this case, it is the
customer's responsibility to pack the equipment adequately to prevent shipping damages and pay freight
charges to the location nominated by SOLA Australia. Approval to return goods must be obtained from
SOLA Australia Ltd before the goods are despatched.
5. Units returned for in-warranty repairs, which are found not to be defective, will be subject to an
inspection and handling charge, plus transportation charges.
6. High grade batteries, designed for Uninterruptible Power Supply (UPS) applications, are supplied by
SOLA for use with SOLA UPS equipment. These batteries have a finite life expectancy depending on a
number of variables, including rate of discharge, depth of discharge, operating temperature, etc.
7. Providing that the batteries are used within the limits as set out in the battery manufacturer’s warranty
statement and are provided as an integral part of new equipment, they are guaranteed for two years,
from despatch date as per invoice. A copy of this warranty statement is available on request. Batteries
provided as spare parts or replacements have a one year warranty. Other optional warranty terms for
batteries are available on request.
8. SOLA reserves the right to charge for replacement batteries if within the one year guarantee period
replacement batteries are necessary as a result of misuse or misapplication by the purchaser or end user.

This page intentionally left blank.
