SOLARFOCUS pellettop 49/70 User manual

Operation manual for the system operator
Read carefully before operating.
DR-6011-EN / v29-201904
Pellet boiler pellettop

1 About this manual
1 About this manual 2
2 Safety information 3
3 Warranty, guarantee, liability 3
4 Product information 5
4.1 Proper use 5
4.2 Fuel 5
4.3 Product description 5
4.4 Spare parts 5
4.5 Type plate 5
4.6 CE declaration of conformity 5
4.7 Safety devices 6
4.8 Functional components 7

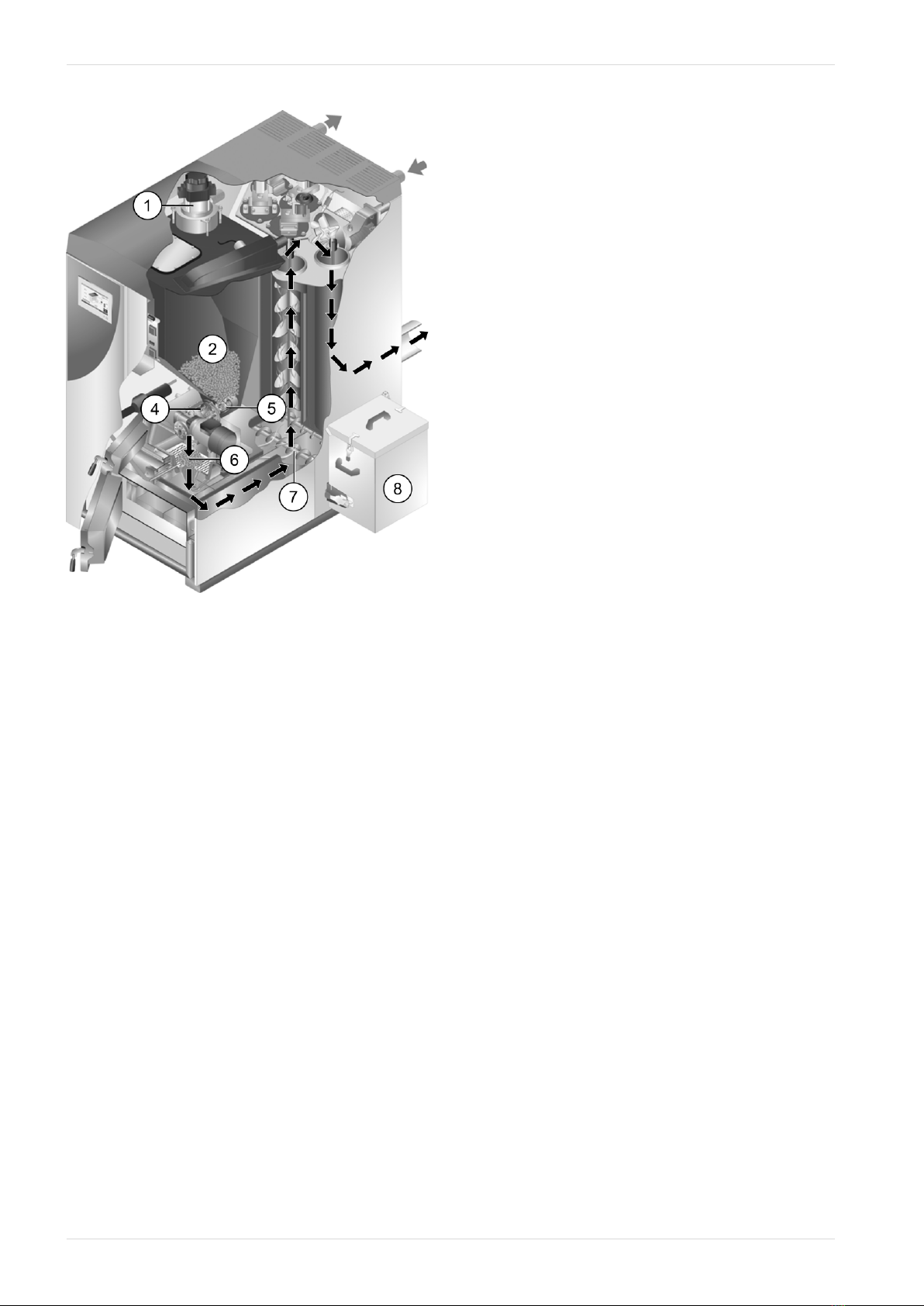

4.9 Combustion principle 8
4.10 Efficient and low-emission operation 8
4.11 Technical specifications 9

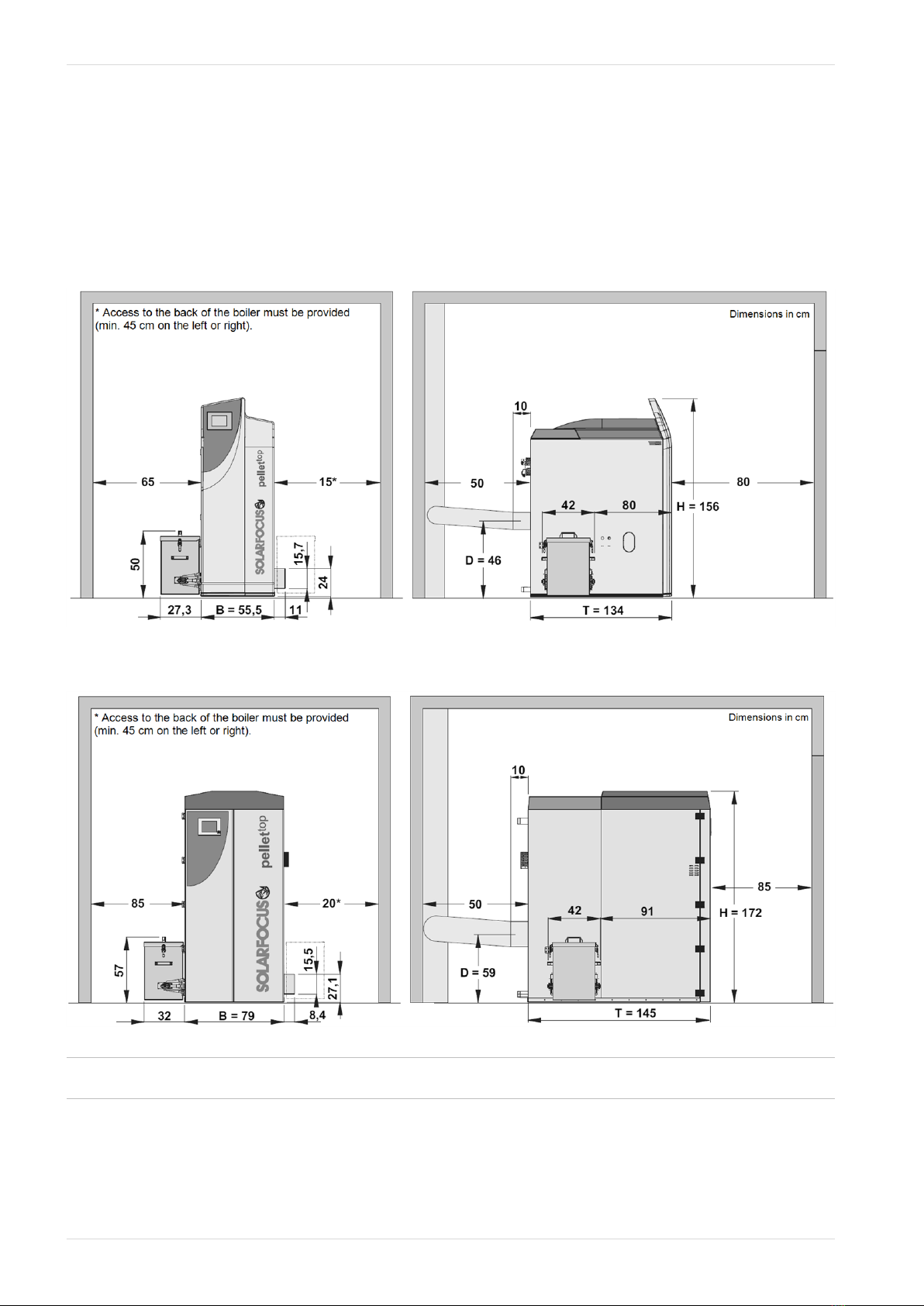

4.12 Dimensions 10
5 Use and operation 11

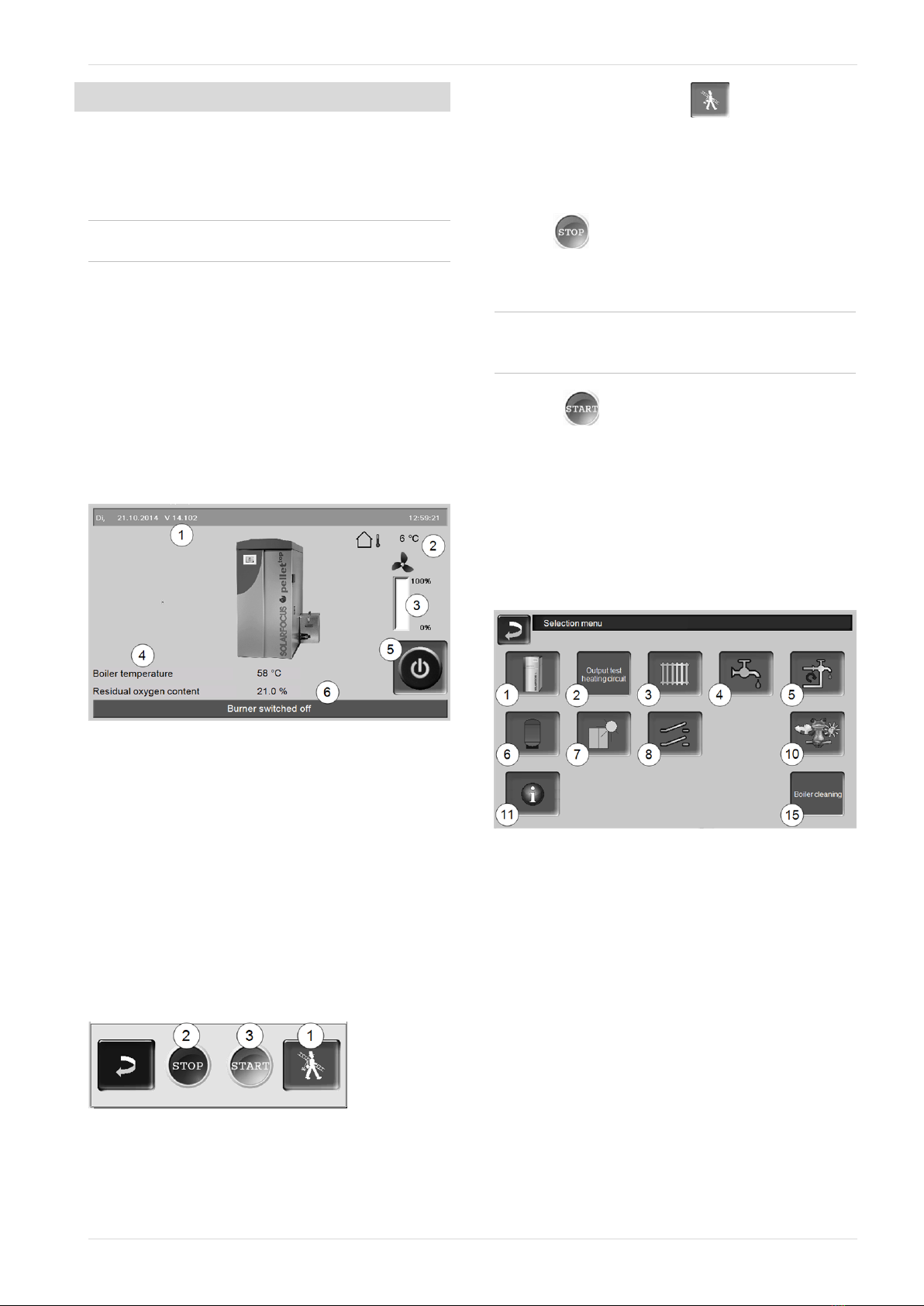

5.1 Main screen of the control unit 11
5.2 Boiler operating mode 11
5.3 Selection menu 11

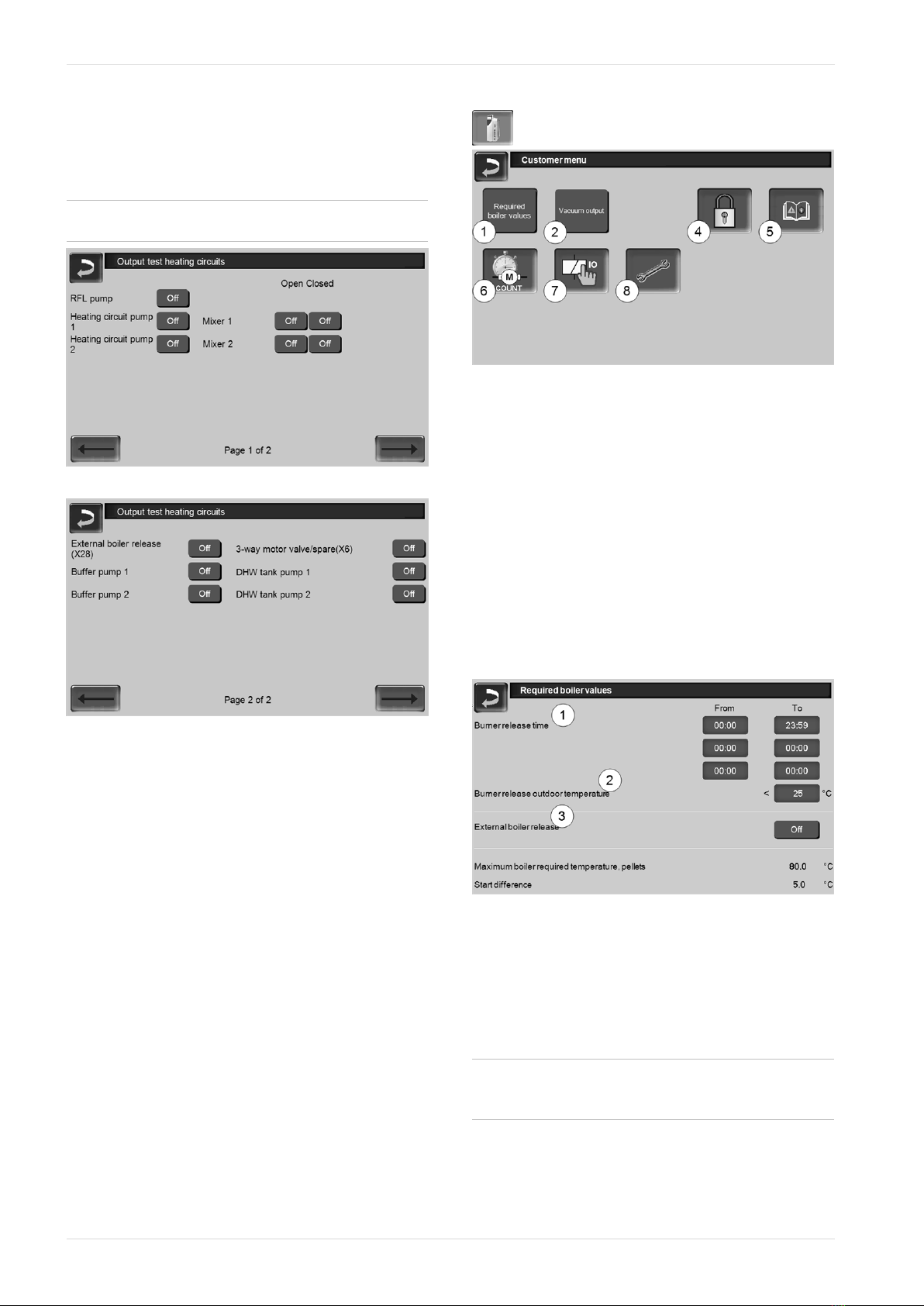

5.3.1 Heating circuit output test 12
5.4 Customer menu 12
5.4.1 Required boiler values 12
5.4.2 Vacuum output 13
5.4.3 User lock 14
5.4.4 Message log 14
5.4.5 Operating hours counter 14
5.4.6 Qualified personnel menu 15
6 Heating circuit 18

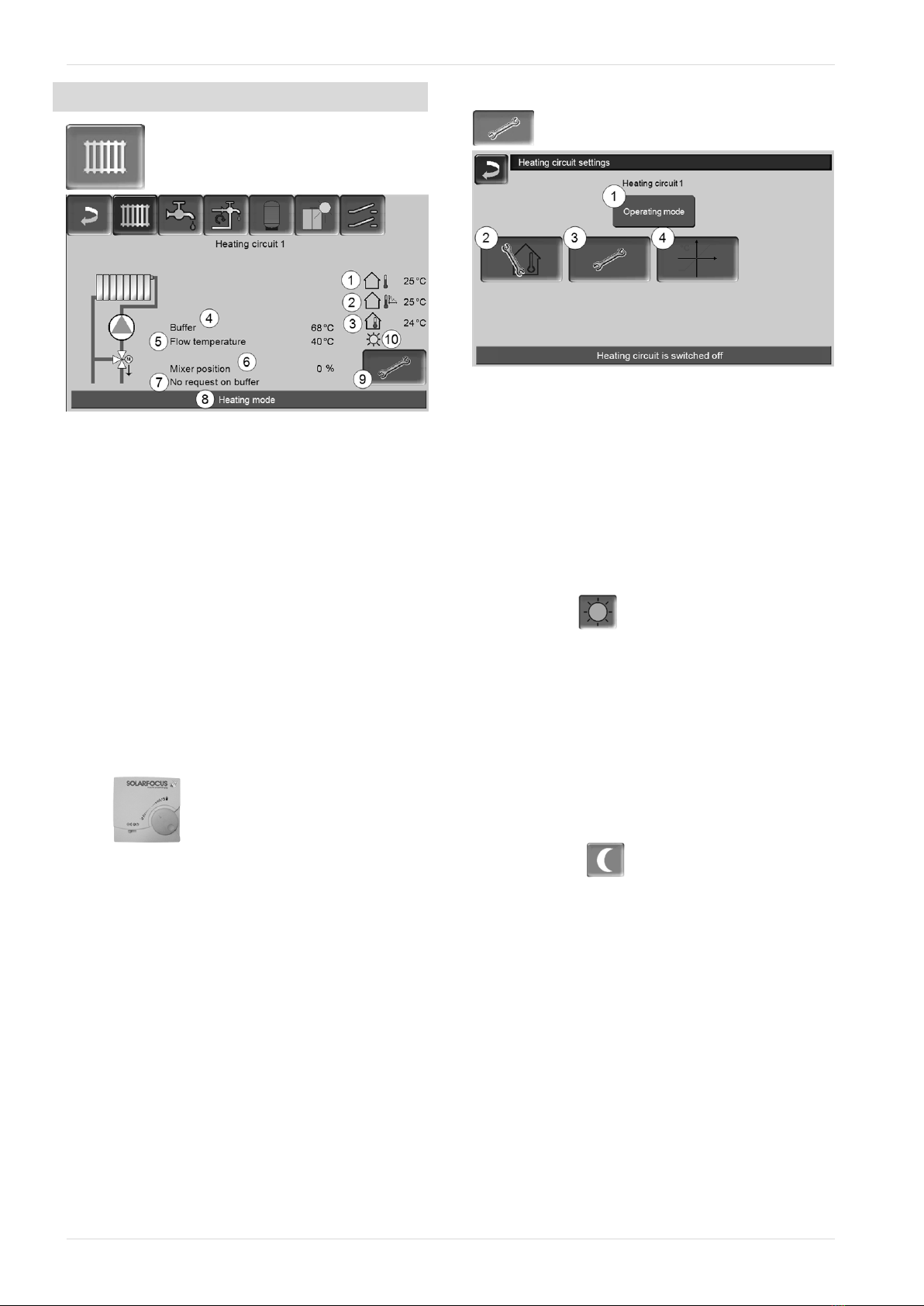

6.1 Heating circuit settings 18
6.1.1 Heating circuit operating mode 18
6.1.2 General settings 19

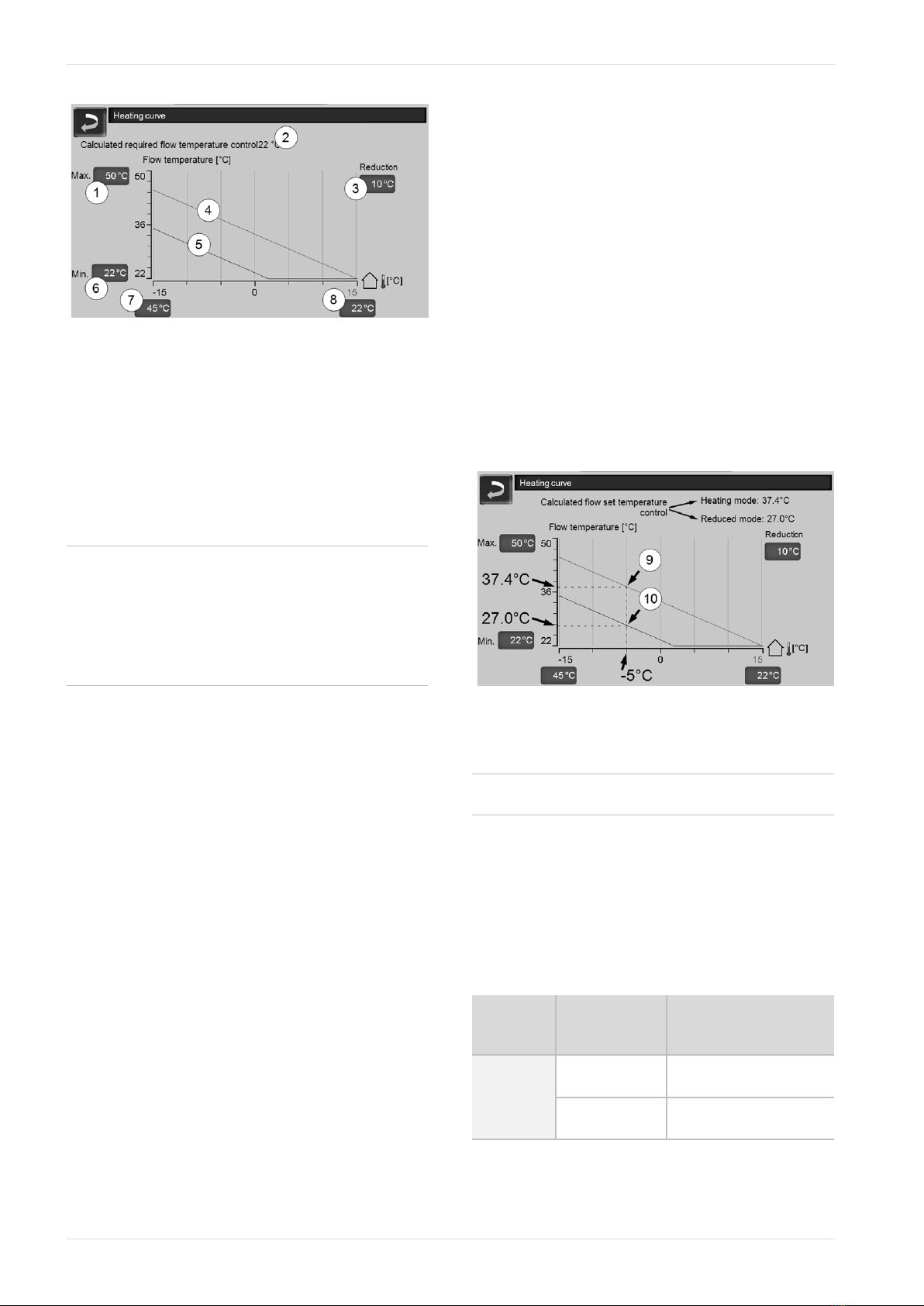

6.1.3 Heating curve 19
7 DHW heating 21
7.1 Domestic hot water tank 21
7.1.1 DHW tank settings 22
7.2 Fresh water module - FWM (optional) 22
8 Recirculation control 23
8.1 Circulation settings 23
8.2 Recirculation control - Options 24
9 Buffer tank 25
10 Solar system 26
11 Temperature difference charge control 26
12 mySOLARFOCUS app 27
12.1 Requirements for use 27
12.2 Connecting the control to the internet 27
12.3 Register on the web server 27
12.4 Install app, register user 28
12.5 Add system 28
12.6 Use of the mySOLARFOCUS app 29
12.7 Approve additional users 29
13 Weatherman function 30
13.1 Information 30
13.2 Heating circuit 30
13.3 Domestic hot water 31
13.4 Buffer tank loading 32
14 Maintenance (and cleaning) 32
14.1 Required activities - overview 33
14.1.1 Empty ash container 33
14.1.2 Boiler cleaning - manual activities 34
14.1.3 Replace combustion grate 34
14.1.4 Check system pressure 35
14.1.5 Clean exhaust gas duct 35
14.1.6 Check safety valve 35
14.1.7 Replace pellet suction turbine 35
14.1.8 Maintenance by qualified personnel 35
15 Perform emissions measurement 36
15.1 Emission measurement for external boilers 36
16 Filling the pellet store 36
17 Troubleshooting 37
18 Boiler maintenance agreement 41
19 ErP product data sheet 43
1 About this manual
Dear customer,
To ensure reliable and efficient operation of your boiler,
the following points are extremely important:
–Professional planning and installation of the hea-
ting system.
–Training of customers in starting up the heating boi-
ler.
–Regular maintenance by the operator.
–Regular maintenance by qualified personnel.
–Comply with the specifications and instructions in
this manual.
Software version for control unit
The guide describes the software version 19.040 of
the controlecomanager-touch ;Main screen of the
control unit > 11
2 Operation manual pellettop
Content

2 Safety information
Language
The language of the original manual is German. All
other language versions of this manual are trans-
lations of the original.
Storage
Keep the manual for the entire service life of the pro-
duct and ready to hand. The manual must be pas-
sed on to the new owner when the product is
dismantled/reused. If the manual is lost or
destroyed, request a new copy from the manu-
facturer.
Tips and Warnings
The tips used in this manual are highlighted with
symbols and signal words. The signal word indi-
cates the level and nature of the danger and how to
avert it.
iIndicates information for correct handling of the
product.
!CAUTION - Failure to comply with this instruc-
tion could result in damage to property.
DANGER - Failure to comply with this instruc-
tion poses a danger to people.
Manufacturer
SOLARFOCUS GmbH
Werkstrasse 1, A-4451 St.Ulrich
Company register no. 281755x
Tel.: [phone], Fax: [phone]
[e-mail]
www.solarfocus.com
Technical questions about our products
–Service-Hotline
0043 7252 50002-4920
[e-mail]
2 Safety information
Qualification of personnel
–The work procedures described in this manual
must be carried out by qualified specialist per-
sonnel.
–Work on electrical components must be performed
by trained electricians and in accordance with the
relevant laws and directives.
Installation and commissioning
–System may only be serviced and put into ope-
ration by certified qualified personnel
(SOLARFOCUS service technician or
SOLARFOCUS service partner.
Keep unauthorized persons and children away
–Danger of burns due to hot lines and hot com-
ponents, risk of injury from mechanically moving
parts. Keep unauthorised persons away, do not
leave children unattended, and control access to
the boiler room and fuel storage room.
Safety devices
–Never disengage the safety equipment of the hea-
ting system. In case of failure, arrange for
immediate repair.
Maintenance and repair
–Perform maintenance activities at the specified
intervals. No or incorrect maintenance leads to inef-
ficient operation, higher failure risk of the boiler and
increased potential for hazards.
Recommendation: Conclude maintenance con-
tract > 41
–Have repairs done by qualified personnel only
Improper repairs can lead to risks for the user and
impaired operation
–Store hot ashes only in metal containers. Never
put hot or warm ash in the dustbin. There is a great
danger of fire.
–For repairs use only original spare parts or parts
approved by the manufacturer (e.g. standard
parts).
Damage to the system
–If the electrical insulation on cables, plugs, swit-
ches becomes damaged, switch off the voltage
supply and have the insulation repaired.
–In the case of visible damage (e.g. thermal defor-
mation, mechanical damage) the operation of the
system must not be continued. The system may
only be operated if it is in perfect technical con-
dition.
3 Warranty, guarantee, liability
For warranty and warranty claims (with conclusion of a
maintenance contract) observe the following points.
–The warranty begins at the time at the time of han-
dover (delivery note, commissioning form).
–The warranty period is calculated from the date of
initial commissioning.
Operation manual pellettop 3

2 Safety information
–The warranty periods are based on the relevant
regulations.
–We must be notified promptly and accurately of
any damage incurred, so that the cause can be cla-
rified.
–The supply air into the boiler must not contain any
aggressive substances (such as chlorine or fluo-
rine compounds, used in cleaning agents, sol-
vents, adhesives, etc.). These can cause
corrosion in boiler and fireplace.
–If the system has defects despite correct instal-
lation (in compliance with the technical docu-
mentation), we grant a warranty provided that the
system has been examined by the plant customer
service (commissioning form).
–The guarantee applies to technical, construction-
related faults and faults in the manufacture of the
system that prevent correct and problem-free
usage.
–We shall not be liable for components that we have
not manufactured; however, we will be prepared to
transfer our rights to claim against the manu-
facturer of defective components to the purchaser.
–In fulfilling the warranty/guarantee services, we
shall cover only the assembly time and the mate-
rials used, but not any travel or accommodation
costs necessary for the fitters/engineers or any
return transport costs.
–SOLARFOCUS GmbH assumes no liability for
any consequential costs of damages.
–The repair and/or warranty replacement shall be
carried out on site or in the SOLARFOCUS factory
at our discretion.
–The company SOLARFOCUSwill determine whe-
ther such work requires a repair or whether the
parts are to be replaced free of charge.
Expiry of maintenance, warranty and gua-
rantee services:
The maintenance, warranty and guarantee services
expire if one of the following points applies:
–Non-observance of information in the planning,
installation and operation manual.
–Faults that occur due to use of unsuitable fuels > 5.
–Commissioning and maintenance carried out by
non-certified companies.
–Undocumented commissioning and maintenance
checklist
–Incorrect operation and failure to perform main-
tenance and cleaning as prescribed.
–Damage due to force majeure (water, fire, etc.).
–Damage during transport.
–Wilful damage.
–Insufficient energy or water, fault in the hydraulics.
–No functioning return booster module installed.
–No claims can be accepted under the warranty if
unauthorised intervention (or action that has not
been explicitly approved by us) has been carried
out. In addition, the goods must be paid for within
the specified payment timeframe.
–It is almost impossible to produce flawless painted
parts; for this reason, slight defects that do not
adversely affect proper use shall not be deemed as
grounds for complaint.
Limitation of liability
SOLARFOCUS GmbH assumes no liability for injury
or material damage resulting from:
–Failure to observe the instructions in this manual.
–Use of the product for any purpose other than for
its intended use > 5.
–Deployment of unqualified personnel.
–Use of non-approved spare parts.
–Technical modification of the product by the sys-
tem operator.
4 Operation manual pellettop

4 Product information
4 Product information
4.1 Proper use
–The heating boiler pellet top is intended for heating
up water in closed heating systems.
–Only use fuel as specified in the next chapter Fuel.
4.2 Fuel
Pellets
Use wood pellets only in accordance with these spe-
cifications:
–Pellets according to the ISO 17225-2 standard,
class A1.
–Pellets that meet the additional ENplus cer-
tification.
–Pellets that meet the additional DINplus cer-
tification.
4.3 Product description
–The pellet top is a boiler for the combustion (gasi-
fier technology) of wood pellets
–The boiler has an automatic fuel ignition system,
automatic fuel supply and automatic cleaning of
the heat exchanger.
–The ash produced is collected in an ash box, which
must be emptied at regular intervals.
4.4 Spare parts
For repairs use only original spare parts or parts appro-
ved by the manufacturer (e.g. standard parts).
The manufacturer cannot accept any liability for
damage caused by spare parts not authorised by the
manufacturer.
4.5 Type plate
4.6 CE declaration of conformity
The conformity of the produce is declared by the manu-
facturer in accordance with the Machinery Directive
2006/42/EC; the documents are available for inspec-
tion at the manufacturer.
The product corresponds to Directive 2011/65/EU
(RoHS 2) and does not use any materials containing
asbestos. The product does not contain any PCB or
mercury.
product certification number
pellettop 15 HTSMCS0911/01
pellettop 25 HTSMCS0911/02
pellettop 35 HTSMCS1212/01
pellettop 45 HTSMCS1408/01
Operation manual pellettop 5

4 Product information
4.7 Safety devices
Heat dissipation
–This function of the boiler control is a safety device
that prevents overheating of the boiler.
–Functioning: If the boiler temperature exceeds the
set Heat dissipation maximum boiler temperature
(in the service menu - General Settings), all pumps
relating to the energy consumer units (e.g. heating
circuit, DHW tank, buffer tank, etc.) will be swit-
ched on and the heating circuit mixer opened. In
this way, energy is drained from the boiler and it
may be possible to prevent other safety devices
tripping.
–If the boiler temperature falls below the set Heat
dissipation maximum boiler temperature minus
1°C again, the pumps and mixers will be operated
in standard mode again.
Overtemperature reset (OTR)
The safety temperature limiter (STL) is a safety device
that prevents overheating of the boiler.
Functioning: The STL stops the heating process at a
boiler temperature ~95°C (exclusively electrical func-
tion; fuel and air supply are interrupted).
After tripping, the STL must be manually released
again by unscrewing the black sealing cap 1and pres-
sing the button as soon as the boiler temperature falls
below 60°C.
If the safety overtemperature reset trips, this is indi-
cated in the boiler control display.
Fig. 2-1: Position of the overtemperature reset
Thermal overload protection
–The thermal overload protection prevents an uncon-
trolled increase in temperature and pressure inside
the boiler.
–Functioning: At a boiler temperature > 95°C, the
valve opens and directs cold water through the
safety heat exchanger (which is placed in the
water jacket of the boiler). This lowers the boiler
temperature.
Fig. 2-2:Schematic diagram
Safety valve (to protect against excess pres-
sure in the system)
–The safety valve 1is a safety device for protecting
against overpressure in the water circuit of the hea-
ting system.
–Functioning: The valve opens when the system
pressure exceeds 3 bar. Water/steam are dischar-
ged into an open drain via a discharge line, which
avoids consequential damage to the heating sys-
tem. The valve is closed during normal operation.
–For normative specification see EN 12828.
Fig. 2-3: Safety valve integrated into boiler safety group
6 Operation manual pellettop

4 Product information
EMERGENCY OFF switch
–The EMERGENCY OFF switch is a manually ope-
rated safety device. The burner and the fuel supply
to the boiler are stopped. Circulation pumps remain
in operation to dissipate heat and cool the boiler.
–The switch must be installed outside the boiler
room in a safe place that is easy to access.
4.8 Functional components
pellettop 35/45
1 Motors for heat exchanger cleaning
2 Lambda sensor
3 Cladding door
4 Controls (touch display)
5 Suction turbine for conveying the pellets
6 Induced draft fan
7 Flue gas pipe
8 Intermediate pellet store
9 Heat exchanger cleaning
10 Screw pellet feeder and rotary valve
11 Ignition device (glow pencil)
12 Combustion grate
13 Ash container
14 Combustion chamber
pellettop 49/70
1 Motors for heat exchanger cleaning
2 Lambda sensor
3 Cladding door
4 Controls (touch display)
5 Suction turbine for conveying the pellets
6 Induced draft fan
7 Flue gas pipe
8 Intermediate pellet store
9 Heat exchanger cleaning
10 Screw pellet feeder and rotary valve
11 Ignition device (hot air fan)
12 Combustion grate
13 Autom. ash extraction (auger)
14 Ash container
15 Combustion chamber
Operation manual pellettop 7

4 Product information
4.9 Combustion principle
Fuel path
The pellets are sucked by the suction turbine 1into the
pellet storage tank 2. The pellet auger 5and rotary
valve 4transport the pellets to the filling chamber,
where they fall onto the combustion grate 6. The pel-
lets are burned using the pellet dropping method. The
ash produced during combustion is transported by the
ash extraction auger 7to the ash box 8.
Airflow
The air required for combustion is sucked into the fil-
ling chamber through the primary air damper, down-
wards through the combustion grate into the
combustion chamber, on through the heat exchanger,
and leaves the boiler via the induced draught fan into
the flue gas pipe.
4.10 Efficient and low-emission operation
Please note the following recommendations from the
EU Energy Efficiency Directive:
Use of a buffer tank
As the most complete combustion of wood pellets is
possible only when the boiler is in normal operation
and as greater losses and higher emissions occur
during the warm-up and burn-out phases, the use of a
buffer tank is recommended.
This tank stores the water heated by the boiler, allo-
wing the connected devices (e.g. heating circuit, DHW
tank, fresh water module, etc.) to access it as requi-
red. This ensures sufficiently long, uninterrupted com-
bustion periods for the boiler.
Use of high-efficiency heating pumps
When using external heating pumps (e.g. return tem-
perature rise, heating circuit pumps, etc.), high-effi-
ciency pumps with energy efficiency class A should
preferably be used.
This delivers savings potential of up to 80 % in drive
energy (compared to conventional heating pumps) with
identical feed results.
8 Operation manual pellettop

4 Product information
Operation manual pellettop 9
4.11 Technical specifications
pellet top 35 45 49 70
Rated power [kW] 35 44.9 49 70
Lowest output [kW] 10.5 13.4 14.7 21
Energy efficiency class A+ A+ A+ A+
Dimensions
Width (W) [cm] 55.5 55.5 79 79
Total width including ash box (B1) [cm] 94 94 120 120
Total depth [cm] 144 144 155 155
Depth without fan (D) [cm] 134 134 145 145
Height incl. adjustable feet [1] (H) [cm] 156 156 172 172
Minimum room height[2] [cm] 175 175 195 195
Weight
Weight [kg] 554 560 882 882
Water side
Water content [l] 58 58 130 130
Max. permissible operating pressure [bar] 3 3 3 3
Connection Boiler inflow/Boiler return flow ["] AG 5/4” AG 5/4” AG 6/4” AG 6/4”
Drain ["] AG 1/2” AG 1/2” AG 1/2” AG 1/2”
Thermal overload protection ["] AG 1/2” AG 1/2” AG 1/2” AG 1/2”
Flow rate / differential pressure at ΔT 10°K [kg/h]
[hPA]
3000
45
3860
95
4200
50.6
6000
59
Flow rate / differential pressure at ΔT 20°K [kg/h]
[hPA]
1500
11
1930
17.5
2100
13
3000
16
Fuel
Fuel Wood pellets acc. to EN17225-2, ENplus-A1
Capacity of intermediate pellet store [l] 95 95 250 250
Flue gas side
Flue gas pipe diameter [cm] 15 15 20 20
Height centre of flue gas pipe[1] (D) [cm] 46 46 59 59
Flue gas mass flow full load [g/s] 30 37 40 55
Flue gas mass flow partial load [g/s] 10 13.5 14 20
Maximum flue gas temperature[4] full load [°C] 140 140 140 140
Maximum flue gas temperature [4] partial load [°C] 100 100 100 100
Minimum draught requirement[5] [Pa] 5 5 5 5
Emissions according to test report
Flue gas values[6] from test report: Test institute /
test report no.
TÜV Austria11-
UW-Wels-EX-212-
2
TÜV Austria11-
UWWels-EX-619
TÜV Austria11-
UWWels-EX-212
TÜV Austria11-
UW-Wels-EX-212-
1
CO full load [mg/m³] 10 9.1 8.8 7
CO Partial load [mg/m³] 48 42.6 40.4 29
NOx full load [mg/m³] 101 103 104 108
NOx partial load [mg/m³] 102 106.9 109 119
Org. C full load [mg/m³] <2 <2 <2 <2
Org. C partial load [mg/m³] <2 <2 <2 <2
Dust content full load [mg/m³] 20 20 20 20
Dust content partial load [mg/m³] 17 17.6 17.8 19
[1] Adjustable feet at maximum depth of thread
[2] The minimum room height is required for maintenance work

[3] Intermediate store for manual filling
[4] Flue gas temperature can be adjusted electronically.
[5] A draught stabiliser must be fitted if the specified draught of 15 Pa is exceeded (Caution:In a boiler with room-sealed operation, use a room-
sealed independent draught limiter)
[6] Flue gas values in mg/m3are based on 13% O2of the volume flow
4.12 Dimensions
pellettop 35 / 45
(ash container may be mounted on the right or left.)
pellettop 49 / 70
(ash container may be mounted on the right or left.)
iDepending on the choice and arrangement of the transport system, additional space must be allowed for
installation!
4 Product information
10 Operation manual pellettop

5 Use and operation
5 Use and operation
Touch display for operation
If the boiler is supplied with a mains power supply, the
boiler control startsecomanager-touch. The control is
started up to show the main screen.
iOperate the touch display with your fingers, do
not use any hard objects.
If no inputs are made for 5 minutes (factory setting),
the display will switch to standby mode.
Tapping the display again restarts the display with the
main screen.
Buffer battery in operating element
A replaceable buffer batter (CR2032) ensures that data
(time, settings) are retained in the operating element
when the supply voltage is switched off.
5.1 Main screen of the control unit
Fig. 2-4:Main screen
1 Software version for control unit
2 Outside temperature
3 Boiler output (rotational speed of induced
draught fan)
4 Boiler temperature and residual oxygen content
in flue gas
5 Boiler operating mode > 11
6 Status line
Tapping the main screen changes to the Selection
menu > 11
5.2 Boiler operating mode
1Chimney sweep function
This function is used to perform the emission mea-
surements prescribed by law.
►Perform emissions measurement > 36
2STOP
The burner is switched off. No heating requirements of
the consumers are fulfilled.
!WARNING - The burner must not start! Only
the automatic start-up of the heating circuit
pump is active to protect against frost.
3START
After pressing the START button, the burner is in the
selected operating mode and ready for operation, and
is able to fulfil heating requests from the consumers.
The burner goes into standby as soon as a heating
request is fulfilled, or the time release > 12 is no longer
available.
5.3 Selection menu
Fig. 2-5:Selection menu
1 Customer menu > 12
2 Heating circuit output test > 12
CAUTION, only to be undertaken by qualified
personnel.
3 Heating circuit > 18
4 Domestic hot water heating > 21
5 Circulation control (optional) > 23
6 Buffer tank (optional) > 25
7 Solar system (optional) > 26
8 Temperature difference, charge control (optio-
nal) > 26
10 Weatherman function (optional) > 30
11 Information
15 Boiler cleaning > 32
Operation manual pellettop 11

5 Use and operation
5.3.1 Heating circuit output test
The available outputs can be switched on/off directly
using the button. Can be used to test function of indi-
vidual components.
!CAUTION - Only to be undertaken by qualified
personnel.
Fig. 2-6
Fig. 2-7
5.4 Customer menu
Fig. 2-8
1 Required boiler values > 12
2 Vacuum output > 13
4 User lock > 14
5 Message log [2] Record alarm and notifications
> 14
6 Operating hours counter > 14
7 Output test boiler (CAUTION, only to be under-
taken by qualified personnel).
8 Qualified personnel menu > 15
[2] Button is only visible if a message is active.
5.4.1 Required boiler values
Fig. 2-9:Required boiler values
Burner release time 1
The burner can start within the release times; outside
of these times, starting does not take place and/or the
burner is stopped. A release time from 00:00 to 23:59
means that no restriction is pending and the burner can
start at any time.
!CAUTION - In order to protect against frost,
only automatic start-up of the heating circuit
pump is active outside time release.
12 Operation manual pellettop

5 Use and operation
iDomestic hot water heating in summer
If the boiler s used for heating domestic hot
water, then the required chimney pull of 5 Pa
may not be present in the summer months (or
outside the heating period). This may result in
smoke escaping in the boiler room.
Reason: High temperature on the chimney
head (greater than 30°C); as a result the cooler
air does not rise (~ 20°C air temperature when
the burner starts)in the chimney.
Remedy: Set the burner time release from
00:00 to 07:00 or from 21:00 to 23:59.
Burner release outdoor temperature 2
The burner may not start if the outside temperature
exceeds this value.
External boiler release 3
On switches the function to standby. I.e. a connected
external boiler may only start when it receives the
release from the SOLARFOCUS boiler (e.g. on the
basis of a lack of fuel, operating fault).
5.4.2 Vacuum output
Fig. 2-10: Vacuum output
Release 1
Within the release times, the pellet suction turbine can
start. A release time from 00:00 to 23:59 means that
no restriction is pending and suction can start at any
time.
Intermediate pellet store filling 2
Pressing the button starts the suction turbine and the
tank is filled once (i.e. current level and release times
are not considered). Prerequisite: the boiler must have
the status Switched off or Standby.
Manual filling 4
Pressing the button deactivates the automatic suction
extraction, i.e. the suction turbine cannot start. (e.g.
for manual filling of the intermediate pellet store
through the inspection flap5).
DANGER - Pellets falling down next to the con-
tainer 6may remain on the top side 7of the pel-
let burner. Risk of uncontrolled ignition.
►Avoid pellets falling down, e.g. use a stain-
less steel hopper when filling.
►Remove pellets, which have fallen down,
from the top side of the pellet burner (the
cover on the front of the boiler must be
removed in order to do this).
Automatic suction probe switch unit 3
Optional, i.e. the button of the same name and the
screen are only visible when if this item has been obtai-
ned.
Fig. 2-11
Probe switching 8
Automatic (recommended setting): After three suc-
cessful suction procedures at a probe, the system swit-
ches to the next probe. An even reduction of the level
in the pellet storage area is achieved.
Selectively: the probes are successively sucked
empty.
Only probe ….: suction is performed without exception
at the preset probe. Switching to the next head must
be performed manually at the control.
Operation manual pellettop 13

5 Use and operation
Storage area filled 9
nPressing the button marks all suction probes 10
again as full (e.g. after filling the storage room).
Pressing the Status button changes the probe sta-
tus (colour red: Head is empty; colour green:Head
is full).
nRed marking means: Probe is suctioned empty.
nGreen marking means: Probe is full.
nThe arrow 11 above the heads shows the currently
used head. PositionCmeans that the pellet hose
has been suctioned empty (happens automatically,
lasts a few seconds).
5.4.3 User lock
Fig. 2-12
The function serves as protection against unaut-
horised modification of the control parameters. When
the user lock is active, the parameters of the individual
screens are displayed but cannot be changed. The
active user lock is indicated by the padlock icon 1in
the screens.
User lock screen
Fig. 2-13
Enter the password 2
To define a new password (maximum 20 characters).
Password 3
The currently valid password is displayed.
User lock 4
Off: The user lock is switched off.
On: Switches on the user lock function. If the display
is not touched for one minute, the user lock is active in
the screens.
Password reset 5
The current password is reset to the value solarfocus.
Accept as new password 6
Enter a new password in the input field and press the
button. Note on screen keyboard; Confirm input with
the button.
5.4.4 Message log
Fig. 2-14
Every fault message which has occurred in the control
unit is recorded here, with the time that it began and
ended. The message with the highest priority is high-
lighted in red, acknowledged messages are highlighted
in green.
Press the 2button to quit messages. Button 1opens
the power failure log.
Possible messages > 37
5.4.5 Operating hours counter
Fig. 2-15
14 Operation manual pellettop

5 Use and operation
5.4.6 Qualified personnel menu
Fig. 2-16
1 Service menu > 15
2 IP VNC (for remote access) > 15
3 Sending emails > 16
4 mySOLARFOCUS-App > 27
5 Language selection > 17
6 Date and time > 17
5.4.6.1 Service menu
In theService menu there are technical (factory pre-
defined) settings for an optimum combustion process
in the boiler. These can only be accessed by qualified
personnel (code input required).
5.4.6.2 IP VNC (for remote access)
The control unit ecomanager-touch allows access to the
control unit screens from a PC or mobile device (e.g.
smartphone). This is effected via VNC (Virtual Net-
work Computing) software. The control has an inte-
grated VNC server, while the VNC Viewer, which is
available free of charge on the Internet, is required for
remote access.
A cable connection is required on site for the connec-
tion of the control unit to the router. Use the Ethernet
socket (type RJ45) on the rear of the control panel
(Touch display).
iInstallation and configuration of this function
must be performed by the customer (i.e. not
included in the commissioning, service and sup-
port activities).
The following points are helpful for setting up a PC/-
router to control the VNC server, which requires know-
ledge of networking technology.
IP configuration
►To access the IP-VNC icon, select it in the control
–Selection menu screen
–Customer menu screen
–Trained qualified personnel button
►Enter the data for your router. Recommend pro-
cess:
–Select DHCPON.
ÄThe IP address is determined.
–Select the DHCP OFF + Apply button .
Fig. 2-17
–The IP address must be unique in each Ethernet
network and is dependent on the other network
components (PC, modem/router, etc.).
–Recommendation: Set a fixed IP address (=DHCP
OFF), i.e. the control unit has a constant IP
address.
Version 1: Installation of VNC viewer for access
from a local PC (PC in the home network)
►Download the free VNC Viewer from the Internet,
install it on the PC and start the application.
►Enter the previously defined IP address of the con-
trol.
–As soon as the VNC Viewer is able to access
the control unit, a password must be entered.
–The password predefined by the manufacturer
is solarfocus
–After login, the screen view of the control unit is
available.
Operation manual pellettop 15

5 Use and operation
Changing the VNC password
Fig. 2-18
►Press the Change VNC password button on the
IP setup view.
►To change it, first enter the old password, then the
new password, then press the Accept button.
►The new password must be used to log on after
restarting the VNC Viewer on the local PC.
►Press the Reset password button to reset the
password to the default password solarfocus.
Version 2: Installation of VNC viewer for access
from an external PC (PC outside the home net-
work)
–The user's local router does not always have the
same IP address on the Internet (it is allocated by
an Internet Service Provider – ISP).
–Nevertheless, Dynamic Domain Name Systems,
also referred to as DynDNS or DDNS, allows
access to the router.
–These systems allow a unique host name to be
assigned on the Internet; the unique name is then
also entered in the router. If the router is then assi-
gned a different address by the ISP, it enters the
updated IP address as the defined host name on
the DynDNS server. The router and therefore the
home network can then be reached using this host
name.
–To create a connection with the control unit, a port
diversion is required from the external port of the
router[1] to the IP address and to VNC port 5900 of
the control unit.
[1] Port 5950 is recommended
iAvoid any port forwarding from external port
5900 of the router to IP address and VNC port
5900 of the control.
5.4.6.3 Sending e-mails
Function: The boiler control ecomanager-touch auto-
matically sends status e-mails and alarm e-mails (to
stored addresses) if required.
Status e-Mail: An automatic e-mail (e.g. sent daily) pro-
vides information on the current boiler status.
Alarm email: a message is sent when a fault occurs.
iInstallation and configuration of this function
must be performed by the customer (i.e. not
included in the commissioning, service and sup-
port activities).
Fig. 2-19
Outgoing mail server 1
Enter the access data for the e-mail server you use.
Fig. 2-20
Use SSL: Select if the e-mail server uses a TLS/SSL
encryption protocol.
Address book 2
A maximum of 10 contacts can be added. If there are
several addresses for a contact, these should be
comma-separated.
Write e-mail 3
Used to manually send e-mails. The recipient’s
address can be selected from the address book using
To and CC or manually entered in the recipient line.
16 Operation manual pellettop

5 Use and operation
Alarm test 4
Used to test the e-mail settings. Pressing the button
sends an e-mail to the Recipient status email.
Send alarm email 5
Activates/deactivates the automatic sending of alarm
e-mails. The sending of status e-mails is not affected
by this.
Alarm configuration 6
Settings for the alarm e-mails to be sent automatically.
Fig. 2-21
Alarm subject: is used for all alarm e-mails and status
e-mails, therefore it should be as meaningful as pos-
sible (e.g. boiler type / name of system operator; 40
characters available).
Alarm groups: For prioritisation of the alarm messages
(e.g. Alarm group 1 receives all messages, Alarm
group 2 receives only safety-related messages, such
as information on faults).
Status e-Mail: Set time at which the status e-mail is
sent. The automatically generated content of the sta-
tus e-mail is:
–Current status of the heating system
–Fault present, and which
Alarm selection: This is where you define which alarm
group is reported for which event.
5.4.6.4 mySOLARFOCUS app
Pressing the button displays the screen with infor-
mation relating to online registration for the
mySOLARFOCUS app (serial number, PIN,status,
etc.) > Fig. 2-40, page 28
Detailed information on using the mySOLARFOCUS
app > 27
5.4.6.5 Language selection
Fig. 2-22
5.4.6.6 Date and time
Fig. 2-23
switchover from summer/winter time is made auto-
matically when the Switchover Summer-Winter 1para-
meter has the value Europe. Switchover takes place
on the last Sunday of the months of March and Octo-
ber. If America is set, the clock is changed to summer
time on the first Sunday in April.
Operation manual pellettop 17

6 Heating circuit
6 Heating circuit
Fig. 2-24
1 Outside temperature
2 Average outside temperature
3 Room temperature (optional)
4 Temperature of the energy source, (e.g.boiler, buf-
fer)
5 Flow temperature of the heating circuit
6 Position of the heating circuit mixer
0 % - the mixer is closed, the heating circuit is supplied from
the heating circuit return.100% - the mixer is open, the hea-
ting circuit is supplied from the heating boiler flow.
7 Info line: Heating requirement (Yes/No) to the
energy source.
8 Status line of the heating circuit
9 Heating circuit settings > 18
10 Display of the heating circuit operating mode
set on the optional room temperature controller
(Art. no. 6160)
6.1 Heating circuit settings
Fig. 2-25
1 Heating circuit operating mode > 18
2 Room settings
(Button is only visible when the Room effect parameter is
set to On or Sliding;this can be found in the Specialist per-
sonnel system parameters)
3 General settings > 19
4 Heating curve > 19
6.1.1 Heating circuit operating mode
Heating mode
The heating circuit pump is activated. A shutdown
occurs whenever
–the external shutdown temperature for heating
mode is reached
–when a room temperature sensor is used and
where room nominal temperature for heating mode
has been reached.
The heating circuit is supplied with the calculated inlet
nominal temperature > Fig. 2-26.
Reduced mode
Heating circuit pump is activated. A shutdown occurs
whenever
–the external shutdown temperature for reduced
mode is reached.
–a room temperature sensor is used and where
room target temperature for reduced mode has
been reached.
The heating circuit is provided with the reduced tem-
perature, i.e. calculated inlet nominal temperature
minus reduction;> Fig. 2-26.
18 Operation manual pellettop

6 Heating circuit
Time switching
In this operating mode, the timed switch-over between
Heating mode and Reduced mode is defined. You can
enter the times for heating mode Daily or In blocks.
Usage example: Heating mode should be active during
the day, but be changed to reduced mode at night.
Switch off heating circuit
The heating circuit pump and heating circuit mixing
valve are switched off. The anti-freeze function for the
heating circuit is enabled (i.e. the heating circuit pump
is switched on whenever the ambient temperature
drops below the anti-freeze temperature).
Holiday mode
Holiday mode deactivates the active operating mode
for the entered duration.
activates the frost protection mode for the hea-
ting circuit for the duration of the holiday.
activates the reduced mode for the heating cir-
cuit for the duration of the holiday.
This icon indicates an activated holiday mode in
the heating circuit screen.
6.1.2 General settings
Cutoff temperature
If the outdoor temperature exceeds the value set here,
the heating circuit pump is switched off and the hea-
ting circuit mixer closes.
Cutoff temperature for heating mode: 18°C
Cutoff temperature for reduced mode: 5°C
iThis means: the heating circuit is normally auto-
matically switched off during the summer
month due to the outdoor temperature.
You can also switch the heating circuit off
manually (=operating mode: Switch off heating
circuit).
Anti-freeze temperature
If the outdoor temperature drops below the value set
here, the heating circuit pump is switched on.
Buffer difference
The burner starts when the tank temperature top falls
below the required flow temperature minus the buffer
difference.
Example:
- Current flow required temperature = 50°C
- Buffer difference = 5°C
The burner starts as soon as tank temperature top <
45°C.
A negative buffer difference value is added, i.e. the bur-
ner starts earlier.
Example:
- Current flow required temperature = 50°C
- Buffer difference = - 5°C
The burner starts as soon as tank temperature top <
55°C.
Ext. temperature delay
The delay set here is used to determined an average
value for the outdoor temperature (= Average outdoor
temperature).
The heating circuit pump switches on if the Average
temperature and the Current outdoor temperature fall
below the cutoff temperature (within the heating
period), or below the reduced mode cutoff temperature
(outside the heating period).
The heating circuit pump switches off again as soon
as the current outdoor temperature rises above the
value of the cutoff temperature.
Heating circuit name
Individual naming of the heating circuit is possible.
6.1.3 Heating curve
The heating circuit flow temperature is controlled by
the heating circuit operating mode > 6.1.1 and by the
outdoor temperature. The heating curve represents the
relationship between these two temperatures. I.e. the
control unit uses the outdoor temperature to calculate
the temperature (=calculated nominal flow tem-
perature) with which the heating circuit is supplied.
In heating mode the heating curve for heating mode 4
(red) is used.
In reduced mode the heating curve for reduced mode 5
(= heating curve for heating mode minus reduction) is
used.
The heating curve must be adapted to suit each buil-
ding and its heating system.
Operation manual pellettop 19

6 Heating circuit
2-point heating curve
Fig. 2-26
1 Maximum heating circuit flow temperature[1]
2 Calculated required flow temperature
3 Reduction (the value by which the reduced tem-
perature is lower than the heating temperature)
4 Heating curve for heating mode (shown in red)
5 Heating curve for reduction mode (blue)
6 Minimum heating circuit flow temperature[1]
7 Flow temperature at outside temperature -15°C
8 Flow temperature at outside temperature +15°C
!1) CAUTION - This temperature is system-spe-
cific and must be agreed with the heating engi-
neer. If there is a risk of the boiler overheating,
the hot water is discharged to the heating cir-
cuits at the Maximum heating circuit flow tem-
perature 1. Only to be set by qualified
personnel.
The desired heating circuit nominal flow temperature in
heating mode is set for an outside temperature of -
15°C 7and +15°C 8. Between these outside tem-
peratures, the nominal flow temperature is calculated
from the characteristics of the heating curve (inter-
polated).
Example for calculation of nominal flow tem-
perature (see the following illustration):
Flow temperature at outside temperature of -15°C =
45°C
Flow temperature at outside temperature of +15°C =
22°C
Current external temperature =-5°C
In the heating circuit operating mode Heating mode,
this applies:
> The computed flow nominal temperature (Pos.9) is
37.4°C
> The heating circuit is supplied with 37.4°C.
In the heating circuit operating mode Reduced mode,
this applies:
Reduction =10°C
> The computed flow nominal temperature (Pos.10) is
27.0°C
> The heating circuit is supplied with 27.0°C.
Fig. 2-27
Adaptation of the 2-point heating curve (in hea-
ting mode)
iNote the currently set temperature before you
change the values.
A change in heating curve cannot be felt immediately.
Instead, this depends largely on the kind of heat dis-
tribution system (e.g. underfloor heating) and the buil-
ding standard (brick, lightweight construction etc.). It
is advisable to adapt the heating curve in small incre-
ments (+/- 2°C) with corresponding pauses (1 to 2
days). Depending on the current outside temperature,
different adjustments need to be made.
Current
Outside
temperature
Perceived room
temperature
Recommended adap-
tation of heating curve
-15°C to -
5°C
too cold Increase temperature
value at 7
too hot Reduce temperature
value at 7
20 Operation manual pellettop
