1 About this manual
1 About this manual
Foreword
Dear customer,
To ensure reliable and efficient operation of your boiler,
the following points are extremely important:
nProfessional installation of the heating boiler.
nTraining of customers in starting up the heating boi-
ler.
nComplying with specifications and notes in these
instructions.
nRegular maintenance by the operator.
nRegular maintenance by qualified personnel.
Software version for control unit
The guide describes the software version 17.040 of the
controlecomanager-touch ;Main screen of the control
unit > 11
Language
The language of the original manual is German. All
other language versions of this manual are translations
of the original.
Storage
Keep the manual for the entire service life of the pro-
duct and ready to hand. The manual must be passed
on to the new owner when the product is dis-
mantled/reused. If the manual is lost or destroyed,
request a new copy from the manufacturer.
Warnings
The warnings used in this manual are highlighted with
symbols and signal words. The signal word indicates
the level and nature of the danger and how to avert it.
iIndicates information for correct handling of the
product.
!CAUTION - Failure to comply with this instruc-
tion could result in damage to property.
DANGER - Failure to comply with this instruc-
tion poses a danger to people.
Explanation of symbols
þPrecondition for an action
► Instruction
ÄResult of an action
>Reference to page, figure, Chapter,...
Updates
Due to continuous further development, figures, func-
tions and technical data may deviate slightly. Please
send any comments and suggestions to the above
address of the manufactuer.
Limitation of liability
SOLARFOCUS GmbH. accepts no liability for injury
or material damage resulting from:
–Failure to observe the instructions in this manual.
–Use of the product for any purpose other than for
its intended use.
–Deployment of unqualified personnel.
–Use of non-approved spare parts.
–Technical modification of the product by the sys-
tem operator.
Warranty
See General Terms of Business and Delivery Con-
ditions of SOLARFOCUS GmbH.
Manufacturer
SOLARFOCUS GmbH.
Werkstrasse 1, A-4451 St.Ulrich
Commercial register no. 281755x
Tel.: [phone], Fax: [phone]
[e-mail]
www.solarfocus.com
Technical questions about our products
–Biomass Service Hotline - International
[phone]
[e-mail]
Operation manual therminator II touch 3

2 Safety information
2 Safety information
–Keep unauthorised personnel away: Risk of burns
from hot pipes and components. Do not leave child-
ren unsupervised and check that they cannot
access the boiler.
–If the electrical insulation on cables, plugs, swit-
ches becomes damaged, switch off the voltage
supply and have the insulation repaired. Protect
live parts against moisture.
–If visible damage is found (e.g. leakage of water,
thermal deformation, traces of flue gas or
scorching, mechanical damage, etc.), operation
must not be continued or the boiler started up
again. The system may only be operated if it is in
perfect technical condition.
–If the heating system is out of use for lengthy peri-
ods, it must be ensured that all parts carrying water
are fully protected against frost.
–Never decommission safety devices; should they
fail, have them repaired immediately.
3 Efficient and low-emission ope-
ration
Recommendation of the EU energy effi-
ciency directive
Use of a buffer tank
Since maximum combustion is possible only in stan-
dard operation of the boiler, and greater losses and hig-
her emissions occur during the warm-up and burn-out
phases, use of a buffer tank is recommended.
This tank stores the water heated by the boiler, allo-
wing the connected devices (e.g. heating circuit, DHW
tank, fresh water module, etc.) to access it as requi-
red. This ensures sufficiently long, uninterrupted com-
bustion periods for the boiler.
Use of high-efficiency heating pumps
When using external heating pumps (e.g. return tem-
perature rise, heating circuit pumps, etc.), high-effi-
ciency pumps with energy efficiency class A should
preferably be used.
This delivers savings potential of up to 80 % in drive
energy (compared to conventional heating pumps) with
identical feed results.
4 Product information
4.1 Proper use
nThe heating boiler is intended for heating up water
in closed heating systems.
nUse only fuel pursuant to the following spe-
cifications.
4.2 Fuel
Logs
nLength of logs <50 cm, Ø <6 cm; otherwise, split.
nMoisture content of the wood: < 25 %.
nBark proportion: < 20% (related to the total fuel
quantity).
nAsh content: < 2 % (related to the total fuel quan-
tity).
4.3 Product description
The therminator-II is a heating boiler for the combustion
(gasifier technology) of log wood. The boiler has an
automatic fuel ignition system (optional) and automatic
cleaning of the heat exchanger surfaces.
4.4 Spare parts
Use only original spare parts from the manufacturer.
The manufacturer cannot accept any liability for
damage caused by spare parts not supplied by the
manufacturer.
4.5 Accessories
4.5.1 Automatic ignition

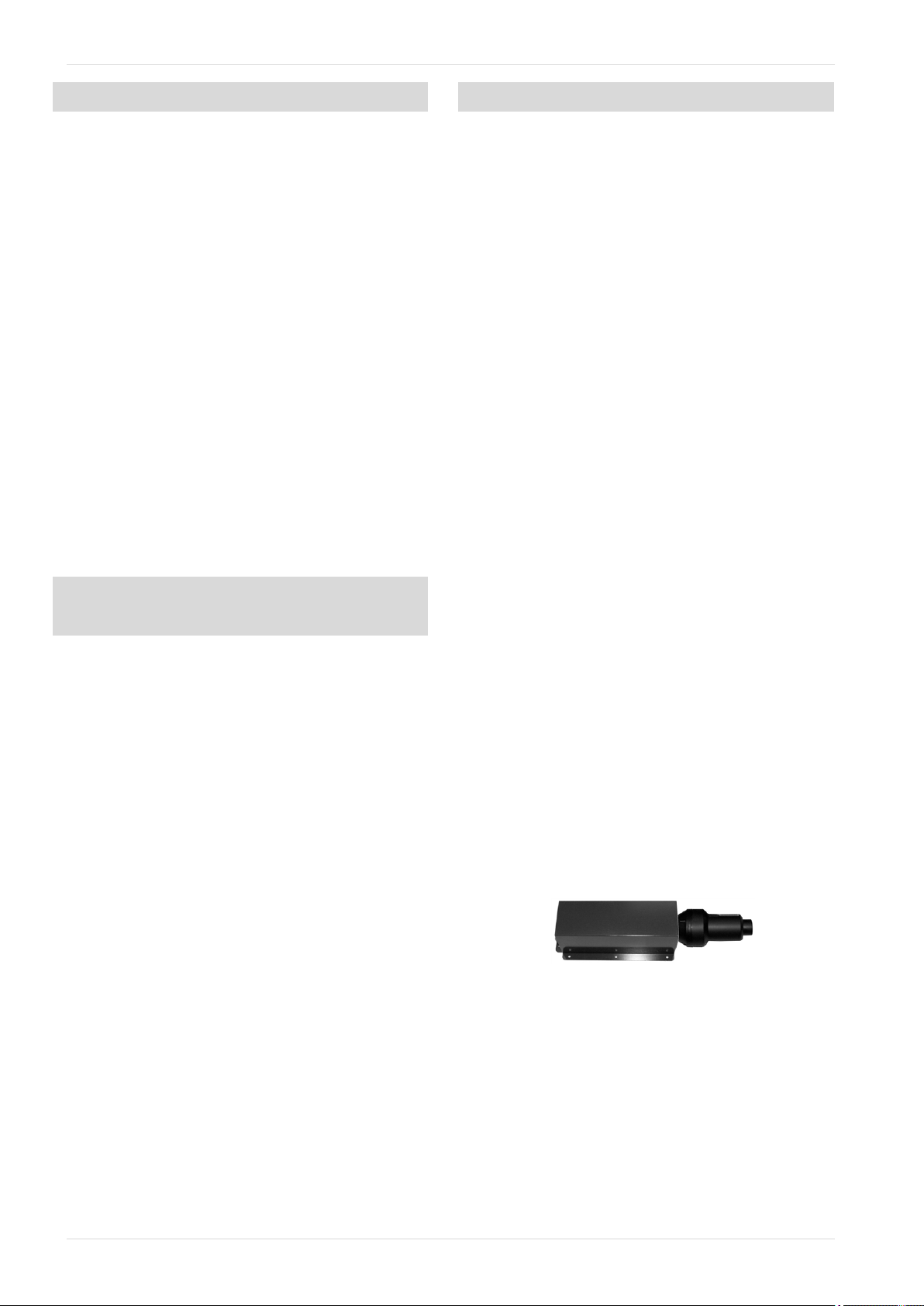

nHot air fan for automatic ignition of the fuel.
nIs installed on the left side of the boiler (also sui-
table for retrofitting in existing boilers).
4 Operation manual therminator II touch

3 Efficient and low-emission operation
4.6 Type plate
4.7 CE declaration of conformity
The conformity of the produce is declared by the manu-
facturer in accordance with the Machinery Directive
006/42/EC; the documents are available for inspection
at the manufacturer. The product corresponds to Direc-
tive 2011/65/EU (RoHS 2) and does not use any mate-
rials containing asbestos. The product does not
contain any PCB or mercury.
product certification number
therminator II 18 HTSMCS1212/02
therminator II 45 HTSMCS1415/01
therminator II 45 Log HTSMCS1415/02
therminator II Logs 27kW HTSMCS0911/03
therminator II Logs 36kW HTSMCS0911/04
4.8 Safety devices
Heat dissipation
This function of the boiler control is a safety device
that prevents overheating of the boiler.
Functioning: If the boiler temperature exceeds the set
Heat dissipation maximum boiler temperature (in the
service menu - General Settings), all pumps relating to
the energy consumer units (e.g. heating circuit, DHW
tank, buffer tank, etc.) will be switched on and the hea-
ting circuit mixer opened. In this way, energy is drai-
ned from the boiler and it may be possible to prevent
other safety devices tripping.
If the boiler temperature falls below the set Heat dis-
sipation maximum boiler temperature minus 1°C
again, the pumps and mixers will be operated in stan-
dard mode again.
Safety temperature limiter
The safety temperature limiter (STL) is a safety device
that prevents overheating of the boiler. Function: The
STL stops the heating process at a boiler temperature
~95°C (exclusively electrical function; fuel and air sup-
ply are interrupted).
After tripping, the STL must be manually released
again by unscrewing the black sealing cap 1and pres-
sing the button as soon as the boiler temperature falls
below 60°C. If the safety overtemperature reset trips,
this is indicated in the boiler control display.
Fig. 2-1_Position of the overtemperature reset
Thermal overload protection
The thermal overload protection prevents an uncon-
trolled increase in temperature and pressure inside the
boiler. When the boiler temperature is >95°C, it opens
a valve and feeds cold water into the boiler water cir-
cuit to reduce the boiler temperature.
Safety valve to protect against excess pressure in
the system
The safety valve 1is a safety device for protecting
against overpressure in the water circuit of the heating
system. Function: The valve opens when the system
pressure exceeds 3 bar. Water/steam are discharged
into an open drain via a discharge line, which avoids
consequential damage to the heating system. The
valve is closed during normal operation.
Operation manual therminator II touch 5

3 Efficient and low-emission operation
Figure:Safety valve 1integrated into the boiler safety
group.
Emergency OFF switch (X21)
The emergency OFF switch is a safety device that is
triggered manually (the burner and the burner feed are
switched off).
The switch must be installed outside the heating room
in a safe place that is easy to access.
4.9 Functional components
1 Lambda sensor
2 Component of boiler control (colour display with
touch screen function)
3 Electrical power element
4 ID fan
5 Filling chamber door
6 Filling chamber
7 Heat exchanger with interior turbulators
8 Stainless steel hopper with stainless steel com-
bustion grate
9 Combustion chamber door
10 Combustion chamber
11 Ignition device (optional), exterior on the left
side of the boiler
6 Operation manual therminator II touch

3 Efficient and low-emission operation
4.10 Combustion principle

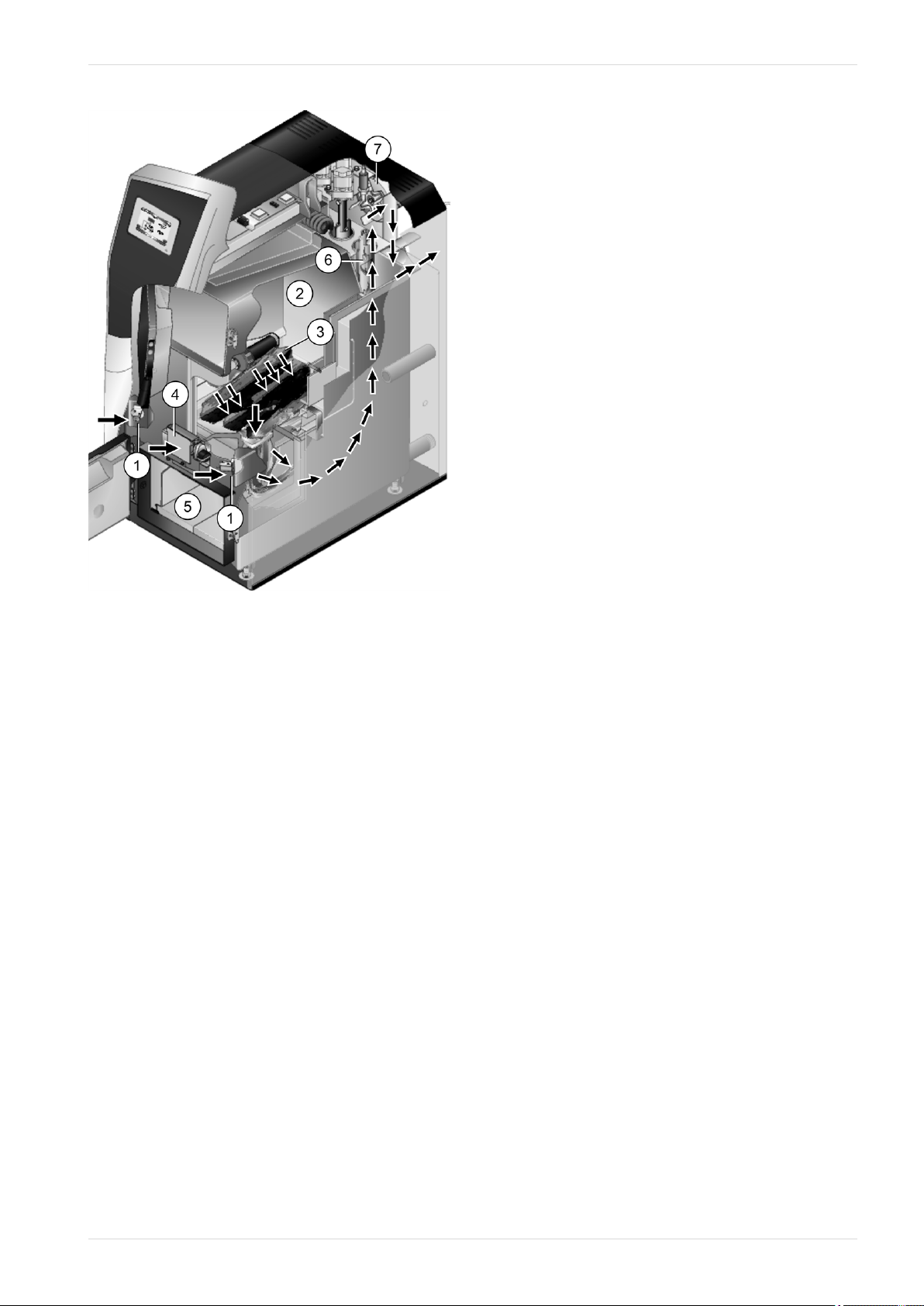

Air conveyance in the heating boiler
The air required for combustion:
–The primary air is sucked through the primary air
flaps 1into the filling chamber 2and exits into the
filling chamber at the point of the primary air ope-
nings 3(small drilled holes, arranged at the bottom
left and right of the filling chamber).
–The secondary air is sucked for the centrally arran-
ged secondary air flap 4, and the air exits into the
combustion chamber 5(i.e. below the stainless
steel combustion grate).
In the combustion chamber, the primary and secon-
dary air mix; this is where the combustion process
takes place (downfiring combustion technology).
The hot combustion air flows through the heat exchan-
ger 6and leaves the boiler through the flue pipe into the
chimney. The speed-controlled ID fan 7on the rear of
the boler sucks the air through the boiler.
Operation manual therminator II touch 7

4.11 Technical specifications
Log wood boiler therminator
II-18
therminator
II-27
therminator
II-36
therminator
II-49
therminator
II-60
Capacity kW 18 27 36 49 60
Depth without fan cm 104 104 115 136 136
Total depth cm 120 120 130 151 151
Width without ignition cm 62 62 67 83 83
Height incl. adjustable feet
[1] cm 155 155 166 167 167
Minimum room height [2] cm 168 168 186 186 186
Flue gas pipe Ø cm 13 13 15 20 20
Height to centre of flue pipe cm 78 78 88 90 90
Weight kg 485 485 591 904 904
Water content l90 90 126 188 188
Water-side resistance ∆T
10°K kg/h 1550 2310 3090 4199 5140
Water-side resistance ∆T
20°K kg/h 770 1160 1540 2097 2570
Maximum operating pres-
sure bar 33333
Filling chamber capacity for
log wood l145 145 186 290 290
Maximum log wood length cm 56 56 56 66 66
Filling chamber opening
WxH cm 34x24 34x24 39x24 54x24 54x24
Fuel Logs / beech
Connection Boiler inflow/Boi-
ler return flow inches AG 5/4 ” AG 5/4 ” AG 5/4 ” AG 6/4 ” AG 6/4 ”
Connection for emptying inches AG 1/2 ” AG 1/2 ” AG 1/2 ” AG 1/2 ” AG 1/2 ”
Thermal overload protection inches AG 1/2 ” AG 1/2 ” AG 1/2 ” AG 1/2 ” AG 1/2 ”
Immersion sleeves for tem-
perature sensor inches IG 1/2 ” IG 1/2 ” IG 1/2 ” IG 1/2 ” IG 1/2 ”
Flue gas values from test
report: Test institute / test
report no.
TÜV Austria /
10-UW-Wels-
EX-029-3
TÜV Austria /
13-U-500/SD
TÜV Austria /
12-UW-Wels-
EX-127-1
TÜV Austria /
12-UW-Wels-
EX-127
BLT /
042-06
Full load Full load Full load Full load Full load
CO mg/m3 158 118.5 79 99.7 191
HC mg/m3 4.4 3.2 2 2 4
NOx mg/m3 114 119.5 125 131.3 133
Dust content mg/m3 8 11 14 14.9 14
Draught requirement [3] Pa 55555
Flue gas mass flow g/s 10 14.1 20.2 26.3 31.5
Flue gas temperature, max.
[4] °C 140 140 140 140 140
[1] Adjustable feet at maximum depth of thread
[2] Required for maintenance work (e.g. replacing the heat exchanger)
[3] A draught stabiliser must be fitted if the specified draught isexceeded
[4] Flue gas temperature can be adjusted electronically
Flue gas values in mg/m3are baed on 13% O2of the volume flow
3 Efficient and low-emission operation
8 Operation manual therminator II touch

3 Efficient and low-emission operation
Operation manual therminator II touch 9
4.12 Dimensions
Log wood boiler therminator II 18 and 27

Log wood boiler therminator II 36
Log wood boiler therminator II 49 and 60
3 Efficient and low-emission operation
10 Operation manual therminator II touch

5 Use and operation
5 Use and operation
Touch display for operation
If the boiler is supplied with a mains power supply, the
boiler control startsecomanager-touch. The control is
started up to show the main screen.
iOperate the touch display with your fingers, do
not use any hard objects.
If no inputs are made for 5 minutes (factory setting),
the display will switch to standby mode. Tapping the
display again restarts the display with the main
screen.

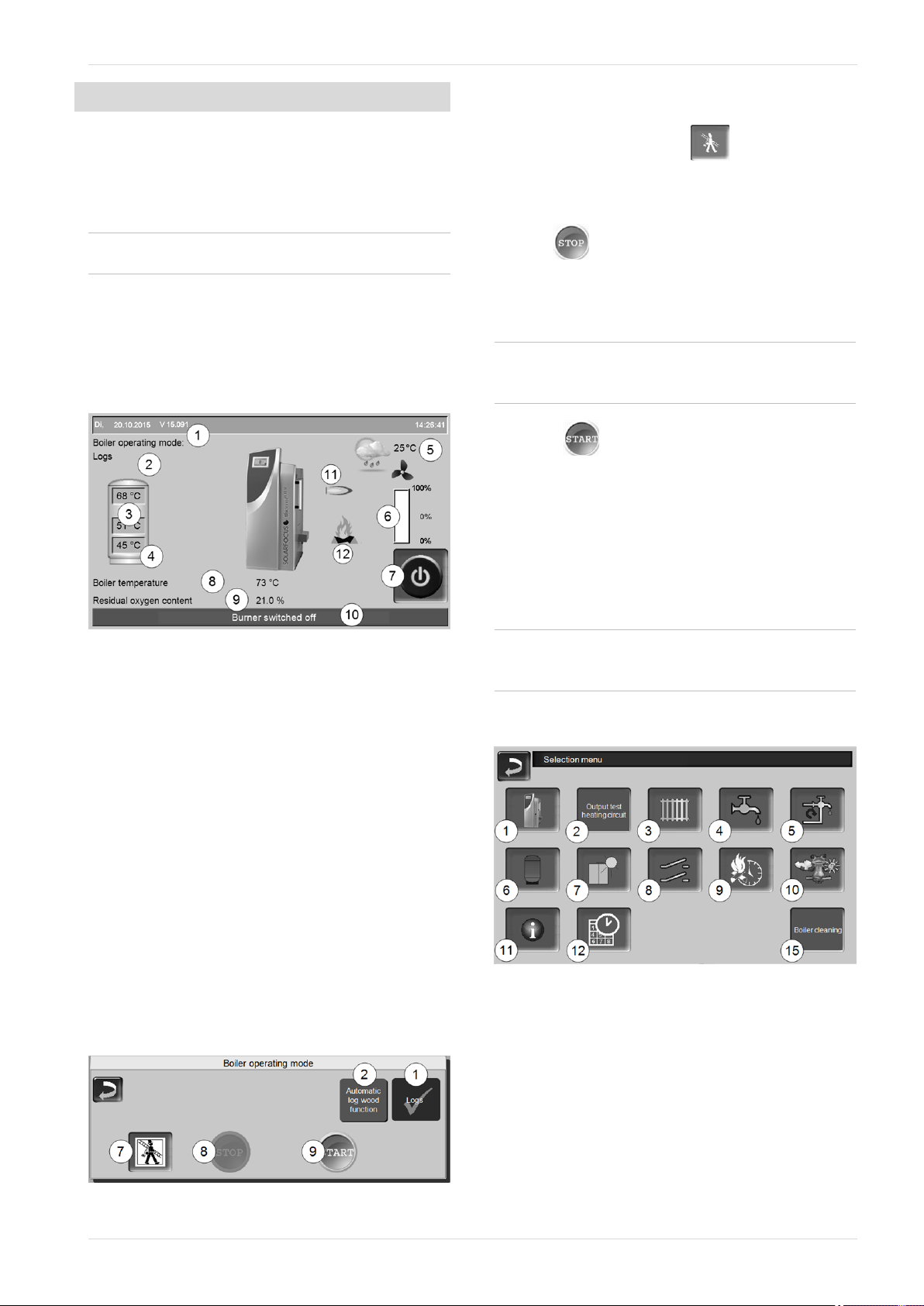

5.1 Main screen of the control unit
Fig. 2-2_01-003
1 Boiler control software version
2 Current boiler operating mode
3 Buffer tank temperatures
4 Temperature of X35 (optional)
5 Outside temperature/weather forecast as a
symbol (when using the weatherman function)
6 Boiler output (rotational speed of induced
draught fan)
7 Boiler operating mode > 11
8 Boiler temperature
9 Residual oxygen content in the flue gas
10 Boiler status line
11 Symbol for connected external boiler (optional)
12 Icon for Add more log wood
Tapping the main screen changes to the Selection
menu > 11
5.2 Boiler operating mode
1Log wood mode > 17
2Automatic log wood function mode 1) > 20
7Chimney sweep function > 37
This function is used to perform the emission mea-
surements prescribed by law.
8STOP
The burner is switched off (exception for the Log wood
mode). No heating requirements of the consumers are
fulfilled.
!WARNING - The burner must not start! Only
the automatic start-up of the heating circuit
pump is active to protect against frost.
9START
After pressing the START button, the burner is in the
selected operating mode and ready for operation, and
is able to fulfil heating requests from the connected
devices (for log wood operating mode, the boiler starts
immediately).. The burner goes into standby as soon
as a heating request is fulfilled, or the time release >
13 is no longer available (log wood operating mode
stops the boiler after completed burn-off).
i1) This operating mode is only available if the
optional item Automatic ignition > 4 is obtai-
ned.
5.3 Selection menu
Fig. 2-3_01-132
1 Customer menu > 12
2 Heating circuit output test > 12
CAUTION, only to be undertaken by qualified
personnel.
3 Heating circuit > 22
4 Drinking water heating > 25
5 Circulation control (optional) > 27
6 Buffer tank (optional) > 28
7 Solar system (optional) > 29
Operation manual therminator II touch 11

5 Use and operation
8 Temperature difference, charge control (optio-
nal) > 29
9 Automatic log wood function - release type >
21
10 Weatherman function (optional) > 33
11 Information
12 Date and time > 12
15 Boiler cleaning > 35
5.3.1 Heating circuit output test
Contents of the menu: The available outputs can be
switched on/off directly using the button. Can be used
to test function of individual components.
!CAUTION- Only to be undertaken by qualified
personnel.
Fig. 2-4_01-195
Fig. 2-5_01-196
5.3.2 Date and time
Fig. 2-6_02_005
switchover from summer/winter time is made auto-
matically when the Switchover Summer-Winter para-
meter has the value Europe. Switchover takes place
on the last Sunday of the months of March and Octo-
ber. If America is set, the clock is changed to summer
time on the first Sunday in April.
5.4 Customer menu
Fig. 2-7_01-025-02
1 Required boiler values
3 Heat exchanger cleaning [1] > 13
4 User lock > 13
5 Message log [2] Record alarm and notifications
> 14
6 Operating hour counter > 14
7 Boiler output test: CAUTION, only to be under-
taken by qualified personnel.
8 Qualified personnel menu > 14
[1] The button is only visible if qualified personnel are log-
ged in.
[2] Button is only visible if a message is active.
12 Operation manual therminator II touch

5 Use and operation
5.4.1 Required boiler values

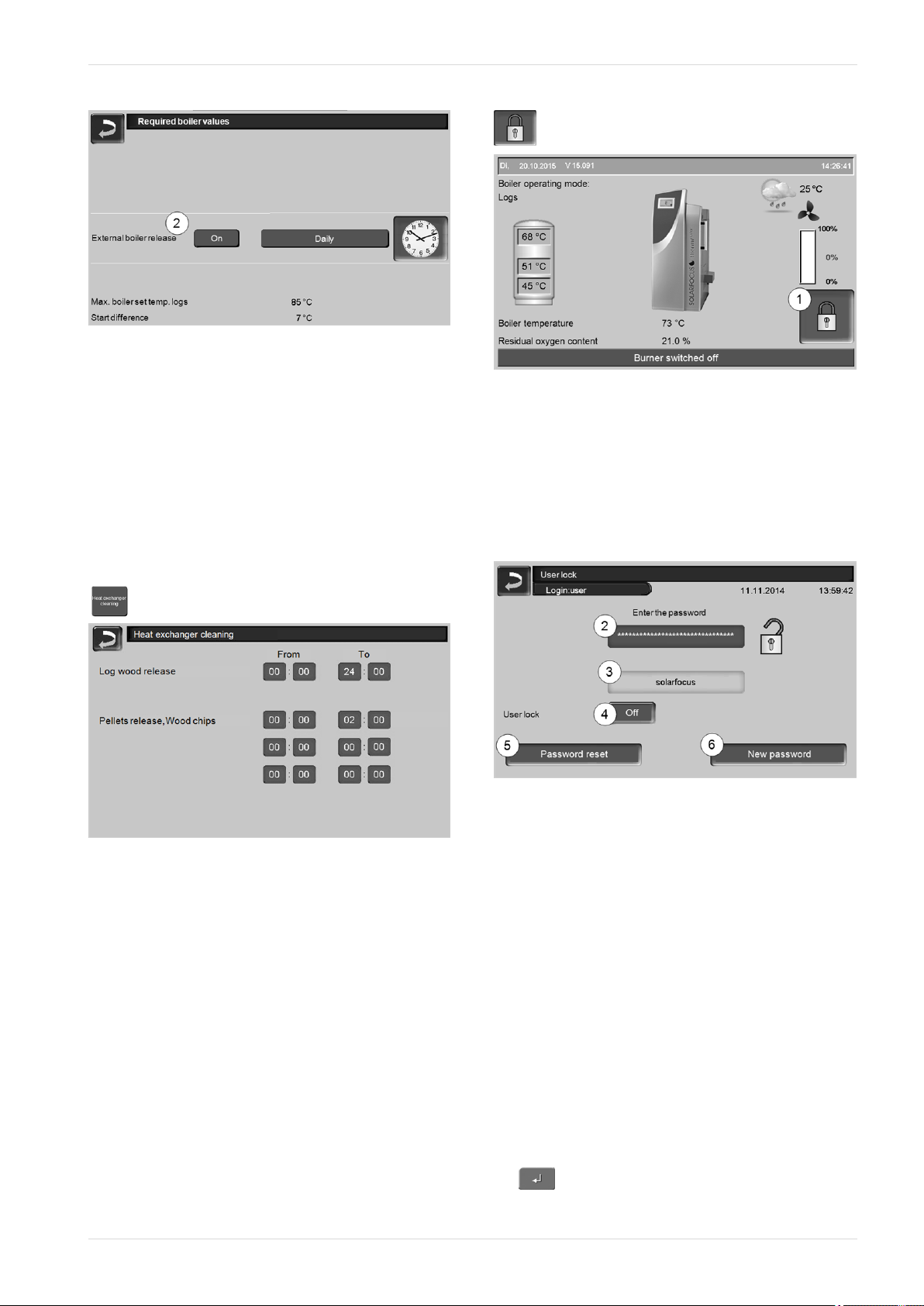

Fig. 2-8_01_031b
External boiler release 2
On switches the function to standby. I.e. a connected
external boiler may only start when it receives the
release from the SOLARFOCUS boiler (e.g. on the
basis of a lack of fuel, operating fault).
Additionally You can set whether the external boiler
can start at any time, or whether you want to restrict a
start to certain activation times.
5.4.2 Heat exchanger cleaning
Fig. 2-9_02-100a-sn
Release from-to
Within the release times, heat exchanger cleaning can
start. A release time from 00:00 to 24:00 means that
no restriction is pending and the functions can start at
any time.
5.4.3 User lock
Fig. 2-10_01-001th
The function serves as protection against unaut-
horised modification of the control parameters. When
the user lock is active, the parameters of the individual
screens are displayed but cannot be changed. The
active user lock is indicated by the padlock icon 1in
the screens.
User lock screen
Fig. 2-11_02-003
Enter the password 2
To define a new password (maximum 20 characters).
Password 3
The currently valid password is displayed.
User lock 4
Off: The user lock is switched off.
On: Switches on the user lock function. If the display
is not touched for one minute, the user lock is active in
the screens.
Password reset 5
The current password is reset to the value solarfocus.
Accept as new password 6
Enter a new password in the input field and press the
button. Note on screen keyboard; Confirm input with
the button.
Operation manual therminator II touch 13

5 Use and operation
5.4.4 Message log
Fig. 2-12_12_006
Every message which has occurred in the control unit
is recorded here, with the time that it began and ended
(marked in red, then white after acknowledgement).
Press the 1button to quit messages. Possible mes-
sages > 38
5.4.5 Operating hours counter
Fig. 2-13_01-043
5.4.6 Qualified personnel menu
Fig. 2-14_01-126-04
1 Service menu > 14
2 IP VNC (for remote access) > 14
3 Sending emails > 16
4 mySOLARFOCUS-App > 30
5 Language selection > 17
5.4.6.1 Service menu
In theService menu there are technical (factory pre-
defined) settings for an optimum combustion process
in the boiler. These can only be accessed by qualified
personnel (code input required).
5.4.6.2 IP VNC (for remote access)
The control unit ecomanager-touch allows access to the
control unit screens from a PC or mobile device (e.g.
smartphone). This is effected via VNC (Virtual Net-
work Computing) software. The control has an inte-
grated VNC server, while the VNC Viewer, which is
available free of charge on the Internet, is required for
remote access.
A cable connection is required on site for the connec-
tion of the control unit to the router. Use the Ethernet
socket (type RJ45) on the rear of the control panel
(Touch display).
iInstallation and configuration of this function
must be performed on site (i.e. not included in
the commissioning and service activities).
The following points are helpful for setting up a PC/-
router to control the VNC server, which requires know-
ledge of networking technology.
14 Operation manual therminator II touch

5 Use and operation

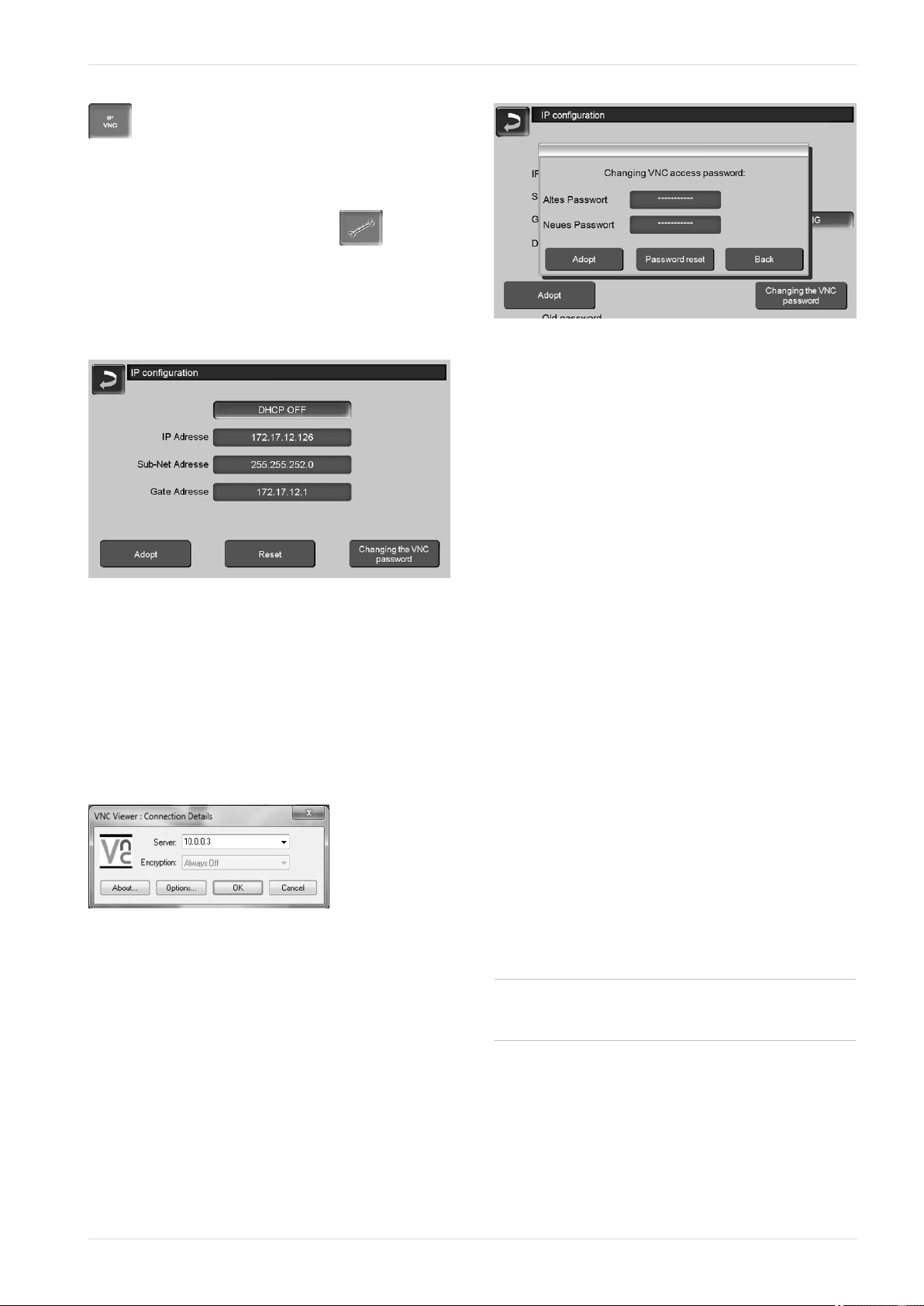

IP configuration
►To access the IP-VNC icon, select it in the control
–Selection menu screen
–Customer menu screen
–Trained qualified personnel button
►Enter the data for your router. Recommend pro-
cess:
–Select DHCPON.
ÄThe IP address is determined.
–Select the DHCP OFF + Apply button .
Fig. 2-15_02-031
nThe IP address must be unique in each Ethernet
network and is dependent on the other network
components (PC, modem/router, etc).
nIt is recommended to set a fixed IP address
(=DHCP OFF), i.e. the control unit has a constant
IP address.
Version 1: Installation of VNC viewer for access
from a local PC (PC in the home network)
nDownload the free VNC Viewer from the Internet,
install it on the PC and start the application.
nEnter the previously defined IP address of the con-
trol.
–As soon as the VNC Viewer is able to access
the control unit, a password must be entered.
–The password predefined by the manufacturer
is solarfocus
–After login, the screen view of the control unit is
available.
Changing the VNC password
Fig. 2-16_01-054
nPress the Change VNC password button on the IP
setup view.
nTo change it, first enter the old password, then the
new password, then press the Accept button.
nThe new password must be used to log on after
restarting the VNC Viewer on the local PC.
nPress the Reset password button to reset the pass-
word to the default password solarfocus.
Version 2: Installation of VNC viewer for access
from an external PC (PC outside the home net-
work)
nThe user's local router does not always have the
same IP address on the Internet (it is allocated by
an Internet Service Provider – ISP).
nNevertheless, Dynamic Domain Name Systems,
also referred to as DynDNS or DDNS, allows
access to the router.
nThese systems allow a unique host name to be
assigned on the Internet; the unique name is then
also entered in the router. If the router is then assi-
gned a different address by the ISP, it enters the
updated IP address as the defined host name on
the DynDNS server. The router and therefore the
home network can then be reached using this host
name.
nTo create a connection with the control unit, a port
diversion is required from the external port of the
router[1] to the IP address and to VNC port 5900 of
the control unit.
[1]Port 5950 is recommended
iAvoid any port forwarding from external port
5900 of the router to IP address and VNC port
5900 of the control.
Operation manual therminator II touch 15

5 Use and operation
5.4.6.3 Sending e-mails
Function: The boiler control ecomanager-touch auto-
matically sends status e-mails and alarm e-mails to
predefined addresses if required.
Status email: An automatic e-mail (e.g. sent daily) pro-
vides information on the current boiler status.
Alarm email: a message is sent when a fault occurs.
iInstallation and configuration of this function
must be performed on site (i.e. not included in
the commissioning and service activities).
Fig. 2-17_01-048
Outgoing mail server 1
Enter the access data for the e-mail server you use.
Fig. 2-18_01-049
Use SSL: Select if the e-mail server uses a TLS/SSL
encryption protocol.
Address book 2
A maximum of 10 contacts can be added. If there are
several addresses for a contact, these should be
comma-separated.
Write e-mail 3
Used to manually send e-mails. The recipient’s
address can be selected from the address book using
To and CC or manually entered in the recipient line.
Alarm test 4
Used to test the e-mail settings. Pressing the button
sends an e-mail to the Recipient status email.
Send alarm email 5
Activates/deactivates the automatic sending of alarm
e-mails. The sending of status e-mails is not affected
by this.
Alarm configuration 6
Settings for the alarm e-mails to be sent automatically.
Fig. 2-19_01-051
Alarm subject: is used for all alarm e-mails and status
e-mails, therefore it should be as meaningful as pos-
sible (e.g. boiler type / name of system operator; 40
characters available).
Alarm groups: For prioritisation of the alarm messages
(e.g. Alarm group 1 receives all messages, Alarm
group 2 receives only non-critical messages, such as
information on necessary maintenance, boiler
cleaning, etc.).
Status email: Set time at which the status e-mail is
sent. The automatically generated content of the sta-
tus e-mail is:
–Current status of the heating system
–Fault present, and which
Alarm selection: This is where you define which alarm
group is reported for which event.
5.4.6.4 mySOLARFOCUS app
Pressing the button displays the screen with infor-
mation relating to online registration for the
mySOLARFOCUS app (serial number, PIN,status,
etc.) > Fig. 2-43, page 31
16 Operation manual therminator II touch

6 Operating mode Logs
Detailed information on using the mySOLARFOCUS
app > 30
5.4.6.5 Language selection
Fig. 2-20_02-006
6 Operating mode Logs
Description of operating mode
nThe log wood stacked in the boiler filling chamber
must be ignited manually.
nNote:The function glow holding > 19 simplifies the
next ignition process.
6.1 Preparations for the operating type.
Combustion grate
►Use this stainless steel combustion grate to heat
with log wood.
Fuel to be used
1Dry, easily combustible small piece of material
(e.g. small chopped logs, wood shavings, bush
wood chips).
2Split logs, medium-sized, dry
(recommended:0.5 m lang).
3Split logs, large, dry (recommended:0.5 m
long).
Select operating mode and start
►Select the Log wood operating mode and press
the Start button.
ÄThe ID fan starts.
ÄStatus line message:Ignite logs manually,
Fig. 2-21_01-164-01
iStarting in Logs mode is possible only in the
status Burner switched off or Log burning is ter-
minated.
6.2 Stack the log wood in the filling cham-
ber and ignite
Basic information:Stack the log wood parallel to the
side wall of the boiler, in the filling chamber.
iNote regarding therminator-II 49 and
60:Due to the wide filling chamber, the space
can be better used if the log wood is stacked
transversely in the filling chamber.

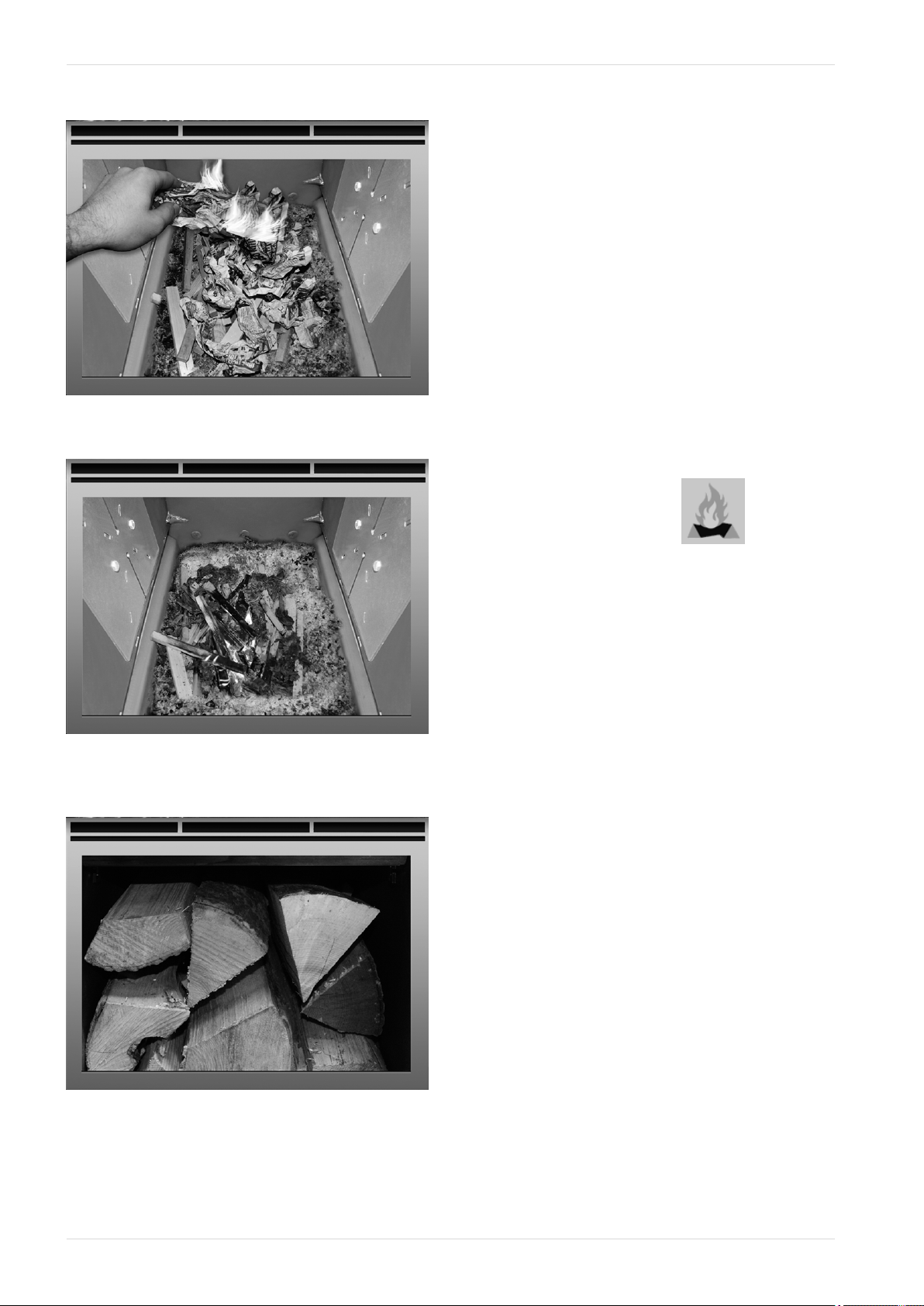

►Stack the smaller pieces of wood 1and 2parallel
to the side wall of the boiler high enough that the
floor of the filling chamber is covered.
Operation manual therminator II touch 17

6 Operating mode Logs
►Set up and ignite one layer of igniting material
(e.g. kindling, wood waste splits).
►When the kindling is burning, add a layer of
medium-sized log wood 2on top.
►Fill the boiler with log wood 3in accordance with
the temperature in the buffer tank, or the current
heat needed.
►Close the filling chamber door.
ÄThe residual oxygen content in the flue gas
(value is visible on the display) should fall
quickly.
ÄAfter a while, the status line in the display
changes from Ignite log wood manually to Log
wood
ÄThe residual oxygen content in the flue gas
(value is visible on the display) should fall
quickly.
ÄAfter a while, the status line in the display
changes from Ignite log wood manually to Log
wood
6.3 Replenish with logs
►Before adding more wood, check whether suf-
ficient energy dissipation is ensured by the con-
sumer units (heating circuit, buffer tank, etc.).
Icon for Add more log wood
The icon indicates that more log wood needs to be
added (appears in the main screen > 11).
When the icon is displayed:
Option 1 - the boiler is currently burning log wood
(active burning):
–A heating request is pending on the boiler (from
connected devices, e.g. heating circuit, DHW
tank, buffer tank, etc.)
–And: the burn duration is> 2 hours
–And: the measurement parameter for exhaust tem-
perature and residual oxygen content indicate upco-
ming completed combustion.
Option 2 - boiler is switched off (STOP mode), or Log
wood combustion is completed status:
–If there is a heating request on the boiler.
End of burning
The combustion period that has passed so far is
shown in the boiler control display. The combustion
period differs depending on log wood quality and boiler
performance.
The boiler stops combustion, if
–the flue gas temperature falls below the Exhaust
cutoff temperature.
–the residual oxygen content in the flue gas
exceeds a predefined value for a long period of
time.
ÄMessage on the status line: Burn-off logs finis-
hed.
18 Operation manual therminator II touch

6 Operating mode Logs
6.4 Glow holding function
iFunction must be activated by qualified per-
sonnel.
The log wood located in the filling chamber has not
been fully combusted. The embers or charcoal that
remain in this way can easily be re-ignited (manually or
automatically by the hut air blower).
Figure:Unburned, charred log residue after burning
with glow holding.
nThe time to wait between switching off glow hol-
ding and repeated ignition is unimportant. What is
important for straightforward ignition is the pre-
sence of the charred log wood residue.
nEach time the heat-up process is performed, you
will be asked whether you would like to start burn-
off with or without glow holding.
Fig. 2-22_01-100
Manual ignition after combustion with Glow hol-
ding
►Push the charred pieces together on the stainless
steel combustion grate using the poker.
►In the boiler control, select the Log wood operating
mode and press the Start button.
►Ignite a sheet of paper and let it fall, burning, into
the filling chamber (the flame is sufficient to ignite
the rest of the material).
►Wait for a moment until the rest of the material is
visibly burning.
►As described above, add more log wood and close
the filling chamber door.
Operation manual therminator II touch 19

7 Operating mode Logs automatic
7 Operating mode Logs auto-
matic
Description of operating mode
nThis is an optional additional function.
nThe log wood stacked in the boiler filling chamber
is ignited using the automatic ignition device (hot
air fan).
nNote:The function Glow holding function simplifies
the next ignition process.
iRecommendation for your first (three to four)
ignition attempts with the automatic log wood
function:Only fill the boiler filling chamber with
log wood once ignition has been performed suc-
cessfully. This means that you will not have
clear out all of the filled material if you have a
failed attempt at ignition.
7.1 Preparations for the operating type.
see >6.1 Preparations for the operating type. > 17
7.2 Stack the log wood in the filling cham-
ber

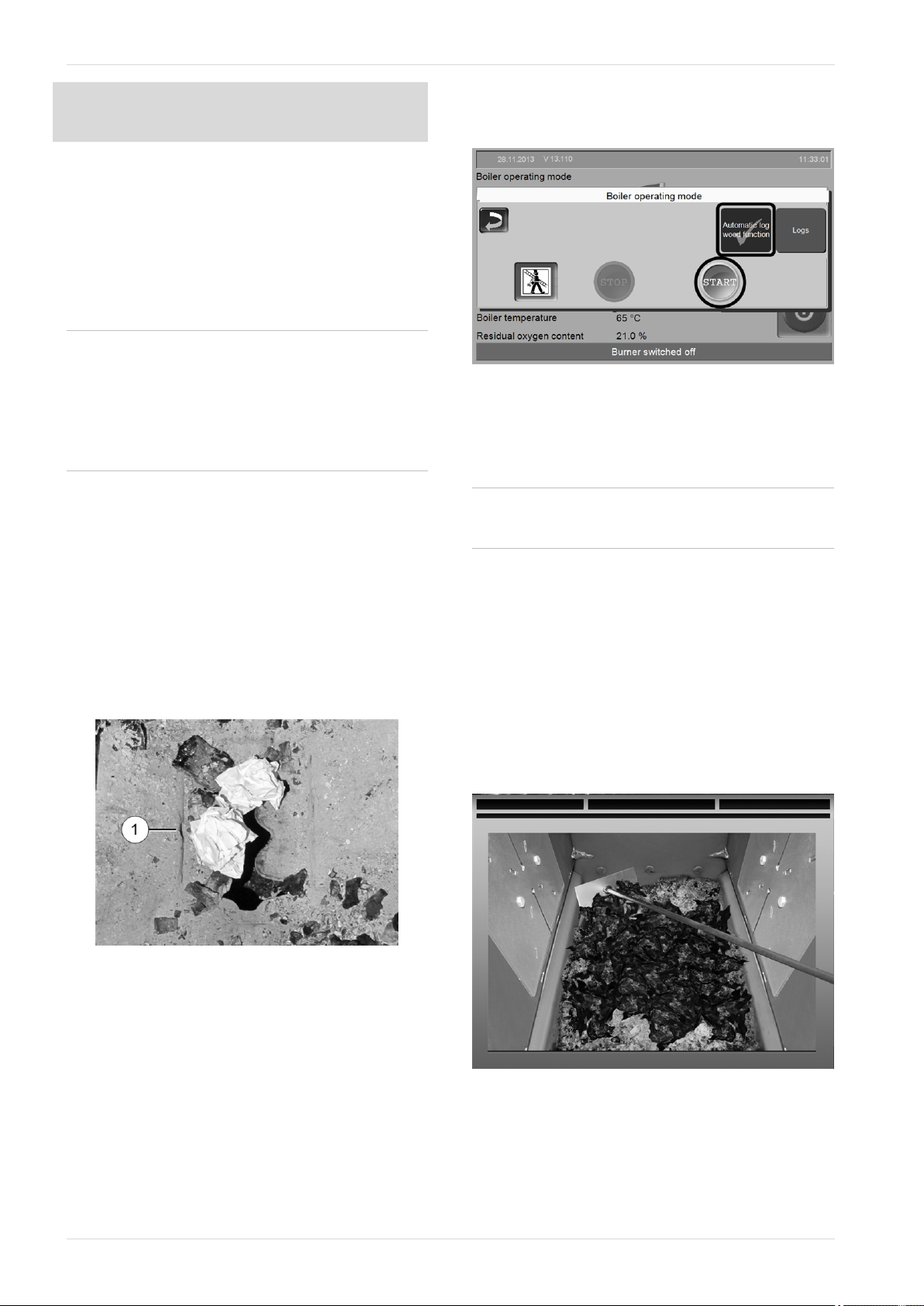

►IMPORTANT:Before filling with log wood, place
slightly flammable material (balled up paper, card-
board or similar) on the stainless steel combustion
grate, directly before igniting 1the hot air fan.
►Fill the boiler with fuel in the following sequence:
–Dry, slightly flammable material in small pieces
–Split logs, medium-sized
–Split logs, large
see also >6.2 Stack the log wood in the filling cham-
ber and ignite > 17
►After filling the boiler, close the filling chamber
door.
Select operating mode and start
►After filling the boiler:Select the Log wood ope-
rating mode and press the Start button.
Fig. 2-23_01-164_06sn
ÄThe ID fan and and hot air fan start when a
time release is available >7.5 Automatic log
wood function - release type > 21 and, if a
heating request is issued to the boiler.
iStarting the boiler in automatic log wood func-
tion mode is possible only in the status Burner
switched off or Log burning is terminated.
7.3 Replenish with logs
see >6.3 Replenish with logs > 18
7.4 Glow holding function
see >6.4 Glow holding function > 19
Automatic ignite (with hot air fan) after com-
bustion with glow holding
►Push the charred pieces together on the stainless
steel combustion grate using the poker.
►Fill the boiler with log wood as usual, i.e. in layers
of different fuel; see detailed description > 17
►In the boiler control, select the Automatic log
wood function operating mode and press the Start
button.
20 Operation manual therminator II touch
