SOLARIMMERSION Mark IV Setup guide

1
SOLARIMMERSION I
V
Advanced Installation
Manual v1.6

2














Contents
1.Overview
2.TechnicalSpecifications
3.Installation
Mounting
ElectricalInstallation
ClampInstallation
WiringDiagrams
4.InstallationSettings
5.LCDDisplay&MenuControls–SettingTime
6.Support&Warranty

3
SafetyNotes

PleasecarefullyreadallwarningsandONLYinstalltheitemwhenyouaresurethat
you’vecoveredallaspects.

PotentiallydangerousHighVoltagesarepresentandthereforethis
equipmentshouldonlybeinstalledbyaqualifiedperson.

ConnecttheequipmentaccordingtothecorrectIEEregulationsandseparate
allwiringaccordingtoIEC1010.

Earthmustbeconnectedforsafetyandcorrectoperation.

AsuitablemeansofisolatingSOLARIMMERSIONIVfrombothpolesofthe
mainssupplyshallbeprovided.

Makesureallscrewterminalsaretightbeforeyouswitchtheequipmenton.
(Theterminalscrewisrated0.5N•mtorque)

Donottouchanycircuitryafteryouhaveconnectedtheequipment,dueto
potentiallylethalvoltagesonthecircuitboardandconnectorterminals.

FittopcoverbackbeforeswitchingontheMains.

EquipmentdesignedforPollution–Degree2environmentsonly.Thismeans
youmustinstallitinaclean,dryenvironment.

Onlycleantheequipmentwithasoftdrylint‐freecloth.Donotuseany
solvents.

Symbols
    
CableshallbeRatedfor  ProtectiveEarth
 70DegCminimumconnection


4
Overview

SOLARIMMERSIONIVisanintelligentsurpluspowercontrolsystemforyourPVsystem.Itdiverts
surpluspowerwhichwouldnormallybeexportedtothegrid.Whentheunitisconnectedtoan
immersionheater,itcanheatwaterforfreeusingthesurpluspower.


SOLARIMMERSIONIV‐Highlights:

Heatswaterusingsurpluspowerfromallsortsofmicro‐generationsystems(windturbines,
hydropower)
Keepsexportedpowerasclosetozeroaspossiblebyadjustingpowerlevelstotheimmersion
heater.
Singlesensorclip.
LCDdisplayforeasycontrolandmanagementoftheunit
Noneedtochangeimmersionheaterorthetank.
Nomanualinterventionrequiredtousesurpluspower.
Built‐inoverrideandboosttimerfunctionstoanimmersionheatermanuallyifrequired.
Lowthresholdlevelsmeaning,lesswastedpower.
Divertsaslittleas20Wofsurpluspower
Built‐inmultifunctionrelayforSecondload.
Internalthermalprotection
Multipleloadsavailable

2.TechnicalSpecifications

NonIntrusivecurrenttransformer


Inputrange:0‐100Aac,50Hz.(2000:1/100A=50mA)
Overrange:200%continuous
Isolation2500VRMS.Input/Output/Case




5

SolarImmersionMarkIV
Weight/Dimensions


Weight:650g

  


ElectricalSpecifications

DescriptionMinNominalMax
SupplyVoltage(VAC)220240254
SupplyFrequency
(Hz)45Hz50Hz55Hz
LoadCurrent(A)13 
LoadSize(kW)33.5
RelayContact
Voltage(VAC)  250
RelayContact
Current(A)1316
ClampCurrent(A)  100
PVSystemSize(W)5004000NoMax
Operating
Temperature(˚ C )
‐52040
65mm
200mm
150mm
Mountingholescentre: 175mm

6
3.Installation

Mounting

Tokeeptheinstallationquickandeasy,werecommendthatSOLARIMMERSIONIVisinstallednear
totheconsumerunitasmostoftheconnectionsrequiredcanusuallybefoundthere.

WhenchoosingasuitableplacetoinstallSOLARIMMERSIONIV,thefollowingshouldbe
considered:

Nearthemainincomingmainssupplyoftheproperty
Accesstotheimmersionheatersupplycable(normallyintheconsumerunit)
Accesstosuitablesupplyvia16AMCBor13Afusedoutlet
EaseofaccessandvisibilityoftheSOLARIMMERSIONIVLCDScreenandcontrolbuttons
Goodventilationtokeepairflowingthroughtheunit–atleast100mmaroundtheunit.
Suitablecableaccesspointlocation–throughthetopoftheunit

SecuretheSOLARIMMERSIONIVtothewallwiththetwoscrewsorusingsuitablefixingsforthe
surfacetype.

ElectricalInstallation

ATTENTION!
Electricalconnectionshouldonlybemadebyaqualifiedperson.
PleasedonotattempttoinstallSOLARIMMERSIONIVunlessyouholdsuchqualificationsorare
anexperiencedelectrician.Alterationstofixedwiringand/oropeningtheconsumerunitmay
berequired–riskofdeathbyelectrocution.

Locatethemostappropriatecableaccesspointattopoftheunittomakeconnectionstotheunit
accordingtothewiringdiagram.

Loads

Theproportionallycontrolledprimaryorsecondaryloadconnectedshouldnotexceed3.5kW.
Theloadshouldnotincludedigitalcircuits,astheymaybeaffectedbythemodulatedoutput
fromtheSOLARIMMERSIONIV.










7
Terminals

ATTENTION!
Makesurethewiringcablesaresecurelyconnectedandfullytightenedwiththerisingclamp
terminals.(Theterminalscrewisrated0.5N•mtorque)Failuretodosocanresultinfireorthe
SOLARIMMERSIONIVunitbeingdamaged.

PowerTerminals

TerminalDescription
O/P(LoadOut)*1Outputtotheload,Max3kW
L(Live)*2MainLive240Vinputsupplyfrom16AMCB/13Afusedoutlet
N(Neutral)*2MainsNeutral(Allneutralterminalsinternallyconnected)
E(Earth)*3MainEarth

RelayTerminals

TerminalDescription
NONormallyopenrelayterminal
COMCommonrelayterminal
NCNormallyclosedrelayterminal

Allrelayterminalsarevoltfreeandthemaximumcurrentis16ATherelayterminalsmaybeused
todirectlyswitchmainsloadsonthesamephaseasthemainssupplytotheSolarimmersionIV.
However,theexternalcircuitmustbeconsideredtobeHazardousLiveandinsulatedaccordingly,
irrespectiveoftheactualexternalvoltagepresent.


SensorTerminal

TerminalDescription
CTACcurrentsensorclampterminal
CTACcurrentsensorclampterminal






8

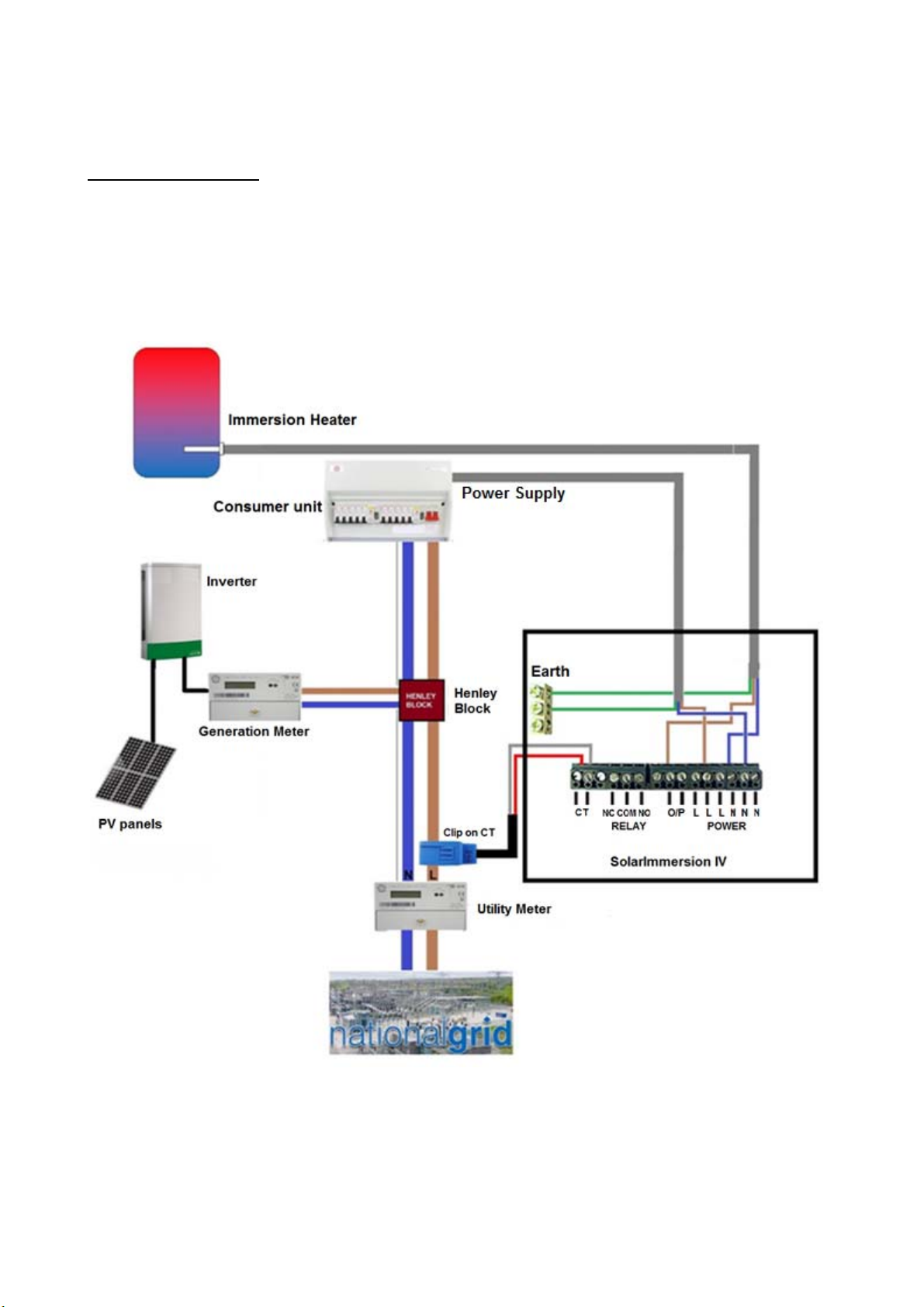

WiringDiagrams&SoftwareSetup

SingleLoadSystem

Forsingleheatercontrol,norelayterminalwiringsarerequiredasthesecondaryloadoptionsis
notused.

ThedefaultfactorysettingsoftheSOLARIMMERSIONIVareoptimisedforasingleheater
configuration.Thiskeepstheinstallationsimple,astheonlymenusettingrequiredissettingthe
time.


Thedefaultfactorysettingsoftheswitchisconfiguredforsingleheatersystem.Sonosetting
changesarerequiredotherthansettingupthetime.Ifanysettingswerechangedbefore,please
doafactoryresetoftheswitchviathemenucontrols.

9
DualLoadSystem



WithasingleLoadsystem,thesurpluswillflowbacktothegridoncethewaterishotandthe
thermostatcutsoff.Thiscouldbeavoidedusingadualheatersystem.Thesecondaryload(LOAD2)
willbeturnedonwhentheprimaryload's(LOAD1)thermostatiscutoff.Thisimprovesthe
efficiencyofthesystem.














10
MenuSettingsforSingleLoadandDualLoadsystems:

Settime
Stepno.ButtonActionDisplayDescription
StartHome
1ENT↓ 
Clock‐Menu
2ENT↓
3↓↑ SetTime‐
Hours
4ENT↓
5↓↑ 
SetTime‐
Minutes
6ENT↓
7↓↑ SetTime‐
Seconds
8ENT↓
Clock‐Menu
9ESC↓ 
FinishHome

Setsecondaryload

Stepno.ButtonActionDisplayDescription
StartHome
1ENT↓ 
Clock‐Menu
2 ↓↑ ↓
Load2‐Menu
3ENT↓
4↓↑ Load2‐Disabled
↓
5↓↑ Load2‐30minsoption
(For60minsPress↓↑again)
6ENT↓
Load2‐Enabledfor
30mins/60mins
7ESC↓ 
FinishHome


11
MenuItemDisplayedValueRemarks
SecondaryLoadStatusLOAD2EnabledEnablethesecondaryload
SecondaryLoadTime30min
or
60min
30or60
(Minutes)
Howlongthesecondaryloadshouldrun
beforeswitchingbacktoprimaryload

ExampleScenariofordualsystem:

Thesecondaryloadwillbeactivated3minutesafterthethermostatintheimmersioncutsoff&
thereissurpluspower.

1. Theprimaryloadthermostatcutsoff&thereissurplusavailable.


Ifthe'Loadtime'issetto60,theunitwilldeactivateLOAD2after1hourandactivateLOAD1.If
theLOAD2thermostatisstillat'cutoff'stage,theLOAD2willbeactivatedafter20minutesand
thewholecyclewillcontinue.


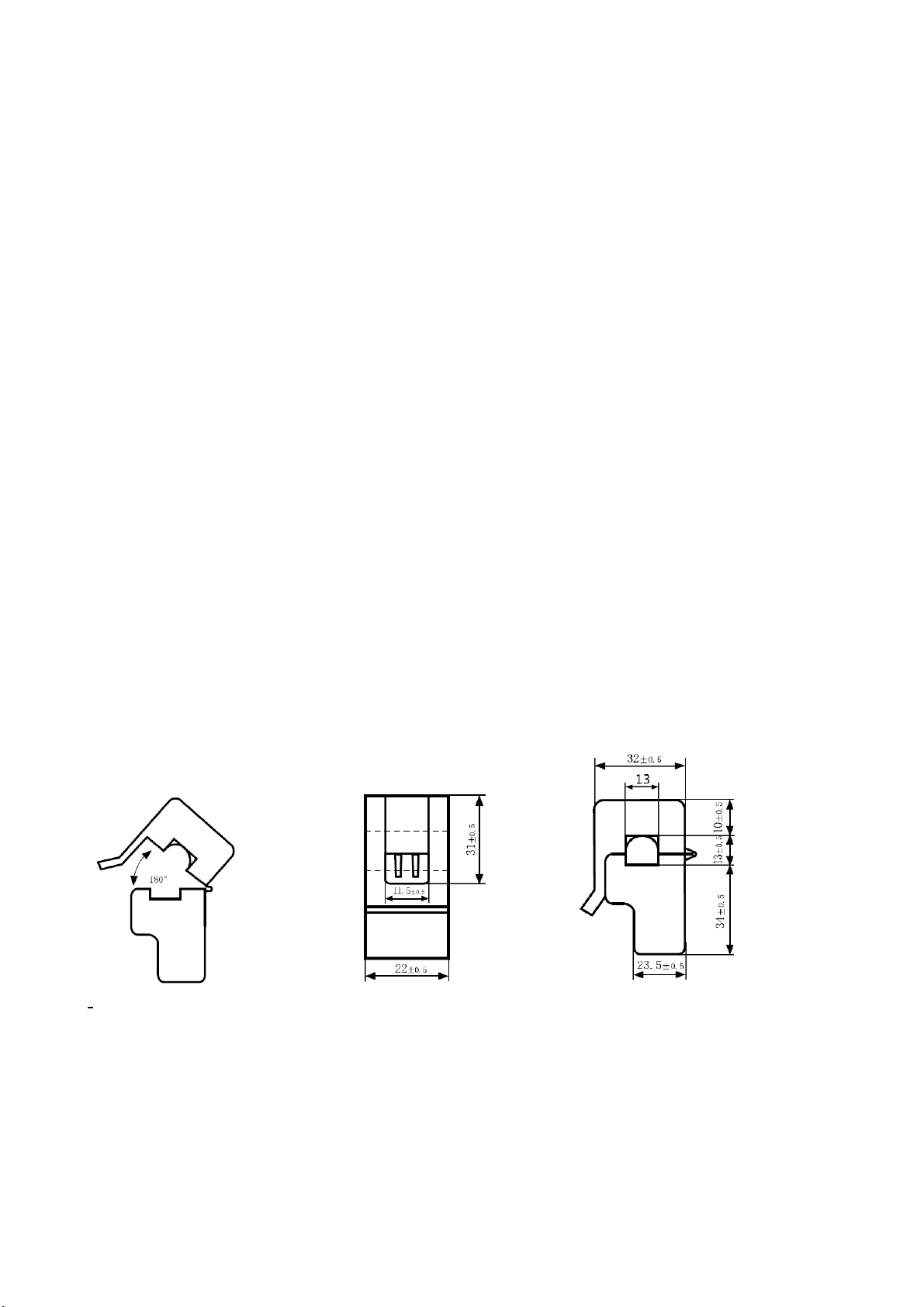

SensorClipInstallation

Thecorrectinstallationandpositioningofthecurrentsensorclipisveryimportantfortheefficient
operationofSOLARIMMERSIONIV.Wronglyinstallingthesensorclipcouldresultinimportingof
powerandtheuserincurringadditionalcostsforelectricity.

Thesensorclipshouldbeinstalledatthemainincominggridsupplytothebuildingwhichcouldbe
fromtheutility/electricitymeter.(Pleasenote‐itisUtility/ElectricitymeterNOTthePVgeneration
meter).ClosethecliparoundtheLiveorNeutralcablefromtheutility/electricitymeter.Please
ensurethesensorclipispositionednearesttotheutility/electricitymeteraspossible.(Onlyopen
aconsumerunitifyouarequalifiedtodosoorareanexperiencedelectrician).

Ifthereismorethanoneconsumerunit,theclipmustbepositionedattheprimaryincomesource
–beforeitsplits.

IMPORTANT
SENSORCLIPHASTOBEONTHEUTLITY/ELECTRICITYMETERTAILSANDALWAYSENSURETHE
CLIPISCLOSEDSECURELYAROUNDTHECABLE!

ConnecttheclampwiretotheterminalsinsideSOLARIMMERSIONIV.Ifthesensorclipcableisnot
longenoughitcanbeextendedupto50mbutthismustbedoneusingadoubletwistedpaircable
inordertostopanypossibleinterferenceandafirmconnectiontotheoriginalcableisrequired.
Trytokeeptheextensioncableasshortaspossible,asthesignalstrengthfromthesensorisvery
low.




12

4.InstallationSettings

Oncetheunitiswired,SOLARIMMERSIONIVhastobeconfiguredwiththeparametersrequired
fortheparticularinstallationtypeused.Bydefault,forsimpleinstallationswithasingleheater,the
onlyconfigurationrequirementsarelistedbelow.

Followthestepsbelowtocalibrateandsetuptheunit.

Step1:TurnoffthePVormicrogenerationsystem.Thisistomakesurepowerisonlyimported,
whichisessentialforsensorclipcalibration.

Step2:TurnonSOLARIMMERSIONIVunit.

Step3:Turnonahighloadlikeakettleora2kWheatertomakesurepowerisimportedandwait
for5seconds.


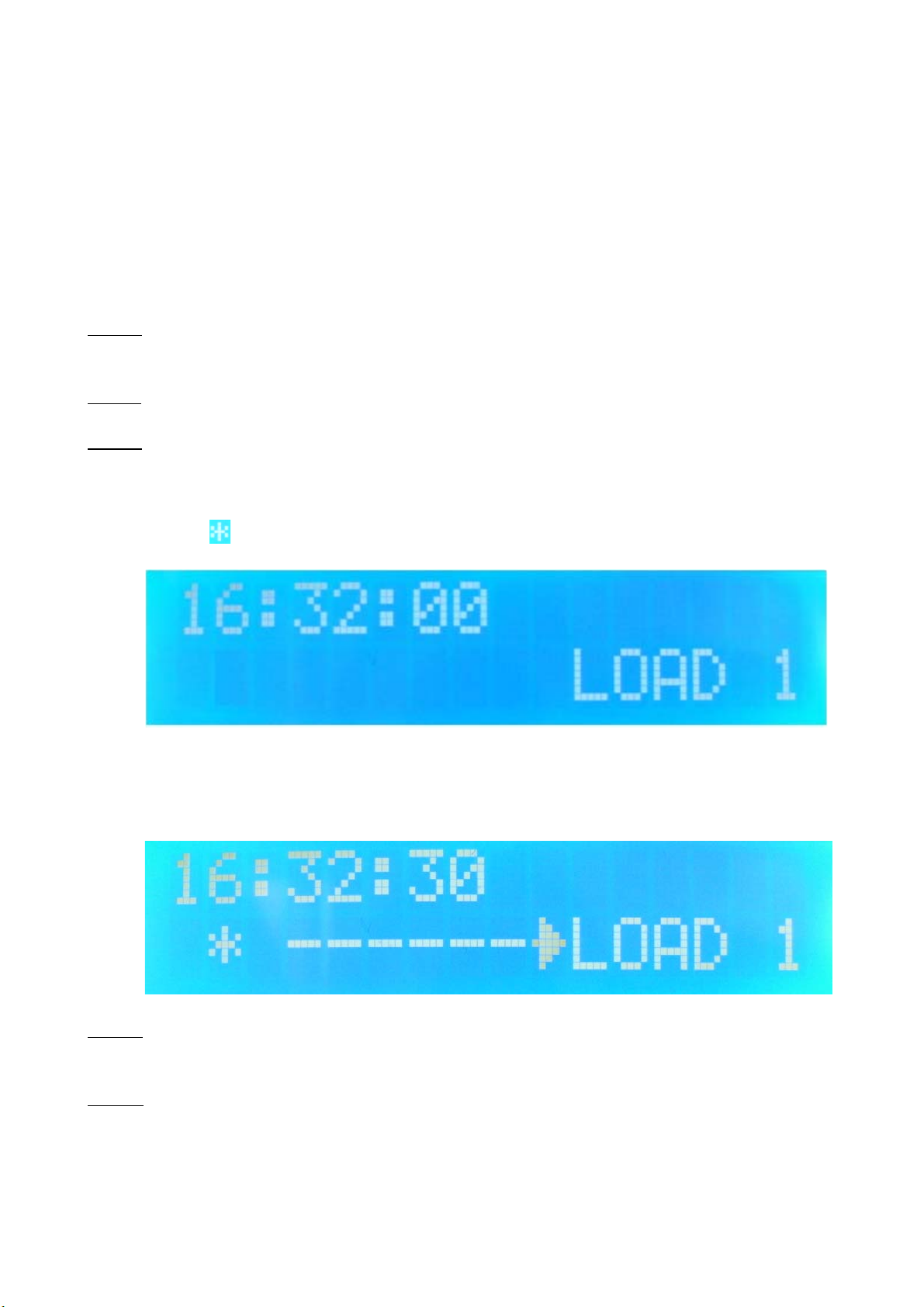

3a:Ifthesensorclipisinstalledcorrectly,thedisplaywillbeasbelowwiththeASTERISK
symbol()Blinking.



3b:Ifthedisplayisasbelow,thenyouhavetoswapthewiringontheCTsensorterminals.
Oncetheterminalsareswapped,restarttheswitchandmakesurethedisplayisaspicture
3a.



Step4:Setthecorrecttime&softwaresettingsaccordingtothewiringmodeselected.(Please
seesection5.UsingMenuControlsand"InternalClock‐settingthetime"inAppendix1)

Step5:TurnthePVinverterbackon.ThatcompletestheinstallationandSOLARIMMERSIONIV
shouldnowstarttodivertanysurpluspowerifavailabletotheimmersionheaterortheconnected
load.

13
5.UsingMenuControls&SettingTime
Whenyouhaveturnedontheunitthedefaulthomescreenwillappearasshownintheimagine
below.(Thisisthescreenyouwillreturntoeverytimeyoupressthe“ESC”button)






ThereareFIVEcontrolbuttonsunderneaththeLCDscreen:
Override–(OVR)toactivatetheOverridefunction(Holdfor2secondstoactivate)
Up(↑)–tonavigatethroughtheMenu/SubMenuoptionsortoincreasevalues
Down(↓)–tonavigatethroughtheMenu/SubMenuoptionsortodecreasevalues
Enter–(ENT)toselectaMenuoptionorsavenewvalues
Escape–(ESC)tocancelanactionandreturntothedefaulthomescreen

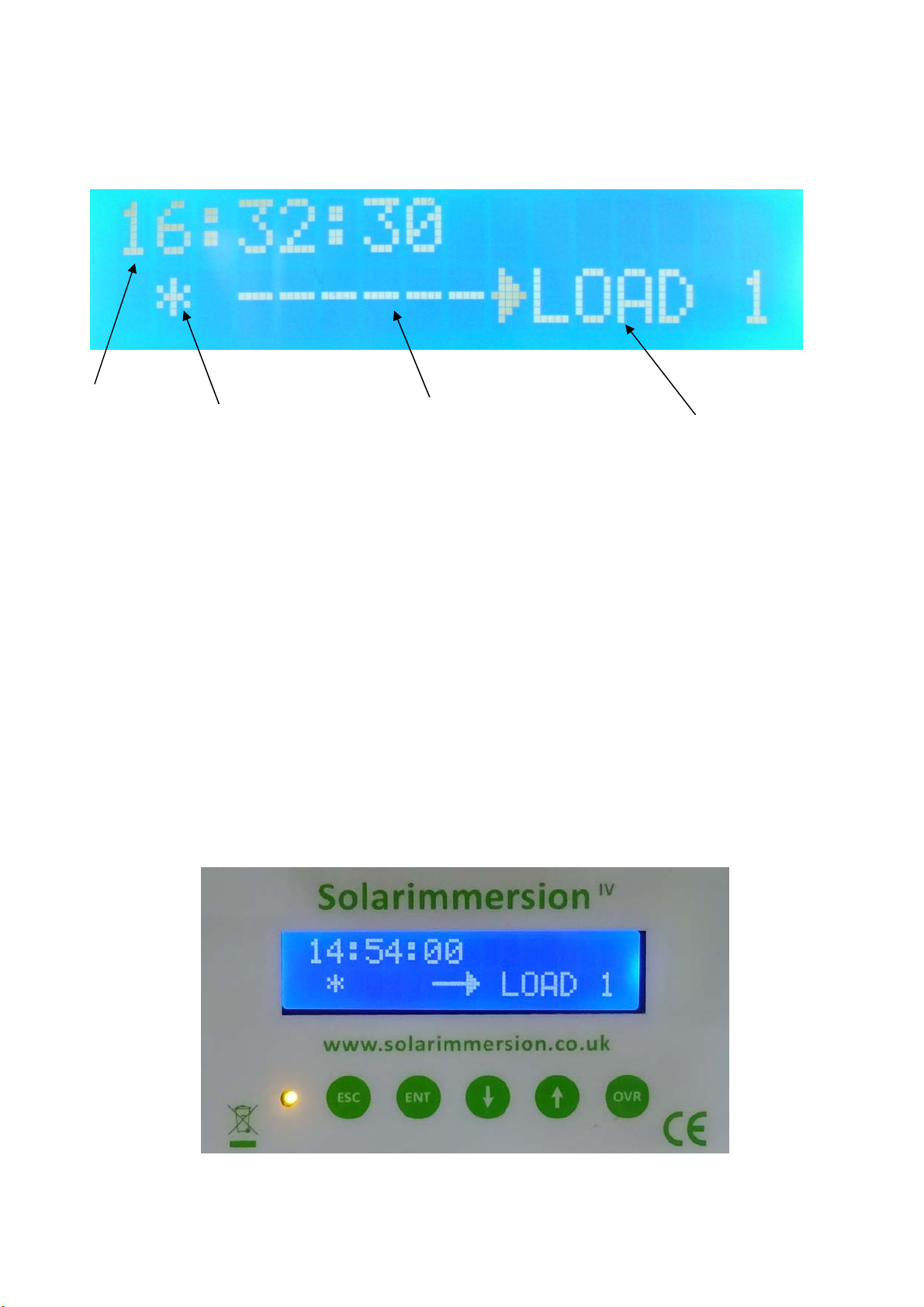

YellowLED‐PowerONindicator

Currenttime
CurrentLoad
Thiswillbe"LOAD
2"whenthesecondary
loadisactivated.
Sunsymbolconstant‐
SurplusEnergyavailable,
divertactive.

SunsymbolBlinking‐
Nosurplusavailable,
divertonhold.
Loaddivertingindicator

14
Withinthemainmenuthereare5optionswhicharelistedbelow:
1 InternalClock
2 OverrideButton
3 SetAuto‐Boost
4 Load2
5 FactoryReset

IMPORTANT

USE“UP”OR“DOWN”BUTTONSTOMOVEBETWEENTHEMENUOPTIONS.TOSELECTAMENU
OPTIONTOCHANGE,PRESS“ENT”BUTTON.ONCETHECORRECTVALUEISSELECTEDUSINGTHE
“UP”AND“DOWN”BUTTONS,PRESS“ENT”BUTTONTOSAVETHEVALUE.THESCREENWILL
RETURNTOTHEDEFAULTHOMEDISPLAYAFTERSAVINGTHEVALUE.

USE“ESC”BUTTONATANYTIMETORETURNTOTHEHOMESCREENANDRETAINTHENORMAL
OPERATIONOFTHESWITCH

ALLMENU/BUTTONOPERATIONSEXCEPT“OVR”SHOULDENDBYPRESSING“ESC”.














15
Appendix–1
MenuOptions&Controls–FullList
1.InternalClock‐settingthetime
Stepno.ButtonActionDisplayDescription
StartHome
1ENT↓ 
Clock‐Menu
2ENT↓
3↓↑ SetTime‐
Hours
4ENT↓
5↓↑ 
SetTime‐
Minutes
6ENT↓
7↓↑ SetTime‐
Seconds
8ENT↓
Clock‐Menu
9ESC↓ 
FinishHome

2.OverrideButton‐Settingtheoverridefunction
Stepno.ButtonActionDisplayDescription
StartHome
1ENT↓ 
Clock‐Menu
2 ↓↑ ↓

Overridebutton‐
Menu
3ENT↓
4↓↑ SetDuration
5ENT↓
Overridebutton‐
Menu
6ESC↓ 
FinishHome

16
3.SetAuto‐Boost‐Settingtheauto‐boostfunction
Stepno.ButtonActionDisplayDescription
StartHome
1ENT↓ 
Clock‐Menu
2 ↓↑ ↓
AutoBoostTimes‐Menu
3ENT↓
SetAuto‐Boost1
4ENT↓
5↓↑ SetAuto‐Boost1‐TimeHour
6ENT↓ 
7↓↑ SetAuto‐Boost1‐TimeMinutes
8ENT↓ 
9↓↑ SetAuto‐Boost1‐LengthMinutes
10ENT↓ 
11ESCtoexit
(ifonly1Auto‐Boost
settingrequired)

OR

↓↑tosetAuto‐Boost2
(ifsettingasecond
Auto‐Boostrequired)

SetAuto‐Boost1‐Menu

OR

SetAuto‐Boost2‐Menu
(repeat"SetAuto‐Boost1"menu
steps)
↓ 
Auto‐BoostTimes‐Menu
12ESC↓ 
Home





17
4.Load2‐Settingthesecondaryload
Stepno.ButtonActionDisplayDescription
StartHome
1ENT↓ 
Clock‐Menu
2 ↓↑ ↓
Load2‐Menu
3ENT↓
4↓↑ Load2‐Disabled
↓
5↓↑ Load2‐30minsoption
(For60minsPress↓↑again)
6ENT↓
Load2‐Enabledfor
30mins/60mins
7ESC↓ 
FinishHome

8.FactoryReset‐settingtheunittofactorysettings
Stepno.ButtonActionDisplayDescription
StartHome
1ENT↓ 
Clock‐Menu
2 ↓↑ ↓
FactoryReset‐
Menu
3ENT↓
4FactoryReset‐
confirmation
5↑(YES)↓
Unitresettingto
Factorysettings
↓ 
FinishHome





18
Support

Pleasenotetherearenoserviceablepartsinthisproduct,intheeventtheproductfailsto
operate,refertoFAQfirstandthenifnecessarycontacttechnicalsupport.

UserInstallationquery‐Consultaqualifiedinstaller/electrician.

Technicalsupportforqualifiedinstallersandelectricianspleasecalluson01233469276

OnlineSupportSystem‐Ifyourequireanyassistance,pleasesubmityourquerytotheTechnical
Supportteamviathelinkshownbelow.

http://solarimmersion.co.uk/solarimmersion‐support/technical‐support/

Warranty

SisemLtdwarrantyprovidesfreerepairorreplacementcoverforallfaultyinpartsand
workmanshipfor12monthsfromthedateofpurchase.SisemLtdobligationislimitedtoreplacing
partswhichhavebeenreportedpromptlyandaresofoundbySisemLtduponinspection.Avalid
proofofpurchaseisrequiredifmakingawarrantyclaim.

Warrantyisvoidintheeventofimproperaccidentaldamage,unauthorisedservice,useof
unauthorisedcomponents,misuse,naturaldisastersincludinglightningstrike.Thiswarrantydoes
notextendtoancillaryequipmentnotsuppliedbythemanufacturer.Noresponsibilityisassumed
forincidentaldamage.Noresponsibilityisassumedforconsequentialdamage.

Faultyparts/UnitmustbereturnedbyprepaidpostandaccompaniedbyaReturnsnumber
availableinadvancefromonlineticketsystem.

================================================================================

