OPERATOR'S MANUAL
MODEL #200971
3650W WIRELESS REMOTE
START GENERATOR
Champion Power Equipment, Inc., Santa Fe Springs, CA USA
or visit championpowerequipment.com
SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do
so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
This product meets the requirements of the PGMA (Portable Generator Manufacturers’ Association) standard ANSI/PGMA G300-2015 (Safety and Performance of
Portable Generators).
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com
REV 20200930

www.TakeYourGeneratorOutside.com
As the only safe way to use a portable generator, taking your generator
outside is absolutely mandatory to keep your family safe from carbon
monoxide. But there’s even more you can do. By educating yourself
about all carbon monoxide risks, you’ll be better prepared to protect
your family from this colorless, oderless threat.
CARBON MONOXIDE SAFETY: THE BIG PICTURE
KNOW THE SYMPTOMS
• Headache
• Nausea
• Shortness of breath
• Dizziness
• Fatigue
STAY ALERT WITH CARBON
MONOXIDE DETECTORS
POINT FUMES AWAY FROM
NEARBY PEOPLE
KEEP IT OUTSIDE AND AWAY FROM
DOORS, WINDOWS, AND GARAGES
ALWAYS READ
THE OPERATOR’S
MANUAL FIRST
MANUAL
IF YOU FEEL SYMPTOMS,
LEAVE RIGHT AWAY

200971 - 3650W WIRELESS REMOTE START GENERATOR TABLE OF CONTENTS
3
TABLE OF CONTENTS
Introduction...................................................4
Safety Definitions ..........................................4
Important Safety Instructions.......................5
Fuel Safety ........................................................ 7

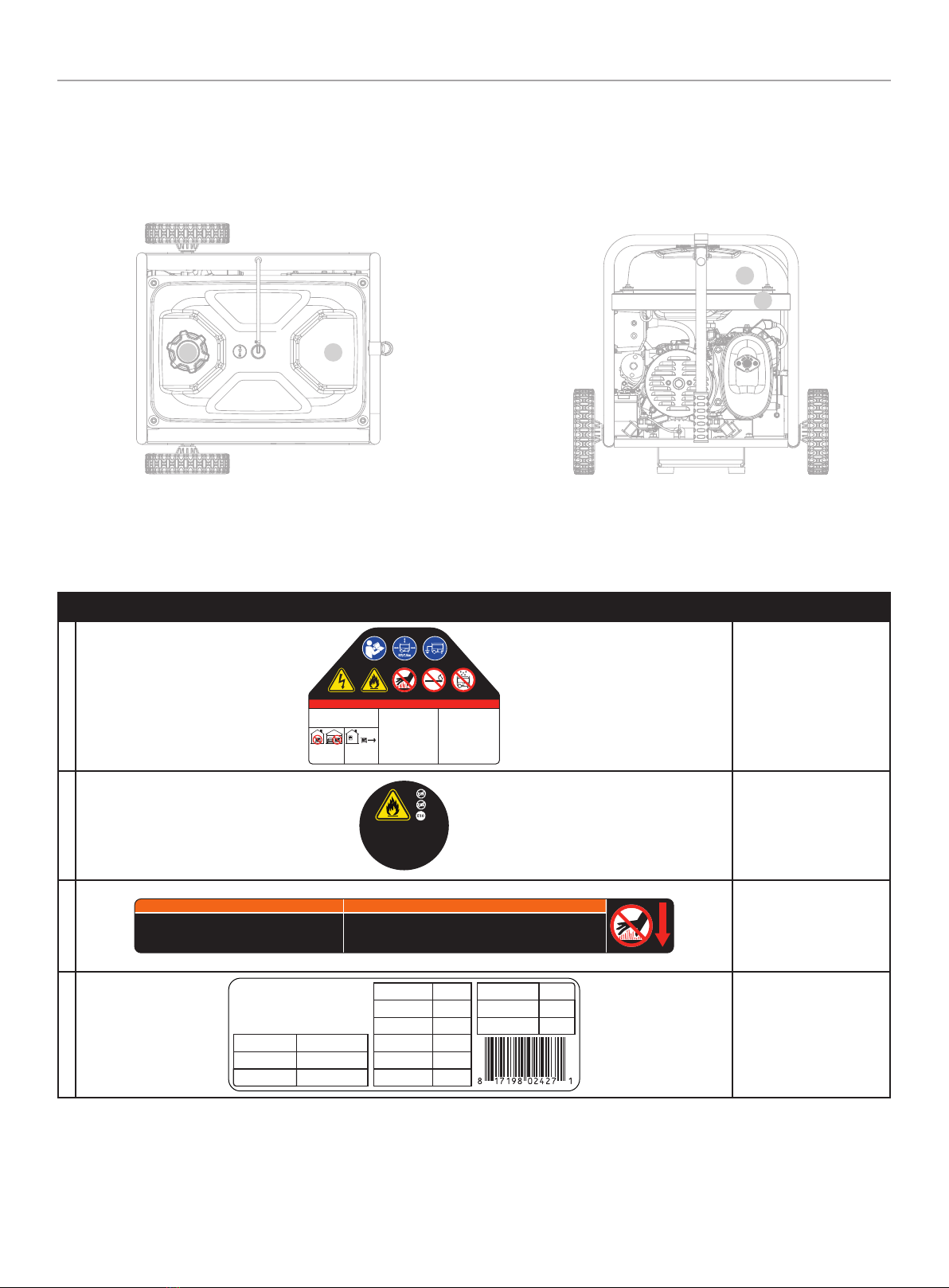

Safety and Dataplate Labels...................................... 8
Safety Symbols.................................................... 9
Operation Symbols ............................................... 10

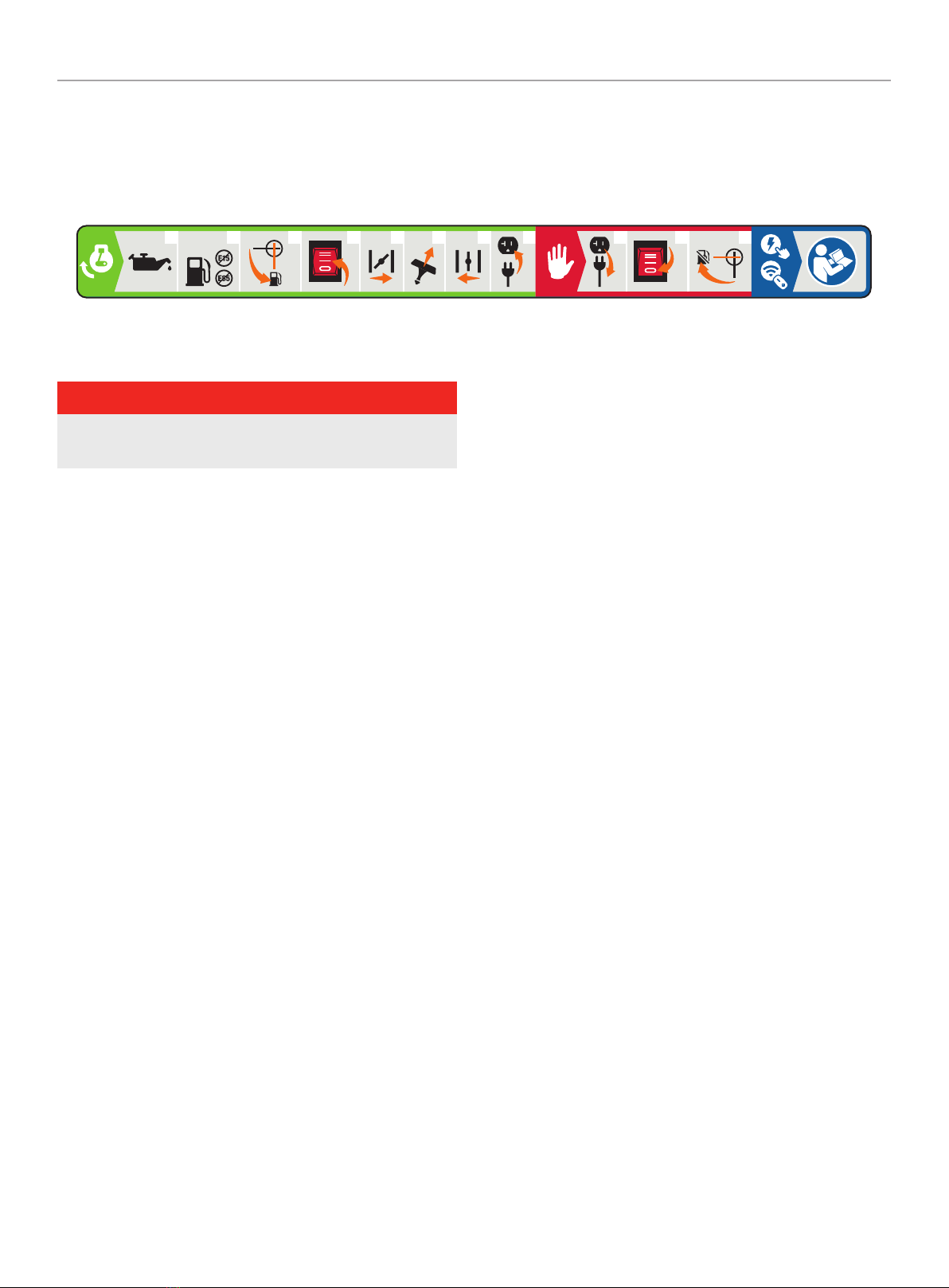

Quickstart Label Symbols........................................ 11
Controls and Features ................................. 12
Generator ......................................................... 12
Control Panel ..................................................... 13

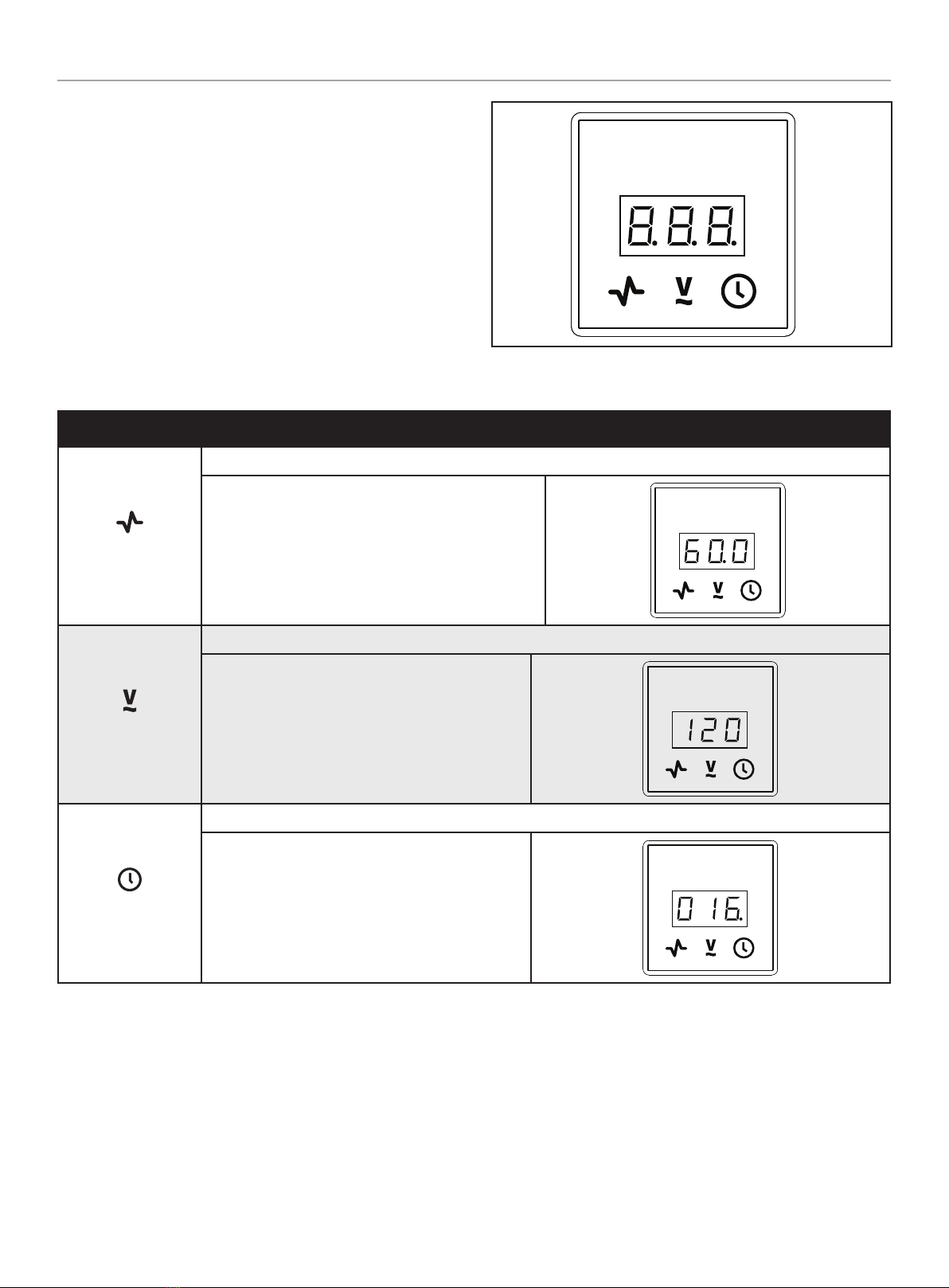

Intelligauge ....................................................... 14
Wireless Remote Control......................................... 15
FCC Statement for Remote Control Device...................... 15

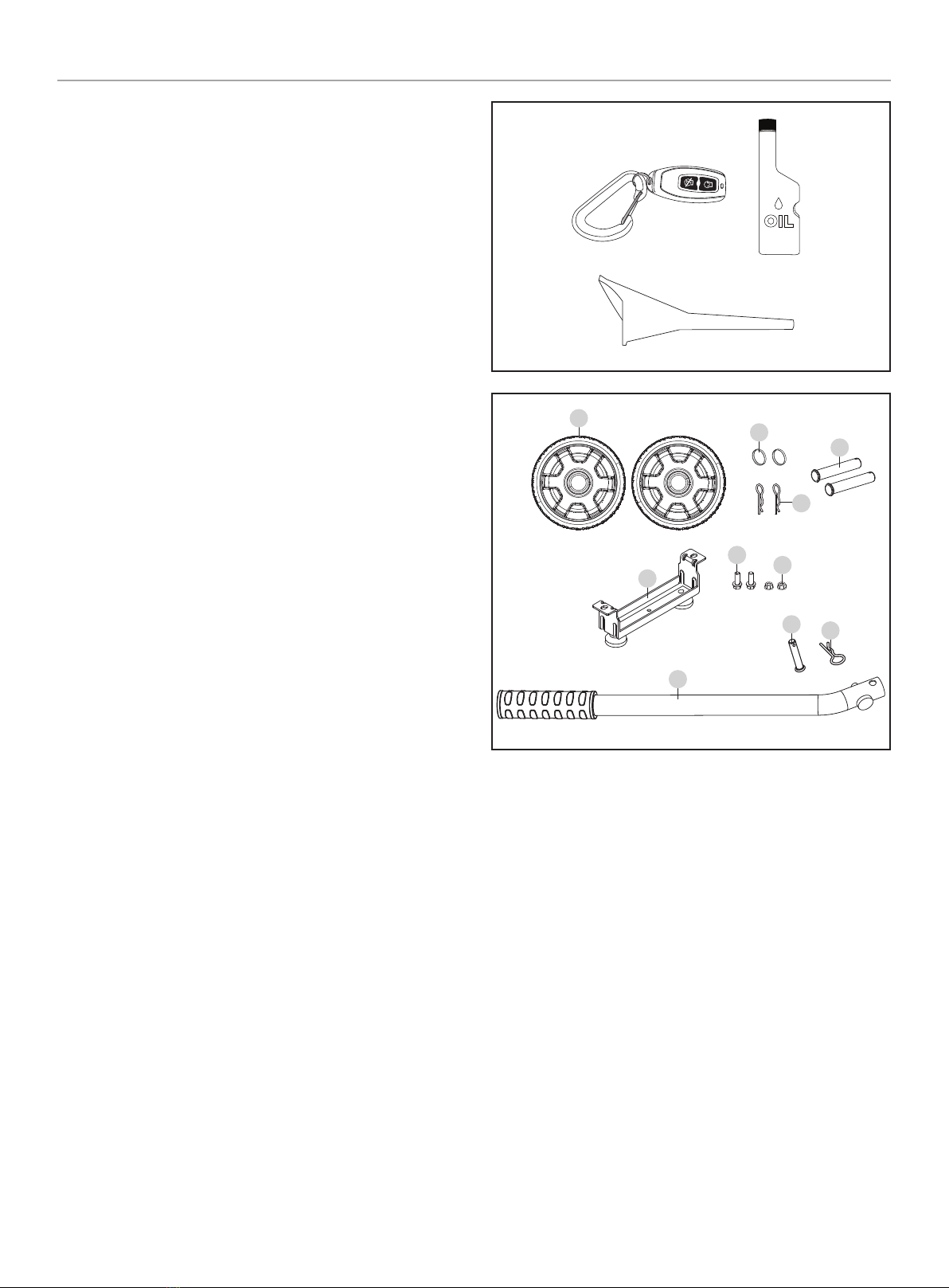

Parts Included .................................................... 16
Tools Needed ..................................................... 16
Assembly..................................................... 17
Unpacking ........................................................ 17

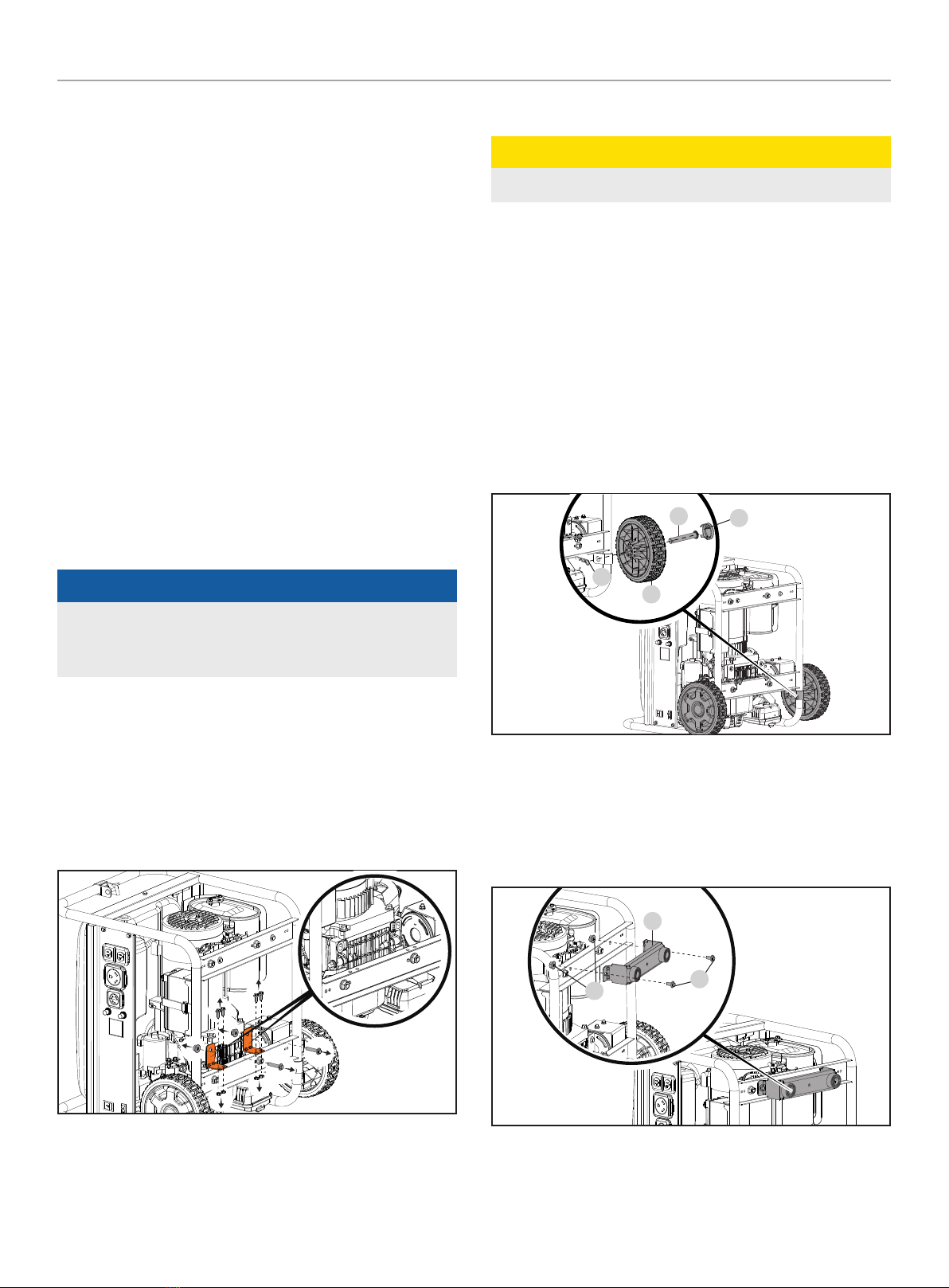

Remove Shipping Support Brackets............................. 17
Install the Wheel Kit.............................................. 17
Connect the Battery.............................................. 18
Add Engine Oil.................................................... 18

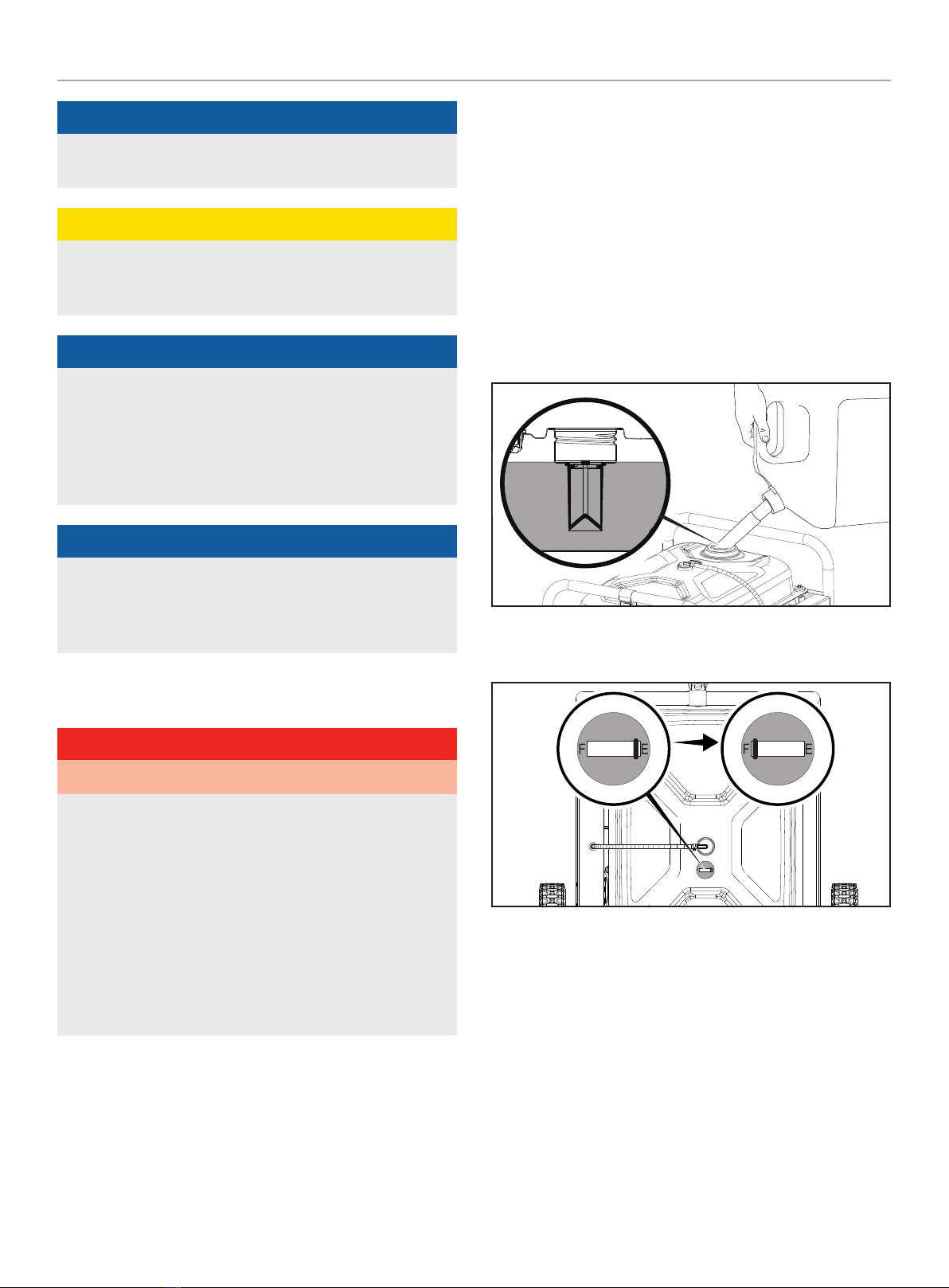

Add Fuel .......................................................... 19
Grounding ........................................................ 20
Operation.....................................................21
Generator Location............................................... 21
Surge Protection ................................................. 21
Wireless Set Button .............................................. 21
Starting the Engine............................................... 22
Battery............................................................ 24
Connecting Electrical Loads ..................................... 25
Do Not Overload Generator ...................................... 25
Stopping the Engine.............................................. 25
Moving the Generator ............................................ 26
Operation at High Altitude ....................................... 27
Maintenance................................................27
Cleaning the Generator .......................................... 28
Changing the Engine Oil ......................................... 28
Cleaning and Adjusting the Spark Plug.......................... 28
Cleaning the Air Filter ............................................ 29
Cleaning the Spark Arrestor ..................................... 29
Adjusting the Governor........................................... 29
Generator Battery ................................................ 30
Remote Control Battery.......................................... 30
Maintenance Schedule........................................... 30
Storage ........................................................31
Short Term Storage (up to 30 days) ............................. 31
Mid Term Storage (30 days – 1 year) ........................... 31
Long Term Storage (over 1 year) ................................ 31
Removing from Storage.......................................... 32
Specifications..............................................33
Generator Specifications......................................... 33
Engine Specifications ............................................ 33
Oil Specifications................................................. 33
Fuel Specifications ............................................... 33
Battery Specifications............................................ 33
Temperature Specifications...................................... 33
Troubleshooting...........................................34
Warranty* ....................................................36
Warranty Qualifications .......................................... 36
Repair/Replacement Warranty................................... 36
Do Not Return The Unit To The Place Of Purchase ............. 36
Warranty Exclusions ............................................. 36
Other Exclusions ................................................. 36
Limits of Implied Warranty and Consequential Damage........ 36
Contact Information .............................................. 36

200971 - 3650W WIRELESS REMOTE START GENERATOR INTRODUCTION
4
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
DANGER
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
NOTICE indicates information considered important, but not
hazard-related (e.g., messages relating to property damage).
INTRODUCTION
Congratulations on your purchase of a Champion Power Equipment
(CPE) product. CPE designs, builds, and supports all of our
products to strict specifications and guidelines. With proper
product knowledge, safe use, and regular maintenance, this
product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time of
publication, and we reserve the right to change, alter and/or
improve the product and this document at any time without prior
notice.
CPE highly values how our products are designed, manufactured,
operated, and serviced as well as providing safety to the operator
and those around the generator. Therefore, it is IMPORTANT to
review this product manual and other product materials thoroughly
and be fully aware and knowledgeable of the assembly, operation,
dangers and maintenance of the product before use. Fully
familiarize yourself, and make sure others who plan on operating
the product fully familiarize themselves too, with the proper safety
and operation procedures before each use. Please always exercise
common sense and always err on the side of caution when
operating the product to ensure no accident, property damage,
or injury occurs. We want you to continue to use and be satisfied
with your CPE product for years to come.
When contacting CPE about parts and/or service, you will need to
supply the complete model and serial numbers of your product.
Transcribe the information found on your product’s nameplate
label to the table below
CPE TECHNICAL SUPPORT TEAM
1-877-338-0999
MODEL NUMBER
200971
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION

200971 - 3650W WIRELESS REMOTE START GENERATOR IMPORTANT SAFETY INSTRUCTIONS
5
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
DANGER
Generator exhaust contains carbon monoxide, a colorless,
odorless, poisonous gas. Breathing carbon monoxide will
cause nausea, dizziness, fainting or death. If you start to feel
dizzy or weak, get to fresh air immediately.
OPERATE GENERATOR OUTDOORS ONLY IN A WELL
VENTILATED AREA AND POINT EXHAUST AWAY.
DO NOT operate the generator inside any building, including
garages, basements, crawlspaces and sheds, enclosure or
compartment, including the generator compartment of a
recreational vehicle.
DO NOT allow exhaust fumes to enter a confined area through
windows, doors, vents or other openings.
DANGER
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a poison
you cannot see or smell.
NEVER use inside a home or garage, EVEN IF doors and
windows are open.
ONLY use OUTSIDE and far away from windows, doors,
and vents.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to the
manufacturer’s instructions.
WARNING
Although the generator contains a spark arrester, maintain
a minimum distance of 5 ft. (1.5 m) from dry vegetation to
prevent fires.
DANGER
Operate equipment with guards in place.
Rotating parts can entangle hands, feet, hair, clothing and/or
accessories. Traumatic amputation or severe laceration can
result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
DO NOT wear loose-fitting clothing, dangling drawstrings or
items that could become caught.
DANGER
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn, damaged or frayed.
Use only Champion electrical cords for proper application.
DO NOT operate generator in wet weather.
DO NOT allow children or unqualified persons to operate or
service the generator.
Use a ground fault circuit interrupter (GFCI) in damp areas and
areas containing conductive material such as metal decking.
Connection to your home’s electrical system requires a
listed 30A transfer switch installed by a licensed electrician
and approved by the local authority having jurisdiction. The
connection must isolate the generator from the utility power
and must comply with all applicable laws and electrical codes.
WARNING
Do not use generator for medical and life support uses.
In case of emergency, call 911 immediately.
NEVER use this product to power life support devices or life
support appliances.
NEVER use this product to power medical devices or medical
appliances.
Inform your electricity provider immediately if you or anyone in
your household depends on electrical equipment to live.
Inform your electrical provider immediately if a loss of power
would cause you or anyone in your household to experience a
medical emergency.

200971 - 3650W WIRELESS REMOTE START GENERATOR IMPORTANT SAFETY INSTRUCTIONS
6
WARNING
Spark from removed spark plug wire can result in fire or
electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it where it cannot
contact the plug or any other metal object.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat. Severe burns can occur on
contact. Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all sides to
ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from combustible
materials.
WARNING
Rapid retraction of the recoil cord will pull hand and arm
towards the engine faster than you can let go. Broken bones,
fractures, bruises or sprains could result. Unintentional
startup can result in entanglement, traumatic amputation or
laceration.
When starting engine, pull the recoil cord slowly until
resistance is felt and then pull rapidly to avoid kickback.
DO NOT start or stop the engine with electrical devices
plugged in and turned on.
CAUTION
Exceeding the generator’s running capacity can damage the
generator and/or electrical devices connected to it.
DO NOT overload the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
CAUTION
Improper treatment or use of the generator can damage it,
shorten its life or void the warranty.
Use the generator only for intended uses.
Operate only on level surfaces.
DO NOT expose generator to excessive moisture, dust,
or dirt.
DO NOT allow any material to block the cooling slots.
If connected devices overheat, turn them off and disconnect
them from the generator.
DO NOT use the generator if:
–Electrical output is lost
–Equipment sparks, smokes or emits flames
–Equipment vibrates excessively
WARNING
This product contains a button battery. If swallowed, it could
cause severe injury or death in just 2 hours. Seek medical
attention immediately.

200971 - 3650W WIRELESS REMOTE START GENERATOR IMPORTANT SAFETY INSTRUCTIONS
7
Fuel Safety
DANGER
GASOLINE AND GASOLINE VAPORS ARE HIGHLY
FLAMMABLE AND EXPLOSIVE.
Fire or explosion can cause severe burns or death.
Gasoline and gasoline vapors:
–Gasoline is highly flammable and explosive.
–Gasoline can cause a fire or explosion if ignited.
–Gasoline is a liquid fuel but it’s vapors can ignite.
–Gasoline is a skin irritant and needs to be cleaned up
immediately if spilled on skin or clothes.
–Gasoline has a distinctive odor, this will help detect potential
leaks quickly.
–Gasoline expands or contracts with ambient temperatures.
Never fill the gasoline tank to full capacity, as gasoline needs
room to expand when temperatures rise.
–In the case of any petroleum gasoline fire, flames should never
be extinguished unless the fuel supply valve can be turned
OFF. By not doing so, if a fire is extinguished and the supply
of fuel is not turned OFF, an explosion hazard could be created.
When adding or removing gasoline:
–DO NOT light or smoke cigarettes.
–Always turn the generator off and let cool for a minimum of
two minutes before removing the gasoline cap. Afterwards,
loosen gasoline cap to relieve pressure from the gasoline tank.
–Only fill or drain gasoline outdoors in a well-ventilated area.
–DO NOT pump gasoline directly into the generator at the gas
station. Always use an approved fuel container to transfer the
gasoline to the generator.
–DO NOT overfill the gasoline tank.
–Always keep gasoline away from sparks, open flames, pilot
lights, heat and other sources of ignition.
When starting the generator:
–DO NOT attempt to start a damaged generator.
–Always make certain that the gasoline cap, air filter, spark
plug, fuel lines and exhaust system are properly secured,
connected and in place.
–Always allow spilled gasoline to evaporate fully before
attempting to start the engine.
–Make certain that the generator is resting firmly on level
ground.
When operating the generator:
–DO NOT move or tip the generator during operation.
–DO NOT tip the generator or allow fuel or oil to spill.
When transporting or servicing the generator:
–Make certain that the fuel valve is in the OFF position and the
gasoline tank is empty.
–Disconnect the spark plug wire.
When storing the generator:
–Store away from sparks, open flames, pilot lights, heat and
other sources of ignition.
–Do not store generator or gasoline near furnaces, water
heaters, or any other appliances that produce heat or have
automatic ignitions.
WARNING
Never use a gasoline container, gasoline tank, or any other fuel
item that is broken, cut, torn or damaged.

200971 - 3650W WIRELESS REMOTE START GENERATOR IMPORTANT SAFETY INSTRUCTIONS
8
Safety and Dataplate Labels
These labels warn you of potential hazards that can cause serious injury. Read them carefully.
If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.
LABEL DESCRIPTION
A
PELIGRO
El uso de un generador en
interiores PUEDE MATARLO EN
MINUTOS. El escape del
generador contiene monóxido de
carbono. Éste es un veneno que
no se puede ver ni oler.
•NUNCA lo use dentro del hogar ni
el garaje, INCLUSO SI las puertas
y ventanas están abiertas.
•Úselo SÓLO a la INTEMPERIE
lejos de ventanas, puertas, y
orificios de ventilación.
DANGER
Utiliser un générateur à l’intérieur
PEUT VOUS TUER EN QUELQUES
MINUTES. L’échappement du
générateur contient du monoxyde
de carbone. Il s’agit d’un poison
que vous ne pouvez ni voir ni sentir.
•Ne l’utilisez JAMAIS dans la
maison ou le garage MÊME SI les
portes et les fenêtres sont ouvertes.
•Utilisez-le UNIQUEMENT À
L’ EX TÉRIEUR, loin des fenêtres,
portes et trappes de ventilation.
ONLY use OUTSIDE
and far away from
windows, doors,
and vents.
NEVER use inside a
home or garage,
EVEN IF doors and
windows are open.
DANGER
Using a generator indoors CAN KILL YOU
IN MINUTES. Generator exhaust
contains carbon monoxide. This is a
poison you cannot see or smell.
2205-L-SF-A
K2945 109 485 ---
ColorsLPN 2205 -L-SF
Rev A
Size 158 x 113 mm
Artwork Notes
2mm safe margin
Revision Changes
---
This artwo rk belongs to Champio n Power Equipment. The c ontents are confi dential and privileg ed and shall not be disclo sed to or used by or for
outside par ties without the e xplicit consent of C hampion Power Equip ment.
Safety Symbols/
CO Danger
B
1110-L-OP-B
UNLEADED FUEL ONLY. Minimum octane
rating of 87. Maximum 10% ethanol.
GASOLINA REGULAR SOLAMENTE. 87 octanos
como mínimo. Máximo de etanol de 10%.
ESSENCE SANS PLOMB SEULEMENT.
Indice d’octane minimal de 87.
Maximum 10 % d'éthanol.
K109 --- --- ---
ColorsLPN 1110 -L-OP
Rev B
Size 46 x 46 mm
Artwork Notes
3mm corner radius; 2mm safe margin; whit e to be
prin ted shown i n 50% proce ss magent a
Revision Changes
-Cha nged Oct ane ratin g from 85 to 87 ( 20200 407)
This ar twork belong s to Champion Power E quipment. The co ntents are con fidential and pr ivileged and shal l not be disclosed t o or used by or for
outsid e parties with out the explicit con sent of Champion Po wer Equipment.
Fuel
C
WARNING
DO NOT TOUCH!
Exhaust gases, muffler
and engine components
are extremely HOT and
cause burns.
Operation of this equipment may create sparks that can start
fires around dry vegetation. A spark arrestor may be
required. The operator should contact local fire agencies for
laws and regulations relating to fire prevention requirements.
If installed, clean every 100 hours or every season.
ADVERTENCIA
¡NO TOCAR! Los gases de
escape, el silenciador y los
compnonentes del motor están
extremadamente CALIENTES y
causan quemaduras.
La operación de este equipo puede producir chispas que pueden provocar
incendios alrededor de la vegetación seca. Un supresor de chispas puede que
sea necesario. El operador debe comunicarse con las agencias locales de
bomberos para las leyes y reglamentos relativos a los requisitos de prevención
de incendios. Si está instalado, limpie cada 100 horas o cada temporada.
1291-L-SF-A
ColorsLPN 1291-L-SF
Rev A
Size 256 x 26 mm
Artwork Notes
3mm corner radius; 2mm safe margin
Revision Changes
---
This ar twork belon gs to Champion Power Equipment. T he contents ar e confidential and privilege d and shall not be dis closed to or used by or for
outsid e parties wit hout the explici t consent of Champion Power Equipment.
K485 152 --- ---
Hot Surface
D
CHAMPION POWER EQUIPMENT, INC.
12039 SMITH AVENUE
SANTA FE SPRINGS, CA 90670
USA / É.-U.
1-877-338-0999
WWW.CHAMPIONPOWEREQUIPMENT.COM
MADE IN CHINA / FABRIQUÉ EN CHINE
AC AMPS
AMPÈRES C.A.
FREQUENCY (Hz)
FRÉQUENCE (Hz)
RPM
TR / MIN
PHASE
PHASE
POWER FACTOR
FACTEUR DE
PUISSANCE
AC VOLTS
VOLTS C.A.
MANUFACTURE DATE
DATE DE FABRICATION
SERIAL NO.
N° DE SÉRIE
MODEL
MODÈLE
INSULATION CLASS
CLASSE D’ISOLATION
MAX AMBIENT TEMP.
TEMP. AMBIANTE MAX.
2374-L-PR-A
GASOLINE WATTS
WATTS D'ESSENCE
200971
30.4
60
3600
1
1.0
120
H
3650
104°F
40°C
XXXXXXXXXXXX
XXXX
K--- --- --- ---
ColorsLPN 2374-L-PR
Rev A
Size 123 x 40 mm
Artwork Notes
2mm safe margin; spaces in Cyan to be added in
production.
Revision Changes
---
This ar twork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
Dataplate
Top
A
B
Side
C
D

200971 - 3650W WIRELESS REMOTE START GENERATOR IMPORTANT SAFETY INSTRUCTIONS
9
Safety Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Read Operator’s Manual. To reduce the risk of injury, user must read and understand operator’s manual
before using this product.
Clearance. Keep all objects at least 5 feet (1.5m) from generator. Heat from the muffler and exhaust gas
can ignite combustible objects.
Ground. Consult with local electrician to determine grounding requirements before operation.
Electric Shock. Failure to use in dry conditions and to observe safe practices can result in electric
shock. Improper connections to a building can allow current to backfeed into utility lines, creating an
electrocution hazard. A transfer switch must be used when connecting to a building.
Fire/Explosion. Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause
severe burns or death. Keep generator at least 5 feet (1.5m) from all objects to prevent combustion.
Hot Surface. To reduce the risk of injury or damage, avoid contact with any hot surface.
Open Flame Alert. Fuel and its vapors are extremely flammable and explosive. Keep fuel away from
smoking, open flames, sparks, pilot lights, heat, and other ignition sources.
Wet Conditions Alert. Do not expose to rain or use in damp locations.

200971 - 3650W WIRELESS REMOTE START GENERATOR IMPORTANT SAFETY INSTRUCTIONS
10
Operation Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Start
On
Stop or Off
Fuel Valve On/Off
Choke
Run
Ground Terminal
Battery On
Battery Off
SYMBOL MEANING
Neutral Floating. Neutral circuit IS
NOT electrically connected to the frame/
ground of the generator.
Circuit Breaker Reset: Push
Locking Receptacle
RV Ready Receptacle
Wireless Pair
Hertz
Volts
Run time

200971 - 3650W WIRELESS REMOTE START GENERATOR IMPORTANT SAFETY INSTRUCTIONS
11
Quickstart Label Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
Starting the Engine
DANGER
Move generator outside and far away from windows,
doors and intake ventilation covers.
1. Check oil level.
Recommended oil is 10W-30.
2. Check gasoline level.
When adding gasoline, use a minimum octane rating of 87
and an ethanol content of 10% or less by volume.
3. Turn the fuel valve to “ON” position.
4. Press ignition switch to the “ON” position.
5. Move choke lever to “CHOKE” position.
6. Pull the recoil cord.
7. Move the choke lever to “RUN” position.
8. Plug in desired device.
Stopping the Engine
1. Turn off and unplug all connected electrical loads.
2. Press the ignition switch to the “OFF” position.
3. Turn the fuel valve to the “OFF” position.
Wireless and Electric Start
See page 22 in “Operation” section
1498-L-OP-B
11 2 32 3 4 5
10W-30

76 8

K376 186 152 CG12945
ColorsLPN 1498-L-OP
Rev B
Size 256 x 23 mm
Artwork Notes
2mm safe margin; to be printed on white substrate
Revision Changes
B: Fuel valve simplified/updated
This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.

200971 - 3650W WIRELESS REMOTE START GENERATOR CONTROLS AND FEATURES
12
CONTROLS AND FEATURES
Read this operator’s manual before operating your generator. Familiarize yourself with the location and function of the controls and
features. Save this manual for future reference.
Generator
1. Fuel Cap – Remove to add fuel.
2. Choke – Used to start the engine (for manual start only).
3. Fuel Valve – Used to turn fuel supply on and off to engine.
4. Air Filter – Protects the engine by filtering dust and debris
from the intake air.
5. Never Flat Wheels – 8 in. (20.3 cm)
6. Recoil Starter – Used to manually start the engine.
7. Oil Fill Cap/Dipstick –Used to check and fill oil level.
8. Battery – Provides 12V DC power the starting system.
9. Control Panel –See Control Panel section.
10. Gasoline Tank – 4.7 gal. (17.8 L)
11. Ground Terminal – Consult an electrician for local grounding
regulations.
12. Folding Handle –Used to move unit by lifting and rolling on
wheels. Do not use to lift or carry the unit.
13. Gasoline Gauge
2
3
11
67
5
113
12
10
9
8
4

200971 - 3650W WIRELESS REMOTE START GENERATOR CONTROLS AND FEATURES
13
Control Panel
1. Ignition Switch – Used to START or STOP the generator.
2. Battery Switch – Enables/disables electric starting.
3. Intelligauge – Three mode digital meter for displaying total
run time, voltage and hertz.
4. Circuit Breakers (Push Reset) – Protects the generator
against electrical overloads.
RECEPTACLES
AW
120V AC, 30A Locking (NEMA L5-30R)
May be used to supply electrical power for
operation of 120 Volt AC, 30 Amp, single phase,
60 Hz electrical loads.
Bt
120V AC, 30A RV (NEMA TT-30R)
May be used to supply electrical power for
operation of 120 Volt AC, 30 Amp, single phase,
60 Hz electrical loads.
CA
(2×) 120V AC, 20A (NEMA 5-20R)
May be used to supply electrical power for
operation of 120 Volt AC, 20 Amp, single phase,
60 Hz electrical loads.
1
3
4
2
A B
C

200971 - 3650W WIRELESS REMOTE START GENERATOR CONTROLS AND FEATURES
14
Intelligauge
Three mode digital meter for displaying frequency (hertz), voltage,
and total run time.
The LCD displays each mode for several seconds and then
automatically cycles through.
MODE DESCRIPTION
Frequency (Hz)
Output frequency in hertz.
Example: 60.0 hertz
Voltage (V)
Output voltage of the generator.
Example: 120 volts
Total Run Time (Hrs.)
Total run time of the generator since first operation
Example: 16 hours

200971 - 3650W WIRELESS REMOTE START GENERATOR CONTROLS AND FEATURES
15
Wireless Remote Control
This generator is equipped with a wireless remote control system
for starting and stopping. The system consists of (5) main
components:
1. Receiver Control Module (RCM)
2. Remote Key Fob
3. Battery Switch
4. Ignition Switch
5. Auto-Choke
The Remote Control functions are enabled when:
1. The Ignition Switch is in the “ON” position, AND
2. The Battery Switch is in the “ON” position.
The Remote Control functions are disabled if either of the above
conditions is not met.
To start the generator wirelessly, press the “START” button on
the Remote key fob one time. The engine will attempt to start (6)
times. The RCM controls the Auto-Choke during each attempt
to start. If the generator does not start, call Champion Customer
Care team for assistance at 1-877-338-0999.
To stop the generator wirelessly, press the “STOP” button on the
Remote key fob one time.
Remote Control Power Consumption
While the Ignition Switch is in the “ON” position, the RCM is active
and waiting for a remote signal. This function requires electrical
current from the battery. If the Ignition Switch is left in the “ON”
position for extended periods (several weeks), the battery can be
completely drained.
Moving the Ignition Switch to the “OFF” position disables the
Remote functions, but the RCM still consumes approximately
2 mA from the battery.
To prevent battery drain, press the Battery Switch to the “OFF”
position. This disconnects power to the RCM so there is no current
draw on the battery.
Control Panel Load Management
When the generator initially starts wirelessly, no voltage is
supplied to the Control Panel for approximately 15 seconds. This
allows the engine to reach full speed before electrical loads are
applied to the generator.
When the generator is stopped wirelessly, the voltage to the
Control Panel is immediately turned off. Then the engine stops
approximately 5 seconds after the “STOP” button on the Remote
key fob is pressed. Turning the Control Panel voltage off before
the engine shutdown protects connected appliances from being
damaged by non-60 Hz voltage while the generator coasts to a
stop.
The on/off voltage delay at startup and shut down only happen
when the Remote key fob is used. There is no voltage delay when
the push-button electric start or recoil cord method is used.
When the push-button electric start or recoil cord method is used,
the operator must be sure all electrical loads (appliances) are
turned OFF during startup and shutdown. Damage to the generator
or the attached appliances can be caused by starting or stopping
the generator while appliances are plugged in and turned ON.
FCC Statement for Remote Control Device
1. This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
1a. This device may not cause harmful interference.
1b. This device must accept any interference received,
including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
NOTICE
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and
receiver.
–Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult dealer or an experienced radio/TV technician for help.

200971 - 3650W WIRELESS REMOTE START GENERATOR CONTROLS AND FEATURES
16
Parts Included
Accessories
Remote Key Fob ....................................................1
Engine Oil...................................... 16.9 fl. oz. (500 ml)
Oil Funnel ...........................................................1
Assembly Parts
Wheels
8 in. (20.3 cm) Never Flat Wheel (A) ...........................2
Wheel hub cap (B) ..............................................2
Roll Pin (C) ......................................................2
Large R-clip (D) .................................................2
Engine Vibration Mounts
Support Leg with Vibration Mounts (E) ........................1
Flange Bolt (M8×16) (F) ........................................2
Flange Lock Nut (M8) (G).......................................2
Folding Handle
Handle (H).......................................................1
Short Pin (I) .....................................................1
Small R-clip (J) .................................................1
Tools Needed
–Wrench/Socket set (metric)
–Pliers
A
B
C
D
E
FG
H
IJ

200971 - 3650W WIRELESS REMOTE START GENERATOR ASSEMBLY
17
ASSEMBLY
Your generator requires some assembly. It must be properly
serviced with fuel and oil before operation.
If you have any questions regarding the assembly of your
generator, call our Technical Support Team at 1-877-338-0999.
Please have your serial number and model number available.
Unpacking
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the generator.
3. Carefully cut each corner of the box from top to bottom. Fold
each side flat on the ground to provide a surface area to work
with the generator.
Remove Shipping Support Brackets
To protect the generator during shipping, support brackets have
been installed between the engine and frame. These brackets
MUST BE REMOVED BEFORE adding oil or gasoline to the
generator.
NOTICE
DO NOT attempt to run generator without first removing the
shipping support brackets. Damage to the generator as a result
of not removing the brackets will void the warranty.
1. BEFORE filling the engine with oil or gasoline, tip the
generator onto its recoil end. Tip onto the flattened cardboard
box the generator came in or other protective surface so as to
not scratch the frame.
2. Remove the bolts from the orange support brackets. Bolts
and brackets can be discarded.
3. Tip the generator upright.
Install the Wheel Kit
CAUTION
The wheel kit is not intended for over-the-road use.
Install the Wheels
1. Before adding fuel and oil, tip the generator onto it’s recoil
end.
2. Remove wheel hub cap (B) from wheel by inserting a small
screwdriver into the slot provided and pry upward.
3. Slide the roll pin (D) through the wheel (A) from the outside.
4. Slide the roll pin through the mount point on the frame.
5. Insert r-clip (C) into hole at end of roll pin.
6. Re-install hub cap on wheel.
7. Repeat to attach the second wheel.
B
D
A
C
Install the Support Leg
1. Attach the support leg (E) to the generator frame with flange
bolts (F) and flange lock nuts (G).
2. Slowly tip the generator back down so that it rests on the
wheels and support Leg.
E
F
G

200971 - 3650W WIRELESS REMOTE START GENERATOR ASSEMBLY
18
Install the Handle
1. Place the handle (H) inside the mounting channel on the
frame.
2. Slide short pin (I) through mounting channel and handle.
3. Insert r-clip (J) through the hole on the end of short pin.
H
J
I
Connect the Battery
1. Cut cable tie on each side of battery connector.
2. Push two halves of battery connector together tightly.
Add Engine Oil
CAUTION
DO NOT attempt to crank or start the engine before it has been
properly filled with the recommended type and amount of oil.
Damage to the generator as a result of failing to follow these
instructions will void your warranty.
NOTICE
The generator rotor has a sealed, pre-lubricated ball bearing
that requires no additional lubrication for the life of the bearing.
NOTICE
The recommended oil type for typical use is 10W-30
automotive oil.
If running generator in extreme temperatures, refer to the
following chart for recommended oil type.
-20 020 40 60
Ambient temperature
Recommended Engine Oil Type
80 100 120
-28.9
°F
°C -17.8 -6.7 4.4 15.6 26.7 37.8 48.9
10W-30
5W-30 Full Synthetic
10W-405W-30
1. Place the generator on a flat, level surface.
2. Remove oil fill cap/dipstick to add oil.
3. Using a funnel, add up to 16.9 fl. oz. (500 ml) of oil (included)
and replace oil fill cap/dipstick. DO NOT OVERFILL.
4. Check engine oil level at every use and add as needed.
MAX
OIL DIP STICK
NOTICE
Once oil has been added, a visual check should show oil about
1-2 threads from running out of the fill hole.
When using the dipstick to check oil level, DO NOT screw in
the dipstick while checking.

200971 - 3650W WIRELESS REMOTE START GENERATOR ASSEMBLY
19
NOTICE
Check oil level often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
CAUTION
This engine is equipped with a low oil shut-off and will stop
when the oil level in the crankcase falls below the threshold
level.
NOTICE
The first 5 hours of run time are the break-in period for the
unit. During the break in period stay at or below 50% of the
running watt rating and vary the load occasionally to allow
stator windings to heat and cool. Adjusting the load will also
cause engine speed to vary slightly and help seat piston rings.
After the 5 hour break-in period, change the oil.
NOTICE
Synthetic oil may be used after the 5 hour initial break-in
period. Using synthetic oil does not decrease the recommended
oil change interval. Full synthetic 5W-30 oil will aid in starting
in cold ambient < 41º F (5º C) temperatures.
Add Fuel
DANGER
Gasoline vapors are highly flammable and extremely explosive.
DO NOT light or smoke cigarettes. Fire or explosion can cause
severe burns or death.
Only fill or drain fuel outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the generator. Use an
approved container to transfer the fuel to the generator.
Never use a gasoline container, gasoline tank, or any
other fuel item that is broken, cut, torn or damaged.
DO NOT overfill the gasoline tank. Always keep fuel away from
sparks, open flames, pilot lights, heat and other sources of
ignition.
Use clean, fresh, regular unleaded gasoline with a minimum
octane rating of 87 and an ethanol content of 10% or less by
volume. ybc
DO NOT mix oil with gasoline.
1. Remove the gasoline cap.
2. Slowly add gasoline to the tank. Tank is full when gasoline
reaches red circle on screen. DO NOT OVERFILL. Gasoline can
expand after filling. A minimum of ¼ in. (6.4 mm) of space left
in the tank is required for gasoline expansion, although more
than ¼ in. (6.4 mm) is recommended. Gasoline can be forced
out of the tank as a result of expansion if overfilled, and can
affect the stable running condition of the generator.
3. The approximate fuel level is shown on the fuel gauge on top
of the fuel tank.
4. Screw on the gasoline cap and wipe away any spilled fuel.
Empty Full

200971 - 3650W WIRELESS REMOTE START GENERATOR ASSEMBLY
20
CAUTION
Use unleaded gasoline with a minimum octane rating of 87
and an ethanol content of 10% or less by volume.
DO NOT light cigarettes or smoke when filling the tank.
DO NOT mix oil and gasoline.
DO NOT overfill the tank. Fill tank to approximately ¼ in.
(6.4 mm) below the top of the tank to allow for gasoline
expansion.
DO NOT pump gasoline directly into the generator at the pump.
Use an approved fuel container to transfer the gasoline to the
generator.
DO NOT fill tank indoors.
DO NOT fill tank when the engine is running or hot.
WARNING
Pouring gasoline too fast through the fuel screen may result
in gasoline splashing over the generator and operator while
filling.
NOTICE
The generator engine works well with 10% or less ethanol
blended gasoline. When using ethanol-gasoline blends there
are some issues worth noting:
–Ethanol-gasoline blends can absorb more water than
gasoline alone.
–These ethanol blends can eventually separate, leaving
water or a watery goo in the tank, fuel valve and
carburetor. The compromised gasoline can be drawn into
the carburetor and cause damage to the engine and/or
create potential hazards.
–If a fuel stabilizer is used, confirm that it is formulated to
work with ethanol-gasoline blends.
–Any damages or hazards caused by using ethanol blended
gasoline higher than 10% by volume, improperly stored
gasoline, and/or improperly formulated stabilizers, are not
covered by manufacturer’s warranty.
It is advisable to always shut off the gasoline supply and
run the engine to starvation after each use. See Storage
instructions for extended non-use.
Grounding
Your generator must be properly connected to an appropriate
ground to help prevent electric shock.
WARNING
Failure to properly ground the generator can result in electric
shock.
A ground terminal connected to the frame of the generator has
been provided (see Controls and Features for terminal location).
For remote grounding, connect a length of heavy gauge
(12 AWG minimum) copper wire between the generator ground
terminal and a copper rod driven into the ground. We strongly
recommend that you consult with a qualified electrician to ensure
compliance with local electrical codes.
Neutral Floating*
–Neutral circuit IS NOT electrically connected to the frame/
ground of the generator.
–The generator (stator winding) is isolated from the frame and
from the AC receptacle ground pin.
–Electrical devices that require a grounded receptacle pin
connection will not function if the receptacle ground pin is not
functional.
Neutral Bonded to Frame*
–Neutral circuit IS electrically connected to the frame/ground of
the generator.
–The generator system ground connects lower frame cross-
member below the alternator. The system ground is connected
to the AC neutral wire.
* See your Specifications section for specified type of grounding.
