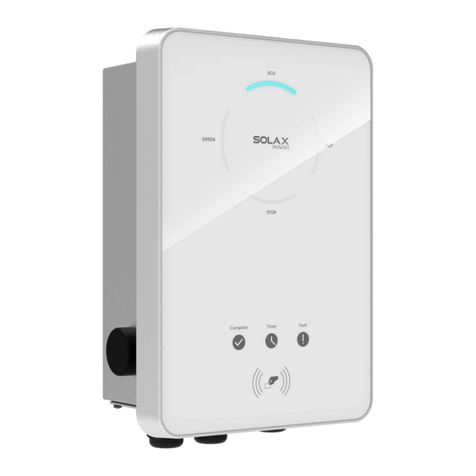

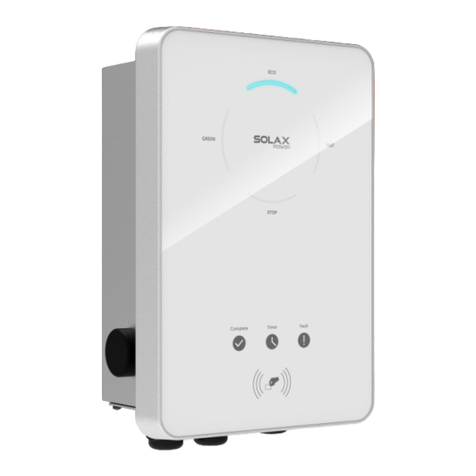

SolaX Power X1 Series User manual

X1/X3-EVC Series 7.2 kW-22 kW
(Commercial Edition)
Packing List
Installation Steps
STEP 1: Remove the screw from the EV-Charger with the cross screwdriver. Then remove the back bracket away carefully.
STEP 2: Fix the back bracket and the cable hook (only for Plug Type) to the wall.
- Mark the position of the holes.
- Drill holes with φ 8 drill.
- Depth: at least 45 mm.
- Insert the expansion bolts. - Align the bracket and the cable hook (only for Plug Type)
with the holes, and screw the self tapping screws with the
cross screwdriver.
STEP 3: Hang the EV-Charger on the wall for trial, then estimate the required length of input cable (three-core for single-phase, five-core for
three-phase, outer diameter: 12.5-18 mm) and communication cable. After that, take the EV-Charger down.
STEP 4: Unscrew the EV-Charger’s rear cover with the cross screwdriver and take it down. the fastening heads and take the Then undo
waterproof materials away as shown below.
STEP 5: Unscrew the countersunk screw of the base plate of communication board with the cross screwdriver. Then pull the base plate of
communication board out.
≥400 mm
(torque:1.5~2 N·m)
②
①
Cable hook *1
(only for Plug Type)
Expansion bolt *3/5
(3 for Socket Type,
5 for Plug Type)
European terminal *3/5
(3 for single-phase;
5 for three-phase)
Self tapping screw *3/5
(3 for Socket Type,
5 for Plug Type)
Gasket *3/5
(3 for Socket Type,
5 for Plug Type)
EV-Charger *1
Documents
Private RFID card *2

CT/Meter & WiFi Connection
320102036201
Installation Steps
STEP 6: Insert the (extended) communication cable of the meter or CT or other devices through the waterproof connector in sequence as shown
below. (For the installation of CT or meter, please refer to the “CT/Meter Connection” section.)
STEP 7: Strip the outer sheath of the input cable as below, ensuring all the wires can reach the terminal blocks with a little excessive length. Use
the stripping pliers to strip approx. 12 mm of insulation from the end of all the coloured wires as below. Then crimp the European terminal with
the wire crimper.
STEP 8: Insert the input cable through the waterproof connector in sequence as shown below.
①
③
②
strip length
STEP 9: Insert the wires into the appropriate holes of the terminal
blocks, then block the terminals with the straight screwdriver.
STEP 10: Press the spring upward and push the base plate of
communication board in. Then screw the countersunk screw.
Diagram:
STEP 11: Push the rear cover to appropriate position of the cables and screw the self tapping screws with the cross screwdriver. Then tighten the
waterproof fastening heads.
STEP 12: Hang the EV-Charger up carefully and steady the EV-Charger with the self tapping screw and the cross screwdriver.
For Plug Type, connect the charging connector with the
EV-Charger and hang the connecting cable on the hook.
► CT/Meter Connection ► WiFi Connection
Step 1: Use your smart phone to scan below QR code or search for
the keyword “SolaXCloud” in browser to download the Monitoring
App.
Step 2: Create a new account on the Monitoring App.
Step 3: Login and turn to Account page in the app. Then click “Wifi
Connection” and follow the instructions to complete the process.
IOS Google
1 2 3456 7 8
1) White with orange stripes
2) Orange
3) White with green stripes
4) Blue
5) White with blue stripes
6) Green
7) White with brown stripes
8) Brown
①
③
②
(torque: 2~2.5 N·m)
XXX
Ver s ion : Vxx x x.x x .xx
(torque: 2~2.5 N·m)
L1 L2 L3
60-70 mm
75-80 mm
Ou t e r Sheath
12 mm
12 mm
(torque:1.5~1.8 N·m)
<4 mm
L1
L2
L3
N
PE
(torque:0.8~1.5 N·m)
Note:
1. If a CT is installed with EV-Charger, the arrow on the CT must point at the
public grid.
2. For the installation of the meter, please refer to the relative quick installation
guide for details.
*If manual WiFi conguration is required, the IP address is
http://192.168.10.10/.
PIN
Definition
1 2 3 4 5 6 7 8
A1
L1_CT+ B1 L1_CT- L3_CT+ L3_CT-L2_CT+ L2_CT-
* PIN 3, 6, 7, 8 is null for single-phase.
• For “Commercial Charger(OCPP)” Scenarios• For “Private Charger” Scenarios
Electrical
grid
Electricity meter,
bidirectional
AC distribution
box
CT/
Meter
Electrical
grid
Meter
Electricity meter,
bidirectional
AC distribution
box
OCPP1.6
L line
CT
Public grid
electricity Public grid
electricity
In
Out
EV-Charger
Meter
