Sole Gourmet SOLE-30 User manual

OWNERS MANUAL
Installation, Operation & Maintenance Guide
MODELS: SOLE-30/SOLE-42

This Page
Intentionally Left
Blank

Table of Contents
For Your Safety................................................................. 3
Basic Safety Guidelines .............................................................. 5
Installation ....................................................................... 6
Gas Connection Basics ..........................................................................6
Natural Gas Connections .......................................................................7
Propane (LP) Gas Connections ...............................................................8
Propane (LP) Tank Requirements ..........................................................9
Installation Location & Clearances .......................................................10
Built-In Installations ...........................................................................11
Electrical Requirements .......................................................................12
Leak Testing ......................................................................................13
Burner Adjustments ............................................................................14
Operation........................................................................ 15
Lighting Instructions & Grill Operation ..................................................15
Rotisserie Operation ...........................................................................16
Maintenance ................................................................... 17
Cleaning Your Grill ..............................................................................17
General Maintenance ..........................................................................18
Parts Removal & Replacement .............................................................19
Troubleshooting.............................................................. 20
Parts Identification......................................................... 21

3
For Your Safety
Read the Lighting Instructions in this manual before attempting to light your grill.
WARNING!
WARNING!
If you smell gas:
1. Shut off the gas to your grill.
2. Extinguish any flames.
3. Open the lid to your grill allowing the release of trapped gas.
4. If you continue to smell gas, call your gas supplier
immediately.
DO NOT store or use flammable liquids or vapors such as gasoline near your grill.
WARNING!
DO NOT store unconnected propane tanks or tanks not currently in use near your grill.
WARNING!
Read and adhere to the Basic Safety Guidelines outlined in this manual.
WARNING!

4
The burning of gas cooking fuel generates some by-products
which are on the list of substances which are known by the
State of California to cause cancer or reproductive harm.
California law requires businesses to warn customers of potential
exposure to such substances. To minimize exposure to these
substances, always operate this unit according to the use and
care manual, ensuring you provide good ventilation when
cooking with gas.
CALIFORNIA PROPOSITION 65 WARNING
For Your Safety
Your grill has been tested in accordance with ANSI standards for
outdoor cooking gas appliances. Your grill is for outdoor use only.
Check local building codes for the proper method of installation.
In the absence of local codes, this unit should be installed in
accordance with the following:
• Z223.1, National Fuel Gas Code
• CAN/CGA-B149.1, Natural Gas Installation Code.
• CAN/CGA-B149.2, Propane (LP) Gas Installation Code.
WARNING!

5
For Your Safety
Basic Safety Guidelines:
It is important to follow these rules to avoid fire hazard, property damage or bodily injury
from improper installation or usage of your grill. For your safety, read all rules carefully and
check local codes:

DO NOT install your grill in recreational vehicles, mobile homes, trailers, boats, etc. Your grill
is for outdoor installation and use only.
 Always install your grill by following the installation instructions and local codes.
 Always know where the gas supply shut-off valve is located and ensure that it is easily
accessible while your grill is in operation.
 Always check all gas supply lines and connections for leaks with soap and water solution.
NEVER check for gas leak with an open flame.
 DO NOT attempt to repair or replace any part of your grill unless specifically outlined in this
manual. All other service should be performed by a qualified service technician.
 DO NOT place clothing or other flammable material on or near your grill.
 DO NOT wear loose-fitting clothes or long sleeves while operating your grill.
 Always supervise children in the vicinity of your grill, especially while in use. Portions of your
grill can be extremely hot and can cause severe burns.
 Always use a glove or mitt while opening and operating your grill. Open the lid to your grill
slowly allowing heat and smoke to escape before fully opening.
 DO NOT use aluminum foil to line the crumb pan or grill racks. This can alter airflow required
for proper combustion and build up heat in the control area causing the knobs and igniters to
melt.
 Always allow hot grease to cool down before attempting to handle it and clean the grease
tray often so that grease does not accumulate.
 DO NOT use your grill in a windy area.

6
Gas Connection Basics
Only use the type of gas indicated on the rating plate.
DO NOT connect an unregulated gas line to your grill.
A manual gas shut-off valve must be installed in an easily accessible location between the
supply line and the pressure regulator; both are to be supplied by the installer.
Both your grill and its shut-off valve must be disconnected from the supply line during any
system pressure testing where test pressures may exceed 1/2 Psi (3.5kPa).
Your grill must be isolated from the gas supply line, by closing its manual shut-off valve,
during any pressure testing where test pressures may be equal to or less than 1/2 Psi
(3.5kPa).
The supply line for your grill must be sized and installed to provide sufficient supply of gas to
meet the maximum demand of your grill without undue loss of pressure.
The sealant used on any threaded joints in the supply line must be a type resistant to the
action of LP gases.
Grill Specifications
Grill Input Rating 15,000 BTU/ea
Rotisserie Input Rating 12,500 BTU/ea
Side Burner Input Rating 12,000 BTU/ea
Light Wattage 12V, 20 Watt
Installation

7
Installation
Natural Gas Connection
Appliance Pressure (Natural Gas) 4” W.C.
Inlet Pressure (Natural Gas) 5” - 14” W.C.
Assemble pipe fittings as shown:
Apply pipe compound on male joints only. Ensure regulators proper orientation for gas flow.

8
Propane (LP) Gas Connection
Appliance Pressure (LP Gas) 10” W.C.
Inlet Pressure (LP Gas) 11” - 14” W.C.
Assemble pipe/hose assembly as shown:
After assembly, turn tank valve on and turn control
valves on your grill to the HI position for 10 to 15
seconds to purge the line of air.
Inspect the supply hose before each use. If there
is evidence of excessive abrasion, wear or cuts to
the hose it must be replaced prior to operation of
your grill. Replacement hose assembly shall be
that specified by the manufacturer.
To connect, insert the regulator inlet into the tank
valve and turn black coupler clockwise until the
coupler tightens. DO NOT over tighten the coupler.
To disconnect, turn the tank valve off then turn the
black coupler counter clockwise until disengaged.
When your grill is not in use, the gas must be
turned off at the supply tank. The tank must be
stored outdoors, out of the reach of children and
away from any enclosed areas.
Installation

9
Installation
LP Tank Requirements
The LP gas cylinder must be constructed and marked in accordance with the specifications for
LP gas cylinders of the U.S. Department of Transportation (DOT) and designed for use with a
QCC-1 quick disconnect system only.
The cylinder must be provided with a shut-off valve terminating in an L.P. gas supply cylinder
valve outlet specified, as applicable, for connection No. QCC-1.
The cylinder must be provided with a listed overfilling prevention device.
The pressure regulator and hose assembly supplied with the outdoor cooking gas appliance
must be used. Replacement of pressure regulators and hose assemblies can be purchased
from authorized dealers.
The cylinder supply system must be arranged for vapor withdrawal. Make sure the LP cylinder
has a collar to protect the cylinder valve.
(a) Do not store a spare LP gas cylinder under on near your grill.
(b) Never fill the cylinder beyond 80 percent full.
(c) If the information in (a) and (b) are not strictly followed, a death-causing fire or serious
injury may occur.
Dented, rusty or damaged propane cylinders must be replaced immediately.
NEVER USE A RUSTY OR DAMAGED TANK
WARNING!

10
Due to high temperatures, place your grill out of traffic and keep away from clothing,
furniture, etc. Keep the gas line connection as short as possible. Do not install in recreational
vehicles, mobile homes, trailers, boats, etc.
Clearances
Minimum horizontal clearance from sides and back of the unit to adjacent vertical combustible
construction extending above top of unit, 6 inches from side and 15 inches from back.
Do not locate your grill under unprotected overhead combustible construction. The sides of
your grill can be 0 inches from non-combustible material, below the cooking surface.
Installation Location & Clearances
Choose a location where the flow of air on the front of your
grill is not obstructed.
Installation

11
Installation
Bottom of grill must be
supported on both sides
and back or full width with
opening as shown for gas
connection.

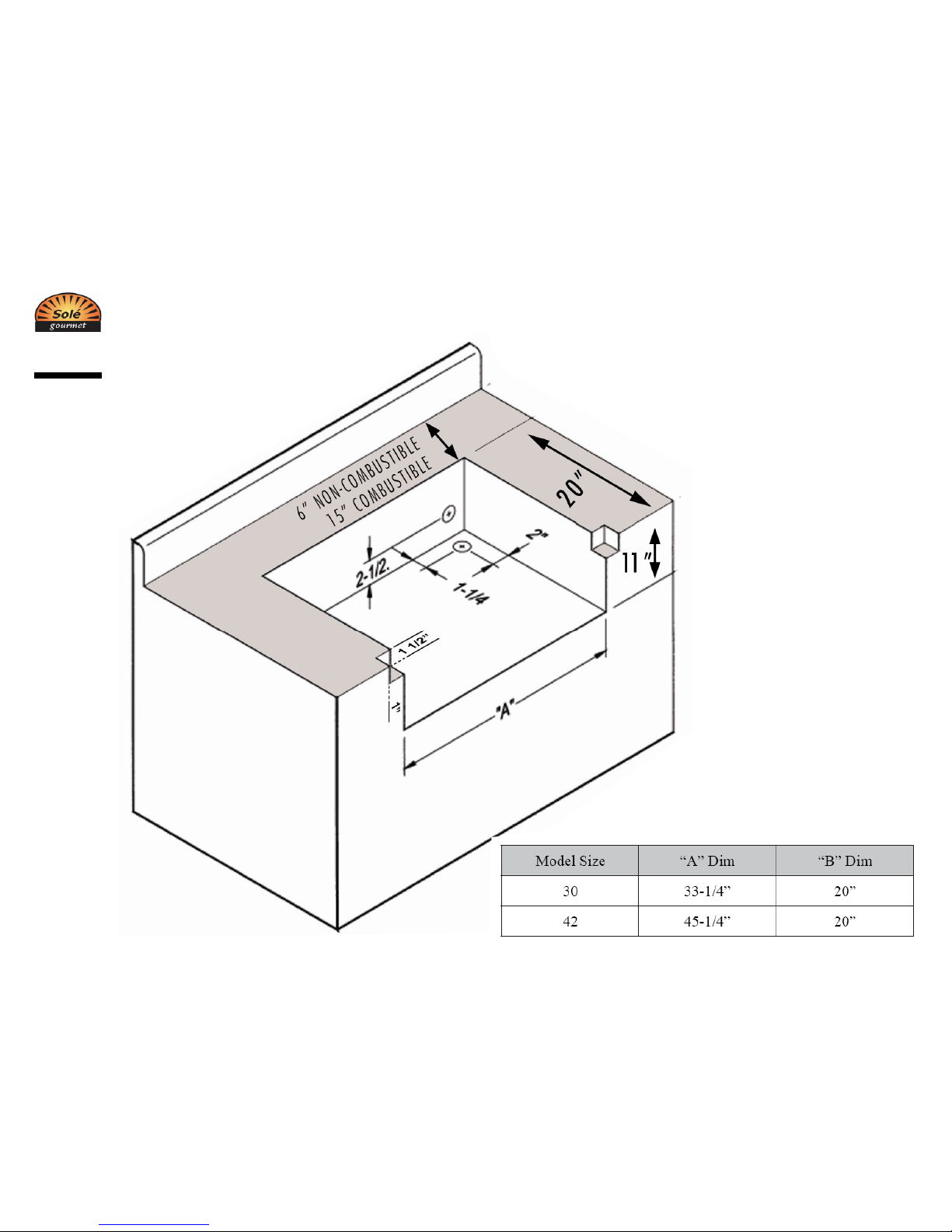

Built-In Installation
For non-combustible masonry
enclosure installation, follow
the cut out dimensions
as shown.

12
Installation
Electrical Requirements
Electrical outlet for Rotisserie motor must be installed to the left side of the grill.
The grill, when installed, must be electrically grounded in accordance with local codes or, in
the absence of local codes, with the following:
• ANSI/NFPA 70, National Electrical Code
• CSA C22.1, Canadian Electrical Code
Keep all electrical supply cords and fuel supply lines away from heated surfaces.
Halogen Light (42” Only)
The grill is provided with a three-prong grounding plug for your protection against shock
hazard. Connect 115V power to the grill with a grounded cord.
Briquettes
Place 20 briquettes on each burner shield with 5 on each
row equally spaced front to back.

13
Installation
Leak Testing
All gas lines and connections must be tested for leaks after refill, installation or service. All
leaks must be corrected immediately. Open the shut-off valve and apply soap & water
solution to all joints. The formation of bubbles indicates a gas leak.
NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS
WARNING!

14
Installation
Burner Adjustments
Every grill is thoroughly checked for proper lighting and burner flame pattern. Conditions at
the location may necessitate minor adjustment of the burner air intake, if the flames are not
steady/stable as shown in the figure:
The flame should be full length of
the burner, blue and stable. The
air intake should be adjusted ONLY
if the flame is lifting off of the
ports or has yellow tipping.
If flame is lifting, turn the air
shutter clockwise reducing this
intake. The screw should be
loosened before turning the air
shutter.
If the flame has yellow tipping, the
air shutter should be turned
counter clockwise allowing more
air in. This will stabilize the flame. Make sure to tighten the screw after adjustments are
made.
Remove the front panel as shown (Page 17) in the diagram to access the burner front (air
shutter).
In order to provide gas to the burner, the orifice must be inside the burner venture opening.
Check to ensure that the burner is properly secured at the front and back.

15
Operation
Lighting Instructions & Grill Operation
Before Lighting:
• Check gas line/hose for signs of wear, abrasion or cuts. If evidence of deterioration is
visible, replace the part prior to use.
• If you smell gas, check for leaks. If odor continues, immediately call for service.
• Keep your face and body away from the grill top when lighting.
Grill and Rotisserie Burner Lighting:
1. Open lid before lighting. Make sure all burners are in the OFF position.
2. Push and turn burner knob to HI position. Turn slowly allowing gas to fill burner for
approximately 3-5 seconds before turning past the ignition (or clicking) point.
3. If the Grill does not stay lit, turn to the OFF position and wait for excess gas to dissipate
before trying again.
Grill Operation:
Grill burners are controlled individually using the control knob. After lighting:
• Turn the knob towards HI to increase heat.
• Turn the knob towards OFF to decrease heat.
• Turn on as many burners as required. The Lid may be closed during grilling.
• Keep the lid closed during the pre-heat period.
NEVER LEAVE YOUR GRILL UNATTENDED WHILE IN OPERATION
WARNING!

16
Rotisserie Operation (if Equipped)
Turn the control knobs to HI.
Plug in the motor power cord to a properly grounded receptacle.
Rotisserie cooking can be done with grill burners as well as with the Rotisserie burner.
The skewer slides in from the side with the tip sliding into the motor shaft adapter. The slot
on the handle side should be on the side support panel edge.
Use the prongs to hold the meat; tightening the thumbscrew on the prong hubs to secure in
place.
When ready, turn the switch on the motor box to the ON position. The skewer will rotate
slowly.
Stop the motor before removing the skewer.
Operation
NEVER LEAVE YOUR GRILL UNATTENDED
WHILE IN OPERATION
WARNING!

17
Maintenance
Cleaning Your Grill
Your Bar-B-Q grill works better and lasts longer if properly cleaned and maintained.
Clean the grill immediately after every use.
Turn grill off before starting to clean. Protect your hand with a good mitt when cleaning the
hot grill. Use a wire brush, dip in water and scrub the grill to soften and loosen food spills.
The food spills will fall into the crumb pan.
DO NOT use Aerosol cleaners on hot grill surface. Chemicals may produce noxious fumes
and may ignite on contact with the hot surface.
Briquette holders are made of stainless steel. After every use, allow the shields to cool down.
Remove and soak in water with a mild soap or detergent. Replace when dry along with the
briquettes.
Empty grease pan as required to prevent overflowing. After use, remove the full width crumb
pan and brush off the contents. Clean with hot water and soap or detergent.
All stainless steel parts should be cleaned with a mild soap or detergent or with a liquid
cleanser especially made for stainless steel. Never attempt to clean stainless steel with steel
wool, abrasive cloths or powders.

18
Maintenance
General Maintenance
Keep your grilling area clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
Do not obstruct the flow of combustion and air ventilation.
Keep the ventilation openings of the cylinder enclosure free and clear from debris.
Visually check burner flames.
There are many different stainless steel cleaners available. Always use the mildest cleaning
procedure first, scrubbing in the direction of the grain. To touch up noticeable scratches in the
stainless steel, sand very lightly with dry 100 grit emery paper in the direction of the grain.
Specks of grease can gather on the surfaces of the stainless steel baking onto the surface and
giving the appearance of rust; For removal, use an abrasive pad (Scotch-Brite is good) in
conjunction with a stainless steel cleaner. Always rub in the direction of the grain. Never
scrub the stainless steel with steel wool. Steel particles left on the stainless steel will soon
rest and give the appearance that the parts are rusting.
The burners, control area, crumb pan, etc. should be kept clean at all times. During prolonged
non-use of the grill, spiders and insects can nest in areas that will adversely affect the
functioning of the grill. Check burner inlets, orifice hood (gas inlet to burner), igniter,
sparkers, etc. thoroughly and clean before use.

19
Maintenance
Parts Removal & Replacement
Front Panel:
1. Pull Knobs Out
2. Remove Screws (4)
3. Pull Panel Out Slightly
4. Disconnect Wires from Switch
5. Replace in Reverse Order
Grill Burner:
1. Remove Top Grates, Briquettes & Shields
2. Remove Screw at Rear of Burner and
Slide Out
3. Clean and Replace in Reverse Order
Grill Sparker:
1. Remove Top Grates, Briquettes & Shields
2. Unscrew Sparker Bracket from inside
3. Disconnect Wire
4. Replace in Reverse Order
Rotisserie:
1. Remove Sparker Cover (Lift & Pull)
2. Unscrew Sparker Screws
3. Disconnect Wire at Rear
4. Replace in Reverse Order
Switch:
1. Remove Front Panel
2. Disconnect Wire from Switch at Rear
3. Press & Push Switch to remove from
Rear or Panel
4. Replace in Reverse Order
