Dyna-Glo DGH474CRP User manual

Français p.
Español p.
080219
5-BURNER LP GAS GRILL
WITH SEARPLUS™ BURNER
AND SIDE BURNER
Model #DGH474CRP/DGH474CRP-D
Questions, problems, missing parts?
Before returning to your retailer,
call our customer service
department at 1-877-447-4768,
8:00 a.m. – 4:30 p.m., CST,
Monday – Friday or e-mail us at
[email protected]
Français p. 31
Español p. 61

2
Table Of Contents
Assembler/Installer: This manual contains important information necessary for the proper
assembly and safe use of this appliance. Read and follow all warnings and instructions before
assembling and using this appliance. Leave these instructions with the consumer.
Consumer/User: Follow all warnings and instructions when using this appliance.
Retain these instructions for future reference.
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from
the appliance and immediately call your
local fire department.
1. Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
2. An LP (liquid propane) cylinder not
connected for use shall not be stored
in the vicinity of this or any other
appliance.
3. This grill is for outdoor use only and
shall not be used in a building, garage,
under overhangs or any other enclosed
area.
4. Do not leave a lit grill unattended.
Keep children and pets away from the
grill at all times.
DANGER WARNING
Safety Information............................................................................................................................... 3
Package Contents ............................................................................................................................... 5
Hardware Contents ............................................................................................................................. 6
Preparation........................................................................................................................................... 6
Assembly Instructions........................................................................................................................ 7
Operation Instructions...................................................................................................................... 17
Care and Maintenance...................................................................................................................... 22
Troubleshooting ................................................................................................................................ 25
Limited Warranty ............................................................................................................................... 26
Replacement Parts List .................................................................................................................... 27

3
Please read and understand this entire manual before attempting to assemble, operate or install the
product. If you have any questions regarding the product, please call customer service at: 1-877-447-
4768, 8:00 a.m. – 4:30 p.m., CST, Monday – Friday.
DANGER
CAUTION
Safety Information
• Do not use in an explosive atmosphere. Keep grill area clear and free from combustible
materials, gasoline and other ammable vapors and liquids.
• Never use charcoal or lighter uid with the grill.
• Do not use gasoline, kerosene or alcohol for lighting.
• The LP gas cylinder used with this appliance must be:
(a) Constructed and marked in accordance with the Specications for LP-Gas Cylinders
of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada,
CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods;
and Commission, as applicable; and
(b) Provided with a listed overlling prevention device.
(c) Provided with a cylinder connection device compatible with the connector for outdoor
cooking appliances. This grill is not intended to be used in or installed on recreational
vehicles and/or boats.
• Never keep a lled container in a hot car or car trunk. Heat will cause the gas pressure to
increase, which may open the relief valve and allow gas to escape.
• Always open grill lid slowly and carefully as heat and steam trapped within the grill can burn
you severely.
WARNING: FUELS USED IN LIQUEFIED PROPANE GAS APPLIANCES,
AND THE PRODUCTS OF COMBUSTION OF SUCH FUELS, CAN EXPOSE
YOU TO CHEMICALS INCLUDING BENZENE, WHICH IS KNOWN TO
THE STATE OF CALIFORNIA TO CAUSE CANCER AND CAUSE BIRTH
DEFECTS OR OTHER REPRODUCTIVE HARM. For more information go
to: www.P65Warnings.ca.gov.

4
• Do not place the grill under overhead
combustible construction or awnings.
Minimum clearance from sides and back
of unit to combustible construction, 36
inches (914.4mm) from sides and back.
NOTE: The installation must conform with
local codes or, in the absence of local
codes, with either the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, Natural
Gas and Propane Installation Code, CSA
B149.1, or Propane Storage and Handling
Code, B149.2.
• Do not store or use gasoline or other ammable liquids or vapors in the vicinity of this or any
other appliance.
• An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
• This grill is for use with propane gas only (propane cylinder not included).
• Never attempt to attach this grill to the self-contained propane system of a boat, camper
trailer, motor home or house.
• Do not attempt to move the grill while it is lit or when it is hot. The casters should be locked
when not moving the grill.
• Do not use the grill unless it is completely assembled and all parts are securely fastened and
tightened.
• Keep all combustible items and surfaces at least 36 inches (91.44 cm) away from the grill at all times.
• Do not touch metal parts of grill until it has completely cooled (about 45 minutes) to avoid
burns, unless you are wearing protective gear (pot holders, gloves, BBQ mittens, etc.).
• Do not alter this grill in any manner.
• Clean and inspect the hose before each use. If there is evidence of abrasion, wear, cuts, or
leaks, the hose must be replaced prior to operating the appliance. The replacement hose
assembly will be that which is specied by the manufacturer.
• Move gas hoses as far away as possible from hot surfaces and dripping hot grease.
• Keep the grill’s valve compartment, burners and circulating air passages clean. Inspect the grill
before each use. Do not obstruct the ow of gas or ventilation air.
• The use of alcohol, prescription or non-prescription drugs may impair the operator’s ability to
properly assemble or safely operate the grill.
• Do not leave a lit grill unattended. Keep children and pets away from the grill at all times.
• Do not place this grill on any type of tabletop surface. The grill should be placed on a at and
level surface.
• Do not use the grill in high winds.
36in
914.4mm
36in
914.4mm
WARNING
Safety Information
CAUTION
36in
914.4mm 36in
914.4mm

5

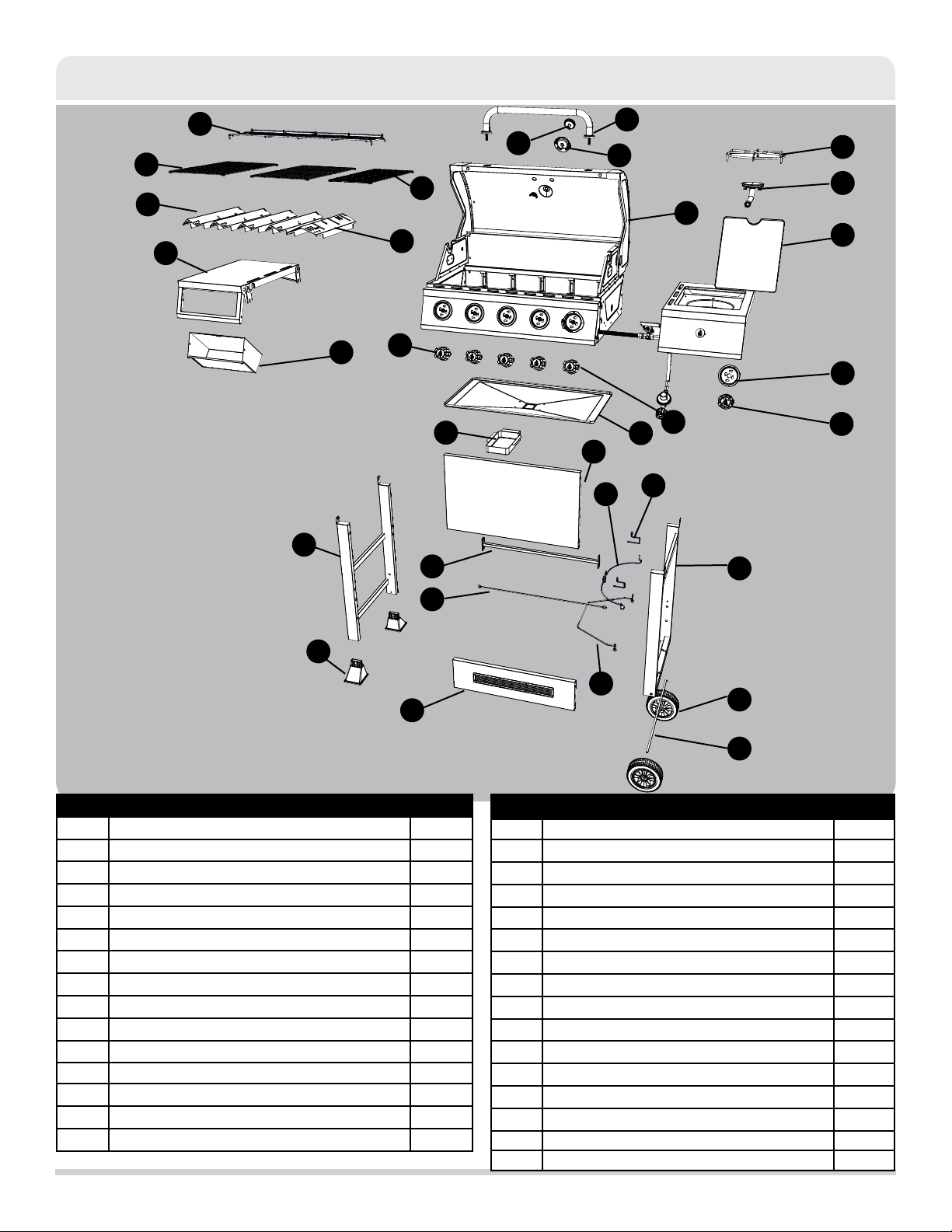

Package Contents
PART DESCRIPTION QTY.
AHood Handle 1
BTemperature Gauge 1
CTemperature Gauge Bezel 1
DGrill Body Assembly 1
EControl Knob 5
FGrease Pan 1
GGrease Cup 1
HWarming Rack 1
ICooking Grate For Main Burner 2
JHeat Tent For Main Burner 4
KLeft Side Table 1
LCooking Grate For Sear Burner 1
MHeat Tent For Sear Burner 1
NRight Side Burner Body 1
OLeft Leg Assembly 1
J
IC
B
A
D
E
K
L
MN
Q
G
H
O
R
Z
F
P
T
S
U
A1
X
Y
W
V
D1
C1
B1
E
E1
PART DESCRIPTION QTY.
PLeg End Cap 2
QSide Exclusion Bar 1
RTank Brace 1
SCart Rear Support 1
TCart Front Panel - Upper 1
UCylinder Exclusion 1
VCart Front Panel - Lower 1
WAxle 1
XWheel 2
YRight Leg Assembly 1
ZCondiment Tray 1
A1 Control Knob for Sear Burner 1
B1 Side Burner Grate 1
C1 Side Burner 1
D1 Side Burner Control Knob Bezel 1
E1 Tank Retention Fixed Wire 2

6
THIS UNIT IS HEAVY. Two people required for safe assembly.
Two people required for safe assembly. Some parts may contain sharp edges.
Wear protective gloves if necessary. Read and follow all safety statements,
warnings, assembly instructions and use and care instructions before attempting
to assemble and use.

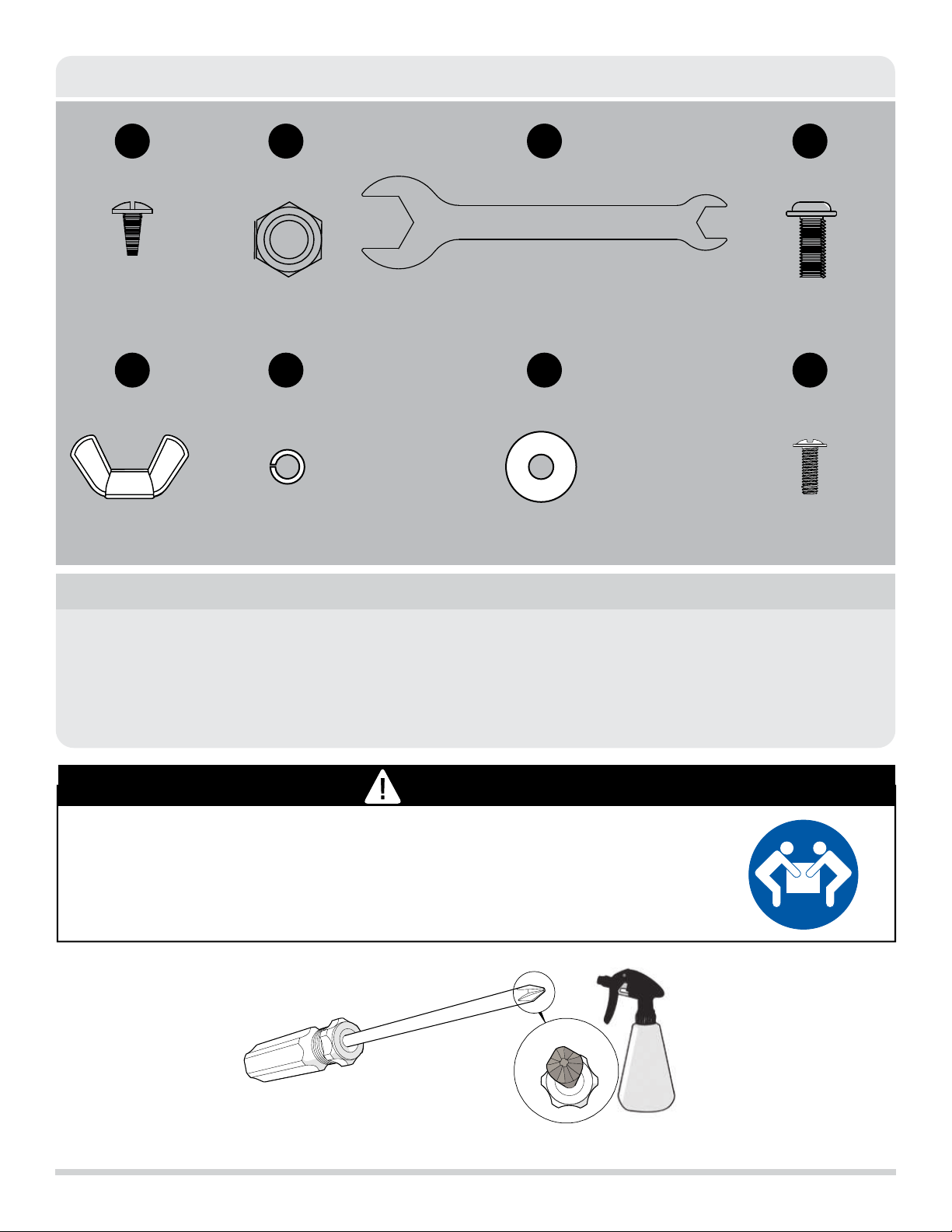

Hardware Contents
Preparation
CC
AA BB DD
M6x16
Screw
M10 Nut
2X 32X 2X
2X
2X
2X
M6 Wing
Nut M6 Plain Washer
FF GG
M6 Spring
Washer
EE
M10
Wrench
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list on previous page and hardware contents above. If any part is missing or damaged, do not
attempt to assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 50 minutes with 2 people.
Tools Required for Assembly and Leak Testing (not included): Phillips screwdriver, Spray bottle
CAUTION
M4x10
Screw
4X
HH
2X

7
1
2
Assembly – Left Leg
Assembly – Right Leg
Assembly Instructions
AA
2X
BB
2X
O
P
AA
W
BB
Y
X

8
3
4

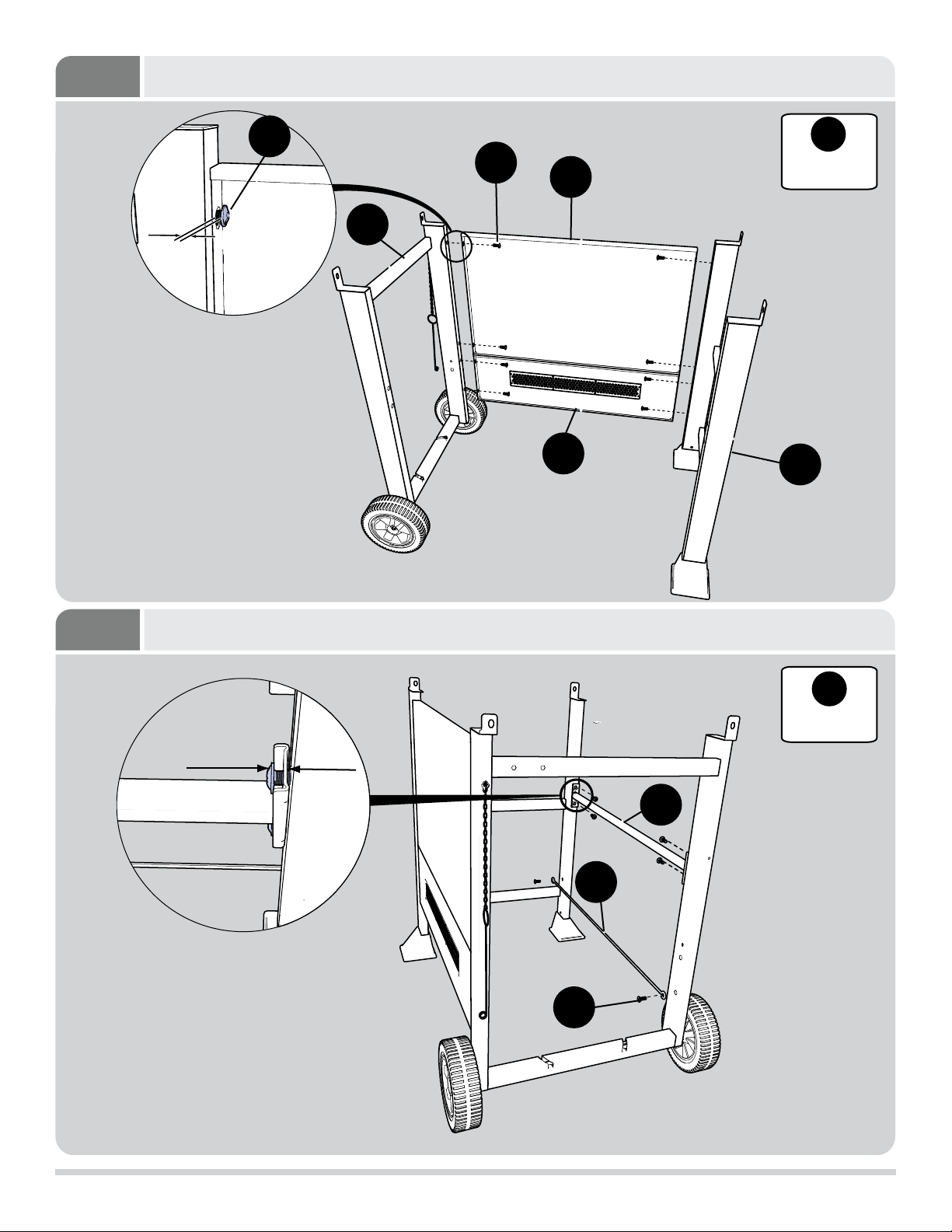

Assembly – Cart Front Panels
Assembly – Back Exclusion Bar and Cart Rear Support
DD
8X
DD
6X
Y
DD
VO
T
5 Threads
DD
DD
5 Threads
U
S

9
5
6Assembly – Handle, Knobs, and Temperature Gauge
Assembly – Tank Brace and Side Exclusion Bar
DD
4X
EE
2X
FF
2X
GG
2X
DD
E1
R
D
GG
A1
EE
FF
C
BA
E
Q
R
Rear shown,
same for front

10
7Assembly – Grill Body to Base
DD
4X
NOTE: Fully tighten all nuts from front panel and back brace screws at this time.
CAUTION:
2 people required
for safe assembly.
O
DD
Y
D
DD

11
8
A
B
C
Assembly – Left Side Table and Condiment Tray
DD
5X
HH
2X
DD
DD
DD
DD DD
HH
HH
5 Threads
Rear shown,
same for front
Rear shown,
same for front
Same for
other side
K
K
Z
Tab
Slot
Tab
Slot

12
C
A
B
Rear shown,
same for front
D1
N
E
Engage slots and
tighten screws

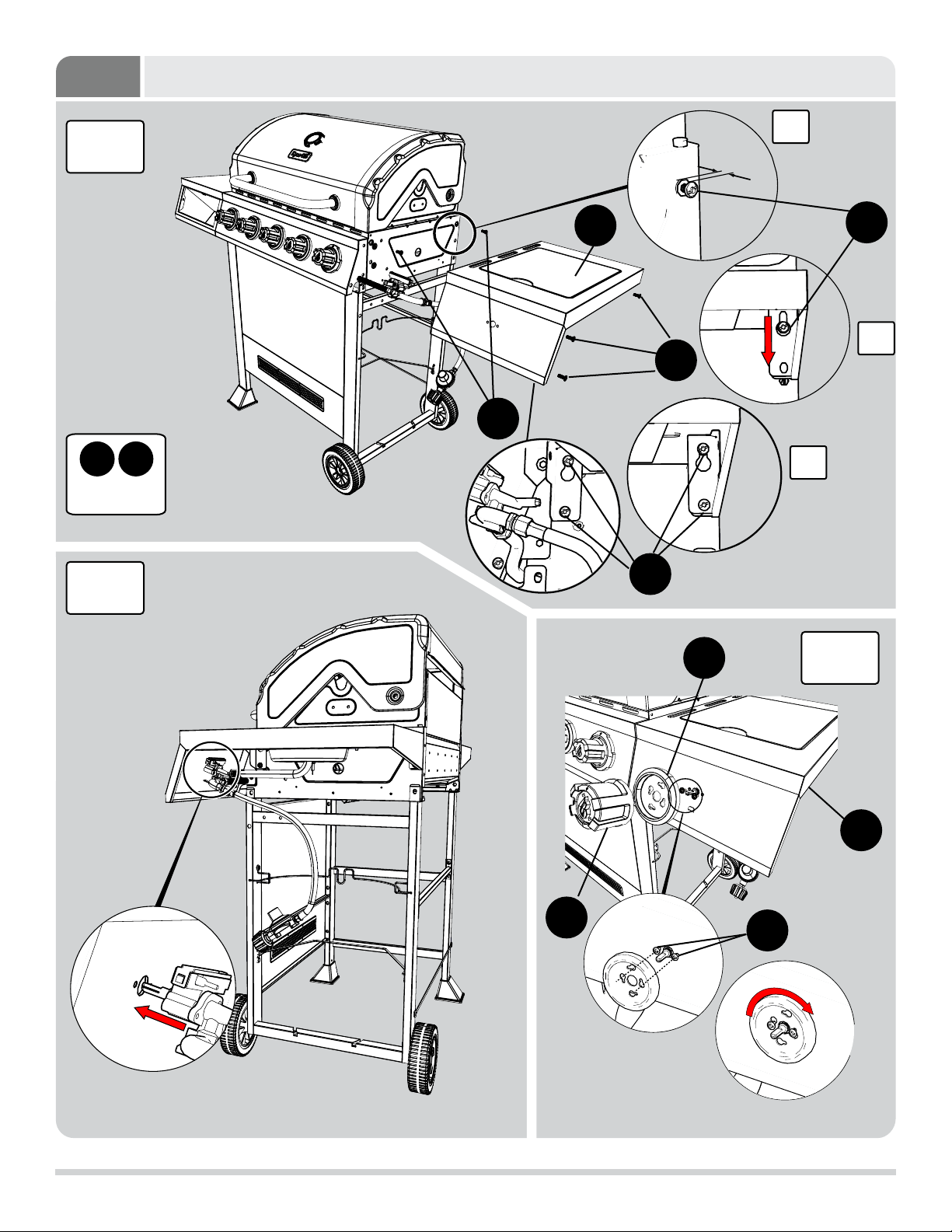

9Assembly – Right Side Shelf
N
5 Threads
1
2
3
DD
DD
DD
DD
DD
5X
HH
2X
HH

13
A
B
C
C1
N
C1
10 Assembly – Side Burner
Use preinstalled screws

14
11
12

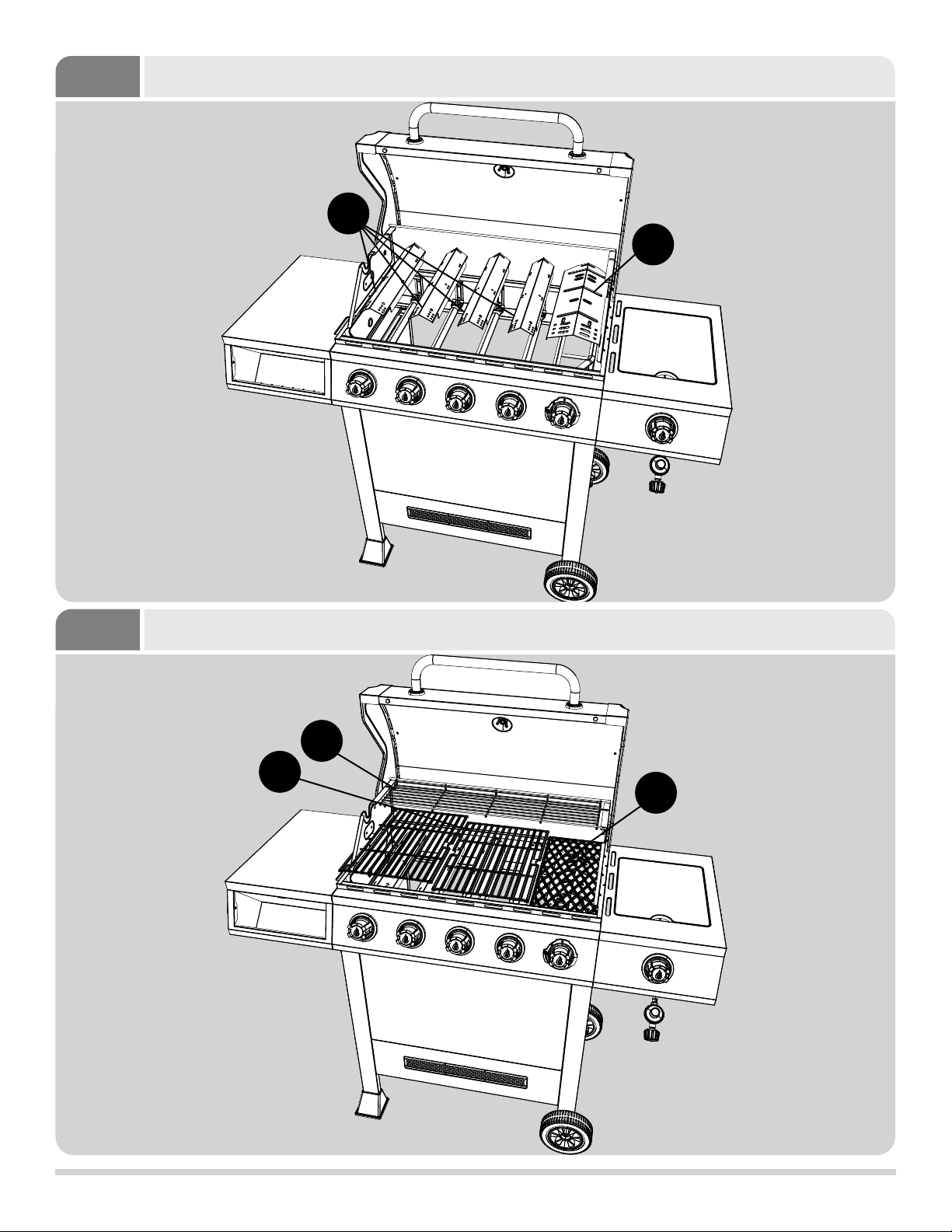

Assembly – Heat Tents
JM
Assembly – Rack and Cooking Grates
H
IL

15
13
B1

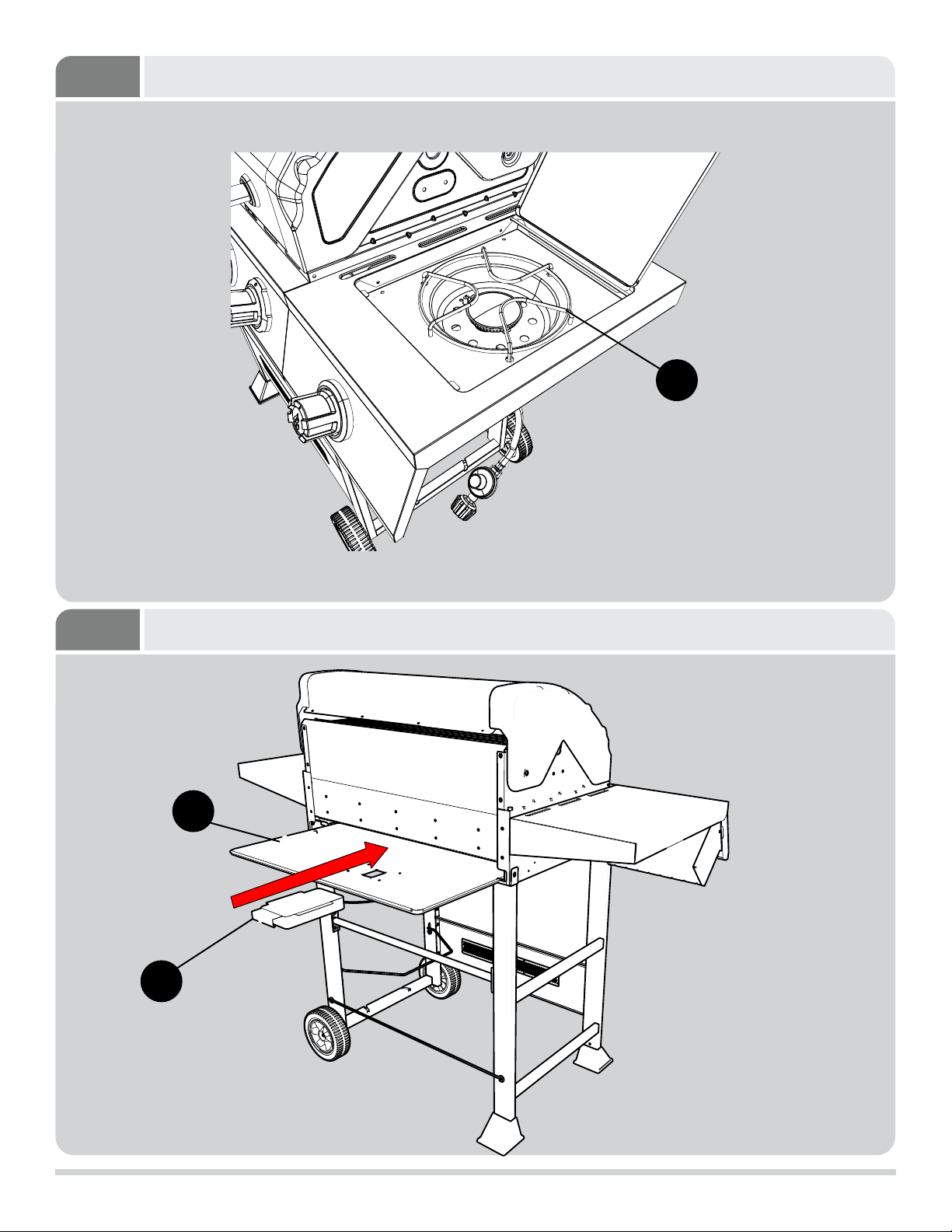

Assembly – Side Burner Grate
14 Assembly – Grease Pan and Grease Cup
F
G

16

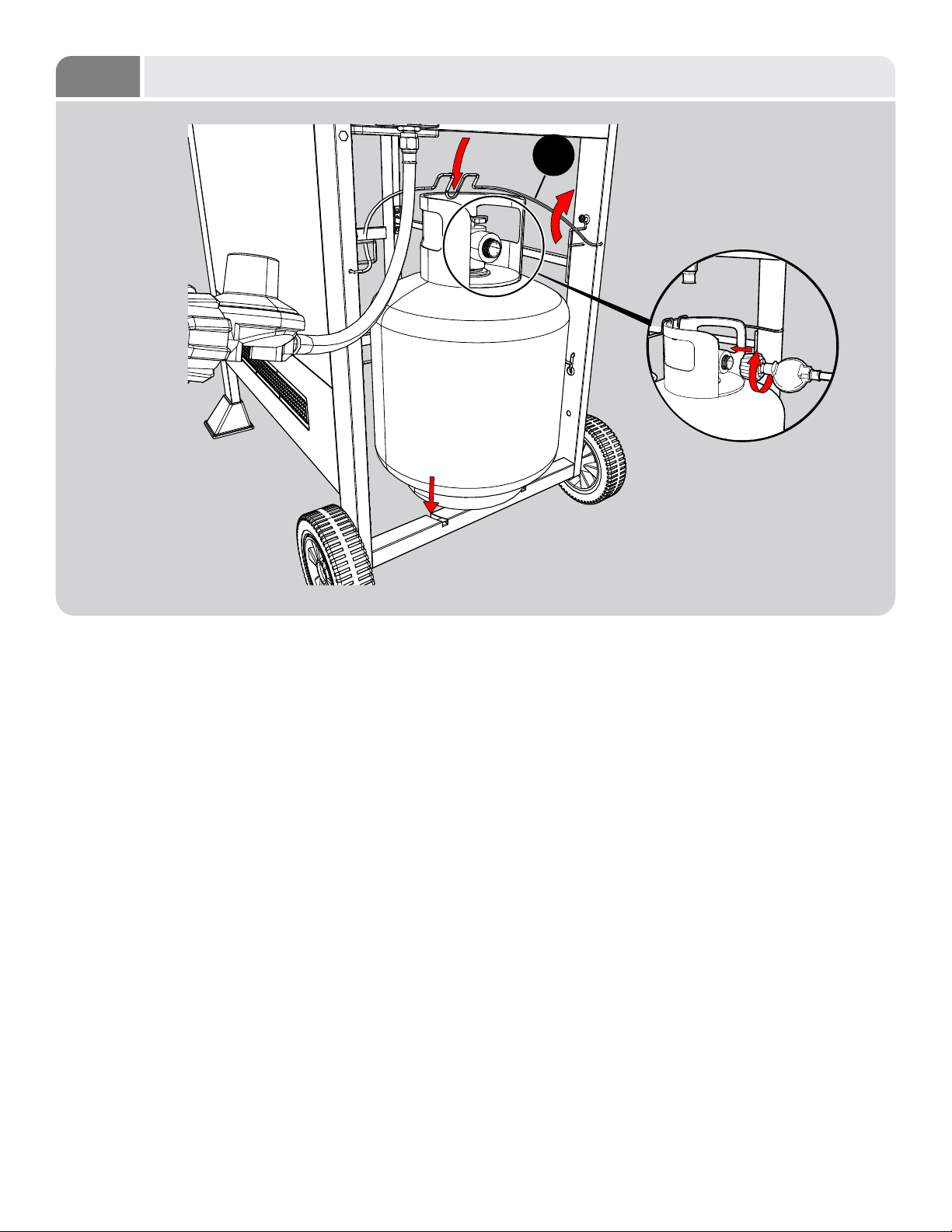

Assembly – Propane Cylinder
R
15

17
Operation Instructions
CHECKING FOR LEAKS
After all connections are made, check all connections and ttings on the LP gas tank valve, gas hose
and regulator for leaks with a water and soap solution.
To prevent re or explosion while testing for a leak:
• Always perform leak test prior to lighting the grill.
• Do not smoke while testing for a leak.
• Always perform leak tests outdoors in a well-ventilated area.
• Do not use any source of ame while testing for leaks.
• Do not use the grill until any and all leaks are corrected.
• If you are unable to correct a leak, disconnect the propane supply and call a gas appliance service
dealer.
PERFORM LEAK TEST
• Prepare leak test solution by 50/50 ratio of liquid dish soap and water. Total solution required is
approximately 2 - 3 ounces (70 - 90 ml). Put leak test solution in a spray bottle.
• Ensure all control knobs are in the O OFF position.
• Connect the gas hose to the gas supply.
• Open the LP gas tank valve.
• Spray leak test solution on all gas carrying connections and ttings. Presence of bubbles at areas
of applied test solution indicates a gas leak. If leaks are detected or you smell or hear gas, shut off
the gas supply valve immediately and repair or replace the defective part. Do not use the grill until
all leaks are corrected.
WARNING
ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO
PREVENT FIRE, DAMAGE AND/OR INJURY.
CAUTION
Only use the regulator and hose assembly provided! If a replacement is necessary, please call
our customer service center. Do not use replacement parts that are not intended for this grill.

18
Operation Instructions

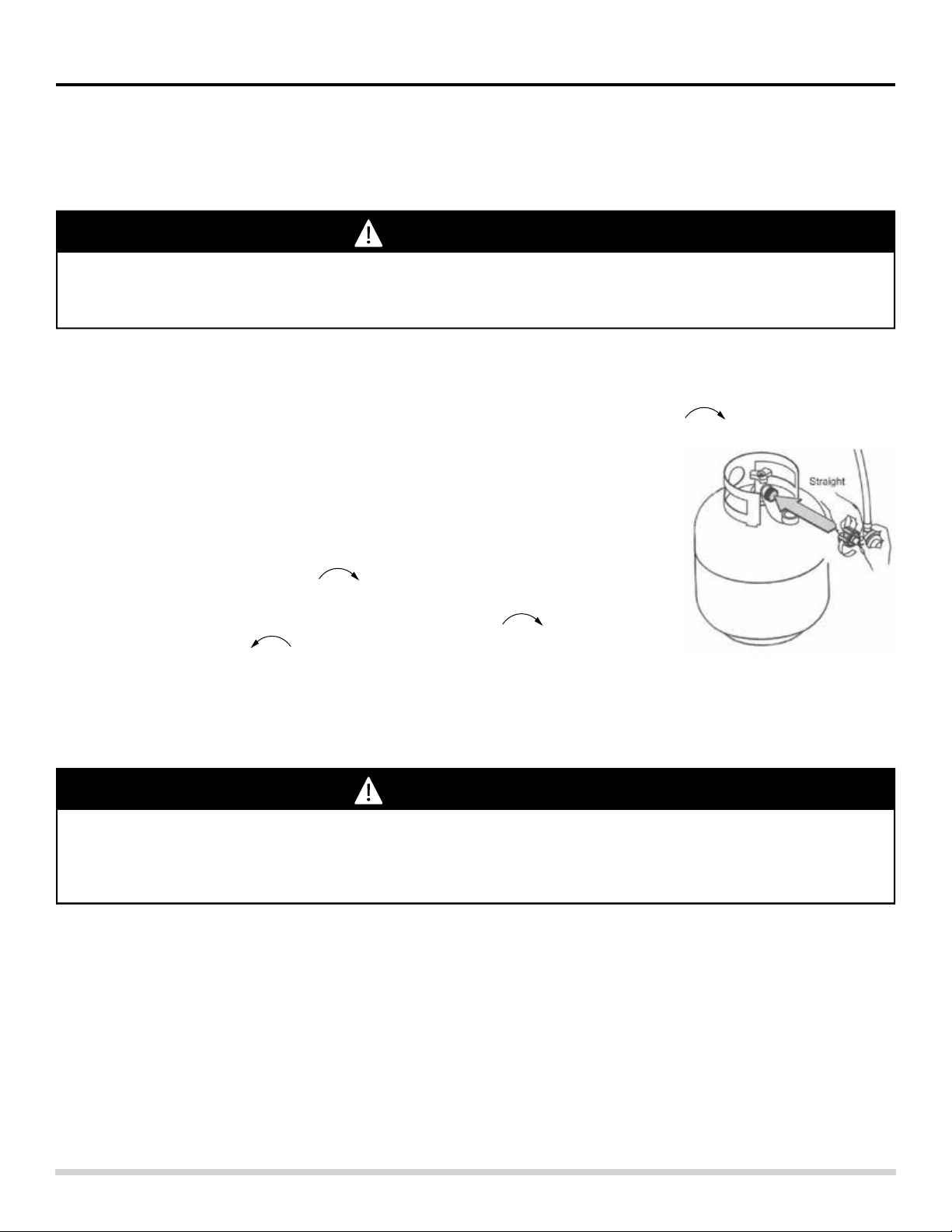

CONNECTING GAS CYLINDER
The propane gas supply cylinder to be used must be constructed and marked in accordance with the
Specications for LP Gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National
Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous
Goods; and Commission, as applicable; and provided with a listed overlling prevention device.
Use only 20-pound cylinders (height: 18.11 inches, tank diameter: 9.84 inches, foot diameter:
8.03 inches) equipped with a cylinder connection device compatible with the connection for outdoor
cooking appliances.
The cylinder must include a collar to protect the cylinder valve. The gas cylinder should not be dropped
or handled roughly!
If the appliance is not in use, the gas cylinder must be disconnected. Storage of an appliance indoors
is permissible ONLY if the cylinder is disconnected and removed from the appliance. Cylinders must be
stored outdoors out of the reach of children and must not be stored in a building, garage or any other
enclosed area. Your cylinder must never be stored where temperatures can reach over 125°F.
Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of dust
cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may
result in leakage of propane.
Before connection, be sure that there is no debris caught in the outlet of the gas cylinder, outlet of the
regulator valve or in the outlet of the burner and burner ports. Connect regulator valve and hand-tighten
rmly. Keep the propane cylinder valve closed and disconnect the propane cylinder from the regulator
valve when the grill is not in use.
DO NOT obstruct the ow of combustion air and ventilation air to the grill. The propane cylinder must be
arranged for vapor withdrawal and equipped with a listed overlling prevention device. Please use the
proper cylinder orientation to provide vapor withdrawal.
NOTE: The cylinder must be fully upright for the cylinder to have vapor withdrawal only.
CAUTION
a. Do not store a spare LP-gas cylinder under or near this appliance.
b. Never fill the cylinder beyond 80 percent full.
c. If the information in (a) and (b) is not followed exactly, a fire causing death or serious
injury may occur.

19
Operation Instructions
NOTE: Other cylinders may be acceptable for use with this appliance provided they are compatible with
the appliance nesting hole and retention means. Refer to Step 16 of the Assembly Instructions for correct
cylinder to cylinder holder connection.
WARNING
ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO
PREVENT FIRE, DAMAGE AND/OR INJURY.
WARNING
In the connection process, make sure:
• the regulator inlet connector mates with the cylinder valve outlet properly, safely and rmly, and;
• the LP gas hose does not come in contact or remain in contact with the rebox.
CONNECTING THE LP TANK
1. The knob on the LP tank must be closed. Make sure that the knob is turned clockwise to a
full stop. The cylinder supply system must be arranged for vapor withdrawal.
2. Check that the control knob on the control unit is turned off.
3. Remove the protective cap from the LP tank valve and coupling nut.
4. Hold the regulator in one hand and insert the nipple into the valve outlet.
Be sure the nipple is centered in the valve outlet. The coupling nut
connects to the large outside threads on the valve outlet.
Use care – do not cross thread the connection.
5. Hand-tighten the coupling nut clockwise until it comes to a full stop.
Firmly tighten by hand only. Do not use tools.
To Disconnect: Fully close the tank valve by turning clockwise.
Turn the coupling nut counterclockwise until the regulator assembly
detaches.

20
Operation Instructions
Lighting The Grill
Before first use:
Remove all hangings or plastic straps, if present. Before you cook on your new gas grill, it is important
to clean your grill with heat. To do this, operate the grill for approximately 15 minutes with the lid closed
and the control knobs in the highest position. This will clean the internal parts by burning off any residue
and odor from the manufacturing process.
WARNING
Do not lean over grill when lighting. Read instructions before lighting.
CAUTION
If the flame extinguishes accidentally during ignition or operation, immediately TURN OFF
the cylinder valve and then TURN OFF the control knob.
1. Check that the control knobs are in the OOFF position.
2. Open valve at tank fully by turning counter-clockwise.
3. Open lid during lighting.
4. Depress and turn control knob counterclockwise from OOFF position, past the ignite
position, to the high position for the main burners and for the SearPLUS™ burner. You may
need to repeat several times to ignite the burner.
If ignition does not occur in 5 seconds, turn the control knobs to OOFF position, wait 5 minutes, and
repeat the lighting procedure.
If the burner still does not light, check that there is gas in the cylinder and follow the match lighting
instructions on the following page.
Cooking:
After lighting, adjust burner, including SearPLUS™ burner, from high ( ) to low ( ) position for desired
cooking temperature.
Searing Food with the SearPLUS™ Burner:
To sear food, use the SearPLUS™ burner with the red control knob, which has a higher temperature
range than the other burners. After lighting, adjust SearPLUS™ burner control knob to Sear Position
( ) and place food to be seared on the sear grate directly over the SearPLUS™ burner.
Regular Control Knob SearPLUS™ Control Knob
Sear Normal High Normal LowNormal High Normal Low
