Quoizel RO1914IZ User manual

1of3
For Style RO1914IZ
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
Pleasegoto forproductcleaningtips.Gotothe selection.
(3)B10CandelabraBaseBulbs60WMaximum,CandelabraBaseT8Vintage Bulbs are recommended, bulbs not included.
MinimumHangingHeightis32”,MaximumHangingHeightis130”.
30-45minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtoensureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactyouroriginalplaceofpurchase.
www.quoizel.com Care + Maintenance
LightSource:
FixtureHangingHeight:
EstimatedAssemblyTime:
Preparation:
ToolsRequired: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Installation Guide #IS-RO1914IZ
2019 QuoizelInc. ReleasedDate:2019-02-22
visit us on-line at www.quoizel.com
Package Contents
ASide Rod
x2
Hardware Contents
AA
Crossbar
Assembly
x1
BB
CC
Ceiling
Canopy
x1
Fixture Chain
x1
Quick Link
x2
DD
BLock Screw
x4
STEP 1 -Install Glass Panel
A. Insert the Glass Panel (F) into the slot
in the bottom edge of the Cage (E) and
press the tabs on the top edge of the
Cage (E) onto the top edge of the Glass
Panel (F) to secure it.
Figure 1
Fixture Loop
x1
E
C
Fixture Body
x1
Fixture
Holder
x1
D
C
D
STEP 2 -Remove Papers Inside of the Cage
A. Rotate the bolt and remove it from the bolt holder to open the door.
B. Remove papers inside of the cage.
C. Close the door and place the bolt back onto the bolt holder.
Figure 2
Door
Bolt
Bolt Holder
Paper
(Remove)
STEP 3 -Install the Crossbar Assembly to Outlet Box and Adjust
the length of the Nipple
A. Attach the Crossbar Assembly (AA) to the Outlet Box with the head
of the Green Ground Screw facing you. Secure it with Outlet Box
Screws (not included), tighten until snug
B. Adjust the hex nut and lock washer underside of the crossbar to the
middle of the nipple.
C. Remove the canopy lock ring from the canopy chain loop. Place the
Ceiling Canopy (DD) over the canopy chain loop against the ceiling
to determine the correct position of the nipple. Thread the canopy
lock ring onto the canopy chain loop. Adjust the nipple to allow the
Ceiling Canopy (DD) to rest against the ceiling when held in place
.
Outlet Box Screw
(not included)
Hex Nut and
Lock Washer
Outlet Box
Green Ground Screw
Canopy Chain Loop
Canopy Lock Ring
Nipple
DD
AA
Figure 3

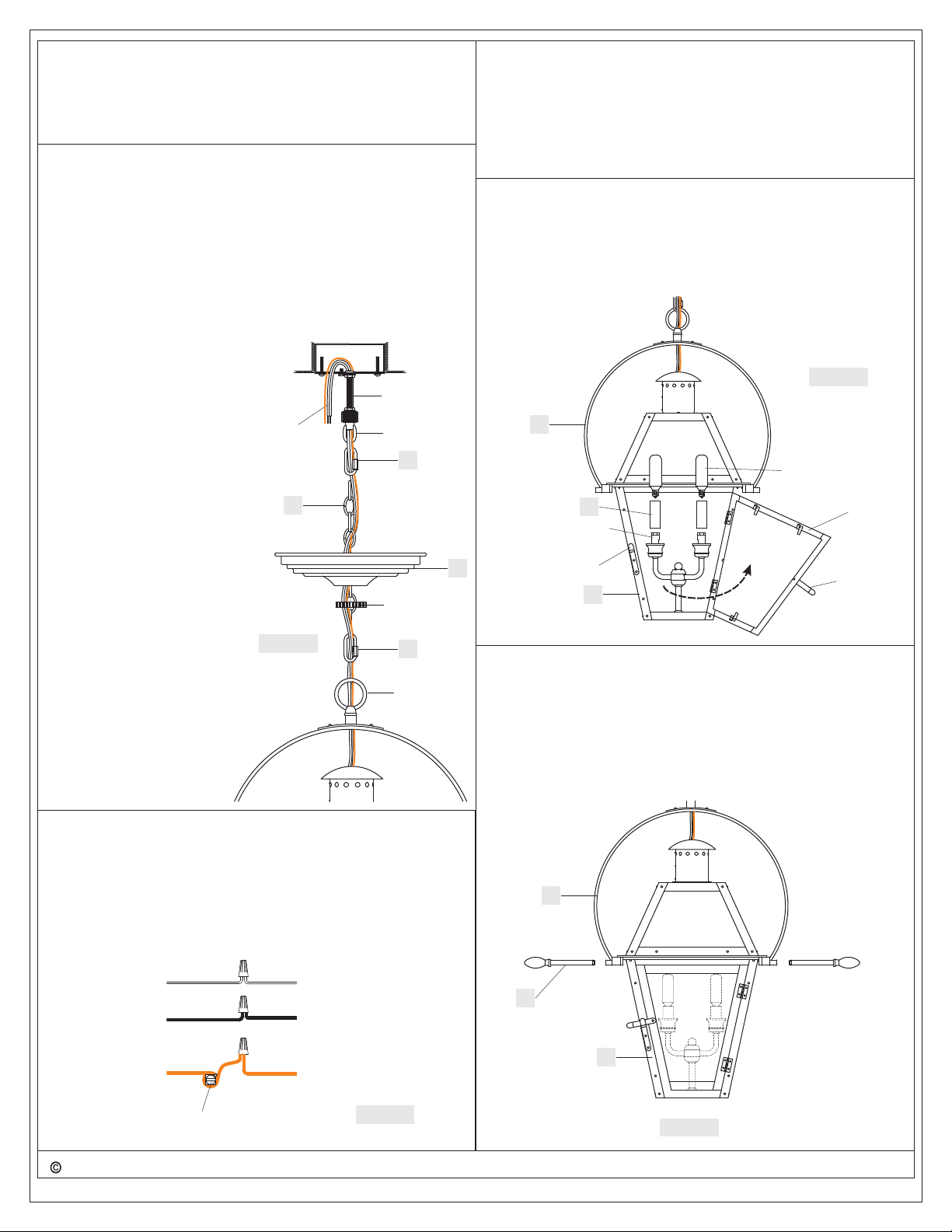

2of3
Nipple
Fixture
Loop
Supply
Wires and
Ground Wire
Canopy
Chain Loop
Canopy
Lock Ring
CC
BB
DD
CC
D. Feed the Supply Wires
and Ground Wire
through the canopy
chain loop and nipple
into the outlet box. Cut
the wires leaving
approximately 8” of wire
extending from the
Outlet Box.
E. Go to Step 5 for wire
connections and follow
the directions. Return to
Step F in this step when
complete with Step 5.
F. Raise the Ceiling
Canopy (DD) and
canopy lock ring up the
Fixture Chain (BB) and
Figure 4
2019 QuoizelInc. ReleasedDate:2019-02-22
visit us on-line at www.quoizel.com
STEP 4 - Install the Fixture Chain and Ceiling Canopy
A. Adjust the Fixture Chain (BB) to your desired length by removing
links if needed. Put a cloth over the Fixture Chain (BB) to protect the
finish.
B. Pull the supply wires through the Fixture Chain (BB) alternating
links. After the wires are through the Fixture Chain (BB), pull the
Supply Wires and the Ground Wire through the canopy lock ring and
the Ceiling Canopy (DD) in order.
C. Attach one end of the Fixture Chain (BB) to the fixture loop with one
Quick Link (CC). Lift the fixture and Fixture Chain (BB) up and attach
the other end of the Fixture Chain (BB) onto the canopy chain loop
with another Quick Link (CC). The fixture will now hang safely.
over the canopy chain loop.
Tighten the canopy lock ring
onto the canopy chain loop
until tight.
Suggested chain length for
Ceiling height :
8’ ceiling : use 1 link of chain
and 2 quick links
9’ ceiling : use 11 links of chain
and 2 quick links
10’ ceiling : use 21 links of
chain and 2 quick links
Green Ground Screw
on the Crossbar
White wire
from outlet box Supply wire from fixture
identified with the Label “N”
Black wire from
outlet box (or Red)
Supply wire from fixture
identified with the label “L”
Bare, or Green
Ground wire
from outlet box
Ground wire
from Fixture
STEP 5 - Making the Wire Connections
A. Wrap bare or green ground wire around green ground screw on the
crossbar, no less than 2 inches from the end of the wire. Tighten the
green ground screw.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into outlet box.
STEP 6 -Install Candle Covers and Bulbs
A. Rotate the bolt and remove it from the bolt holder to open the
door.
B. Place Candle Covers (B) over sockets.
C. Insert bulbs onto sockets and screw snugly into place.
D. Close the door and place the bolt back onto the bolt holder.
Figure 5
(Step 5 Continued)
Note: If the electrical wire is going to be cut shorter than provided
you will need to identify the "L" line wire and the "N" neutral wire
before you cut the excess wire off. One is labeled N and the other
labeled L. To do this separate the "L" line wire and the "N" neutral
wire as far as you need to. Re-label the wire near where you want to
make the cut. Be sure to mark the wire on the side of the fixture and
not on the excess wire being cut and removed.
Socket
B
T8 Vintage Bulb
(recommended
but not included)
Door
Bolt
Bolt Holder
E
D
Figure 6
STEP 7 -Install Side Rods
A. Thread Side Rods (A) onto the Fixture Holder (D) and hand tighten
until snug.
B. Adjust the Fixture Body (E) so that it seats onto the Fixture Holder
(D) properly.
Your fixture is now assembled and ready to use. Enjoy!
D
Figure 7
E
A
(Step 3 Continued)
by the canopy lock ring.
D. Remove the canopy lock ring and the Ceiling Canopy (DD). Tighten
the lock washer and the hex nut against the crossbar to secure in
place.

3of3
2019 QuoizelInc. ReleasedDate:2019-02-22
visit us on-line at www.quoizel.com
RO1914IZ
FINISH: INDUSTRIAL BRONZE
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/4"
5.5” Dia.
29.25”
130”
13.5” SQ.
23.25”
27.25”
