Soleus Air JC-4 User manual

4 BOTTLE
WINE COOLER/
PERSONAL FRIDGE
OWNER’S MANUAL
Model # JC-4
PLEASE SAVE THESE INSTRUCTIONS
WARNING: READ THIS OWNER’S MANUAL CAREFULLY BEFORE USE.

4 BOTTLE WINE COOLER/ PERSONAL FRIDGE
Thank you for choosing a Soleus Air wine cooler. This owner’s manual will provide you
with valuable information necessary for the proper care and maintenance of your new
product. Please take a few moments to thoroughly read the instructions and familiarize
yourself with all the operational aspects of your new wine cooler.
For your own records, please attach a copy of your sales receipt to this manual. Also,
write the store name/location, date purchased, and serial number below:
Store Name: ____________________________________________________
Location: ______________________________________________________
Date Purchased: _________________________________________________
Serial Number (located on back of unit): ______________________________
WARNINGS
When using this electric unit, basic safety precautions should always be followed to
reduce the risk of fire, electric shock and injury to persons, including the following:
1) Read all instructions before using this unit.
2) Do not clean your wine cooler with flammable fluids. The fumes can create a fire
hazard or explosion.
3) Do not operate this or any appliance with a damaged cord. Connect to properly
polarized outlets only.
4) Do not run cord over carpeting or other heat insulators. Do not cover cord. Keep
cord away from high traffic areas, and do not submerge in water.
5) Unplug the wine cooler before cleaning or making repairs. NOTE: If for any
reason this unit requires service, we strongly recommend that a certified
technician perform the service.
6) Before switching between HOT and COLD modes, switch the wine cooler to
OFF for at least 5 minutes.
7) Do not obstruct or block the backside of the unit. Keep at least 4 inches (10cm)
from any surrounding objects for proper ventilation.
8) Do not operate the unit in direct sunlight.
9) Do not put ice or water inside the unit.

10) Unplug and clean the unit if not in use for an extended period of time.
11) When used in a car, the unit must be switched to OFF and unplugged if the car’s
engine is turned off. Otherwise, you may drain your car battery.
WARNING: This wine cooler is equipped with polarized plug (one blade
is wider than the other). The plug is intended to fit into a power outlet
only one way, with the wide blade in the wide slot. This is a safety
feature; if you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug still does not fit, contact a qualified
electrician.
DO NOT DEFEAT THE SAFETY PURPOSE OF THE POLARIZED
PLUG.
Technical Specifications
Voltage Rating 12V, 4A
Power
Consumption Cooling: 50W; Heating: 45W
Temperature Range Cooling: 39-82°F; Heating: 86-126°F
Volume 4 L
Unit Size 13“(W) x 10”(D) x 16“(H)
Unit Weight 10 lbs
NOTE:
For best results, leave out of direct sunlight. In the cooling mode, the wine cooler cools
approximately 25°F (14°C) lower than the surrounding temperature.
The heating function can keep the unit as warm as 126°F (52°C), but the temperature
would be 2-3F higher than what you set to get the best heating result.
NOTE:
The wine cooler fits four traditional size bottles, capacity may differ depending on bottle
size.

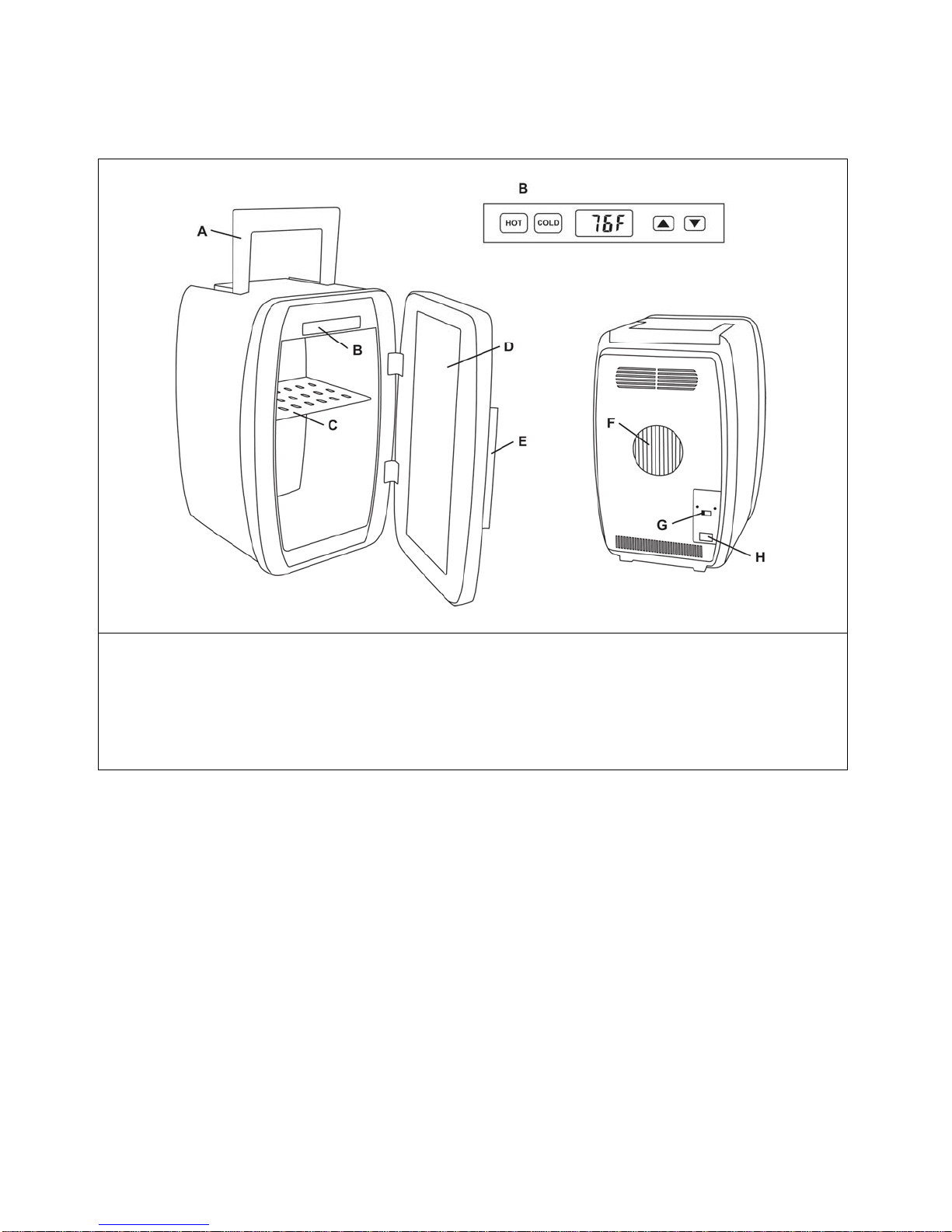

Product Diagram
A) Carrying Handle
B) Control Panel
C) Removable Shelf
D) Double Paned Amber Tinted Door
E) Door Handle
F) Ventilation
G) HOT/OFF/COLD Switch
H) AC Adapter/ DC Power Cord Plug-in
Includes 1 wine cooler, 1 flat shelf, 1 115V AC adapter, and 1 12V DC power cord
Operating Instructions
1) Clean the inside of the wine cooler with a soft, damp cloth and mild detergent.
2) Set the HOT/OFF/COLD switch on back to OFF.
3) Connect the AC adapter to the back of the unit, and then plug the AC adapter
into a grounded 115V 60Hz power outlet. Or, if using in a vehicle, connect the
DC power cord to the back of the unit and then plug into any standard vehicle
cigarette lighter socket.
4) HOT/OFF/COLD switch operation:
a) When the switch is on COLD, the green light will turn on, indicating the unit is
cooling.

b) When the switch is on HOT, the red light will turn on, indicating the unit is
heating.
NOTE: When switching between COLD and HOT, set the unit at OFF for five
minutes.
5) To set the temperature:
a) For cooling, press COLD once. The temperature range is 39-82°F. However,
the unit can only cool 25°F below the surrounding temperature. For heating,
press HOT once. The temperature range is 86-126°F.
b) When the temperature is blinking, press the up and down buttons to select
the desired temperature.
c) The display shows the current temperature. Once selected, the wine cooler
will begin cooling/heating to the set temperature.
6) To change the display from Celsius to Fahrenheit, or Fahrenheit to Celsius, hold
the up button for 2 seconds.
7) Unplug the wine cooler when not in use.
Maintenance
1) Set the switch on back to OFF. Unplug the unit and let it cool completely.
2) To keep the wine cooler clean, the exterior may be cleaned with a soft, damp
cloth. You may use a mild detergent if necessary. After cleaning, dry the unit with
a soft cloth. CAUTION: Do not let liquid enter the beverage center.
3) Do not use alcohol, gasoline, abrasive powders, furniture polish, or rough
brushes to clean the wine cooler. This may cause damage or deterioration to the
surface of the unit.
4) Do not immerse the wine cooler in water.
5) Wait until the unit is completely dry before use.
Storage
Store the wine cooler in a cool, dry location when not in use. Preferably, to prevent dust
and dirt build-up, use the old packaging to repack the unit.
Troubleshooting
WINE COOLER WILL NOT WORK
1) If using AC adapter, check if the power cord is plugged into an electrical outlet, if
not, plug in. If using DC power cord, confirm that it is plugged into a cigarette
lighter socket.
2) Check if electricity to the main fuse is working.
3) Check if the back switch is on COLD or HOT by confirming that one of the
corresponding indicator lights is on. If back switch is on OFF, change to COLD or
HOT.

WARRANTY
One Year Limited Warranty
Soleus International Inc. warrants the accompanying Soleus Air JC-4 to be free of
defects in material and workmanship for the applications specified in its operation
instruction for a period of ONE (1) year from the date of original retail purchase in the
United States or Canada.
If the unit exhibits a defect in normal use, Soleus International Inc. will, at its option,
either repair or replace it, free of charge within a reasonable time after the unit is
returned during the warranty period.
As a condition to any warranty service obligation, the consumer must present this
Warranty Certificate along with a copy of the original purchase invoice.
THIS WARRANTY DOES NOT COVER:
1) Damage, accidental or otherwise, to the unit while in the possession of a consumer
not caused by a defect in material or workmanship.
2) Damage caused by consumer misuse, tampering, or failure to follow the care and
special handling provisions in the instructions.
3) Damage to the finish of the case, or other appearance parts caused by wear.
4) Damage caused by repairs or alterations of the unit by anyone other than those
authorized by Soleus International Inc.
5) Freight and Insurance cost for the warranty service.
ALL WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANT
ABILITY ARE LIMITED TO ONE-YEAR DURATION OF THIS EXPRESS LIMITED
WARRANTY. SOLEUS INTERNATIONAL INC. DISCLAIMS ANY LIABILITY FOR
CONSEQUENTIAL OR INCIDENTAL DAMAGES AND IN NO EVENT SHALL SOLEUS
INTERNATIONAL INC’S LIABILITY EXCEED THE RETAIL VALUE OF THE UNIT FOR
BREACH OF ANY WRITTEN OR IMPLIED WARRANTY WITH RESPECT TO THIS
UNIT.
As some states do not allow the limitation or exclusion of incidental or consequential
damages, or do not allow limitation on implied warranties, the above limitations and
exclusions may not apply to you. This warranty gives you specific legal rights, and you
may also have other rights that vary from state to state.
For Warranty, Technical Support, Customer Service, Missing or Defective Parts
Please Call [phone]
Or Write To:
Soleus International Inc.
9451 Telstar Ave.
El Monte, CA 91731 USA
www.soleusair.com
