Solo 433 User manual

9 433 100 english 07/2004
433
Instruction manual
Important!
Read this instruction manual carefully
before first operation and strictly observe
the safety regulations!
Motorized high
pressure sprayer

ENGLISH 2
Prelude
We congratulate you on the purchase of
your new high quality SOLO product and hope
that you are well satisfied with it.
Your high pressure sprayer is driven by a
high performance, modern combustion engine.
A single cylinder two-stroke engine with Nikasil
coated cylinder walls in conjunction with proven
SOLO technology ensures high performance, low
fuel consumption and a long operational life.
SOLO constantly strives to further develop its
products. Consequently, SOLO must reserve the
right to make changes in form, shape, fittings
and technology.
No claims can be derived from any of the
illustrations or from information contained in
these operating instructions.
To maintain satisfactory operation and high
performance of this product over a long period,
all operating instructions and maintenance
guide lines should be strictly adhered to.
For any further questions or further
information required regarding this product,
please contact your specialist dealer who will be
pleased to assist.
Symbols
The following symbols are used in the manual
and on the product:
In the manual:
Read instruction manual
Special care required
Wear eye and ear protection
Do not smoke!
No open flame!
Wear protective gloves!
Toxic exhaust gas emission!
On the machine:
Fuel tank lid
T- Idling set screw
The choke is closed when the lever
points in the direction as shown by the
arrow (starting with cold engine)
L- Low speed mixture screw
H- High speed mixture screw
Declaration of Conformity
In accordance with EC Guide Lines 98/37/EG,
2000/14/EG and 89/336/EWG (modified with
92/31/EWG),
SOLO Kleinmotoren GmbH,
Stuttgarter Strasse 41,
D-71069 Sindelfingen
declares that the company assumes sole responsibility
for the product and confirms that the product
complies with the requirements of the machinery
guide lines.
Sound power level (Din45635)
Guaranteed 95 db(A)
Measured 94,2 db(A)
Sindelfingen,
1st June 2004
SOLO Kleinmotoren GmbH Wolfgang Emmerich
Managing Director

ENGLISH 3
Index
Page
1. Safety regulations............................................................................................................ 4
1.1 General safety hints 4
1.2 Working with chemicals safely 4
1.3 Work clothing 5
1.4 Transporting the sprayer 5
1.5 Fuelling 5
1.6 Preparation for starting 6
1.7 Starting 6
1.8 Working with the machine 6
1.9 Maintenance and repairs 6
2. Technical Specifications................................................................................................... 7
3. Goods Supplied................................................................................................................. 8
4. Important functional assemblies.................................................................................... 8
5. Preparation for use ..........................................................................................................9
5.1 Assembly 9
5.2 Adjustment of carrying straps 9
5.3 Prior to first use and after extended storage periods 9
6. All about fuel.................................................................................................................. 10
6.1 Fuel information 10
6.2 Mixing ratio 10
6.3 Fuelling 10
7. Preparation of spray chemicals, filling of liquid container........................................ 11
8. Starting engine / stopping engine ................................................................................ 12
8.1 Preparation for starting 12
8.2 Starting 12
8.3 Engine will not start 13
8.4 Stopping engine: 13
9. Use of High Pressure Pump............................................................................................ 14
9.1 Scope of Application 14
9.2 Pressure Regulation 14
9.3 Spray nozzle / Output volume 15
9.4 Excess spray chemical / Completing spraying operation 15
10. Operating and Maintenance Instructions................................................................... 16
10.1 General operating and maintenance hints 16
10.2 Checking output volume of spray chemical 16
10.3 Emptying and cleaning liquid tank 16
10.4 Carburettor adjustment 17
10.5 Air Filter Maintenance 18
10.6 Information about the spark plug 18
10.7 Hints concerning the exhaust system 18
10.8 Remove the fuel filter 19
10.9 Shutdown and storage 19
10.10 Maintenance Plan 20
11. Guarantee ..................................................................................................................... 21
12. Parts subject to wear and tear.................................................................................... 21

Safety regulations
ENGLISH 4
1. Safety regulations
1.1 General safety hints
Read the manual thoroughly before using the machine for the first time. Keep the manual in a safe place.
Use this machine carefully and with caution.
Ignoring these safety hints may endanger your life. Also observe all rules and regulations for the prevention of
accidents as issued by the respective trade associations. This manual must be available for reference at the place of
use of the product. The manual has to be read by every person who is requested to use, maintain, service or repair
the machine.
•You should request and receive instructions from the vendor on the safe operation if you are using this type of
product for the first time.
•The high pressure pump may only be used within the prescribed scope of application as stated in section 9
"Scope of Application".
•Children and persons under the age of 18 are not allowed to use this machine.
•No other persons or animals should be within the work area. Never spray towards other persons, animals or
objects which would suffer damage. The sprayer generates high pressure at the nozzle which may be dangerous.
The operator is responsible for any accidents or damage caused towards other persons or property.
•This High Pressure Sprayer may only be passed on or lent to other persons if that person is familiar with the safe
use of this product and is familiar with the instruction manual. Always supply the manual with the machine.
•Ensure you are rested and in good health when using this product.
•Persons under the influence of alcohol or drugs, including prescription drugs, are not allowed to use the
machine as their ability to quickly react to potential danger may be impaired.
•Never alter, change or modify any safety equipment or functional assemblies on this machine.
•The engine driven sprayer should only be used when the unit is in good, safe condition. Always check the
machine prior to use. Danger of Accident!
•Only use parts and accessories which were approved and supplied by the manufacturer.
•The reliability and safe operation of your machine depend on the quality of parts used with the machine. Only
use original spare parts. Original spare parts are identical with genuine production parts and guarantee best
quality in material, measurements, function and safety. Original parts and accessories are available from your
specialist dealer. Your specialist dealer has been supplied with correct documentation to determine the correct
parts. The specialist dealer is frequently supplied with updates about improvements to the equipment. Please
note that the use of non-original parts will void your warranty.
•Always store the machine in a safe place and in such a way that it will not pose any danger. Stop the engine
when the machine is not used. Drain and clean the liquid tank according to the details provided in section 10.3
"Draining and cleaning liquid tank". Unauthorized persons should have no access to the machine.
Persons who disregard safety instructions, operating instructions or maintenance instructions may be liable for any
damage or consequential damage.
1.2 Working with chemicals safely
•This high pressure sprayer is suitable for the application of approved plant protection chemicals, fungicides,
pesticides and herbicides as well as liquid fertilizers which are available from authorized specialized shops. Only
use plant protection chemicals which have been approved by the respective authorities in your country or state.
•Do not use liquids with a temperature above 40°C.
•To avoid personal injury and for the protection of the environment only use approved chemicals. Always read
and follow all recommendations of the chemical manufacturer.
•Never drain excess chemicals into the public water drainage system and never pour excess chemicals on unused
land or in ponds and lakes. Avoid return suction of chemicals into the hose while filling the mixing container
with tap water. Never add plant protection chemicals to goods for domestic garbage and refuse collection.
Collect plant protection chemicals in a suitable container and deliver the container to a designated collection
point for chemicals. Check with your local authorities regarding the availability and address of such a collection
point.
•Avoid direct contact with chemicals.
•If you feel drowsy and unwell while using the sprayer, stop work immediately. If drowsiness persists, see a
medical practitioner.
•Children or persons unfamiliar with the handling and application of chemicals are not allowed to use the
sprayer.
•Thoroughly clean the tank before using different spray chemicals. After cleaning the tank, use fresh water to

Safety regulations
ENGLISH 5
operate the sprayer for a short time. This will remove residual chemicals from the pump and the hose system.
This will avoid possible chemical reactions.
•Do not spray in small or closed rooms - there is a danger of poisoning from chemicals and from exhaust fumes.
Use motorized equipment in glass houses only if there is sufficient ventilation. Recently treated glass houses
should be marked to prevent access before the spray has settled and full ventilation is completed.
•Drain and clean the chemical tank on the sprayer after the spraying job has been completed. Follow the
instructions provided in section 10.3 "Draining and cleaning chemical tank". Wash hands and face with fresh
water and soap. Change work clothing and have it cleaned.
1.3 Work clothing
Always wear appropriate clothing and protective equipment whenever this sprayer is used.
•Wear appropriate protective clothing which covers all body parts. This includes gloves, head protection, foot
protection, body protection and possibly an apron or breathing mask
•Clothing should suitable, i.e. tight without being obstructive.
•Do not wear a scarf, necktie, jewellery or any clothing which can get caught on shrubs or branches.
•Wear firm shoes with good traction, preferably safety shoes.
Wear protective gloves with non-slip grip.
Use personal ear protection and a face mask or safety goggles to protect against spray drift or airborne
debris.
•When working between close and tall plants, in badly ventilated glass houses or when using highly toxic
chemicals, always wear a suitable, approved breathing mask.
•Any clothing soaked with chemical or petrol should be changed immediately.
1.4 Transporting the sprayer
•Always stop the engine to transport the sprayer.
•Considering road traffic hazards it is advisable to secure the sprayer firmly and safely before transporting the
unit.
•Ensure there are no chemical or petrol leaks. Always check the chemical tank, pump, fuel tank and all hoses and
pipes for the chemical solution and fuel supply for leakage. Prior to transporting the sprayer, drain the chemical
tank as per instructions provided in section 10.3 "Draining and cleaning chemical tank".
1.5 Fuelling
Petrol is very light and highly flammable. Do not get close to an open flame and do not spill any fuel.
Do not smoke at the operating site or at and near the refuelling site!
•Stop the engine prior to refuelling.
•The engine should be allowed to cool down before refuelling - fire danger!
•Open the tank lid slowly to allow the safe escape of any excess pressure in the tank without the danger of petrol
spray.
•Avoid breathing in fuel vapour.
•The refuelling site should be well ventilated.
•Avoid any soil spillage of fuel or oil. (Protection of the environment). Use a suitable mat.
•Immediately clean any spilled fuel on the machine. Contaminated clothing should be changed without delay.
•Firmly tighten all tank lids. This will reduce the risk of spillage from lids which have become loose from engine
vibrations.
•Check for petrol leaks. Do not start the machine or work with the machine if there is a petrol leak. Life
threatening danger from burns!
•Store fuel and oil in approved and correctly labelled containers.

Safety regulations
ENGLISH 6
1.6 Preparation for starting
Check the complete machine for operational safety.
•The stop button should function properly.
•The throttle lever has to move easily and smoothly.
•Check the chemical tank, pump, fuel tank and all hoses and pipes for chemicals and fuel for possible leakage.
•Ensure the spark plug cap and the ignition cable are connected firmly. A loose connection may cause a spark
which can ignite any existing fuel-air mixture - fire hazard!
•Should the check reveal any irregularities or recognizable damage (also to the frame), incorrect adjustments or
reduced efficiency of the machine, do not commence work. Take the motorized high pressure sprayer to a
specialized workshop and have it checked.
1.7 Starting
•Start the machine no less than 3 metres from the refuelling location. Never start the machine in an enclosed
area.
•Ensure secure, firm footing for starting.
•Only one person is allowed to operate the motorized high pressure sprayer. No other person should be within 5
meters when the machine is started or operated.
•The trigger handle on the spray wand should be closed during the starting process. Ensure the spray wand is
directed away from persons and objects.
•Continue with the starting procedure as described in section 8. "Starting engine / Stopping engine".
1.8 Working with the machine
While running, the engine produces toxic exhaust gas which is odourless and invisible. Never start or operate
the machine in closed rooms. Ensure for adequate ventilation in confined areas such as ditches or dips.
Remain within calling distance to other persons who would be able to provide assistance if needed. Provide
for regular and in-time rest periods.
Do not smoke in the vicinity of the machine or at the work site. Smoking increases the danger of fire!
•Operate the machine with as little noise and exhaust gas emission as possible - only run the engine when
necessary. Consider that noise is an environmental hazard. Respect and observe any quiet periods which may
vary locally.
•Do not touch the muffler and exhaust while still hot. Danger of burns!
•Never operate the machine without a muffler or with a damaged muffler. Danger of burns and loss of hearing!
•The machine should be stopped when not in use and secured to prevent danger of injury to others.
1.9 Maintenance and repairs
The machine has to be maintained regularly. Only do those maintenance jobs and repairs yourself which are
described in this manual. All other jobs should be done by a specialized service centre.
•Do not maintain, repair or store the machine in the vicinity of an open flame.
•Always stop the engine before attempting any cleaning, repair or maintenance jobs. An exception is the
adjustment of the carburettor or idling speed.
•Only remove the pressure hose (14), the trigger handle (15), the spray wand (17) and the nozzle insert (18) when
the engine has been switched OFF and the system is fully depressurised. To achieve this, with the engine
switched OFF, insert the spray wand (17) into the liquid tank or into a container suitable for the liquid
concerned, and operate the trigger handle (15).
•For any repairs only use original parts from the manufacturer.
•Do not modify, alter or change the machine as this may impact on the safety of and with the machine and lead
to accidents and injury!

Technical Specifications
ENGLISH 7
2. Technical Specifications
Engine type SOLO single cylinder two stroke engine
Engine capacity cm325 ccm
Bore / stroke mm 33 / 30
Engine performance kW at rpm 0.75 / 6500
Medium idling speed rpm 2800
Max. Admissible engine speed rpm 6700
Fuel tank capacity l 0,3
Fuel mix ratio: with "CASTROL SUPER TT"
with other two stroke oils
1:50 (2%)
1:25 (4%)
Carburettor All-position diaphragm carburettor with
primer and integrated fuel pump
Air filter Compressed fibre filter with foam material
insert
Ignition Electronically controlled magneto ignition,
maintenance free
Capacity of liquid tank l 24
Nominal volume l 23
Liquid inlet filter mesh size mm 0,65
Residual liquid volume in tank after
machine stops regular spray output ml < 200
Operating pressure bar 5 - 30
Output volume with standard nozzle l/min
at 5 bar operating pressure
at 10 bar operating pressure
at 20 bar operating pressure
at 30 bar operating pressure
0,7
1,2
1,7
2,0
Spray Wand Material
Length in mm
Connecting thread
Steel tube
50
19 windings/inch
Spray hose Length in mm
Pressure resistant to bar 128 > 50
Spray nozzle, standard Double flat spray
Work site related LPeg to EN ISO 11200 idling / full speed
dB(A) 82
Sound pressure level LWeg to EN ISO 3744
measured / guaranteed 95% dB(A) 94,2 / 95
Weighted average of acceleration to ISO 7916 handle at
max. engine speed m/s2 < 2,0
Total weight (ready to go - empty liquid tank) kg 8,3
Dimensions without spray wand and spray hose mm Height: 630 / Width: 440 / Depth: 320

Goods Supplied ; Important functional assemblies
ENGLISH 8
3. Goods Supplied
The SOLO 433 High Pressure Pump is supplied complete with the following equipment:
•Basic unit
oComplete unit but without spray wand
•Spray wand with pre-assembled nozzle set
•Instruction manual

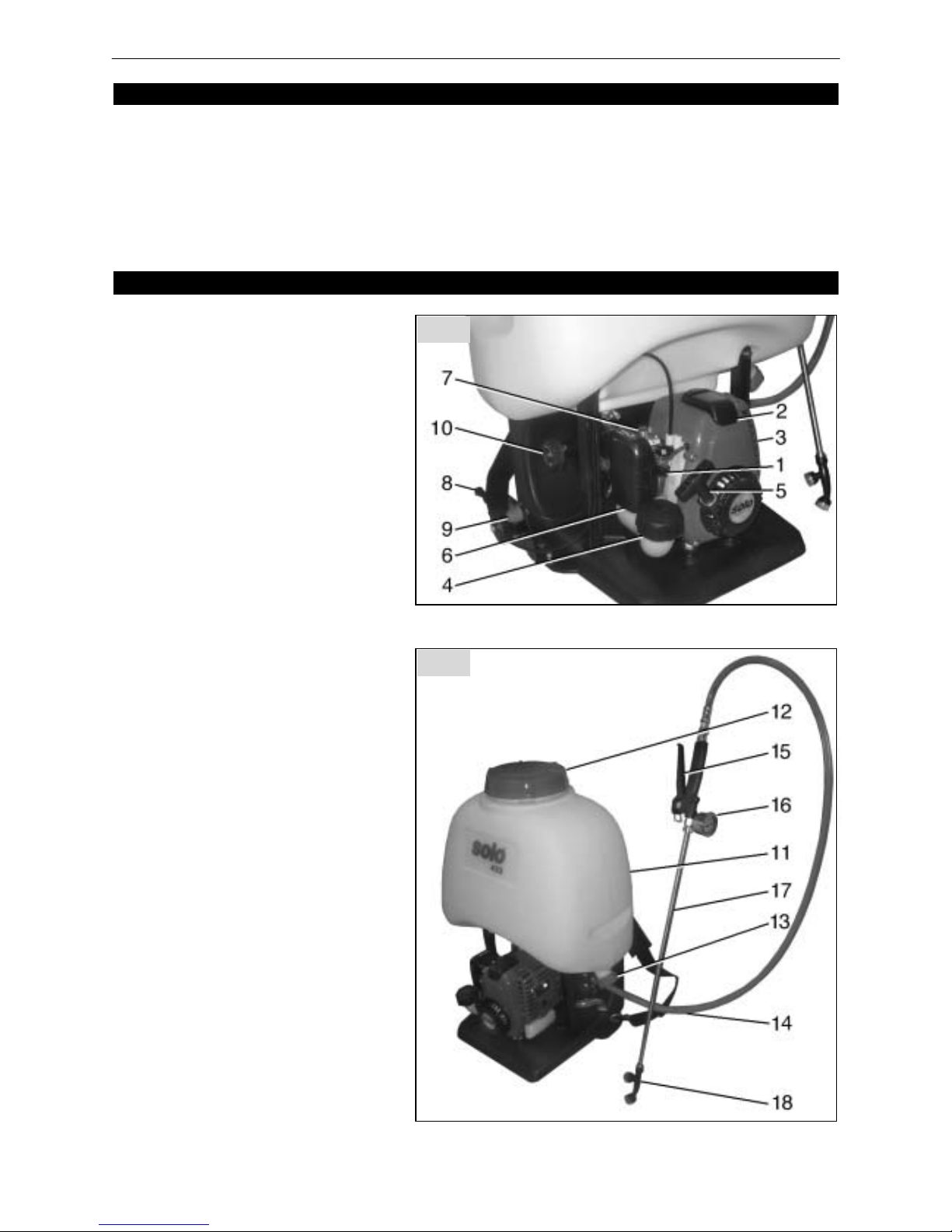

4. Important functional assemblies
Engine unit:
1. Choke lever
2. Spark plug cap
3. Muffler
4. Fuel tank lid
5. Starter handle
6. Air filter
7. Primer
8. Throttle adjustment lever
9. Stop button
10. Pressure regulator
Spray equipment:
11. Liquid tank
12. Tank lid -
Opening to fill liquid into tank
(Removable filter basket is
supplied in the filler opening.)

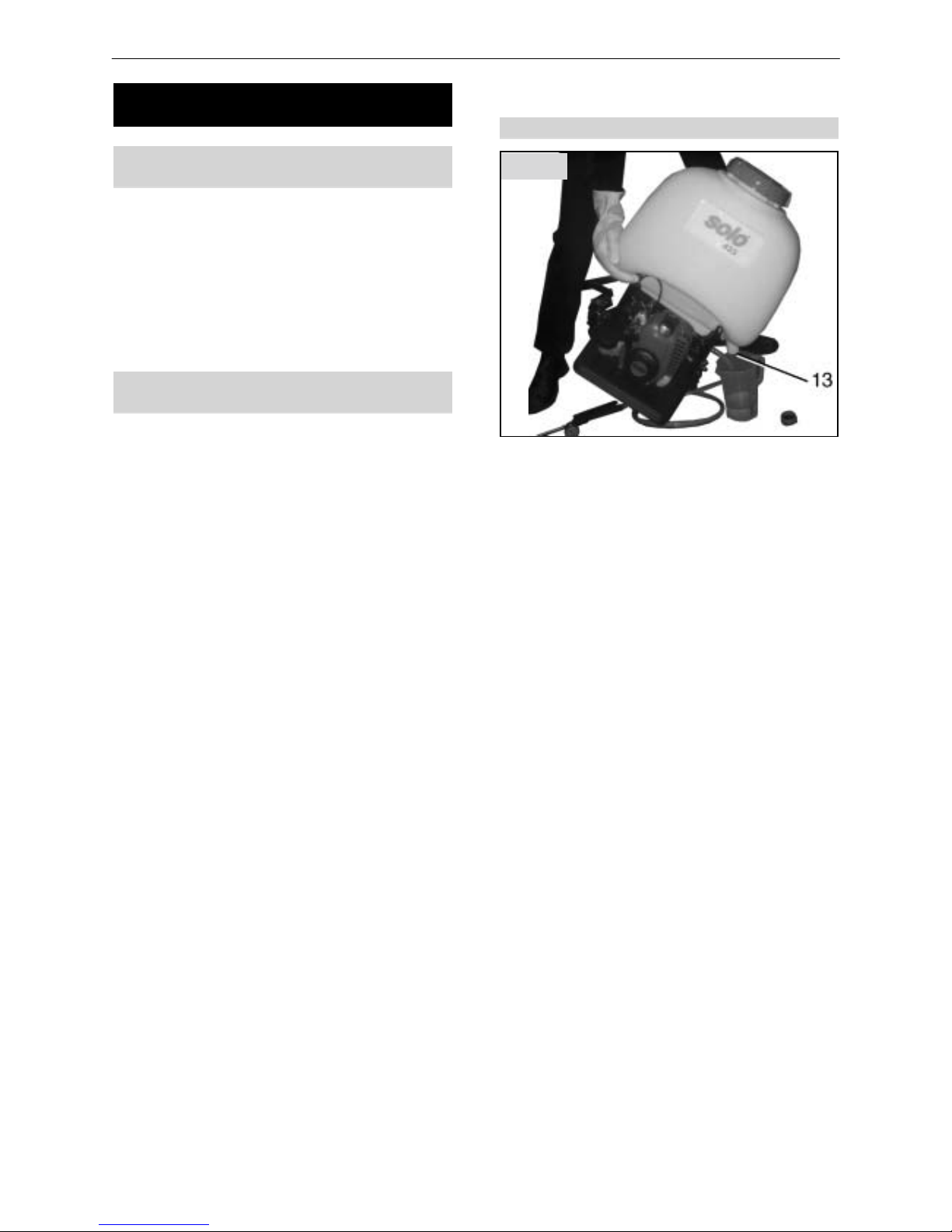

13. Lid for drainage of spray liquid
14. Pressure hose
15. Trigger handle
16. Pressure gauge
17. Spray wand
18. Nozzle insert
Fig. 1
Fig. 2

Preparation for use
ENGLISH 9
5. Preparation for use
5.1 Assembly
The high pressure sprayer may only be used
after complete assembly and after the carrying
straps have been adjusted correctly!
To facilitate packing and transport, the spray
wand (17) and trigger handle (15) are not
attached to the pressure hose (14).

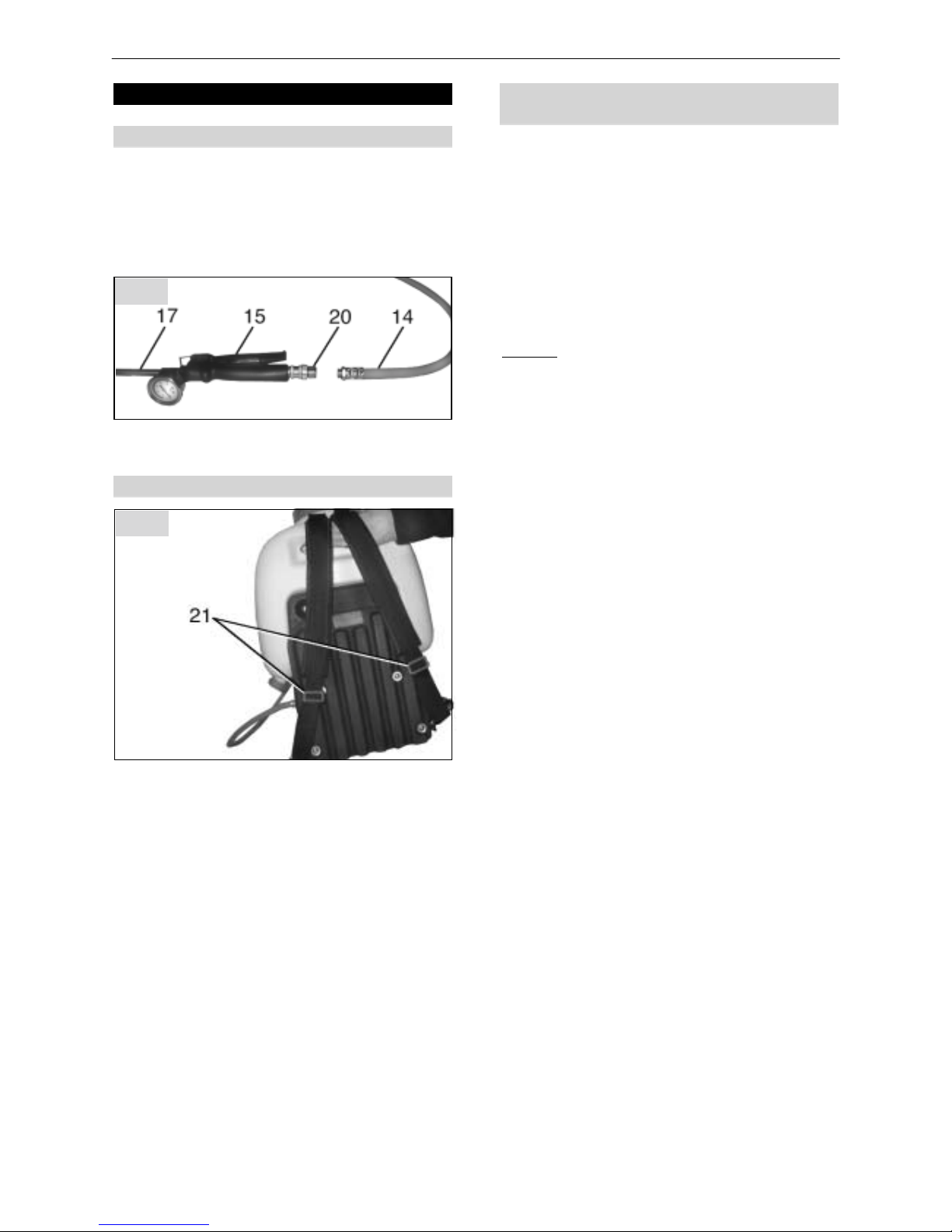

Fasten the pressure hose (14) to the trigger
handle (15) by tightening the hex. Nut (20).
5.2 Adjustment of carrying straps
Adjust the length of the carrying strap with the
buckle (21).
The strap is shortened by moving the buckle
upwards. Move the buckle downwards to
lengthen the strap.
The carrying straps are correctly adjusted when
the back cushion of the machine is resting firmly
and securely against the back of the operator.
Do not adjust carrying straps while the machine
is carried on the back.
5.3 Prior to first use and after
extended storage periods
Prior to using the engine driven high pressure
sprayer for the first time and after extended
storage periods we recommend that you check
the correct operation of the complete machine.
Also check all parts and hoses which carry fuel
and chemical liquid for any leakage. This should
be done before you mix the chemical solution.
After reading the manual thoroughly test the
machine as described in the following
paragraph.
Observe all safety instructions while
testing the machine.
Test run:
Fill the liquid tank with approx. 5 litres of water
after carrying out a successful visual check of the
machine. Fill the fuel tank with the correct fuel
mixture as described in section 6 "Fuelling " and
start the high pressure sprayer as described in
section 8 "Starting engine / Stopping engine"
for a test run. Check all parts and hoses which
carry fuel or chemical liquid for leakage. Check
the efficient operation of the throttle lever (8),
the operating handle (15), pressure gauge (16)
and the stop button (9).
Hint: To get a feel for the machine and to gain
confidence in the high pressure sprayer we
suggest you carry out several spray trials
with water only at various pressure
settings.
Note: The pressure gauge will only provide a
pressure reading when the operating
handle is in open position during the
spraying process.
If irregularities, leakages, visual damage (even
on the carrying frame), limited function or
incorrect adjustments are detected, do not start
any spray operations but have the high pressure
sprayer checked by a specialized service centre.
Fig. 3
Fig. 4

All about fuel
ENGLISH 10
6. All about fuel
6.1 Fuel information
The power for this machine is supplied by a high
performance two stroke engine operated with a
petrol / oil mixture (petrol + oil = fuel mixture)
or with a special fuel mixture for two stroke
engines available from specialists. The fuel
mixture can be made up with standard lead-free
petrol or with lead-free premium grade petrol.
The minimum octane rating for petrol is 92 ROZ.
Unsuitable petrol or deviations in the mixing
ratio may lead to serious engine damage!
Avoid direct skin contact with petrol and
avoid inhaling petrol fumes - health
hazard!
6.2 Mixing ratio
Always use a fuel ratio of 25 : 1 (4%) for the
first five tank fillings.
After that we recommend a ratio of 50:1 (2%)
with the use of special two-stroke oil "Castrol
Super TT" which is offered by our company.
With the use of other brand two stroke oils we
recommend a ratio of 25:1 (4%).
Never store fuel mixture longer than 3 - 4 weeks.
Fuel mixture table
Oil in litresPetrol in
litres Castrol Super TT
2% (50 : 1) Other two stroke oils
4% (25 : 1)
1 0,020 0,040
5 0,100 0,200
10 0,200 0,400
15 0,300 0,600
20 0,400 0,800
6.3 Fuelling
While fuelling always follow all safety
instructions and take all safety precautions.
Handle fuel only with the engine turned off.
Carefully clean the area around the filler inlet.
Place the machine with the fuel inlet pointing
upwards. Unscrew the tank lid and fill the fuel
mixture to the lower edge of the fuel tank neck.
Use a funnel with filter to prevent tank
contamination. After filling the tank replace the
tank lid and tighten firmly.
