Important!
Read this instruction manual carefully before
first operation and strictly observe the safety
regulations!
Lawn Mowers

- ENGLISH - Lawn Mowers 582 / 582SM
ENGLISH 2
Instruction manual
Original instructions
Preface
Dear Customer,
Congratulations for choosing this SOLO quality
product.
The lawn mower is a high performance mower
that will contribute to a well-cared for lawn.
The owners manual comes with the
appropriate engine owners manual which
is an integral part of this owners manual.
Please read the owners manual carefully and
familiarize yourself with the correct use of the
SOLO lawn mower prior to operating the lawn
mower for the first time. Please observe all
instructions, recommendations and explanations.
Adherence to the owners manual is essential for
proper operation of the lawn mower. Do not
operate the lawn mower while other persons,
especially children or animals are within close
proximity. The operator of the lawn mower is
responsible for any personal or property damages
to third parties.
EC declaration of conformity ÎThe EC
declaration of conformity on a separate piece of
paper forms part of these operating instructions.
Packaging and disposal
Please keep the original packaging in order to
protect the equipment against transport damage in
case you ever need to ship it or transport it. If the
packaging materials are no longer required then
they must be disposed of properly in accordance
with applicable local regulations. Cardboard
packaging materials are raw materials which can
be recycled or reused.
At the end of the equipment’s service life, please
make sure that you dispose of it properly, in
accordance with the official directives and
regulations that apply in your area

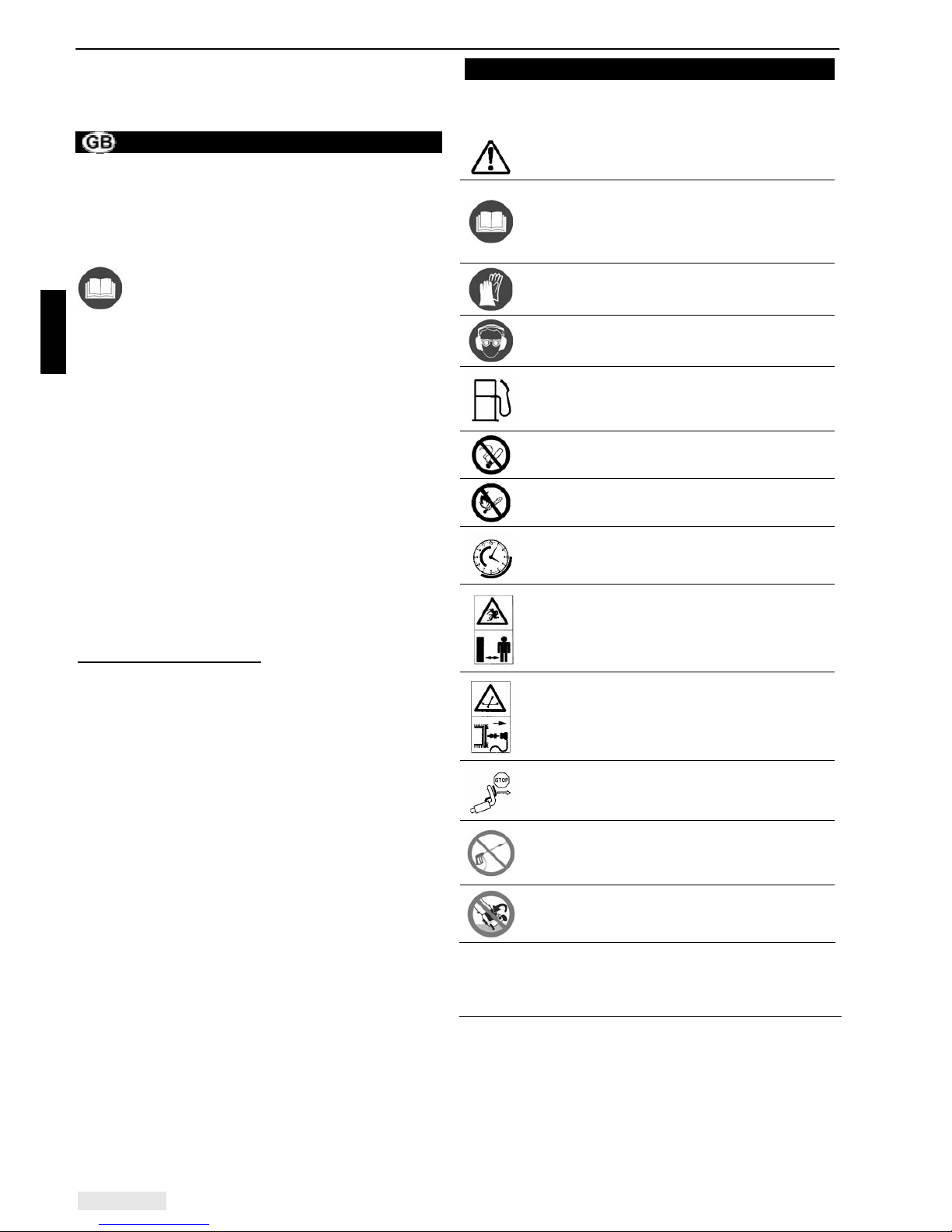

Symbols
The following symbols are used in this manual and
on the product:
Always handle this power tool with
particular care
Read these operating instructions and
those appertaining the motor, carefully,
before initial start-up and all maintenance
or cleaning work
Wear protective gloves when servicing
and for repair
Wear protective head gear
Pay particular attention when handling
fuel
Never smoke near the power tool or
where the equipment is refuelled!
Keep open flames away from the power
tool and the fuel can
Observe mowing hours
Do not allow third parties within the
danger zone
Detach spark plug wire prior to working on
cutting device;
Stop engine
Do not spray the mower with high
pressure cleaning hose
Never place the lawnmower on its side
In the best interest of continued technological
progress we reserve the right to change the design
and configuration of any product without prior
notice.
For that reason, no claims can be accepted with
reference to text and illustrations in this manual

Index ; Type plate
ENGLISH 3
Index
Page
1. Type plate .............................................................................................................................................. 3
2. Standard delivery.................................................................................................................................. 4
3. Control and function elements............................................................................................................ 4
4. Technical data.......................................................................................................................................6
5. Accessoires........................................................................................................................................... 6
6. Safty guidelines .................................................................................................................................... 7
6.1 Correct use 7
6.2 General safety instructions 7
6.3 Fuel and fuelling 7
6.4 Prior to Mowing 8
6.5 During Start-up 8
6.6 Handling 8
6.7 Service and Storage 9
7. Preparing the equipment for use....................................................................................................... 10
7.1 Assembly 10
7.2 Grass Catching Device 10
7.3 Adjusting cutting height 11
7.4 Engine 11
8. Starting / Stopping the engine........................................................................................................... 11
8.1 Starting 11
8.2 Shutting off engine 11
9. Mowing hints ....................................................................................................................................... 12
9.1 Mowing with Grass catching device 12
9.2 Lawn Care 12
10. Maintenance and Care......................................................................................................................13
10.1 Cleaning the Mower 13
10.2 Wheel axles and wheel hubs 13
10.3 Height adjustment 13
10.4 Air filter Maintenance 13
10.5 Mowing Blade 14
10.6 Oil level check 15
11. Parts subject to wear and tear......................................................................................................... 15
12. Guarantee .......................................................................................................................................... 15

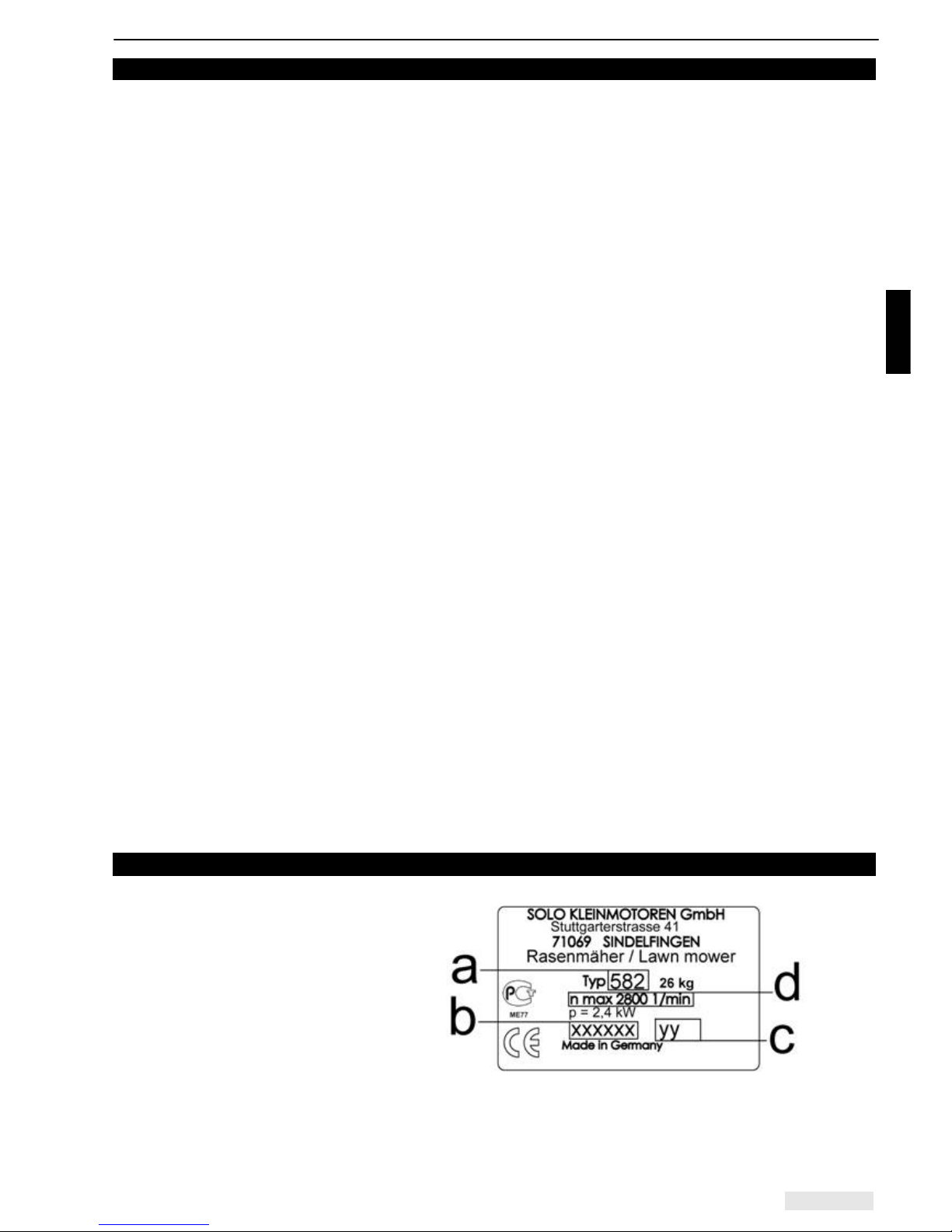

1. Type plate
a: Type designation
b: Serial number
c: Build year (07 Î2007)
d: Max. speed (operating)

Standard delivery ; Control and function elements
ENGLISH 4
2. Standard delivery
•Lawn mower
•Grass catcher frame
•Grass catcher
•Spark plug wrench
•2 pcs. Star handles M8
•2 pcs. Washers 8.4 dia.
•2 pcs. Coach bolts M8x45
•Owners manual, owners manual for engine
3. Control and function elements
Adhesive labels:
A Model 582: To stop the engine Îrelease bow handle (1)
B Fill the engine with oil before taking the machine into use
Fig. 1a
Model 582

Control and function elements
ENGLISH 5

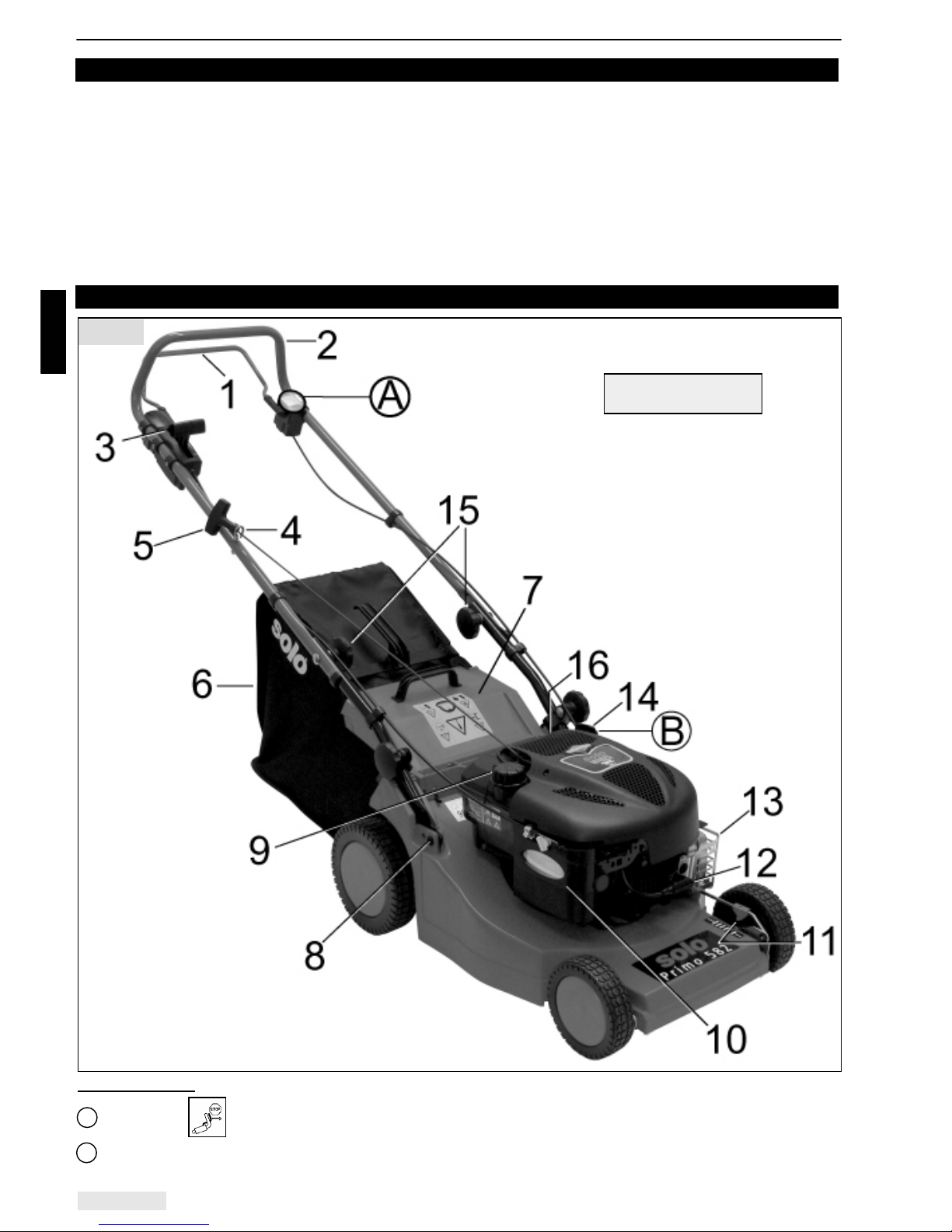

1. Brake lever, engine brake 11. Height Adjuster Indicator
2. Handle 12. Spark plug
3. Throttle lever (582 only) 13. Muffler
4. Rope Eyelet 14. Oil filler pipe
5. Starter grip
6. Grascatching device
7. Ejection shield
15. Handle Screw
8. Handle Bolt 16. Height Adjuster
9. Fuel Tank
10. Air Filter
17. Primer (582SM only)
Fig. 1b
Model 582SM

Technical data ; Accessoires
ENGLISH 6
4. Technical data
Mower 582 582SM
Cutting width 40 cm
Wheel adjustment continuous central adjustment from 30 - 75 mm (approx. 1 - 3“)
Grass catching device Vol. 40 l
Blade Blower-blade, one piece, mounted to overload clutch
Total weight
with grass catching device 26 kg 23 kg
1-cyl., 4-cycle engine
Engine power kW at rp
m
Briggs&Stratton
Series 650
READYSTARTTM
2.4 / 2800
Briggs&Stratton
Series 500
1.9 / 2800
Engine capacity 190 ccm 158 ccm
Fuel Lead-free reg.
Engine oil: SOLO all-season 4-stroke engine oil
Measurements: a: 139 cm (~55’’),
b: 100 cm - 104,5 cm (~39’’ - ~41’’),
c: 45 cm (~18’’),
d: 80 cm (~31’’),
e: 49 cm (~19’’)
a: 131 cm (~52’’),
b: 94,5 cm - 99 cm (~37’’ - ~39’’),
c: 45 cm (~18’’),
d: 78 cm (~31’’),
e: 51 cm (~20’’)
Noise level in work area LpA (ISO 11094) Î81,5 dB(A)
Sound capacity level LWA (ISO 11094) measured/ garanted Î94 dB(A) / 96 dB(A)
Weighted acceleration value avhw (EN 836) Î12 m/s2
5. Accessoires
Part no.
Mulch set cutting deck insert and special blade 59 00 824
SOLO all-season 4-stroke engine oil 00 83 115
SOLO bearing grease 00 83 175

Safty guidelines
ENGLISH 7
6. Safty guidelines
6.1 Correct use
The SOLO lawn mower is intended to be used only for private home or hobby gardens. The lawn mower is
not to be used in public facilities, parks, sports centers or for agricultural and forestry purposes.
Due to potential bodily harm, the SOLO lawn mower is not to be used for the
following purposes:
•to trim bushes, hedges or shrubs,
•to cut or chop growing vines or lawns on roof-tops or balcony window boxes,
•to clean or suction-up walkways or to chop up trees and shrubbery debris,
•to cut up tree and shrubbery sections.
•to level elevations on the ground, for instance mole hills or other similar elevations,
•a drive aggregate for other work units,
•as a trailer.
6.2 General safety instructions
•Do not allow children or other third parties who are not familiar with the functioning of the machine to
operate the lawn mower. Juveniles under age 16 should not be permitted to operate the lawn mower.
•Please adhere to local ordinances which may determine the minimum age for operating the lawn
mower.
•Loan the lawn mower only to individuals who are familiar with handling this model. Always make the
owners manual available to them.
•Explain to the individual who is to use the lawn mower, how to avoid possible danger and accidents.
•Mow only during daylight hours or with proper artificial illumination.
•Individuals who have a pacemaker should stay clear off the electrical wires of the starter when engine
is started or when engine is running.
•Mowers with 4-cycle engines are not suitable for inclines over 15 degrees.
•Store the mower in a safe manner! Mowers should be stored in a dry and locked area that is
inaccessible to children.
6.3 Fuel and fuelling
Handling gasoline requires great care.
•Gasoline is highly flammable. Refuel only outdoors - never in enclosed areas.
•Smoking and open fires are prohibited.
•Do not spill any gasoline.
•If gasoline is spilled, clean lawn mower immediately, otherwise do not start engine!
•Avoid contact with gasoline. Change clothing if accidental spills occur!
•Be careful that fuel does not spill onto the ground (environmental protection!)
•Transport and store gasoline only in authorized and marked containers.
•If damages occur, replace fuel tank, cap and fuel lines
•Check for any visible damage.
Lead-free, regular gasoline is to be used.
•Refuel only with the recommended fuels which are listed in the separate engine owners manuals.
•Let mower cool off prior to refueling.
•Thoroughly clean the surrounding areas of the fuel tank. Remove fuel tank cap and fill tank to the
lower edge of the filler pipe. Firmly close fuel tank cap.
Gasoline may contain solvent-like substances.
•Avoid hand and eye contact with gasoline.
•Wear protective gloves when refueling.
•Do not inhale gasoline fumes.
•Store fuel in areas inaccessible to children.

Safty guidelines
ENGLISH 8
6.4 Prior to Mowing
•Check the area completely prior to mowing and during mowing. Remove any foreign matter such as
pebbles, stones, wooden pieces, bones, etc. prior to mowing.
•Never mow without sturdy shoes and without wearing long pants. Never mow bare-footed or with
open-toe sandals.
•Attach the ejection shield and the grass catching device. Make certain that these are properly secured.
It is prohibited to use the mower without the ejection shield or with a damaged shield.
•Check the mower for
a) secure fit of fastening parts,
b) damage or severe wear and tear.
•Observe installation hints and specified torque when replacing parts.
•Check the grass catching device frequently for wear and tear.
•Lawn mowers with 4-cycle engine need to be serviced with engine oil prior to first-time usage (observe
the hints in the separate engine owners manual).
•Check the oil level prior to each mowing.
6.5 During Start-up
•The mower needs to be positioned on level ground when starting.
•Do not start-up in deep grass.
•When starting mower it is important that feet are away from the cutting unit.
•Never place hands or feet near moving parts. Be careful that neither hands nor feet will be caught
below the deck.
6.6 Handling
Do not run the engine in enclosed areas where dangerous exhaust fumes may collect. Danger of
poisoning!
•The engine/exhaust becomes very hot: Do not touch!
•Always position yourself firmly on the ground when mowing on a slope.
•Move at a walking pace when mowing.
•Mow diagonally on a slope, never in a straight upward or downward motion.
•Be especially careful when changing directions on a slope.
•Be especially careful when turning mower around or when pulling mower towards you.
•Do not walk backwards with the mower. Danger of stumbling. Avoid walking backwards.
•Avoid abnormal body positions. Assure solid positioning on the ground, and at all times, keep your
balance.
•Always keep sufficient distance which is established by the length of the handle.
Turn off engine and remove spark plug cap,
•Prior to checking the mower,
•prior to removing blockages of ejected material,
•or prior to cleaning the mower and for other maintenance work, and
•when you mount the Assembly mulching Set
•when the mower is temporarily left alone,
•when the mower is lifted or tilted during transport.
Turn engine off when,
•Opening the ejection shield and when removing grass catching device,
•when removing the upper handle section from the lower handle section,
•when pushing mower outside the lawn,
•when the cutting height is to be adjusted,
•prior to refueling.
•when crossing areas other than grass
•when transporting the mower to or from the grass area

Safty guidelines
ENGLISH 9
•Never lift or carry the mower when engine is running.
•Never use the mower when ejection shield is damaged or missing. Mow only with the proper grass
catching device which has to be correctly installed, and with a completely closed ejection shield.
•Do not alter the engine‘s initial settings.
•If the mower becomes blocked, for example when running over an obstacle, the mower needs to be
checked by a specialist to see if parts are damaged or deformed.
•Immediate checking is required if the mower vibrates at an unusual high level.
6.7 Service and Storage
Caution: Before every Service, Cleaning and Storage stop the engine and remove spark plug cap.
•Take care that all screw connections are tightened.
•Never store the mower with gasoline in fuel tank in a building where gasoline vapors may come in
contact with open fires or where sparks could ignite fumes.
•The fuel tank should be emptied outdoors. Use suitable containers for draining gasoline.
•Let the engine run until the gasoline remaining in the carburetor is depleted.
•Let the engine cool off prior to storage in an enclosed area.
•To avoid danger of fire, clean grass, leaves or escaping grease (oil) off engine, muffler and fuel tank.
•On a regular basis, check the grass catching device and check the ejection shield for wear and tear
and sound operation.
•For safety reasons, replace worn or damaged parts.
•Always wear protective gloves when working near the cutting device‘s vicinity.
•Servicing and repairs are only to be conducted when engine is turned off and when spark plug cap is
removed.
•For warranty purposes and safety reasons only SOLO replacement parts should be used.
Ensure that the tank is fully drained before any assembly, disassembly or modification.
Maintenance and repair
Maintenance and repair of modern motorized devices, as well as their safety-relevant assemblies, require
qualified, specialized training and a workshop equipped with special tools and test devices.
Thus SOLO recommends that you have a specialized SOLO workshop carry out all work that is not
described in these operating instructions. Your SOLO specialist has the required training, experience, and
equipment at his disposal to provide you with the most cost-effective solution and can help you in many
ways with advice and service.
Replacement parts
Dependable operation and the safety of your device also depend on the quality of the replacement parts
that you use. Use only original SOLO replacement parts.
Only original parts come from the production of the device and thus guarantee the highest possible
material quality, dimensional accuracy, function, and safety. Original replacement parts and accessory
parts are available from your dealer. He also maintains the requisite replacement part lists to determine
the required replacement part numbers, and he is constantly provided with information concerning detail
improvements and innovations in the replacement part offering.
Please note as well that guarantee performances from SOLO are not possible if parts other than SOLO
original parts are used.
In conformance with the product liability law we want to clearly point out that we are not liable for any
damages which may occur due to improper handling, or repair. Furthermore, we are not responsible for
any damage that may occur if replacement parts other than SOLO replacement parts, or parts that were
not authorized by SOLO, have been used. In addition we are not liable for any damage that may occur if
repair work was performed by any source other than the Customer Service or an authorized Service
Center. This liability exclusion applies also to accessories and supplemental parts.

Preparing the equipment for use
ENGLISH 10
7. Preparing the equipment for use
7.1 Assembly
Your lawnmower will be ready for use in only a few
steps.
Securing the handle:

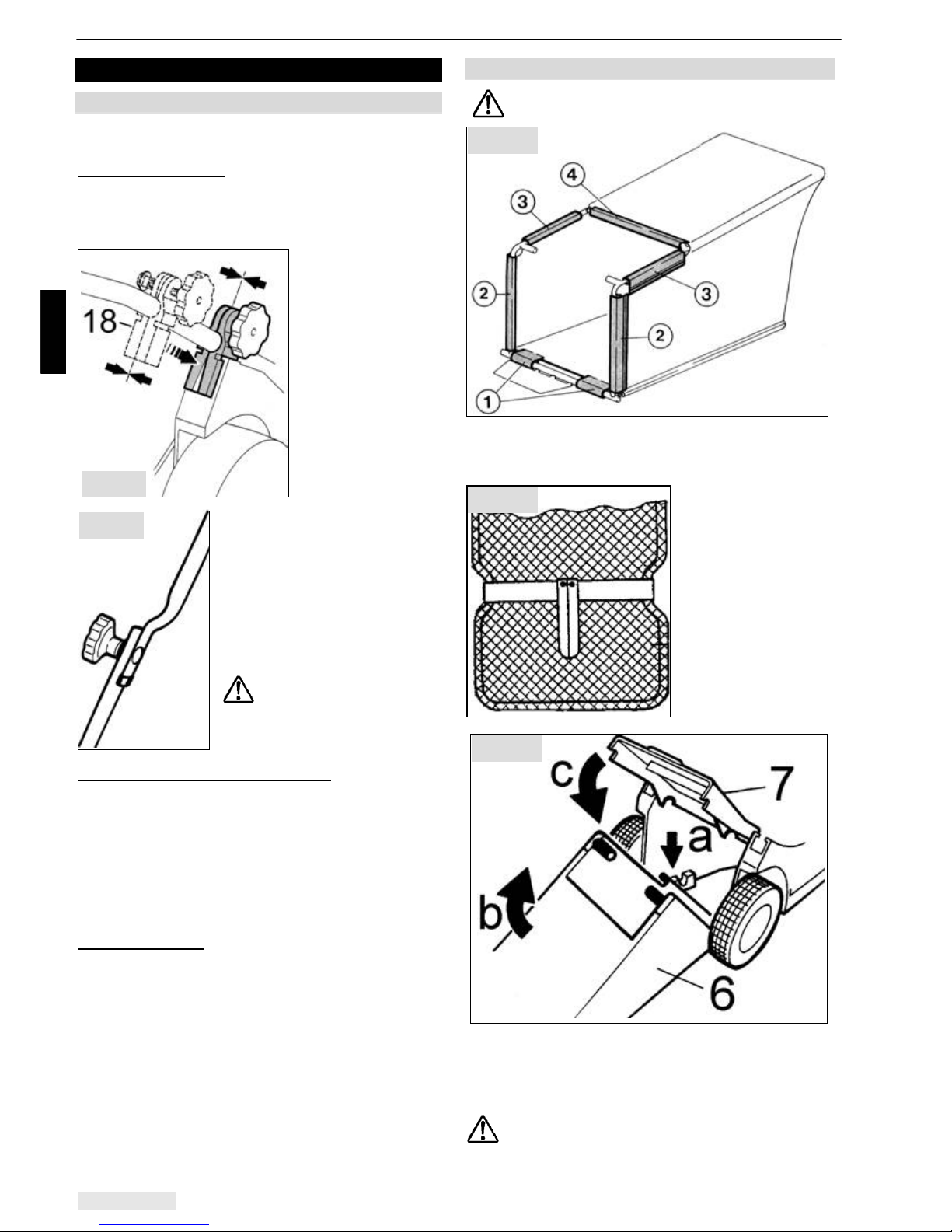

The lower handle part is secured with handle pins
(8) and firmly held in place by the clamping block
(18) in the mower housing.
Loosen both star
handles M8 and
insert the clamping
block into the
mower housing
until flush. Tighten
the star handles.
Connect the upper handle with
the lower handle and secure
on both sides with coach bolts
8x45 and washers 8.4 mm
dia.. Tighten with star handles
on the inside of the handle.
Secure both bowden cables
with cable clips to the handle.
Ensure the cables are
free of any sharp bends
and are not damaged.
Placing starter handle in rope guide
Release the engine brake by pushing the brake
lever against the mower handle. Slowly pull the
starter handle and rest handle in rope guide on the
upper handle (4).
Note: Take care when folding and unfolding the
handles to ensure that cables are not damaged in
any way.
Folding of Handle
To fold the handle:
•disconnect starter rope from rope guide (4),
•loosen both clamping blocks with star handles
and pull out from mower housing,
•place lower handle to the rear of the mower,
•loosen handles (15) and
•fold upper handle towards the front.
7.2 Grass Catching Device
Install and remove catcher only with stopped
engine!
Pull the catcher over the frame and attach plastic
retaining flaps in the sequence 1-2-3-4 to the
frame.
Squeeze the upper
frame of the catcher
to allow the carrying
bracket to be fitted.
To fit the catcher (6), lift the rear flap (7), rest the
catcher frame on the lower guide of the mower
housing (a) , lift catcher upwards (b) until the
catcher completely locks in the discharge flap (c).
The discharge chute de.ector (7) is designed
for your personal safety. The de.ector must
Fig. 3b
Fig. 2a
Fig. 2b
Fig. 4
Fig. 3a
